Dorel DL3514 User manual

Model Number: UPC Code: Color:
DL3514
0-65857-15762-8 ESPRESSO
DL3514-BK
0-65857-20342-4 BLACK
Date of Purchase: _____ / _____ / _____ Lot Number:
(located on carton)
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
COUNTER HEIGHT DESK
Congratulations on your latest furniture purchase! Dorel Living furniture has been
developed with quality, convenience and style in mind. We trust it will provide you with
many years of exceptional comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new
furniture piece by taking a few minutes to go through this booklet. It contains important
information on our warranty and care tips to keep your furniture looking as good as new.
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page
and Instagram page.
Questions, concerns, missing parts? Customer satisfaction is important to us at Dorel
Asia. CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING
PRODUCT TO THE RETAILER.
Our agents are available Monday to Friday 8am to 5pm (EST) to take your call and
answer any questions. For faster service, always have the model number ready when
contacting us.
toll free #: 1-800-295-1980
You can also reach us by email or by visiting our website and clicking on the Support tab:
[e-mail]

*
*
*
*
*
*
Dust regularly with a soft, lint-free cloth to prevent soil build-up. Do not use any abrasives that
may damage finish. Excessive exposure to sunlight and extreme changes in temperature and
moisture can damagewood furniture.
Check all bolts, screws and fasteners periodically and tighten them if necessary.
1-YEAR LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to
remedy any such defect. This warranty covers 1 year from the date of original purchase from
authorized retailers. This warranty is valid only upon presentation of proof of purchase. This is
solely limited to the repair or replacement of defective furniture components and no assembly
labor is included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
The warranty does not cover wearing, tearing, fading or splitting of the fabric (where
applicable). This warranty gives you specific legal rights and you may also have other rights
which vary from State to State or Province to Province.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
Assembly may require two people.
Estimated assembly time: 45 minutes.
CARE, CLEANING AND MAINTENANCE
NOTES
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to the product finish.
DO NOT use power tools.
CAUTION: Adult assembly required.
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product
model number, color and a detailed description of your enquiry.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1

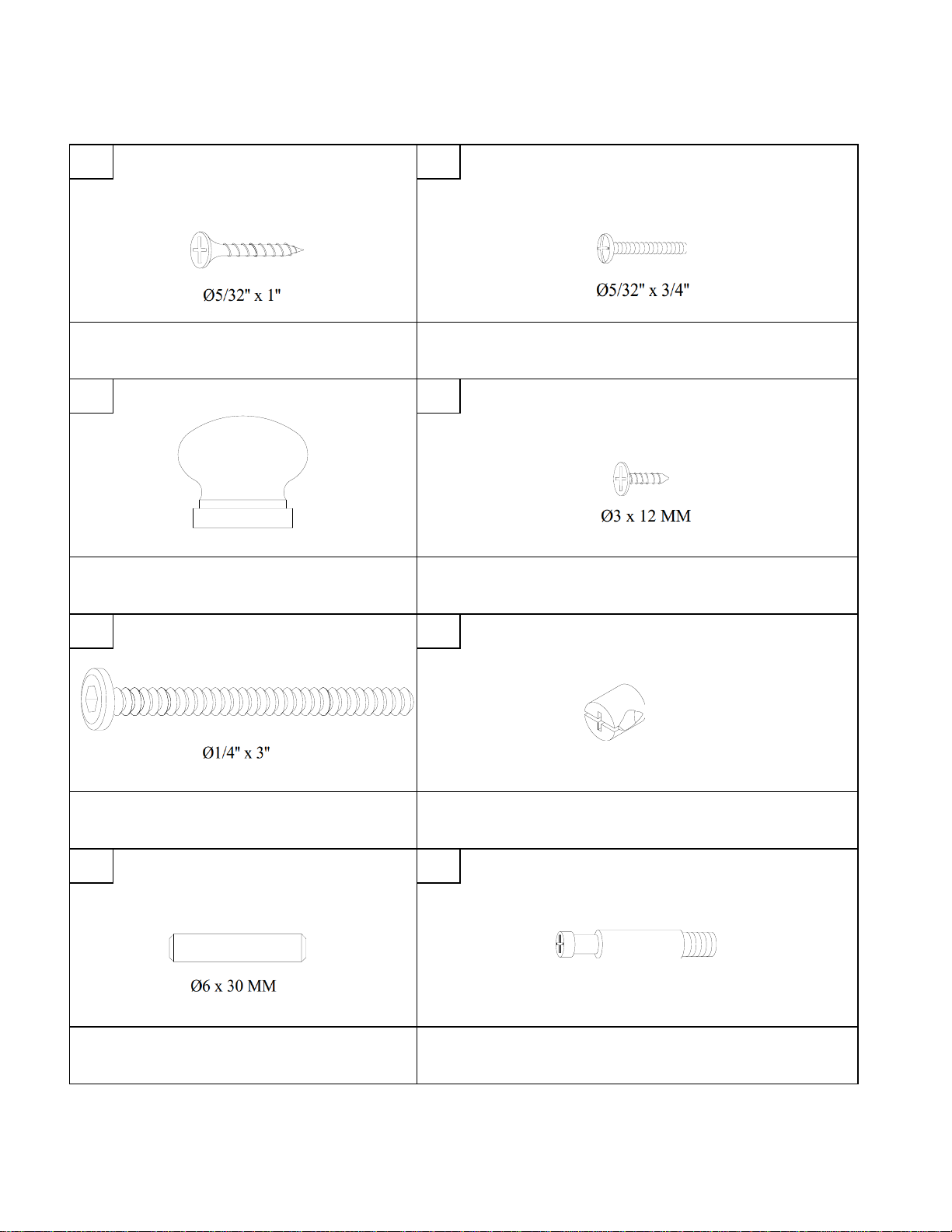

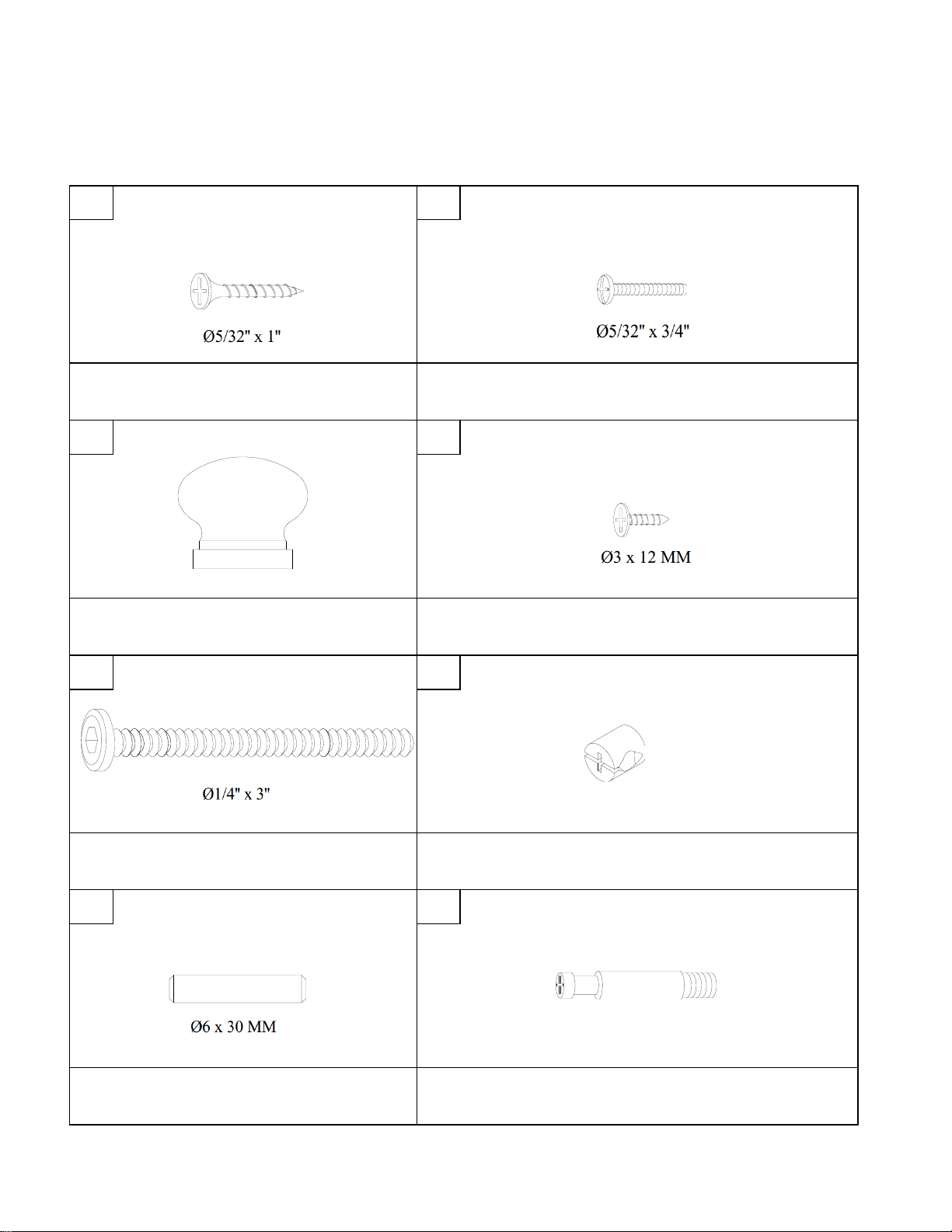

HARDWARE LIST
1 2
3 4
5 6
7 8
28PCS
6PCS
26PCS
26PCS
WOOD DOWEL
CAM BOLT
2PCS
12PCS
HEX SOCKET HEAD BOLT
BARREL NUT
16PCS
2PCS
KNOB
FLAT HEAD SCREW
COUNTER HEIGHT DESK
DL3514 / DL3514-BK
FLAT HEAD SCREW
ROUND HEAD BOLT

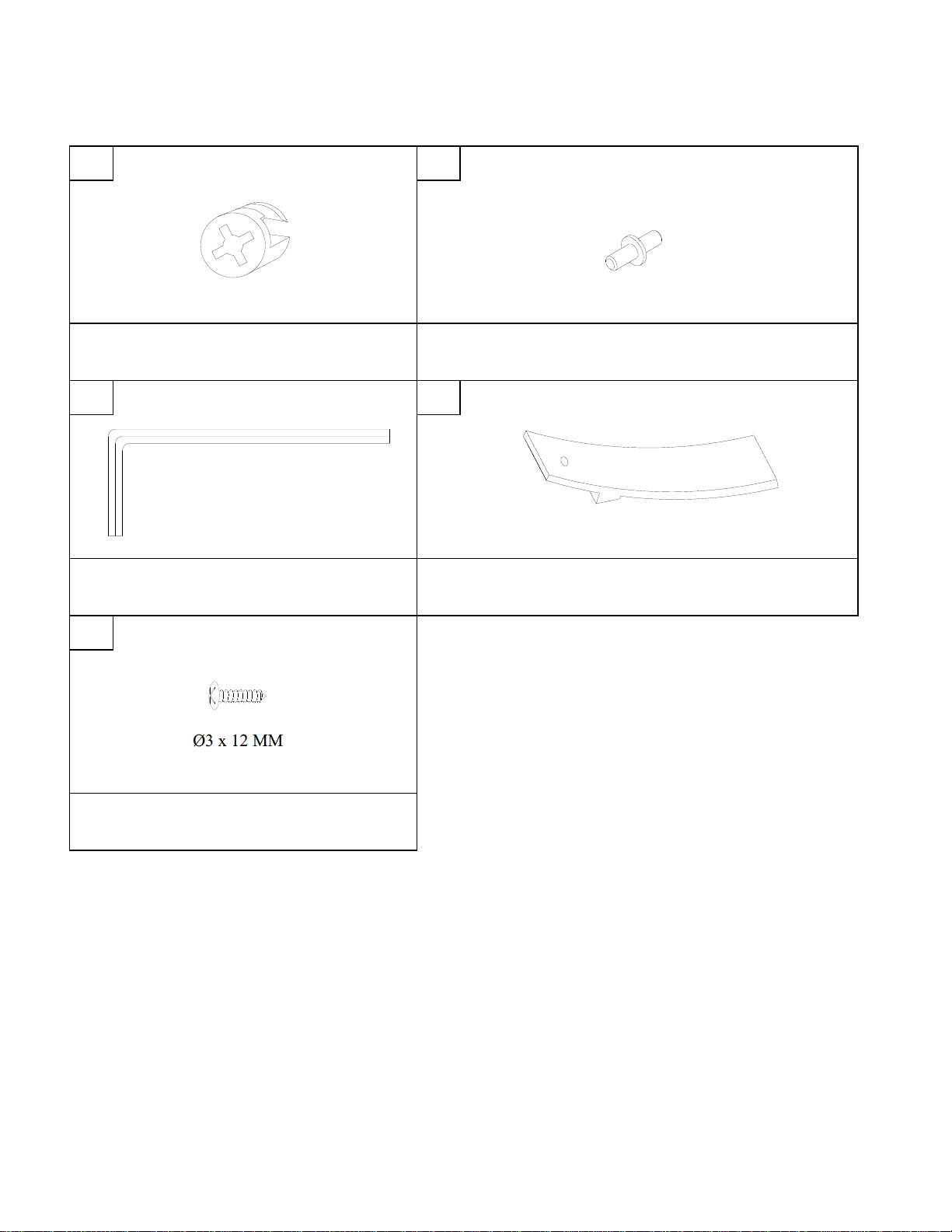

HARDWARE LIST
910
11 12
13
2PCS
1PC
2PCS
ROUND HEAD SCREW
ALLEN KEY
DRAWER STOPPER
CAM LOCK
SHELF SUPPORT
6PCS
4PCS
COUNTER HEIGHT DESK
DL3514 / DL3514-BK

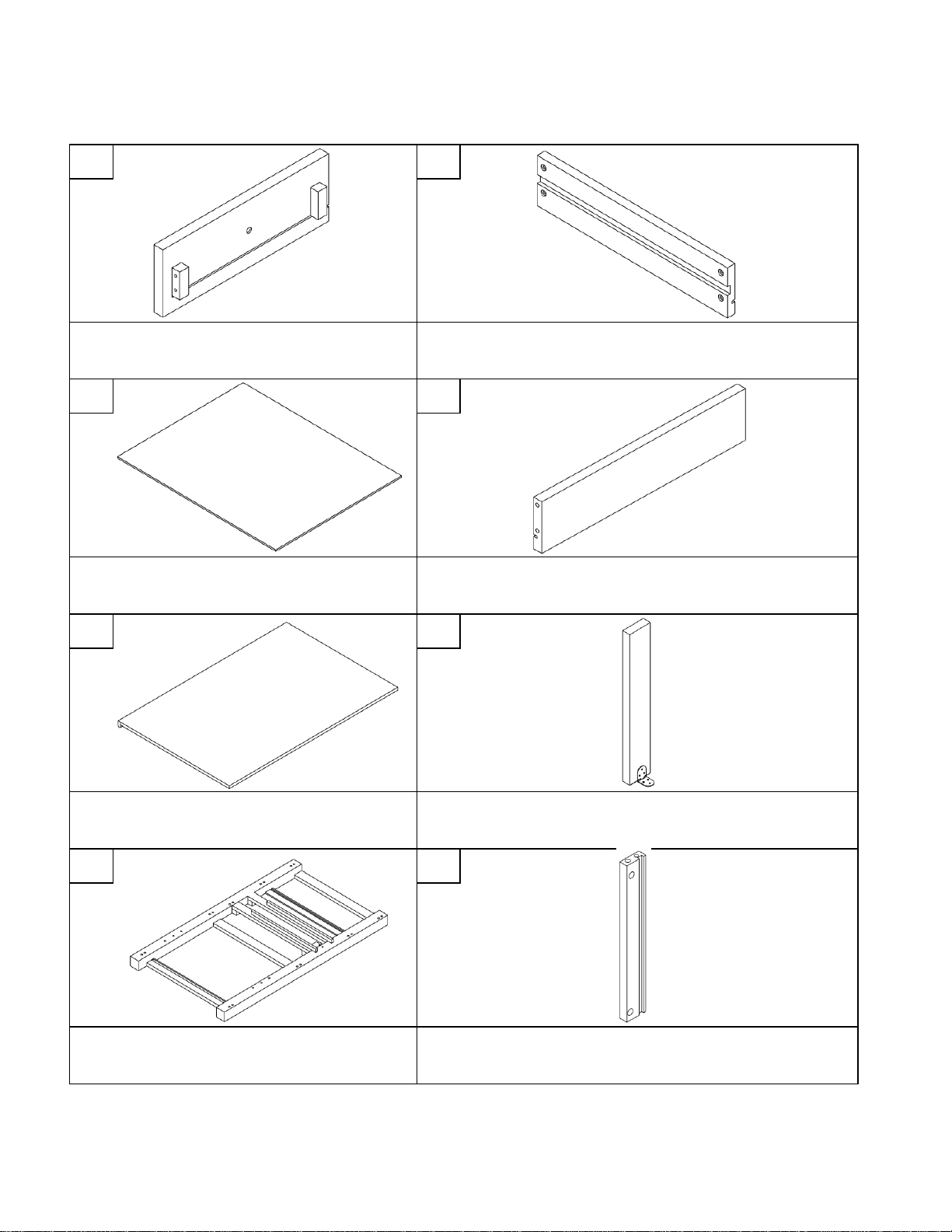

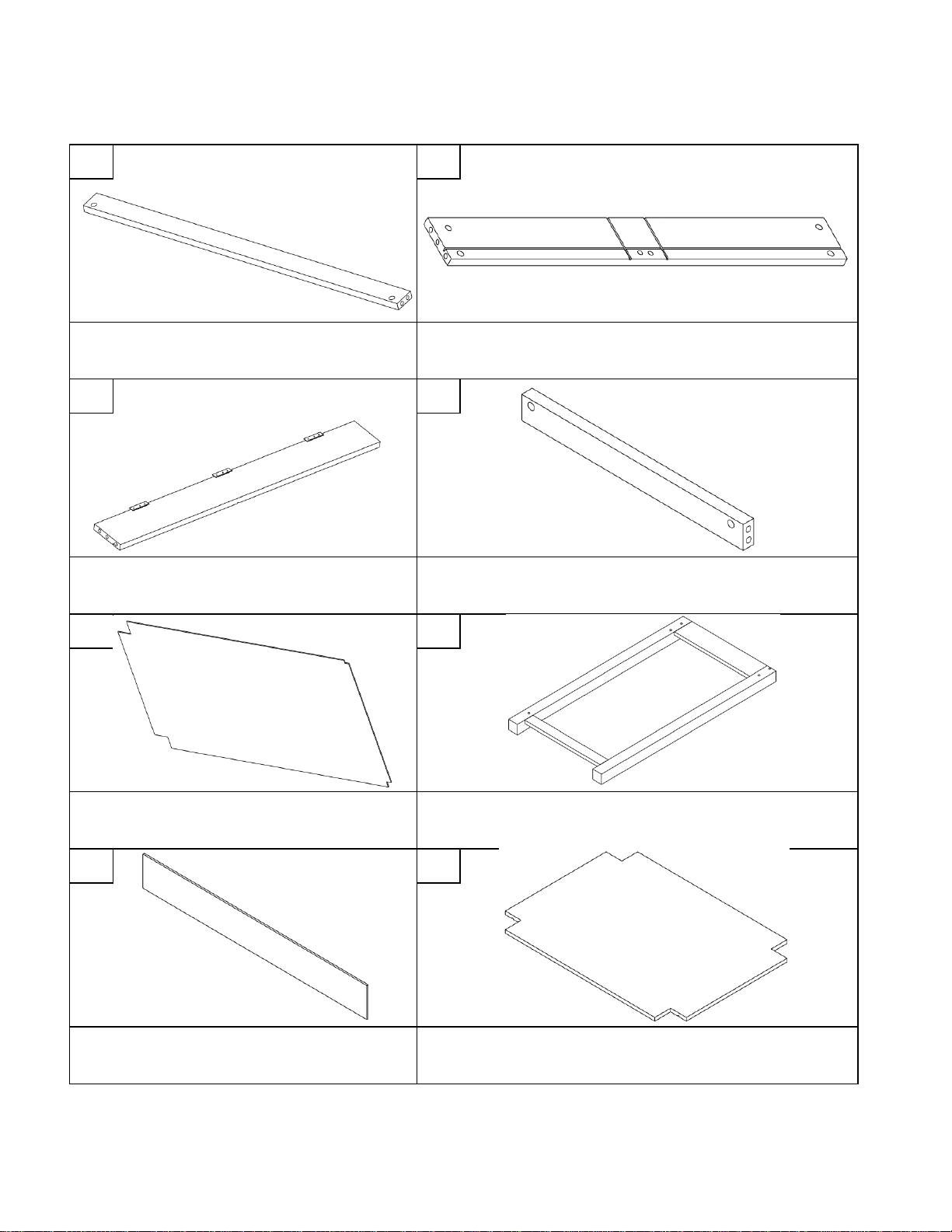

PARTS LIST
A B
C D
E F
G H
RIGHT SIDE PANEL
RAIL
TOP PANEL
SUPPORT RAIL
1PC
1PC
1PC
3PCS
2PCS
2PCS
2PCS
4PCS
COUNTER HEIGHT DESK
DL3514 / DL3514-BK
DRAWER BOTTOM
DRAWER BACK
DRAWER FRONT
DRAWER SIDE

PARTS LIST
I J
K L
M N
O P
1PC
1PC
DIVIDER PANEL
SMALL TOP PANEL
1PC
1PC
SHELF
BACK PANEL
2PCS
1PC
1PC
BACK PANEL LOWER RAIL
DRAWER MIDDLE RAIL
DL3514 / DL3514-BK
COUNTER HEIGHT DESK
RAIL
BACK PANEL UPPER RAIL
3PCS

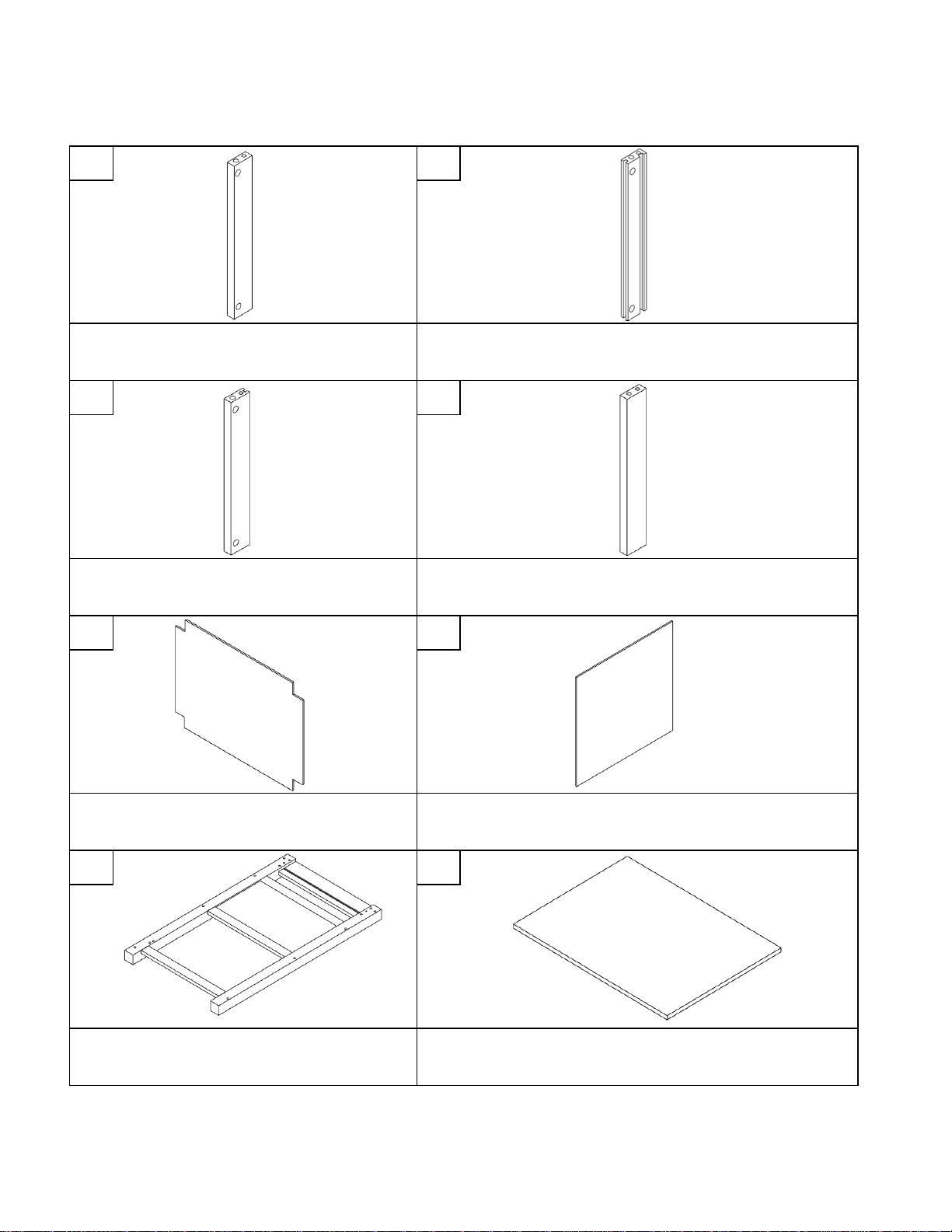

PARTS LIST
Q R
S T
U V
W X
1PC
1PC
LEFT FRONT UPPER RAIL
LEFT CENTER RAIL
1PC
1PC
LEFT SHELF
LEFT SIDE PANEL
DIVIDER
ADJUSTABLE SHELF
2PCS
1PC
COUNTER HEIGHT DESK
DL3514 / DL3514-BK
LEFT LOWER RAIL
LEFT BACK UPPER RAIL
1PC
1PC

3
COUNTER HEIGHT DESK
DL3514 / DL3514-BK

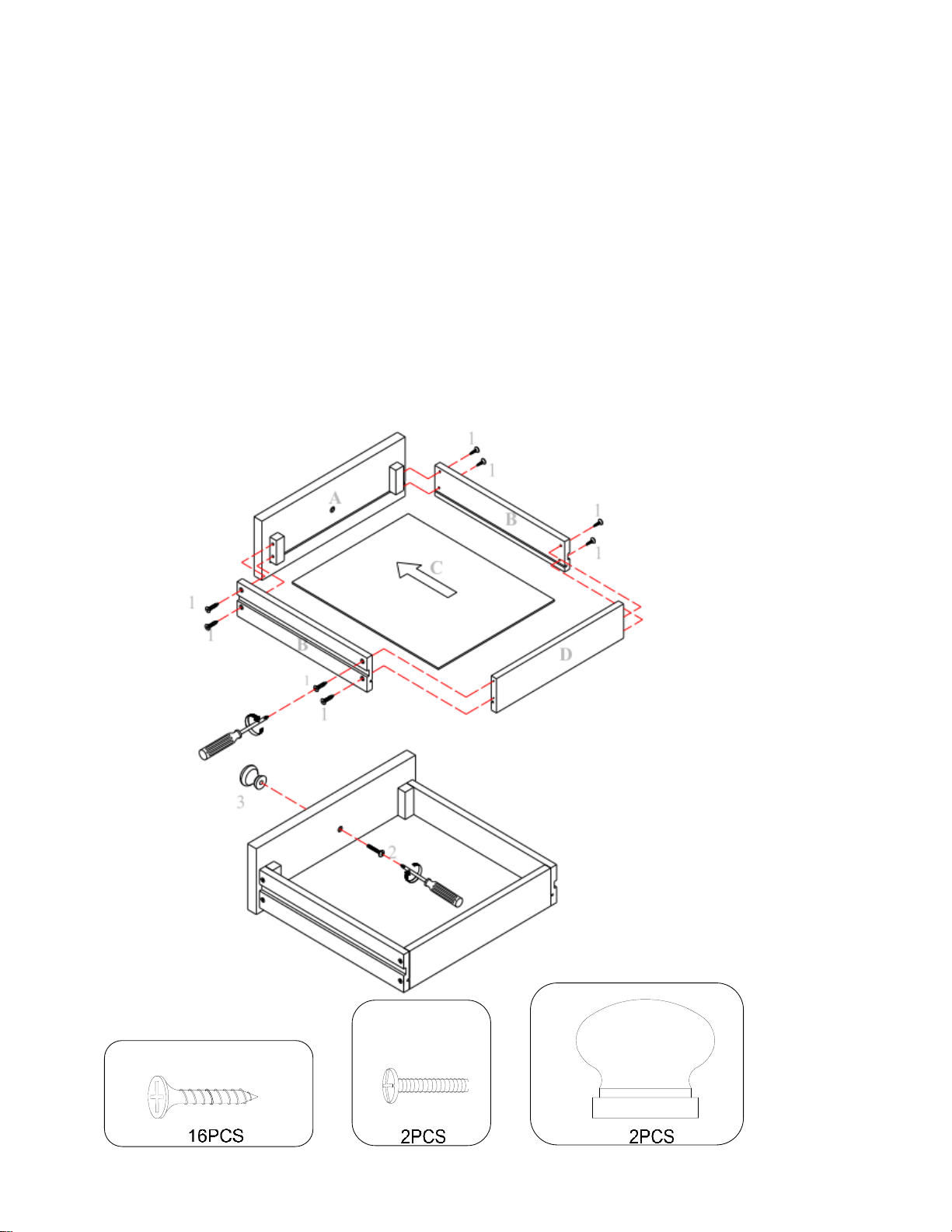

STEP 1.
Attach drawer sides (B) to drawer front (A) with flat head screws (1).
Slide drawer bottom (C) into the grooves of the drawer sides (B) and drawer front (A).
Attach drawer back (D) to drawer sides (B) with flat head screws (1).
Attach knob (3) to drawer front (A) with round head bolt (2).
Use a Phillips head screw driver (not included) to tighten all flat head screws (1) and
round head
bolts (2).
NOTE: Repeat this step to assemble the other drawer.
1
2

COUNTER HEIGHT DESK
DL3514 / DL3514-BK

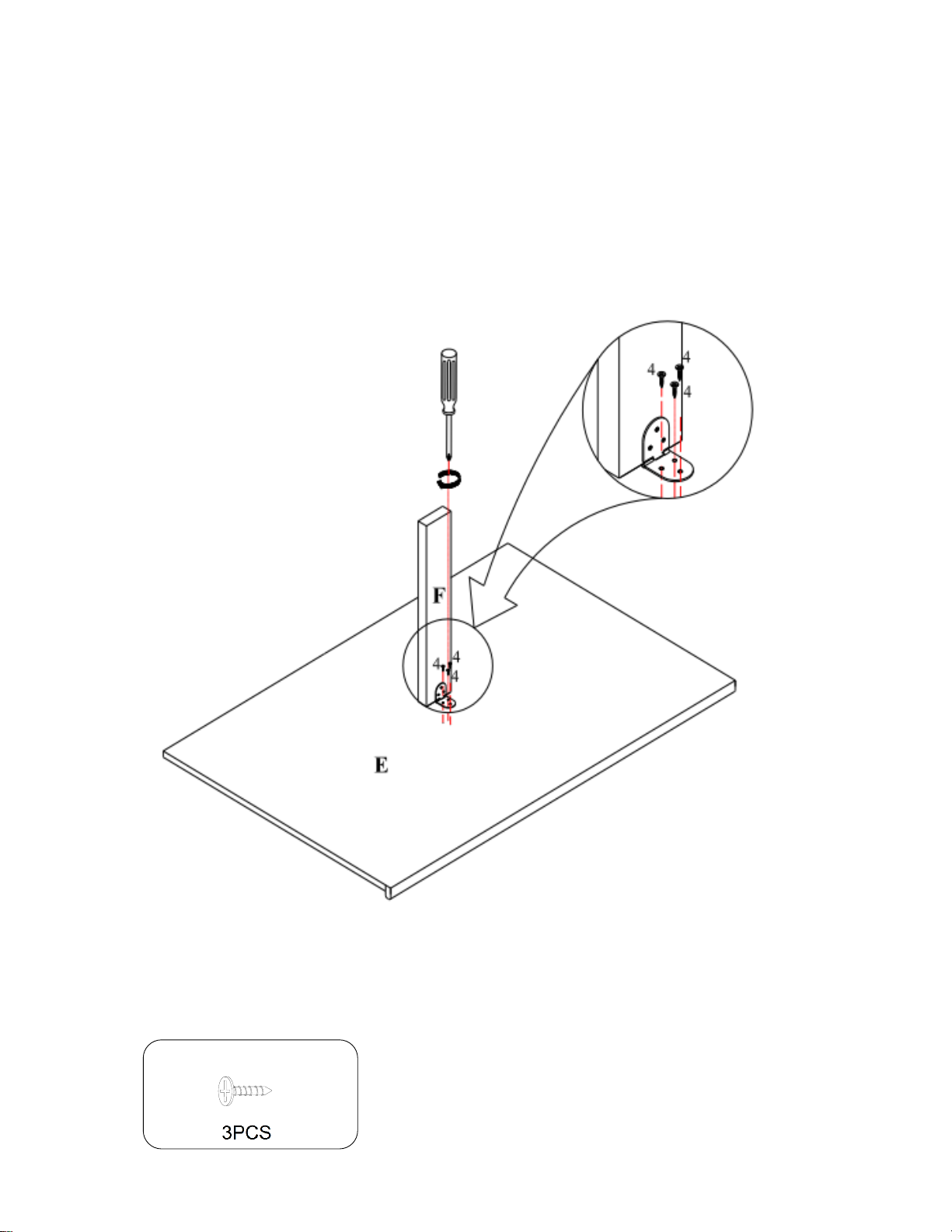

STEP 2.
Attach support rail (F) to the top panel (E) with flat head screws (4).
Use a Phillips head screw driver (not included) to tighten the screws.
4

COUNTER HEIGHT DESK
DL3514 / DL3514-BK

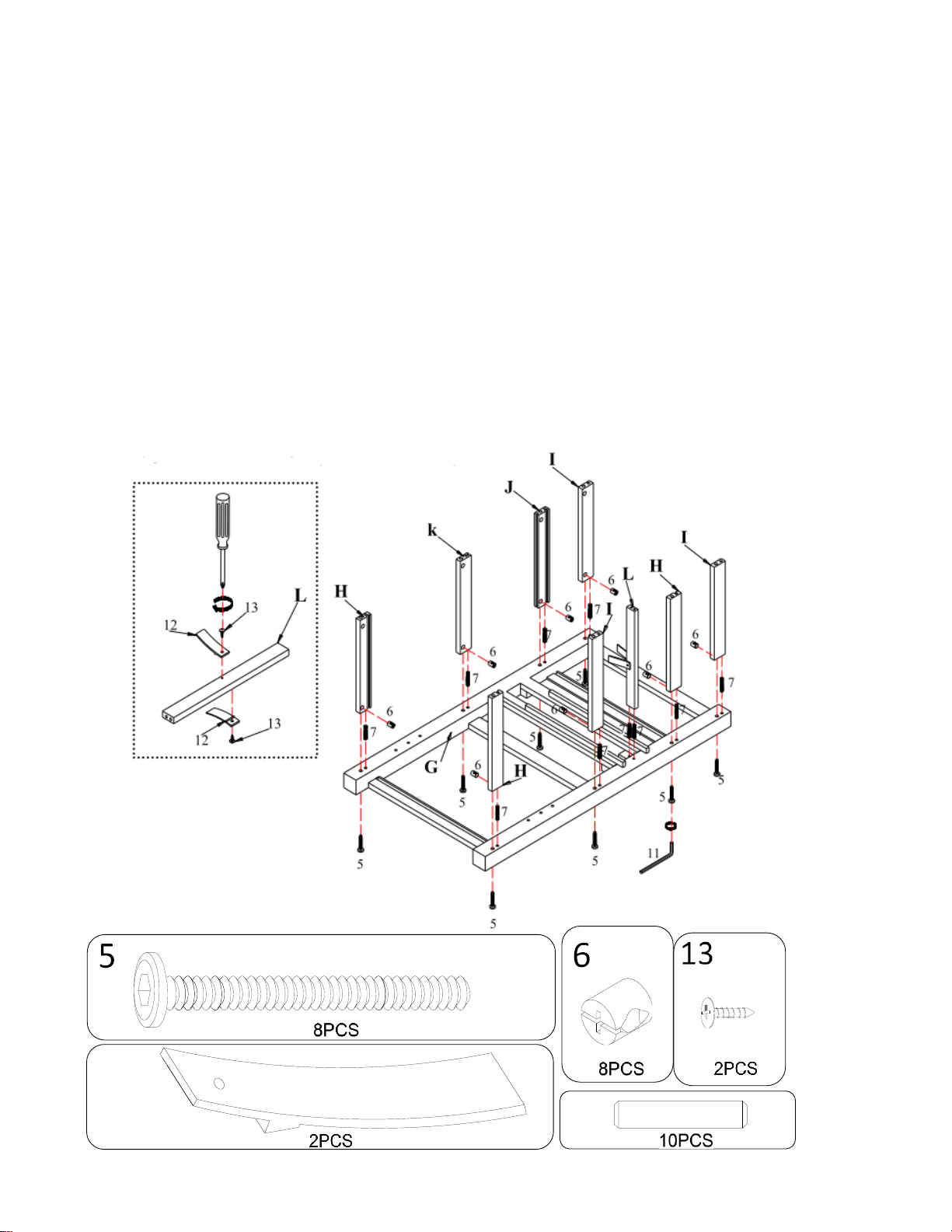

STEP 3.
Insert wood dowels (7) into right side panel (G) as shown below.
Insert barrel nuts (6) into rails (H & I), back panel upper rail (J) and back panel lower rail
(K) as shown below.
Attach rails (H & I), back panel upper rail (J) and back panel lower rail (K) to right side
panel (G) with hex socket head bolts (5). Use Allen key (11) to tighten bolts.
Attach drawer stoppers (12) to drawer middle rail (L) with round head screws (13) using
Phillips head screw driver (not included)
Attach drawer middle rail (L) to right side panel (G).
12
7

COUNTER HEIGHT DESK
DL3514 / DL3514-BK

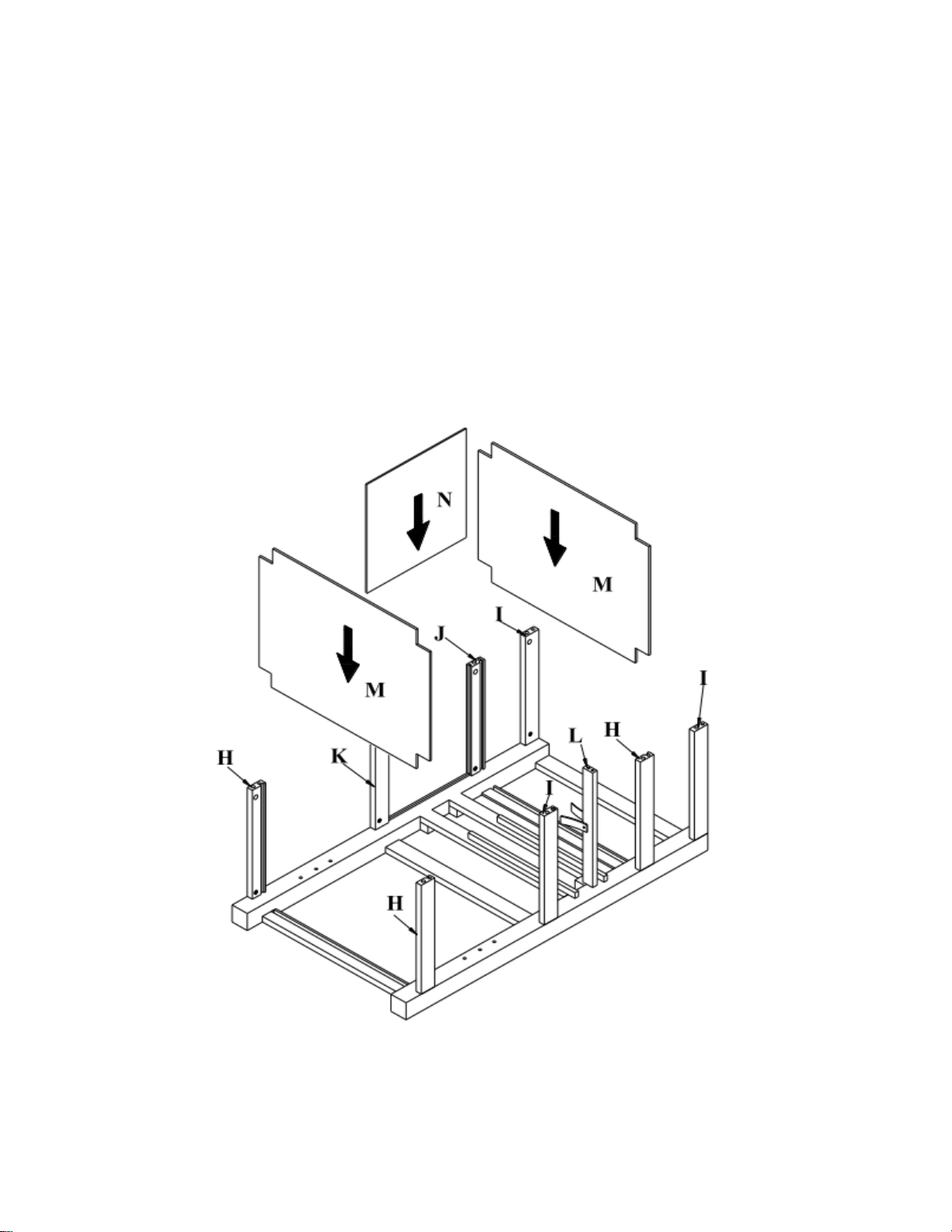

STEP 4.
Insert one shelf (M) into the grooves of rails (H) as shown below.
Insert another shelf (M) into the grooves of rail (H) and back panel upper rail
(J) as shown below.
Insert the back panel (N) into the grooves of back panel upper rail (J) and
back panel lower rail (K) as shown below.

COUNTER HEIGHT DESK
DL3514 / DL3514-BK

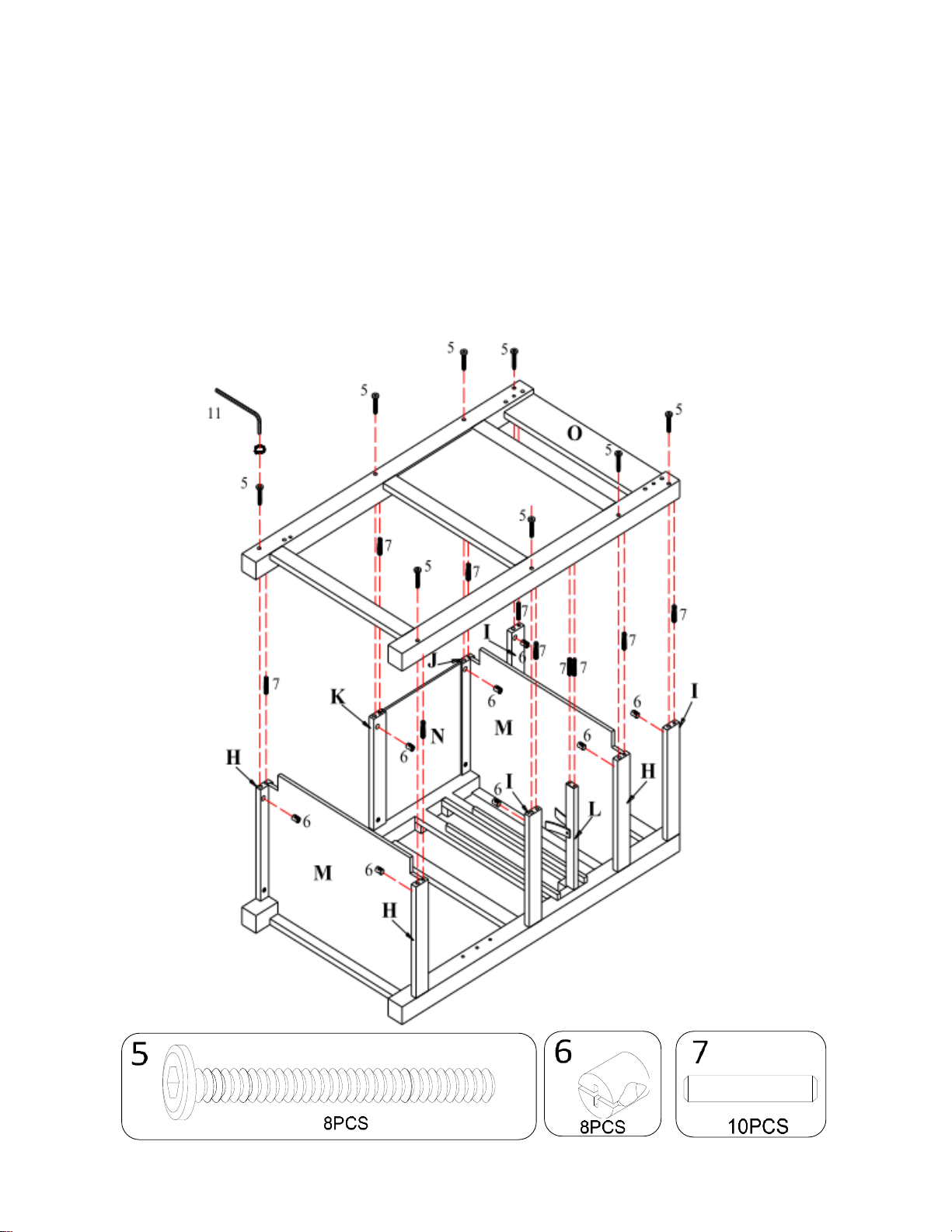

STEP 5.
Insert wood dowels (7) and barrel nuts (6) into rails (H & I), back panel
upper rail (J), back panel lower rail (K) and drawer middle rail (L) as shown
below.
Attach divider panel (O) to the assembled unit with hex socket head bolts
(5) as shown below. Use Allen key (11) to tighten bolts.

COUNTER HEIGHT DESK
DL3514 / DL3514-BK

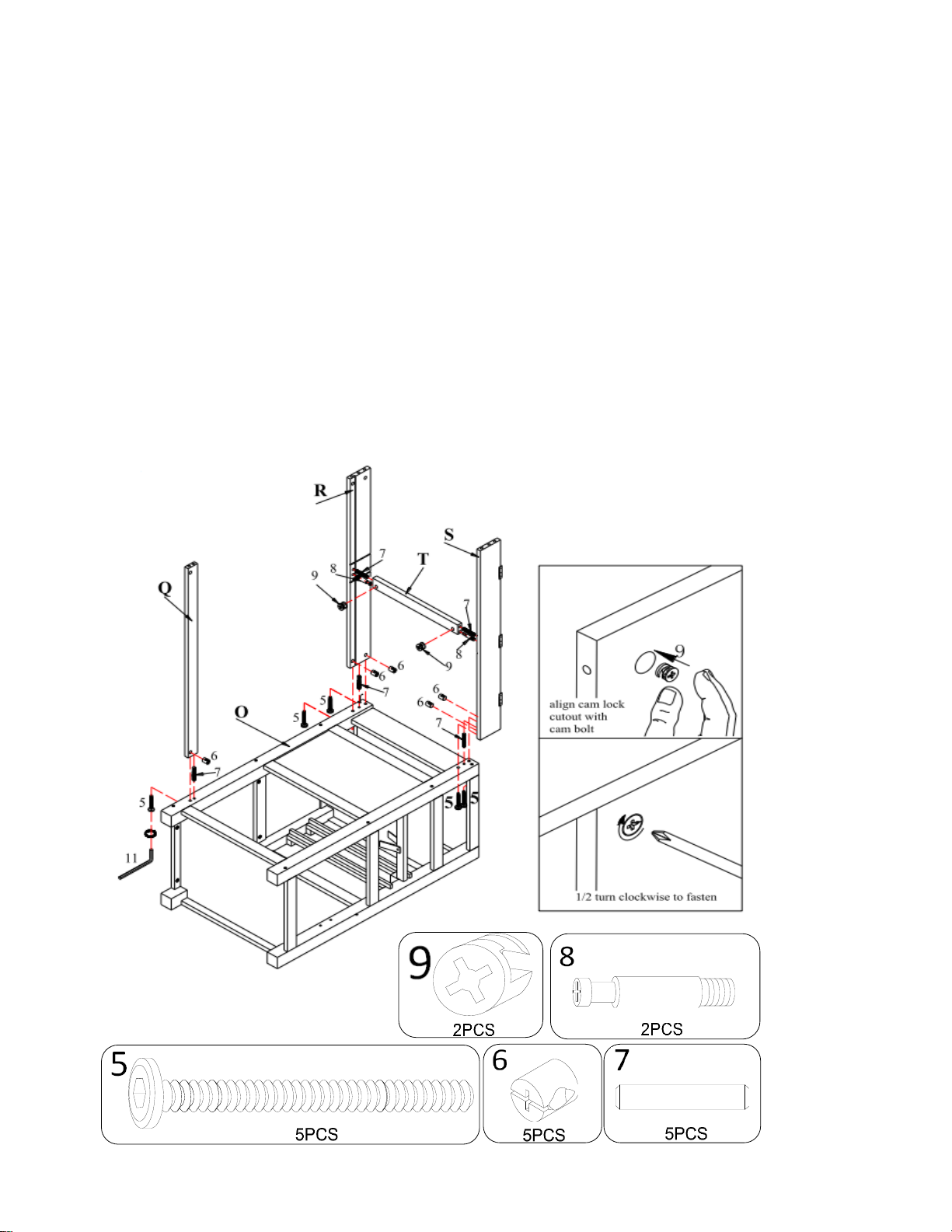

STEP 6.
Insert cam bolts (8) into the correct hole of left back upper rail (R) and left front upper rail
(S) as shown below.
Insert cam locks (9) and wood dowels (7) into the correct hole of left center rail (T) as
shown below.
Fasten left center rail (T) to left back upper rail (R) and left front upper rail (S) by rotating
cam locks (9) 1/2 turn clockwise.
Insert wood dowels (7) into the correct hole of divider panel (O).
Insert barrel nuts (6) into the correct hole of left lower rail (Q), left back upper rail (R) and
left front upper rail (S) as shown below.
Attach left lower rail (Q), left back upper rail (R) and left front upper rail (S) to divider panel
(O) with hex socket head bolts (5).
Use Allen key (11) to tighten bolts.

COUNTER HEIGHT DESK
DL3514 / DL3514-BK

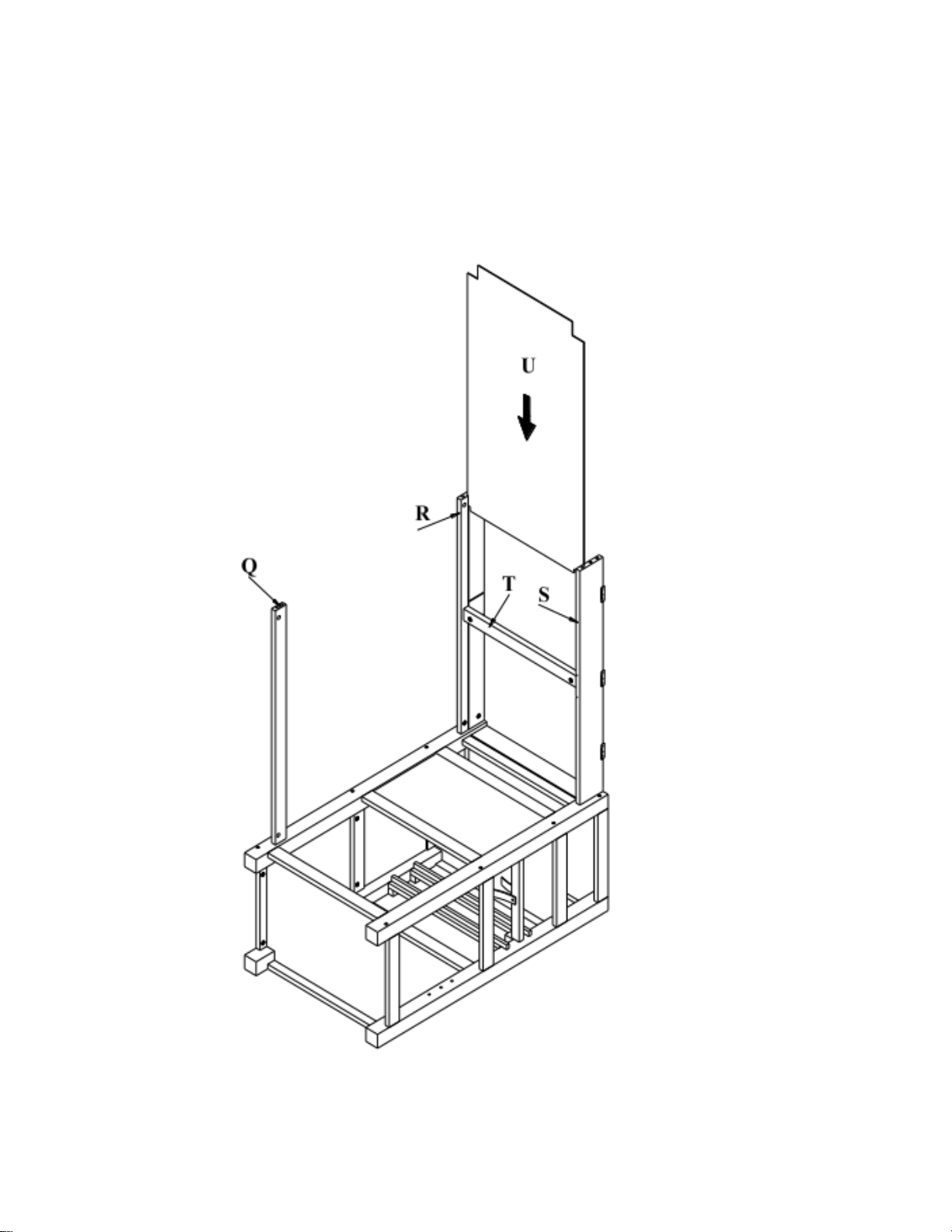

STEP 7.
Insert left shelf (U) into the grooves of left back upper rail (R) and left front
upper rail (S).

COUNTER HEIGHT DESK
DL3514 / DL3514-BK

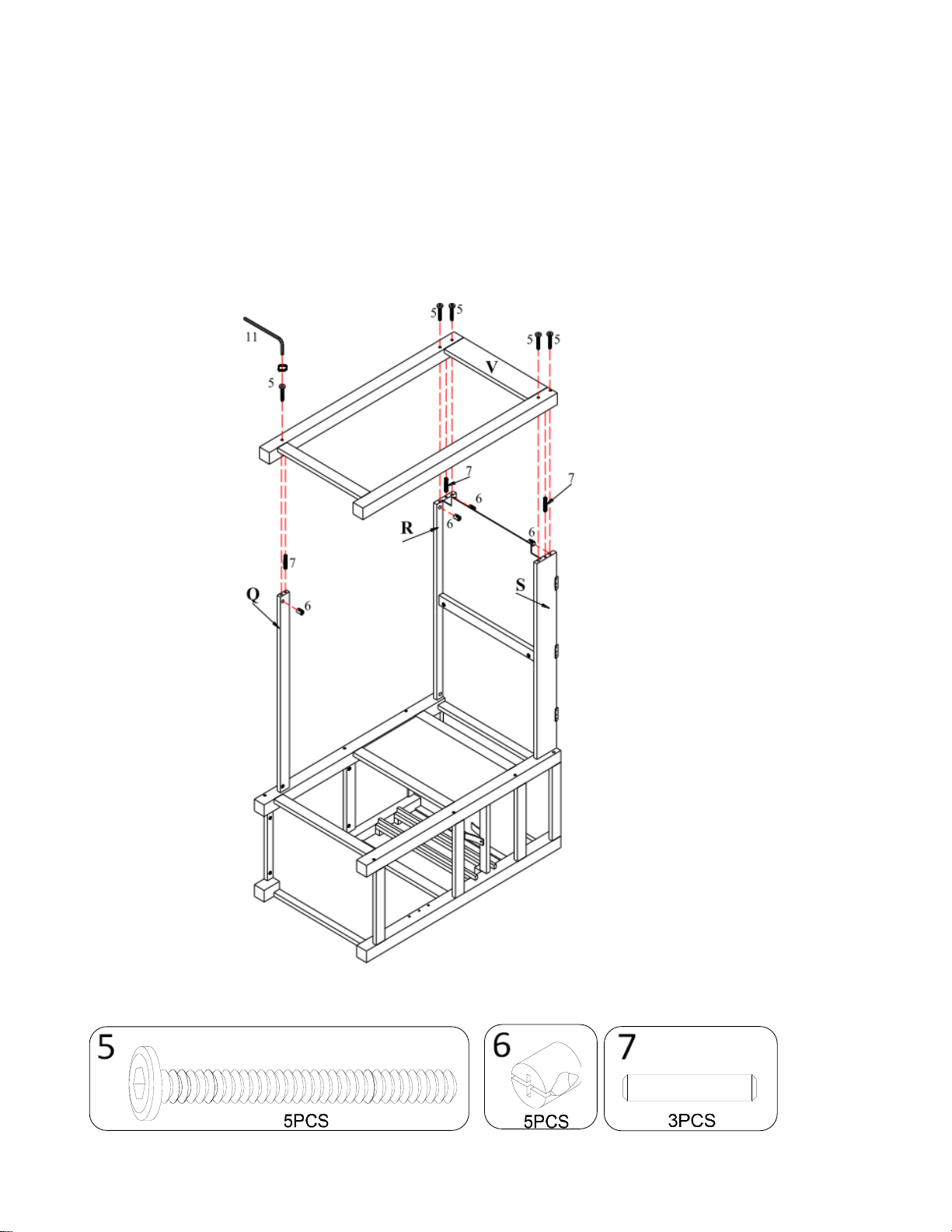

STEP 8.
Insert wood dowels (7) and barrel nuts (6) into the correct hole of left back upper rail
(R), left front upper rail (S) and left lower rail (Q).
Attach left side panel (V) to the assembled unit with hex socket head bolts (5).
Use Allen key (11) to tighten all the bolts.

9
COUNTER HEIGHT DESK
DL3514 / DL3514-BK

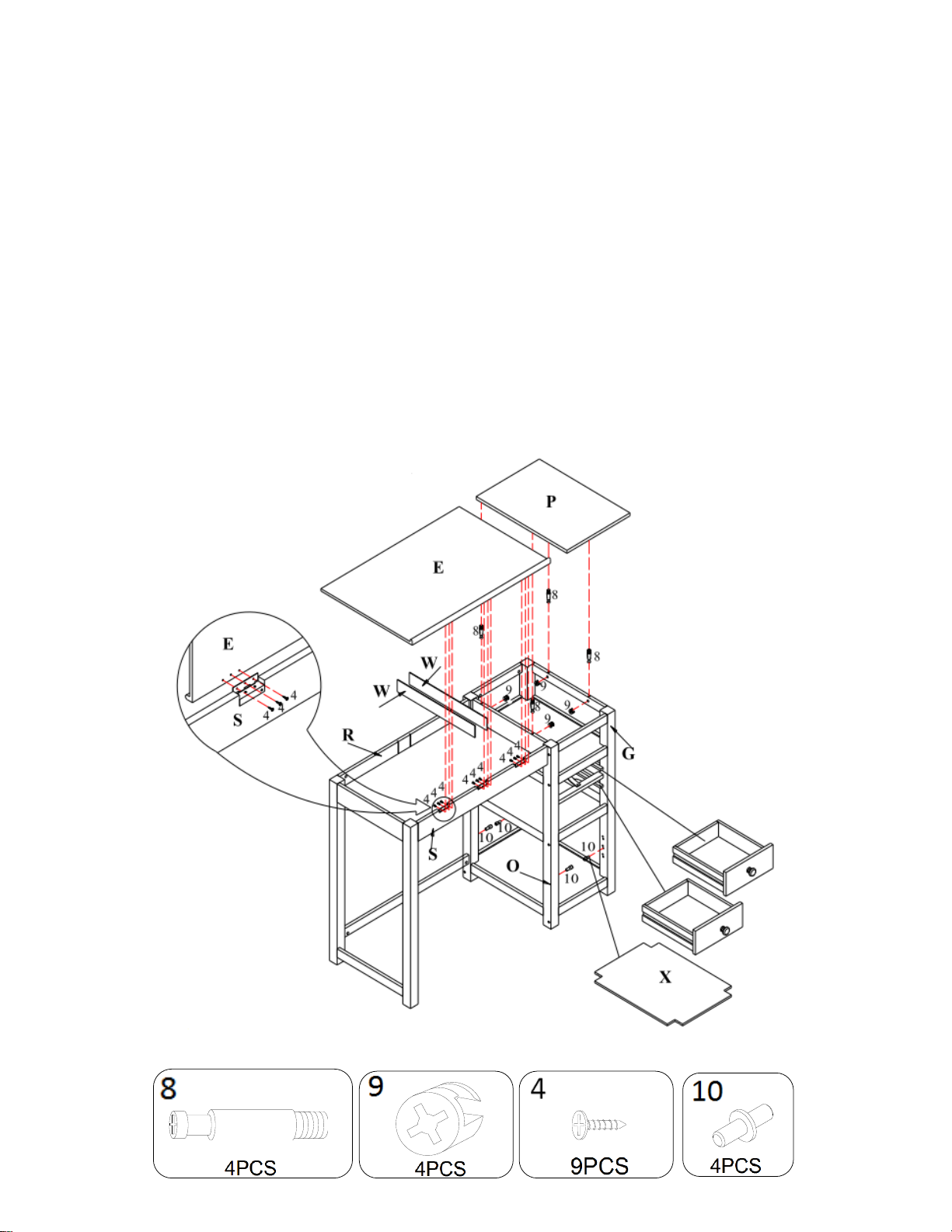

STEP 9.
Insert cam bolts (8) into the correct hole of small top panel (P).
Insert cam locks (9) into the correct hole of right side panel (G) and divider panel
(O).
Fasten small top panel (P) to right side panel (G) and divider panel (O) by
rotating cam locks (9) 1/2 turn clockwise.
Insert dividers (W) into the grooves of left back upper rail (R) and left front upper
rail (S) as shown below.
Attach top panel (E) to left front upper rail (S) with flat head screws (4) using a
Phillips head screw driver (not included)
Insert shelf supports (10) into the right side panel (G) and divider panel (O).
Place adjustable shelf (X) on top of the shelf supports (10).
Insert the two drawers into the unit.

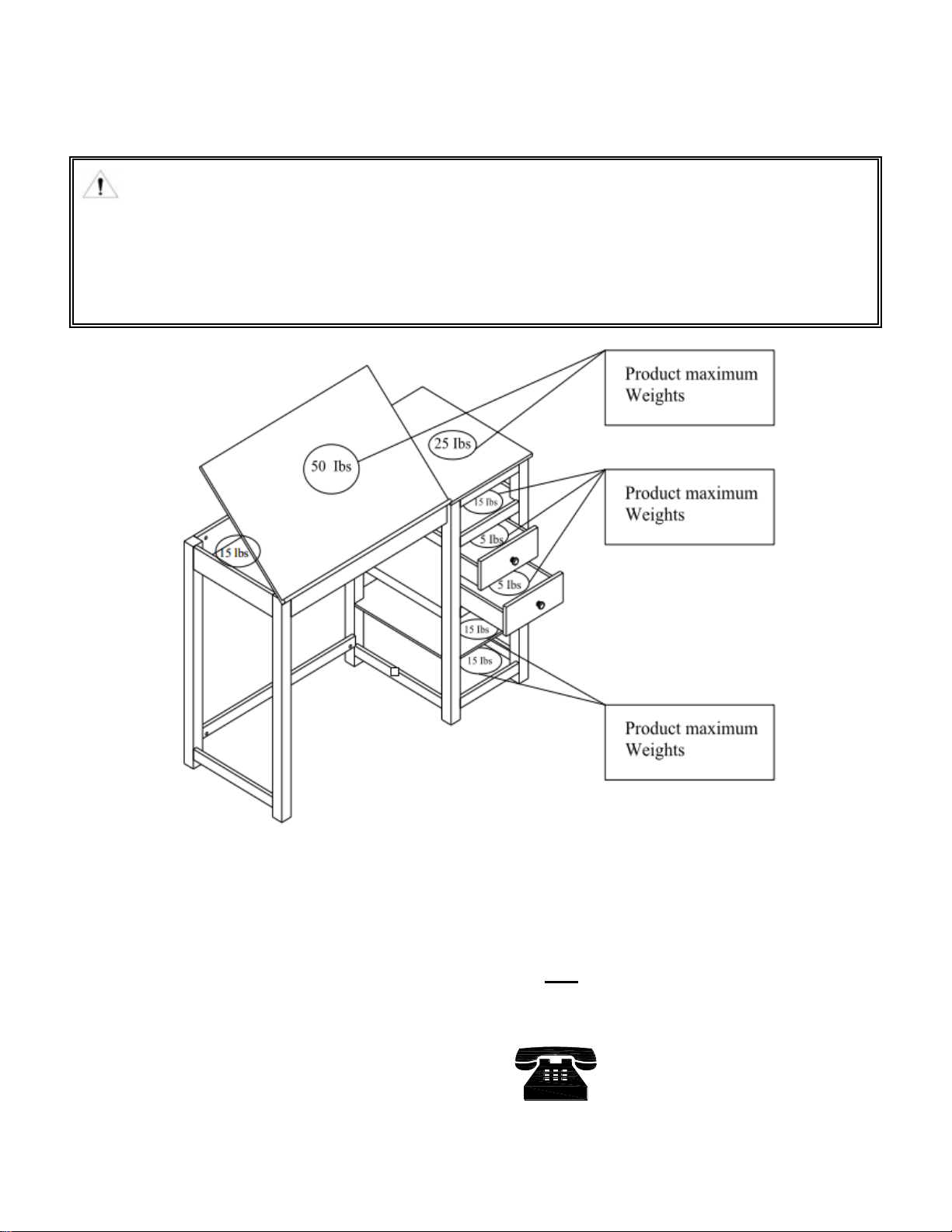

CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
That's it! You've finished assembling your counter height desk.
COUNTER HEIGHT DESK
DL3514 / DL3514-BK
DO NOT RETURN PRODUCT TO THE RETAILER
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

Modelo No: CODIGO UPC: Color:
DL3514
0-65857-15762-8 EXPRESSO
DL3514-BK
0-65857-20342-4 NEGRO
Fecha de compra: _____ / _____ / _____ Número de lote:
(tomado del cartón)
ESCRITORIO ALTO
Para obtener más ideas de muebles inspirantes, visite nuestro sitio web en www.dorelliving.com
También puede mantenerse informado de todas las últimas tendencias suscribiéndose a nuestra página
en Facebook e Instagram.
NOTA: ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN DE SEGURIDAD
IMPORTANTE. POR FAVOR, LÉALO Y CONSÉRVELO PARA CONSULTARLO EN EL FUTURO.
¡Felicitaciones por su nueva compra de un mueble! Los muebles de la línea Dorel Living han sido
diseñados con la calidad, la comodidad y el estilo en mente. Estamos seguros de que este mueble le
servirá por muchos años con su comodidad excepcional.
Le recomendamos que antes de comenzar a armarlo se familiarice con su nueva compra y tome unos
minutos de su tiempo para leer este manual. Contiene información importante sobre nuestra garantía y
consejos de cuidados para que su mueble siempre conserve su apariencia de nuevo.
Preguntas, inquietudes, partes que faltan? La satisfacción del cliente es importante para nosotros en
Dorel Asia. CONTACTE NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE
DEVOLVER EL PRODUCTO A LA TIENDA.
Nuestros agentes están disponibles de lunes a viernes de 8 a.m. a 5 p.m. (EST) para atender su llamada
y responder a cualquier pregunta. Para un servicio más rápido, siempre tenga listo el número de modelo
al contactarnos. Nuestro número gratuito es: 1-800-295-1980
También puede comunicarse con nosotros por correo electrónico o visitando nuestro sitio web haciendo
clic en los enlaces de soporte:
[email protected]
www.dorelliving.com

*
*
*
*
*
*
*
Quítele el polvo regularmente con un paño suave y seco, para evitar que la suciedad se
acumule.No remojar ni lavar en agua caliente. Limpie con un paño suave y húmedo si es
necesario. No use abrasivos, limpiadores o productos para pulir.
Revise todos los pernos, tornillos y sujetadores periódicamente y apriételos si es necesario.
GARANTÍA LIMITADA DE 1 AÑO
ADVERTENCIA: Si este producto está dañado y/o ciertas piezas
faltan o están rotas, NO LO USE.
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se
compromete a remediar cualquier defecto de este tipo. Esta garantía cubre 1 año a partir de la fecha
de compra original. Esta garantía es válida solamente con presentación de una prueba de compra.
Esto se limita a la reparación o reemplazo de componentes defectuosos del mueble y no se incluye
ningún trabajo de ensamblaje. Esta garantía no se aplica a ningún producto que haya sido mal
ensamblado, sujeto a mal uso o abuso, o que haya sido alterado o reparado de cualquier manera.
Cualquier uso, rotura o pérdida de color de la tela no están incluidos en esta garantía (donde
corresponda). Esta garantía le da derechos legales específicas y usted puede también tener otros
derechos que varían de estado a estado o de provincia a provincia.
PRECAUCIÓN: El producto debe ser armado por un adulto.
Pueden necesitarse dos personas para armar el producto.
Tiempo estimado para armar el producto: 45 minutos.
CUIDADO, LIMPIEZA Y MANTENIMIENTO
NOTAS E INSTALACIÓN
Asegúrese de tener todas las piezas y componentes antes de comenzar a armarla.
Ármela sobre superficies limpias y blandas para evitar dañar el pulido del producto.
Lea todas las instrucciones antes de usar el producto.
NO use herramientas eléctricas.
SERVICIO AL CLIENTE
También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya
el número de modelo del producto, el color y una descripción detallada de su pregunta.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1

LISTA DE TORNILLOS Y ACCESORIOS
1 2
3 4
5 6
7 8
28 PCS
6 PCS
26 PCS
26 PCS
TARUGOS DE MADERA
PERNOS DE LEVA DE FIJACION
2 PCS
12 PCS
PERNOS DE CABEZA HEXAGONAL
TUERCAS BARRILETE
16 PCS
2 PCS
POMO
TORNILLOS DE CABEZA PLANA
ESCRITORIO ALTO
DL3514 / DL3514-BK
TORNILLOS DE CABEZA PLANA
PERNOS DE CABEZA REDONDA
