Dorel DA8243 User manual

Model No:
DA8243
DA8243-GR
0-65857-18884-4
0-65857-18883-7
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
_______ / _______ / _______
Lot number:
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
PUSHBACK RECLINER
INSTRUCTION MANUAL
UPC CODE:
DO NOT RETURN PRODUCT TO THE RETAILER
If a part is missing or damaged, contact our customer service
department. We will replace the part
FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

DO NOT leave children unattended on or beside the recliner.
DO NOT use your recliner as a step stool.
DO NOT sit on the edge of the seat, armrests or on the backrest as this could make the recliner tip over.
*
Ensure that all parts and components are located before beginning assemble.
* Assemble on soft surfaces to prevent damage to the product finish.
* Read all instructions before use of the recliner.
*
Do not use the unit if it is damaged or broken.
*Caution: Adult assembly required.
*Assembly will require 2 people.
*
Estimated assembly time: 5 minutes.
Canada, H1G 3L1
WARNING: Should this product become damaged, and/or components
are broken or missing, DO NOT USE.
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any
such defect. This warranty covers 1 year from the date of original purchase from authorized retailers. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or replacement
of defective furniture components and no assembly labor is included. This warranty does not apply to any
product which has been improperly assembled, subjected to misuse or abuse or which has been altered or
repaired in any way. The warranty does not cover wearing, tearing, fading or splitting of the fabric (where
applicable). This warranty gives you specific legal rights and you may also have other rights which vary from
State to State or Province to Province.
NOTES AND INSTALLATION
CARE, CLEANING AND MAINTENANCE
Dust regularly with a soft, dry cloth to prevent soil build-up. Keep away from heat to avoid glazing, melting
or scorching. Use a professional cleaning service to clean the fabric.
Check all bolts, screws and fasteners periodically and tighten them if necessary.
1-YEAR LIMITED WARRANTY
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product model number,
color and a detailed description of your enquiry.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec

HARDWARE
1 2
3 4
PARTS LIST
A B
C D
FRONT FOOT
BACK FOOT
2 PCS
2 PCS
4 PCS
1 PC
CHAIR BODY
CHAIR BACK
1 PC
1 PC
4 PCS
4PCS
Ø12.5 X 1.2mm
M5 X 120mm
SPRING WASHER
ALLEN KEY
PUSHBACK RECLINER
DA8243/DA8243-GR
Ø5/16" X 90mm
Ø19 X 1.5mm
HEX SOCKET HEAD BOLT
FLAT WASHER
FLAT HEAD SCREW
4 PCS
HEX SOCKET HEAD BOLT
6 PCS
HEX SOCKET HEAD BOLT
4 PCS
ALLEN KEY
1PC
SPRING WASHER
10 PCS
FLAT WASHER
10 PCS
4
13
2
56
HARDWARE LIST
Φ8mm x Φ16mm Φ8mm x Φ14mm
Φ8mm x Φ95mm Φ8mm x Φ70mm

STEP 1

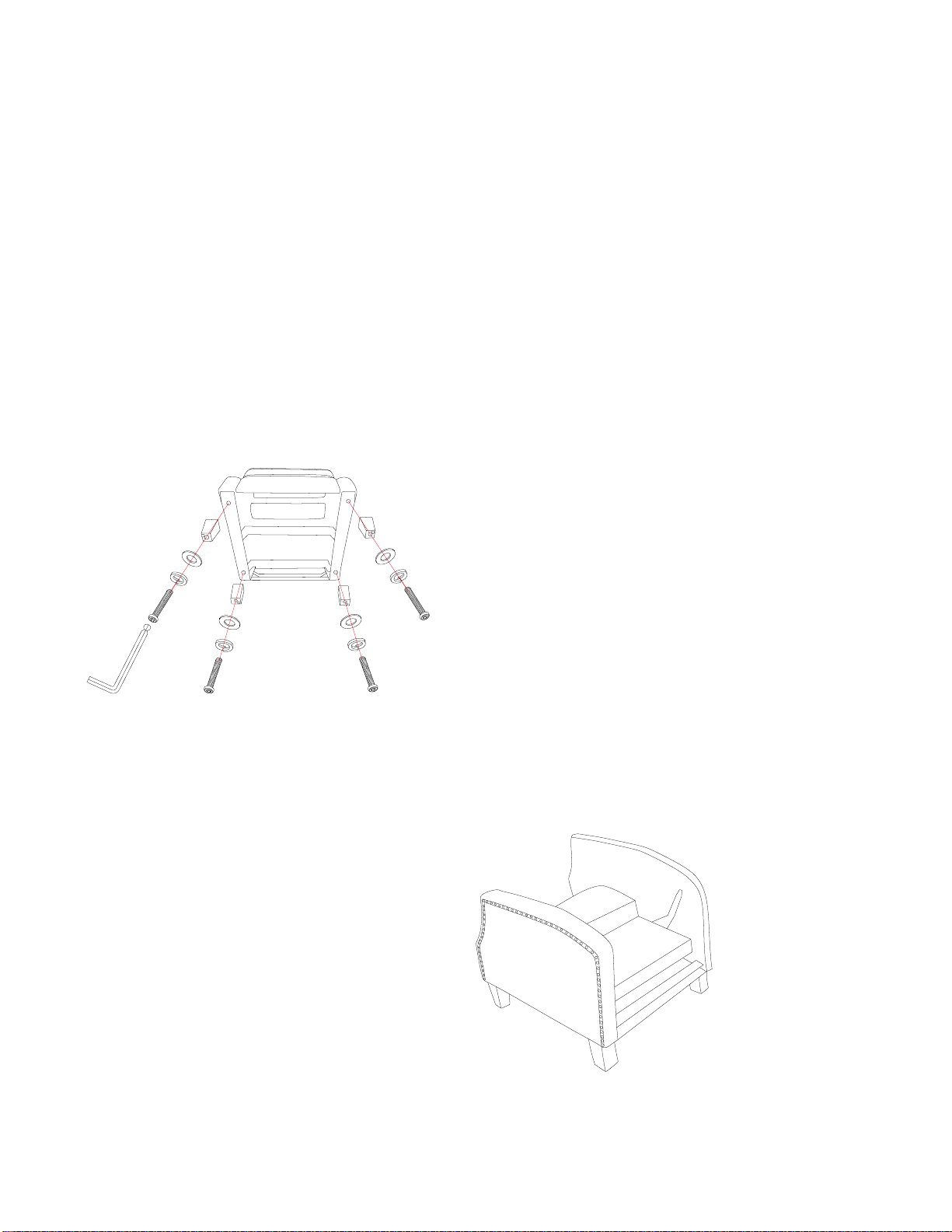

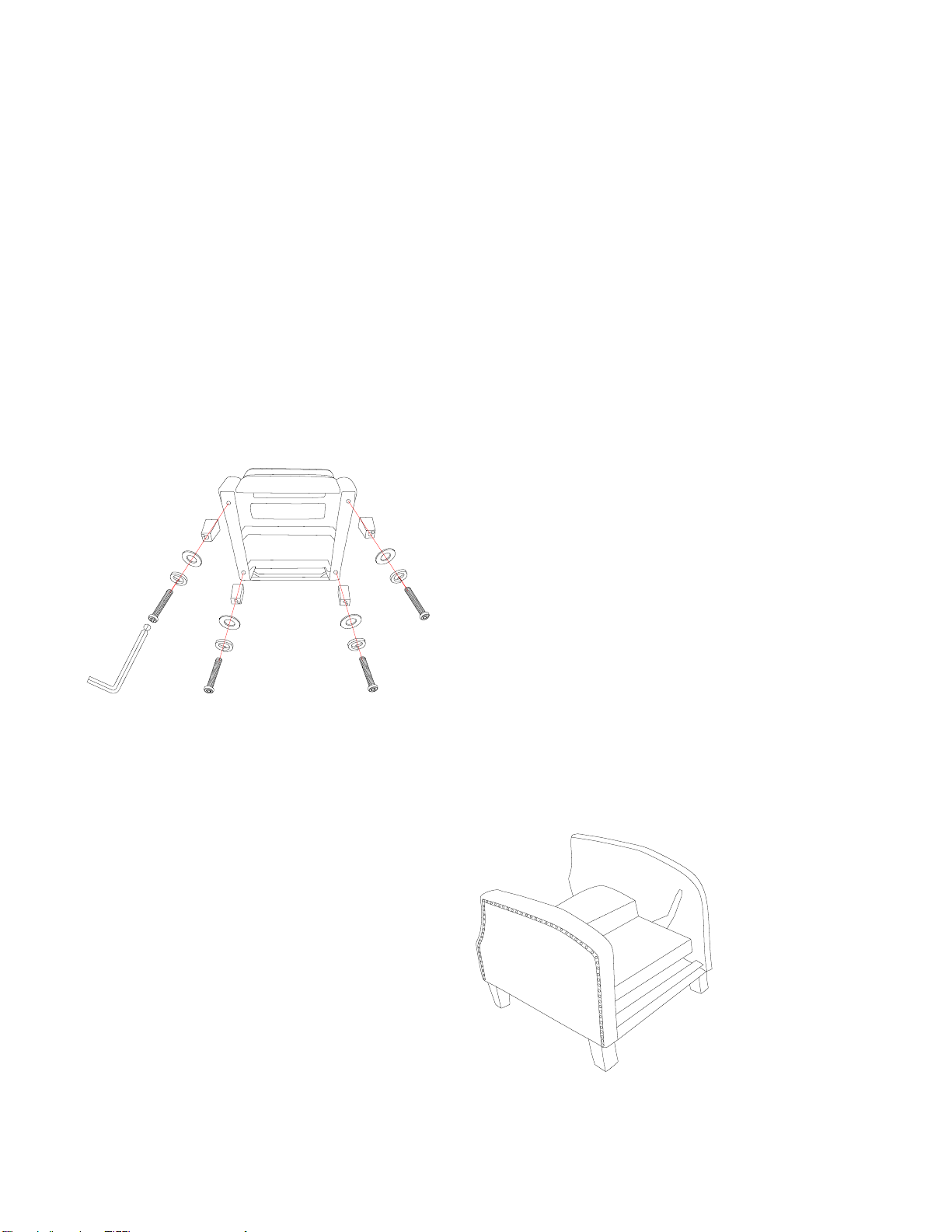

On a clean smooth surface, gently turn the chair body (A) on its side.
Attach feet (C & D) to the chair body (A) using flat washers (2), spring washers (3) and
bolts (1) as shown below.
Use the Allen Key (4) to tighten the bolts.
Turn the assembled unit upright.
PUSHBACK RECLINER
DA8243/DA8243-GR
C
A
D
C
C
D
D
D
4
2
3
1

NOTE
Proper attachment of the back feet is essential in maintaining the overall structure of the
chair. Back legs (D) must be attached so that they curve towards the back of the chair.
PUSHBACK RECLINER
DA8243/DA8243-GR
D
A
Incorrect Side View -
Back legs curve forward
Correct Side View
-
Back feet curve towards the back.
A
D
C
D
A

STEP 2

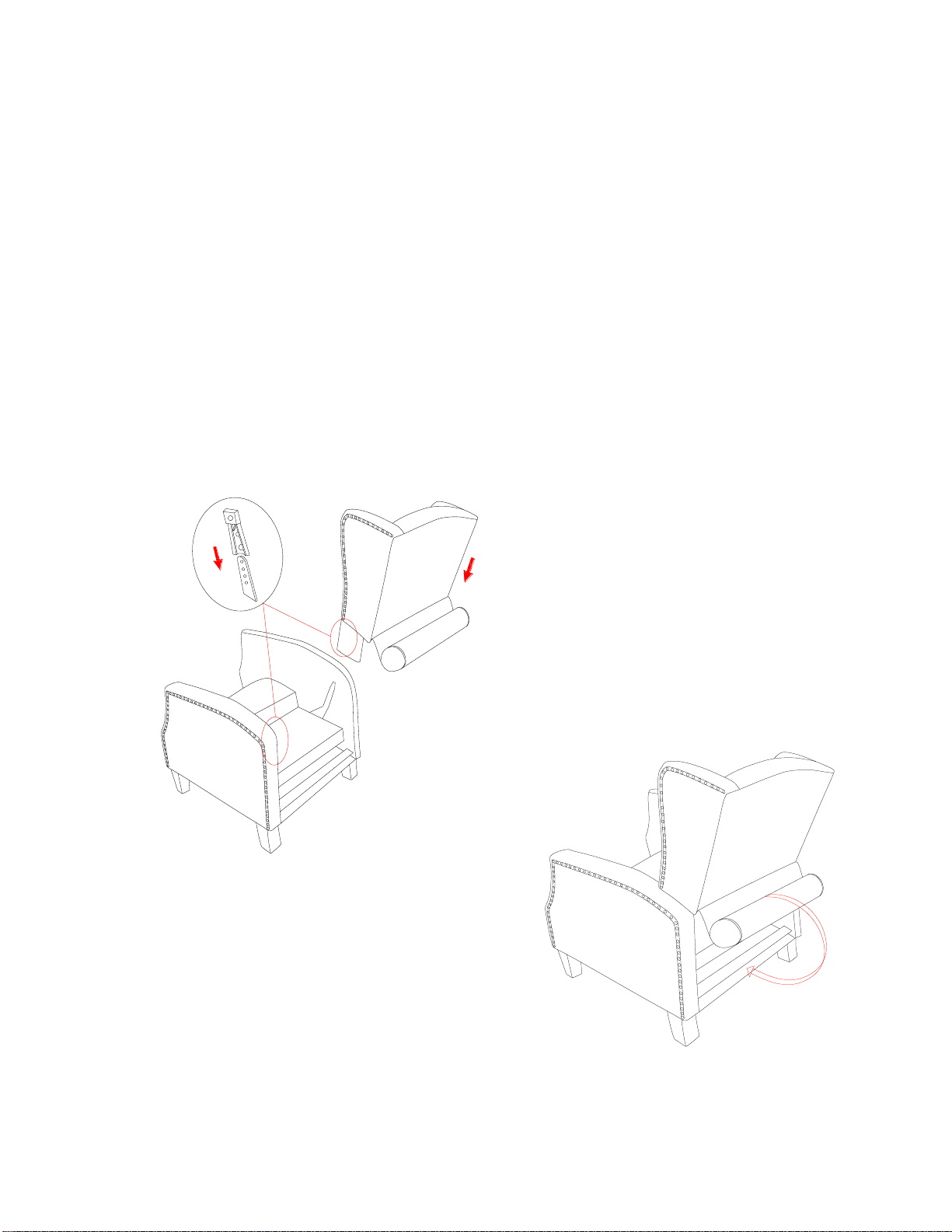

Attach chair back (B) to chair body (A) by sliding the brackets on the chair back (B) into
the glides on chair body (A) as shown below.
Once the back frame has been locked into place, place the fabric flap into position using
the Velcro strips.
Note: Both sides of the chair back (B) must be inserted on the base at the same time.
This step is best performed with 2 people.
PUSHBACK RECLINER
DA8243/DA8243-GR
C
A
B
A
C
D
B
D

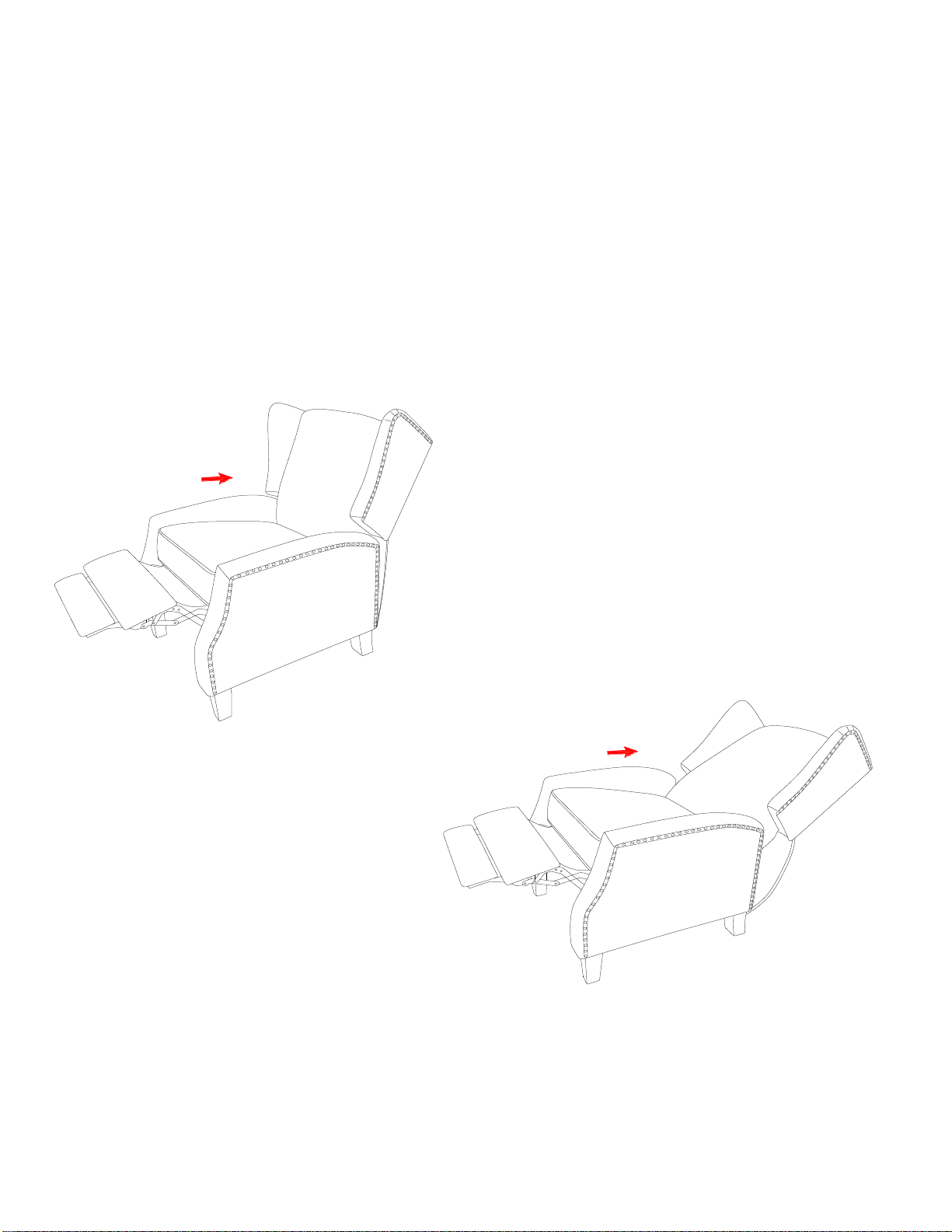

NOTE:
To operate the reclining function, push back on the back rest while holding onto the
armrests
PUSHBACK RECLINER
DA8243/DA8243-GR

Intended Maximum Weight =225 lbs
That's it! You've finished assembling your recliner.
PUSHBACK RECLINER
DA8243/DA8243-GR
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in
instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE RETAILER
If a part is missing or damaged, contact our customer service
department. We will replace the part
FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Dust regularly with a
soft, dry cloth to
prevent soil build
-
up.
Keep away from
heat to avoid
glazing, melting or
scorching. Use a
professional
cleaning service to
clean the fabric.

Modelo No:
DA8243
DA8243-GR
CODIGO UPC
0-65857-18884-4
0-65857-18883-7
NOTA:
ESTE MANUAL DE INSTRUCCIONES
CONTIENE INFORMACIÓN DE
SEGURIDAD IMPORTANTE. POR
FAVOR LÉALA Y CONSÉRVELA
Numero de lote:
(TOMADO DEL CARTON)
___________________
PARA REFERENCIA FUTURA.
MANUAL DE INSTRUCCIONES
SILLÓN RECLINABLE
Fecha de compra:
_______ / _______ / _______
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento de
servicio a la clientela. Reemplazaremos la pieza SIN cargo.
Tel #: [phone]
Correo electrónico: [email protected]

NO deje a los niños sin vigilancia sobre o cerca de esta sillón reclinable.
*Asegúrese de tener todas las piezas y componentes antes de comenzar a armarla.
*Ármela sobre superficies blandas para evitar dañar el pulido del producto.
*Lea bien todas las intrucciones antes de armarla.
*No utilice la unidad si se daña o está rota.
*
*Pueden necesitarse dos personas para armarla.
*Tiempo estimado para armarla: 5 minutos
CUIDADO, LIMPIEZA Y MANTENIMIENTO
Quíte el polvo regularmente con un paño suave y seco, para evitar que la suciedad se acumule.
Mantenga alejado del calor para evitar que se agriete, se funda o se queme. Utilice un servicio de
limpieza profesional para limpiar la tela.
Revise todos los pernos, tornillos y sujetadores periódicamente y apriételos si es necesario.
GARANTÍA LIMITADA DE 1 AÑO
Dorel garantiza que este producto está libre de defectos de material y mano de obra y se compromete a
remediar cualquier defecto de este tipo. Esta garantía cubre 1 año a partir de la fecha de compra original.
Esta garantía es válida solamente con presentación de una prueba de compra. Esto se limita a la
reparación o reemplazo de componentes defectuosos del mueble y no se incluye ningún trabajo de
ensamblaje. Esta garantía no se aplica a ningún producto que haya sido mal ensamblado, sujeto a mal uso
o abuso, o que haya sido alterado o reparado de cualquier manera. Cualquier uso, rotura o pérdida de
color de la tela no están incluidos en esta garantía (donde corresponda). Esta garantía le da derechos
legales específicas y usted puede también tener otros derechos que varían de estado a estado o de
provincia a provincia.
ADVERTENCIA: Si este producto está dañado y/o ciertas piezas
faltan o están rotas, NO LO USE.
NOTAS E INSTALACIÓN
NO use su sillón reclinable como apoyo para subirse.
NO se siente en el borde del asiento, en los brazos o en el respaldo, ya que podría hacer bascular la
sillón reclinable.
PRECAUCIÓN: Debe ser armada por un adulto.
SERVICIO AL CLIENTE
También puede contactarnos escribiendo a la dirección que figura a continuación. Por favor incluya el
número de modelo del producto, el color y una descripción detallada de su pregunta.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
