Dorel DL7685 User manual

Model Number: UPC Code: Color:
DL7685
0-65857-17509-7 Mahogany/Black
Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our
customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
ROUND 3PC METAL PUB SET WITH
WOOD TOP
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with
quality, convenience and style in mind. We trust it will provide you with many years of exceptional
comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture
piece by taking a few minutes to go through this booklet. It contains important information on our
warranty and care tips to keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday
8am to 5pm (EST) to answer any question you may have. For faster service, always have the
model number ready when calling our toll free number 1-800-295-1980 or emailing us at
[email protected] .
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page and
Instagram page.

Check bolts/screws periodically and tighten them if necessary.
* Ensure all parts and components are present before beginning assembly.
* DO NOT use power tools.
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
E-MAIL: [e-mail]
* Estimated assembly time is 45 minutes.
* Assembly and handling may require two people.
* Assemble on a soft, smooth surface to prevent damage to product finish.
NOTES
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service
representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model
number, color and a detailed description of the part.
Customer Service Department No. 413
MAINTENANCE
LIMITED WARRANTY
* CAUTION: Adult assembly required.
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy
any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid
only upon presentation of proof of purchase. This is solely limited to the repair or replacement of
defective furniture components and no assembly labor is included. This warranty does not apply to any
product which has been improperly assembled, subjected to misuse or abuse or which has been altered
or repaired in any way. This warranty gives you specific legal rights and you may also have other rights
which vary from State to State
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.
CARE AND CLEANING
Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners or wax on our
lacquered furniture as it may damage the finish. Keep solvents, alcohol, nail polish and polish removers
away from your hardwood furniture surfaces.
* Phillips head screw driver is not included.

ROUND 3PC METAL PUB SET WITH WOOD TOP
DL7685

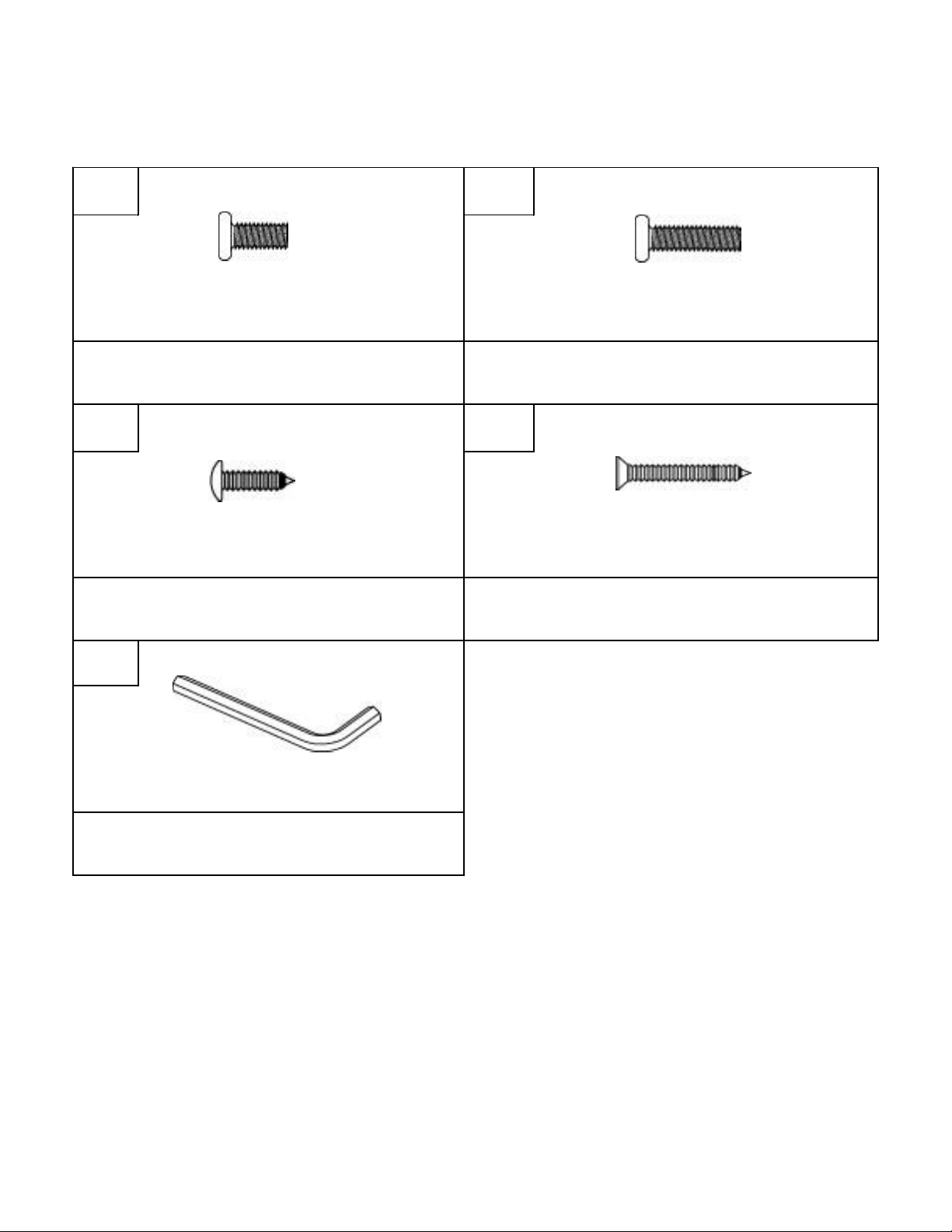

HARDWARE LIST
1
2
BOLT
BOLT
12 PCS
8 PCS
Ø1/4"*1/2"
φ1/4"*3/4"
8 PCS
8 PCS
3
4
φ1/8"*5/8"
φ5/32"*1-1/8"
ROUND HEAD SCREW
FLAT HEAD SCREW
ALLEN KEY
1 PC
5
M4

C
ROUND 3PC METAL PUB SET WITH WOOD TOP
PARTS LIST
A
B
DL7685
D
E
F
TABLE TOP
TABLE LEG
TABLE TOP FRAME
1 PC
4 PCS
1 PC
TABLE BASE
SEAT BOARD
STOOL LEG
1 PC
2 PCS
2 PCS
G
H
STOOL LEG
2 PCS
2 PCS
STOOL BASE

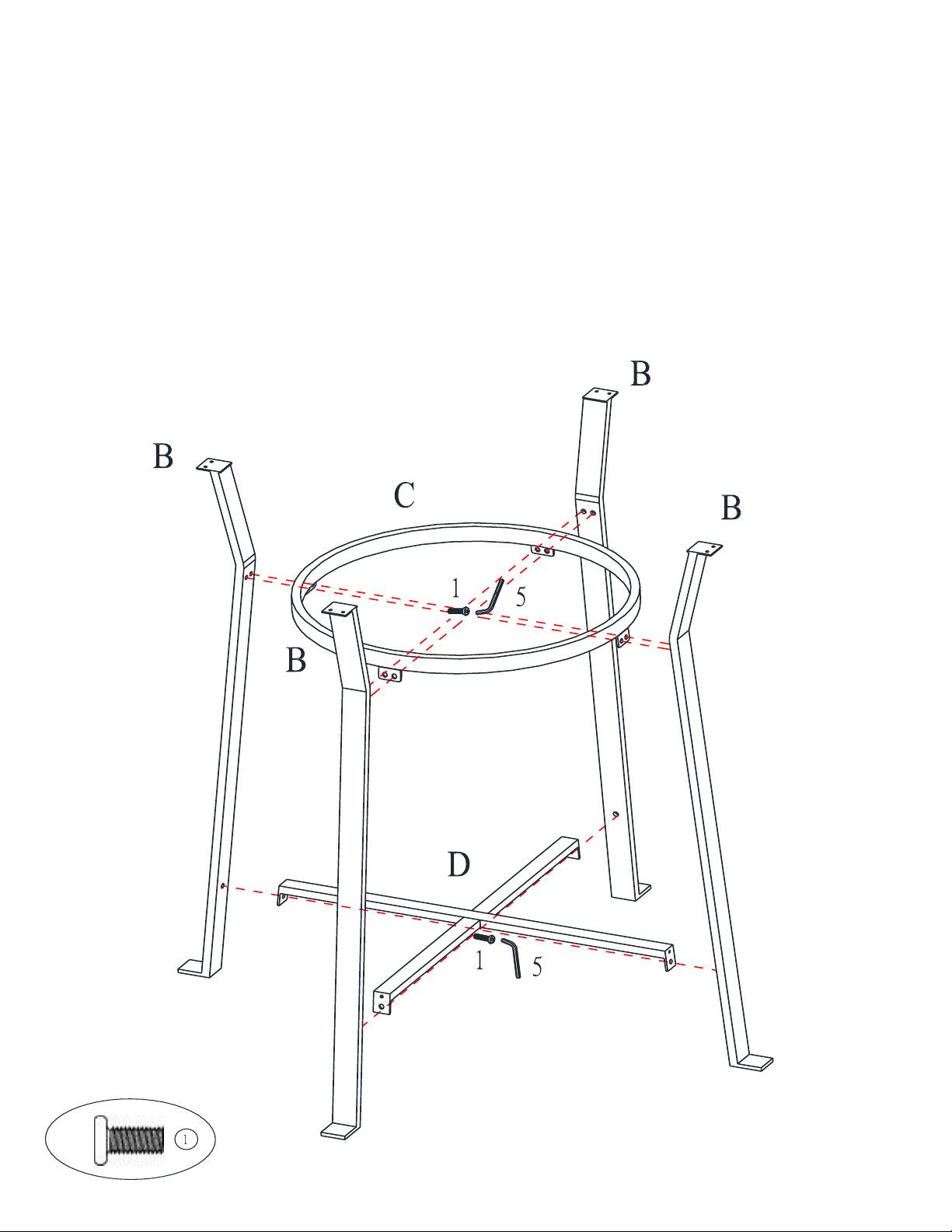

STEP 1
Do not fully tighten the bolts. This will facilitate assembly in the next step.
ROUND 3PC METAL PUB SET WITH WOOD TOP
DL7685
Attach table legs (B) to table top frame (C ) and table base (D) with bolts (1) and
Allen key (5).

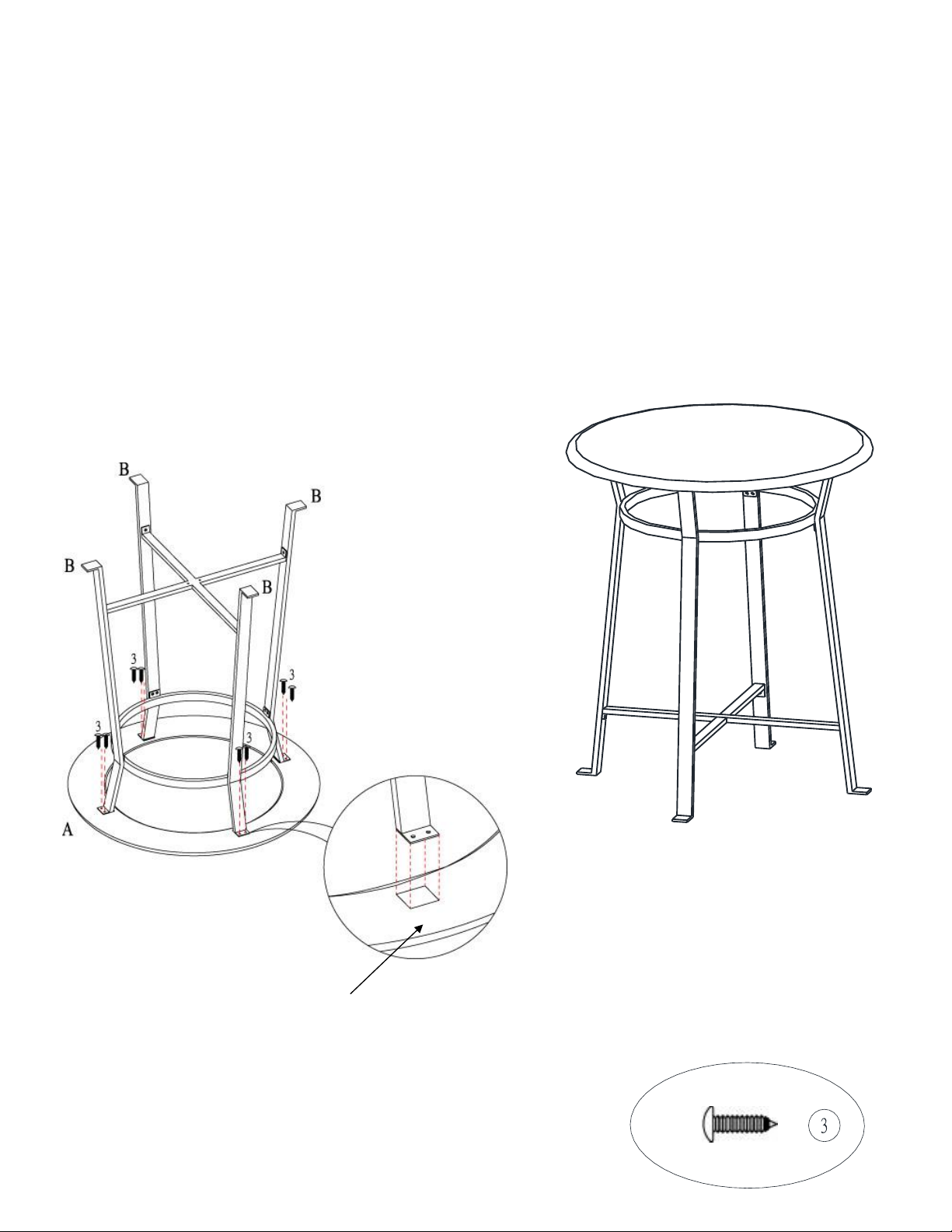

STEP 2
ROUND 3PC METAL PUB SET WITH WOOD TOP
DL7685
With the help of another person, place the assembled table frame on table top (A) as
shown below. Attach table legs (B) to table top (A) using round head screws (3) and a
Phillips head screwdriver (not included).
Tighten all bolts installed in Step 1.
Turn the table upright.
Use these markings to align the table
frame. The screws are self
-drilling
and will make their own holes.

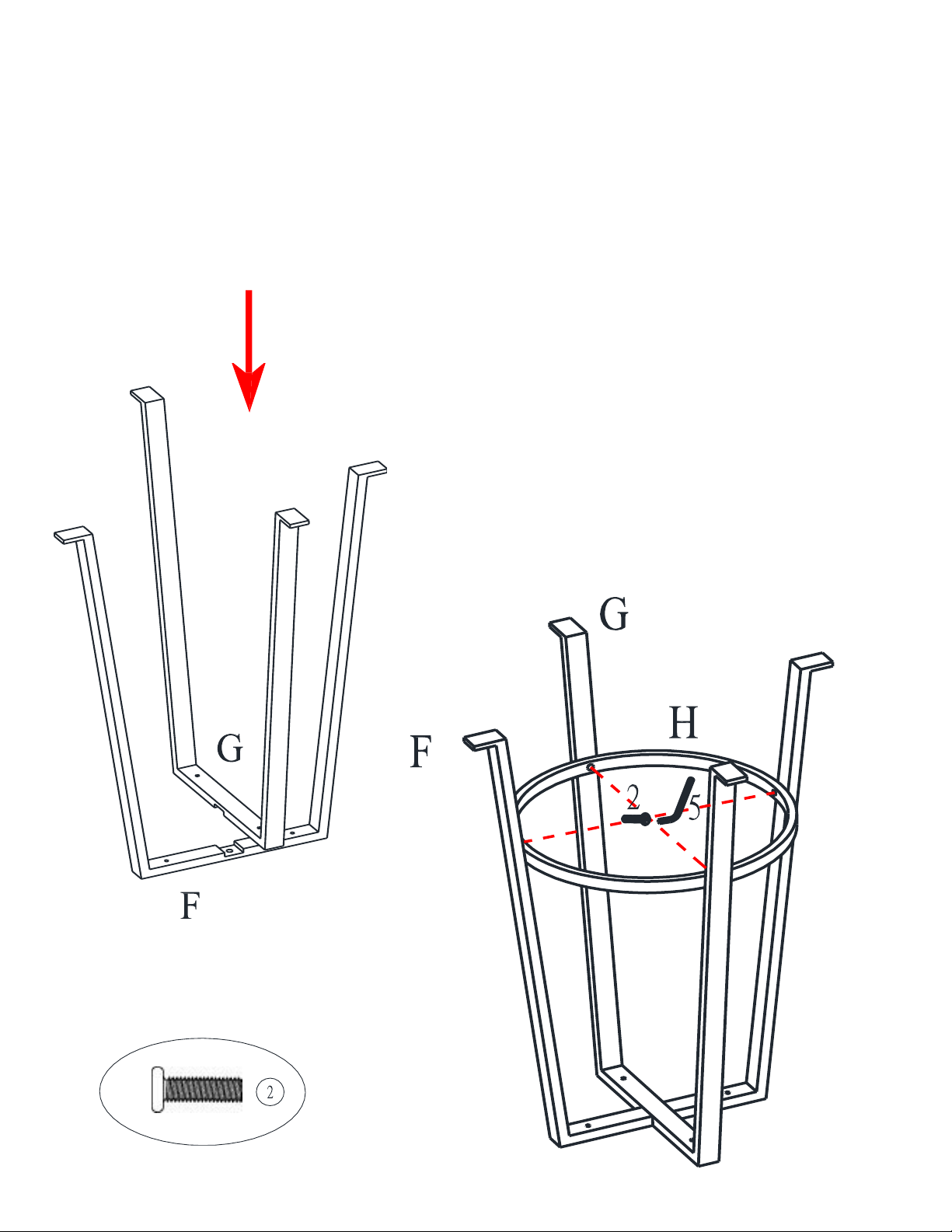

STEP 3
ROUND 3PC METAL PUB SET WITH WOOD TOP
DL7685
Connect the stool legs (F) and (G) as shown below.
Attach the stool base (H) to the stool legs (F & G) using bolts (2) and Allen key (5).
Do not fully tighten the bolts. This will facilitate assembly in the next step.

STEP 4
ROUND 3PC METAL PUB SET WITH WOOD TOP
DL7685
With the help of another person, place the assembled stool frame on top of seat board
(E) as shown below.
Attach the stool legs (F & G) to seat board (E) using flat head screws (4) and a Phillips
head screwdriver (not included).
Tighten all bolts installed in Step 3.
Repeat Steps 3 & 4 to assemble the other stool.

That's it! You've finished assembling your pub set!
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in
instability or cause possible injury.
ROUND 3PC METAL PUB SET WITH WOOD TOP
DL7685
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Maximum weight
100 lbs.

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Customer Service Phone Number 1-800-295-1980
Customer Service Fax Number 514-353-7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
MODEL #: DL7685
Customer Service
Email: [email protected]
