Dorel DA6580 User manual

Model Number: UPC Code: Color:
DA6580 0-65857-17353-6 Espresso
Date of Purchase: _____ / _____ / _____ Lot Number:
(taken from carton)
LOFT BED WITH DESK
Congratulations on your latest furniture purchase! Dorel Living furniture has been developed with
quality, convenience and style in mind. We trust it will provide you with many years of exceptional
comfort and service.
Before beginning assembly, we encourage you to familiarize yourself with your new furniture piece by
taking a few minutes to go through this booklet. It contains important information on our warranty and
care tips to keep your furniture looking as good as new.
Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday
8am to 5pm (EST) to answer any question you may have. For faster service, always have the model
number ready when calling our toll free number 1-800-295-1980 or emailing us at [email protected] .
For more great furniture ideas, check out our website at www.dorelliving.com
You can also keep up to date on all the latest trends by liking our Facebook page.
DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact
our customer service department. We will replace the part FREE of charge.
NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO
HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE . ENSURE
THICKNESS OF MATTRESS DOES NOT EXCEED 6". SURFACE OF MATTRESS MUST BE AT
LEAST 5" (127MM) BELOW THE UPPER EDGE OF GUARDRAILS.
DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR REPLACEMENT
PARTS.
USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING
THE UPPER BUNK.
E-MAIL: [e-mail]
WARNING
STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK
BED THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED
TO HOOKS, BELTS AND JUMP ROPES.
FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END
STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
KEEP THESE INSTRUCTIONS FOR FUTURE USE.
THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BED
WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF
THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN
THE BED AND WALL (APPLICABLE FOR BUNK BEDS WITH FULL LENGTH GUARDRAILS ON
ONE SIDE).
PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER
COMPONENTS ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT ALL
CONNECTORS ARE TIGHT.
DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED
FOR A POSTURE BOARD OR BOX SPRING.
USE ONLY COIL SPRING MATTRESS. FAILURE TO DO SO CAN RESULT IN INJURY.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer
service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product
model number, color and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1

*
*
*
*
*
*
*
*
WARNING: Should this product
become damaged, and/or components
are broken or missing, DO NOT USE.
BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG
TEENAGERS.
Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners or
wax on our lacquered furniture as it may damage the finish. Keep solvents, alcohol, nail
polish and polish removers away from your hardwood furniture surfaces.
MAINTENANCE
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees
to remedy any such defect. This warranty covers 1 year from the date of original purchase.
This warranty is valid only upon presentation of proof of purchase. This is solely limited to
the repair or replacement of defective furniture components and no assembly labor is
included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State
CARE AND CLEANING
Check bolts/screws periodically and tighten them if necessary.
PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP
OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT
FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN
INJURY.
CAUTION: ADULT ASSEMBLY REQUIRED
ASSEMBLY WILL REQUIRE TWO PEOPLE.
MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY ON A
SMOOTH SOFT SURFACE.
NOTES

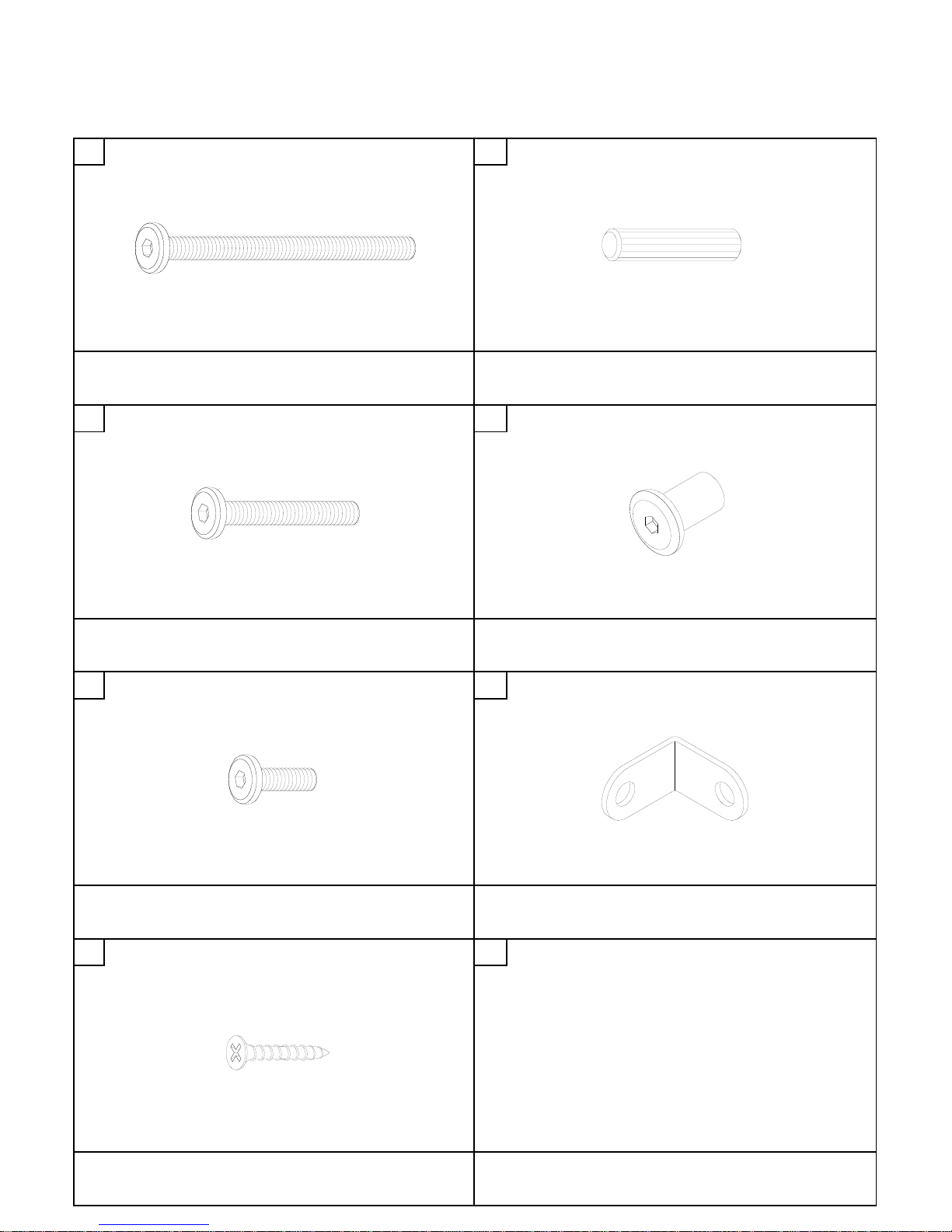

HARDWARE LIST
1 2
3 4
5 6
7 8
WOOD DOWEL
44 PCS
ALLEN KEY
1 PC
LOFT BED WITH DESK
DA6580
Φ 1/4" x 100mm
Φ 6.5mm x 48mm
Φ 11.8mm x 15mm
Φ 4mm x 30mm
WOOD JOINT CONNECTOR (4mm HEX HEAD)
26 PCS
FLAT HEAD SCREW
26 PCS
Φ 6.5mm x 100mm
Φ 4mm x 35mm
JOINT CONNECTOR (4mm HEX HEAD)
12 PCS
WOOD JOINT CONNECTOR (4mm HEX HEAD)
12 PCS
Φ 10mm x 50mm
BARREL NUT
12 PCS
FLAT HEAD SCREW
6 PCS

HARDWARE LIST
910
11 12
13 14
15 16
JOINT CONNECTOR (4mm HEX HEAD)
7 PCS
WOOD DOWEL
2 PCS
Φ 3.5mm x 19mm
JOINT CONNECTOR (4mm HEX HEAD)
12 PCS
L SHAPED METAL PLATE
6 PCS
JOINT CONNECTOR (4mm HEX HEAD)
4 PCS
HEX CAP
2 PCS
LOFT BED WITH DESK
DA6580
Φ 1/4" x 64mm
Φ 8mm x 30mm
Φ 1/4" x 32mm
Φ 9mm x 17mm
FLAT HEAD SCREW
2 PCS
Φ 1/4" x 15mm
30mm x 30mm x 18mm

PARTS LIST
A B C
D E F
1PC
6 PCS
1 PC
LEFT FRONT POST
1 PC
LEFT BACK POST
1 PC
RIGHT BACK POST
1 PC
RIGHT FRONT POST
HEADBOARD CROSS
LOFT BED WITH DESK
DA6580
HEADBOARD CENTER CROSS
A
E
E
F
G
E
H
E
H
H
I
J
L
M
N
R
R
S
T
K
X
W
V
U
T
C
B
J
back view

PARTS LIST
G H I
J K L
M N O
P Q R
LOFT BED WITH DESK
DA6580
LONG GUARDRAIL
SHORT GUARDRAIL
LEFT LADDER END
FRONT SIDE RAIL
1 PC
1 PC
1PC
13 PCS
1 PC
HEADBOARD CENTER CROSS
1 PC
HEADBOARD PANEL
4 PCS
SLAT
BACK SIDE RAIL
DESK FRONT RAIL
1 PC
1 PC
RIGHT LADDER END
LADDER STEP
GUARDRAIL LEG
1 PC
5 PCS
2 PCS

PARTS LIST
S T U
V W X
Y
SHORT GUARDRAIL POST
1 PC
DESK PANEL
1 PC
SUPPORT POST
BOTTOM BACK GUARDRAIL
BOTTOM BACK SIDE RAIL
2 PCS
LOFT BED WITH DESK
DA6580
SPACE BLOCK
DESK BACK RAIL
1 PC
1 PC
1 PC
1 PC

LOFT BED WITH DESK
DA6580
STEP 1

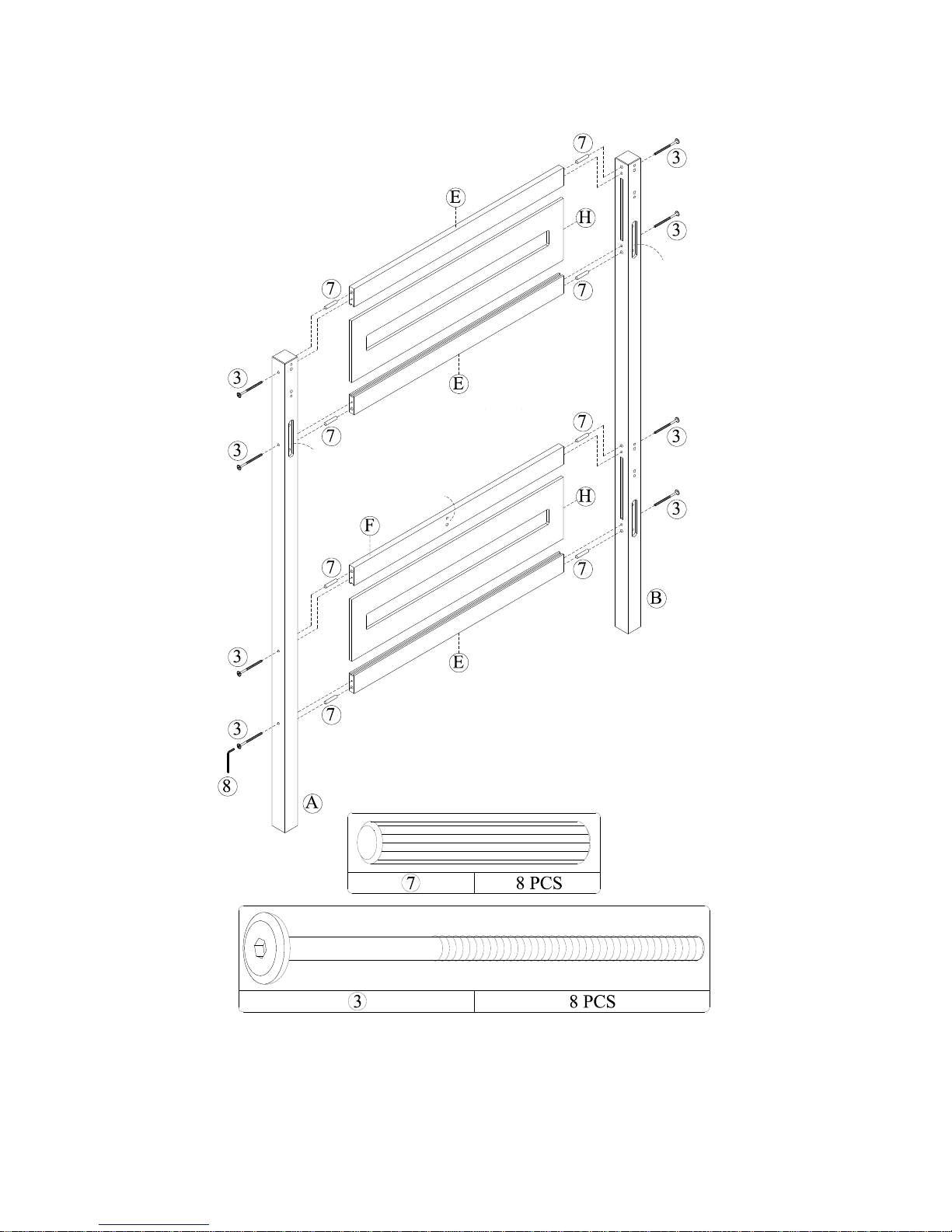

Insert wood dowels (7) into the ends of headboard cross (E) and headboard center cross (F).
Insert headboard panel (H) into the grooves of the headboard cross (E) and headboard center cross
(F).
Attach the assembled headboard (EHE) and (FHE) to left front post (A) and left back post (B) with
wood joint connectors (3) as shown. Use Allen key (8) to tighten the wood joint connectors (3).
One of the headboard crosses (E) has a warning label on it. Do not use it in this step.
The 2 holes on cross
(F) face the same
direction as the grooves
on posts ( A & B).
groove
groove
2 holes

LOFT BED WITH DESK
DA6580
STEP 2

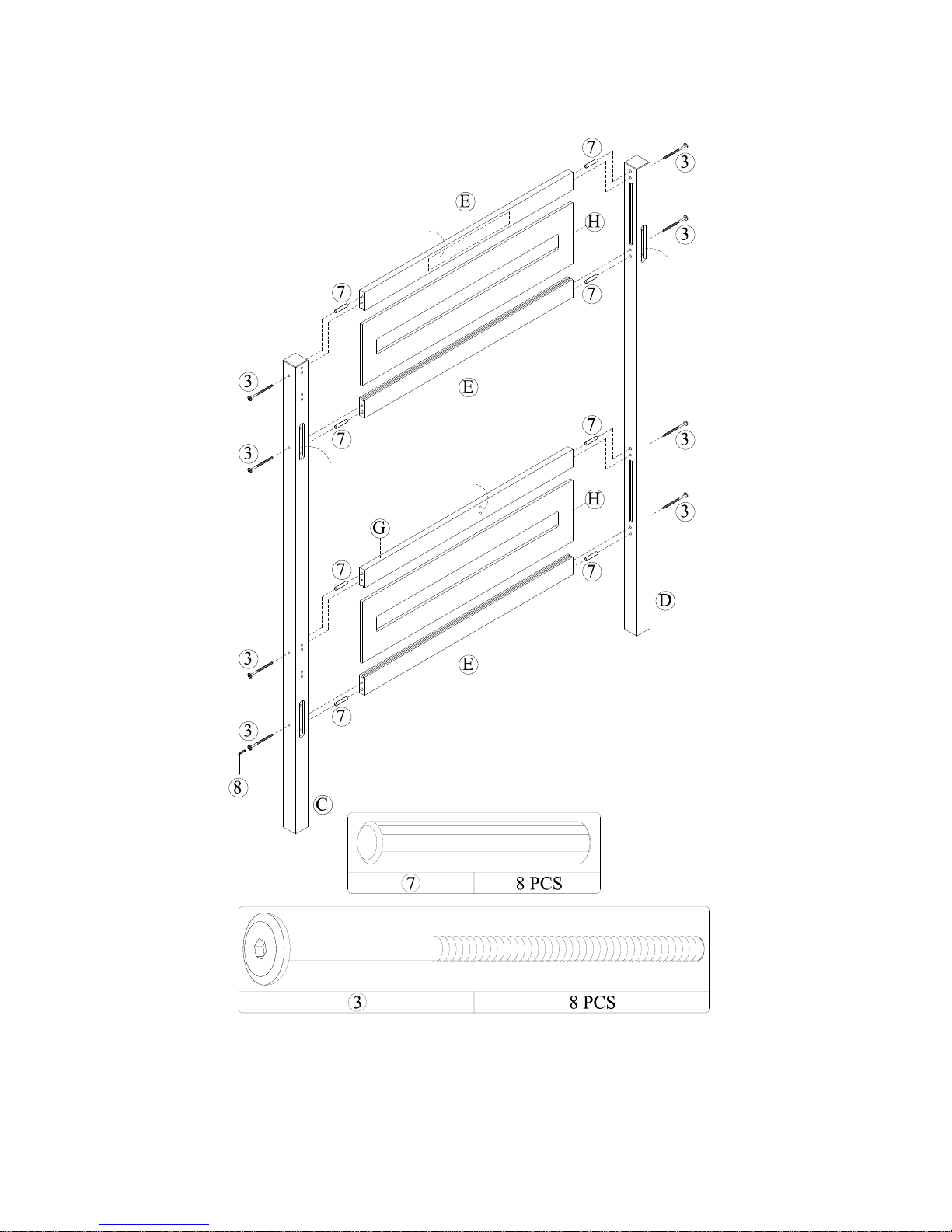

Insert wood dowels (7) into the ends of headboard cross (E) and headboard center cross (G).
Insert headboard panel (H) into the grooves of the headboard cross (E) and headboard center cross
(G).
Attach the assembled headboard (EHE) and (GHE) to right back post (C) and right front post (D)
with wood joint connectors (3) as shown. Use Allen key (8) to tighten the wood joint connectors (3).
Use the headboard cross (E) with warning label in this step.
groove
2 holes
groove
warning label
The 2 holes on cross
(G) face the same
direction as the grooves
on posts ( C & D).

Insert wood dowel (7) into each end of the desk front rail (K).
Attach desk front rail (K) to headboard center crosses (F and G) with wood joint connectors (2)
and Allen key (8) as shown.
LOFT BED WITH DESK
DA6580
STEP 3
Insert wood dowel (7) into each end of the long guardrails (M), desk back rail (U) and bottom
back guardrail (V).
Attach long guardrails (M), desk back rail (U) and bottom back guardrail (V) to back posts (B and
C) with wood joint connectors (3) and Allen key (8) as shown.
Do not fully tighten bolts in this step, this will facilitate assembly in the following steps.
83
7
Holes on this side

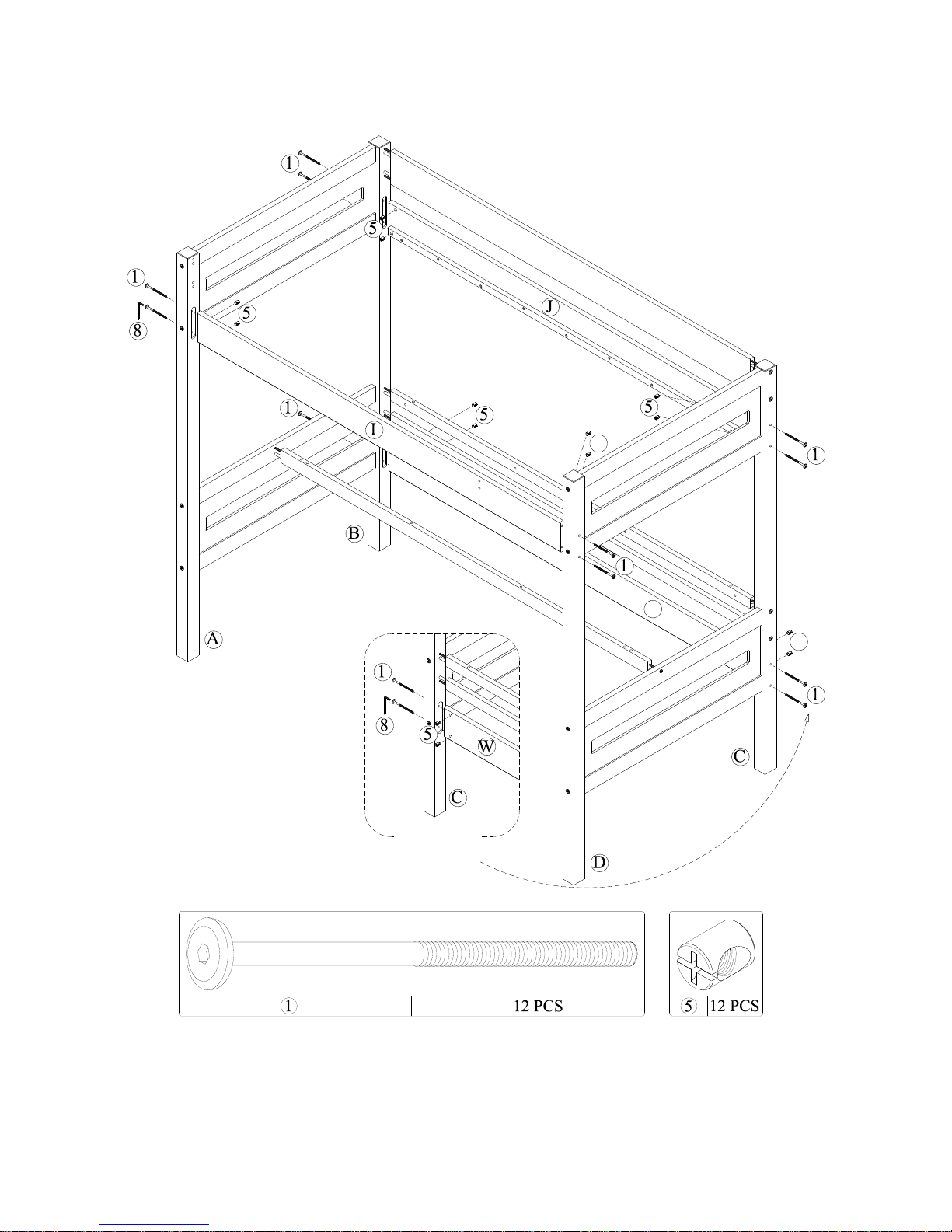

Insert barrel nut (5) into top back side rail (J) and bottom back side rail (W).
Attach top back side rail (J) and bottom back side rail (W) to back posts (B & C) with joint
connectors (1) as shown.
Tighten joint connectors (1) with the Allen key (8).
LOFT BED WITH DESK
DA6580
STEP 4
Insert barrel nuts (5) into top front side rail (I).
Attach top front side rail (I) to front posts (A & D) with joint connectors (1) as shown.
5
W
5
Back
View

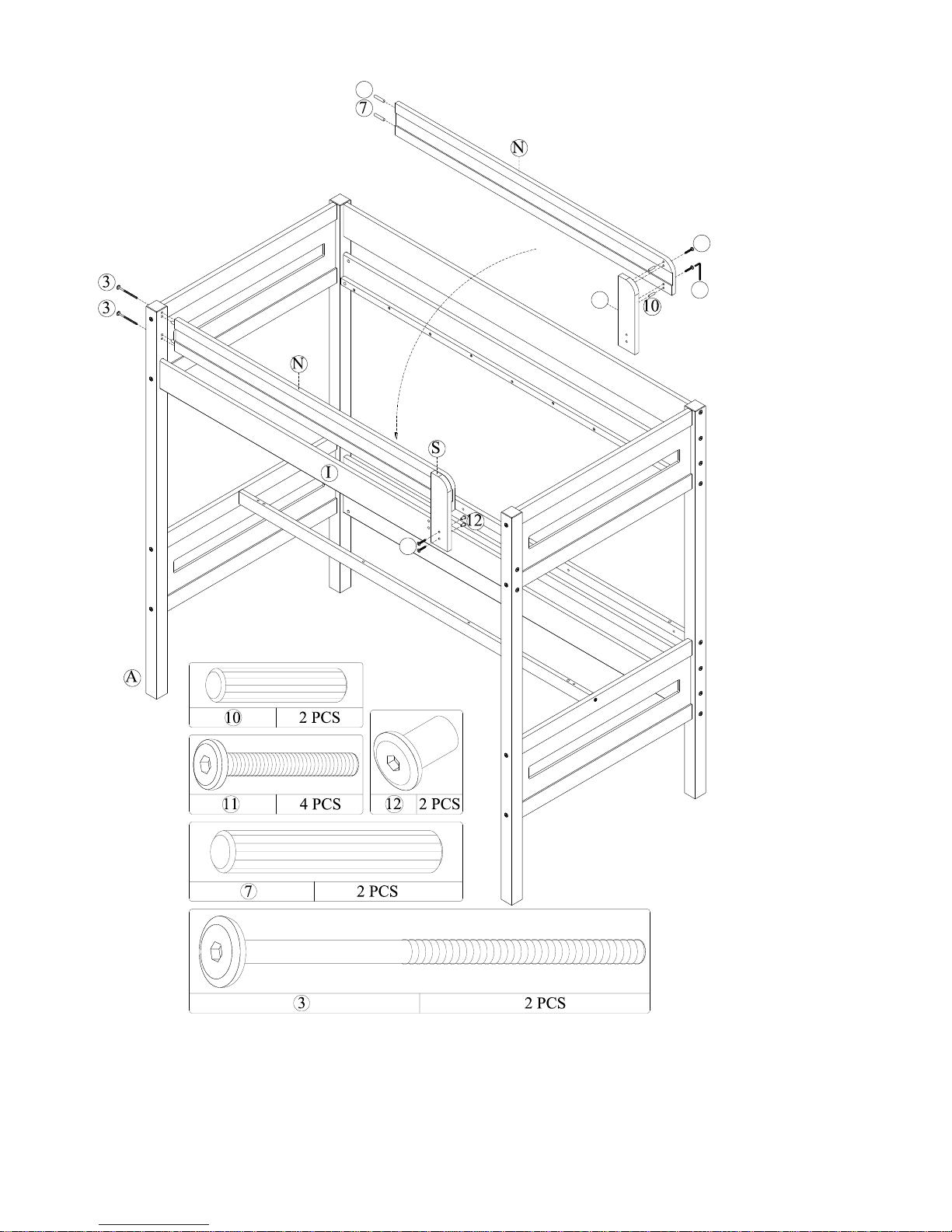

Insert wood dowel (7) into end of the short guardrails (N) an attach it to left front post (A) with
wood joint connectors (3).
Attach the short guardrail post (S) to top front side rail (I) with joint connectors (11) and hex cap
(12) as shown. Fully tighten the joint connectors (11) with the Allen key (8).
LOFT BED WITH DESK
DA6580
STEP 5
Insert wood dowel (10) into holes of the short guardrails (N) and attach it to short guardrail post
(S) with joint connectors (11) and Allen key (8).
S
7
11
8
11

Attach support post (X) to desk back rail (U), bottom back guardrail (V) and bottom back side rail
(W) with joint connectors (9) as shown. Tighten joint connectors (9) with the Allen key (8).
LOFT BED WITH DESK
DA6580
STEP 6
89
W
U
V
X
C
B

Attach the L shaped metal plate (14) to support post (X) and desk back rail (U) as shown above
using joint connectors (13) and Allen key (8).

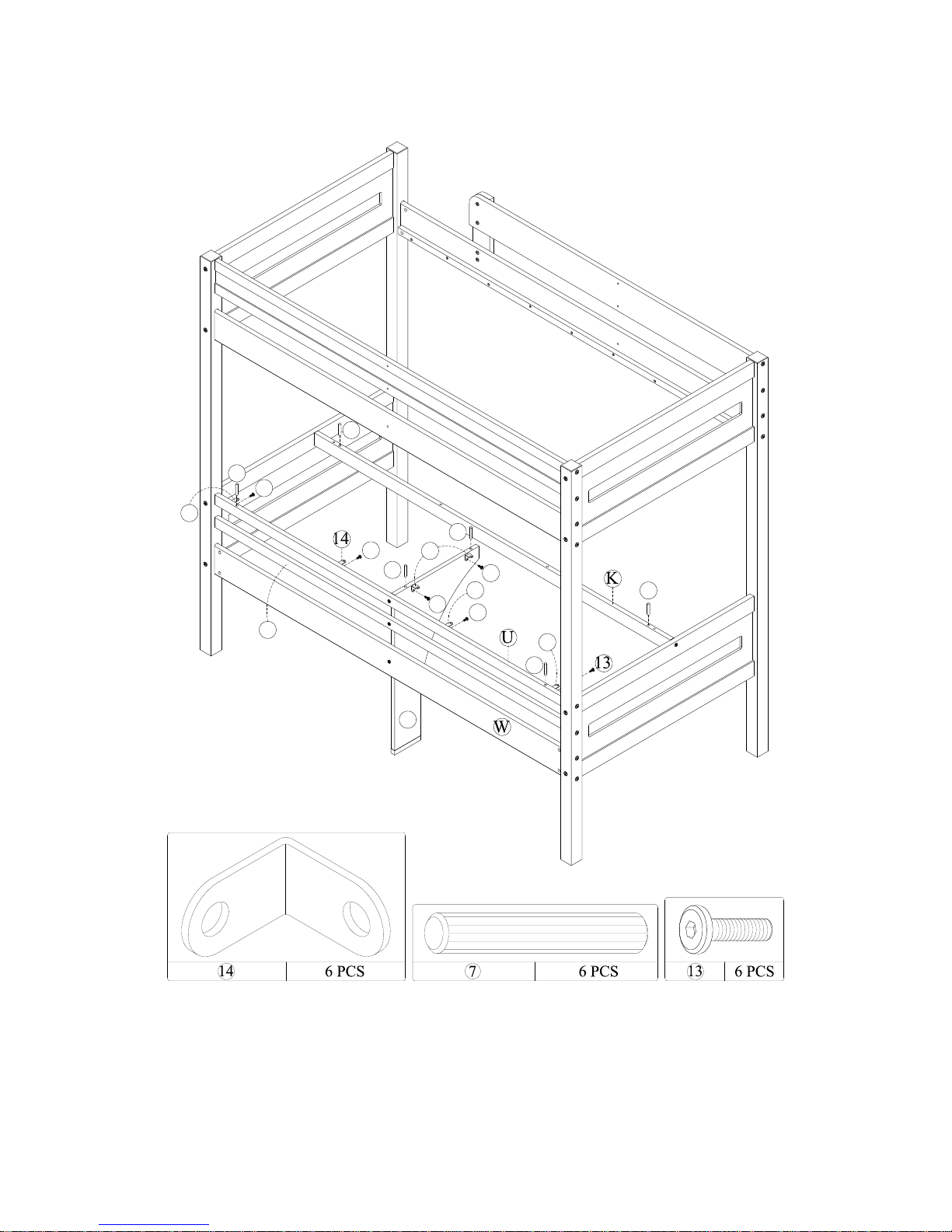

Insert wood dowels (7) into the holes of desk front rail (K), desk back rail (U) and support post
(X).
LOFT BED WITH DESK
DA6580
STEP 7
X
V
77
7
7
7
13 13
13
13
13
14
14
714
14

NOTE: Fully tighten all joint connector installed in previous steps.
LOFT BED WITH DESK
DA6580
STEP 8

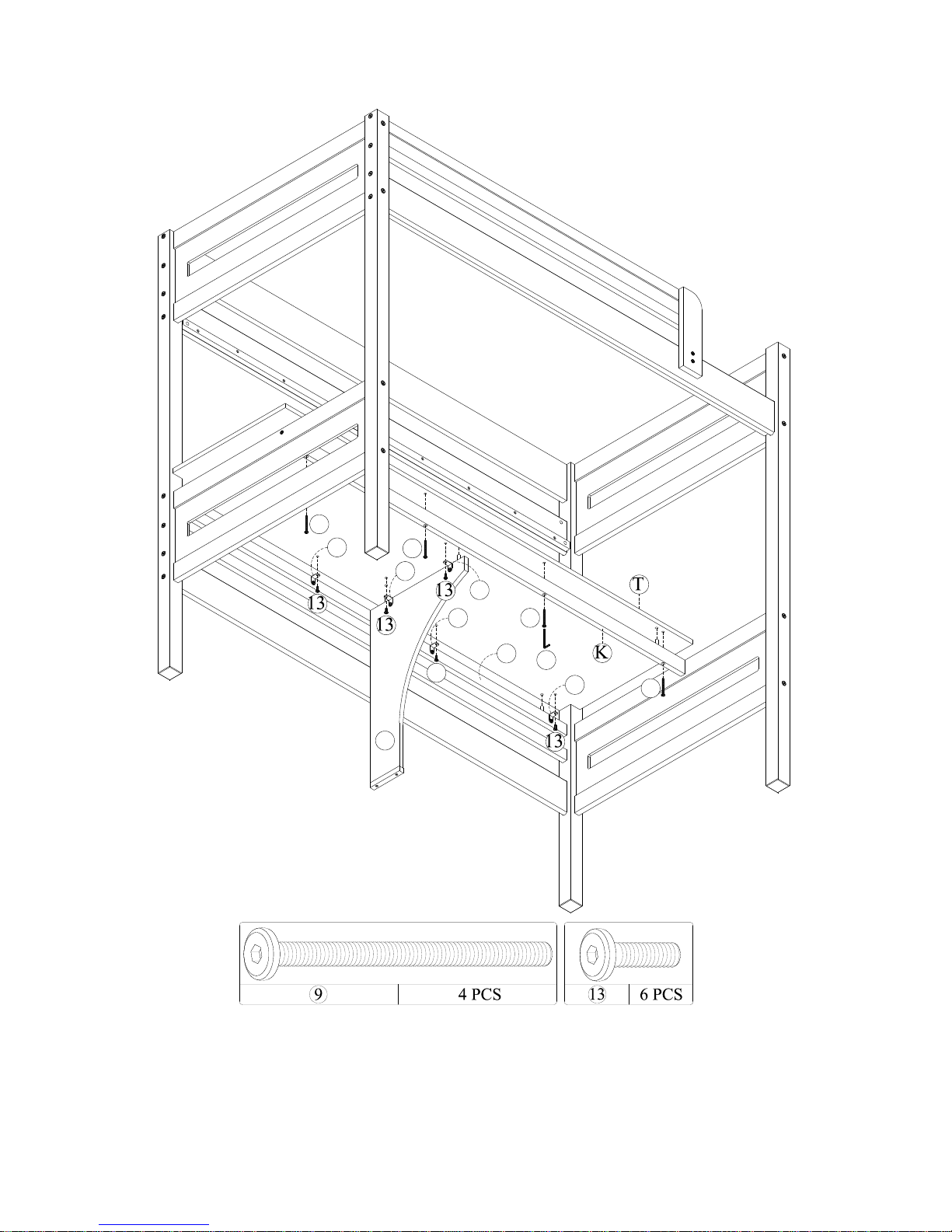

Attach desk panel (T) to the assembled unit and secure it to desktop front rail (K) with joint
connectors (9) as shown.
Secure the desk panel (T) to support post (X) and desk back rail (U) using joint connectors (13)
through metal plates (14).
Tighten joint connectors (9 & 13) using Allen key (8).
X
9
9
9
9
13
14
14
14
14 14
U8
View from
underneath
the desk

NOTE: If you notice that any of the slats (L) are not perfectly flat, be sure to attach them so that
the slats (L) curves up in the middle and down on the ends.
LOFT BED WITH DESK
DA6580
STEP 9

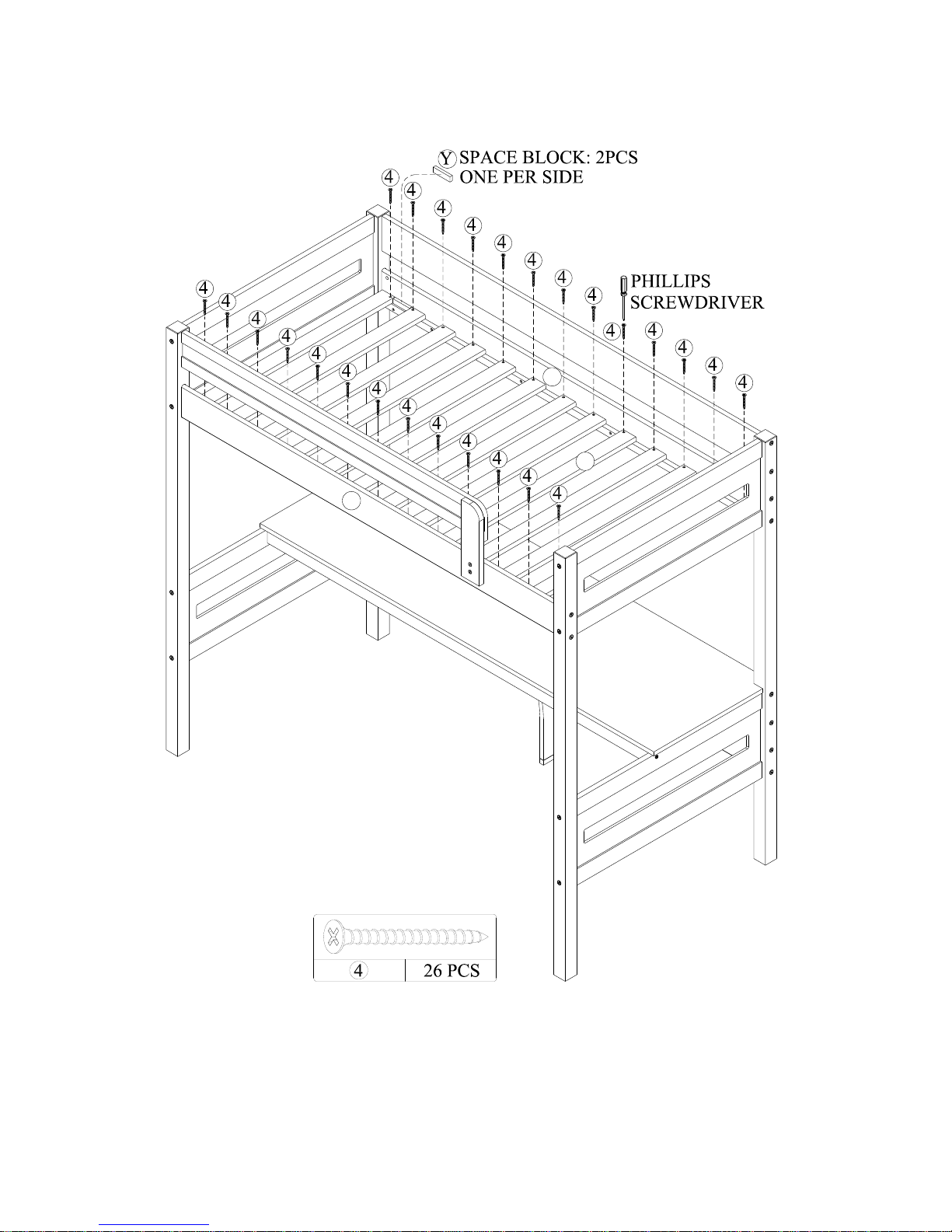

Attach a slat (L) onto top side rails (I & J) of the top bunk with flat head screws (4). Make sure the
slat touches the corner posts (as close to the headboard as possible). Attach the other slats (L)
onto the top side rails (I & J) with flat head screws (4). Use space block (Y) to space them out
evenly as shown. Use Phillips screwdriver (not included) to tighten flat head screws (4).
L
I
J

STEP 10
LOFT BED WITH DESK
DA6580

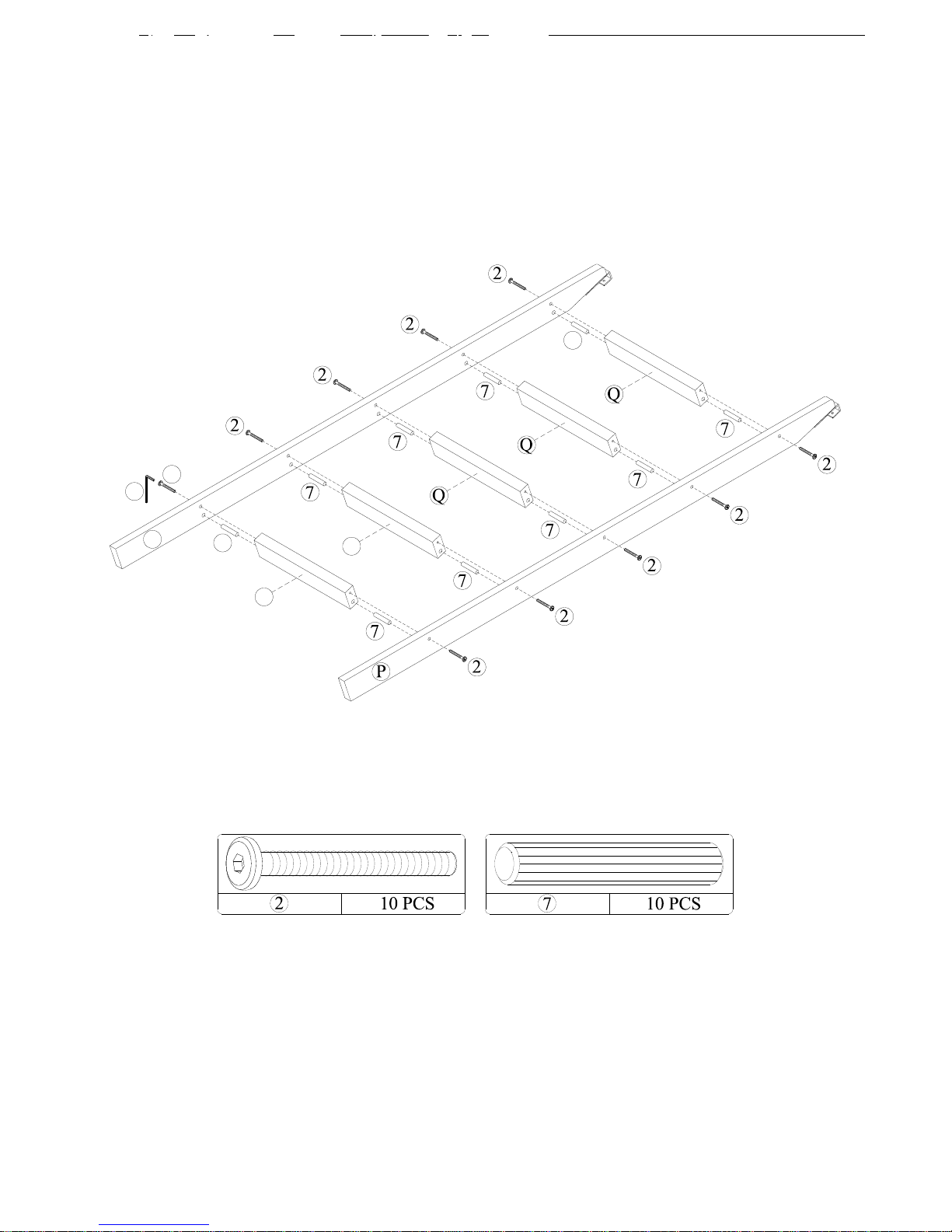

To assemble the ladder, insert wood dowels (7) into the ends of the ladder steps (Q).
Attach left ladder end (O) and right ladder end (P) to ladder steps (Q) with wood joint connectors
(2). Tighten the wood joint connectors (2) with the Allen key (8).
2
8
7
7
O
Q
Q

STEP 11

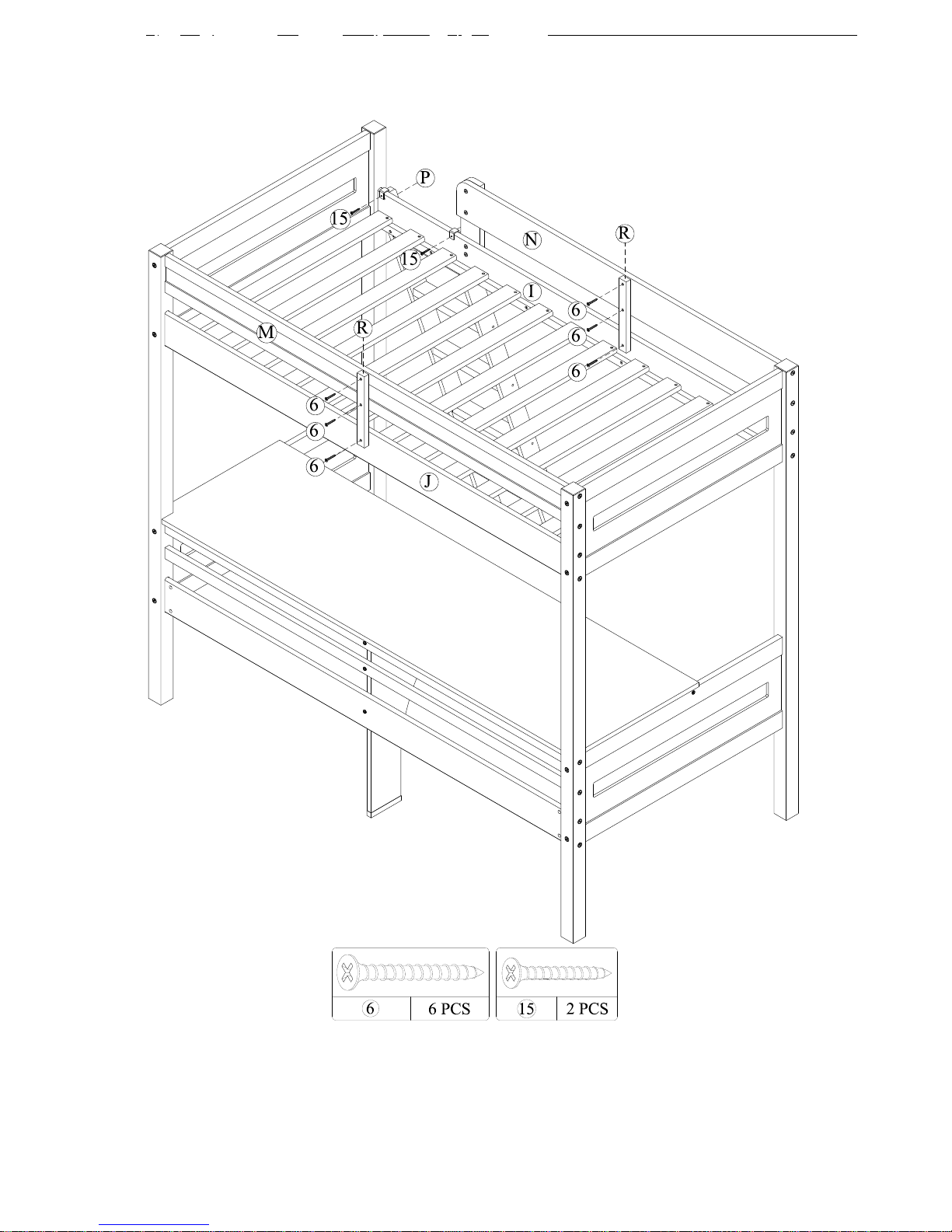

Attach the guardrail leg (R) to the short guardrail (N) and top front side rail (I) with flat head screws
(6). Attach another guardrail leg (R) (on the other side of the bed) to long guardrail (M) and top
back side rail (J) with flat head screws (6) as shown. Use Phillips screwdriver (not included) to
tighten flat head screws (6).
LOFT BED WITH DESK
DA6580
Attach the ladder to the top front side rail (I) with flat head screw (15) as shown. Use Phillips
screwdriver (not included) to tighten flat head screws (15).

That's it! You've finished assembling your loft bed.
LOFT BED WITH DESK
DA6580
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products
and/or products heavier than the maximum weights indicated may
result in instability or cause possible injury.
DO NOT ALLOW HORSEPLAY ON
OR UNDER THE BED AND
PROHIBIT JUMPING ON THE
BED.
DO NOT ALLOW CHILDREN UNDER 6
YEARS OF AGE TO USE THE UPPER
BUNK. BED IS DESIGNED FOR
CHILDREN RANGING FROM 6 YEARS OF
AGE TO YOUNG TEENAGERS.
USE ONLY A MATTRESS WHICH IS
74"-75" LONG AND 37 1/2" - 38 1/2"
WIDE ON UPPER BUNK. ENSURE
THICKNESS OF MATTRESS DOES NOT
EXCEED 6".
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
MAXIMUM WEIGHT CAPACITY:
-165 LBS (75KGS) ON UPPER BUNK
-100 LBS ON DESK
