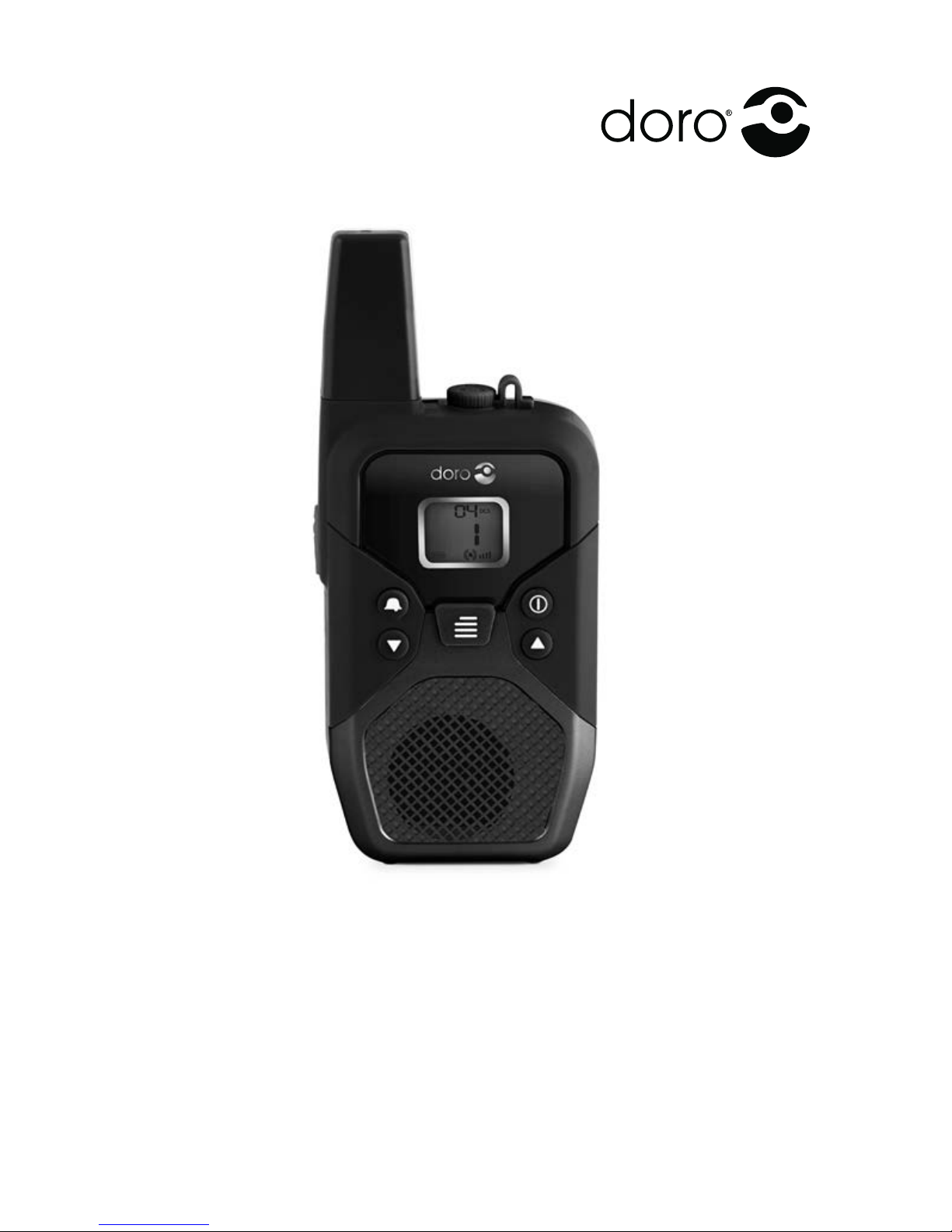

Doro wt91x pro User manual

SPECIALIST
RADIO
wt91x pro

SPECIALIST
RADIO
1
6
5
7
4
3
2
Svenska
1 Uttag för headset
2 PTT (Push To Talk)
sändningsknapp
3 Skicka ringsignal
4 NER
5 Meny
6 UPP
7 Av/på
Dansk
1 Udtag til headset
2 PTT-knap (Push To
Talk)
3 Send ringesignal
4 NED
5 Menu
6 OP
7 Tænd/sluk
Suomi
1 Kuulokeliitäntä
2 PTT-lähetyspainike
(Push To Talk)
3 Soittoäänen
lähettäminen
4 ALAS
5 Valikko
6 YLÖS
7 Virtapainike
1 Headset socket
2 PTT, Push to Talk
button
3 Call button
4 DOWN
5 Menu button
6 UP
7 On/Off button
English

SPECIALIST
RADIO
English
Area of use
The product is intended for both indoor and
outdoor use. It's also water immersion protected
(IPX7).
7–10 km 200–600 m 50–150 m
Mounting of batteries and belt clip
1. Remove the belt clip by lifting the small
locating tab while pushing the clip upwards.
2. Remove the battery cover by loosening the
screw.
3. Insert the rechargeable batteries, ensuring
correct battery polarity is observed.
4. Retthebatterycoverandbeltclip.
Charging
Connect the mains adaptor to an electrical
wall socket and to the socket of the charging
unit. Place the handset in the charger with the
buttons facing out. It is also possible to charge
the handset by connecting the mains adaptor
directly to the headset socket. The displayed
battery indicator 3consists of three
segments. The segments disappear one after
another as the battery charge decreases.
The battery indicator will show 3when
charging is complete (approximately 10
hours). Fully-charged batteries will last for
approximately 35 hours in standby or 2 hours
operational time. The given times apply at
normal room temperature.
Please note!
The batteries must be mounted and the product must be charged
for 24 hours before initial use.
Switching the Handset on/off
Press and hold 1for a few seconds to turn the
handset on or off.
Volume control
The sound volume is adjusted with v/Vin
standby.
To communicate
1. Make sure that all handsets are set to the
same channel and transfer code. See below.
2. Press and hold PTT (Push To Talk) to speak.
3. When needed send call signal through
quickly pressing .
If the handsets are unable to communicate, it may be because
different channels or transfer codes have been selected, that the
battery is running low or that the units are too far apart.
Headset
The headset socket is placed next to the antenna.
Use the PTT button on the headset cable.
Adjust the sound volume directly when installing a headset.
Channel selection
All equipment using this frequency share the
available designated channels. If the chosen
channel is in use select an alternate channel. The
selected channel will be displayed in standby
mode.
1. Press w.
2. Select the desired channel using v/V.
3. Press PTT.
Transfer code selection
There are 38 transfer codes available which can
beusedtolteroutunwantedsignals.However,
your conversation may still be overheard
irrespective of which code is used. To enable
communication in both directions, the same
transfer code must be used on all handsets. In
order to communicate with equipment that
cannot select a code, enter code 0.
1. Press wtwice, the small digits will then be
ashing.
2. Scroll to the desired transfer code using
v/V.
3. Press PTT.
Voice control (VOX)
The voice control will automatically activate
the transmitter after one second. Test different
settings until the sensitivity selected is
acceptable. There is however always a risk that
noise from the surroundings may activate the
transmitter.
VOX will be displayed while the function is
active.
1. Press wthree times, VOX will then be
displayed.
2. Scroll to the desired sensitivity using
v/V(OF=off, 1=least sensitive....3=most
sensitive).
3. Press PTT.

SPECIALIST
RADIO
Declaration of conformity
Doro declares that the apparatus Doro wt91x pro
complies with the essential requirements and other
relevant positions of Directive 1999/5/EC. A copy
of the Declaration of Conformity can be found at
www.doro.com/dofc
Guarantee
This product is guaranteed for a period of
24 months from the date of purchase. Proof
of purchase is required for any service or
support required during the guarantee period.
This guarantee shall not apply to a fault
caused by an accident or a similar incident or
damage, liquid ingress, negligence, abnormal
usage, not reasonably maintained or any
other circumstances on the purchaser’s part.
Furthermore, this guarantee shall not apply to a
faults caused by the use of poor quality batteries,
battery leakage, corrosion or similar events
related to non DORO batteries. This guarantee
does not in any way affect your statutory rights.
UK
If you cannot resolve the fault using the
faultndersection,technicalsupportisavailable
by email: [e-mail] -premium rate
telephone number: 0905 895 0854, calls cost 50
pence per minute (prices correct at the time of
publication). You can also contact us in writing
(regarding any Spares or Technical query):
Customer Services
DoroUKLtd,1HighStreet
Chalfont St Peter, Buckinghamshire, SL9 9QE.
Further contact details are available on our
website:
www.doro-uk.com.
Call melody
The transmitted call melody can be set to
different variants.
1. Press wfour times, CA will then be displayed.
2. Scroll to the desired melody (1 -5) using
v/V(OF=off).
3. Press PTT.
Monitor function
The monitor function can be used in weak
signal areas to locate any other signal being
transmitted.
1. Press wand Vat the same time.
2. To stop monitoring press w.
Termination (Roger) tone
If activated, a beep tone will be heard when
you release the PTT button. This can be used
as a reminder to the other person that you have
nishedtalkingandarewaitingforaresponse.
1. Press wvetimes,RO will then be displayed.
2. Scroll to the desired setting using v/V
(OF=off, On=on).
3. Press PTT.
Key tone
1. Press wsix times, to will then be displayed.
2. Scroll to the desired setting using v/V
(OF=off, On=on).
3. Press PTT.
Searching two channels (Dual Watch)
You can enter a second channel for simultaneous
listening while using the selected operating
channel.
1. Press wseven times, DCM will then be
displayed.
2. Scroll to the desired setting using v/V
(OF=off). Press w.
3. Scroll to the desired transfer code using
v/V. Press PTT.
Scanning
You can scan all available channels to locate any
signals being transmitted. Press PTT to stop at
the located channel.
1. Press wand vat the same time. The handset
will start searching.
2. To stop scanning press w.
Channel lock
The channel lock function serves to protect
the selected channel and sound volume of the
handset through preventing unintentional usage
of these buttons (wand v/V).
1. Press and hold wuntil the key symbol is
displayed.
2. To deactivate the channel lock press and
hold wuntil the key disappears.
