AUTOMATIC DETECTOR DORS 220 3
1.3.5.
The device is awarded “The Quality Symbol of XXI Century”.
Прибор удостоен награды «Знак качества XXI века».

AUTOMATIC DETECTOR DORS 220 5
Automatic banknote detector Dors
220 (hereinafter  'the device') is intend
ed for authentication of the Euro bank
notes.
The device checks validity of the magne
tic marks, IR marks and the banknote
optical image. The banknote authenticity
is determined on the basis of an integral
estimate of all of the abovementioned
parameters.
The device guarantees a higher counter
feit banknote detection accuracy com
pared to other devices.
DEVICE FEATURES
ture for at least two hours before
switching on.
7. The following instructions should be
observed to ensure a durable opera
tion of the device without any assis
tance from a service engineer:
a. Avoid installing the device in
places where it can be exposed
to the direct sunlight or accent
lamplighting.
b. The device must be installed on
a flat horizontal surface.
c. Do not install the device in dust
affected rooms. Dust may have
a negative impact on the quality
of checking.
d. To prevent fire or short circuit,
avoid installing the device in
places where it may be subject
ed to smoke or vapour.
1. Avoid any metal objects or liquid
from getting into the device.
2. To prevent electrical shock, do not
remove the power cord plug from
the wall outlet with wet hands.
3. Use only the AC adapter supplied
with the device.
4. When disconnecting the device
from the wall outlet, hold the plug;
do not pull the cord as it can rupture
or sustain damage.
5. If you wish to move the device, dis
connect it from the wall outlet to
prevent damage to the power cord
or short circuit.
6. If the device has been exposed to
low temperature for a long period
of time, keep it at room tempera
SAFETY PRECAUTIONS
AUTOMATIC DETECTOR DORS 220
4
APPEARANCE

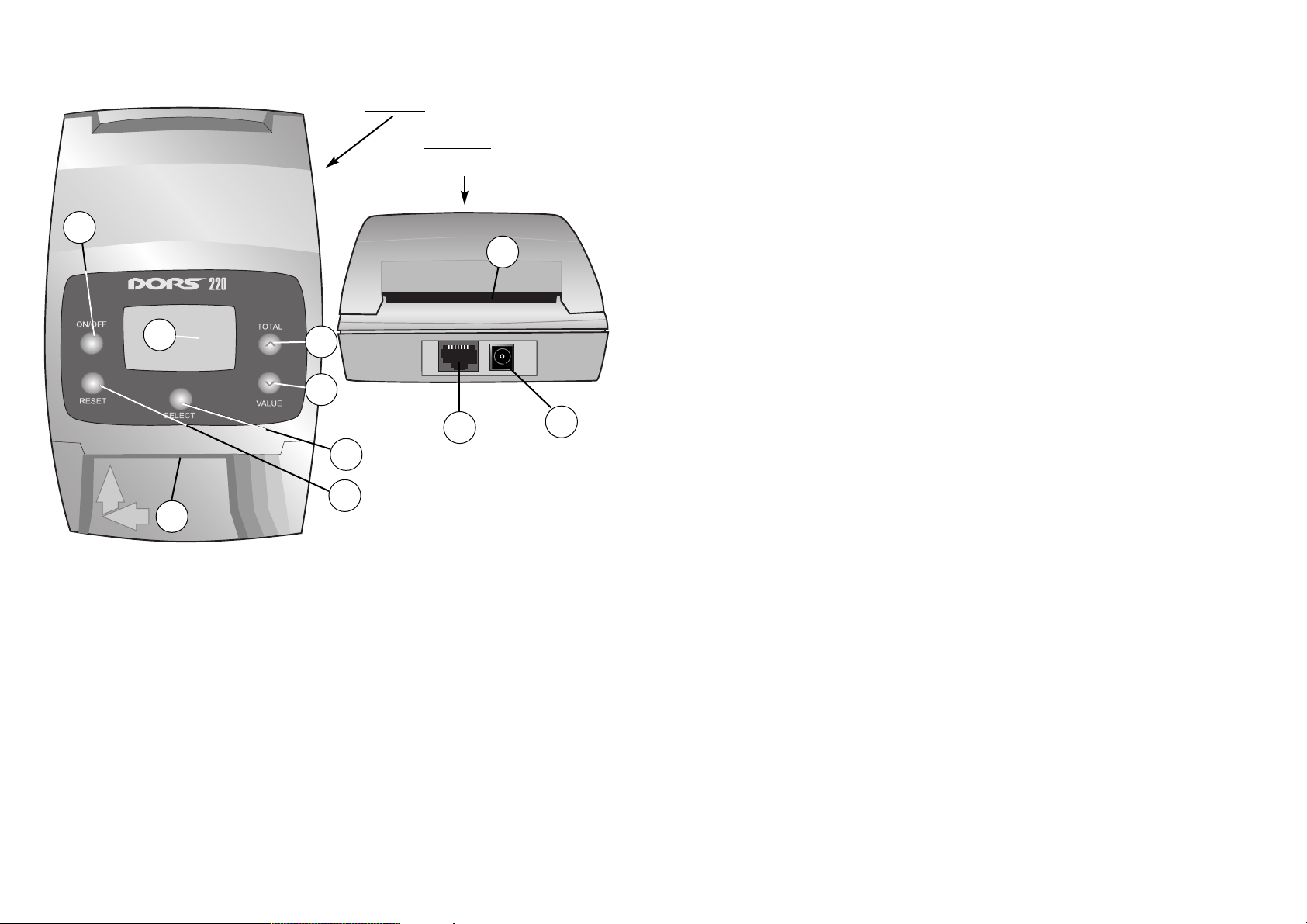

1. ON/OFF button. Used to switch
the device on/off.
2. RESET button. Resets the results of
banknote checking. Allows to exit
the menu.
3. SELECT button. Allows entering the
menu, selecting the menu items.
4. VALUE button. Switches on the
mode of displaying the sum/quan
tity of the banknotes checked by
denomination. Allows scrolling
down the menu items.
5. TOTAL button. Switches on the
mode of displaying the total sum
and quantity of the checked ban
knotes. Allows scrolling up the
menu items.
6. Multifunctional graphical display.
7. Input tray.
8. External device socket.
9. AC adapter jack.
10. Ejection slot.
Top view
Back view
1
2
3
4
5
6
7
89
10

the ON/OFF button for more than
2 seconds. If the power saving
function is activated and the device
is not used during the specified
time, it will be switched off auto
matically.
AUTOMATIC DETECTOR DORS 220 7 AUTOMATIC DETECTOR DORS 220
6
OPERATION

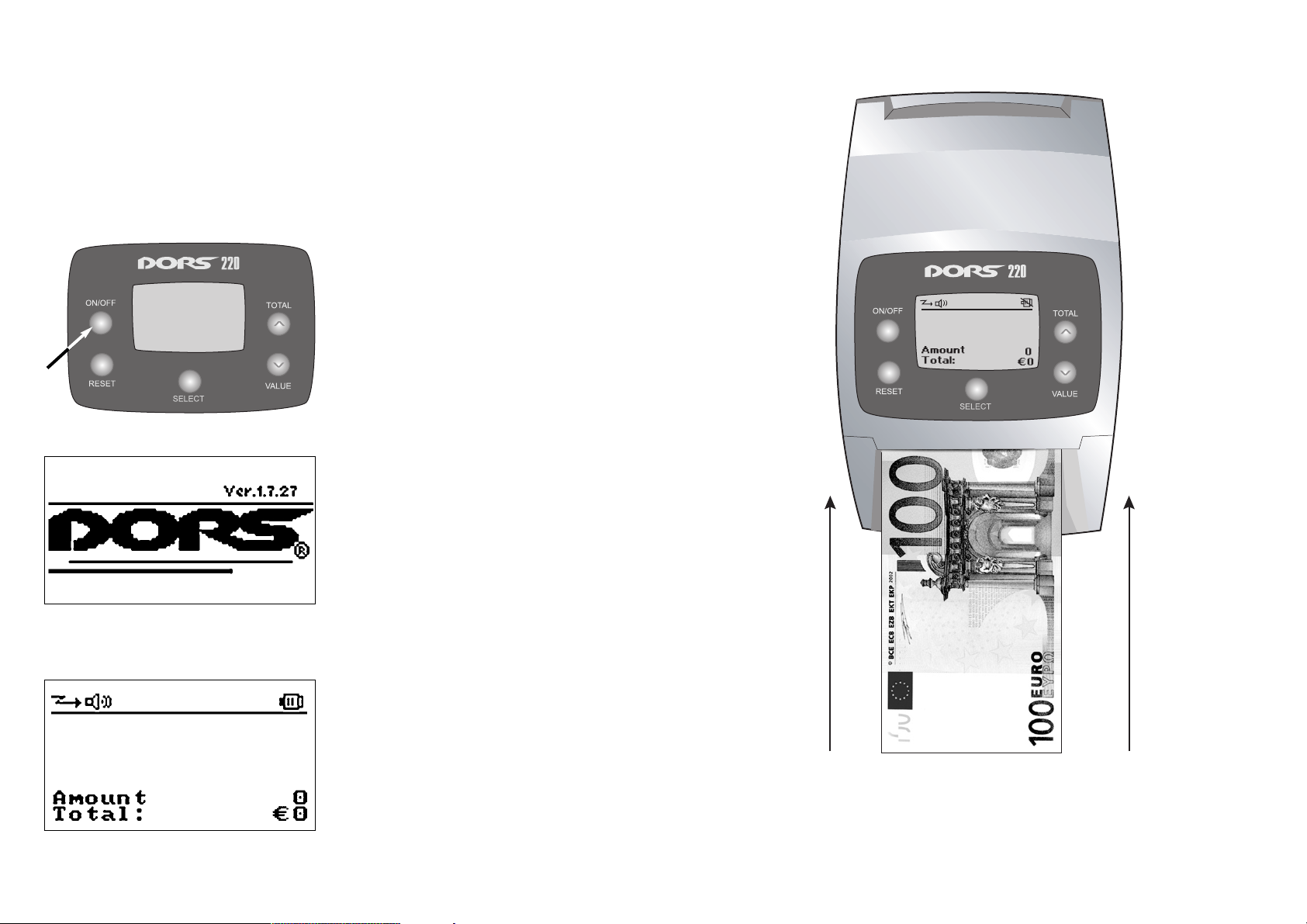

1. Connect the detector to the wall
outlet using the supplied AC
adapter.
2. Brief pressing of the ON/OFF but
ton switches the device on.
The device startup time does not
exceed 4 seconds. Selfcheck is car
ried out simultaneously with the
splash screen being displayed. The
splash screen is replaced with a
diagnostic error message together
with the error description if any of
the tests is unsuccessful. The splash
screen is displayed for 3 seconds,
whereupon it is replaced by the
main operating mode (TOTAL) win
dow.
3. If required, enter the menu mode
(the SELECT button) and select the
required operating mode.
4. Place the correctly oriented ban
knote into the input tray (face up,
hologram forward).
5. The device will take the banknote
from the tray for checking. If the ban
knote is recognized as authentic, its
face value will appear on the display
and the banknote will be ejected
through the slot in the rear panel of
the device (the banknote is returned
into the input tray if the mode of
rolling back all the banknotes is acti
vated). If the banknote is recognized
as suspicious, it will be returned into
the input tray and the error sound sig
nal will be emitted (if the sound alarm
is on or if the Back mode is activated).
An error message with a brief descrip
tion of the error will appear on the
display. If the banknote is not recog
nized as authentic three times, a visu
al test of other authenticity criteria
matching is required.
6. To switch the device off hold down

AUTOMATIC DETECTOR DORS 220 9
banknote is recognized as suspi
cious.
3. The line displaying total quantity of
the banknotes checked and the line
displaying total sum.
When a banknote is fed into the input
tray, the motor starts and the banknote
is taken for checking. When checking is
completed, the banknote is returned to
the input tray or ejected through the slot
in the device rear panel, depending on
both the settings and the result of chec
king; the banknote face value or an error
message (if the banknote is recognized
as suspicious) is displayed. If the device
was operating in the mode of detailed
reporting by denomination (VALUE),
the device automatically switches into
the TOTAL mode. Pressing the RESET
button and holding it down for 1 second
deletes the data on the checked bankno
tes. If the top door of the switched devi
ce is open, the message 'Error Hardwa
re' will be displayed, and the device will
not respond to the buttons pressed and
banknotes placed to the input tray for as
long as the door remains open. After
closing the top door you may continue
operating the detector despite of the er
ror message is still displayed. If the auto
matic off mode is set, the device will
switch off at the specified time regard
less of whether the door is closed or not.
In the VALUE mode the display shows
the data on all banknotes checked dur
ing the current session, grouped in
three columns:
1. Val.  banknotes denomination.
2. Qty.  quantity of the banknotes by
denomination.
3. Sum  the sum of the banknotes of
given denomination.
When the RESET button is held pressed
for 1 second, the data on the banknotes
checked are deleted and device is
switched to the TOTAL mode.
Certain operating parameters of the
device may be changed in the menu
mode. To enter the menu, depress the
SELECT button for a short time. The
TOTAL (to move upwards) and VALUE
(to move downwards) buttons are used
to navigate through the menu items.
The current menu item is highlighted. A
successive pressing of the SELECT but
ton changes the selected parameter. In
this case all possible values for a given
menu item will be selected cyclically. To
exit the menu mode press the RESET
button briefly or the menu is exited
automatically after 30 seconds of inac
tivity. All changes are stored and will be
AUTOMATIC DETECTOR DORS 220
8
OPERATING MODES
The device supports three basic operat
ing modes:
1. The main mode  the device goes
into this mode immediately after it
is switched on, once a banknote is
passed through or the TOTAL but
ton is pressed.
2. The mode of detailed reporting by
banknote denomination is activat
ed by pressing the VALUE button.
3. The menu mode. This mode allows
changing some parameters of the
device operation and is activated by
pressing the SELECT button.
When the main mode is active, the
screen may be nominally divided into
three logical zones (starting from the
top):
1. The line of icons displaying current
operating mode of the device (from
right to left):
1.1. The indicator of the banknote ejec
tion direction. Banknotes recog
nized as authentic are by default
returned through the rear slot and
those that are suspicious are
returned into the input tray. It is the
main operating mode of the device
( ). There is also an additional
mode when all the banknotes are
returned into the input tray ( ).
1.2. The sound indicator. The sound
alarm may be switched on ( ) and
off ( ). This applies to the buttons
pressed confirmation, return of a
suspicious banknote sound alarm in
the Fwd mode and the device
on/off confirmation signal.
Note: Suspicious banknote returning
sound alarm is not turned off in the
Back mode.
1.3. PClink indicator. PClink may be
switched on ( ) and off ( ).
2. The result of checking the last ban
knote. This part of the display
shows face value of the checked
banknote or an error message and a
brief description of the error if the
