DOSHISHA FSV-95B User manual

User manual
3Way Handy Fan FSV-95B
Thank you purchasing this product.
Please read this user manual careful-
ly before using the product for the
first time and keep it in a safe place
for future reference.
For Chinese version User Manual,
Please visit www.shew.com.hk
Power supply DC 5V USB power supply (5V 0.5A) / built -in rechargeable baery
3.7V/ 2000mAh Li-ion baery
Charging me
Approx. 5 hours (to complete full charge cycle at room temperature of
25°C)
Usage me
High speed: approx. 2.5 hours, low speed: approx. 6 hours (with fully
charged baery at room temperature of 25°C)
Power consumpon Approx. 2.8 W
USB cable length
Approx. 1.0 m
Dimensions Approx. 14.5 cm (W) x 7.2 cm (D) x 21 cm (H)
Weight
Approx. 0.2 kg
Product specifications
*In order to improve our products, we reserve the right to make changes to the product design and
specifications without prior notice.
*The images in this user manual are provided for reference purposes only and may vary from the
actual product.
*In the event of discrepancies between the Chinese and English versions of this user manual, the
Chinese version shall prevail.
Built-in rechargeable


Warning
1
Warning Indicates a situation in which incorrect use may result in death or serious injury.
Caution
Indicates a situation in which incorrect use may cause an injury or damage
to property.
(Damage to property includes damage to buildings, objects, livestock and pets.)
Meaning of symbols
This symbol indicates a prohibited action. The prohibited action is shown inside the
(The example in the left-hand image indicates that disassembly is prohibited. )
This symbol indicates actions which must be completed. The corresponding action
is shown inside the
(The example in the left-hand image indicates that the power adapter must be disconnected
from the power supply. )
•Please read the “Safety Precautions” carefully before first use and ensure that the product is
used correctly.
•This section contains important safety precautions which must be observed at all times.
•Store these “Safety Precautions” in a convenient place for future reference.
symbol or in adjacent images or text.
symbol or in adjacent images or text.
Safety Precautions
Do not clean or carry out
maintenance work on the product
when the battery is charging. This
may damage the product or cause a
fire or electric shock.
Do not damage, modify, forcefully
bend, pull, twist, or bundle the USB
cable. Do not place heavy objects on
the USB cable or allow it to become
trapped between objects.
Failure to observe this instruction
may cause a fire or electric shock.
Discontinue use if there is a loose
connection between the USB cable
and the USB port.
Failure to observe this instruction
may cause an electric shock, short
circuit or fire.
Do not allow children to use this
product unsupervised.
Failure to observe this instruction
may result in an electric shock or
injury.
Do not insert paper clips, pins or
other metal objects or foreign
matter into the holes on the
product.
Failure to observe this instruction
may result in an electric shock or
damage the product.
In the event of a malfunction (e.g.
burning smell or smoke),
discontinue use immediately.
Unplug the USB connector to stop
the charging process.
Failure to observe this instruction
may cause a fire or electric shock.
If the rechargeable battery leaks and
the battery fluid gets into your eyes,
rinse your eyes with water and seek
immediate medical attention. Do
not rub your eyes.
Leaking battery fluid may cause
blindness or eye damage.
Fully insert the USB connector into
the USB port in the correct
orientation.
Failure to observe this instruction
may cause an electric shock, short
circuit or fire.
When the battery has finished
charging, unplug the USB connector
from the USB port.
Failure to observe this instruction
may damage the insulation,
resulting in an electric shock,
leakage or fire.
Do not attempt to disassemble the
product. Repairs must only be
completed by qualified technicians.
Failure to observe this instruction
may result in damage to the product
or cause a fire or electric shock. For
repairs, please contact the retailer or
Shun Hing Electric Service Centre
Limited.
Do not insert or disconnect the AC
power adapter or USB connector
with wet hands.
Failure to observe this instruction
may cause an electric shock.
Do not submerge the product in
water or allow it to get wet. Failure
to observe this instruction may
cause a short circuit or electric
shock.
Prohibited
Do not use
Instruction
Inserting/
disconnecting
the power cable
Disassembly
prohibited
Wet hands
prohibited
Water
prohibited

Main unit
Package contents
Check that the packaging contains all of the following parts before first use:
Lanyard
USB cable ..........................1pc
Warranty card .........................1pc
2
..........................1pc
Main unit User manual .........................1pc
..........................1pc
USB
connector
USB cable
Micro USB connector
USB Cable
Lanyard assembly hole
Fan blades
Power/
fan speed switch
Front guard
Air outlets
Anti-slip rubber
Power/
charging indicator
Rear guard• Air inlets
Handle
Micro USB port
Fanunit
Anti-slip rubber
Lanyard assembly hole
Do not pull on the USB cable to
disconnect the USB plug. Always
hold the USB plug between your
fingers.
Failure to observe this instruction
may result in an electric shock, short
circuit or damage to the USB cable.
Do not expose yourself to wind
generated by the product for a long
time. This may constitute a health
hazard.
Do not insert your fingers into the
guard. Failure to observe this
instruction may cause an injury.
Keep your hair away from the guard.
Hair may become trapped inside the
fan and cause an injury.
Do not use the product in the
following environments:
•Next to stoves or sources of heat
•Areas containing flammable gases
•Areas in which the product may be
exposed to rain or moisture. Failure
to observe this instruction may cause
the product to become deformed or
discoloured or result in a short
circuit, fire or electric shock.
Do not use household cleaning
agents, abrasives or petroleum/alco-
hol-based chemicals to clean the
product. These may cause the
product to become discoloured or
deformed or result in an electric
shock or injury.
Do not turn on the power or connect
to USB cable when the fan unit
disassemble with handle.
This may result in an electric shock
or malfunction.
CAUTION
■This product is not intended for use by people with reduced physical, sensory or mental capabilities
or lack of experience and knowledge (including children), unless they are supervised by someone
who is responsible for their safety.
■Children must be supervised to ensure that they do not play with the product.

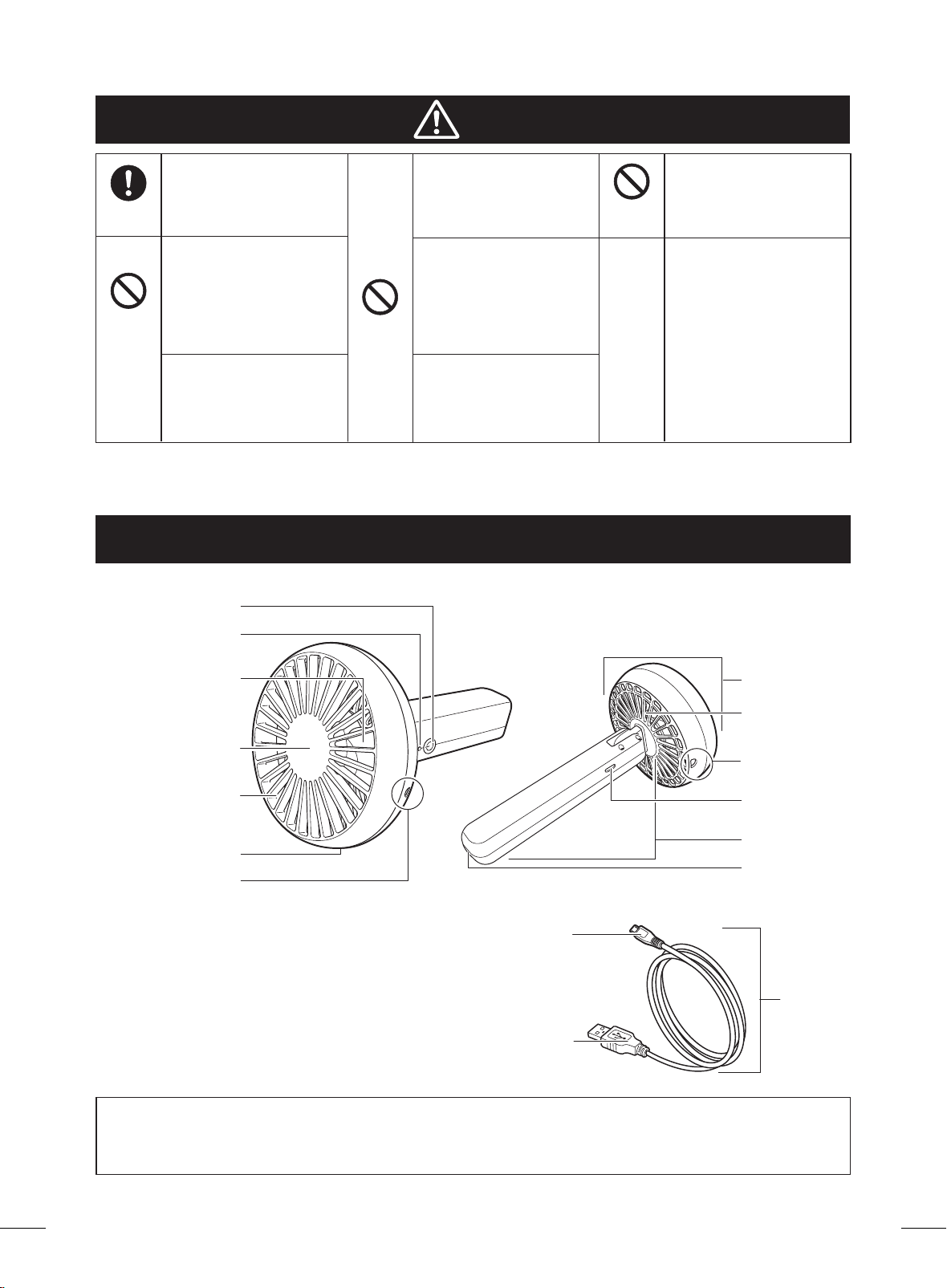

Part names and functions
Prohibited
Instruction
Prohibited
Prohibited

How to use
Before first use
Charge the battery
Switch off the power supply before connecting
the USB cable.
Fully charge the battery before using the
product for the first time.
Place on a stable, level surface
1.
Insert the USB connector on the
USB cable into a USB port on a
computer or a USB power adapter
2.
3.
Insert the micro USB connector on
the USB cable into the micro USB
port on the fan
Adjust the fan anlge
Fanunitcanbeadjustedtofrontandback
directionataround180°
Check that the power/charging
indicator is switched on
4.
The power/charging indicator
will switch off when charging is
complete
5.
6.
Whenthebatteryhasfinishedcharging,
unplugthemicroUSBconnectorfrom
themicroUSBport.
3
Place the fan on a stable surface to prevent
it from falling over and causing the micro
USB connector to become disconnected
when the battery is charging.
The USB port/USB power adapter must be
able to deliver a 5V/500mA power supply.
The power/charging indicator will switch off
when the battery has finished charging.
Depending on the residual capacity of the
battery, the battery takes approximately 5
hours to recharge.
•Do not connect the USB connector to a
USB hub.
This may result in an unstable power
supply.
•Ensure that the USB connector is fully
inserted into the USB port in the correct
orientation.
Ensure that the micro USB connec-
tor is fully inserted in the correct
orientation. It can only be inserted
in one orientation.
Do not press the power/fan speed
switch when the battery is
charging, as this will interrupt the
charging process and power the
fan using the USB cable.
※The battery will resume charging
when the fan is switched off. Do not keep the micro USB
connector plugged into the fan.
Overcharging may damage the
battery or cause the product to
malfunction.
Micro USB port
Micro USB connector
Power/
charging indicator
anti-slip rubber
- Beware of fingers when adjusting the
fan unit direction.
- Please place the anti-slip rubber
downward when using the fan on
table.
Caution
Caution
Caution
Attention
Warning

Starting/stopping the fan
1.
Press the power/fan speed
switch to switch on the fan
and change the fan speed.
4
Do not allow the battery to fully
discharge.
This may significantly impair the
battery performance.
Using lanyard Using lanyard demonstration
Lanyard safety part
Length
adjustment
button
▶▶Continued on the next page▶▶
2.
To switch off the fan, press
the power/fan speed switch
repeatedly until the power/
charging indicator switches off.
When the fan is operating, you can then
press the power/fan speed switch to change
the fan speed.
Low
Off
(indicator is switched off)
After assembly lanyard, you can hang it to
your neck as shown in the right diagram.
A safety part was fixed in the lanyard to
avoid injury, the lanyard will be departed
when there is strong pulling.
The safety part can be reassembly.
•
•
- Keep your hair away from the guard.
Hair may become trapped inside the
fan and cause an injury.
- Do not pull the lanyard
The product may be damaged
- Please stay the product hanging in
right position
It may hurt other person, or damage
other goods
- Do not swing the product with the
lanyard
It may cause damage or injury.
Medium High
Warning
Attention

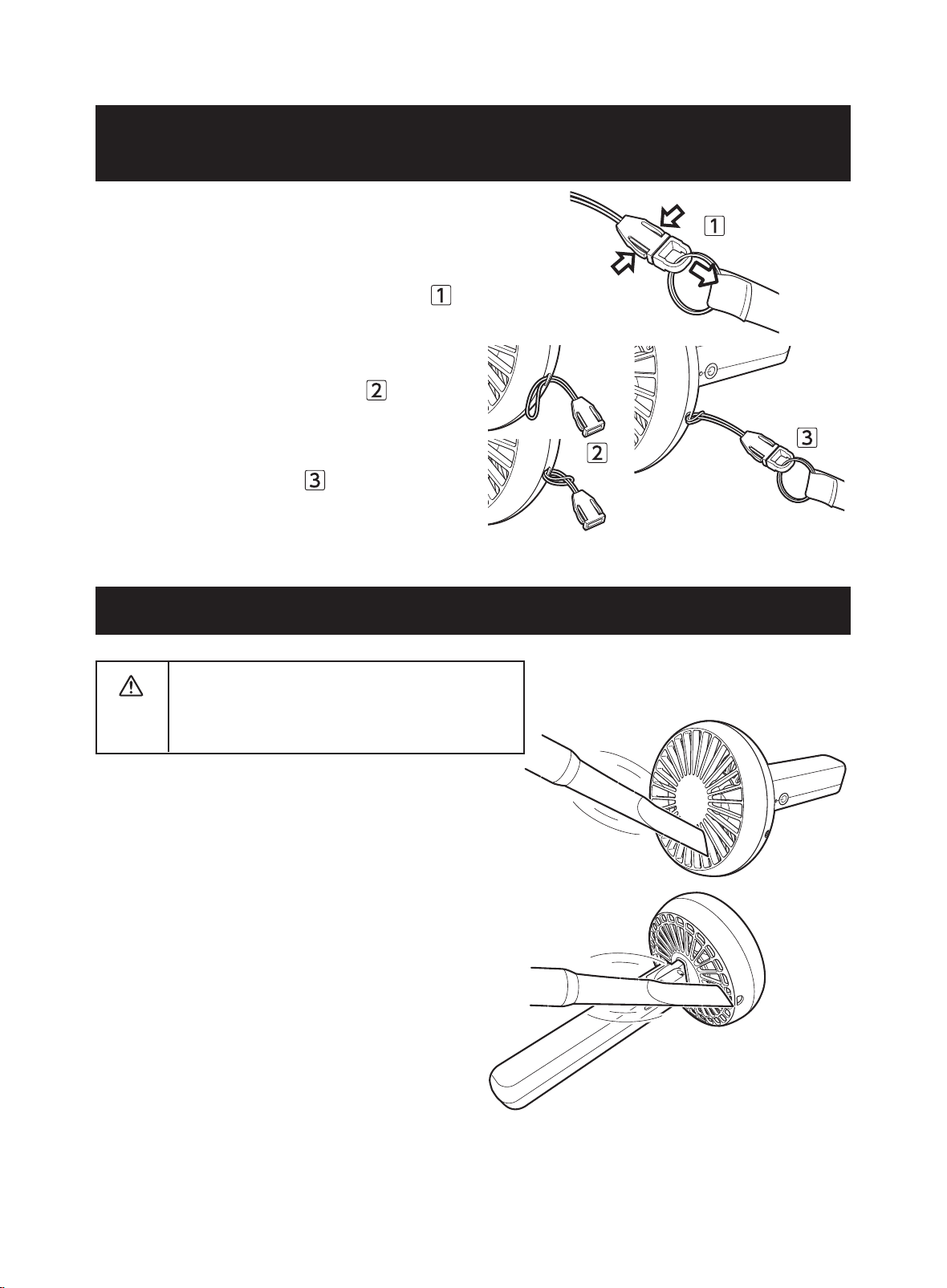

Simultaneously press the left
and right ends of the plastic
head of lanyard, separate it.
Let the small rope pass
through the mounting hole of
the fan unit and tie it.
Cleaning, maintenance and storage
How to use
(continued from previous page)
Always disconnect the micro USB connector
from the main unit before cleaning the
product or conducting maintenance work.
Failure to observe this instruction may result
in an electric shock or fire.
Important information
•Do not use household cleaning agents, solvents,
abrasives or petroleum/alcohol-based chemicals
to clean the product.
•Do not use water to clean the main unit (this may
cause an electric shock or malfunction).
Cleaning and maintenance
5
Assembly lanyard
1.
2.
Put the plastic head of lan-
yard back on the lanyard, as
shown in figure
3.
plastic head
of lanyard
lanyard
To remove dirt, wipe the main unit with a soft
cloth dipped in warm water or neutral dish
detergent (non citrus-based), and then wipe
dry with a dry cloth. (Do not apply pressure
when wiping the plastic parts, as this may
damage the surface.)
Cleaning the guard
Front and rear guard cannot be disassembly,
please use vacuum cleaner to remove the
dust on the guard.
Warning

Warning The product must only be disassembled and repaired by a qualified technician.
If you suspect that the fan is faulty, follow the troubleshooting steps below before contacting a
qualified technician or customer service.
Problem Possible cause Solution
The fan does not switch on.
The fan blades do not rotate.
•The battery was not charged. Charge the battery.
•The USB cable is not connected to
a USB port, or the USB port
(e.g. computer USB port) is not
switched on.
Connect the USB cable to a USB port,
and check that the USB port
(e.g. computer USB port) is switched
on.
The battery does not charge. •The USB cable is not connected. •Ensure that the USB cable is connected.
The battery life has decreased. •The ambient temperature is low. The battery life decreases when the
fan is used in cold environments.
The battery takes a long time
to charge.
•Depending on the ambient
conditions, the battery make longer
to charge.
This is normal and does not indicate
that the fan is faulty.
If the battery does not finish charging,
please contact Shun Hing Electric
Service Centre Limited.
Inspect the fan at regular intervals
Did you notice any of the following?
•The USB cable or main unit heats up.
•The power supply is intermittent when the USB
cable is moved.
•There is a burning smell.
•Other malfunctions or abnormalities.
•To prevent an accident or injury, disconnect the power
supply immediately and unplug the micro USB
connector from the main unit. Contact your retailer or
customer service to arrange a repair.
Before arranging a repair or contacting customer service
Storage instructions
•Allow the fan to dry after cleaning.
•Cover the fan with a plastic bag and store
it in a dry location that is not exposed to
moisture.
If you do not plan to use the fan for an
extended period, ensure that the battery
is fully charged and recharge the battery
every 6–12 months. The battery will slowly
discharge when the fan is not in use.
Excessive discharge will reduce the lifespan
of the battery.
•Allow the fan to dry after cleaning. Failure
to observe this instruction may cause a fire,
burn injuries or malfunction.
Caution
