Double apex Mk7 garage control User manual

MK7 Installation Instructions

Parts Included:

A - GC button (x1)

B - GC module (x1)

C - Button harness (x1)

D - Posi-Tap wire tap (x2)

E - T20 Torx key (x1)

F - Power harness (x1)

G - 2 amp blade fuse

H - Zip ties

Thank you for choosing the Double Apex Garage Control. If you

have any questions about the installation please do not hesitate to

email us at support@doubleapex.co. A PDF version of these in-

structions can be found on the product page at doubleapex.co

Step 1: Programing The Control Box

1. Determine the type of garage door opener you have, smart/learn

or dip switch. Smart/learn units will have a colored button on the

motor unit (Figure A). Dip switch units will have a series of switches

(Figure B). Temporarily insert the included coin battery, + side up. If

you have smart/learn model continue to the next step. If you have a

dip switch model skip to step 1A.

2. Find your brand opener in Appendix A and note the number of

times to press the button on the control box.

3. Make sure your garage door is closed. Press and hold the pro-

gram button in the control box until the LED illuminates. (Figure C)

4. Press and release the smart / learn button on the opener motor

unit (Figure A).

Photo A

Figure C

Required Tools:

1. Small Phillips head driver

2. Small flat heat driver

3. Plastic trim pry tool

4. T30 Torx wrench

Figure B

Figure A

5. If you’re installing a single button Garage Control select button

SW1 in the control box and press it the number of times shown in

Appendix A, making sure the LED stops flashing after each press.

The code is accepted when one of the following happens; an audi-

ble click, garage door opens, garage light blinks. Press the program

button on the control box. Programing is complete. Press the button

you selected again to test.

If you’re installing a two button Garage Control, repeat the previous

steps with your second opener using button SW2.

Once the control is programmed REMOVE THE BATTERY by hand

or with a non-metal tool.

Figure A

Step 1A - For Dip Switch Models

1. Find your brand opener in Appendix B and note the number of times to

press the button on the control box.

2. Match the dip switch settings in the control box to those on the opener.

Turn extra switches “Off”, or opposite the “ON” marking on the switch

panel.

3. Make sure your garage door is closed. Press and hold the program

button in the control box until the LED illuminates. (Figure A)

4. For single button Garage Controls select button SW1in the control box

(Figure B) and press it the number of times shown in Appendix B,

making sure the LED stops flashing after each press. The code is ac-

cepted when the garage door opens. Press the program button on the

control box. Programing is complete. Press the chosen button to test.

5. For two button Garage Controls repeat the previous steps with your

second opener using button SW2

Figure A Figure B

Once the control is programmed REMOVE THE BATTERY by

hand or with a non-metal tool.

Step 2:

1. Move the shifter rearward. Disconnect the negative battery terminal.

2. Remove the trim surrounding the climate control knobs. With the lower

compartment door 1/2 open, pull outward along the bottom edge of the

trim, starting in the lower corner. Once the bottom is detach, pull out

the sides and then the top. Figure A

3. Remove the lower compartment. You may want to cover the surface of

the compartment door with masking tape to prevent scratches during

removal. With the door open, place one hand flat on the bottom of the

compartment and the other on the side and pull up and out. Do not

pull on the compartment door. Figure B

If the compartment doesn’t release easily by hand you can use a

curved trim removal tool and pry upwards on the front corner. There

are also holes beneath the rubber mat where you can pull the com-

partment out with a hook tool or L key. Figure C

Figure B

Figure A

Figure C

Step 2 Continued:

For Golf / GTI:

4. Remove the T20 Torx screws at the front of the shifter trim and

lift up at the front edge to remove the trim and button assembly.

Figure E

For Golf R:

4. Remove the T20 Torx screws (Figure E). Remove the two

screws (#7, Figure D) and remove the console side covers, #8.

Lift the center console insert (#5) upward to detach.

For all vehicles:

5. Disconnect the connector on the left side button cluster and the

push start button if equipped and any other wire harness con-

nectors. Use a small screw driver to depress and release the

connector latches and pull the connector outward. Figure F

Figure F

Figure C

Figure E

Figure D

Step 3:

1. Remove the silver trim around the shifter. Release the two

latches on the bottom, front edge, and separate the center trim

and shift boot from the surround trim. Figure A

2. Orient the shift boot so it fits through the opening and remove

the button cluster. Set it aside for now. Figure B

3. Using a plastic trim removal tool, remove the end dash cover on

the driver side. Pry outward along the edges to disengage the

panel. Figure C

4. Remove the trim panel to the right of the accelerator pedal. Re-

move the T20 Torx screw and pull downward on the panel to

release it. Figure D

Figure B

Figure A

Figure C Figure D

Step 4:

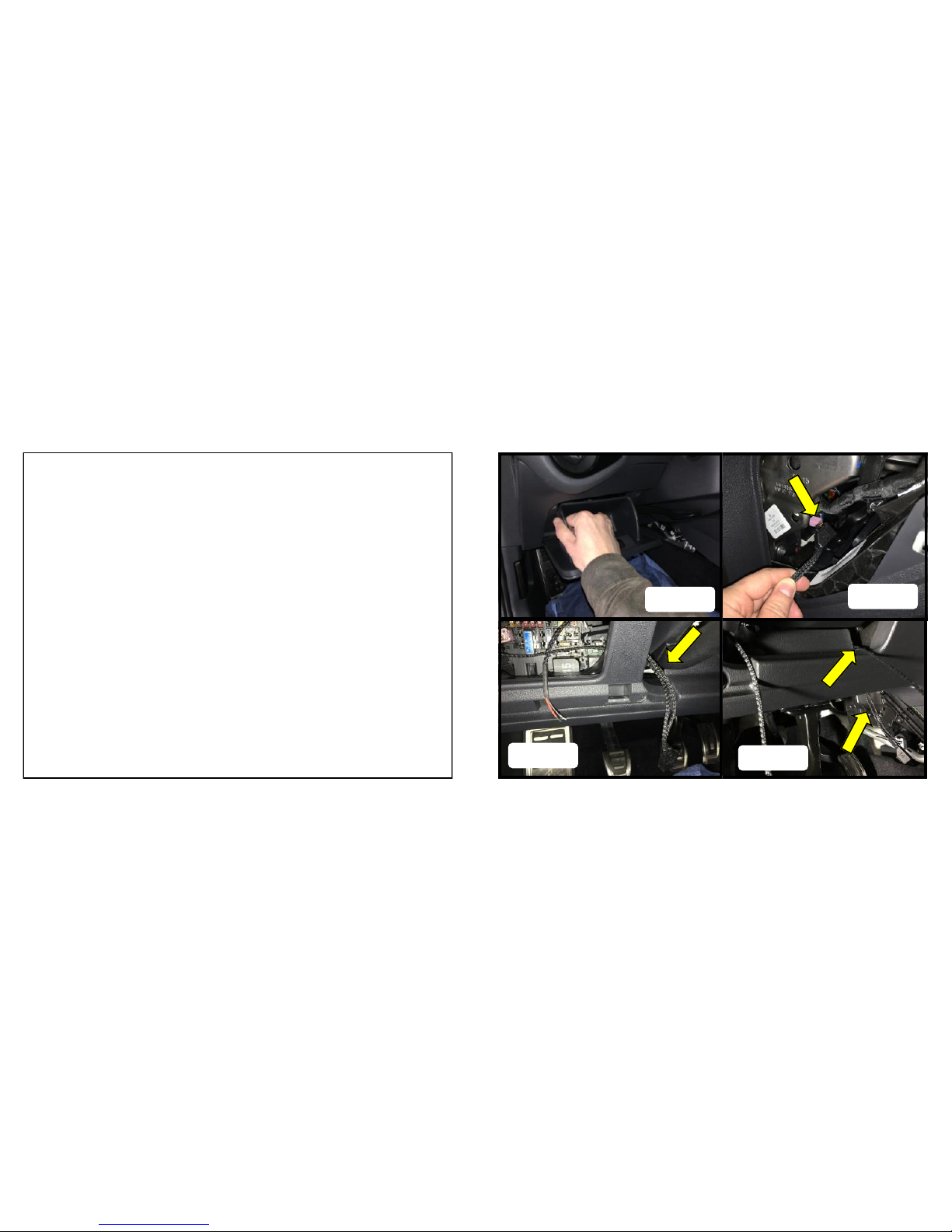

1. Remove the driver side storage compartment. With the door

open put pressure on outside of the compartment’s left wall

while pull outwards to release. Figure A

2. Insert the end of the button harness with the 10 pin connector

through the dash opening. Figure B

3. Route the harness across the fuse panel and out the opening to

the left of the steering column. Figure C

4. Route the harness through the opening on the right of the steer-

ing column and out the back right side of the under dash panel.

Warning: If the harness becomes caught up do not use ex-

cessive force to dislodge. Doing so could cause damage.

Figure A Figure B

Figure C

Figure D

Step 5:

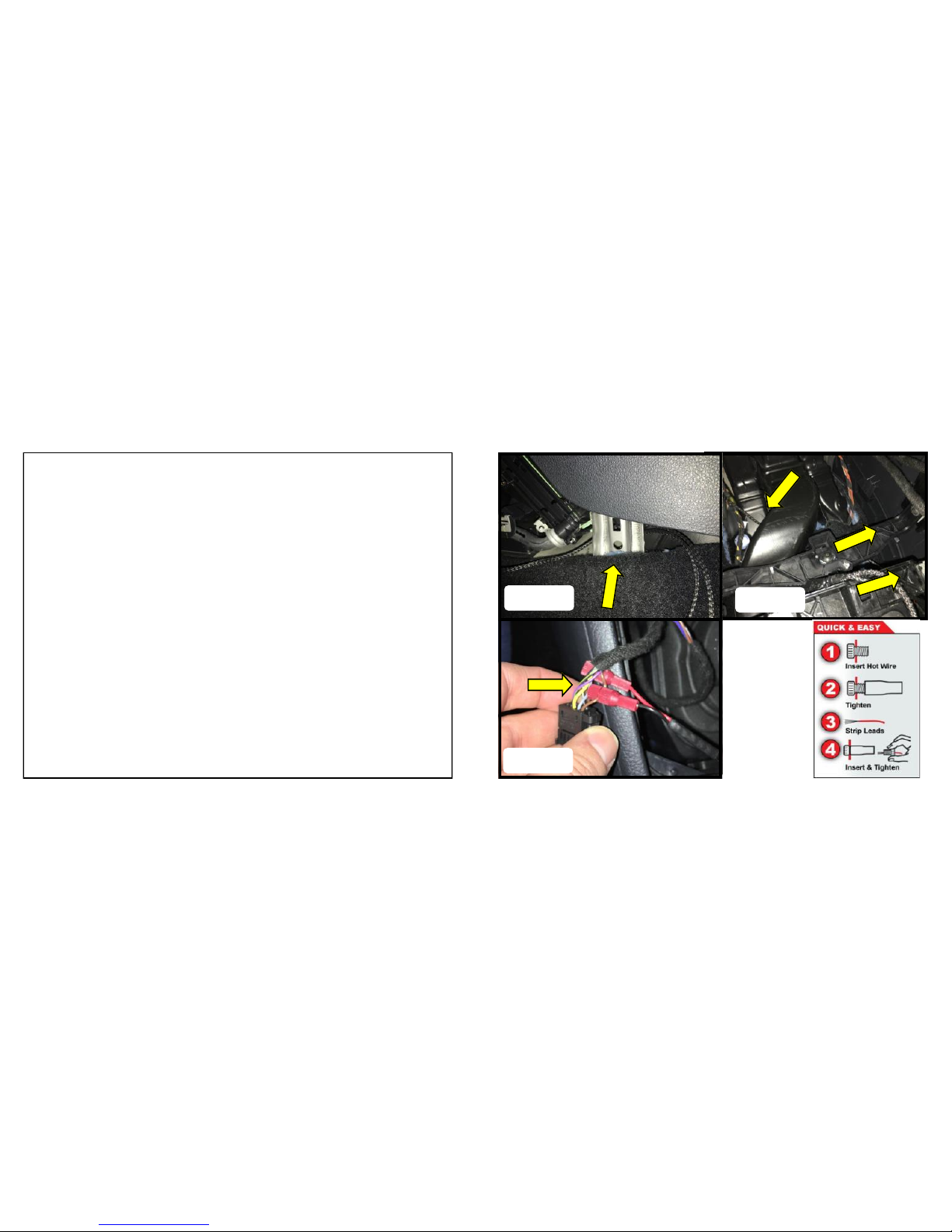

1. Route the harness behind the metal support bar and into the

center compartment opening. Figure A

2. Route the harness under the HVAC ducting and under the plas-

tic dash support beams into the area around the shifter. Figure

3. Attached the short leads on the Garage Control button harness

to the harness for the left side button cluster. Using the Posi-

Taps connect the red wire to the grey wire and the black wire to

the brown wire. Make sure the wires are secure and no bare

wire is showing. Take care not to drop the Posi-Taps. Figure

C / D

Figure A

Figure B

Figure C Figure D

Step 6:

1. Remove the thin black trim piece on the back side of the button

cluster by releasing the tabs on the bottom. Figure A

2. Push out the right side button blanks and replace with the Gar-

age Control button assembly. Replace the thin black trim. Fig-

ure B

3. Re-install the button cluster. Reconnect all of the connectors

and make sure the short leads on the Garage Control button

harness sit in the recess behind the shifter. Don’t secure the

trim with the Torx screws yet.

4. Secure the Y terminal on the Garage Control power harness

behind the T30 Torx bolt on the left side of the fuse panel. Fig-

ure C

5. Remove the 10 amp fuse in postion F36 if equipped. Figure D

Figure C

Figure A

Figure B

Figure D

Step 7:

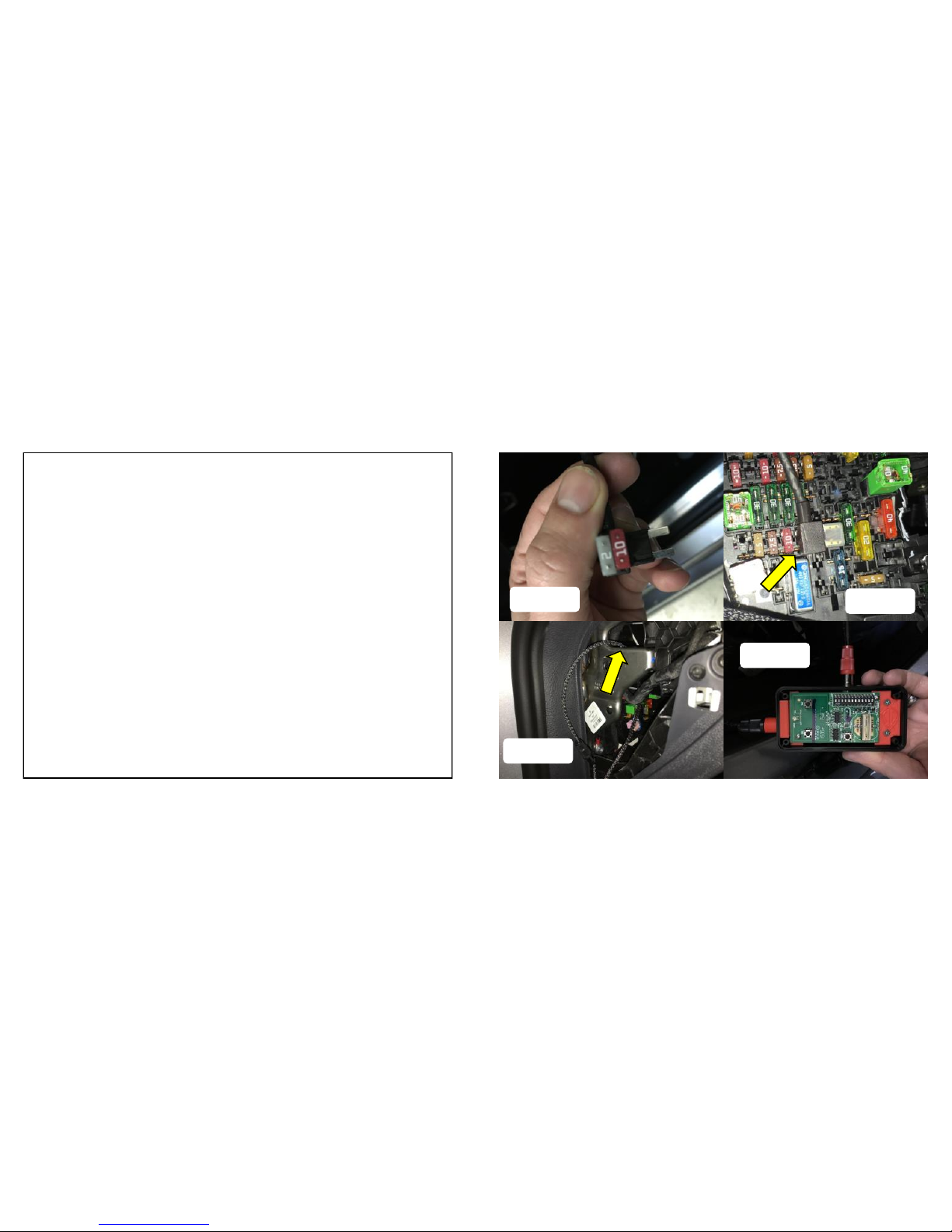

1. Insert the provided 2 amp fuse into the Add-A-Fuse in the position

shown. If your vehicle was equipped with a fuse in location F36, insert

it into the 2nd position on the Add-A-Fuse. Figure A

2. Insert the Add-A-Fuse in the orientation shown in Figure B.

3. Route the end of the button harness over the top of the metal dash

support inside the end compartment. Figure C

4. Connect the power harness to the red RCA jack on the control module

and connect the button harness to the black RCA jack. Figure D

For two button kits, the RCA plug corresponding to the 1st button on

the button assembly is labeled SW1.

Figure A

Figure B

Figure D

Figure C

Step 8:

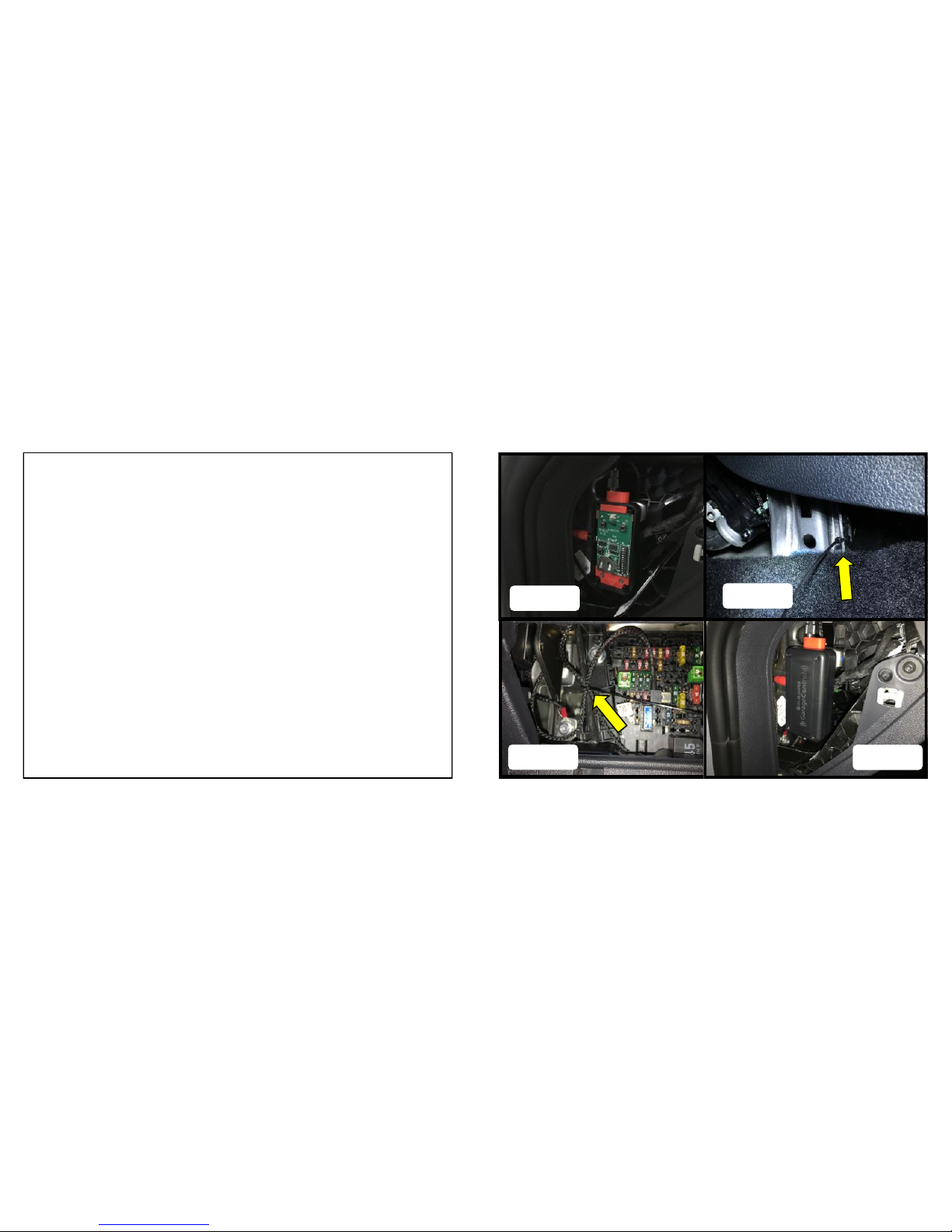

1. Before removing the covering on the control’s adhesive strips, test fit

the module inside the dash opening as shown in Figure A. Make sure

there isn’t any pressure put on the connectors or wire harnesses.

2. Once you’re comfortable with the positioning remove the clear layer

from the adhesive strips and install the module. Keep pressure on the

module for 30 seconds to help the adhesive set.

3. Reconnect the vehicles battery and test the Garage Control button.

4. Secure the harnesses with the provided zip ties. Remove any slack

and make sure the cables are secure above the under dash cover and

clear of the pedals and steering column. Zip tie the button harness to

the metal support to the right of the accelerator peal. Tuck the button

harness below the fuse panel and zip tie it and the power harness to

the factory wiring to the left of the fuse panel. Use additional zip ties as

needed to secure the cables. Figures B and C

5. Install the control cover using the provided screws. Figure D

Figure A

Figure B

Figure C Figure D

Step 9:

1. Reinstall the previously removed trim and you’re done! Any

warning lights on the dash should clear themselves after a short

drive.

The Garage Control is wired to be active only when vehicle

power is on. This is for security and to prevent long term battery

drain. It you’d like it to function at all times the Add-A-Fuse can

be connected to a terminal with constant power.

Thank You!

Thank you again for choosing the Double Apex Garage Control.

We believe in continuous improvement so until our products install

themselves and respond to telepathic commands there’s probably

something we could do better. All feedback is appreciated. If you

have comments or questions please don’t hesitate to contact us at

support@doubleapex.co or visit us at doubleapex.co.

Limited Warranty

Double Apex LLC warrants this product, Garage Control, to be free from de-

fects in materials and workmanship for one year from date of purchase to the

original retail Purchaser.

Double Apex LLC reserves the right to repair or replace the defective product

at their discretion, without charge. This is the only remedy the purchaser has

for any loss or damage due to any defect in the product. This warranty does

not cover labor, lost profits, down time or loss of use, shipping costs, damage

to the vehicle or other incidental, indirect or consequential damages.

This warranty is void if the product is misused, abused or installed incorrectly.

The Purchaser is responsible for ensuring that the product is installed correct-

ly and should immediately stop use of the product if an improper or unsafe

condition is observed.

Please contact Double Apex LLC to make a warranty claim before returning

the product.

Appendix A - Smart / Learn Settings

Button Pushes Brand Type / Color Years

1Linear Mega-Code 97+

2Chamberlain Orange 97-05

3Chamberlain Purple 05+

4Chamberlain Green 93-96

5Genie Intellicode 95+

5Overhead Intellicode 95+

6Genie Intellicode 05+

6Overhead Intellicode 05+

7Stanley Secure Code 98

9Wayne Dalton Rolling Code 99

8Chamberlain Yellow 11+

For Liftmaster, Do-It, Master Mechanic, Raynor, True Value, and

Craftsman brands use Chamberlain settings.

Appendix B - Dip Switch Settings

Button Pushes Brand Type / Color Years

11 Chamberlain 9 Position 90-92

12 Chamberlain 9P - Canada 83-89

13 Genie 12 Position 85

14 Linear Multicode 10 Position 76

15 Chamberlain 8 Position 83-89

16 Stanley/Multicode 10 Position 76

17 Genie 9 Position 85

18 Linear 8 Position 76

18 Moore-O-Matic 8 Position 76

19 Chamberlain 7 Position 83-89

For Liftmaster, Do-It, Master Mechanic, Raynor, True Value, and

Craftsman brands use Chamberlain settings.

www.doubleapex.co

email: support@doubleapex.co

This manual suits for next models

Table of contents

Other Double Apex Automobile Accessories manuals

Double Apex

Double Apex Escort Mute Button User manual

Popular Automobile Accessories manuals by other brands

Thermo King

Thermo King Whisper manual

Husky

Husky 32220 Assembly, Installation, Operation and Maintenance Instructions

Guardsman

Guardsman G1660 FITTING INSTRUCTION

Menabo

Menabo PROFESSIONAL FIX 601FP Fitting instructions

Whispbar

Whispbar K133W Fitting Instructions for Basic Carrier

VDO

VDO TPMS Go user manual

Kuda

Kuda 293950 Installation instruction

SAINT-GOBAIN

SAINT-GOBAIN CertainTeed Volu-Matic 100 Operation Manual and Safety Information

Leach

Leach 2R-II Operator's manual

Dakota Digital

Dakota Digital HDX-69C-CAM Installation

Steeler

Steeler L200-R1570-00 FITTING INSTRUCTION

travall

travall TDG 1086 FITTING INSTRUCTION

Dakota Digital

Dakota Digital LED Tail Lights LAT-NR410 installation instructions

Mercedes-Benz

Mercedes-Benz Aerostyle manual

AVS

AVS Headlight Covers installation instructions

Webfleet

Webfleet LINK 210 installation guide

Fiamma

Fiamma CARRY-BIKE VW T2 Installation and use instructions and warnings

Kicker

Kicker SoundGate PCRU11 user manual

Double Apex MK7 Garage Control User manual

Popular Automobile Accessories manuals by other brands
