DQ Technology M505 User manual

M505
ADSL/2/2+ Wireless Four Port Ethernet/USB
Modem
User’s Manual

Manual Ver1.
- 2 -
Table of Contents
1. INTRODUCTION .....................................................................................................................................................4
1.1 F EATURES .........................................................................................................................................................4
1.2 S YSTEM R EQUIREMENTS ...................................................................................................................................4
2. INSTALLATION .......................................................................................................................................................5
F RONT P ANEL ................................................................................................................................................................5
R EAR P ANEL ..................................................................................................................................................................6
C ONNECTING THE H ARDWARE ......................................................................................................................................6
Step 1. Connect the ADSL cable and optional telephone...........................................................................................6
Step 2. Connect the Ethernet cable............................................................................................................................6
Step 3. Attach the power connector ...........................................................................................................................7
Step 4. Turn on the M 0 and power up your systems...............................................................................................7
Step . Configure the M 0 through the WEB interface............................................................................................7
Step 6. Save the configurations and Reboot...............................................................................................................7
3. CONFIGURATION...................................................................................................................................................8
3.1 S ETUP ...............................................................................................................................................................8
3.2 E STABLISH T HE C ONNECTION ...........................................................................................................................8
4. QUICK SETUP........................................................................................................................................................10
4.1 PPP OVER E THERNET (PPP O E) C ONFIGURATION ............................................................................................1
4.2 PPP OVER ATM (PPP O A) C ONFIGURATION ....................................................................................................13
4.3 MER (MAC E NCAPSULATION R OUTING ) C ONFIGURATION ............................................................................13
4.4 IPOA (IP OVER ATM) C ONFIGURATION ..........................................................................................................17
4.5 B RIDGING (T RANSPARENT /P ASS -T HROUGH M ODEM ) C ONFIGURATION ..........................................................2
5. ADVANCED SETUP ...............................................................................................................................................23
5.1 WAN ..............................................................................................................................................................23
5.2 LAN ...............................................................................................................................................................24
5.3 NAT................................................................................................................................................................25
5.4 R OUTING .........................................................................................................................................................28
5.5 S ECURITY .......................................................................................................................................................31
5.6 DNS ...............................................................................................................................................................34
5.7 DSL................................................................................................................................................................36

Manual Ver1.
- 3 -
5.8 P ORT M APPING ...............................................................................................................................................37
5.9 I NTERNET T IME ...............................................................................................................................................4
5.1 A CCESS C ONTROL S ERVICES ...........................................................................................................................4
5.11 IPS EC ..............................................................................................................................................................43
5.12 C ERTIFICATE ...................................................................................................................................................44
6. W IRELESS S ETUP ...........................................................................................................................................4
6.1 B ASICS ............................................................................................................................................................5
6.2 S ECURITY .......................................................................................................................................................5
6.3 MAC F ILTER ...................................................................................................................................................55
6.4 W IRELESS B RIDGE ..........................................................................................................................................55
6.5 A DVANCED .....................................................................................................................................................56
6.6 S TATION I NFO ..................................................................................................................................................58
. M ANAGEMENT U TILITIES .............................................................................................................................60
7.1 B ACKUP S ETTINGS ..........................................................................................................................................6
7.2 U PDATE S ETTINGS ..........................................................................................................................................62
7.3 R ESTORE S ETTINGS .........................................................................................................................................62
7.4 U PDATE F IRMWARE .........................................................................................................................................63
7.5 TR- 69 C LIENT ..............................................................................................................................................64
7.6 S AVE /R EBOOT .................................................................................................................................................64
7.7 S YSTEM L OG ...................................................................................................................................................67
8. CONNECTION STATUS........................................................................................................................................6
8.1 LAN ...............................................................................................................................................................67
8.2 WAN ..............................................................................................................................................................67
8.3 ATM ...............................................................................................................................................................69
8.4 ADSL .............................................................................................................................................................69
8.5 R OUTE ............................................................................................................................................................7
8.6 ARP................................................................................................................................................................71
8.7 DHCP.............................................................................................................................................................71
8.8 S UMMARY .......................................................................................................................................................72
9. DIAGNOSTICS AND HELP .................................................................................................................................. 3
10. APPENDIX A – SPECIFICATIONS...................................................................................................................... 4
11. APPENDIX B – WARRANTIES ............................................................................................................................ 6
12. APPENDIX C – REGULATIONS..........................................................................................................................

Manual Ver1.
- 4 -
1. Introduction
Congratulations on becoming the owner of the Master series of ADSL2+ modem routers. You
will now be able to access the Internet using your high-speed ADSL/2+ connection. The
Master series of ADSL2+ modems has the following major features.
Features
• ADSL/2/2+ modem for high speed Internet access
• Network Address Translation (NAT) and IP filtering functions to provide
network sharing and firewall protection for your computers
• Easy configuration via a web browser
• SPI firewall to protect you from outside intruders and attacks
• TR- 69 compliant for automatic modem update through your high speed
Internet access
This User’s Manual will guide you through the installation and configuration of your M5 5
modem.
System Requirements
Before installing your M5 5 modem, make sure that you have the following:
• ADSL service up and running on your telephone line, with at least one public Internet
address for your LAN
• Computer containing an Ethernet 1 Base-T/1 Base-T network interface card (NIC)
• Computer containing a USB port (M5 5 modems)
For system configuration, use the web-based (HTTP) user interface.
Note: Make sure that your computer has a web browser such as Internet Explorer v5. or
later, or Netscape v4.7 or later.

Manual Ver1.
- 5 -
2. Installation
In addition to this document, your M5 5 should arrive with the following:
• One power adapter and power cord
• One Ethernet cable with RJ-45 connector
• One USB A-B cable
• One Telephone cable with RJ-11 connector
• “Visionnet DSL” CD
Front Panel
The front panel LEDs indicates the status of the unit. (Left to Right)
M505
Label Color Function
Wireless Green
Green – Wireless is activated on modem
Flashing Green – Wireless activity is present
Off - Modem off or no radio signal detected
USB Green
Off - Power Off – or – No Device Detected
Solid Green – Device connected including wake on LAN
Flashing Green – LAN activity present for that port
Ethernet 1-4 Green
Off - Power Off – or – No Device Detected on any LAN
port
Solid Green – Device connected including wake on LAN
on any LAN port
Flashing Green – LAN activity present
Internet Green
Solid Green – IP connected – no traffic passing
Device has a public IP via either static/ DHCP/
or IPCP
If PPP is used it has been authenticated
If IP or PPPOE session is idle and dropped,
light to remain green as long as ADSL is still
present. Light to turn red if upon attempting
new session it fails.
Off – Modem Power Off.
LED Should remain off if modem is in bridged
mode
DSL Green
Green – DSL Good Sync
Off - Powered off
Flashing Green - DSL Attempting sync
Power Green
On – Solid Green
Off – The Modem is Off
Red – Power on self test/ Device Malfunction (not
bootable) and device malfunction

Manual Ver1.
- 6 -
Malfunction is any state which would prevent
syncing or passing of data
Rear Panel
The connectors located at the rear panel have the following functions.
M505
Interface Function
Switch(Push Button) Power switch on/off
Power Connects to the power adapter cable
Reset Resets unit’s configuration to factory default
USB USB connection: Connects to your PC’s USB 1.1/2.
port
Ethernet 1-4 RJ-45 connector: Connects to your PC's Ethernet port,
or to the uplink port on your LAN's hub/switch
Line RJ-11 connector: Connects to your ADSL line
Connecting the Hardware
Connect the M5 5 to the phone jack, the power outlet, and your computer or network.
WARNING
Before you begin, turn the power off for all devices. These include your
computer(s), your LAN hub/switch (if applicable), and the M 0 .
Step 1. Connect the ADSL cable and optional telephone
Connect one end of the phone cable to the RJ-11 connector on the rear panel of the M5 5. Connect
the other end to the ADSL outlet provided by your service provider (normally MODEM port of the
included splitter).
Step 2. Connect the Ethernet cable
Connect one end of the Ethernet cable to the RJ-45 connectors on the rear panel of the M5 5 and
connect the other end to your PC’s network adaptor (NIC). If you are connecting a LAN to the
Master series, attach one end of the Ethernet cable to a regular hub port and the other end to the
LAN port on the M5 5.

Manual Ver1.
- 7 -
Step 3. Attach the power connector
Connect the AC power adapter to the power connector on the M5 5 and plug in the adapter to a
wall outlet or power extension.
Step 4. Turn on the M505 and power up your systems
Press the Power switch on the back panel of the M5 5 to the ON position.
Boot up your computer(s) and any LAN devices such as hubs or switches.
Step 5. Configure the M505 through the WEB interface
Please refer to Chapter 3.
Step 6. Save the configurations and Reboot
Save the changes you made on the M5 5 and it will automatically reboot to make the settings
permanent.

Manual Ver1.
- 8 -
3. Configuration
3.1 - Setup
 Connect your M5 5 and PC with an RJ-45 Ethernet cable.
 Turn on the M5 5.
 The default IP address of M5 5 is 192.168.1.254.
3.2 - Establish the Connection
 Enter the IP address (default: 192.168.1.254) of M5 5 in the address line of your
web browser.
 A Dialogue Box will pop up to request the user to login. (Figure 1)
Figure 1. Login dialogue box
 Please enter the management username/password into the fields then click on the
OK button (Please contact your ISP for login information).
 If the authentication is valid, the main page will be displayed on the screen.
(Figure 2)

Manual Ver1.
- 9 -
Figure 2. M 0 Home Page

Manual Ver1.
- 1 -
4. Quick Setup
The system administrator can configure the M5 5 remotely or locally via a Web
Browser. Network configuration needs to be planned and decided before starting the
configuration procedure.
Quick Setup allows system administrator to select the appropriate operation mode and
configure the corresponding settings step by step to create a connection. The following
operation modes are supported under Quick Setup:
 PPP over Ethernet (PPPoE)
 PPP over ATM (PPPoA)
 MER (MAC Encapsulation Routing)
 IPoA (IP over ATM)
 Bridging

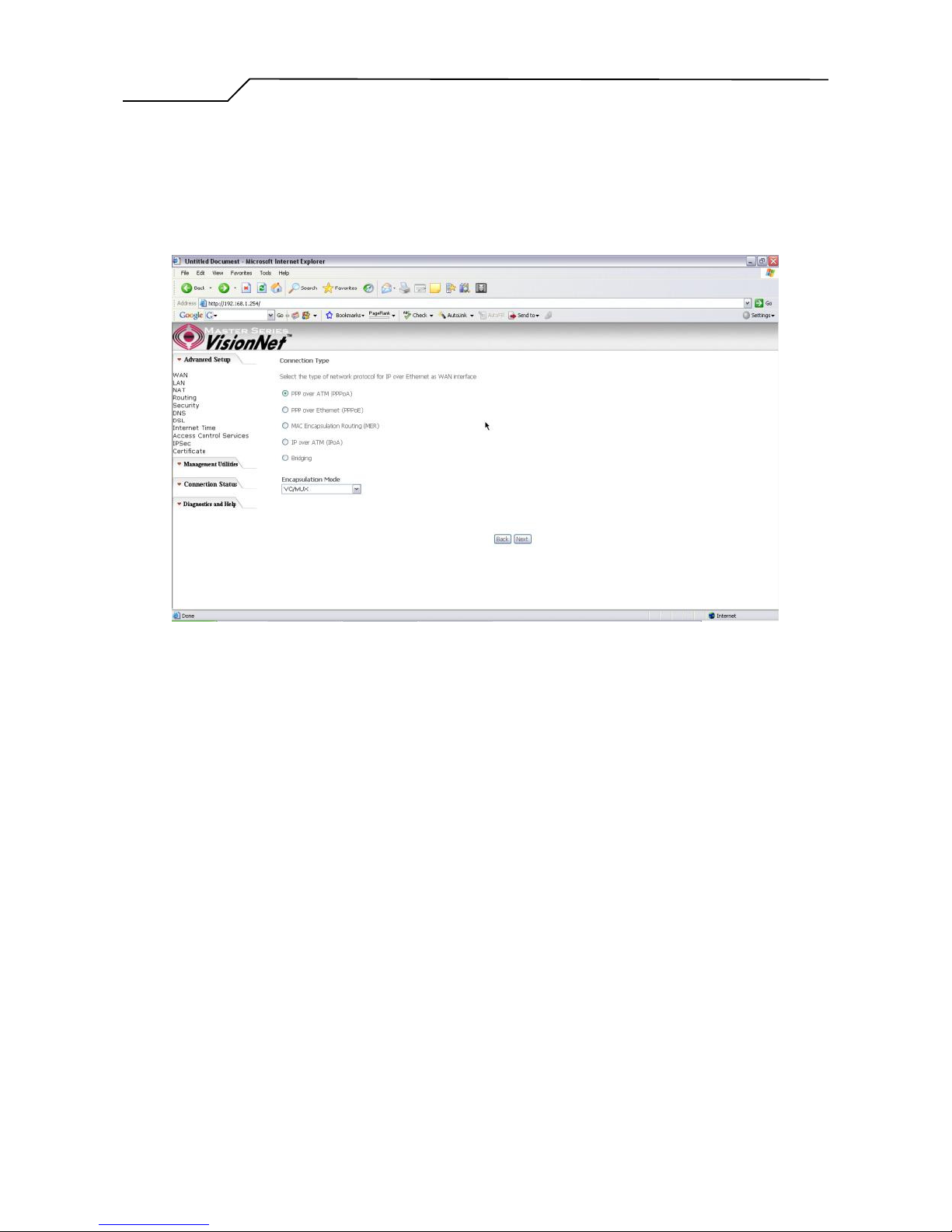

4.1 - PPP over Ethernet (PPPoE) Configuration
Click on “Quick Setup” in the left frame and follow the steps below to create a PPP
over Ethernet (PPPoE) connection.
Here you can either select DSL Autoconnect (Modem will attempt to find the correct
VPI/VCI settings) or Uncheck the box to manually input the VPI/VCI settings.
Figure 3. Quick Setup – ATM PVC
