DQ Technology M504 User manual

M504
ADSL/2/2+ Four Port Ethernet/USB Modem
User’s Manual

Manual Ver1.0
Table of Contents
1. INTRODUCTION.....................................................................................................................................................4
1.1 FEATURES.........................................................................................................................................................4
1.2 SYSTEM REQUIREMENTS ..................................................................................................................................4
2. INSTALLATION.......................................................................................................................................................5
FRONT PANEL................................................................................................................................................................5
REAR PANEL..................................................................................................................................................................6
CONNECTING THE HARDWARE .....................................................................................................................................6
Step 1. Connect the ADSL cable and optional telephone..........................................................................................6
Step 2. Connect the Ethernet cable............................................................................................................................6
Step 3. Attach the power connector...........................................................................................................................7
Step 4. Turn on the M504 and power up your systems..............................................................................................7
Step 5. Configure the M504 through the WEB interface ...........................................................................................7
Step 6. Save the configurations and Reboot..............................................................................................................7
3. CONFIGURATION..................................................................................................................................................8
3.1 SETUP...............................................................................................................................................................8
3.2 ESTABLISH THE CONNECTION ..........................................................................................................................8
4. QUICK SETUP.......................................................................................................................................................10
4.1 PPPOVER ETHERNET (PPPOE) CONFIGURATION............................................................................................10
4.2 PPPOVER ATM (PPPOA) CONFIGURATION....................................................................................................13
4.3 MER (MAC ENCAPSULATION ROUTING)CONFIGURATION ............................................................................13
4.4 IPOA(IPOVER ATM) CONFIGURATION..........................................................................................................17
4.5 BRIDGING (TRANSPARENT/PASS-THROUGH MODEM)CONFIGURATION..........................................................20
5. ADVANCED SETUP ..............................................................................................................................................23
5.1 WAN ..............................................................................................................................................................23
5.2 LAN...............................................................................................................................................................24
5.3 NAT ...............................................................................................................................................................25
5.4 ROUTING ........................................................................................................................................................28
5.5 SECURITY.......................................................................................................................................................31
5.6 DNS...............................................................................................................................................................34
5.7 DSL ...............................................................................................................................................................36
5.8 PORT MAPPING...............................................................................................................................................37
5.9 INTERNET TIME ..............................................................................................................................................40
-2-

Manual Ver1.0
5.10 ACCESS CONTROL SERVICES ..........................................................................................................................40
5.11 IPSEC .............................................................................................................................................................43
5.12 CERTIFICATE...................................................................................................................................................44
6. MANAGEMENT UTILITIES.............................................................................................................................47
6.1 BACKUP SETTINGS .........................................................................................................................................47
6.2 UPDATE SETTINGS..........................................................................................................................................48
6.3 RESTORE SETTINGS ........................................................................................................................................49
6.4 UPDATE FIRMWARE ........................................................................................................................................49
6.5 TR-069 CLIENT..............................................................................................................................................50
6.6 SAVE/REBOOT ................................................................................................................................................51
6.7 SYSTEM LOG ..................................................................................................................................................51
7. CONNECTION STATUS.......................................................................................................................................54
7.1 LAN...............................................................................................................................................................54
7.2 WAN ..............................................................................................................................................................54
7.3 ATM...............................................................................................................................................................56
7.4 ADSL.............................................................................................................................................................56
7.5 ROUTE............................................................................................................................................................57
7.6 ARP...............................................................................................................................................................58
7.7 DHCP ............................................................................................................................................................58
7.8 SUMMARY ......................................................................................................................................................59
8. DIAGNOSTICSAND HELP..................................................................................................................................60
9. APPENDIX A – SPECIFICATIONS.....................................................................................................................61
10. APPENDIX B – WARRANTIES............................................................................................................................63
11. APPENDIX C – REGULATIONS.........................................................................................................................64
-3-

Manual Ver1.0
1.Introduction
Congratulations on becoming the owner of the Master series of ADSL2+ modem routers. You
will now be able to access the Internet using your high-speedADSL/2+ connection. The
Master series of ADSL2+ modems has the following major features.
Features
•ADSL/2/2+ modem for high speed Internet access
•Network Address Translation (NAT) and IP filtering functions to provide
network sharing and firewall protection for your computers
•Easy configuration via a web browser
•SPI firewall to protect you from outside intruders and attacks
•TR-069 compliant for automatic modem update through your high speed
Internet access
This User’s Manual will guide you through the installation and configuration of your M504
modem.
System Requirements
Before installing your M504 modem, make sure that you have the following:
•ADSL service up and running on your telephone line, with at least one public Internet
address for your LAN
•Computer containing an Ethernet 10Base-T/100Base-T network interface card (NIC)
•Computer containing a USB port (M504 modems)
For system configuration, use the web-based (HTTP) user interface.
Note: Make sure that your computer has a web browser such as Internet Explorer v5.0 or
later, or Netscape v4.7 or later.
-4-

Manual Ver1.0
2.Installation
In addition to this document, your M504 should arrive with the following:
•One power adapter and power cord
•One Ethernet cable with RJ-45 connector
•One USB A-B cable
•One Telephone cable with RJ-11 connector
•“Visionnet DSL” CD
Front Panel
The front panel LEDs indicates the status of the unit. (Left to Right)
M504
Label Color Function
USB Green
Off - Power Off – or – No Device Detected
Solid Green – Device connected including wake on LAN
Flashing Green – LAN activity present for that port
Ethernet 1-4 Green Off - Power Off – or – No Device Detected on any LAN
port
Solid Green – Device connected including wake on LAN
on any LAN port
Flashing Green – LAN activity present
Internet Green
Solid Green – IP connected – no traffic passing
Device has a public IP via either static/ DHCP/
or IPCP If PPP is used it has been authenticated
If IP or PPPOE session is idle and dropped,
light to remain green as long as ADSL is still
present. Light to turn red if upon attempting
new session it fails.
Off – Modem Power Off.
LED Should remain off if modem is in bridged
mode
DSL Green
Green – DSL Good Sync
Off - Powered off
Flashing Green - DSLAttempting sync
Power Green
On – Solid Green
Off – The Modem is Off
Red – Power on self test/ Device Malfunction (not
bootable) and device malfunction
Malfunction is any state which would prevent
syncing or passing of data
-5-

Manual Ver1.0
Rear Panel
The connectors located at the rear panel have the following functions.
M504
Interface Function
Switch(Push Button) Power switch on/off
Power Connects to the power adapter cable
Reset Resets unit’s configuration to factory default
USB USB connection: Connects to your PC’s USB 1.1/2.0
port
Ethernet 1-4 RJ-45 connector: Connects to your PC's Ethernet port,
or to the uplink port on your LAN's hub/switch
Line RJ-11 connector: Connects to your ADSL line
Connecting the Hardware
Connect the M504 to the phone jack, the power outlet, and your computer or network.
WARNING
Before you begin, turn the power off for all devices. These include your
computer(s), your LAN hub/switch (if applicable), and the M504.
Step 1. Connect theADSL cable and optional telephone
Connect one end of the phone cable to the RJ-11 connector on the rear panel of the M504. Connect
the other end to the ADSL outlet provided by your service provider (normally MODEM port of the
included splitter).
Step 2. Connect the Ethernet cable
Connect one end of the Ethernet cable to the RJ-45 connectors on the rear panel of the M504 and
connect the other end to your PC’s network adaptor (NIC). If you are connecting a LAN to the
Master series, attach one end of the Ethernet cable to a regular hub port and the other end to the
LAN port on the M504.
Step 3.Attach the power connector
Connect the AC power adapter to the power connector on the M504 and plug in the adapter to a
-6-

Manual Ver1.0
wall outlet or power extension.
Step 4. Turn on the M504 and power up your systems
Press the Power switch on the back panel of the M504 to the ON position.
Boot up your computer(s) and any LAN devices such as hubs or switches.
Step 5. Configure the M504 through the WEB interface
Please refer to Chapter 3.
Step 6. Save the configurations and Reboot
Save the changes you made on the M504 and it will automatically reboot to make the settings
permanent.
-7-

Manual Ver1.0
3.Configuration
3.1 - Setup
zConnect your M504 and PC with an RJ-45 Ethernet cable.
zTurn on the M504.
zThe default IP address of M504 is 192.168.1.254.
3.2 - Establish the Connection
zEnter the IP address (default: 192.168.1.254) of M504 in the address line of your
web browser.
zA Dialogue Box will pop up to request the user to login. (Figure 1)
Figure 1. Login dialogue box
zPlease enter the management username/password into the fields then click on the
OK button (default username/password is: admin / 0123456789).
zIf the authentication is valid, the main page will be displayed on the screen.
(Figure 2)
-8-

Manual Ver1.0
Figure 2. M504 Home Page
-9-

Manual Ver1.0
4.Quick Setup
The system administrator can configure the M504 remotely or locally via a Web
Browser. Network configuration needs to be planned and decided before starting the
configuration procedure.
Quick Setup allows system administrator to select the appropriate operation mode and
configure the corresponding settings step by step to create a connection. The following
operation modes are supported under Quick Setup:
zPPP over Ethernet (PPPoE)
zPPP over ATM (PPPoA)
zMER (MAC Encapsulation Routing)
zIPoA (IP over ATM)
zBridging
4.1 - PPP over Ethernet (PPPoE) Configuration
Click on “Quick Setup” in the left frame and follow the steps below to create a PPP
over Ethernet (PPPoE) connection.
Here you can either select DSLAutoconnect (Modem will attempt to find the correct
VPI/VCI settings) or Uncheck the box to manually input the VPI/VCI settings.

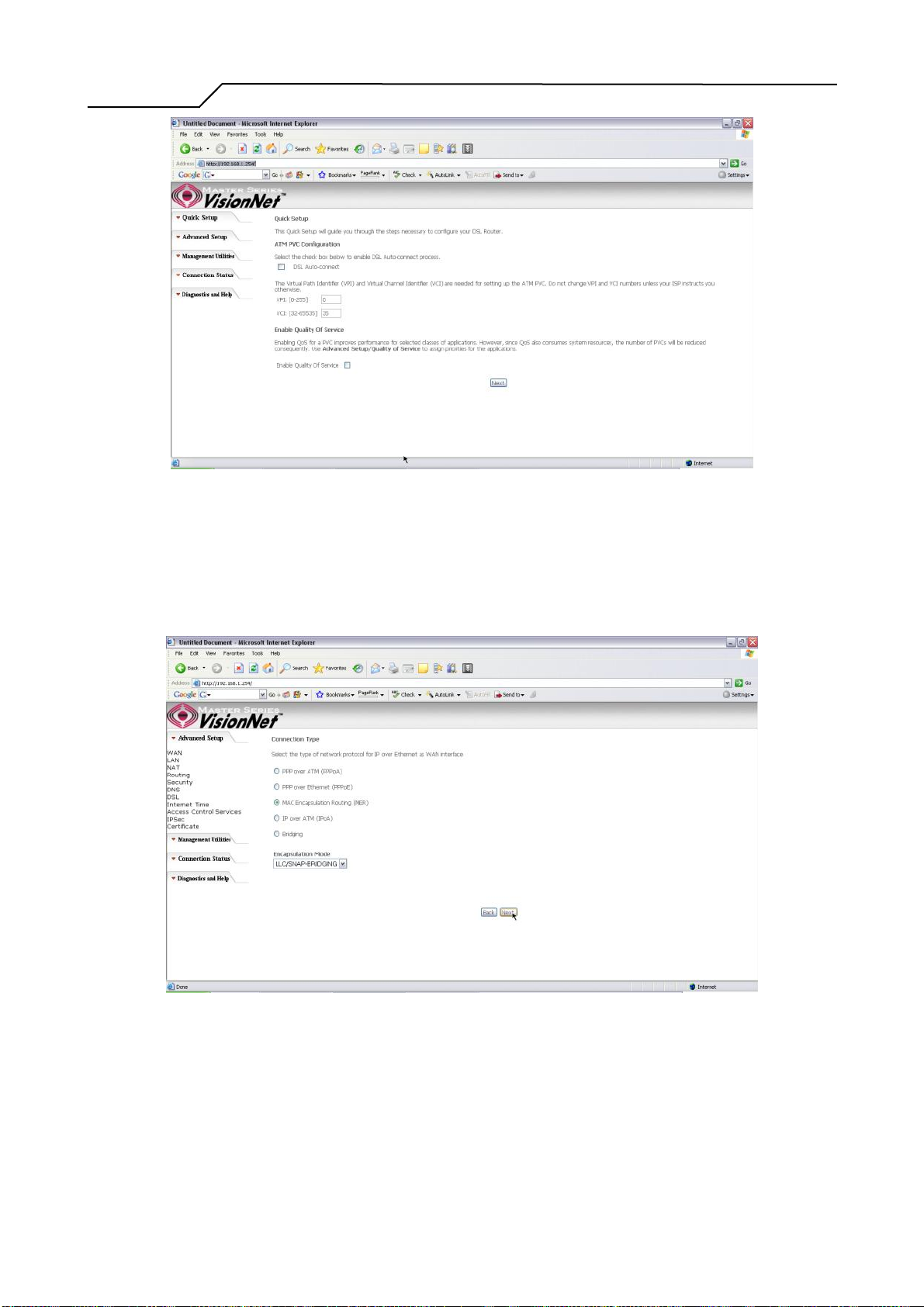

Figure 3. Quick Setup – ATM PVC
-10-
