DQ Ares L User manual

INSTALLATION MANUAL
DQTV lift Ares L
50kg (110lbs)
Stroke 1000mm
DQ20-1070

A (x1) B (x1) D (x2)
2
E (x1)
G (x1) I (x1)F (x1)
J (x1)
M6x30 (x4)
M-E M-G (x4) M-H (x4)
M5x30 (x4)
M-D
M8x15 (x4)
M-C
M6x15 (x4)
M-B
M5x15(x4)
M-A
M8x30 (x4)
M-F
M8x16 (x6)
K
M6x12 (x6)
LM (x1)
W-A (x4) W-B (x4) W-C (x4)
H (x1)
C (x1)

1a
3
F
F
W-A
W-C

1b
4
F
F
W-AW-C
W-B

5
2
3
A
M
A
W-A
W-B
OR
W-C W-A
W-C W-A
K

4
6
5
M
>5mm
K
M-G
M-A
M-B
M-C
M-G
M-D
M-E
M-F
M-H
K

7
5a-1 5b-1
L
C
L
C
M
M
B
B
CBBC
Option A: Option B:
Height range: 950-1950mmHeight range: 625-1625mm

8
5a-2 5b-2
M
M
K
K
6 2 5 -1 6 2 5 m m
9 5 0 -1 9 5 0 m m

9
5a-3 5b-3
M
E
L
M
E
L
6

10
7
2-2
1G2-1
GH
3
I
G
HI

11
8
J

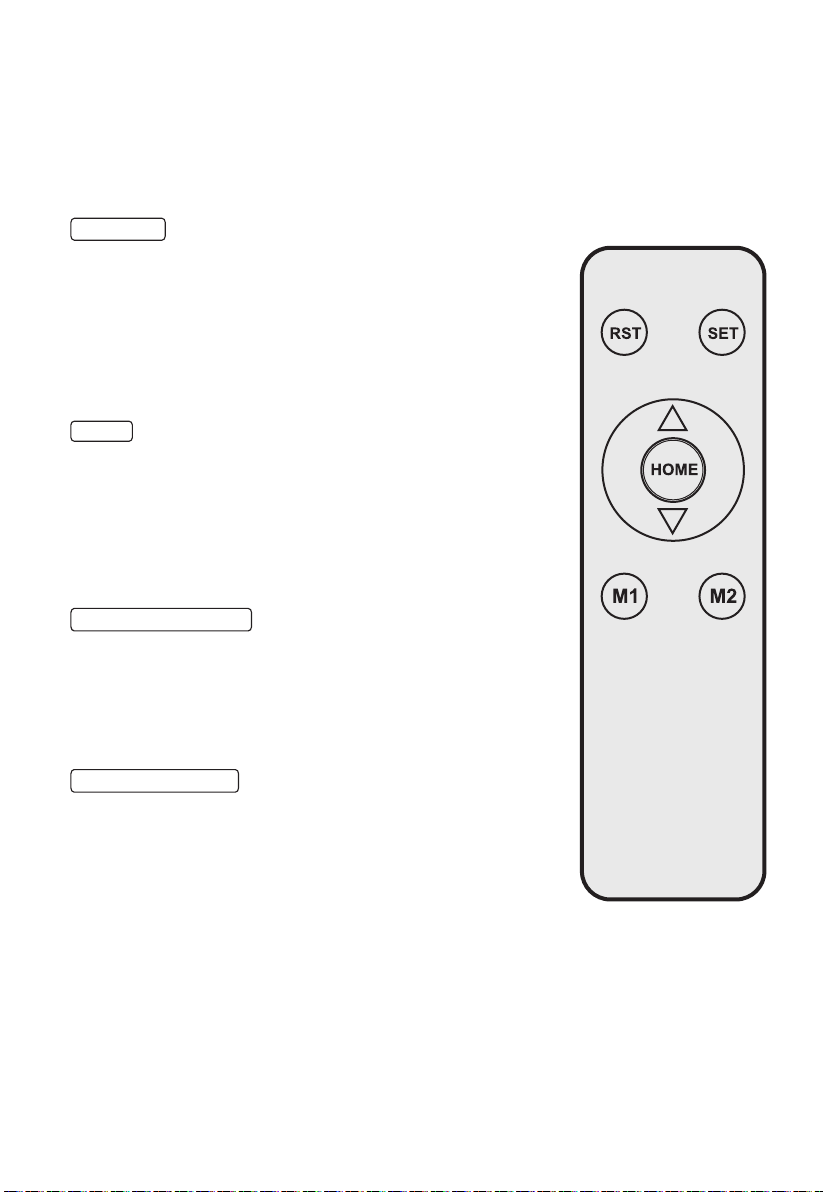

Remote Control Manual
Matching
When using at rst time, should do the matching operation. First,
press the "SET" button for 2 seconds to enter the code matching
state, and then the drive is powered on to complete the code
matching. Doing the above steps again is to clear the code, and so
on. One drive can pair up to 9 remote controls at the same time.
When the number is exceeded, the pairing status of the rst remote
control will be overwritten.
Reset
When the lifting leg is stopped, long press and hold the "RST" button
on the remote control for 3 seconds, the driver will emit a long beep,
indicating that it will automatically enter the reset state, the lifting
leg will automatically drop to the lowest end and rebound 1cm, and
the driver will emit two long beeps., indicating that the reset is
complete.
Height adjustment
Press the "△" and "" buttons on the remote control to adjust the
height of the lifting leg;
Short press the "HOME" button, the lifting leg will automatically
return to the lowest position, and press it again to stop running.
Location memory
Long press the "M1" button or "M2" button on the remote control
for 3 seconds, the drive will emit a long beep, indicating that the
current position is successfully memorized;
Short press the "M1" or "M2" button, the lifting leg will automatical-
ly move to the memory position;
