Dr. Approved Relaxology 5 User manual

Please keep this manual carefully for further reference!
Relaxology 5 Instruction Manual

Thank you for purchasing the Relaxology 5 massage chair.
1. Please read this manual throughly before using.
2. Please keep this manual for further use.
3. Please pay more attention to the safety precaution.
Note:
Right to make changes: We reserve the right to make changes to
informationpublished in this document, including without
limitation specifications andproduct descriptions, at any
time and without notice. This document supersedes and
replaces all information supplied prior to the publication
here of. The picture is for reference only. Please adhere to
the original products in case of any mistake.
Contents
Safety precaution
Parts name
Methods of installtion
Pre-work before massage
Features
Usage of controller
Analysis of machine problems
Specifications
Safety Precaution
Carefully read and follow this instruction book to assemble and operate
Two parts for safety precaution:warning and attention
alarm for serious accident as hurt of death
alarm for hurt of damages for goods
Presentation from below symbols
Warning
Attention
The activities which were forbidden to do
Request user to follow the instructions
Self-dismount was forbidden
The correct operating way to pull out power plug
Others Usage and maintenance Installation Pre-work
Relaxology Massage Chair

Warning
Cardiopath (including patients who are using a pacemaker or other
medical electronic products)
Patients with osteoporosis
Pregnant women or people in poor health condition, please consult
a physician before using.
Children and over drunk person are forbidden to use.
Equipped with heating elements. Pay more attention when being
use by people who is not sensitive to heat.
Do not use
Avoid
accident
Disassembly
and
maintenance
To avoid fire
and electric
shock
Never storage the cushion and other spare parts crisped
Do not disassembly and repair the chair by yourself when the failure
listed below is happening: The chair is not working property;
dropped or damaged; get wet by water or soaked in water.
Do not disassembly and repair the by yourself , ask help from the
manufacturer, distributor or qualified maintenance person.
Do not disassembly any spare part of this chair, there is no spare can
be repaired by yourself.
Take off the backrest cushion and check the fabric on the backrest,
if there is any damage, stop using and remove the power connection,
and ask the distributor to repair.
Do not use when the connection between the plug and the outlet is
loose, in case the risk of electric shock or short circuit.
Do not use a damaged power cord; and do not stretch, twist, rework
the power cord; never pinned the power cord under the massage
chair.
Only connect the plug to a standard and well grounded outlet.
Make sure the plug is connected well the outlet in case a risk of fire
or electrical shock.
Always unplug the power cord when not use.
Shut down the chair and turn off the switch before
remove the plug.
Prevention
of injury and
accidents
To avoid fire
and electric
shock
Make sure there is no people or obstacles around the chair when the
backrest or leg part is reclining, or the leg part is extending.
Stop using immediately when there is physical or feelings
abnormalities, and consult to doctor.
Reduce the massage intensity while the back rollers is working near
the head.
Do not use this chair to massage the abdomen or knees, pay more
attention when the back roller is working near the neck.
Do not let children or pets play around the chair (especially when
the chair is working). Do not let anyone sitting or standing on the
backrest.
There should be someone to take care when the chair is using by
people who is behavior inconvenience or lack of communication
skills.
Safety Precaution
Avoidfromsudden
accident
Attention
Do not place or stock this machine near particularly damp
place as swimming room,bathroom and so on
Avoid from electric
leakage or shock
To reduce the risk of
electric shock.
Avoid from sudden
accident
Gas pipe:may cause eletrical shock,short circuit or fire.
Telephone lines and Lightning rod:may cause eletrical shock,short
circuit or fire.
Conduit:on plastic can’t have function.
Grounding Unable to
connect these space
If not,may cause brea-
kage while eletrified
Separate the power plug from the socket at once,after
eletricity fails
While stop power supply,do not directly pull from the
power cable
Pull out the plug,if there has any electric problem
Stop power supply,after massage
Stop power supply,before cleaning.
Must confirm it is under good earth connection
Do not use plug adaptor
Relaxology Massage Chair
Relaxology Massage Chair

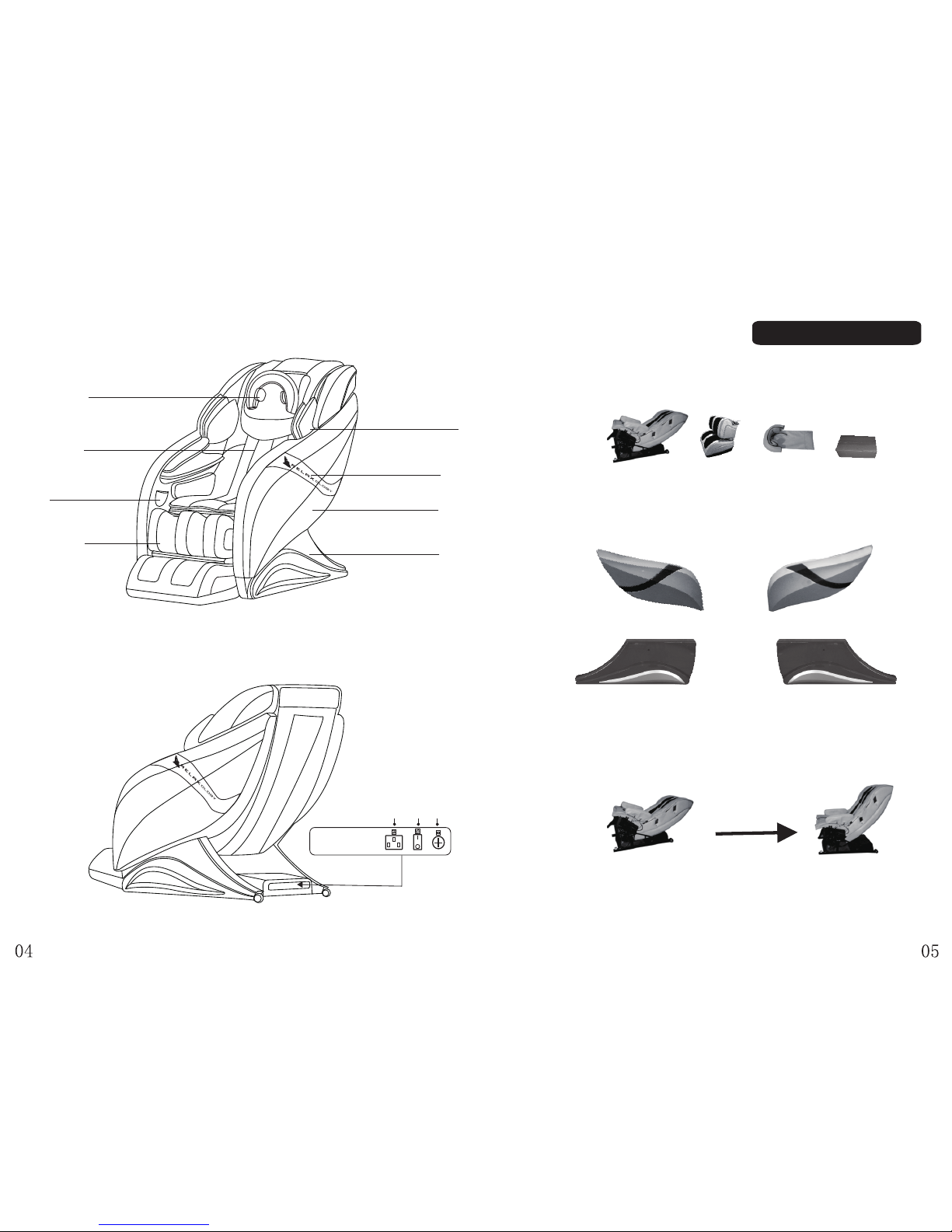

Name of each component
Pillow
Backrest
Remote controller
pocket
Leg part
Shoulder massager
Decorating part
of the armrest
Armrest
Base cover
Power supply socket Power switch Fuse holder
Step 1 Unpack the main body box.
Carry out the main body, leg part and accessory box, when carrying out the
main body, we suggest at least two people to help.
Main body Leg part Pillow Accessory box
Step 2: Unpack the armrest box
Take out the armrest and base cover.
Armrest (Right) Armrest (Left)
Base cover (Right) Base cover (Left)
Step3: Reset the main body
Connect the power cord, and remote controller, turn on the switch on the
lower back, press the power buttons twice, waiting for about 30 seconds,
the main body will go back to the reset position.
Original position Reset position
Method of installation
Installation (1)
Relaxology Massage Chair
Relaxology Massage Chair

Installation (3)
Installation (2)
Method of installation Method of installation

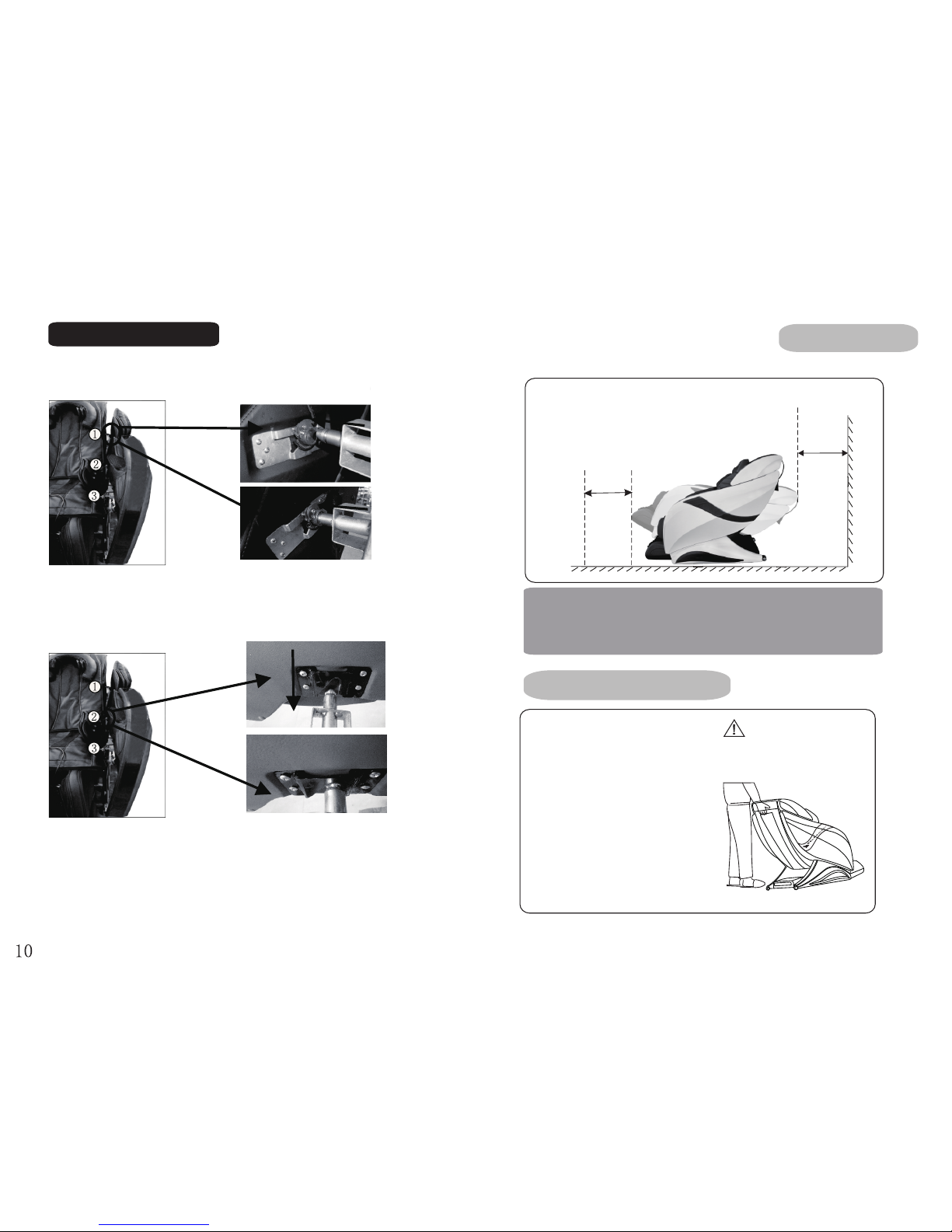

Step 4: Install the wheels
Insert the wheels into the iron tube which is on the lower back
of the main body.
Fix it with screws.
Step 5: Install the lining iron of the leg part
Fix the front part of the iron with dowels(as picture), fix the back part to
the push rod with dowels in the same way. Connect the above part to the
seat frame than fix it with screws.
Step 6: Connect the leg part
Connect the power cord and air hose to the main body.
Relaxology Massage Chair
Relaxology Massage Chair

Installation (5)
Installation (4)
Method of installation Method of installation

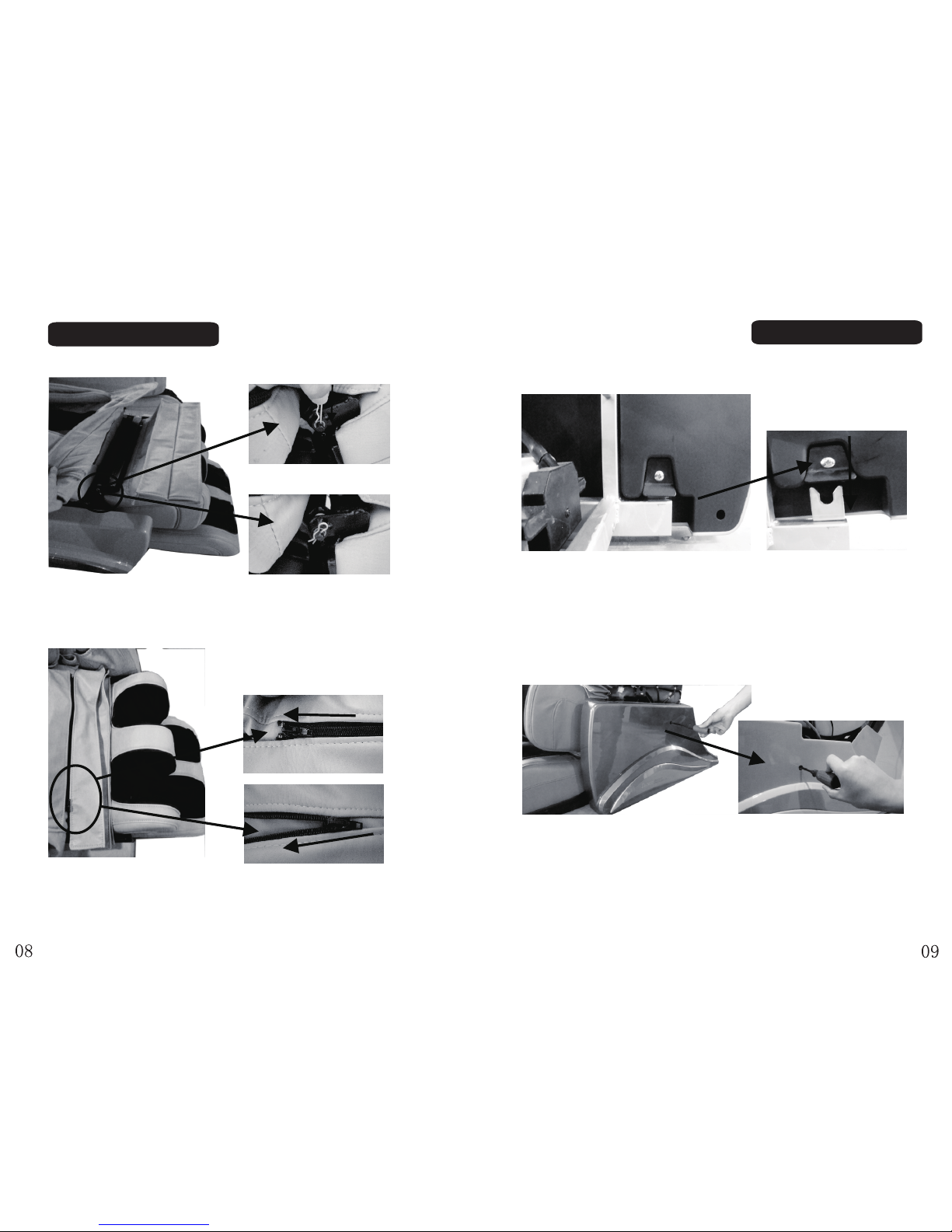

Hung the leg part to the leg part adapter of main body,fix it with pins and blocker.
Zip up the leather case of between the leg part and cushion.
Step 7:Install the base cover
Insert the bottom of the base cover to the connector on the base frame of the
main body from top to bottom.（Notes:The whole base cover as below）
Fix it with screws.
Relaxology Massage Chair
Relaxology Massage Chair

11
40cm
30cm
Confirm and adjust before usage
Space needed
Before using, make sure the power cord is not knotted, entangled with
other stuff or crushed under the main body; when the chair is reclining
/lifting, make sure there is no kids, pets or other stuff around in the
front/back part of the chair; to protect the floor, you can put a blanket
under the massage chair.
Make sure there is 40 cm space from the back to the
wall or other obstacle, and 30 Cm from the front.
Method of moving
The chair can be easily moved with the
wheels on the lower back. While moving,
please raise the front part of the chair
as the picture shows, and move the chair
to any suitable place.
Tips:
1. Remove the power cord and
controller cord before moving.
2. If need to cross a narrow door,
we suggest to remove the armrest
first.
3. If the floor is easily scratched,
don’t use the wheels to move the
chair, lift it up by at least 4 people,
and move it.
Do not move the chair while
there is someone sitting on
it.
Attention
Step 8: Install armrest
Installation (6)
Method of installation
Lift the front part, then aim the side parts card at the fixed axis of the
main body(as part 1 in the picture).Pull the spring hook and push inward
hardly to fix absolutely.
Set the armrest closely to the main body(as picture 2).Insert the parts
card into intermediate shaft of the main body from the top to the bottom slowly.
Relaxology Massage Chair
Relaxology Massage Chair

12
12
1.Zero gravity: By adjusting the angle of the backrest, seat and leg part,
the chair can offer a zero gravity position, which makes the massage more
powerful and maximum the relaxation.
2.Foot roller: Equipped with 3 rows of rollers, cover the whole sole, offer
real Thai scrapping massage.
3.Thai-style foot GUASHA massage : 3 rows of foot rollers can offer you an
artificial human GUASHA massage from the heel to the toes.
4.Full air pressure arm massager: Offer an air pressure arm massage according to
18 groups of build-in massage acupuncture point to promote blood circulation.
5.Auto extending leg part: The leg part can automatically stretch and contract
according to the Individual height and length of the legs.
6.Carbon fiber far-infrared heating:Heat the waist,buttocks &legs&heels by
50℃simultaneously.It can relieve your cold and pain to promote metabolism.
7.L-shape back track: Back rollers can massage form neck to thigh, and can adjust
automatically according to the body shape.
8.Pillow massage: The U-shape pillow can massage your temple accurately to
relieve your fatigue to lead a perfect effect.
9.Bluetooth connection: Equipped with Bluetooth module, the chair can be
connected to smart device, and can be operated and play music by smart device.
When the fuse is burned-out, please remove the power plugfirst, turn off the
switch, use a screw driver to open the fuse holder. Then replace the fuse with
a same specification. Finally, reset the fuse cover.
Replace the fuse
New features
fuse box
Installation (7)
Method of installation
Connect the air hose and power cord to the main body.
Finally,insert the fixed block (as picture 3)
into the the fixed axis of the main body from
the top to the bottom.
The correct method
The fault method
Confirm and adjust before usage
Relaxology Massage Chair
Relaxology Massage Chair

Remote controller instruction
Manuai
Speed
Airbag
Roller
width
Arrow key to select ok
button to contirm
Shoulder adjust
MENU AUTO
HEATING AIR BAG
PAUSE POWER
LEG UP BACK UP
Connect the connecting line of the remote controller to the main body.
Installation (4)
Method of installation
Step 9:Install the back cushion
Relaxology Massage Chair
Relaxology Massage Chair

Remote controller instruction
Instruction of the buttons
Power: On/off key of the whole chair.
Press this key, the chair will start to work (default massage time
is 20 minutes),
press it again, the chair will shut down and go back to the
reset position.
Pause
When the chair is working, press this key, all actions will be
suspended, press it again, all the actions will recover.
Menu
You can choose programs, massage methods, setting functions
by pressing this key.
Shoulder position adjustment
Adjust the highest position of the back rollers by long
press these keys.
Full body program switch
Press this key to choose and switch full body program, this
chair has equipped 4 full body program, they are Chinese
massage, American massage, Thai massage, and Hong-Kong
massage.
Direction key
You can press the up/down key to choose, and press
right key to enter sub-directory, press left key to back
parent directory, the OK key is for confirm selections.
Zero gravity Key
Press this key to enter zero gravity position, the zero gravity
icon on the display will be light up, and will turn off when you
adjusting the backrest/leg part angle by manual, which will
make the chair out of Zero gravity position.
Lifting up the leg part
By long press this key, the leg part will lifted up.
Lifting down the leg part
By long press this key, the leg part will lifted down.
Remote controller instruction
Lifting up the backrest
By long press this key, the backrest will lifted up
Lifting down the backrest
By long press this key, the backrest will lifted down.
Air bag key
Turn on/off the air bag massage system by press this key
Heating key
Press this key, the heating system will turned on, and the heating
icon on the display will be light up, press it again the heating
system will turned off, and the icon turn into grey.
Icon and Menu
Auto program
In the auto program menu, there are four full body program, an upper
body program and a lower body program.
Chinese massage: Stretch function, for those who sitting for a long time
everyday.
Hong-Kong massage: Regular position massage, for those who prefer a more
gentle massage.
American massage: The chair will works like a rocking chair, help the user to
get a better rest
Thai style massage: The massage position changes every 3 minutes, for those
who need a deep massage.
Upper/lower body massage: Partial body massage program.
MENU
AUTO
MANUNL
SETTING
LANGUAGE
AUTO AUTO
CHINESE CHINESE
Hong-kong style Hong-kong style
AMERICAN AMERICAN
THAI THAI
UPPER BODY UPPER BODY
LOWER BODY LOWER BODY
Relaxology Massage Chair
Relaxology Massage Chair

Remote controller instruction

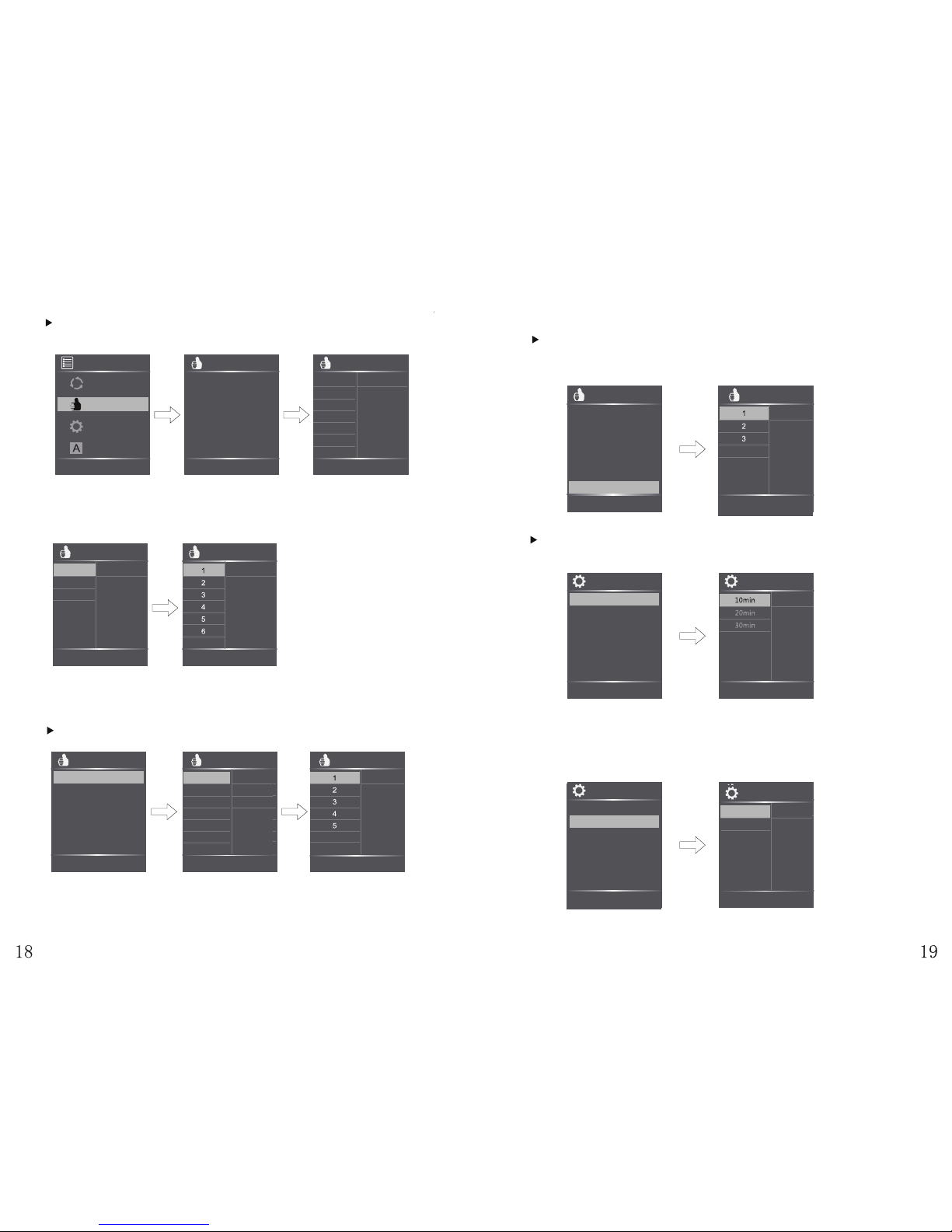

Manual mode
Click the “Menu” button, then choose the “Manual” to start manual program.
Use up/down key to choose, OK to confirm.
Massage method: In this subdirectory, you can use up/down key to choose.
There are six massage method: Kneading, Tapping, Knocking, Shiatsu,
Rolling, Combination.
Part: This subdirectory is for back roller massage range, us up/down to
choose. Offer 3 options: Full, partial, point.
Width: This subdirectory is for adjusting the massage width of the back
rollers. Offer wide, middle, narrow for option.
Speed: This subdirectory is for adjusting the massage speed of the back
rollers. Offer 6 degree for option.
Air bag: This subdirectory is for managing the air bag system, contains
part and intensity option.
Part: In this Subdirectory, you can turn on/off some air bags by choose it and
select the off/on button.
Intensity: This is for adjusting the air pressure intensity, offer 5 degree
for option.
MANUNL
SETTING
LANGUAGE
MENU
AUTO
MANUNL METHOD
KNEADING
ROLLING
KNOCKING
SHIATSU
COMBINATION
TAPPING
BACK
METHOD
BODY PART
WIDTH
SPEED
AIR BAG
HEATING
FOOT ROLLER
BODY PART
BACK
SPEED
BACK
FULL BO DY
PARTIA L
FOCUS
AIR BAG
PARTIA L
INTENCITY
BACK
PARTIAL
HEAD
WAIST
ARM
BUTTOCKS
LEG
WHOLE
ON
OFF
BACK
INTENCITY
OFF
BACK
Remote controller instruction
Foot roller
Choose roller, in the subdirectory, you can adjust the roller speed,
offer 3 grade for option.
Setting
Press “Menu” key, choose “Setting”, enter the subdirectory.
Time: Setting work time, offer 10 minutes, 20 minutes, 30 minutes
for option.
Bluetooth: Turning on/off the Bluetooth module. By default, it is turn off.
MANUAL
BACK
OFF
METHOD
BODY PART
WIDTH
SPEED
AIR BAG
HEATING
FOOT ROLLER
SPEED
SETTING TIME
BACK
TIME
BLUETOOTH
SERIAL NAMBER
SETTING
TIME BACK
BLUETOOTH
BLUETOOTH
SERIAL NAMBER
ON
OFF
Relaxology Massage Chair
Relaxology Massage Chair

Remote controller instruction
Tips:
1.Under auto/manual mode, the display will switch to the home page after
10 seconds without any operation.
Home page while
under manual mode
Home page while
under manual mode
Tips:
During working, press “Menu” twice, it will go back to the home
page immediately.
In the home page, under manual/auto program, press shoulder
position key to adjust the highest position of the back rollers.
Press “auto” key to choose auto program.
2. Before running auto program, it will
inspect shoulder position first. After the
inspection, it will switch to the auto program.
Speed Speed
Airbag Airbag
Roller Roller
width width
Arrow key to select ok
button to contirm Arrow key to select ok
button to contirm
AUTO
MANUNL
Arrow key to select ok
button to contirm
Body sening
shoulder adjust
CHINESE
185CM
Smart phone client usage
Relaxology Massage ChairRelaxology Massage Chair

Troubleshooting
Failure Possible cause Processing method
Can not work after
supplied power
Didn’t turn on the power switch
Didn’t choose massage program
Bad connection between plug and socket
Power cord or plug damaged
The fuse burned up
A fault in the controlling circuit
Turn on the switch
Choose a massage program
Connect again
Replace the power cord
Replace the fuse
Contact with the maintenance
department of supplier
Working with tap-tap
-tap or hum sounds
Different hight for
the massage rollers
Abnormal sounds
suddenly occurred
while working
Suddenly stopped
working
Can not recline
Can not restore after
relined
Control panel
overheat seriously
Abnormal overheat
from
power wire and plug
Sounds from air pump, motor or other
mechanical parts
Rollers under alternately work
If after long time works
Cause from long time work
If after long time works
Auto programmed time is up
Obstructer there; work overloaded
automatically
stopped work for protecting machine
Problem on electromotion pole or plug-ing
under bad connection
Cause from long time work
Work overloadingly
Causes from other resons
Normal phenomenon
Normal phenomenon
Cut down the power and check after
30 minutes
Contact with the maintenance worker
Supply power again
Cut down the power and use after
30 minutes
To move the obstructer; stop work and
use after 30 minutes
Contact with the maintenance worker
Cut down the power and call the
maintenance worker
Cut down the power and use after 30
minutes
Cut down the power and call the
maintenance worker
Attention
If problems all are not from above reasons, please stop power supply and contact
with the distributor or factory for maintenance.
Relaxology Massage Chair

Model
Performance parameter
Specifications
Massage Stroke Length(cm)
Rollers Space Between(cm)
Tap (cpm)
Pummel (cpm)
Knead&Tap (cpm)
Shiatsu (cpm)
Knead (cpm)
Calfrest Recline Angle(° )
Backrest Recline Angle(° )
Calfrest stretch Length (cm)
Model
Technical Spec
Dimension of main box.(cm)
Dimension of armrest
box.(cm)
Net weight of main box.(kgs)
Gross weight of main
box.(kgs)
Net weight of main box.(kgs)
Gross weight of armrest
box.(kgs)
Model
Specifications
Rated Voltage
Rated Frequency
Power Consumption
Safety Standards Type 1
220W
50/60Hz
AC100-120V
Relaxology 5
Relaxology 5
Relaxology 5
37
33
137
L165*W54*H67
L150*W66*H88
0-25
128-160
0-100
25-100
180
10-90
100-450
200-600
4-18
130
130
Relaxology Massage Chair
