Dr.Frei M-100A User manual

dr-frei.com
AUTOMATIC
BLOOD PRESSURE
MONITOR
MODEL M-100A
USER’S MANUAL
d
r-fr
e
e
i.co
m
m
OO SSU
M
O
NIT
O
R
M
O
DEL
M
-1
0
0
A
US
ER
’S
MAN
U
AL

AUTOMATIC BLOOD PRESSURE MONITOR
Model М-100A
User’s manual (4-17)
АВТОМАТИЧЕСКИЙ ИЗМЕРИТЕЛЬ
АРТЕРИАЛЬНОГО ДАВЛЕНИЯ
Модель М-100A
Руководство по эксплуатации (18-33)
AUTOMATINIS ARTERINIO KRAUJOSPŪDŽIO MATUOKLIS
Modelis M-100A
Vartotojo instrukcija (34-48)
AUTOMĀTISKS ARTERIĀLĀ SPIEDIENA MĒRĪTĀJS
Modelis M-100A
Lietotāja instrukcija (49-63)
TENSIOMETRU AUTOMAT / TONOMETRU AUTOMAT NON-INVAZIV
Model M-100A
Manual de utilizare (64-78)
АВТОМАТТЫ АРТЕРИАЛДЫ ҚЫСЫМ ӨЛШЕУІШ
M-100А моделі
Қолданушы ережелері (79-94)
АВТОМАТИЧЕН АПАРАТ ЗА ИЗМЕРВАНЕ НА КРЪВНО
НАЛЯГАНЕ ЗА ГОРНАТА ЧАСТ НА РЪКАТА
Модел М-100A
Инструкция за употреба (95-110)
AUTOMATYCZNY CIŚNIENIOMIERZ NARAMIENNY
Model М-100A
Instrukcja użytkownika (111-125)
RU
LV
RO
MD
KZ
EN
LT
BG
PL

4
DEAR DR. FREI AUTOMATIC BLOOD
PRESSURE MONITOR OWNER
Thank you for choosing Automatic Blood Pressure Monitor Dr. Frei® TM
model M-100A. We are sure that having appraised worthily the high quality
and reliability of this device you will become a regular user of the products
of Swiss Trademark Dr. Frei®.
Before starting to use this device please study the user’s manual carefully.
The user’s manual o󰀨ers all information you need to correctly measure
your blood pressure and pulse correctly. For all questions concerning the
device please contact your local distributor or Dr. Frei® service center in
your country.
ATTENTION
This blood pressure monitor is designed to carry out self-control over blood
pressure but NOT to make self-diagnosis of hypertension/hypotension.
Please DO NOT diagnose by yourselves basing on the measurement
results obtained with the blood pressure monitor. Please DO NOT execute
self-treatment of high/low blood pressure and DO NOT change the
methods prescribed without consulting your doctor.
Type BF applied part.
Read the instructions carefully before using this device.

5
EN
TABLE OF CONTENTS
IMPORTANT INFORMATION ON BLOOD PRESSURE
AND ITS MEASUREMENT................................................................... 6
What Is Blood Pressure? ......................................................................... 6
Which Values Are Normal? ...................................................................... 7
ADVANTAGES OF AUTOMATIC BLOOD PRESSURE MONITOR
MODEL М-100A..................................................................................... 8
Blood Pressure Level Indicator................................................................ 8
Irregular Heartbeat Detector .................................................................... 8
GETTING READY FOR MEASUREMENT.......................................... 9
Safety Precautions .................................................................................. 9
Components of Your Blood Pressure Monitor Kit .................................... 9
Description of the Blood Pressure Monitor ............................................ 10
Inserting the Batteries............................................................................ 10

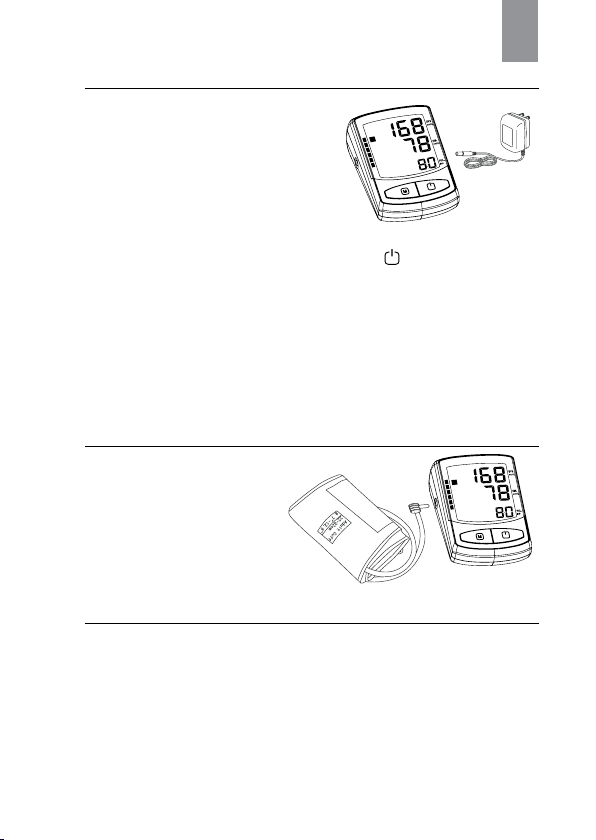

Using an A/C Power Adapter ..................................................................11
Cu󰀨 Connection ......................................................................................11
MEASUREMENT PROCEDURE........................................................ 11
Fitting the Cu󰀨 ....................................................................................... 12
Measuring Procedure ............................................................................ 12
Reading Measurement Result ............................................................... 13
Discontinuing а Measurement ............................................................... 13
MEMORY FUNCTION ........................................................................ 13
ERROR MESSAGES/TROUBLESHOOTING................................... 14
CARE AND MAINTENANCE.............................................................. 15

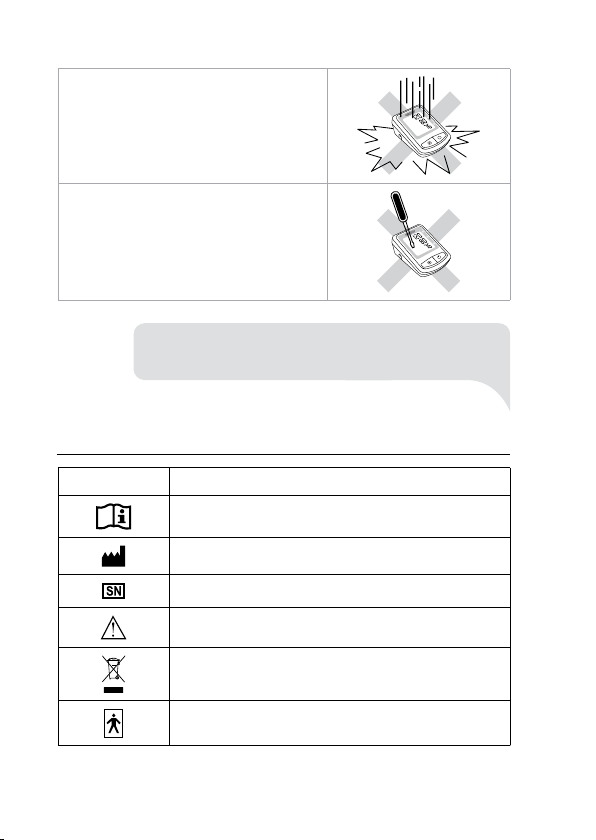

SYMBOL DESCRIPTION ................................................................... 16
TECHNICAL SPECIFICATIONS........................................................ 17
WARRANTY......................................................................................... 17

6
IMPORTANT INFORMATION
ON BLOOD PRESSURE
AND ITS MEASUREMENT

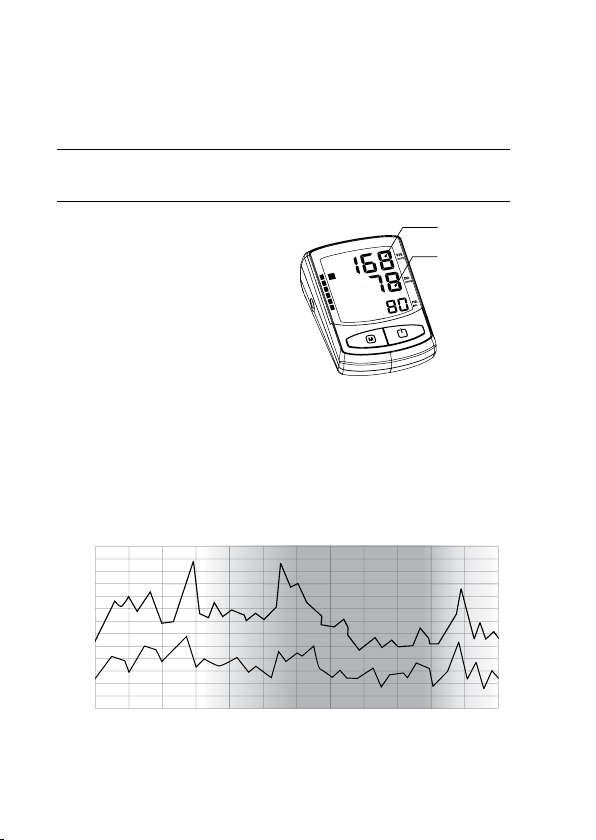

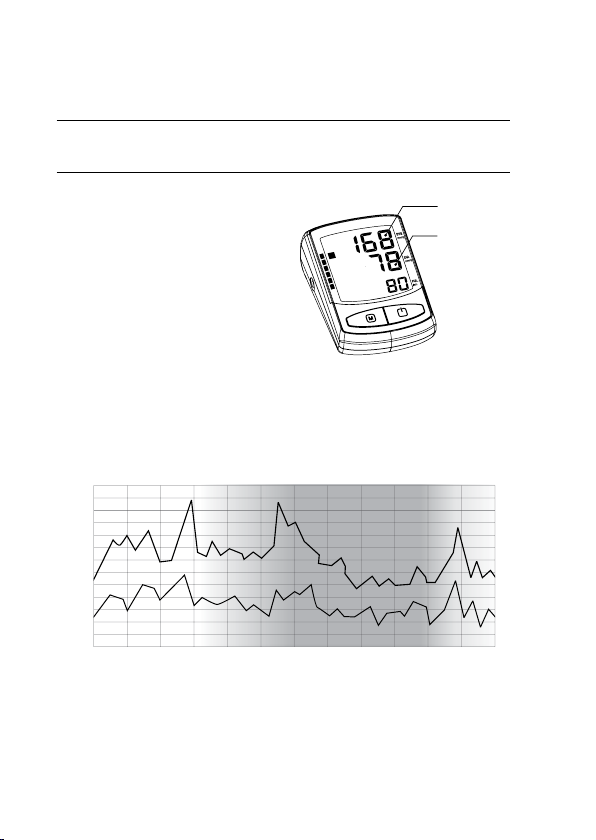

What Is Blood Pressure?
Blood pressure is the pressure that
your blood extends to the vascular
walls. Blood pressure is necessary to
provide for constant blood ow inside
the body. Thanks to it the cells get
oxygen that provides for their normal
functioning. The heart performs the
function of a «pump», sending blood
to the blood vessels. Each heart beat
creates a certain level of the blood
pressure.
There are 2 kinds of blood pressure: a systolic (upper) one, which corre-
sponds to the heartbeat pushing blood into the arteriae; and a diastolic
(lower) one, which means the blood pressure between two heartbeats.
Blood pressure is subject to uctuations during the day even in healthy
people. The uctuations are inuenced by a number of factors - time of
day, person’s condition, physical or mental activity, environment, etc.
Day-Night Fluctuations of the Blood Pressure
An increase of blood pressure increases the burden onto the heart, a󰀨ects
170
160
150
140
130
120
110
100
90
80
70
60
50
40
8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 2.00 4.00 6.00 8.00
DIA blood pressure
SYS blood pressure
Time (hours)
mmHg
SYS blood pressure
DIA blood pressure

7
EN
blood vessels making their walls thick and less elastic.
One of the features of the hypertension is its ability to remain unnoticed for
the patient at its early stages. That’s why the self-control of the blood pres-
sure is so important. With the illness progressing, headaches and regular
dizziness appear, the sight declines, the functioning of vitalses (encepha-
lon, heart, kidneys, blood vessels) breaks down. Without special treatment
the complications of hypertension might be kidney damages, breast-pang,
paralytic stroke, aphasia, dementia, heart attack and stroke.
Which Values are Normal?
The world standard as for the norms of the blood pressure is the Classi-
cation* of the World Health Organization (WHO):
Blood Pressure Category
Systolic
Blood
Pressure
(mmHg)
Diastolic
Blood
Pressure
(mmHg)
Blood pressure too low < 100 < 60
Blood pressure optimum 100 - 119 60 - 79
Blood pressure normal 120 - 129 80 - 84
Blood pressure slightly high 130 - 139 85 - 89
Blood pressure too high 140 - 159 90 - 99
Blood pressure
far too high 160 - 179 100 - 109
Blood pressure dangerously high ≥ 180 ≥ 110
* printed with curtailments
• The diagnosis of hypertension requires from the patient to combine
medical treatment prescribed by the doctor and mode of life correction.
• People with normal pressure and high normal pressure are recom-
mended to carry out self-control of their tension in order to timely take
measures to decrease the blood pressure level down to the optimal one
without using any medications.
• For people more than 50 years old high level of systolic blood pressure
(higher than 140 mmHg) is more crucial than diastolic pressure.
• Even with blood pressure being normal, people run the bigger risk of
hypertension development with advancing age.

8
ATTENTION
If you have normal results of blood pressure measured under calm conditions
but your results are excessively high when measured under the conditions of
physical or mental exhaustion, this might be a sign of so called brittle (that is
unstable) hypertension. If you suspect that, please consult your doctor.
When measured correctly, if diastolic blood pressure is more than 120 mmHg ,
it is necessary to call the doctor immediately.
ADVANTAGESOFAUTOMATICBLOOD
PRESSURE MONITOR MODEL М-100A
Blood Pressure Level Indicator
Blood pressure level indicator is located along the left side in the display.
The classication corresponds to WHO (World Health Organization) rang-
es described in the table of the section «Which values are normal?». After
the measurement there appears the color bars in the left part of the dis-
play: green zone - optimal blood pressure, yellow - elevated, orange - too
high, red - dangerously high. This function helps you to self-orient in the
measurement results.
Irregular Heartbeat Detector
This technology indicates allorhythmic heartbeating. If the symbol of IHB
appears on the display that means that certain abnormality in heart
beat frequency was detected during the measurement.
In this case, the result may deviate from your normal blood pressure –
repeat the measurement. In most cases, this is no cause for concern.
However, if the symbol appears on a regular basis (e.g. several times
a week with measurements taken daily) we advise you to tell your doctor.
Please show your doctor the following explanation:
Information for the doctor on frequent appearance of the Irregular
Heartbeat Detector.
This instrument is an oscillometric blood pressure monitor that also anal-
yses pulse frequency during measurement. The symbol is displayed
after the measurement, if pulse irregularities occur during measurement.
If the symbol appears more frequently (e.g. several times per week on
measurements performed daily) we recommend the patient to seek medical

9
EN
advice. The instrument does not replace a cardiac examination, but serves
to detect pulse irregularities at an early stage.
GETTING READY
FOR MEASUREMENT
Safety Precautions
1. Use this device ONLY for the intended use described in this manual.
2. Do NOT use accessories which are not specied by the manufacturer.
3. Do NOT use the device if it is not working properly or damaged.
4. Do NOT use the equipment where aerosol sprays are being used, or
where oxygen is being administered.
5. Do NOT use under any circumstances on newborns.
6. This device does NOT serve as a cure for any symptoms or diseases.
The data measured are for reference only. Always consult your doctor
to have the results interpreted.
7. Keep the equipment and its exible cord away from hot surfaces.
8. Do NOT apply the cu󰀨 to areas other than the place directed.
9. Proper maintenance and periodically calibration are essential to the
longevity of your device. If you are concerned about your accuracy of
measurement, please contact local customer service for help.
10. This system is intended for individuals age 18 or above.
11. Do not use it for diagnosis of hypertension or testing on newborns,
babies, young children or persons who cannot express their consent.
12. If you have been diagnosed with a severe arrhythmia or irregular
heartbeat, atrial or ventricular premature beats or atrial brillation,
measurements made with this instrument should only be evaluated
after consultation with the doctor or your healthcare professionals.
KEEP THIS MANUAL DURING THE WHOLE LIFETIME OF THE DEVICE
Components of Your Blood Pressure Monitor Kit
The blood pressure monitor kit includes Automatic Blood Pressure Monitor
model М-100A, M size cu󰀨 (22-32 cm), 4 batteries (AA), AC adaptor,
user’s manual, warranty card, kit box.

10
Description of the Blood Pressure Monitor
Measuring Unit Model М-100A
Accessories:
* Please use the original adapter in acces-
sory, otherwise it is impossible to achieve
the claimed performance.
Inserting the Batteries
1. Remove the battery cover.
2. Insert new batteries into the bat-
tery compartment as shown, tak-
ing care that the polarities (+) and
(-) are correct.
3. Close the battery cover. Use only
LR6, AA batteries.
CAUTION
• Insert the batteries as shown in the battery compartment.
• When blinks in the display, replace all batteries with new ones. Do not
mix old and new batteries. lt may shorten the battery life, or cause the
device to malfunction.
• mark does not appear when the batteries run out.
• Battery life varies with the ambient temperature and may be shorter at
low temperatures.
• Remove the batteries if the device is not to be used for a long time.
• The batteries may leak and cause a malfunction.
• Use the specied batteries only. The batteries provided with the device
are for testing monitor performance and may have a shorter life.
NOTE: To prolong the batteries life the device switches o󰀨 automati-
cally if no button is pressed for 1 minute. Otherwise you can switch it
o󰀨 by pressing the ON/OFF button.
Manual Arm Cuff Adapter
DC 6V
500 mA
Power input of DC
ON/OFF Button
Memory Button
Air Connector Plug
Arm Cuff
Air Hole
LCD Display:
Systolic Blood pressure
Diastolic Blood pressure
Pulse/min
Who Blood Pressure
Classification
Inflation
Deflation
Irregular Heartbeat Detection
Heart Beat
Low Battery
Memory
Value Of Pulse
Per Minute
Value Of
Diastolic
Value Of
Systolic

11
EN
Using an A/C Power Adapter
It is possible to operate Automatic Blood
Pressure Monitor Model M-100А with an
AC/DC adaptor.
1. Push the plug into the socket at the
bottom part of the device. No power is
taken from the batteries while the AC/
DC adaptor is connected to the device.
2. Plug the AC adaptor into a 220/110 V
power socket. The device is ready for measurement.
3. Test that power is available by pressing the « » button.
NOTE:
• Please use the AC adaptor of Trademark Dr. Frei®. Any other adaptor
being used, the service center is not considered responsible for the
warranty servicing/repair of the monitor.
• No power is taken from the batteries while the AC/DC adaptor is con-
nected to the device.
• Please consult service center if you have questions relating to the AC/
DC adaptor.
Cu󰀨 Сonnection
Insert the cu󰀨 connector into
the opening provided on the
side of the device as shown in
the picture.
MEASUREMENT PROCEDURE
ATTENTION
• Find time to relax by sitting in a quiet atmosphere for some time before
measurement.
• E󰀨orts by the patient to support the arm can increase the blood pres-
sure. Make sure you are in a comfortable, relaxed position and do not
ex the arm during measurement.
• Always measure on the same arm (normally left).
• Remove any garment that ts closely to your upper arm. Do not roll the

12
• sleeve since it can squeeze your hand and this can lead to false results.
• Use only clinically approved original cu󰀨.
• If you want to follow the results of your blood pressure measurements,
always perform measurements at the same time of day, since blood
pressure changes during the course of the day.
• Measurements should be done after a 5 minute rest to ensure accuracy.
Fitting the Cu󰀨
1. Plug the cu󰀨 connector to the cu󰀨 socket on the
device left side.
2. Stretch your left (right) arm in front of you with
your palm facing up. Slide and place the cu󰀨
onto your arm to let the air tube and artery mark
region toward the lower arm. Wrap and tighten
the cu󰀨 above your elbow. The artery mark on
the edge of the cu󰀨 should be approx. 0.8ʺ to
1.2ʺ (2 cm to 3 cm) above your elbow. Align the
tube over the main arteries on the inside.
3. Leave a little free space between the arm and
the cu󰀨: you should be able to t two ngers
between them. Remove all clothing covering or
constricting the measurement arm.
4. Press the hook material rmly against the pile ma-
terial. The top and bottom edges of the cu󰀨 should
be tightened evenly around your upper arm.
Measuring Procedure
Always apply the pressure cu󰀨 before turning on the monitor.
1. Press the « » button. All icons appear two seconds on DISPLAY, then
switch to measurement, and display «0» or last measurement record.
2. Pump begins to inate the cu󰀨. The heart symbol « » is shown on the
display. When complete, the results will be displayed.
Arm cu
2-3 cm

13
EN
Reading Measurement Results
When the measurement has been concluded, the
measured blood pressure, pulse rate and color bars
classied by WHO (World Health Organization) are
now displayed. The appearance of this symbol
signies that an irregular heartbeat was detected.
NOTE: We recommend contacting your physi-
cian if you see this indicator frequently. This indi-
cator is only a caution. It is important that you be
relaxed, remain still and
do not talk during meas-
urements.
On the graphic indicator
the element showing lev-
el of arterial pressure on
a scale of World Health
Organization is displayed.
Discontinuing a Measurement
If it is necessary to interrupt a blood pressure measure-
ment for any reason (e.g the patient feels unwell), the
ON/OFF button be pressed at any time. The device then
immediately lowers the cu󰀨 pressure automatically.
MEMORY FUNCTION
Automatic Blood Pressure Monitor Dr. Frei TM model
М-100A automatically stores the result measured.
To see the result of the last measurement press the «М»
button.
SYS blood
pressure
DIA blood
pressure
Pulse
Grade 3 hypertension (severe)
Grade 2 hypertension (moderate)
Grade 1 hypertension (mild)
High-normal
Normal
Optimal

14
If an irregular heartbeat interval was detected in the
measurement stored in memory, the icon will be dis-
played.
ERROR MESSAGES/TROUBLESHOOTING
lf you have trouble in using the unit please check the following points rst.
ERROR DISPLAY POSSIBLE CAUSE HOW TO CORRECT
Nothing is displayed
when you push the
ON/OFF button or
battery icon ashes
No battery installation Insert batteries
Battery worn out Replace with new
batteries
The polarities of
batteries placed wrongly
Insert battery in the
correct polarities
E1: Can’t normally
increase pressure
Check your cu󰀨 for air
leakage
Replace cu󰀨 with
new one
E3: Inate pressure
too high
Remeasure or send back
to dealer to recalibrate
E2 E4: Hand shaking
while measurement
Hand or body shaking
while measurement
Keep static position and
measure again
Battery icon on Battery low power Replace battery and
measure again
The systolic pressure
value or diastolic
pressure value too
high
The cu󰀨 was held
lower than your heart
Keep correct position
and measure again
The cu󰀨 was not
attached properly
You moved or spoke
during measurement
The systolic pressure
value or diastolic
pressure value too
low
The cu󰀨 was held
higher than your heart
You moved or spoke
during measurement
ATTENTION
Should any technical malfunctions arise in the blood pressure monitor,
please contact the authorized service center of Dr. Frei®. Never attempt

15
EN
to repair the instrument yourself! Any unauthorized opening of the in-
strument invalidates all warranty claims.
CARE AND MAINTENANCE
Do not expose the device to either
extreme temperatures, humidity, dust or
direct sunlight.
Handle the cu󰀨 carefully and avoid all
types of stress through twisting or buck-
ling in order not to damage the sensitive
air-tight bubble.
Clean the device with a soft, dry cloth. Do
not use gas, thinners or similar solvents.
Spots on the cu󰀨 can be removed care-
fully with a damp cloth and soapsuds. Do
not submerge the cu󰀨 in water!
Handle the tube carefully. Keep the hose
away from sharp edges.
NOTE: Blood pressure is subject to uctuations even in healthy people.
Please remember that comparable blood pressure measurements always
require the same time and the same conditions! These are normally quiet
conditions. If you follow the correct procedures described above and still
get the uctuations of blood pressure of more than 15 mmHg and/or you
repeatedly hear irregular pulse tones please consult your doctor.

16
Do not drop the monitor or treat it rough-
ly in any way.
Never open the monitor! Otherwise
the manufacturer’s calibration will be
spoiled.
SYMBOL DESCRIPTION
SYMBOL REFERENT
Consult instructions for use
Manufacturer
Serial number
Caution, consult accompanying documents
Dispose of in accordance with the requirements
of your country
Type BF equipment
NOTE: According to international standards, your monitor
should be checked for calibration every 2 years.

17
EN
Class II
CE mark
TECHNICAL SPECIFICATIONS
Measuring Method Oscillometric
Indication Digital LCD display
Measuring Range Pressure: (30~280) mmHg
Pulse: (40~199) Beats/min
Accuracy Static pressure: ±3 mmHg. Pulse: ±5%.
Memory: Last measurement memory
Power Supply 4x1.5V batteries (LR6 or AA)
Operating Conditions +5°C~+40°C, 15% RH~93% RH
Atmospheric pressure: 70 kPa~106 kPa
Storage Conditions -20°C~+55°C, 0% RH~93% RH
Atmospheric pressure: 50 kPa~106 kPa
Dimensions Approx: 62(D) X 135(H) X 90(W) mm
Weight Approx: 380 g, excluding batteries
Classication Type BF
Cu󰀨 size 22-32 cm
AC Adapter Input: 100 - 240 V, ~50/60 HZ, 0.2 A
Output: 6 V 500 mA
* The specications and the outer design are subject to change for im-
provement reasons without previous notice.
WARRANTY
Your Automatic Blood Pressure Monitor Model М-100A is warranted for
5 years from date of purchase. Warranty for the cu󰀨 is 1 year from the
date of purchase. The warranty does not apply to damage caused by
improper handling, accidents, not following the operating instructions or
self-maintained alterations made to the device.
The warranty is only valid upon presentation of the warranty card which
was correctly lled in and sealed.

18
УВАЖАЕМЫЙ ПОЛЬЗОВАТЕЛЬ АВТОМАТИЧЕСКОГО
ИЗМЕРИТЕЛЯ АРТЕРИАЛЬНОГО ДАВЛЕНИЯ ТМ DR.FREI
Благодарим Вас за выбор автоматического измерителя артериального
давления ТМ Dr. Frei® модели М-100A. Мы уверены, что, по достоин-
ству оценив качество и надежность этого прибора, Вы станете постоян-
ным пользователем продукции Швейцарской торговой марки Dr. Frei®.
Перед тем как начать пользоваться данным прибором, внимательно
прочитайте инструкцию. В ней Вы найдете всю информацию, необхо-
димую Вам для правильного проведения измерения артериального
давления и пульса.
По всем вопросам, относительно данного продукта, пожалуйста, об-
ращайтесь к официальному представителю или в сервисный центр
ТМ Dr. Frei® в Вашей стране.
ВНИМАНИЕ
Данный измеритель артериального давления предназначен для осу-
ществления самостоятельного контроля артериального давления, а
не для самодиагностики гипертонии/гипотонии. Ни в коем случае не
ставьте диагноз самостоятельно на основе результатов, полученных
с помощью измерителя артериального давления. В случаях отклоне-
ния артериального давления от нормы не занимайтесь самолечени-
ем, не изменяйте самостоятельно прописанные методы лечения, не
проконсультировавшись предварительно с врачом.
Класс защиты BF.
Перед использованием прибора внимательно прочтите данную
инструкцию.

19
RU
СОДЕРЖАНИЕ
ЧТО НЕОБХОДИМО ЗНАТЬ
ОБ АРТЕРИАЛЬНОМ ДАВЛЕНИИ ................................................. 20
Что такое артериальное давление ..................................................... 20
Нормы артериального давления ........................................................ 21
ПРЕИМУЩЕСТВА АВТОМАТИЧЕСКОГО ИЗМЕРИТЕЛЯ
АРТЕРИАЛЬНОГО ДАВЛЕНИЯ МОДЕЛЬ М-100A....................... 22
Индикатор уровня АД .......................................................................... 22
Технология выявления нарушений частоты
сердечных сокращений (IHB) .............................................................. 22
ПОДГОТОВКА К ИЗМЕРЕНИЮ....................................................... 23
Важная информация ........................................................................... 23
Комплектация ....................................................................................... 24
Внешний вид и описание прибора ..................................................... 24
Установка батареек ............................................................................. 24
Подключение сетевого адаптера ........................................................ 25
Подключение манжеты ........................................................................ 26
ПРОВЕДЕНИЕ ИЗМЕРЕНИЯ........................................................... 26
Наложение манжеты ........................................................................... 26
Процесс измерения ............................................................................. 27
Чтение результатов измерения .......................................................... 27
Прерывание измерения ...................................................................... 28
ФУНКЦИЯ «ПАМЯТЬ»....................................................................... 28
УСТРАНЕНИЕ НЕИСПРАВНОСТЕЙ............................................... 28
ХРАНЕНИЕ И УХОД........................................................................... 30
ОПИСАНИЕ СИМВОЛОВ.................................................................. 31
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ.............................................. 32
ГАРАНТИЯ .......................................................................................... 33

20
170
160
150
140
130
120
110
100
90
80
70
60
50
40
8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 2.00 4.00 6.00 8.0
0
Диастолическое
(нижнее) давление
Систолическое
(верхнее) давление
Время (час)
мм рт. ст.
Систолическое
(верхнее) давление
Диастолическое
(нижнее) давление
ЧТО НЕОБХОДИМО ЗНАТЬ
ОБ АРТЕРИАЛЬНОМ ДАВЛЕНИИ
Что такое артериальное давление
Артериальное давление - это давле-
ние крови на стенки артерий. Артери-
альное давление (АД) необходимо
для обеспечения постоянной цирку-
ляции крови в организме. Благода-
ря ему клетки организма получают
кислород, который обеспечивает
их нормальное функционирование.
«Насосом», выталкивающим кровь
в сосуды, выступает сердце. Каждый
удар сердца обеспечивает опреде-
ленный уровень АД.
Различают 2 вида АД: систолическое (верхнее) давление, которое
соответствует сокращению сердца, при котором происходит выталки-
вание крови в артерии; и диастолическое (нижнее) давление, которое
соответствует давлению крови между двумя сокращениями сердца.
Суточный ритм артериального давления человека
Повышение артериального давления увеличивает нагрузку на серд-
це, влияет на кровеносные сосуды, делая их стенки толстыми и ме-
нее эластичными.
Одной из характеристик гипертонии является то, что на начальном
этапе она может протекать незаметно для самого больного. Именно
