Omron M1 Plus User manual

Manual Inflation Blood Pressure Monitor
Model M1 Plus
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•   
• Instrukcja
• Kezelési Útmutató
EN
FR
DE
IT
ES
NL
RU
IM-HEM-4011C-E-03-10/2011
1649533-0C
PL
HU

2
Contents
Introduction ..............................................................................3
Important Safety Information ..................................................4
1. Overview ..............................................................................5
2. Preparation ..........................................................................8
2.1 Installing/Replacing the Batteries.....................................8
2.2 Setting the Date and Time .............................................10
2.3 Adjusting the Settings Modes.........................................13
3. Using the Unit....................................................................14
3.1 How to Sit Correctly When Taking a Measurement .......14
3.2 Applying the Arm Cuff ....................................................16
3.3 Taking a Reading ...........................................................18
3.4 Using the Memory Function ...........................................23
4. Quick Reference Guide.....................................................26
5. Handling Errors and Problems ........................................27
5.1 Error Messages..............................................................27
5.2 Troubleshooting .............................................................29
6. Maintenance and Storage.................................................31
7. Optional Parts....................................................................34
8. Technical Data...................................................................35
9. Some Useful Information about Blood Pressure ...........37

3
EN
Introduction
Thank you for purchasing the OMRON M1 Plus Upper Arm
Blood Pressure Monitor.
The OMRON M1 Plus is a manual inflation blood pressure
monitor, operating on the oscillometric principle. It measures
your blood pressure and pulse rate simply and quickly.
The unit also stores up to 21 measurements in memory and
calculates an average reading based on the three most recent
measurements taken within 10 minutes of the last reading. (If
there are only two readings in memory for that period, the
average will be based on two readings. If there is only one
reading in memory for that period, that reading will be
displayed as the average value.)
Please read this instruction manual thoroughly before
using the unit. For specific information about your own
blood pressure, CONSULT YOUR DOCTOR.

4
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and
arteriosclerosis.
You should never change the dosage of medication prescribed by
your doctor.
Use the M1 Plus only for yourself.
Caution:
• Do not leave the unit unattended with infants or persons who
cannot express their consent.
• Do not use the unit for any purpose other than measuring
blood pressure.
• Do not use a cellular phone near the unit. This may result in
incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
• Do not apply strong shocks and vibrations to or drop the main
unit and arm cuff.
• Only use four “AAA”manganese or alkaline batteries with this
unit. Do not use other types of batteries.
• When using batteries, the battery liquid may leak and damage
the main unit.
• Please observe the following points.
- Do not insert the batteries with their polarities incorrectly aligned.
- Replace old batteries with new ones immediately.
- When you are not going to use the unit for a long period of time
(approximately three months or more), take out the batteries.
- Do not use new and used batteries together.
- Do not use batteries of a different type together.
• Do not forcibly bend the arm cuff or bend the air tube
excessively.
• When removing the air tube, pull on the edge of the tube at
the connection with the main unit not the middle of the tube.
• Do not inflate the arm cuff when it is not wrapped around your
arm.

5
1.Overview
EN
1. Overview

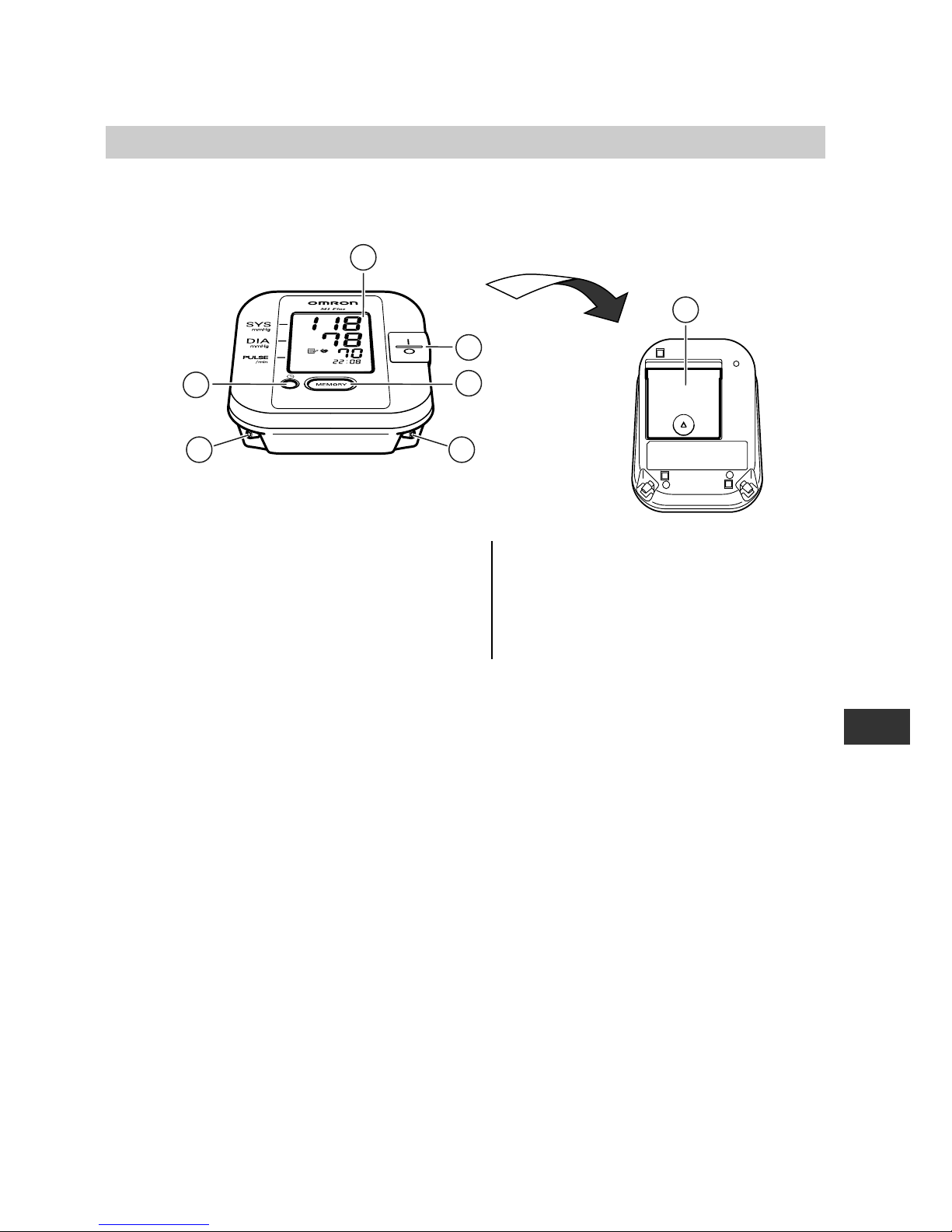

Main unit
A. Display
B. SET button
C. Air connector
D. MEMORY button
E. I/O button
F. Battery compartment
B
A
C C
E
D
F

6
1.Overview
Arm Cuff
If air starts to leak from the arm cuff, please replace with a new
one. (Refer to Chapter 7 “Optional Parts”)

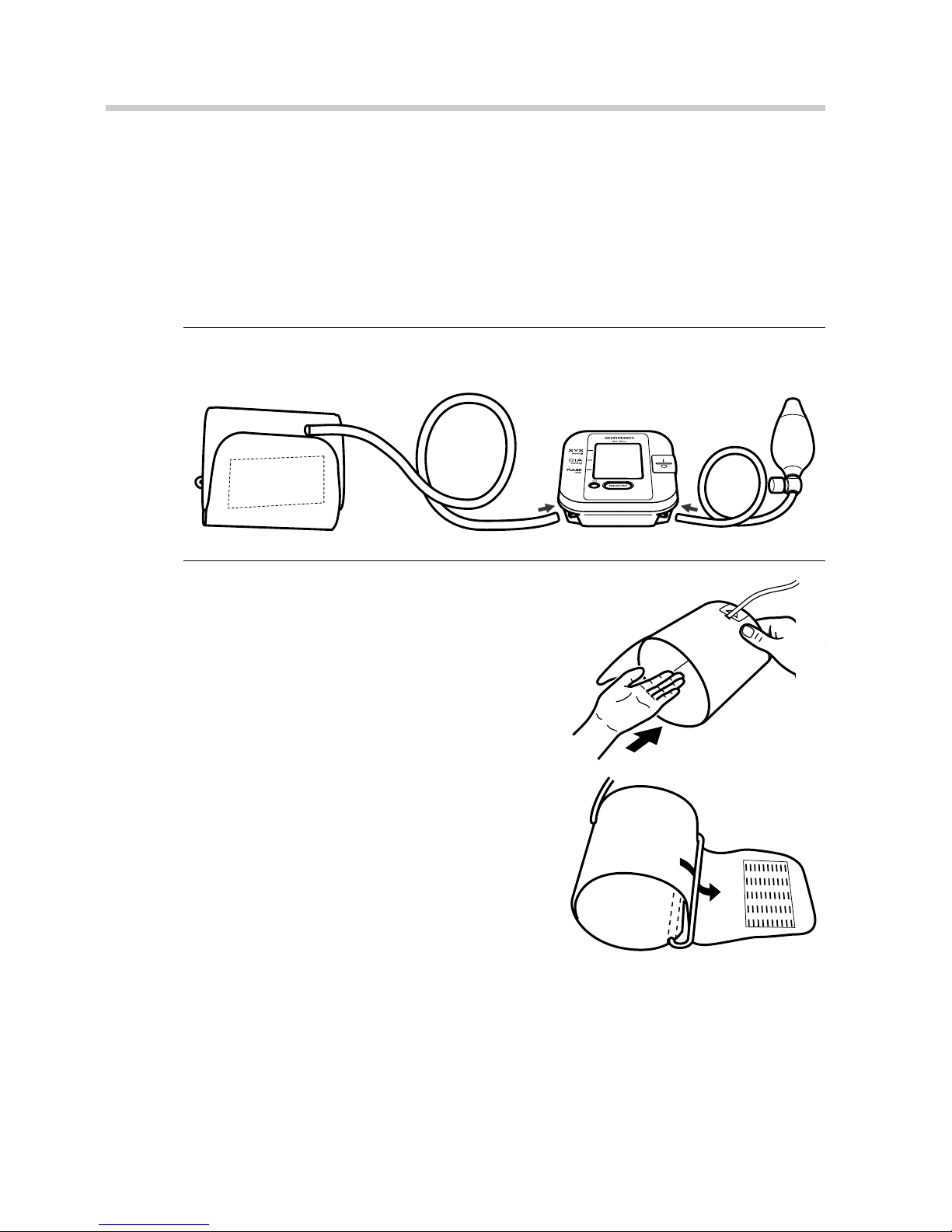

Inflation Bulb
G. Arm cuff
(Medium cuff: arm circumference 22-32 cm)
H. Air Tube
I. Air Release Button
J. Air Tube
K. Air Inflation Bulb
HG
J
K
I

7
1.Overview
EN
Display

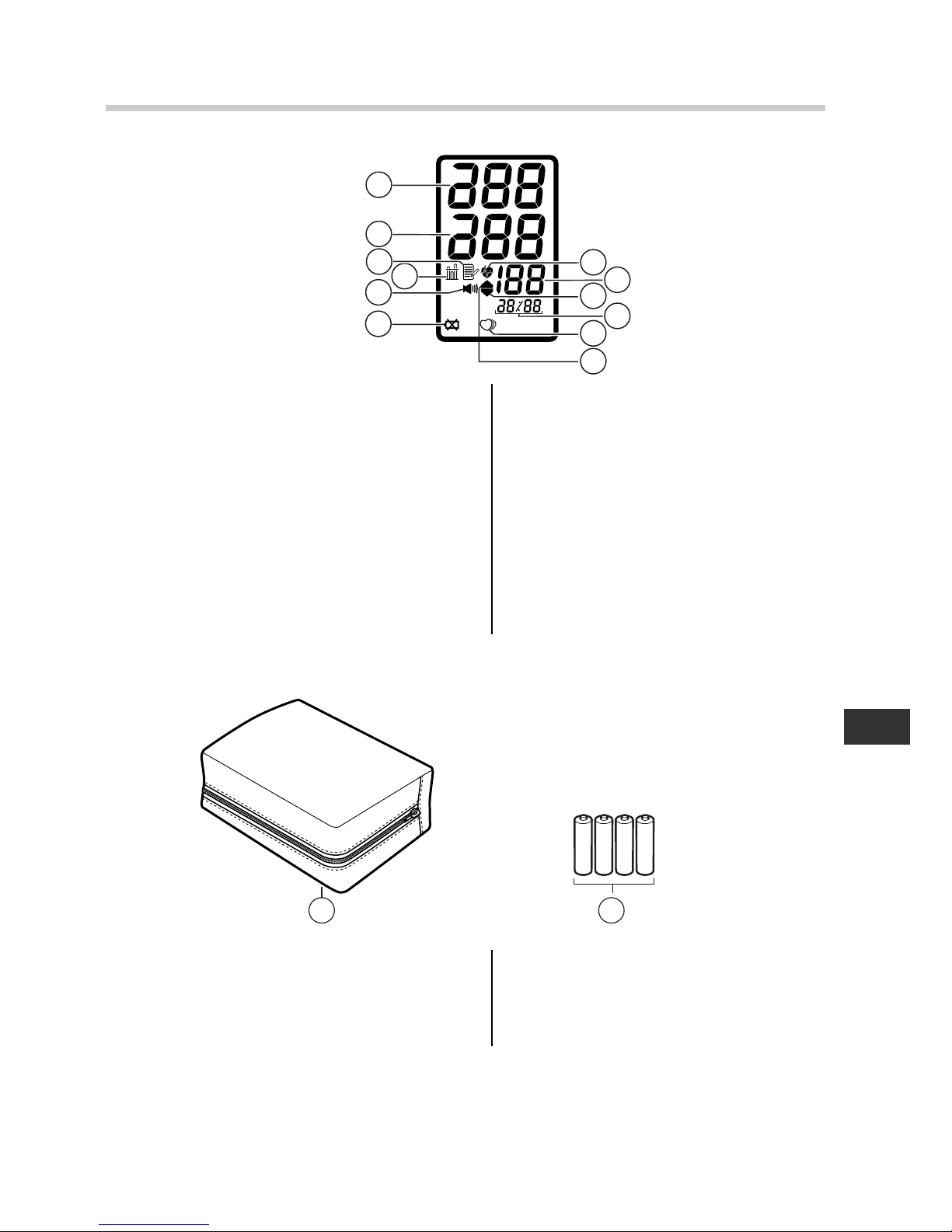

Package contents
L. Systolic blood pressure
M. Diastolic blood pressure
N. Memory symbol
(Displayed when viewing
values stored in memory)
O. Average value symbol
(Displayed when viewing
average value for the last three
measurements)
P. Buzzer symbol
Q. Battery low symbol
R. Heartbeat symbol
1. (Flashes during measurement)
2. (If flashing after measurement
is complete, indicates blood
pressure out of recommended
range)
S. Pulse
T. Deflation symbol
U. Date/Time
V. Irregular heartbeat symbol
W. Reinflation symbol
X. Storage case
Y. Four “AAA” alkaline (LR03)
batteries
• Instruction manual
• Guarantee card
• Blood pressure pass
• Blood Pressure Monitor unit
L
R
T
W
M
O
P
N
S
U
V
Q
YX

8
2.Preparation
2. Preparation
2.1 Installing/Replacing the Batteries
1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or replace four “AAA”
size batteries so that the
+ (positive) and - (negative)
polarities match the polarities
indicated on the battery
compartment.
4. Put the battery cover back in
place.
Slide the battery cover as indicated, until it clicks into place.
Note: The measurement values continue to be stored in
memory (for maximum 30 seconds) even after the
batteries are replaced.

9
2.Preparation
EN
Battery Life & Replacement
If the battery low symbol ( ) appears on the display, replace
all four batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will still
be able to use the unit for a short while. You should replace
the batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries are
exhausted. You should replace the batteries with new ones
at once.Turn the unit off before replacing the batteries.
• Remove the batteries if the unit will not be used for three
months or more.
• If the batteries are removed for 30 seconds, the Date/Time
setting will need to be reset. See “2.2 Setting the Date and
Time” for details.
• Dispose of batteries according to applicable local regulations.
Four new “AAA”alkaline batteries will last for approximately
1500 measurements, when used to take two measurements a
day.
Since the supplied batteries are for monitoring use only, they
may have a shorter life and not last for 1500 measurements.

10
2.Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 21
measurements values, including date and time of
measurement, in its memory and calculates an average value
based on the three most recent measurements taken within 10
minutes of the last reading. (If there are only two readings in
memory for that period, the average will be based on two
readings. If there is only one reading in memory for that period,
that reading will be displayed as the average value.)
To make use of the memory and average values functions:
• Set the unit to the correct date and time before taking a
measurement for the first time.
• If the batteries have been removed for more than 30 seconds,
the date and time setting will need to be reset.

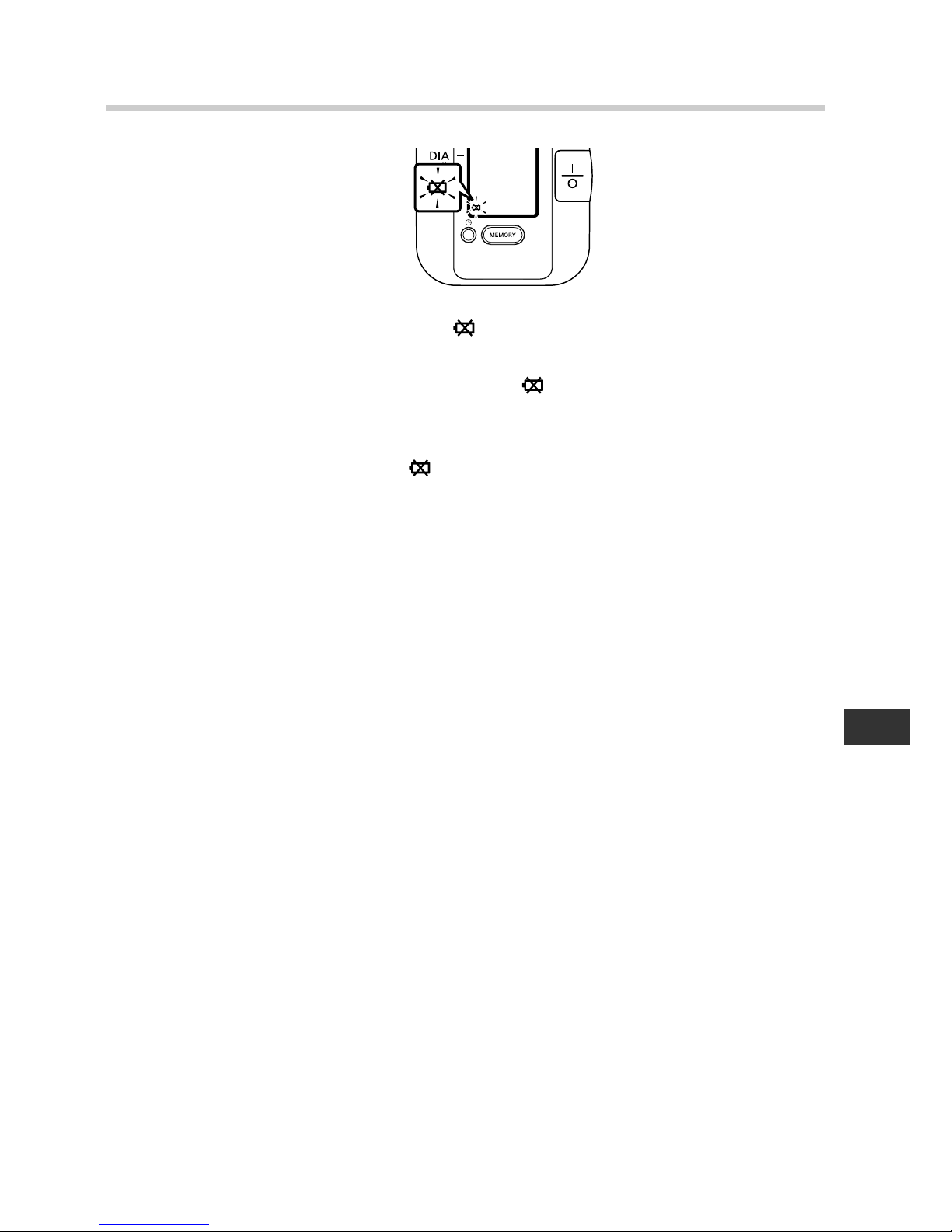

1. When the I/O button is
pressed to turn the unit on for
the first time after inserting
batteries, the year digits
(2005) will flash on the
display.
2. Press the MEMORY button to
advance the digits one at a
time.
Notes:
• The range for the year
setting is 2005 to 2030. If the
year reaches 2030, it will
return to 2005.
• If you hold down the
MEMORY button, the digits
will advance rapidly.
