Dr. Squeezy GreenQueen User manual

GreenQueen
Owner’s Manual
Please read all instructions carefully before use.
1-866-628-7451
Wheatgrass Juicers
Household
Electric Model
TM
TM

1) Motor Base
1a) Motor receptacle (slot) for feed pipe
1b) Motor receptacle for grinding auger
2) Feed Pipe with bushing insert
2a) Top of feed pipe
2b) Bushing (not pictured)*
3) Metal washer
4) Grinding Auger
5) Brace
6) Gasket
7) Locking Ring / Pulp Outlet
8) Wrench / Tamper
9) Hopper Tray
10) Juice Duct
11) Measuring Cup
* The bushing is a small plastic part designed to stay in place inside the feed pipe, but can be removed if
it needs to be cleaned or replaced.
Juicer Parts (Numbered in order of assembly) NOTE: Check to see that all parts are included in box.
1
1
10 11
5
67
4
3
8
9
2
1b
2a
1a
2b
Congratulations!
You have just purchased one of the most efficient wheatgrass juicers
on the market. The Dr. Squeeze “Green Queen” can also extract juice
from other leafy greens such as spinach. This machine is designed for
household use only. It is one of the simplest to operate and clean.
With a little practice, you will be able to put it together, juice with it,
and clean and reassemble it all in a few minutes.

Assembling Your Juicer
1) Check to see that the white bushing (#2b) is in place inside feed pipe (#2).
If bushing is loose, place it onto shaft of grinding auger (#4) and maneuver it
into feed pipe.
2) To mount feed pipe (#2) onto motor base (#1), place top of feed pipe (#2a)
at a 45 degree angle into slot on top of motor (motor receptacle -1a) and
lower until it locks in place. (see photo A, below)
3) Place metal washer (#3) on end of grinding auger (#4). Place a drop of
food oil on both sides of the washer to extend the life of your machine.
4) Insert the grinding auger (#4) inside the feed pipe (#2) until the shaft fits
into the motor receptacle (#1b)
5) Slide circular opening of brace (#5) over feed pipe (#2) and snap in place.
6) Spread a single drop of food oil around the threads on inside of locking
ring (#7) before each use.
7) Place gasket (#6) inside locking ring (#7).
8) Turn locking ring (#7) clockwise by hand onto end of feed pipe (#2).
9) To tighten the locking ring (#7), turn the machine around with the On/Off
switch facing you and the pulp outlet pointing to your left. Put the wrench
(#8) in place on the locking ring at a 90-degree angle. Hold the top of the
motor with your right hand. With your left hand, push downward on the
wrench handle in a clockwise direction. Use slow steady pressure until it is
tightened firmly. Avoid over-tightening, which could cause the threads to
strip or the wrench to break. Also avoid leaving it too loose, as it could
unscrew while the machine is juicing and cause damage.
Never tighten or loosen the locking ring while the motor is running.
Note: the direction of “lock” and “open” is shown on the brace (#5):
clockwise to tighten, counterclockwise to loosen (see photo B, below)
10) Now turn the machine around so that the pulp outlet points to your
right. Slide the juice duct (#10) onto the mounting guides located under
on the under side of the feed pipe (#2).
11) Place hopper tray (#9) on top of feed pipe (#2).
12) Place measuring cup (#11) under juice duct (#10) to catch juice.
13) Place a bowl under pulp outlet (#7) to catch pulp.

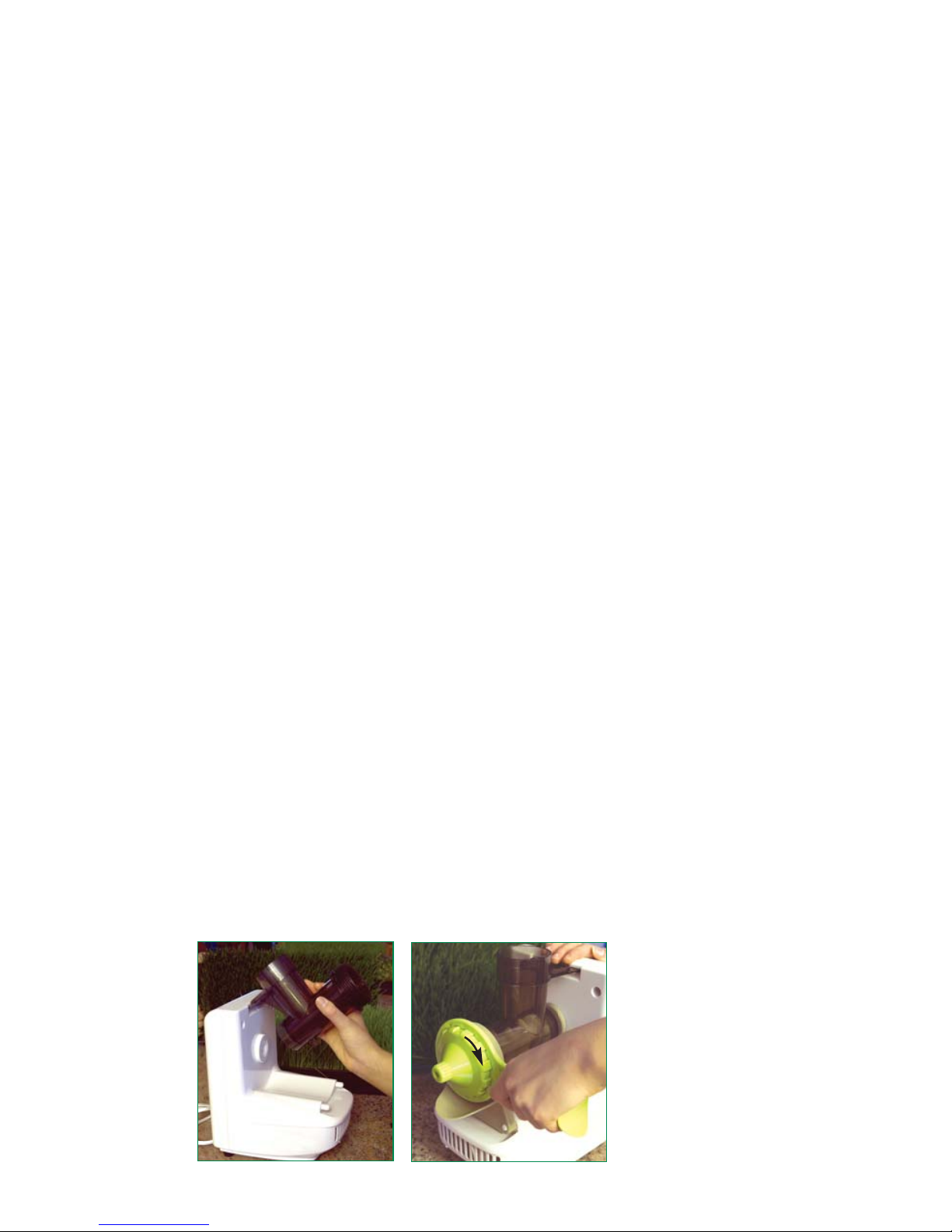

photo A photo B
2
LOCK

3
Operating Tips
Note: Before actually using this machine, be sure to read all the “warnings”
on page 5, as some are specific to this machine.
• This juicer is intended for leafy greens only. Do not juice hard vegetables
such as carrots, beets, or turnips, as they may damage the machine.
• You may lubricate the threads on the inside of the locking ring with just
a drop of vegetable oil before each use, but be sure to tighten securely.
This will make it easier to loosen the locking ring after you are done
juicing. Putting too much oil or not tightening the locking ring enough
might allow the locking ring to unscrew during juicing. This could cause
damage to parts.
• Before you turn on the machine, always make sure the locking ring (#7)
is tight and the machine is properly assembled.
• Take a handful of grass, about the diameter of a nickel when pinched
tightly.
• Gently put grass into feed pipe (#2) allowing grass to go down and
contact grinding auger (#4).
• Take care not to put your fingers anywhere near auger.
Always use hopper tray (#9) and tamper (#8).
• The auger is designed to pull the grass down into the juicer. However, to
help it along you may use the tamper (#8) to push it through. The
tamper must face forward to fit in properly. Do not push grass down with
your fingers!
• Feed the grass into the juicer in a continuous motion. Quickly prepare
the next handful of grass to feed in right behind the first. Consider that
each bunch of grass is pressed gently through by the following bunch.
• For best results, try not to feed in too much or too little grass at a time.
Too much will clog the machine. Waiting too long between feeding in
grass or putting in too little will result in inefficient juicing.
• Do not run the pulp through the juicer a second time. The pulp comes
out so dry that to do this would stress the entire machine.
• Before disassembling your juicer, let the machine run for an additional 1-2
minutes until all or most of the pulp has been pushed through. Excess
pulp can make it difficult to unscrew the locking ring.
• Don’t let machine sit after use. Disassemble and clean right away.
• We recommend purchasing a small fine-mesh stainless steel strainer to
remove pulp from the juice.

4
Disassembling Your Juicer
1) Before disassembling, run juicer 1-2 minutes to remove all pulp.
2) Shut motor. Never try to disassemble your machine while the motor
is running.
3) Disassemble immediately after juicing. Parts clean more easily when
the pulp is soft and fresh.
4) Remove hopper tray.
5) Remove juice duct by pushing it towards juicer and down to unlock.
6) With pulp outlet facing to your right, put wrench in place on locking
ring (at 90 degree angle) and push downward on handle of wrench to
unscrew counterclockwise. Once loose, unscrew by hand.
Note: direction of “open” and “lock” is shown on brace.
7) Remove brace.
8) Remove grinding auger and metal washer from inside feed pipe.
9) Lift open end of feed pipe up off motor at 45 degree angle to remove
from motor base.
10) If bushing comes out, put it back into small end of feed pipe to
reinstall it.
Cleaning Your Juicer
1) Wash all parts by hand with warm soapy water and a soft sponge.
A baby bottle brush works well to clean inside the feed pipe.
2) Do not put parts into dishwasher or into boiling water. Parts may be
damaged by heat.
3) Air dry parts in dish rack.
4) Optional: When dry, apply a drop of vegetable oil on both sides of
the metal washer. This can greatly extend the life of the juicer.
5) Lightly sponge clean the motor base; do not pour water into motor or
submerge it in water.

5
Safety Directions
Warning!
Read and fully understand all instructions and warnings prior to using this
appliance. Your safety is most important. Failure to comply with procedures
and safeguards may result in serious injury or damage to the machine.
Remember that your personal safety is your responsibility!
• Never try to assemble or disassemble the machine while motor is on.
Always turn switch to “off” position and unplug juicer beforehand to
prevent damaging the plastic threads on the feed pipe and locking ring.
• DANGER! Never submerge or rinse motor base in water.
Electrocution may result.
• To avoid injury, always use hopper tray.
• Never put hands into feed pipe while motor is on.
• Only use the provided tamper to push grass into juicer.
• Do not attempt to use other kitchen objects, such as a wooden spoon,
to push the grass into the machine! Other objects will get caught in the
machine and damage it.
• Do not try to juice hard vegetables such as carrots, beets, or turnips, as
they may damage the machine. This machine is only intended for
leafy greens.
• Do not stuff large amounts of grass into the machine. The motor and
gears may overheat and be damaged, voiding the warranty.
• If the motor stops during juicing, shut the switch immediately to prevent
motor from overheating and being permanently damaged.
• If there is any smoke or burning smell coming from the motor, shut the
switch and unplug the unit immediately. Contact customer service.
• Do not put any parts in the dishwasher or in boiling water as plastic parts
may be damaged by heat.
• Keep the machine away from children! Close supervision is necessary
when any appliance is used by or near children.
• Do not use any appliance with a damaged cord or plug.
• Do not let the cord hang over the edge of a table or counter or touch
hot surfaces.
• Do not move machine while it is plugged in and running.
• Do not allow water to enter the motor. If water gets into the motor for
any reason, do not use the machine and contact our service center.
• Do not run the machine on a wet surface.
• Do not use this appliance outside.
• If you have any questions concerning safety, please call our
toll-free service center at 1-866-628-7451.

6
Trouble Shooting
1) The motor doesn’t go on.
Check to see that plug is securely in wall outlet. Make sure the outlet has power to it. Make
sure you are turning the safety switch to the “on” position.
2) Juice leaks from behind the locking ring and brace.
a) Check to see that gasket (#6) is in place inside locking ring (#7).
b) The locking ring (#7) might be too loose. Sponge up the leak before disassembling the
juicer, pull out pulp from inside the juicer and then reassemble it making sure that it is
tight. Use wrench to tighten.
c) You might be feeding too much grass into the juicer too quickly. Use smaller amounts
and feed more slowly.
3) I can’t unscrew the locking ring.
a) Make sure you are turning the locking ring in a counterclockwise direction to loosen it.
Press down on the handle of the wrench.
b) Turn machine back on and let run for 1 – 2 minutes until all or most of the pulp has been
pushed through. Then shut machine and try to unscrew locking ring using wrench.
c) Try repositioning wrench at 90 degrees for more leverage and try not to over tighten
locking ring.
d) Next time, lubricate the threads on inside of the locking ring with a drop of vegetable oil.
4) There is pulp in my juice.
Pour the juice through a small fine-mesh stainless steel strainer to remove the pulp.
You can purchase one at a local store.
Special Features of the Green Queen
• The materials that touch food are all made of food quality
non-toxic materials (nylon polymer and stainless steel).
• The grinding auger has a low rotation speed (less than 60 rpm) to retain
nutrients and taste. Other juicers with a high rotation speed tend to
oxidize the juice and cause it to lose nutrients.
• The “Green Queen” out produces the competition. It gives more ounces
of juice per pound of grass. The proof is in the pulp; it is so dry you can not
get another drop out of it!
Technical Data:
• Power Supply: 110 V AC 60 Hz
• Power input idling: 38 W
• Power input under load: 278 W
• Rated speed of motor: 5600 rpm
• Rated speed of auger: 56 rpm
• Insulation class: 2 (no grounding required)
• Radio interference level: N/A
• Weight (with box): 9.04 lbs./4.3 kg.

About Wheatgrass
Wheatgrass is a green super-food that is probably the most valuable source of natural
nutrients on earth. It contains vitamins A, B, C, calcium, iron, magnesium, phosphorus,
potassium, sodium, sulfur, cobalt, zinc, living enzymes, and protein in the form of amino
acids. The solid portion of wheatgrass juice is 70% chlorophyll, which is often referred
to as the blood of the plant and closely resembles the molecules of human red blood cells.
Chlorophyll is known to produce an unfavorable environment for bacterial growth in the
body and is therefore effective in increasing the body’s resistance to illness.
Wheatgrass juice is part of the “raw foods” diet as first promoted by Dr. Ann Wigmore.
Ideally, it should be incorporated into a diet consisting of sprouted seeds and beans, raw
fruits and vegetables, as well as fermented foods such as raw sauerkraut and Rejuvelac
(a sprouted wheat drink).
Wheatgrass juice can:
• Cleanse the bloodstream of toxins
• Build healthy blood as it increases hemoglobin levels
• Improve circulation
• Help reduce high blood pressure
• Alleviate anemia by providing iron
• Promote healthy gums and skin
• Aid digestion
• Curb appetite
• Reduce cravings for addictive substances
• Increase energy
•Wheatgrass pulp soaked in wheatgrass juice can be applied to the skin
as a poultice
How to Drink Wheatgrass Juice
Try 1 ounce of wheatgrass juice per day for the first week. It is best to drink the juice
in the morning on an empty stomach and wait at least 20 minutes before eating. Over
time the amount can gradually be increased to 2 to 3 ounces per day as a healthy
supplement. If you are on a cleansing diet, you can drink as much as 4 to 6 ounces per
day. For best results, drink wheatgrass juice twice a day, for example, 2 ounces in the
morning and 2 ounces later in the afternoon. This is better than trying to drink a
large amount all at once.
Wheatgrass juice can be mixed with other vegetable juices
such as carrot, celery, or parsley, but it does not combine well
with fruit juices. In general, it is digested more quickly if you
just drink it straight.
For more information, visit Perfect Foods online at
www.800wheatgrass.com
Please Note: The information regarding wheatgrass is not intended to
be medical advice.Wheatgrass does not "cure" anything; it simply
provides the body with proper nourishment, which supports healing. If
you are ill, please see your doctor.
7
PERFECT
FOODS
Perfect Foods, Inc. is the sole importer of Dr. Squeeze Green Queen

Limited Product Warranty
Send this along with a copy of your original
purchase receipt to:
Perfect Foods, Inc.
862 Pulaski Highway, Goshen, NY 10924
Customer Name:_______________________________________________
Address:______________________________________________________
City/State/Zip:_________________________________________________
Telephone Number: _________________________________________
E-Mail Address:________________________________________________
Model: Green Queen Wheatgrass Juicer
Original Date of Purchase: __________ Serial #:___________________
Wheatgrass Juicers
TM
Warranty
Perfect Foods, Inc. warrants to the ORIGINAL RETAIL PURCHASER of this product that
if operated in accordance with the printed instruction accompanying it, then for a
period of 1 year from the date of purchase, the motor shall be free from defects in
material and workmanship.
The Warranty Card, along with a copy of the original receipt, must be received by
Perfect Foods, Inc. within 30 days from purchase date for the warranty to apply.
Failure to send the completely filled out Warranty Card, along with a copy of the
original receipt, will void the warranty.
The product must be delivered to or shipped freight prepaid to Perfect Foods for
warranty services, in either its original packaging or similar packaging affording an
equal degree of protection. Damage due to shipping is not the responsibility
of the company.
1-year warranty with proof of purchase. For household use only.
For questions or service, call: 1-866-628-7451
