DRACAST Boltray Series User manual

Instruction Manual
DRBR1200B
Note:The technical date are subject to change without notice.
1. Please do not expose the device to excess heat or moisture. Store in a cool, dry place.
2. Please do not let the device be exposed to rain or other liquids to avoid permanent damage.
3. Please do not connect the fixture to excess or incorrect voltage.
4. The body will generate heat when operating. Use caution when handling.
5. During transportation and installation, do not hit the fixture against other items or drop the
fixture. This can cause damage to the light.
6. Please do not directly look at the LED light when the fixture is powered on.
7. Please do not place the fixture near any flammable materials or solvents.
8. Please use a dry, soft cloth to clean fixture. The fixture may be cleaned with damp cloth
only when the unit is powered off and unplugged. Dry the fixture with a soft cloth before
plugging back in.
9. Keep the fixture out of reach of children.
10. Please do not operate the fixture over-current. Permanent damage can occur.
11. Do not disassemble the fixture or touch the product’s internal parts. This could result in
injury and permanent damage to the fixture. In the event of a malfunction, the fixture should
be repaired by a qualified technician.
12. Unplug the fixture when not in use.
13. Failure to comply with these warning can result in injury and / or cause permanent
damage to the fixture.
Warning and Notes

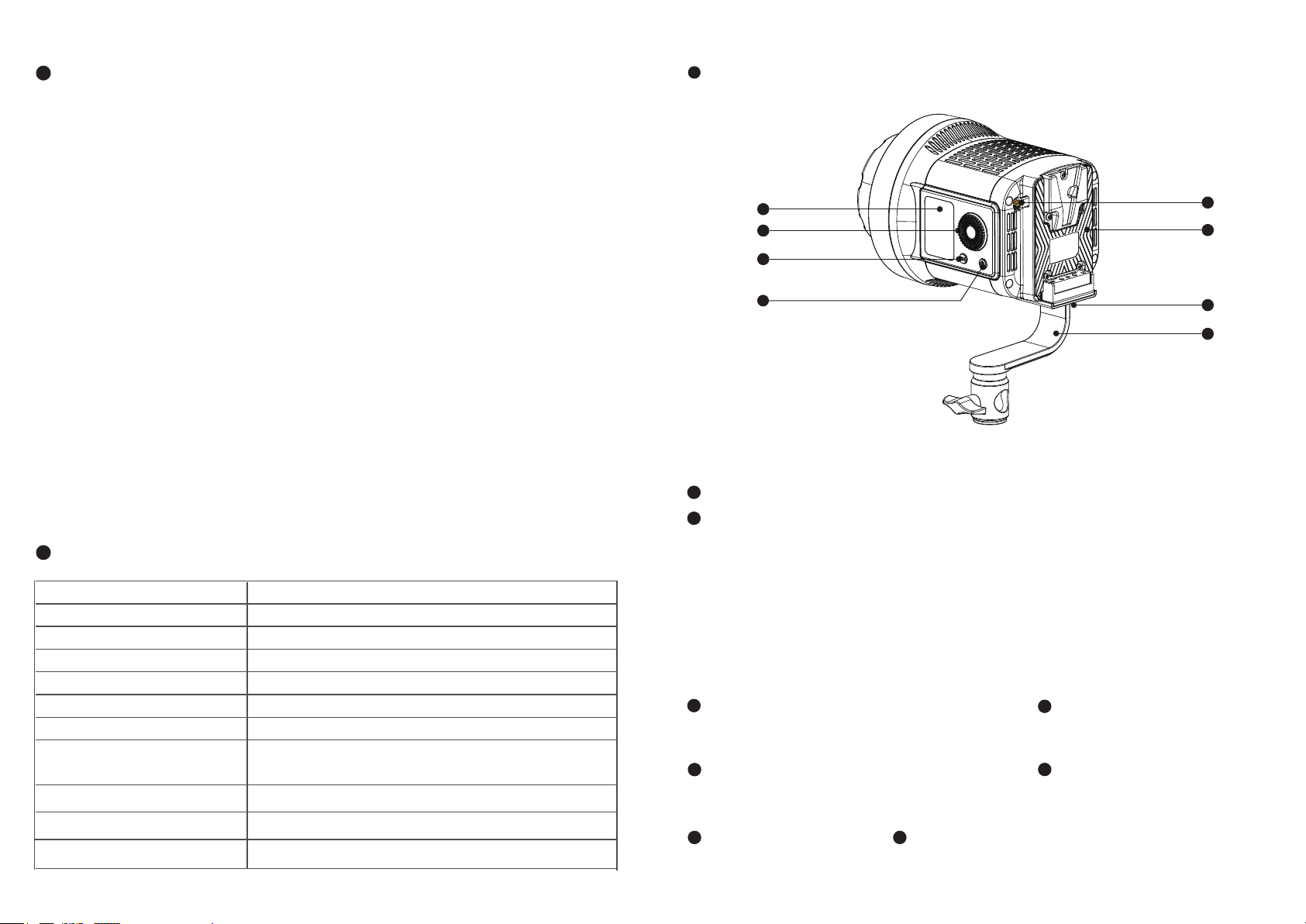

Product Information Boltray Figure and Components
Specifications
1
2
3
4
5
7
8
6
Dracast Boltray Series is a high-output, compact light fixture that combines accurate color rendition
with portable design. The result is a light fixture that is perfectly suited for photo and filmmaking
applications. The 5000 model is equipped with a 120W LED COB array with adjutsable color
temperature from 3000K - 6000K
The Dracast Boltray Series is constructed with an aluminum alloy frame, making the fixture both
durable and lightweight. The fixture is programmed with special effects that include Paparazzi,
Fireworks, Bad Bulb, and Thunder Flash, TV, and SOS providing the user with multiple creative
applications. The fixture can be powered via AC mains power, or via DC battery power through its
on-board v-mount battery plates. The fixture is equipped with overheating protection via on-board
fans for prolonged use. Boltray fixtures are equipped with a built-in 2.4G wireless receiver enabling
it to be controlled via remote
1
2
34
7
6
8
Battery slot
5 Battery release button
Power switch
Channel button
Short press the CH button and turn the knob to change the
channels from 01-99.
Hold the power button for four
seconds to switch on / off the power.
Press and hold the PUSH button, push the battery upwards
to remove the battery from the light.
Power socket
Yoke
* Latch/release of bowens accessory
Rotate to install the bowens style mounting
accessory until it is locked in place.
Rotate to release the accessory until it is
removed.
ModelDRBRP12000B
Output Power
Luminous Flux
LED Quantity
Color Temperature 3000-6500K ± 200K
Illuminant
Adjusting Range
Remote Control
Remote Control distance
Voltage AC100-240V 50/60Hz
10%-100%
99channel 2.4G wireless remote control
≥30M
120W
9600LM
1PC
High-Power LED Module
Sony V-lock battery
Output Power > 120 W
Lithium Battery Type
LED display
Adjustment knob
Long press the knob for 3 seconds to switch between continuous lighting and special effects lighting.
In continuous lighting mode, dial the knob to change the dimmer 10%-100%.
In special effects mode, shortly press the knob to change light intensity,
effect mode (dial knob to change F1-F6) and effect frequency ( dial knob to change 1-9).
01- Paparazzi 02- Firework 03- Bad bulbs 04- Thunder flash 05- TV 06- SOS
Short press the knob to switch between dimmer control and color temperature
adjustment. Then dial the knob to change light intensity or color temperature.
