DragonSaw DRS-2022H8 User manual
SAFETY PROCEDURES
WARNING! In order to safely work with the hydraulic ring saw you have to follow all the
safety recommendations from the manufacturer and all the competent safety
organisations governing your territory and area.
It is mandatory and imperative that you read and comprehend the following instructions
to prevent any injury or even death to the operator or any one else in your surrounding
work area and property.
Only trained personnel or experienced operators shall use the cutting tool or saw.
Any repairs must be done by a trained or knowledgeable mechanic.
The saw must not be modified in any way without the express written permission from
the manufacturer. Unauthorised changes or modifications can result in Serious Injury or
even Death.
Safety regulations and obligations vary from local, regional and countries. It is your
responsibility to be informed and to follow all your local, regional, territory or country
safety authorities’ instructions and conform with all their safety recommendations and
obligations.
The OPERATOR is responsible to follow all the safety procedures to protect himself,
other person or property in his work area.
DO NOT OPERATE the tools if you have consumed prescription drugs that may affect
your judgement or ability to safely operate the tool or illegal drugs and alcohol.
It is imperative that you WEAR all the safety clothing and personnel protection
equipment such as hard hat, safety glasses, hearing protection, dust protection, safety
boots (leather and preferably rubber anti -shock boots in wet environment) gloves, long
sleeve shirt and pants plus any other protection or apparatus that may be deemed
necessary to protect your and others health and safety.
Play it safe, do not be sorry.
OPERATION
The saw is designed to safely cut only concrete, masonry and stone.
Visually inspect the saw for any defect or broken parts before using.
NEVER operate a defective saw or blade.
If damages or defects are noticed, have the saw repaired by trained and
experienced personnel only before using.
Keep the saw clean, free from any accumulated debris, slurry, oil, grease or any
other substances that would impair the safe operation of the saw.
Only a trained person who has read and understands the operating instruction, has
experience with the use and operation of saws, the related usage of the tool and
completely understands the instruction manual in conjunction with his experience
and knowledge in the safe operation of saws should operate the saw.
WARNING! Keep loose or torn clothing or body parts away from any moving parts.
Serious injury or death may result.
Plan your cutting operation before starting to prevent any injury or death by an
unsecured or falling part of the cut material or the binding of the blade caused by an
unsecured part being cut.
Have a person trained and qualified in the detection of electrical power location
inspect for live wires, live cables or pipes that may be near, behind or embedded in
the material being cut to de-energize before attempting to start cutting. Make sure
that the tool is properly grounded and wear the required protective equipment. Live
electrical power will cause serious injury or death.
Inspect the blade for any deformation, crack, missing parts, segments, any other
unusual sign of metal fatigue or defects.
Have the blade replaced immediately before reusing with one specified by the
manufacturer for this particular saw or tool.
The blade should only be changed by a trained or authorised person in the repair of
the tool.
WARNING! To safely operate the tool, you should be on solid ground with a firm grip
on both handles of the tool.
WARNING! DO NOT operate on a slippery or uneven area.
DO NOT allow anyone in front of the tool or in line with the blade while working,
flying debris or slurry may INJURE someone.
DO NOT operate without all the guards in place and in good working order.
DANGER! All electrically operated tools should be grounded and hooked up to a
ground fault protection system.
All gasoline or petrol tools must be used in an outside environment. Never inside or
in a confined area.
Accumulation of fumes or gases will cause serious injury or death.
Be vigilant and very attentive to the work being performed and to your work area.
Never operate a tool or saw when you are tired, fatigued or stressed.
Follow all the safety recommendations.
Play it safe, your health and safety are your most important asset.
NEVER exceed the manufacturer recommended pressure rating and gallons per
minute
(GPM) specification or the electric power requirements of the motor.
NEVER exceed the manufacturer recommended operating
speed.
Make certain that the saw is in the neutral position before starting the hydraulic
power supply.
and that the previous instruction on the visual inspection of the tool has been carried
out.
Remove any material, debris, water accumulation, slurry or any other foreign objects
from the work area that could prevent you from safely operating the tool.
The cutting operation may produce sparks when embedded steel is encountered in
the concrete being cut. No flammable material or fluid should be in your work area.
DO NOT operate the saw in a confined space or an area where a spark could
produce an explosion.
Always be alert and vigilant.
DO NOT use the saw or the tool other than its intended application.
Cut in step not to overload the tool to prevent overheating, damage to the motor or
to put too much stress on the blade.
DO NOT apply too much pressure to the tool and maintain a firm grip at all times.
Disconnect all power and water supply at the completion of your work.
DO NOT leave an un-attendant tool hook to the power supply.
Clean the tool completely
TECHNICAL INFORMATION
Hydraulic Model 8 GPM or 12 GPM
Weight without blade
29.8 lbs or 12.54 kg
Width without the blade
10 1/4 in or 260 mm
Height without the blade
19 in. or 482.6 mm
Length without the blade
26 in. or 660mm
Power Requirement
Hydraulic
Maximum flow (8 GPM version)
8 GPM or 30 lpm
Maximum flow (12 GPM version)
12 GPM or 45lpm
Maximum pressure
2500 psi or 172.5 bar
Maximum blade diameter
20" or 510mm
Maximum cutting depth with 16" blade
12 inches or 300mm
Maximum cutting depth with 20" blade
16 inches or 407mm
Cooling of blade
Water cooled only (No dry cutting allowed)
TROUBLESHOOTING
Problem
Causes/Solution
Saw will not
start turning
Be certain that the power supply is hook up
Accumulation of heavy slurry
preventing the saw from turning
Seized blade guide roller
Saw will not
start turning
Not enough water to cool the blade
Blade turning to
slow
Check power supply
Seized guide bearing
Blade loose
Re-set guide bearing cover
Gear box is hot
Not enough oil
Too much oil
Water in oil
Blocked or dirty vent (***Clean Daily***)
Hydraulic Version
On & Off Valve
sticking
Broken plunger O-ring
Bent plunger
Hydraulic oil
leak
Hole in supply or return line
Damage coupler fitting or loose
fitting
Electric
Check power supply
WARRANTY
Limited Tool and parts Warranty.
ACG Saws & Tools of Canada Inc. the manufacturer certifies that the tool is free from
any material or workmanship defect and warrants the tool with a limited warranty for a
period of
one year from the date of the original purchase. Workmanship charges may apply.
Subject to certain exceptions, our responsibility under the warranty is limited to the
inspection and replacement of any parts that may be defective after being shipped at
our plant or any other point designated by the manufacturer
Cost of transport, labour or other expenses are not covered by the warranty and are the
responsibility of the buyer.
The warranty does not cover normal wear and tear, abuse, lack of maintenance,
unauthorised repairs or attempt to repair by others than the manufacturer, misuse or the
tool being used other than its
intended application.
The add-on components or integral units such as electric-hydraulic motors, gas
engines, transmissions, batteries, etc. are the responsibility of the prime manufacturer
warranty and are excluded from this warranty.
This warranty replaces all other implied or expressed warranty and all other such
warranties are therefore disclaimed.
Proof of purchase is mandatory. An authorization return number must be issued by the
manufacturer before any tool may be shipped to us for repair or warranty.
The manufacturer will repair the tool to its original designation at his discretion.

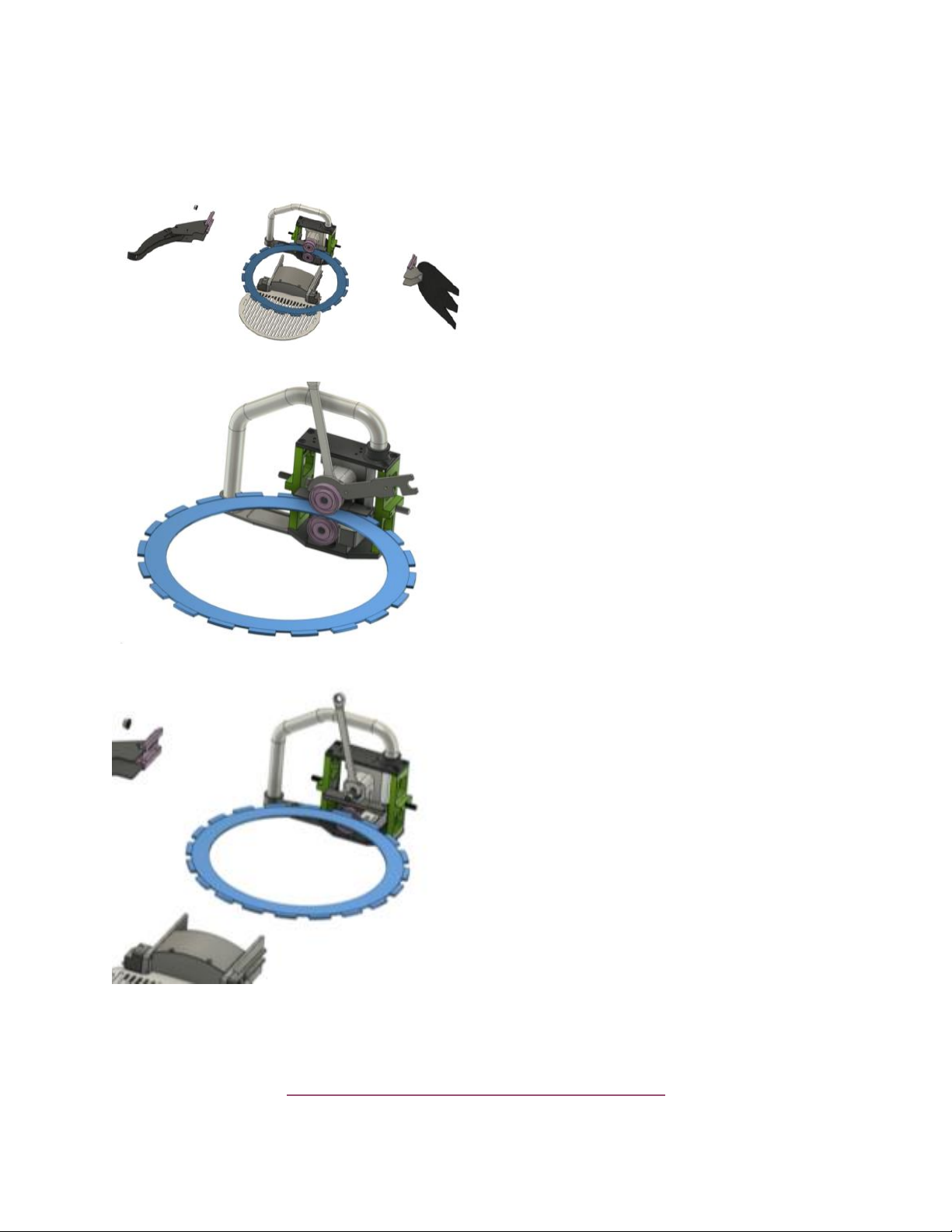

BLADE REMOVAL GUIDE
Step 1: Remove the blade guard and
splash guard using the 9/16” wrench
provided. Also remove the adjustable arm
assembly by pulling it away from the saw.
Step 2: Using the ½” wrench and the
Dragon Saw Multitool that are provided,
remove the smooth threaded drive roller
by turning the drive roller clockwise (it is
left hand threaded).
Step 3: Once the smooth threaded
drive roller is removed, the blade can
be removed and replaced with a new
blade. Remember to always replace
the skid plate when replacing a blade
as using an old skid plate could
cause damage to the blade and void
warranty on your saw.
For a video on how to remove the blade go to
https://www.acgsaws.com/pages/drawings
BLADE INSTALLATION GUIDE
Step 1: With the blade guard, splash
guard, smooth threaded drive roller and
adjustable arm assembly removed, install
the new skid plate. Once the new skid plate
is installed place the new blade with
grooved side down onto the lipped
threaded drive roller.
Step 2: Place the smooth threaded drive
roller onto the drive shaft and using the ½”
wrench on the drive shaft and the Dragon
Saw Multitool on the drive roller, turn the
drive roller counter clockwise until tight (the
drive roller is reverse threaded).
Step 3: Install the adjustable arm assembly
by pushing it on towards the saw. Then
install the blade guard and splash guard
using the 9/16” wrench provided. Note: If
the blade is loose, loosen the nuts on the
blade guard and splash guard. Then turn
the saw vertically with the blade pointing
down. Using the side of a table, push down
on the adjustable arm assembly until the
tension on the blade is tight. Once proper
tension is achieved, re-tighten the nuts on
the blade guard and splash guard.
For a video on how to install the blade go to
https://www.acgsaws.com/pages/drawings

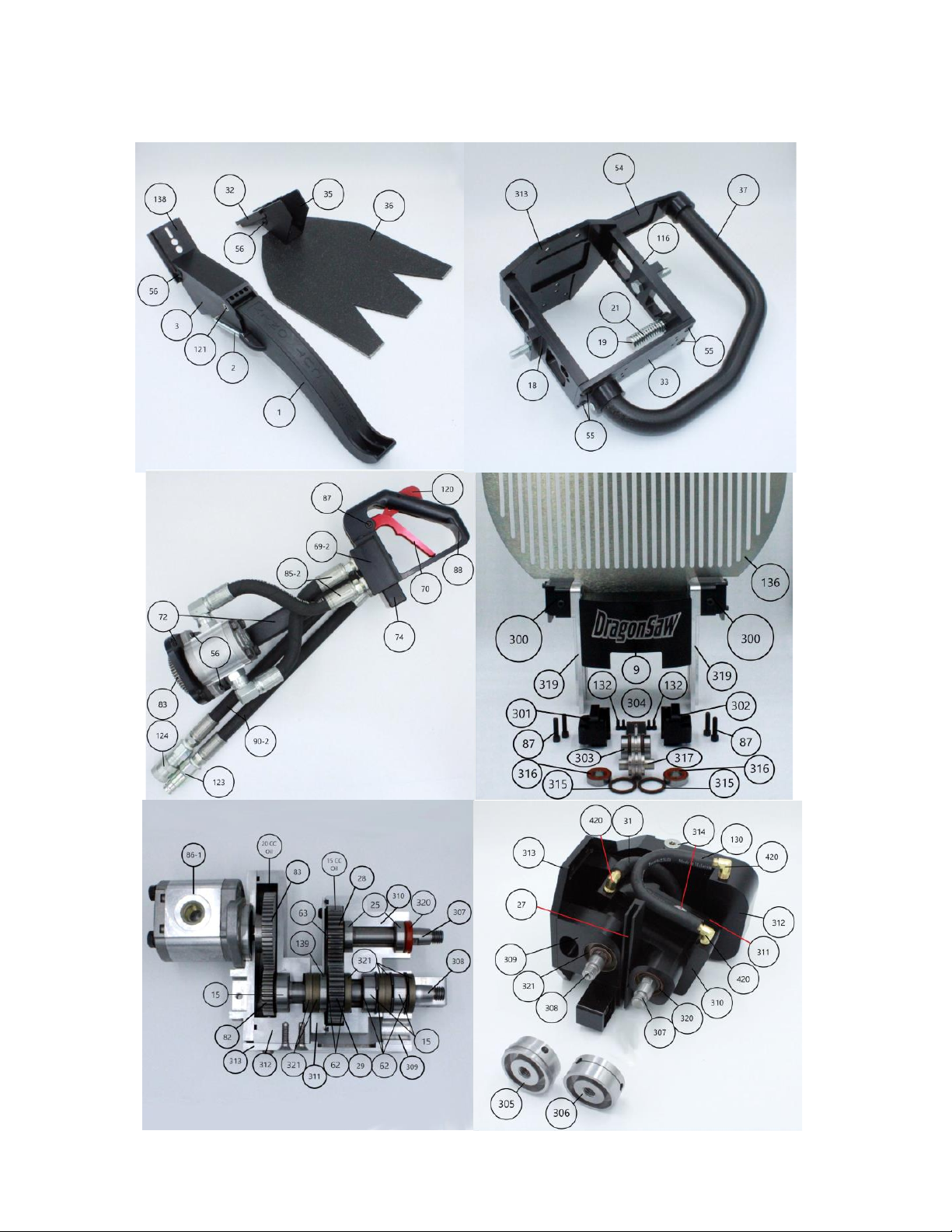

NUMBERED PART IMAGES
January-28-2022
ACG Saws & Tools of Canada Inc
Hydraulic Dragon Saw Black Edition - 2022 ONLY
Item # Part # Description
1-2 HDS001-2 Blade Guard Complete
1HDS001 Plastic Blade Guard
2HDS002 Spring
3HDS003 Upper Guard
8HDS008 Roller Guide Left Shield
9HDS009 Roller Guide Right Shield
10 HDS010 Roller Guide Front Shield
15 HDS015 Bearing
16 HDS016 C-Clip
18 HDS018 Lower Bracket
19 HDS019 Roller Tensioner
21 HDS021 Roller Tensioner Spring
22 HDS022 Spring #2
25 HDS025 Bearing
27 HDS027 Water Channel
28 HDS028 Spur Gear #1
29 HDS029 Spur Gear #2
30 HDS030 Water Fitting
31 HDS031 Water Hose
32 HDS032 Lower Clamp Block
33 HDS033 Lower Handle Bracket
34 HDS034 Hex Screw
35 HDS035 Lower Guard
36 HDS036 Rubber Flop Guard
37 HDS037 Front Handle
38 HDS038 Washer
54 HDS054 Top Handle Bracket
55 HDS055 Flat Socket Cap Screw
56 HDS056 Button Socket Cap Screw
57 HDS057 Socket Cap Screw
59 HDS059 Hex Cap Screw
59-1 HDS059-1 Bolt
61 HDS061 Screw
62 HDS062 C-Clip
63 HDS063 C-Clip
68 HDS068 O-Ring
69-2 HDS069-2 1/2 Hydraulic Valve Body
70 HDS070 Red Trigger
71 HDS071 Plunger
72 HDS072 Gear Box Cover & Stem
72-1 HDS072-1 Dowel Pin
74 HDS074 Valve Cap
75 HDS075 Spring
76 HDS076 Stem Block
77 HDS077 O-Ring
79 HDS079 Quad Seal
80 HDS080 Quad Seal
82 HDS082 Small Gear
83 HDS083 Large Gear
85-2 HDS085-2 1/2 Hose Assembly
86-1 HDS086-1 8 GPM Cassapa Motor
86-2 HDS086-2 12 GPM Cassapa Motor
87 HDS087 Handle Bolt
88 HDS088 Handle
90-2 HDS090-2 1/2" Hose Assembly
91 HDS091 Small Heat Insulator
92 HDS092 Large Heat Insulator
93 HDS093 Socket Cap Screw
116 HDS116 Top Bracket & Pin
117 HDS118 Button Head Screw
118 HDS118 Key Way
119 HDS119 Trigger Lock Spring Pin
120 HDS120 Trigger Lock
121 HDS121 Guard Stopper Pin
122 HDS122 Trigger Lock Spring
123 HDS123 Hydro Male Coupler
124 HDS124 Hydro Female Coupler
130 HDS130 Rubber Hose
134 HDS134 20" Wing support
135 HDS135 16" Wing Support
136 HDS136 20" Full Center Support
137 HDS137 16" Full Center Support
138 HDS138 Upper Clamping Block
139 HDS139 Bearing
161 HDS161 Water Hose
162 HDS162 Water Fitting
163 HDS163 Nut
209 HDS209 Hose End
210 HDS210 Shut Off Valve
212 HDS212 1/4 Brass Fitting
300 HDS300 Full Guide Roller Assembly
301 HDS301 Right Guide Roller Cover
302 HDS302 Left Guide Roller Cover
303 HDS303 Guide Roller Bearing & O-Ring
304 HDS304 U-Plate With Bolts
305 HDS305 Threated Drive Roller With Lip
306 HDS306 Threated Drive Roller Smooth
307 HDS307 Small Roller Shaft
308 HDS308 Large Roller Shaft
309 HDS309 Cooling Block
310 HDS310 Front Transmission
311 HDS311 Cover Transmission
312 HDS312 Gear Box
313 HDS313 Base Plate
314 HDS314 Oil Plug
315 HDS315 Guide Roller O-Ring
316 HDS316 Guide Roller Bearing
317 HDS317 Guide Roller
318 HDS318 Brass Plug
319 HDS319 Adjustable Roller Arm
320 HDS320 Oil Seal
321 HDS321 Modified Oil Seal
322 HDS322 Bearing & Seal kit - 2022
323 HDS323 Gear Box Complete
324 HDS324 Water Valve Complete
325 HDS325 DragonSaw Multitool
326 HDS326 Skid plate
327 HDS327 Front Cover Assembly
328 HDS328 Pusher Bolt
329 HDS329 Tear Drop
420 HDS420 1/8 Brass Fitting
Total
This manual suits for next models
1
Table of contents
Other DragonSaw Saw manuals
