Drain master Ce50 User manual

Electric Drain Cleaner - CE50

User Manual

[Revision 2.0 February 2018]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

Electric Drain Cleaner - CE50

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you do not

follow instructions or equipment

damage may occur.

It is important that you read and

understand the instruction manual before

use and keep the manual in a safe place

for future reference. Safety information

presented here is generic in nature – some

advice may not be applicable to every

piece of equipment.

All safety precautions must be observed to

reduce the risk of personal injury when

operating the equipment.

The term “equipment" refers to your

product, be it electrical mains, battery or

petrol engine powered.

IMPORTANT – Handle the equipment

safely and carefully.

BEFORE USE - If you are not familiar with

the safe operation/handling of this

equipment, or are in any way unsure of any

aspect of suitability or correct use it for

your application, you should complete

training conducted by a person or

organization qualified in safe use and

operation of this equipment, including

fuel/electrical handling and safety.

WARNINGS

•Read all safety warnings and all

instructions. Failure to follow warnings

and instructions may result in electric

shock, fire and/or serious injury.

•Never run a combustion engine in

confined areas.

•Do not operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. Engine and

equipment may create sparks or heat

that may ignite vapours, dust etc.

•Keep clear of moving parts.

•This equipment may be a potential

source of electric shock if misused.

•Do not operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

•Do not allow others to use the

equipment unless they have read this

manual and are adequately trained.

•When using the equipment, basic

safety precautions detailed here must

always be followed to reduce the risk

of fire, electric shock, personal injury

and material damage.

•When wiring electrically powered

equipment, follow all electrical and

safety codes.

•Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting

equipment.

General Work Area Safety

Work areas should be clean and well it.

Do not operate the equipment if

bystanders, animals etc. are within

operating range of the equipment or the

general work area.

Personal Safety

Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

Prevent unintentional starting of the

equipment - ensure equipment and power

source switches are in the OFF position

before connecting or moving the

equipment. Do not carry equipment with

hands/fingers touching any controls.

Remove any tools or other items that are

not a part of the equipment from it before

starting or switching on.

Stay alert and use common sense when

operating equipment. Do not overreach.

Keep proper footing and balance at all

times. Do not use equipment when tired or

under the influence of drugs, alcohol or

medication. This equipment is not intended

for use by persons with reduced physical,

sensory or mental capabilities.

You must wear appropriate protective

equipment when operating, servicing, or

when in the operating area of the

equipment to help protect from serious

injury, including eye injury, inhalation of

toxic fumes, burns, and hearing loss.

Always wear eye protection. Protective

equipment such as respirators, non-skid

safety shoes, hard hat, hearing protection

etc. should be used for appropriate

conditions. Other people nearby should

also wear appropriate personal protective

equipment. Do not wear loose clothing or

jewellery, which can be caught in moving

parts. Keep hair and clothing away from

the equipment.

If devices are provided for the connection

of dust extraction and collection facilities,

ensure these are connected and properly

used. Use of dust collection can reduce

dust-related hazards.

General Equipment Use and Care

Do not force the equipment. Use the

correct equipment for your application. The

correct equipment will perform better and

be safer within its design parameters. Do

not use the equipment if the ON/OFF

switch malfunctions – any equipment that

cannot be controlled with the ON/OFF

switch is dangerous and must be repaired.

Use the equipment and accessories etc. in

accordance with these instructions, taking

into account working conditions and the work

to be performed. Using the equipment for

operations different from those intended

could result in hazardous situations.

Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by an

authorized service centre or technician before

use.

Always keep the equipment and accessories

(cutting tools, nozzles, bits etc.) properly

maintained. Keep the equipment, controls

and handles dry and free from dirt, oil and

grease.

Store the equipment out of reach of children

or untrained persons. To avoid burns or fire

hazards, let the equipment cool completely

before transporting or storing. Never place

the equipment in places where there are

flammable materials, combustible gases or

combustible liquids etc.

The equipment is not weatherproof, and

should not be stored in direct sunlight, at high

ambient temperatures or locations that are

damp or very humid.

General Service Information

•Have the equipment serviced or

repaired at authorized service centres

by qualified personnel only.

•Replacement parts must be original

equipment manufacturer (OEM) to help

ensure that equipment safety is

maintained.

•Do not attempt any maintenance or

repair work not described in this

instruction manual.

•After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect spark

plugs and/or electrical power sources

and/or batteries from it before making

adjustments, changing accessories or

performing repair or maintenance.

•Do not make adjustments while the

equipment is running.

•Perform all service related activities

under suitable conditions, such as a

workshop etc.

•Replace any worn, damaged or missing

warning labels immediately.

•Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

Electric Drain Cleaner - CE50

Electrical Safety

When using electric appliances, basic

precautions should always be followed,

including the following:

•To disconnect, switch OFF all controls

("O"), then disconnect rom the

electrical supply.

•Do not unplug by pulling on cord – to

unplug, grasp the plug an pull.

•Disconnect the equipment from the

electrical supply when not in use and

before servicing or cleaning.

•Do not operate any appliance with a

damaged cord or plug, or if it

malfunctions, dropped or damaged in

any way.

•To reduce the risk of electrical shock,

do not submerge the equipment or

electrical cord in water or other liquid.

Do not place or store appliance where

it can fall or be pulled into water.

•Connect to properly grounded mains

electrical outlets only.

•Risk of electric shock. Keep all

electrical cables cord connection dry

and off the ground.

Product Use and Care

•This product is for domestic use only.

•Only use attachments recommended

or sold by the manufacturer.

•Do not operate the equipment if it is

sitting in standing water, or if the

operator is in standing water.

•Locate the equipment on flat, level,

and solid surfaces that are capable of

supporting its weight.

•Do not over-stress the cable. Release

tension if it starts to build in the cable.

Excess tension may cause the cable

to twist, kink, or break.

•One person must control both the

cable and the foot switch. If the

cutting tool stops rotating, the

operator must stop the equipment

immediately.

•Reverse the motor direction only

when pulling the cable off an

obstruction. Trying to push or pull the

cable while in reverse may unravel

and break the cable. Wait for the

cable drum to stop turning completely

before changing motor direction.

•Use the equipment to clear drains of

recommended sizes only according to

these instructions. Other uses or

modifying the equipment for other

applications may increase the risk of

injury.

•People with pacemakers should

consult a physician before using the

equipment. Electromagnetic fields in

close proximity to a pacemaker may

cause interference or failure.

•The warnings, precautions, and

instructions discussed in this

instruction manual cannot cover all

possible conditions and situations that

may occur. It must be understood by

the operator that common sense and

caution are factors which cannot be

built into this product, but must be

supplied by the operator.

Product Use and Care

•Do not wear cloth gloves or loose

clothing, or use a rag to grasp the cable

to prevent entanglement.

•To help prevent cable whip, twisting and

kinking, place the equipment as close to

the drain as possible (within 0.5m) or

use a cable guide (not included).

•Do not use in drains containing drain

cleaning chemicals.

•Do not use in in drains obstructed by

roots.

•Do not operate the equipment with the

belt guard or any safety device

removed.

•Keep a gloved hand on the cable

whenever the equipment is running.

•Keep hands away from the rotating

cable drum and distributor tube. Do not

reach into cable drum unless the

equipment is off and disconnected from

the electrical supply.

•Use appropriate personal protective

equipment while handling and using the

equipment. Drains may contain

chemicals, bacteria and other

substances that may be toxic, infectious,

cause burns or other injury. Appropriate

personal protective equipment includes

ANSI-approved safety glasses and

heavy-duty LEATHER work gloves, and

may include equipment such as latex or

rubber gloves, face shields, goggles,

protective clothing, respirators and steel

cap non-slip footwear.

•Wash hands and other exposed body

parts exposed to drain contents after

handling or using the equipment. Do not

eat or smoke while operating or handling

the equipment. This will help prevent

contamination with toxic or infectious

material.

•Stay alert, watch what you are doing

and use common sense when operating

the Drain Cleaner. Do not use Drain

Cleaner while you are tired or under the

influence of drugs, alcohol or

medication. A moment of inattention

while operating may result in serious

personal injury.

•Prevent unintentional starting. Turn

switch to the off-position before plugging

in.

Electric Drain Cleaner - CE50

Table of Contents

Safety...................................................................................................................................................2

Parts Identification.............................................................................................................................5

Set-Up..................................................................................................................................................6

Ground Fault Circuit Interrupter (GFCI)......................................................................................................6

Tool Set-Up................................................................................................................................................6

Work Area Set-Up ............................................................................................................................... 7

Operation ............................................................................................................................................9

Controls......................................................................................................................................................9

Cutting Tools..............................................................................................................................................9

Feeding the Cable.................................................................................................................................... 10

Working Through Blockages and Preventing Cable Twist .......................................................................11

Retracting the Cable ................................................................................................................................ 11

Maintenance .....................................................................................................................................12

Cleaning and Lubricating the Cable .........................................................................................................12

Belt Removal / Installation........................................................................................................................12

Cable Removal / Installation ....................................................................................................................12

Troubleshooting...............................................................................................................................13

Specifications...................................................................................................................................14

Electric Drain Cleaner - CE50

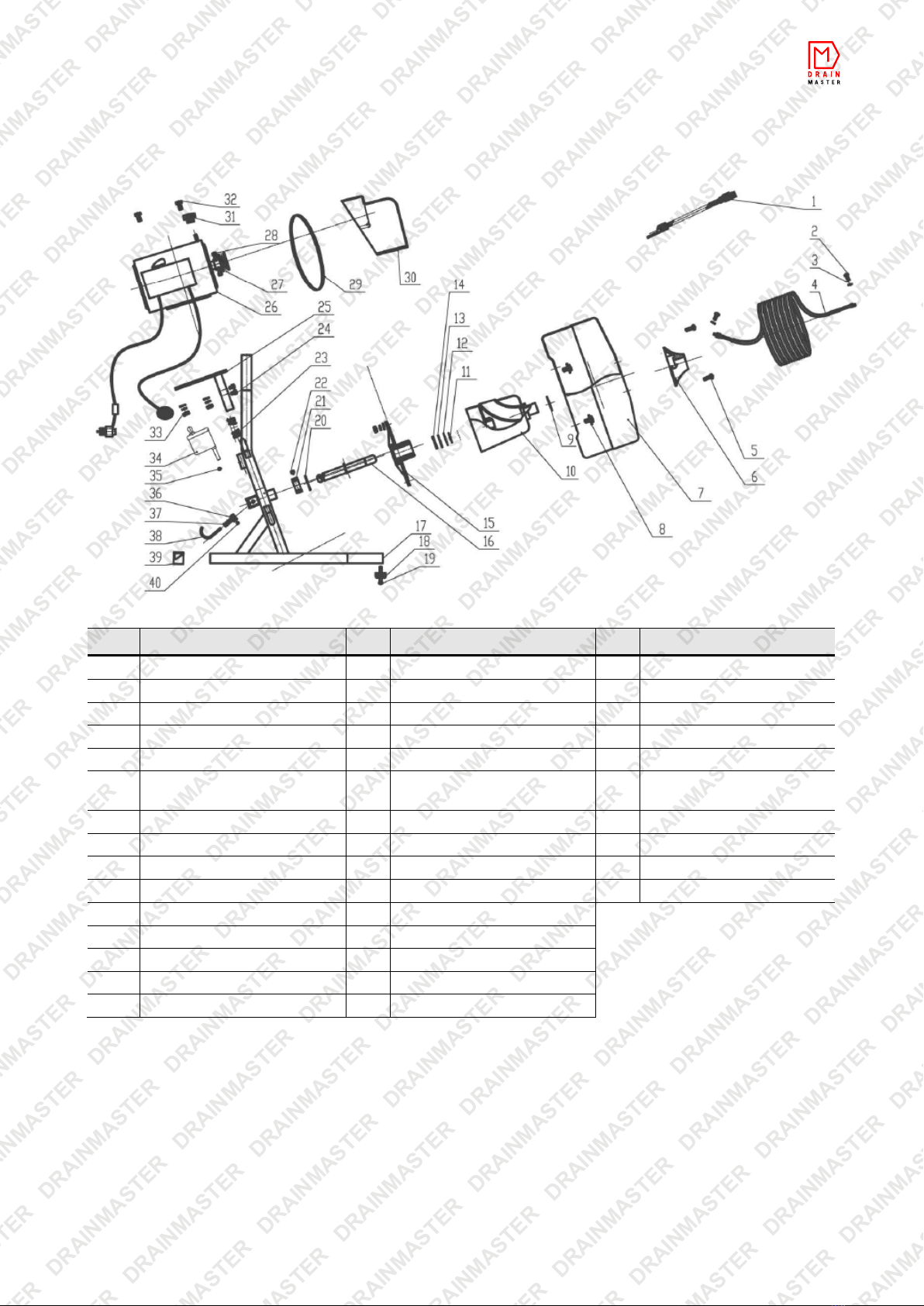

Parts Identification

No. Name No. Name No. Name

1

Drum-Connect Cable

16

Drum Shaft

31

Belt Guard Screw / Washer

2

Bolt

17

Frame

32

Bolt

3 Spring Washer 18 Rubber Foot 33 Nut

4 Cable 19 Bolt 34 Tool Holder

5 Bolt 20 Flat Washer 35 Bolt

6 Front Hub Bushing 21 Shaft Spacer 36 Retaining Pin Collar/ Set

Screw

7 Drum 22 Bolt 37 Retaining Pin Spring

8 Bolt 23 Motor Support Spring 38 Drum Shaft Retaining Pin

9

Fibre Washer

24

Bolt

39

Rubber Stop

10

Distributor Tube/ Inner Drum

25

Motor Support

40

Bolt

11

Flat Washer

26

Motor

12 Rear Shaft Retaining Ring 27 V-Belt Pulley

13 Flat Washer 28 Bolt

14 Flat Washer 29 V-Belt (A1118)

15 Rear Hub 30 Belt Guard

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

Set-Up

Ground Fault Circuit Interrupter (GFCI)

The machine MUST be connected to a properly earthed 240VAC mains electrical socket. Do

NOT use the machine with a non-earthed electrical supply. Do NOT use the machine with an

extension cord that is not properly earthed. If there is any doubt regards proper earthing of

the electrical supply, have a qualified electrician inspect and verify it. • If the GFCI green indicator light does

not switch off when TEST is pushed, do not use the machine until it is properly tested and repaired. • If the

appliance does not start, or stops while running, or if you experience an electric shock, switch the machine

OFF and disconnect it from the electrical supply immediately. Do NOT use the machine until it is properly

tested and repaired. • The electrical cable is not protected by the GFCI device from the GFCI device to the

electrical cable plug.

The appliance is equipped with a ground fault circuit interrupter (GFCI),

which reduces the risk of electric shock. Check that the electrical mains

socket that the machine is connected to is properly grounded and test the

GFCI before each use. To test:

•Connect the machine into a grounded 240VAC electrical outlet and

switch the power ON.

•Press the TEST button on the GFCI – the green indicator light should

switch off and power to the appliance should cut off.

•To restore power after testing, push the RESET button.

If the GFCI is tripped due to an earth leakage situation, the power is cut to

the machine, the green indicator lamp switches off and the red warning

lamp illuminates. Switch the machine OFF and disconnect it from the

electrical supply immediately. Do NOT use the machine until it is properly tested and repaired.

Tool Set-Up

Place the motor switch in the "OFF" position and disconnect the machine from the electrical

supply before assembling or making any adjustments to the tool. • Do NOT operate the

equipment with the belt guard or any safety device removed. • Use appropriate personal protective

equipment while handling and using the equipment. Drains may contain chemicals, bacteria and other

substances that may be toxic, infectious, cause burns or other injury. Appropriate personal protective

equipment includes ANSI-approved safety glasses and heavy-duty LEATHER work gloves, and may include

equipment such as latex or rubber gloves, face shields, goggles, protective clothing, respirators and steel

cap non-slip footwear. • Before use, check for broken, worn, missing, misaligned or binding parts, cable wear

or damage, or any other condition which may prevent safe and normal operation and remedy them before

operating the machine..

•Check the appliance and cutting tools for wear or damage. If necessary, replace worn or damaged parts

before using the machine. Dull or damaged cutting tools can lead to binding, cable breakage, and slow

the drain cleaning.

•Test the GFCI.

•Clean any oil, grease or dirt from all equipment handles and controls. This helps prevent the appliance or

control from slipping during use.

•Verify that the foot switch is attached to machine and that all controls are functional.

•Rotate the cable drum by hand and make sure that it turns freely without binding.

•Check that all warning labels are present, firmly attached and readable.

•Verify that the cable does not have multiple or excessive kinks (greater than 15°). Kinks can cause cable

failure. Replace cables that have multiple or excessively large kinks.

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

•Look for spaces between the cable coils. Kinking, stretching (pulling cable by hand) or running the cable

in reverse can deform the it. Cables with spaces between the coils should be replaced.

•Check for signs of excessive corrosion of the cable, which weakens it. This can be caused by storing the

cable wet or corrosive chemicals (often found in drain cleaners). replace corroded cables.

•Before use, fully retract the cable so that no more than 50mm (2") of cable is protruding from the front

hub assembly. This will help prevent cable "whip" when the machine is turned on.

Perform a machine test:

1. Place the motor switch in the "OFF" position.

2. With dry hands, connect the machine to a grounded electrical supply, then place the motor switch in the

"FOR" position.

3. Press the foot switch and note the direction of rotation of the cable drum. If the foot switch does not

properly control machine operation, do not use the machine until the foot switch has been repaired. The

cable drum should rotate clockwise when viewed from the front of the machine and will match the

direction arrow on the drum. If the rotation is not correct, do not use the appliance until it has been

repaired.

4. After inspection, set the motor switch to the "OFF" position, then disconnect the machine from the

electrical supply.

Once you have verified that the machine is in good working order, inspect the work area.

Work Area Set-Up

•Verify that work area has adequate lighting.

•Make sure work area is free of flammable liquids, vapours or dust that may ignite. Sparks can be

generated during machine operation. Do not work in area until these sources of ignition have been

identified and corrected.

•Choose a firm, stable location for the machine and operator that will remain relatively dry. Do not use the

appliance while standing in water. If needed, remove water from the work area.

•Verify the electrical outlet is properly grounded. If there is any doubt regards proper earthing of the

electrical supply, have a qualified electrician inspect and verify it.

•Make sure there is a clear, unobstructed path from the machine to the electrical outlet.

•Inspect the drain to be cleaned. If possible, determine the best access point(s) to the drain, the size(s)

and length(s) of the drain, distance to tanks or mainlines, the nature of the blockage, presence of drain

cleaning chemicals or other chemicals, etc. If there are chemicals present in the drain, read and adhere

to the specific safety measures required to work around those chemicals. Contact the chemical

manufacturer for required safety instructions and information.

•If necessary, remove fixtures (toilet, sink, etc.) to allow access to the drain. Do not feed the cable

through a fixture. This could damage the machine and fixture.

•Determine the correct cable size for the drain, as per:

Cable Size Pipe Size Typical Applications

12mm ½”

(included) 50mm (2”) to 100mm (4”) Roof stacks and small floor drains (no roots)

10mm 3/8” (not

included) 38mm (1-1/2”) to 75mm (3”) Roof stacks, laundry lines and small drains (no roots)

•If needed, place protective covers over the work area floor.

•Make sure that the machine handle is locked into the upright position for transport. If the machine needs

to be lifted, use proper lifting techniques or seek assistance if needed. Use caution when moving

equipment up and down stairs. Wear appropriate footwear to help prevent slipping.

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

•To prevent cable whip, place the machine within 0.75m (2') of drain line or thread the cable through a

guide (not included). The greater the distance from the drain access, the higher the risk of cable whip,

twisting or kinking. If the machine cannot be placed close to the drain access, use appropriate-sized

pipes and fittings to extend the drain access back to the machine.

•If needed, set up barriers to keep bystanders away from the work area.

•Select the correct cutting tool. Install the cutting tool to the end of the cable. Slide the base of the cutting

tool into the slot at the end of the cable, then firmly fasten them with the attachment screw.

•Position the foot switch for easy accessibility. You must be able to hold and control the cable, operate

the foot switch, and reach the motor switch.

•Confirm that the motor switch is in the "OFF" position.

•Run the electrical cord along a clear path. With dry hands, connect the machine to a properly grounded

electrical outlet. Keep all connections dry and off the ground. If the electrical cord is not long enough, use

a grounded extension cord that is in good condition. Keep the connection off the ground to prevent it

from getting wet. Also verify that the extension cord is rated for outdoor use and has sufficient wire size

(16 AWG for up to 16m (50') length, 14 AWG for up to 30m (100') length. Undersized wires can

overheat, melting the insulation or causing an electrical hazard, fire or other damage. When using an

extension cord, the GFCI on the machine does not protect the extension cord. If the outlet is not GFCI

protected, use a plug-in type GFCI between the outlet and the extension cord. This will reduce the risk of

electric shock if there is a fault in the extension cord.

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

Operation

Controls

Cutting Tools

There are several cutting tools included. Select the appropriate tool for the cleaning job and attach to Cable.

Each is described below.

Motor Switch

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

If the cutting tool becomes lodged and the cable is still rotating, the cable will start to

twist – release the foot switch to stop the motor immediately to help prevent

damaging the cable (the cable drum may rotate backwards somewhat as tension in the cable releases).

Ensure that the tool and/or cable is dislodged before continuing to use the machine. • If the cause of the

obstruction is unknown, use the Boring Bulb cutter to explore the obstruction and, if possible, retrieve a piece

to inspect. Once you can see the cause of the obstruction, select the appropriate tool for the job. Run the

smallest available tool through the blockage to allow the backed up water to flow and carry away the debris

as the drain clears.

Once the drain is flowing, more appropriate tools can be used on any remaining blockage. Keep in mind

that the largest tool used should be no bigger than the drain inside diameter, minus 25mm (1").

If properly used, the machine will not damage a drain that is in good condition and properly designed,

constructed, and maintained. However, if the drain is in poor condition or has not been properly designed,

drain clearing work may damage it. If possible, visually inspect the drain quality before operation.

Once the drain is flowing, more appropriate tools can be used on any remaining blockage. Keep in mind

that the largest tool used should be no bigger than the drain inside diameter, minus 25mm (1").

If properly used, the machine will not damage a drain that is in good condition and properly designed,

constructed, and maintained. However, if the drain is in poor condition or has not been properly designed,

drain clearing work may damage it. If possible, visually inspect the drain quality before operation.

Feeding the Cable

Only one person should operate the machine. Do not operate the machine with one person

controlling the cable and another person controlling the foot switch. This can cause the

cable to kink, twist, and break, which can also lead to serious personal Injury.

Place the motor switch in the "FOR" position.

Grasp the cable with gloved hands and start feeding the cable into the drain as far as it will go.

Press the foot switch to activate the cable drum, and continue feeding the cable into the drain.

•If the cable becomes lodged (for example: in a narrow part of the drain, in a drain trap, etc.), stop feeding

the cable and allow the cable to work past the obstruction.

•If the cable still will not pass the obstruction, release the foot switch, then pulse it to try and clear the

obstruction.

•Once the cable is free of the obstruction, press the foot switch and continue feeding.

The motor switch controls rotational direction of the cable drum only. Do NOT use the "REV" position

to retract the cable. Use "REV" only momentarily for relieving pressure or untangling cable from an

obstruction. • The warranty may be voided if the cable is damaged through excessive twisting, or if the

cable drum is run in reverse long enough to unwind cable.

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

Working Through Blockages and Preventing Cable Twist

If the cutting tool becomes lodged and the cable is still rotating, the cable will start to

twist – release the foot switch to stop the motor immediately to help prevent

damaging the cable (the cable drum may rotate backwards somewhat as tension in the cable releases).

Ensure that the tool and/or cable is dislodged before continuing to use the machine. • Do not let the cable

build up outside drain. • Do not wind in the cable if it is twisted or under tension. • While working through

obstructions, the tool and cable can get clogged with debris, preventing further cleaning. If this occurs, retract

the cable and tool and clear them before continuing.

If the cutting tool becomes lodged or embedded in an obstruction, it will not cut and must be dislodged

before continuing. If the cable continues to rotate when the cutting tool is lodged, the cable will quickly twist

and kink, which may create a hazard and/or damage the cable.

What to do if the cutter gets lodged:

1. Release the foot switch IMMEDIATELY to prevent the cable being further driven and rotated.

2. Place the motor switch in the "REV" position and activate it using the foot switch to dislodge the cable by

rotating it in reverse. Pulsing the motor slightly may also assist in dislodging the cutter. When the cutter

is dislodged, the cable should be able to rotate freely. If using the motor cannot dislodge the cutter,

release the foot switch, switch the machine OFF, then grasp the cable with gloved hands and pull it free.

Once the tool is free of the blockage and the cable is able to rotate freely, attempt to clear the obstruction

again. You may have to repeat this several times in order to clear the obstruction.

Once the drain is clear, turn on the tap or use a hose to flush debris through the drain and check for further

blockages or obstructions. If the water flow slows or stops, indicating a further obstruction or blockage,

resume clearing the drain.

Retracting the Cable

Do not retract the cable with the motor switch in the "REV" position. • Do not pull the cable

from drain while it is rotating – the cable can whip, causing serious injury.

•Place the motor switch in the "OFF" position, dry your hands, then disconnect the machine from the

electrical supply.

•Grasp the cable with gloved hands and pull it from the drain, and feed into the cable drum.

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

Maintenance

Procedures not specifically explained in this manual must be performed by qualified

technicians only . • Before performing any inspection, maintenance, or cleaning

procedure, place the motor switch in the "OFF" position and disconnect the machine from the electrical

supply. • Do NOT allow water to get into the motor or any other electrical components. • Do NOT use

damaged or malfunctioning equipment. If abnormal noise or vibration occurs, have the problem corrected

before further use. • Do NOT perform any inspection, maintenance, or cleaning procedure on a moving

cable. • Do NOT operate the equipment without the belt guard installed.

Cleaning and Lubricating the Cable

1. Thoroughly rinse the cable, cable drum etc with clean water after every use. This will help prevent the

build-up of sediment, dirt and chemicals in the cable and help prolong cable life. Use hot water,

detergent and/or disinfectant as necessary. Clean any other parts of the machine as required with a

clean, soft cloth.

2. Carefully tip the machine forward to drain any remaining water from the cable drum.

3. Pull the cable from the drum and dry both the cable, drum and all other components.

4. Lubricate the cable with lightweight machine oil as you feed it back into the drum.

5. If the cable drum is removed or changed, grease the bearings with general purpose grease.

Belt Removal / Installation

1. Remove the belt guard retaining screw and remove the guard from the machine.

2. Slide the belt off the rear of the cable drum. Unhook the belt from the drive pulley then remove the belt

3. Hang the new belt from the belt pulley.

4. Hook the bottom of the belt around one side of the cable drum. Hold the belt on the drum and slowly

rotate the drum so the belt "climbs" onto the drum and is securely in place. Once the belt is in place,

rotate the drum several times by hand so the belt straightens.

5. Place the belt guard into position and secure it.

Cable Removal / Installation

1. Remove the cable by pulling it fully out of the cable drum.

2. Remove the screw securing the cable to the drum-connect cable, then separate the cables.

3. Attach the new cable to the drum-connect cable using the screw and tighten it securely.

4. Feed the cable into the drum.

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

Troubleshooting

The following information may assist in identifying a problem and rectifying it.

NOTE: Some maintenance activities described may be beyond the scope of some users. For procedures

that you are not comfortable with or have the tools or experience for, have the unit serviced by a service

centre or qualified technician.

Motor shuts off during use.

Possible Fault Action

Internal thermal protection or auto-reset

breaker tripped

Turn motor switch to OFF. Allow motor to cool completely before restarting and stay

clear of cable when turning motor back on.

GFCI breaker tripped Make sure all electrical components are dry and all insulation is in good condition.

Press GFCI RESET button. If GFCI trips again, have appliance inspected before

further use.

Cable kinks, twists, or breaks

Possible Fault Action

Too much tension in the cable Do not force cable – allow the cutting tool do the work.

Distance between machine and drain pipe

inlet too great

Move machine to within 0.75m (2') of drain pipe inlet.

Cable size unsuitable for drain pipe size Use cable diameter suitable for drain pipe inner diameter.

Cable dirty and / or dry Clean and oil cable regularly.

Cable no longer serviceable Replace cable.

Cable tangles in drum

Possible Fault Action

Too much cable tension Do not force cable. Let Cutting Tool do the work.

Motor running in reverse Retract Cable with the Rotation Switch in the FOR position.

Distributor sleeve bearing sticking Lubricate distributor tube bearings.

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

GFCI device trips when unit is plugged in or when foot switch is pressed.

Possible Fault Action

Motor direction switch fault Repair or replace the switch.

Damaged electrical cable Have power cord replaced.

Motor fault Have motor repaired or replaced.

Electrical cable or machine wet. Disconnect machine from power supply, then thoroughly dry cable and machine.

GFCI device fault Have GFCI device replaced.

Motor does not operate or the foot switch sticks

Possible Fault Action

Foot switch may be leaking Check for leaks in air line leading to foot switch and for tears or holes in the foot switch

bladder. Replace if necessary.

The rotation switch does not work

Possible Fault Action

Motor not stopped before switching

direction

Move the motor rotation switch to the OFF position and allow the motor to stop

completely before changing motor direction.

Specifications

Electrical Requirements 240VAC / 50Hz

Drive Belt A-1118Li

Cable Rotation Speed Approximately 200RPM

Cable Diameter 12mm (½")

Maximum Cable Length 22m (75') for 12mm (½") or 30m (100') for 10mm (3/8")

Pipe Inner Diameter 50mm (2") to 100mm (4")

DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER DRAINMASTER

Electric Drain Cleaner - CE50

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety

Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.

Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.

Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.

Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.

The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.

This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.

If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Drain Master CE50 User manual
