01099, 01100, 01102
CONTACTS
YOUR DRAPER STOCKIST
KCCH1217

230V/110V
CEMENT
MIXERS
13 O
L
16 O
L
IF YOU SIGN, PLEASE CHECK; Pack type & style, all content, bar code printout & note proof size (artwork to be sent @ 100%).

1. TITLE PAGE NOTES
1.1 INTRODUCTION:
USER MANUAL FOR: 230V/110V Cement Mixers
Stock No’s: 01099, 01100, 01102
Part No’s: CM170A, CM170A-110, CH140A.
As our user manuals are continually updated, users should make sure that they
use the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the
product or surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational
use only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in
any other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published December 2017.
- 19 -

80.8
Single value noise marking.
(Maximum declared A-Weighted
sound power level in decibels).
2.1 CONTENTS
- 18 -
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION ................................................................................................................. 1
1.2 REVISION HISTORY ..........................................................................................................2
1.3 UNDERSTANDING THIS MANUAL..................................................................................... 2
1.4 COPYRIGHT NOTICE......................................................................................................... 2
2. CONTENTS
2.1 CONTENTS......................................................................................................................... 3
3. GUARANTEE
3.1 GUARANTEE ...................................................................................................................... 4
4. INTRODUCTION
4.1 SCOPE ................................................................................................................................ 5
4.2 SPECIFICATION ................................................................................................................. 5
4.3 HANDLING AND STORAGE ............................................................................................... 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE....................................... 6
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR CEMENT MIXERS ..................................... 7
5.3 RESIDUAL RISK ................................................................................................................. 8
5.4 CONNECTION TO THE POWER SUPPLY......................................................................... 8
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ................................................................................................................ 9
7. UNPACKING AND CHECKING
7.1 PACKAGING ..................................................................................................................... 10
7.2 WHAT’S IN THE BOX........................................................................................................ 10
8. ASSEMBLY
8.1 SUPPORT STAND ........................................................................................................... 11
8.2 ADD PIVOT BRACKET...................................................................................................... 11
8.3 FRAME ASSEMBLY ......................................................................................................... 12
8.4 INSTALLING WHEELS...................................................................................................... 12
8.5 ATTACH PIVOT BRACKET ............................................................................................... 12
8.6 ATTACH SUPPORT STAND AND RAISE MIXER ............................................................. 13
9. OPERATION AND USE
9.1 WORKING POSITION....................................................................................................... 14
9.2 POWER SUPPLY..............................................................................................................14
9.3 SWITCHING ON................................................................................................................ 15
9.4 MIXING CONCRETE......................................................................................................... 15
9.5 MIXING APPLICATION GUIDE .........................................................................................16
9.6 CLEANING ........................................................................................................................ 16
10. DISPOSAL
10.1 DISPOSAL....................................................................................................................... 17
11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS........................................................................................ 18
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -
11.1 EXPLANATION OF SYMBOLS
11. EXPLANATION OF SYMBOLS
Read the instruction manual.
Wear safety glasses.
Wear ear defenders.
Wear protective gloves.
Wear protective footwear.
Do not abandon into the
environment.
Keep out of the reach of children.
Warning!
WEEE
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish.
Class I device.
(Earthed).

3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or:
Product Helpline [phone].
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee
does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless
or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other
than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 - - 17 -
10. DISPOSAL
10.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
●Do not dispose of power tools with domestic waste.
●Do not incinerate.
●Do not abandon in the environment.
●Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.

Basic concreting 1 2 4
Foundation work 1 3 6
Mass rough concreting 1 4 8
Concreting watertight flooring, tanks, pits etc. 1 1.5 3
Application
Quantity ratios
Cement Sand Aggregate
4. INTRODUCTION
4.1 SCOPE
Electric concrete mixers for small to medium building projects. Light and portable and offering a
good working height.
4.2 SPECIFICATION
Stock no. ..............................01099 ......................................... 01100..................................... 01102
Part no. ...............................CM170A ...................................CM170_110 ............................CM140A
Voltage ............................. 230V~50Hz ..................................110V/A.C .........................230V~50Hz
Drum capacity ........................160L ........................................... 160L........................................130L
Drum opening.......................360mm ....................................... 360mm..................................360mm
DrumSpeed ...........................30rpm ......................................... 30rpm.................................... 30rpm
Sound level........................60.83dB(A) ................................. 60.83dB(A)........................ 60.83dB(A)
Sound power .....................80.83dB(A) ................................. 80.83dB(A)........................ 80.83dB(A)
Weight ...................................64kg ........................................... 64kg ........................................64kg
4.3 HANDLING AND STORAGE
9. OPERATION AND USE
Warning!
●Wear safety glasses, ear defenders and protective footwear.
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to
prEN ISO 15744:1999 and declared according to EN ISO 4871.
** A-Weighted Sound Power Level in accordance to prEN ISO 15744:1999 and
declared according to EN ISO 4871.
- 5 -- 16 -

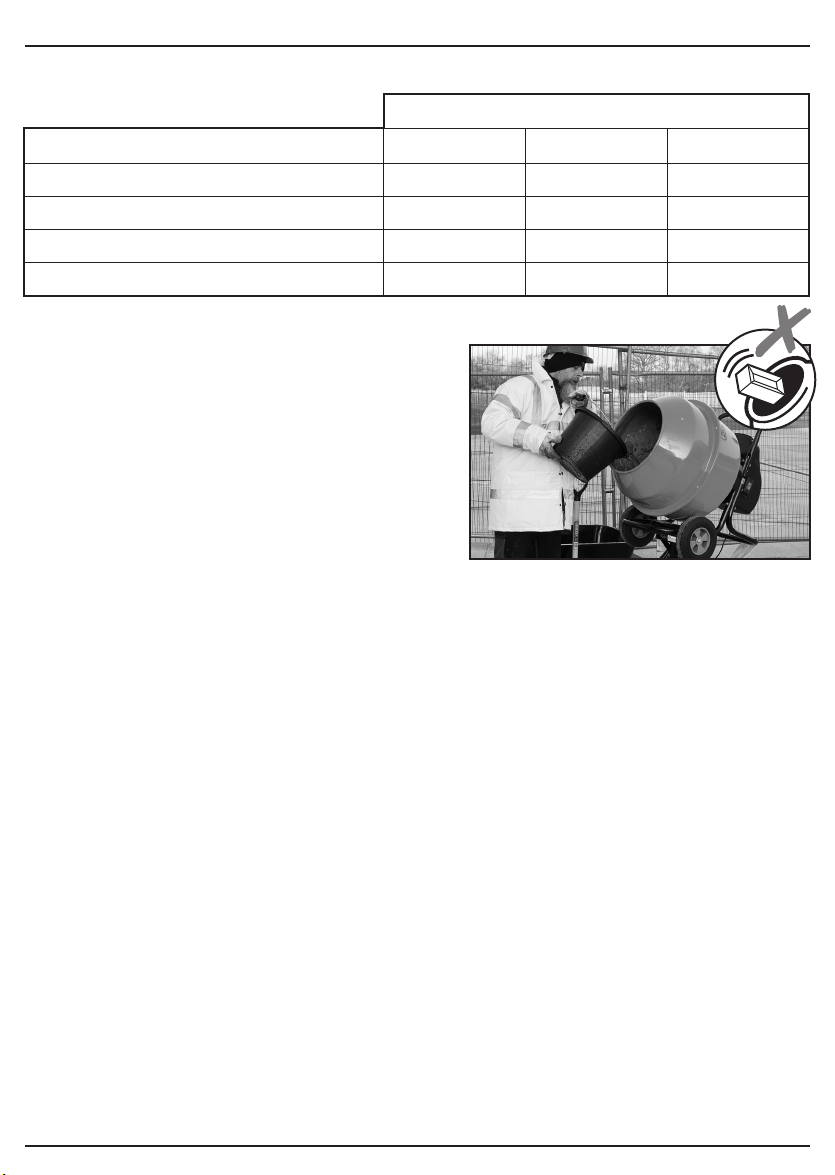

9.5 MIXING APPLICATION GUIDE
9.6 CLEANING – FIG. 18
– Once emptied, return the mixer to the upright
position.
– At this point it is a good idea to pour the water
for the next mix, into the drum. This will help
rinse the drum as you use/lay the mixed load.
– Empty out any remaining mix and wash out the
rotating drum with plenty of clean water.
– If necessary, add gravel to remove stubborn
residue.
– Do not throw bricks into the mixer for cleaning
purposes. FIG.18

9.3 SWITCHING ON – FIG. 17
To switch ON push the green button , to switch
OFF push the red button . See ‘Electrical
Safety’ for more details of the switch.
The most important thing to remember when using
the mixer is that the drum must be rotating before
loading and should continue to rotate until
unloaded.
Never switch the mixer On with a load.
– Add half the water needed for the mix into the
rotating drum.
– Add the aggregate followed by the cement, then
pour in the remaining water.
– Finally, add the sand and leave the mixer to mix.

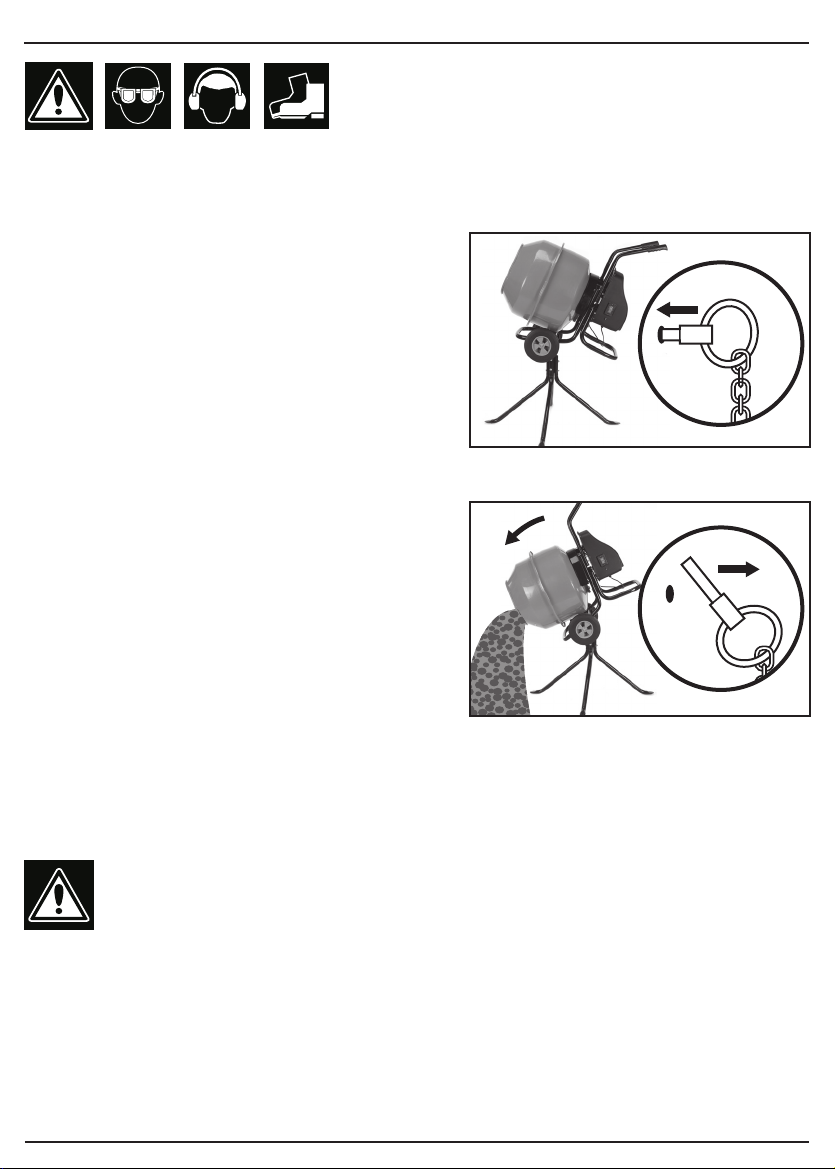

Once the mix is ready, remove the safety pin ,keep the drum turning while you tip the drum
forward to discharge its contents.
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
5. HEALTH AND SAFETY INFORMATION
- 6 -
9. OPERATION AND USE
- 15 -
Important: Draper Tools Limited recommends that this machine should not be modified or used
for any application other than that for which it was designed. If you are unsure of its relative
applications do not hesitate to contact us in writing and we will advise you.
Know your power tool: Read and understand the owner's manual and labels affixed to the tool.
Learn its application and limitations as well as the specific potential hazards peculiar to this tool.
Keep work area clean: Cluttered areas and benches invite accidents. Floors must not be slippery
due to oil or sawdust.
Avoid dangerous environments: Do not use power tools in damp or wet locations, or expose
them to rain. Keep work area well lit. Provide adequate space surrounding the work area. Do not
use in environments with a potentially explosive atmosphere.
Keep children away: All visitors should be kept a safe distance from work area.
Stored tools: When not being used, all tools should be stored in a dry, locked cupboard and out of
the reach of children.
Wear proper clothing: Do not wear loose clothing, neckties or jewellery (rings, wristwatches) to
catch in moving parts. NONSLIP footwear is recommended. Wear protective hair covering to
contain long hair. Roll long sleeves above the elbow.
Use safety goggles (head protection): Wear CE approved safety goggles at all times. Normal
spectacles only have impact resistant lenses, they are NOT safety glasses. Also, use face or dust
mask if application is dusty and ear protectors (plugs or muffs) during extended periods of
operation.
Noise levels: Some types of machines may have high noise levels when working. In such cases
ear protection must be worn.
Vibration levels: Hand held power tools produce different vibration levels. You should always
refer to the specifications and relevant Health and Safety guide.
Dust extraction: If your tool is fitted with a dust extraction fitting, always ensure that it is
connected and being used with a dust extractor. Vacuum cleaners can be used if suitable for the
material being extracted.
Protect yourself from electric shock: When working with power tools, avoid contact with any
earthed items (e.g. pipes, radiators, hobs and refrigerators, etc.). If you are using a power tool in
extreme conditions (e.g. high humidity or generating metal dust), always use an RCD (residual
current device) at the power socket.
Stay alert: Always watch what you are doing and use common sense. Do not operate a power
tool when you are tired or under the influence of alcohol or drugs.
When working out of doors: Only use extension leads designed for that purpose.
Access to mains socket: If a stationary machine is fitted with a moulded plug and cable, the
machine should not be positioned so that access to the mains socket is restricted.
Disconnect power to the tool: When not in use, before servicing and when changing
accessories such as cutters, etc.
FIG.15 (Example 230V rating label). FIG.16 (Example 110V rating label).
FIG.17
Warning!
●Please read the following instructions carefully, failure to do so could lead to serious
personal injury.
●When using electric tools, basic safety precautions, including the following, should
always be followed to reduce the risk of fire, electric shock and personal injury.
●Read all these instructions before operating this product and save these
instructions.
Warning!
●Be careful, use both hands on the handles and be prepared for the transfer of
weight as the mix moves to the end of the drum.



$
5. HEALTH AND SAFETY INFORMATION9. OPERATION AND USE
Avoid accidental starting: Make sure the switch is in the OFF position before plugging the
machine into the power supply.
Never leave machine running unattended: Turn power off. Do not leave machine until it comes
to a complete stop.
Do not abuse the cord: Never carry the tool by the power cable or pull it from the socket. Keep
the power cable away from heat, oil and sharp edges. If the supply cord is damaged, it must be
replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid
hazard.
Never stand on tool: Serious injury could occur if the tool is tipped or if the cutting tool is
accidentally contacted. Do not store materials above or near the tool, so that it is necessary to
stand on the tool to reach them.
Check damaged parts: Before further use of the tool, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, free running of moving parts, breakage of parts,
mounting and any other conditions that may affect its operation. A guard or other part that is
damaged should be repaired properly or replaced by an authorized service centre unless
otherwise indicated in this instruction manual. Have defective switches replaced by an authorized
service facility. Do not use the tool if the switch does not turn it on and off.
Keep guards in place: And in working order.
Maintain tools with care: Keep tool clean for the best and safest performance. Follow
instructions for lubricating and changing accessories. All extension cables must be checked at
regular intervals and replaced if damaged. Always keep the hand grips on the tool clean, dry and
free of oil and grease.
Use recommended accessories: Consult the owners manual for recommended accessories.
Follow the instructions that accompany the accessories. The use of improper accessories may
cause hazards.
Remove adjusting keys and wrenches: Form a habit of checking to see that keys and adjusting
wrenches are removed from the tool before turning it on.
Do not overreach: Keep proper footing and balance at all times.
Use right tool: Do not force the tool or attachment to do a job for which it was not designed.
Do Not Force Tool: It will do the job better and safer at the rate for which it was designed.
Have your tool repaired by a qualified person: This electric tool is in accordance with the
relevant safety requirements. Repairs should only be carried out by qualified persons using
original spare parts, otherwise this may result in considerable danger to the user.
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR CEMENT MIXERS
Before starting the mixer:
– Check all machine guards are fitted correctly and in working operation.
– Do not up-end the mixer onto the mouth of the drum whilst the drum is operating.
– Protect any visible power cables against accidental damage, or as potential trip hazards.
– Draper Tools recommend the use of Residual Current Devices on 230V power supplies and
with 110V transformer units.
When operating the mixer:
– Ensure unauthorised bystanders and children are kept clear of the mixer when in operation.
– Ensure area around the mixer is kept clear of obstructions that could cause injury.
– Ensure the mixer is placed on level ground before use.
- 7 -- 14 -
Warning!
●Wear safety glasses, ear defenders and protective footwear.
9.1 WORKING POSITIONS –
FIGS. 13 – 14
The safety pin  on the chain is used to prevent
the drum falling forward from its mixing position $.
FIG.13
FIG.14
– Remove the pin to empty the drum %.
9.2 POWER SUPPLY – FIGS. 15 – 16
Before you connect the equipment to the power supply make sure that the data on the rating plate
is identical to the supply voltage.
Warning!
●Always remove the power plug before making adjustments to the equipment.
●Draper Tools recommend the use of Residual Current Devices on 230V power
supplies and with 110V transformer units.
%

8.6 ATTACH SUPPORT STAND AND RAISE MIXER
– FIGS. 9 – 12
Note: The tilt mechanism needs to be locked in position with the chained safety pin  before
attempting to lift the cement mixer.
– Tip the cement mixer over onto it’s face.
– Attach the assembled support stand  into the pivot bracket .
– Stand in front of mixer, holding the handles raise the mixer, ensure that the support feet do not
slip on surface.
5. HEALTH AND SAFETY INFORMATION
– Ensure familiarity with controls before operating the mixer.
– Replace any worn/damaged safety labelling/information decals.
– Ensure the mixer drum is turning whilst emptying the drum.
– Always ensure the power supply is disconnected before leaving the mixer unattended.
– Do not use the mixer as a wheel barrow.
Warning!
●Although the safety instructions and operating manuals for our tools contain
extensive instructions of safe working with power tools, every power tool involves a
certain residual risk which can not be completely excluded by safety mechanisms.
Power tools must therefore always be operated with caution!
- 8 - - 13 -
8. ASSEMBLY
5.4 CONNECTION TO THE POWER SUPPLY
Make sure the power supply information on the cement mixer’s rating plate is compatible with the
power supply you intend to connect it to.
230V Cement Mixer (Stock No’s.01099, 01102)
This cement mixer comes supplied with a UK standard 3 pin plug fitted. It is designed for
connection to a domestic power supply rated at 230V AC.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instruction supplied with the extension lead.
Apart from replacing the fuse in the plug, no other electrical work is recommended on this concrete
mixer.
110V Cement Mixer (Stock No.01100)
This cement mixer should be connected to a 110V power supply using the appropriate 16amp
plug.

FIG.9
FIG.11 FIG.12
FIG.10


CAUTION: Risk of electric shock. Do not open.
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BS Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable shall be disabled to prevent connection
to a live electrical outlet.
This appliance is Class I† and is designed for connection to a power supply matching that detailed
on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instruction supplied with the extension lead.
†Earthed : This product requires an earth connection to protect against electric shock from
accessible conductive parts in the event of a failure of the basic insulation.
5.3 RESIDUAL RISK


8.3 FRAME ASSEMBLY – FIG.5
For transportation and delivery purposes, the handle
part of the frame section  needs to be fitted
before use (see Fig.5).
– Re-fit the handle frame to the back support
frame using the existing 4 × M8 × 75mm
bolts and nuts .
– Fasten to finger tightness, then finish tightening
with a pair of spanners (not supplied).
8.4 INSTALLING WHEELS – FIG.6
– Slide each of the wheels  over the axles.
– Using a spanner (not supplied) fasten each
wheel in place with a washer and
M8
× 15mm bolt  .
8.5 ATTACH PIVOT BRACKET
– FIGS.7 – 8
– Remove the pivot bracket  from the stand
and offer it up to the axle bracket on the cement
mixer.
– Attach with pivot pins , then slide split pins
through to secure the pivot bracket in
place.
– The safety pin is inserted through the hole
in the bracket to prevent the drum falling
forward.

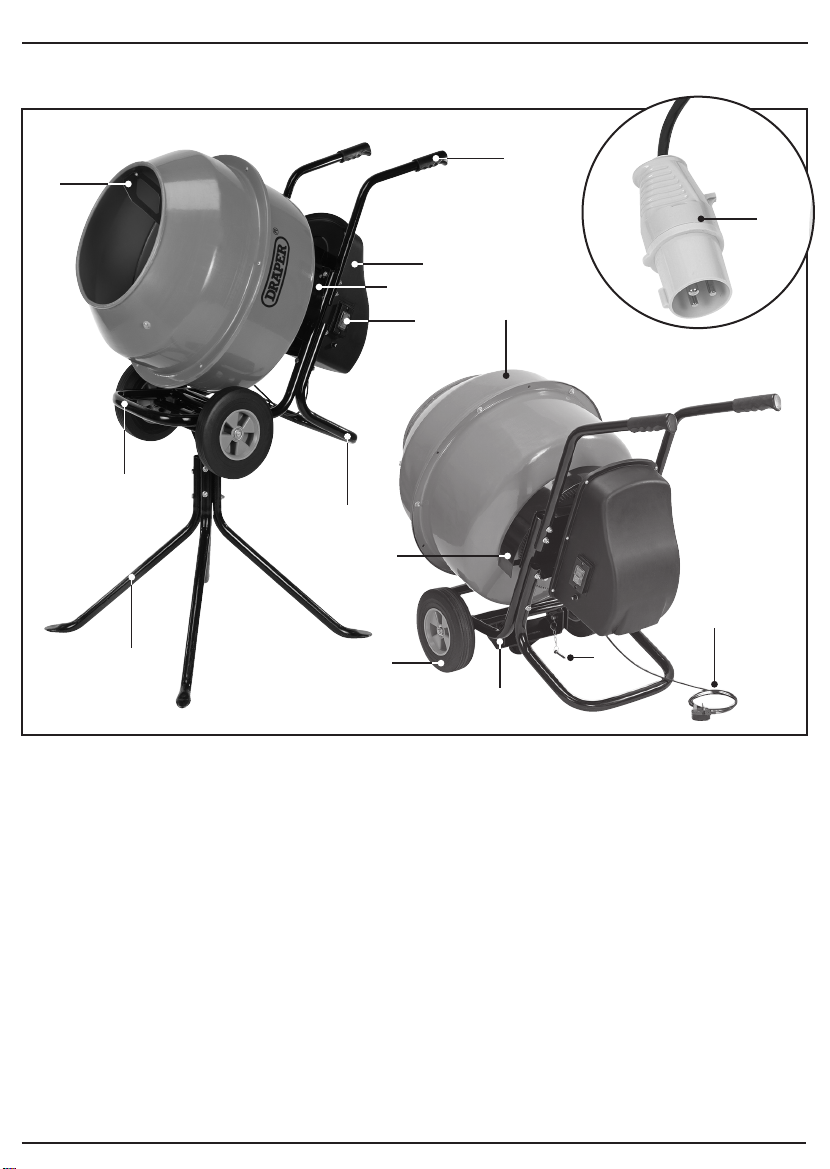

6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
 Support stand.
 Front support.
 Mixing blades.
 130L or 160L mixing drum.
 Handle assembly.
 Panel board.
 Motor housing.
 Switch ON/OFF.
 Back support.
 Wheels.
 Drive gear shield.
 Pivot bracket.
 Safety pin.
 230V Mains lead and plug (230V).
 110V Mains lead and plug (Stock No.01100 only).
- 9 -
- 12 -
8. ASSEMBLY
FIG.5
FIG.6
FIG.7
FIG.8














4×
2×










 





Stock No.01099 (160L mixing drum) pictured. Stock No.
01100 only

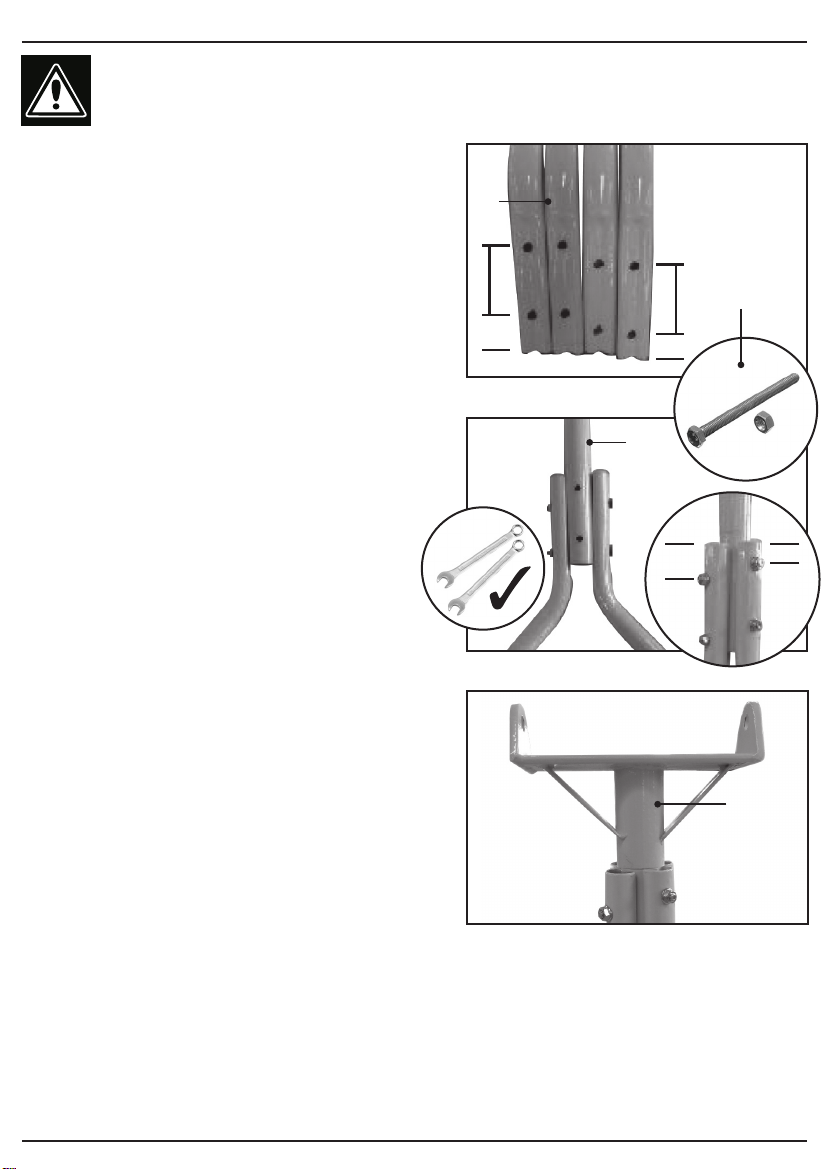

8.1 SUPPORT STAND – FIGS. 2 – 3
– Sort the 4 support legs  into two pairs with
matching drill holes.
– Attach one pair of legs to the fixing tube  on
opposite sides, fix with the M8
× 100mm
bolts/nuts , then fix remaining legs.
Note: The fixing holes are at the same distance but
different heights, assemble finger tight, when happy
that the legs are in the correct sides then finish
tightening with a pair of spanners (not supplied).
=
=
A
B
Warning!
●Failure to follow these instructions may lead to serious injury and could cause
premature malfunction of the equipment, which is not covered by the guarantee.
AB
8.2 ADD PIVOT BRACKET – FIG. 4
Slide the tilt bracket  down onto the fixing tube.
- 10 -
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing; please contact the Draper Helpline (the telephone
number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the
product needs to be returned for repair.
Warning!
●Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
●If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.

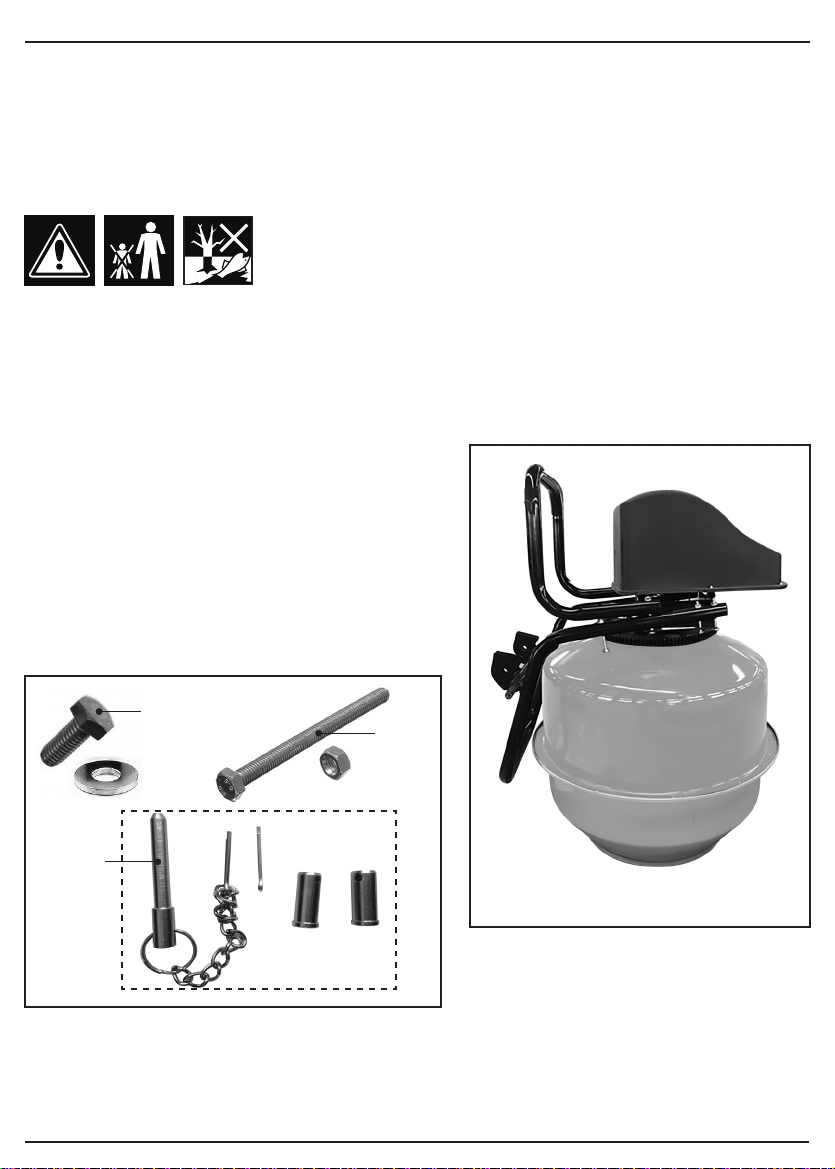

7.2 WHAT´S IN THE BOX – FIG. 1
The mixer is supplied part assembled, as shown in
Fig.1. Further construction utilising other
supplementary parts and fixings provided is
required and is described in the following sections
of this instruction booklet.
Supplied fittings:
 Pivot bracket pins/locking fixings.
 M8
× 100mm bolts/nuts.
 M8
× 15mm bolt and washer.
8. ASSEMBLY
- 11 -
FIG.2
FIG.3
FIG.1



FIG.4
4×
Stock No.01099 (160L mixing drum)
pictured.
Handles not shown.



4×
2×


8.1 SUPPORT STAND – FIGS. 2 – 3
– Sort the 4 support legs  into two pairs with
matching drill holes.
– Attach one pair of legs to the fixing tube  on
opposite sides, fix with the M8
× 100mm
bolts/nuts , then fix remaining legs.
Note: The fixing holes are at the same distance but
different heights, assemble finger tight, when happy
that the legs are in the correct sides then finish
tightening with a pair of spanners (not supplied).
=
=
A
B
Warning!
●Failure to follow these instructions may lead to serious injury and could cause
premature malfunction of the equipment, which is not covered by the guarantee.
AB
8.2 ADD PIVOT BRACKET – FIG. 4
Slide the tilt bracket  down onto the fixing tube.
- 10 -
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing; please contact the Draper Helpline (the telephone
number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period: in case the
product needs to be returned for repair.
Warning!
●Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
●If any of the packaging is to be thrown away, make sure they are disposed of correctly;
according to local regulations.
7.2 WHAT´S IN THE BOX – FIG. 1
The mixer is supplied part assembled, as shown in
Fig.1. Further construction utilising other
supplementary parts and fixings provided is
required and is described in the following sections
of this instruction booklet.
Supplied fittings:
 Pivot bracket pins/locking fixings.
 M8
× 100mm bolts/nuts.
 M8
× 15mm bolt and washer.
8. ASSEMBLY
- 11 -
FIG.2
FIG.3
FIG.1



FIG.4
4×
Stock No.01099 (160L mixing drum)
pictured.
Handles not shown.



4×
2×


8.3 FRAME ASSEMBLY – FIG.5
For transportation and delivery purposes, the handle
part of the frame section  needs to be fitted
before use (see Fig.5).
– Re-fit the handle frame to the back support
frame using the existing 4 × M8 × 75mm
bolts and nuts .
– Fasten to finger tightness, then finish tightening
with a pair of spanners (not supplied).
8.4 INSTALLING WHEELS – FIG.6
– Slide each of the wheels  over the axles.
– Using a spanner (not supplied) fasten each
wheel in place with a washer and
M8
× 15mm bolt  .
8.5 ATTACH PIVOT BRACKET
– FIGS.7 – 8
– Remove the pivot bracket  from the stand
and offer it up to the axle bracket on the cement
mixer.
– Attach with pivot pins , then slide split pins
through to secure the pivot bracket in
place.
– The safety pin is inserted through the hole
in the bracket to prevent the drum falling
forward.
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
 Support stand.
 Front support.
 Mixing blades.
 130L or 160L mixing drum.
 Handle assembly.
 Panel board.
 Motor housing.
 Switch ON/OFF.
 Back support.
 Wheels.
 Drive gear shield.
 Pivot bracket.
 Safety pin.
 230V Mains lead and plug (230V).
 110V Mains lead and plug (Stock No.01100 only).
- 9 -
- 12 -
8. ASSEMBLY
FIG.5
FIG.6
FIG.7
FIG.8














4×
2×










 





Stock No.01099 (160L mixing drum) pictured. Stock No.
01100 only

8.6 ATTACH SUPPORT STAND AND RAISE MIXER
– FIGS. 9 – 12
Note: The tilt mechanism needs to be locked in position with the chained safety pin  before
attempting to lift the cement mixer.
– Tip the cement mixer over onto it’s face.
– Attach the assembled support stand  into the pivot bracket .
– Stand in front of mixer, holding the handles raise the mixer, ensure that the support feet do not
slip on surface.
5. HEALTH AND SAFETY INFORMATION
– Ensure familiarity with controls before operating the mixer.
– Replace any worn/damaged safety labelling/information decals.
– Ensure the mixer drum is turning whilst emptying the drum.
– Always ensure the power supply is disconnected before leaving the mixer unattended.
– Do not use the mixer as a wheel barrow.
Warning!
●Although the safety instructions and operating manuals for our tools contain
extensive instructions of safe working with power tools, every power tool involves a
certain residual risk which can not be completely excluded by safety mechanisms.
Power tools must therefore always be operated with caution!
- 8 - - 13 -
8. ASSEMBLY
5.4 CONNECTION TO THE POWER SUPPLY
Make sure the power supply information on the cement mixer’s rating plate is compatible with the
power supply you intend to connect it to.
230V Cement Mixer (Stock No’s.01099, 01102)
This cement mixer comes supplied with a UK standard 3 pin plug fitted. It is designed for
connection to a domestic power supply rated at 230V AC.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instruction supplied with the extension lead.
Apart from replacing the fuse in the plug, no other electrical work is recommended on this concrete
mixer.
110V Cement Mixer (Stock No.01100)
This cement mixer should be connected to a 110V power supply using the appropriate 16amp
plug.

FIG.9
FIG.11 FIG.12
FIG.10


CAUTION: Risk of electric shock. Do not open.
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BS Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable shall be disabled to prevent connection
to a live electrical outlet.
This appliance is Class I† and is designed for connection to a power supply matching that detailed
on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instruction supplied with the extension lead.
†Earthed : This product requires an earth connection to protect against electric shock from
accessible conductive parts in the event of a failure of the basic insulation.
5.3 RESIDUAL RISK


$
5. HEALTH AND SAFETY INFORMATION9. OPERATION AND USE
Avoid accidental starting: Make sure the switch is in the OFF position before plugging the
machine into the power supply.
Never leave machine running unattended: Turn power off. Do not leave machine until it comes
to a complete stop.
Do not abuse the cord: Never carry the tool by the power cable or pull it from the socket. Keep
the power cable away from heat, oil and sharp edges. If the supply cord is damaged, it must be
replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid
hazard.
Never stand on tool: Serious injury could occur if the tool is tipped or if the cutting tool is
accidentally contacted. Do not store materials above or near the tool, so that it is necessary to
stand on the tool to reach them.
Check damaged parts: Before further use of the tool, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, free running of moving parts, breakage of parts,
mounting and any other conditions that may affect its operation. A guard or other part that is
damaged should be repaired properly or replaced by an authorized service centre unless
otherwise indicated in this instruction manual. Have defective switches replaced by an authorized
service facility. Do not use the tool if the switch does not turn it on and off.
Keep guards in place: And in working order.
Maintain tools with care: Keep tool clean for the best and safest performance. Follow
instructions for lubricating and changing accessories. All extension cables must be checked at
regular intervals and replaced if damaged. Always keep the hand grips on the tool clean, dry and
free of oil and grease.
Use recommended accessories: Consult the owners manual for recommended accessories.
Follow the instructions that accompany the accessories. The use of improper accessories may
cause hazards.
Remove adjusting keys and wrenches: Form a habit of checking to see that keys and adjusting
wrenches are removed from the tool before turning it on.
Do not overreach: Keep proper footing and balance at all times.
Use right tool: Do not force the tool or attachment to do a job for which it was not designed.
Do Not Force Tool: It will do the job better and safer at the rate for which it was designed.
Have your tool repaired by a qualified person: This electric tool is in accordance with the
relevant safety requirements. Repairs should only be carried out by qualified persons using
original spare parts, otherwise this may result in considerable danger to the user.
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR CEMENT MIXERS
Before starting the mixer:
– Check all machine guards are fitted correctly and in working operation.
– Do not up-end the mixer onto the mouth of the drum whilst the drum is operating.
– Protect any visible power cables against accidental damage, or as potential trip hazards.
– Draper Tools recommend the use of Residual Current Devices on 230V power supplies and
with 110V transformer units.
When operating the mixer:
– Ensure unauthorised bystanders and children are kept clear of the mixer when in operation.
– Ensure area around the mixer is kept clear of obstructions that could cause injury.
– Ensure the mixer is placed on level ground before use.
- 7 -- 14 -
Warning!
●Wear safety glasses, ear defenders and protective footwear.
9.1 WORKING POSITIONS –
FIGS. 13 – 14
The safety pin  on the chain is used to prevent
the drum falling forward from its mixing position $.
FIG.13
FIG.14
– Remove the pin to empty the drum %.
9.2 POWER SUPPLY – FIGS. 15 – 16
Before you connect the equipment to the power supply make sure that the data on the rating plate
is identical to the supply voltage.
Warning!
●Always remove the power plug before making adjustments to the equipment.
●Draper Tools recommend the use of Residual Current Devices on 230V power
supplies and with 110V transformer units.
%

9.3 SWITCHING ON – FIG. 17
To switch ON push the green button , to switch
OFF push the red button . See ‘Electrical
Safety’ for more details of the switch.
The most important thing to remember when using
the mixer is that the drum must be rotating before
loading and should continue to rotate until
unloaded.
Never switch the mixer On with a load.
– Add half the water needed for the mix into the
rotating drum.
– Add the aggregate followed by the cement, then
pour in the remaining water.
– Finally, add the sand and leave the mixer to mix.
Once the mix is ready, remove the safety pin ,keep the drum turning while you tip the drum
forward to discharge its contents.
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
5. HEALTH AND SAFETY INFORMATION
- 6 -
9. OPERATION AND USE
- 15 -
Important: Draper Tools Limited recommends that this machine should not be modified or used
for any application other than that for which it was designed. If you are unsure of its relative
applications do not hesitate to contact us in writing and we will advise you.
Know your power tool: Read and understand the owner's manual and labels affixed to the tool.
Learn its application and limitations as well as the specific potential hazards peculiar to this tool.
Keep work area clean: Cluttered areas and benches invite accidents. Floors must not be slippery
due to oil or sawdust.
Avoid dangerous environments: Do not use power tools in damp or wet locations, or expose
them to rain. Keep work area well lit. Provide adequate space surrounding the work area. Do not
use in environments with a potentially explosive atmosphere.
Keep children away: All visitors should be kept a safe distance from work area.
Stored tools: When not being used, all tools should be stored in a dry, locked cupboard and out of
the reach of children.
Wear proper clothing: Do not wear loose clothing, neckties or jewellery (rings, wristwatches) to
catch in moving parts. NONSLIP footwear is recommended. Wear protective hair covering to
contain long hair. Roll long sleeves above the elbow.
Use safety goggles (head protection): Wear CE approved safety goggles at all times. Normal
spectacles only have impact resistant lenses, they are NOT safety glasses. Also, use face or dust
mask if application is dusty and ear protectors (plugs or muffs) during extended periods of
operation.
Noise levels: Some types of machines may have high noise levels when working. In such cases
ear protection must be worn.
Vibration levels: Hand held power tools produce different vibration levels. You should always
refer to the specifications and relevant Health and Safety guide.
Dust extraction: If your tool is fitted with a dust extraction fitting, always ensure that it is
connected and being used with a dust extractor. Vacuum cleaners can be used if suitable for the
material being extracted.
Protect yourself from electric shock: When working with power tools, avoid contact with any
earthed items (e.g. pipes, radiators, hobs and refrigerators, etc.). If you are using a power tool in
extreme conditions (e.g. high humidity or generating metal dust), always use an RCD (residual
current device) at the power socket.
Stay alert: Always watch what you are doing and use common sense. Do not operate a power
tool when you are tired or under the influence of alcohol or drugs.
When working out of doors: Only use extension leads designed for that purpose.
Access to mains socket: If a stationary machine is fitted with a moulded plug and cable, the
machine should not be positioned so that access to the mains socket is restricted.
Disconnect power to the tool: When not in use, before servicing and when changing
accessories such as cutters, etc.
FIG.15 (Example 230V rating label). FIG.16 (Example 110V rating label).
FIG.17
Warning!
●Please read the following instructions carefully, failure to do so could lead to serious
personal injury.
●When using electric tools, basic safety precautions, including the following, should
always be followed to reduce the risk of fire, electric shock and personal injury.
●Read all these instructions before operating this product and save these
instructions.
Warning!
●Be careful, use both hands on the handles and be prepared for the transfer of
weight as the mix moves to the end of the drum.



Basic concreting 1 2 4
Foundation work 1 3 6
Mass rough concreting 1 4 8
Concreting watertight flooring, tanks, pits etc. 1 1.5 3
Application
Quantity ratios
Cement Sand Aggregate
4. INTRODUCTION
4.1 SCOPE
Electric concrete mixers for small to medium building projects. Light and portable and offering a
good working height.
4.2 SPECIFICATION
Stock no. ..............................01099 ......................................... 01100..................................... 01102
Part no. ...............................CM170A ...................................CM170_110 ............................CM140A
Voltage ............................. 230V~50Hz ..................................110V/A.C .........................230V~50Hz
Drum capacity ........................160L ........................................... 160L........................................130L
Drum opening.......................360mm ....................................... 360mm..................................360mm
DrumSpeed ...........................30rpm ......................................... 30rpm.................................... 30rpm
Sound level........................60.83dB(A) ................................. 60.83dB(A)........................ 60.83dB(A)
Sound power .....................80.83dB(A) ................................. 80.83dB(A)........................ 80.83dB(A)
Weight ...................................64kg ........................................... 64kg ........................................64kg
4.3 HANDLING AND STORAGE
9. OPERATION AND USE
Warning!
●Wear safety glasses, ear defenders and protective footwear.
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to
prEN ISO 15744:1999 and declared according to EN ISO 4871.
** A-Weighted Sound Power Level in accordance to prEN ISO 15744:1999 and
declared according to EN ISO 4871.
- 5 -- 16 -
9.5 MIXING APPLICATION GUIDE
9.6 CLEANING – FIG. 18
– Once emptied, return the mixer to the upright
position.
– At this point it is a good idea to pour the water
for the next mix, into the drum. This will help
rinse the drum as you use/lay the mixed load.
– Empty out any remaining mix and wash out the
rotating drum with plenty of clean water.
– If necessary, add gravel to remove stubborn
residue.
– Do not throw bricks into the mixer for cleaning
purposes. FIG.18

3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or:
Product Helpline [phone].
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee
does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless
or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other
than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 - - 17 -
10. DISPOSAL
10.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
●Do not dispose of power tools with domestic waste.
●Do not incinerate.
●Do not abandon in the environment.
●Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.

80.8
Single value noise marking.
(Maximum declared A-Weighted
sound power level in decibels).
2.1 CONTENTS
- 18 -
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION ................................................................................................................. 1
1.2 REVISION HISTORY ..........................................................................................................2
1.3 UNDERSTANDING THIS MANUAL..................................................................................... 2
1.4 COPYRIGHT NOTICE......................................................................................................... 2
2. CONTENTS
2.1 CONTENTS......................................................................................................................... 3
3. GUARANTEE
3.1 GUARANTEE ...................................................................................................................... 4
4. INTRODUCTION
4.1 SCOPE ................................................................................................................................ 5
4.2 SPECIFICATION ................................................................................................................. 5
4.3 HANDLING AND STORAGE ............................................................................................... 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE....................................... 6
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR CEMENT MIXERS ..................................... 7
5.3 RESIDUAL RISK ................................................................................................................. 8
5.4 CONNECTION TO THE POWER SUPPLY......................................................................... 8
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ................................................................................................................ 9
7. UNPACKING AND CHECKING
7.1 PACKAGING ..................................................................................................................... 10
7.2 WHAT’S IN THE BOX........................................................................................................ 10
8. ASSEMBLY
8.1 SUPPORT STAND ........................................................................................................... 11
8.2 ADD PIVOT BRACKET...................................................................................................... 11
8.3 FRAME ASSEMBLY ......................................................................................................... 12
8.4 INSTALLING WHEELS...................................................................................................... 12
8.5 ATTACH PIVOT BRACKET ............................................................................................... 12
8.6 ATTACH SUPPORT STAND AND RAISE MIXER ............................................................. 13
9. OPERATION AND USE
9.1 WORKING POSITION....................................................................................................... 14
9.2 POWER SUPPLY..............................................................................................................14
9.3 SWITCHING ON................................................................................................................ 15
9.4 MIXING CONCRETE......................................................................................................... 15
9.5 MIXING APPLICATION GUIDE .........................................................................................16
9.6 CLEANING ........................................................................................................................ 16
10. DISPOSAL
10.1 DISPOSAL....................................................................................................................... 17
11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS........................................................................................ 18
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
- 3 -
11.1 EXPLANATION OF SYMBOLS
11. EXPLANATION OF SYMBOLS
Read the instruction manual.
Wear safety glasses.
Wear ear defenders.
Wear protective gloves.
Wear protective footwear.
Do not abandon into the
environment.
Keep out of the reach of children.
Warning!
WEEE
Do not dispose of Waste Electrical
& Electronic Equipment in with
domestic rubbish.
Class I device.
(Earthed).

1. TITLE PAGE NOTES
1.1 INTRODUCTION:
USER MANUAL FOR: 230V/110V Cement Mixers
Stock No’s: 01099, 01100, 01102
Part No’s: CM170A, CM170A-110, CH140A.
As our user manuals are continually updated, users should make sure that they
use the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the
product or surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational
use only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in
any other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published December 2017.
- 19 -

Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: [phone]
Sales Desk: [phone]
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: [phone]
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Helpline for details of an agent in your local area.
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
01099, 01100, 01102
CONTACTS
YOUR DRAPER STOCKIST
KCCH1217

230V/110V
CEMENT
MIXERS
13 O
L
16 O
L
IF YOU SIGN, PLEASE CHECK; Pack type & style, all content, bar code printout & note proof size (artwork to be sent @ 100%).
