Santint V360 User manual

V360 Mixer
User Manual
Read this manual before use

I
© 2008 Copyright Paint Mixing Machine. All rights reserved.
Printed in the People’s Republic of China.
Disclaimer
No part of this book shall be reproduced, stored in retrieval, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise without written permission of ZHENGZHOU SANHUA TECHNOLOGY &
INDUSTRY CO.,LTD.. While every precaution has been taken in the preparation of this book, the publisher assumes
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of
information contained herein.
This document is the proprietary information of ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO.,
LTD., furnished for customer use only. No other uses are authorized without written permission of ZHENGZHOU
SANHUA TECHNOLOGY & INDUSTRY CO., LTD.
ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO., LTD. reserves the right to make changes without
notice to this document and its products
This manual contains information that is correct to the best of ZHENGZHOU SANHUA TECHNOLOGY &
INDUSTRY CO., LTD.’s knowledge. It is intended to be a guide and should not be considered as a sole source of
technique instruction, should not replace good technique judgment, since all possible situations cannot be anticipated.
If there is any doubt about exact installation, configuration, and/or use, call ZHENGZHOU SANHUA
TECHNOLOGY & INDUSTRY CO., LTD.
The choice of system components is buyer’s responsibility; ZHENGZHOU SANHUA TECHNOLOGY &
INDUSTRY CO., LTD. holds no liability for their use. However, ZHENGZHOU SANHUA TECHNOLOGY &
INDUSTRY CO., LTD.’s sales team and application engineers are always available to assist you in making your
decision.

II
Contents
I. Introduction ……………………………………………………………………………………………1
II. Technical Specifications ………………………………………………………………………………1
III. Safety Instructions ……………………………………………………………………………………1
IV. Mixer Structure ……………………………………………………………………………………… 2
V. Control Panel ………………………………………………………………………………………4
VI. Installation …………………………………………………………………………………………..5
VII. Control Panel Buttons ……………………………………………………………………………5
VIII. Operation …………………………………………………………………………………………6
IX. Warnings …………………………………………………………………………………………7
X. Maintenance ………………………………………………………………………………………7
XI. Troubleshooting ……………………………………………………………………………………7
XII. Tools …………………………………………………………………………………………………8
XIII. Nameplate …………………………………………………………………………………………9
XIV. Circuit Diagram ……………………………………………………………………………………10

- 1 -
V1.0
V360
I. Introduction
V360 Manual Clamping Mixer is designed for paint mixing. Main features include:
Ergonomic design and clear viewing door facilitate observation of mixing process.
Viewing door with electronic lock to protect the mixer from starting up while the door is open and to
stop the door from being opened during operation.
Manual clamping structure is compact, simple to operate and a low issue rate.
An Electronic magnet ensures a safeguard for the mixer and paint container.
Rotary door is convenient and reliable.
The pulling-out lower tray makes locating the can a snap.
II. Technical Specifications
Power supply：See the nameplate
Power：0.75kw
Mixing Speed：125-175r/min
Distance between upper and bottom plate：70mm～400 mm
Paint can volume compatibility：1L～20 L
Applicable cans：MAX Diameter: 30~275mm，Height: 70~400mm
Dimension（Length X Width X Height）： 880 mm X760 mm X1080 mm
Net Weight：170kg
Noise：<70dB(A)
Mixing Time：See the Mixing Time Table
III. Safety Instructions
Warning Labels：
Danger of Electric Shock! Power source must be cut off before any cleaning or maintenance.
Important information! Read it carefully.
Power supply：see nameplate. Environment temperature：5ºC~50ºC，Relative humidity: 15%~90%；
Read this manual carefully before installing and using the mixer. Do not let children or unauthorized
personnel operate the mixer.
Before carrying out any repairs or maintenance, unplug mixer from power source. It is strictly
prohibited to perform repairs or maintenance before disconnecting the mixer or while it is in operation.
Do not use an improper extension cable. Please disconnect the mixer when not in use for an
extended period of time.
Before use, please adjust the four feet to level the mixer securely to the ground.
Wait 5s after mixer has stopped before opening the door. Do not open the door during mixing.

- 2 -
V1.0
V360

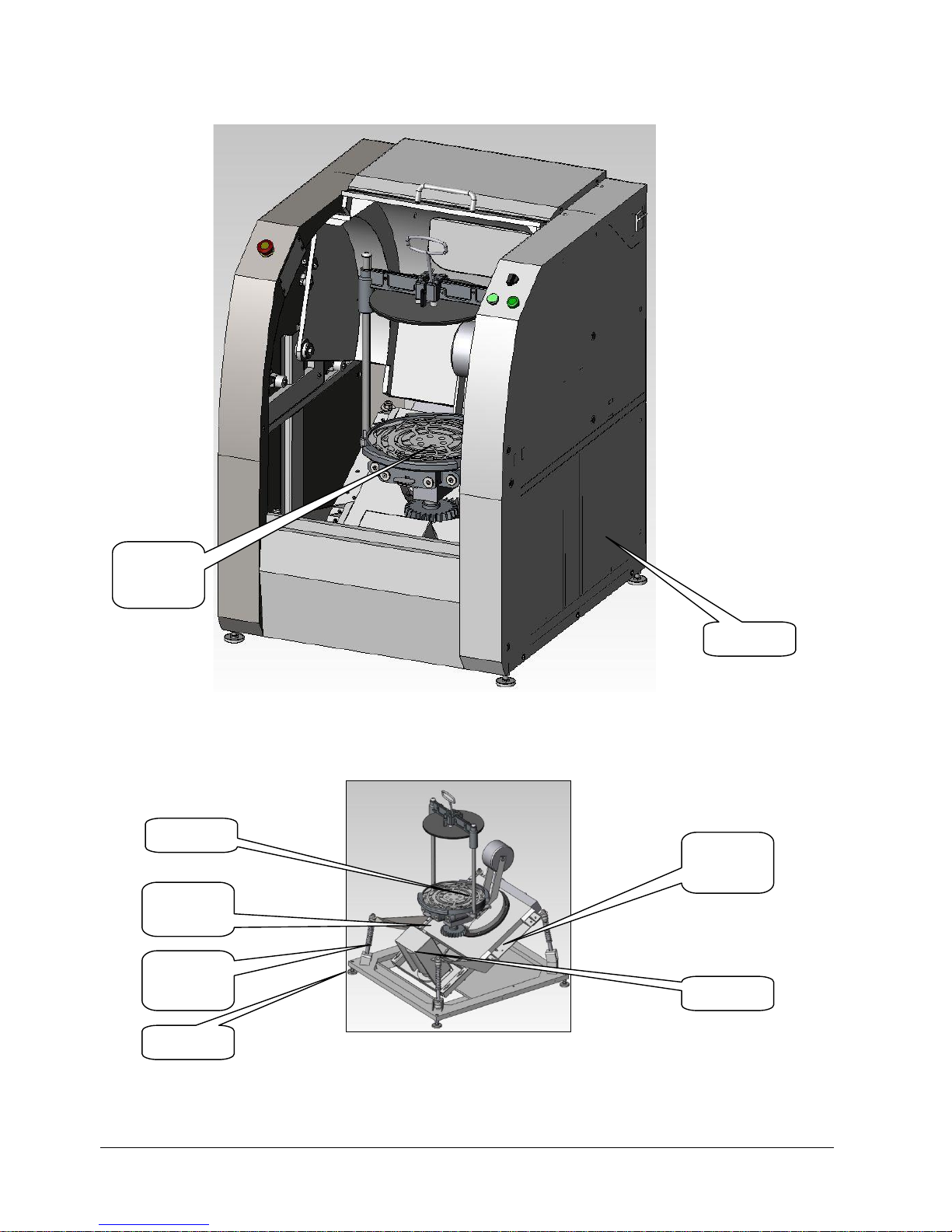

IV. Mixer Structure
Overall Structure
Working Device
透视门
Working
Device
Shell
Bucket
Working
Part
Shock
Absorber
Feet
Motor
Locking
Parts

- 3 -
V1.0
V360

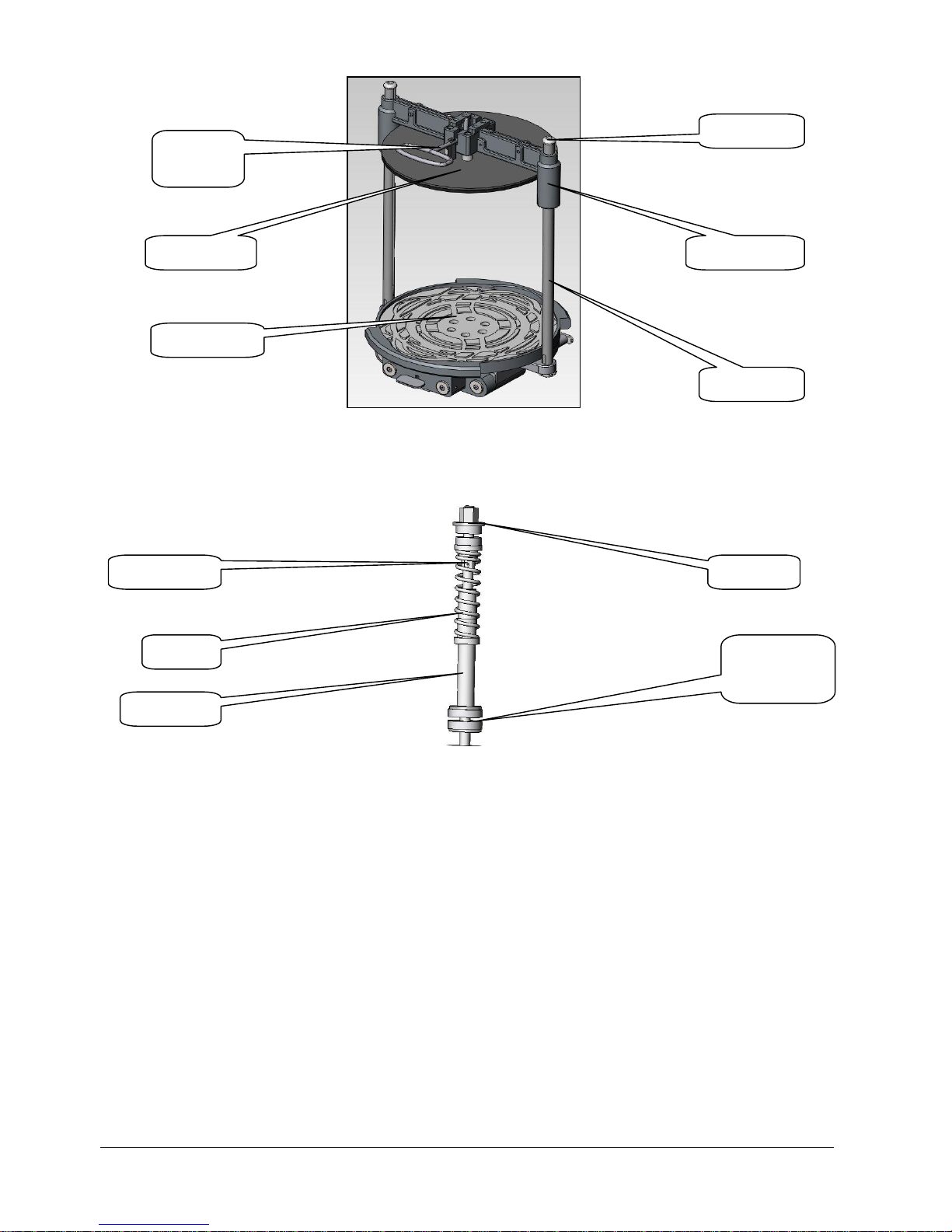

Rotary Bucket Unit
ShockAbsorber Unit
地脚
托盘
Guide Shaft
Spring
Spring
Base
Washer
Polyurethane
Pad
Stop Dog
Fixed Mount
GuideAxle
Lower Platen
Upper Platen
Clamping
Handle

- 4 -
V1.0
V360

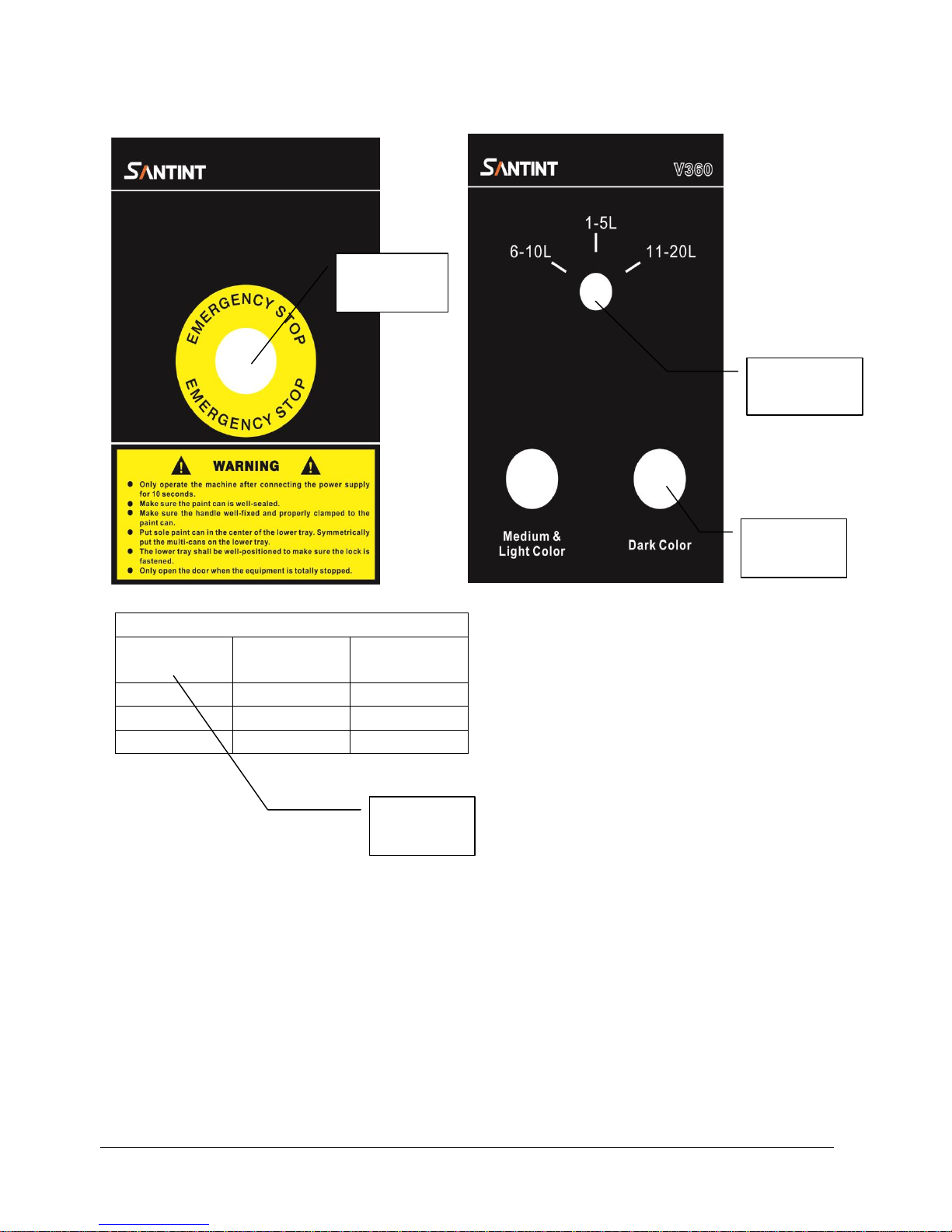

V. Control Panel
Mixing Time Table
Knob Position
Medium and
Light Color
Dark Color
1-5L
3 min
5 min
6-10L
2 min
4 min
11-20L
2 min
4 min
Emergency
Stop Button
Tri-position
knob
Operation
Button
Operation
Button

- 5 -
V1.0
V360
VI. Installation
For your safety and convenience, the mixer has been carefully assembled and tested at the factory.
Cut bindings and unpack the wooden crate. Adjust the feet to level the machine. Open the front
door panel and remove the transport screw and transport fixing mount.
VII.Control Panel Buttons
Tri-position Knob
Put the can(s) on the center of the tray and clamp it (them), close the door, turn the knob to the corresponding
volume position with the cans.
Medium and light color button
Press down the corresponding button as per the color of paint to be dispensed, the machine begins to operate.
Dark color button
Press down the corresponding button as per the color of paint to be dispensed, the machine begins to operate.
Emergency stop button
Press down the emergency stop button if there is any issue. The machine will cut off the power supply. When
restarting the mixer, the emergency stop button needs be rotated clockwise to be reset it.
Fixing Mount
Long Screw
Short Screw
Feet

- 6 -
V1.0
V360
VIII. Operation
1) Open the equipment door, connect the power, turn on the power switch, press down the locking button, lift
the upper plate unit to the top of guide shaft, and rotate the pressing handle to the position of Figure A.
Figure A
2) Pull out the tray. Position the sealed paint can in the center of the lower tray. Push back the tray. Press
down the upper plate unit and clamp the paint can (use the binding band to fix the can handle). Rotate and
clamp the handle to the position shown in Figure B.
3) Close the machine door. Choose the mixing time.
4) Press down the emergency stop button if there is any issue.
Figure B
Handle
Guide
Axle
Lower
Tray
Upper
Plate Unit
Lower
Plate Unit
Clamp
Handle
Lock
Hook

- 7 -
V1.0
V360
5) Open the door after the mixing is finished and the inner assembly has stopped spinning by lifting the
door. Rotate the can unit to lock it. Release the clamp handle and slide the upper plate unit to the top of the
guide axle. Push the lock hood upwards. Pull out the tray after unlocking is done and remove the can(s).
6) Disconnect the power supply when the machine is not used for extended periods of time. It takes 10s after
powering on the mixer for it to be ready for mixing.
IX. Warnings
1) Make sure the can lid is sealed well.
2) If there is any issue during the operation, press down the emergency stop button. Restart the machine after
solving the problem.
3) Do not use deformed cans in the mixer.
4) Place the can(s) in the center of the lower tray.
5) If the working parts cannot operate or the rotation speed is too low, press the emergency stop button.
6) Only authorized personnel are allowed to dismantle and/or debug the machine.
7) Do not place anything on the door.
X. Maintenance
8) Perform daily maintenance to ensure good condition of the machine. Disconnect the power supply prior to
any maintenance (Only authorized personnel are allowed to dismantle the machine).
1）Keep the inside of the mixer clean.
2）Keep the upper plate guide axle clean. Lubricate the guide axle once in a month.
3）Lubricate the guide axle inside the shock absorber unit with lithium grease once in 6 months.
4）Open the back cover and check the tension of the belt once in a year.
XI. Troubleshooting
Troubles
Causes
Solutions
Motor does not operate after
starting.
1. No power.
Check the socket and the plug.
2. Emergency stop switch
engaged.
Disengage the emergency stop switch.
3. Fuse or power line is
broken.
Replace the fuse or power line.

- 8 -
V1.0
V360
4. Door is not in the correct
position.
Adjust the door position to make
contact with the door.
5. Motor damaged.
Replace the motor.
Motor doesn’t work
6. Broken belt.
Change it.
7. Loose belt.
Tension the belt properly.
Instable mixing
8. Over voltage or insufficient
voltage.
Install a voltage stabilizer.
Locking device does not
operate.
9. Electromagnet damaged.
Replace the electromagnet.
10. Locking pin is seized.
Adjust the locking pin.
11. Return spring is broken.
Replace the return spring.
Extreme noise and/or
vibration.
12. Mixer is not leveled.
Adjust the feet to level the mixer.
13. The cans are not centered or
even.
Change the position of the can.
14. Overloading.
Decrease the loading.
Contact your agent if there are any other issues.
XII.Tools
Name & Specifications
Unit
Quantity
Remarks
Binding band of can handle
piece
1
Philips driver
medium
piece
1
Flat tip screwdriver
small
piece
1
12-14 open wrench
piece
1
13-16 open wrench
piece
1
8-10 open wrench
piece
1
4 mm allen wrench
piece
1
5 mm allen wrench
piece
1
Protective tube 5A
piece
1
Protective tube 12A
piece
1

- 9 -
V1.0
V360
XIII. Nameplate

- 10 -
V1.0
V360
XIV. Circuit Diagram

Zhengzhou Sanhua Technology & Industry Co., Ltd.
Address：Xushui Industrial & Trading Park, Zhongyuan West Road, Zhongyuan Distric,
Zhengzhou City, Henan Province, P.R. China, 450042
Tel：[phone] After-service：0371-67857319
Fax：[phone] Website：http://www.santint.com
E-mail:[email protected]
