Draper WPWUAR User manual

DRAPER TOOLS LTD, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HANTS. SO53 1YF. U.K. www.draper.co.uk e-mail: [email protected]
Wind Up Analogue
Waterproof Radio
Stock No.02380 Part No.WPWUAR
SPECIFICATION
The Draper Tools policy of continuous improvement determines the right to change specification without notice.
Radio
Sensitivity of the FM .............................................................................................................................................Better than 10 uV
Sensitivity of the AM...........................................................................................................................................Better than 3 mVm
Reception scope of the FM ........................................................................................................................ 87(+0-1) - 108(-0+1)MHz
Reception scope of the AM................................................................................................................. 520(+0-10) - 1620(-0+30)KHz
The audio frequency output power...................................................................................................................More than 100 mW
Radio working time after 1 minute winding (2.5 - 3 revolutions per second) .............................. 10 - 18 minutes (moderate volume)
Radio working time after being charged fully ...................................................................................... ≥4 hours (moderate volume)
Charged by outside power
1.Input voltage ...................................................................................................................................................................5 - 5.2V
2.Charging interface ...................................................................................................................................... DC plug Ø3.5 x Ø1.3
3.Fully charged time ............................................................................................................................................ 5 hours (approx.)
Main parts life-span
Switch ...........................................................................................................................................................................5000 times
The whole unit .................................................................................................................................................................... 5 years
The plastic part ....................................................................................................................................................................5 years
Size and weight
Antenna length (external part) ............................................................................................................................. 190mm (approx.)
Product size ..........................................................................................................................................135 x 74 x 45mm (approx.)
Product weight ........................................................................................................................................................216g (approx.)
Others
Specification of built-in battery .................................................................................................................................. 300mAh, 2.4v
Diameter of built-in speaker............................................................................................................................... Ø50mm 8Ω0.5W
Built-in generator.................................................................................................................................2.5W (without brush motor)
Warning:
1. When holding the radio wind steadily.
2. In order to assure the life of the battery and mechanical parts.
a) Do not wind the handle for more than five mins when the power of the battery is enough (working normally) and less than
15 mins when it has run out of power.
b) When the light is dim or the radio is soundless, it means the battery is flat. Please turn off the light and radio or wind it for a
while.
c) Winding it as even as possible (keep rotating it steadily, 2.5 or 3 revolutions per second is best). Avoid winding too violently
and quickly or changing the winding direction abruptly. Winding too slowly would make current weak and influence the
charging efficiency and too violently will possibly damage the driving system.
d) Do not wind it for a long time or too violently.
e) In order to prolong the life of the battery, you should wind it for at least one min. once a month.
3. Do not drop or hit this product.
4. Avoid using corrosive liquid or hard cloth to cleanse.
5. Turn off the light when charging.
6. The product will get hot if winding for a long period of time.
07/2010INSTRUCTIONS
RWKC140710

DRAPER TOOLS LTD, HURSLEY ROAD, CHANDLER'S FORD, EASTLEIGH, HANTS. SO53 1YF. U.K. www.draper.co.uk e-mail: [email protected]
RWKC140710
OPERATION
WARNING: Do not submerse in water.
1. Winding to charge the unit:
Unlock the handle and wind it at the speed of 2.5 to 3
circles per second.
2. Charged by external power source:
Connect with the 5V adapter to charge the internal
battery, and about 5 hours it will be fully charged.
3. Reception of radio:
A. Operation of the power switch and volume adjusting:
Turn the volume knob clockwise to increase the
volume. Turn the volume switch anticlockwise to
decrease the volume gradually, a “crack” sound will
be heard to show power off.
B. FM/AM wave band shifting: Push the wave band
converting switch down for FM and up for AM.
C. Station search: Observe the tuner indicator while
tuning and select the radio program you need. Tune
the knob to an optimal position in which the
reception effect is the best.
D. Use of antenna:
a).This product adopts telescoping antenna to receive
signal for FM . When the signal is weak, you can
extend the antenna or change the direction of the
antenna to find the optimal position, thus can
improve the reception effect.
Whereas, shrink the antenna when the signal is
strong.
b).It adopts built-in magnetic antenna to receive
signal for AM. You can change the position of the
product properly when the signal is weak.
Note:
a. It is advised to turn the volume to the optimal position
(be comfortable) when you listen to it.
b. Avoid places like high building, basement, etc, as
possible as you can, such places will badly influence the
effect of the reception Leave far away from the induction
cooker, fluorescent lamp, car generator, motor, computer
or such electrical equipment that may disturb the signal
easily.
4. Earphone:
Plug the earphone into the earphone jack, the speaker
will be turned off automatically.

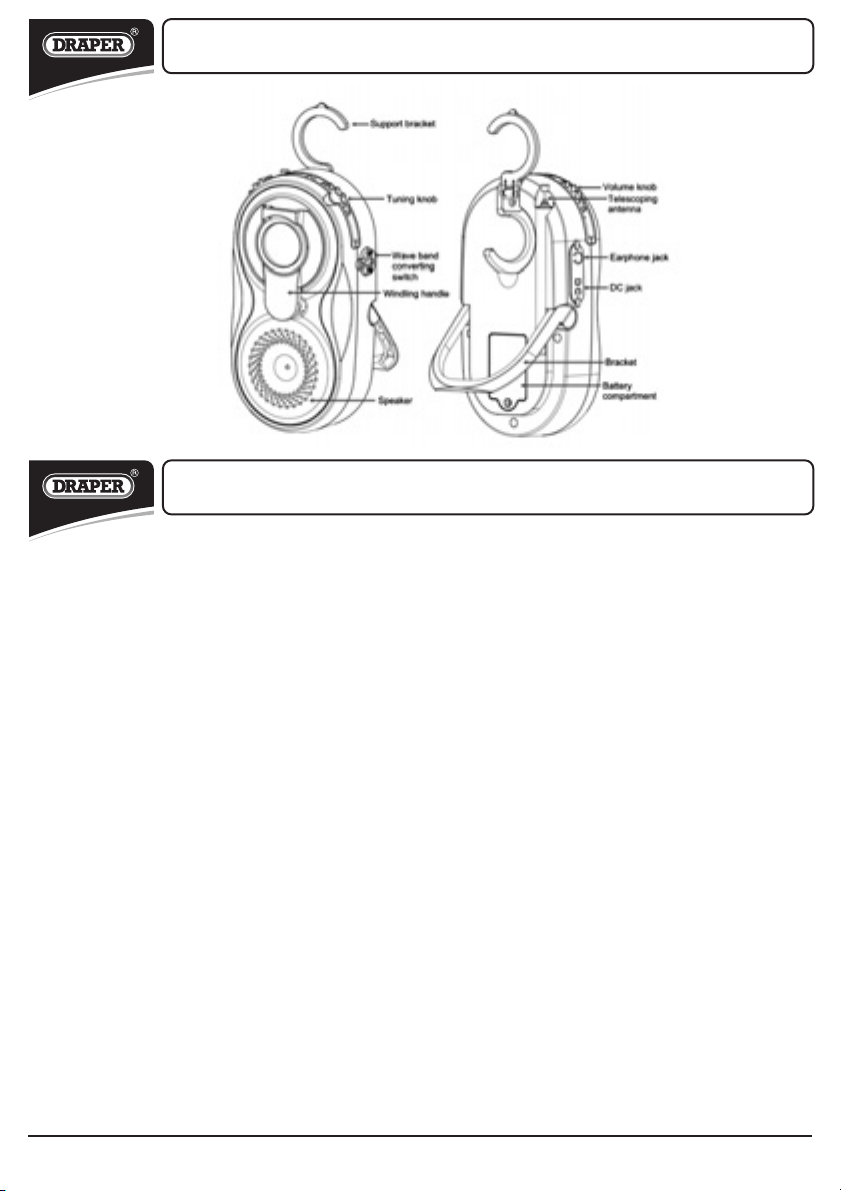

GETTING TO KNOW YOUR RADIO
