Draper STORMFORCE BS200/250SF User manual

230V 200mm / 245mm / 305mm
BANDSAW
98471 / 98468 / 98445
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions
before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every eort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modications without prior warning.

Please note that model number 98468 is illustrated throughout this instruction booklet.

– 2 –
1. TITLE PAGE
1.1 INTRODUCTION
USER MANUAL FOR: 230V 200mm / 245mm / 305mm Bandsaw
Stock Nos: 98471 / 98468 / 98445
Part Nos: BS200/250SF / BS245/420SF / BS305/750SF
1.2 REVISION HISTORY
Date rst published: July 2020.
Date rst revised: April 2022.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited Draper Tools Limited
Hursley Road Oude Graaf 8
Chandler’s Ford 6002 NL
Eastleigh WEERT
Hampshire Netherlands
SO53 1YF
UK
Website: drapertools.com
Product help line: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUAL’S SAFETY CONTENT
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or
means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.

– 3 –
2. CONTENTS
2.1 CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION ...............................................................................................................................................2
1.2 REVISION HISTORY ........................................................................................................................................2
1.3 UNDERSTANDING THIS MANUAL’S SAFETY CONTENT..................................................................2
1.4 COPYRIGHT © NOTICE .................................................................................................................................2
2. CONTENTS
2.1 CONTENTS ........................................................................................................................................................3
3. WARRANTY
3.1 WARRANTY........................................................................................................................................................5
4. INTRODUCTION
4.1 SCOPE.................................................................................................................................................................6
4.2 SPECIFICATION................................................................................................................................................6
4.3 HANDLING AND STORAGE..........................................................................................................................6
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE.........................................................7
5.2 SPECIFIC SAFETY INSTRUCTION FOR BANDSAW USE...................................................................8
5.3 RESIDUAL RISK................................................................................................................................................9
5.4 CONNECTION TO THE POWER SUPPLY..............................................................................................10
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ........................................................................................................................................... 11
7. UNPACKING AND CHECKING
7.1 PACKAGING.................................................................................................................................................... 12
7.2 WHAT’S IN THE BOX....................................................................................................................................12
8. PREPARING THE BANDSAW
8.1 INSTALLING THE TABLE ............................................................................................................................ 13
8.2 LEVELLING THE TABLE..............................................................................................................................13
8.3 RIP FENCE RAIL ............................................................................................................................................13
8.4 RIP FENCE.......................................................................................................................................................13
8.5 DUST EXTRACTION OUTLETS................................................................................................................14
9. OPERATING THE BANDSAW
.......................................................................................................................15
9.2 TILTING THE TABLE ..................................................................................................................................... 15
9.3 UPPER AND LOWER DOORS ...................................................................................................................16
9.4 BLADE GUARD SLIDE ADJUSTMENT ..................................................................................................16
9.5 TENSIONING THE BLADE..........................................................................................................................17
9.6 CHANGING AND SETTING THE NEW BLADE ....................................................................................17
9.7 TRACKING THE BLADE ..............................................................................................................................18
9.8 ADJUSTING THE UPPER BLADE GUIDE ASSEMBLY ......................................................................18
9.9 ADJUSTING THE LOWER BLADE GUIDES..........................................................................................19
9.10 MITRE GUIDE...............................................................................................................................................19
10. TIPS ON USING YOUR BANDSAW
10.1 USEFUL TIPS ...............................................................................................................................................20

– 4 –
2. CONTENTS
11. TROUBLESHOOTING
11.1 TROUBLESHOOTING GUIDE .................................................................................................................21
12. MAINTENANCE
12.1 SLIDE ADJUSTMENT ...............................................................................................................................22
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS ...............................................................................................................23
14. DISPOSAL
14.1 DISPOSAL.....................................................................................................................................................23

– 5 –
3. WARRANTY
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to
be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact
Draper Tools Limited, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Help Line [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This warranty period covering parts is 24
months and labour is 12 months from the date of purchase except where tools are hired out
when the warranty period is 90 days from the date of purchase. This warranty does not apply to
any consumable parts, any type of battery or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its
terms are not authorised.

invoice to verify your proof of purchase within the warranty period.

Draper Tools Limited.

– 6 –
4. INTRODUCTION
4.1 SCOPE
This machine is designed to cut wood, wood derived materials and plastics by means of a
revolving endless saw band which is carried on two band wheels. The work piece is manual fed
on to the saw band.
4.2 SPECIFICATION
STOCK NOS. ................................................................................................................... 98471 / 98468 / 98445
PART NOS. ...........................................................................BS200/250SF / BS245/420SF / BS305/750SF
MOTORS:
RATED VOLTAGES ................................................................................................................................. 230V~
RATED FREQUENCIES ............................................................................................................................50HZ
RATED INPUTS ..........................................................................................................250W / 420W / 750W
SPEEDS (NO LOAD) ........................................................................................................................1400RPM
MAXIMUM THROAT CAPACITIES ...................................................................... 200MM / 245MM / 305MM
CUTTING DEPTHS........................................................................................ 80MM / 120MM / 175MM AT 90°
MAXIMUM CAPACITIES UNDER GUIDES ..........................................................85MM / 115MM / 220MM
TABLE SIZES .............300 X 360–520 MM / 300 X 380–540 MM / 400 X 600–860 MM (TILT TO 45°)
BLADE SPEEDS ............................................................... 15M/SEC (900M/MIN) / 11M/SEC (660M/MIN) /
...................................................................................................12M/SEC & 6M/SEC (720M/MIN & 360M/MIN)
BANDSAW BLADE LENGTHS ......................................................................1400MM / 1790MM / 2240MM
SOUND PRESSURE LEVELS ............................................................... 90.4dB(A) / 102.3dB(A) / 90.4dB(A)
SOUND POWER LEVELS .........................................................................77.4dB(A) / 92.7dB(A) / 92.7dB(A)
WEIGHTS (NETT) ..................................................................................................................15KG / 30KG / 58KG
4.3 HANDLING AND STORAGE
– Care must be taken when handling this product.
  
personal injury. This product is not a toy and must be respected.
 
• Exposure to damp air can gradually corrode components.
• If the product is unprotected from dust and debris, components will become clogged.
• If not cleaned and maintained correctly or regularly, the machine will not perform at its
best.

– 7 –
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
When using any type of power tool there are steps that should be taken to make sure that you,
as the user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
Read the instruction manual fully. Do not attempt any operation until you have read and
understood this manual.
Most important you must know how to safely start and stop this machine, especially in an
emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during


Find a suitable location. If the machine is bench mounted the location should provide good



Keep bystanders away. Children, onlookers and passers by must be restricted from entering the
work area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left
unattended while connected to the power supply. They must be housed in a suitable location,
away locked up and from children. This includes battery chargers.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what
they are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an

tool will result in tool failure and user injury. This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can
become entangled in moving machinery. This can also result in parts of body being pulled into

ties removed. Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be
dangerous if not suitably protected against. If the work involving the power tool creates dust or
fumes wear a dust mask. Vibration to the hand, caused by operating some tools for longer
periods must be protected against. Wear vibration reducing gloves and allow long breaks
between uses. Protect against dust and swarf by wearing approved safety goggles or a face


protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes connect the machine
(if possible) to an extraction system either locally or remotely. Working outdoors can also help if
possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power
supply cable. If the product is heavy, employ a second or third person to help move it safely or
use a mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling.
This could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged or
missing parts immediately with original parts from the manufacturer. As applicable keep blades
sharp moving parts clean, oiled or greased handles clean and emergency devices working.

– 8 –
5. HEALTH AND SAFETY INFORMATION
Wait for the machine to stop.
continue to move due to momentum. Wait for all parts to stop, then unplug it from the power

using the tool.
Remove and check setting tools. Some machinery requires the use of additional tools or keys
to set, load or adjust the power tool. Before starting the power tool always check to make certain
they have been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure
the switch is in the OFF position. If the machine is portable, do not hold the machine near the
switch and take care when putting the machine down, that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension
leads. If the tool is designed for use outdoors, use an extension lead also suitable for that
environment. When using an extended lead, select one capable of handling the current (amps)
drawn by the machine in use. Fully extend the lead regardless of the distance between the power
supply and the tool. Excess current (amps) and a coiled extension lead will both cause the cable

Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power

are feeling tired. Being disorientated will result in an accident.
Have this tool repaired by a qualied person. This tool is designed to conform to the relevant
international and local standards and as such should be maintained and repaired by someone

safe to use.
5.2 SPECIFIC SAFETY INSTRUCTION FOR BANDSAW USE
Do not use saw bands which are damaged or deformed.
Replace table insert when worn.
Connect bandsaws to a dust collecting device when sawing wood.
Do not operate the machine when the door or guard protecting the saw band is open.
Take care; the selection of the saw band and the speed depends on the material to be cut.
Do not clean the saw band whilst it is in motion.
Wear suitable personal protective equipment, when necessary; this could include:
Hearing protection to reduce the risk of Induced hearing loss.
Respiratory [breathing] protection to reduce the risk of inhalation of harmful dust;
Gloves for handling the saw band and rough material.

a cut.
Use a push stick or piece of scrap wood to do the pushing and guiding when sawing small pieces


the table.

This includes tilting the table, adjusting the saw band guards, guide, tension and tracking.
Guards must be in place and securely fastened when performing any operation.
Securely lock all adjustable parts so they cannot move during operation. This will prevent
distraction from the operation.

– 9 –
When sawing curves, make relief cuts to allow removal of scrap material. This will help prevent
undue twisting or binding of the saw blade. The relief cuts are made before starting the curved
saw cut.




Use in a well ventilated area to minimise airborne dust. Use of a suitable extraction device and
PPE equipment is required.

moving parts to stop.
Before starting to cut, watch and listen to the saw while it runs. If it makes an unfamiliar noise or



When servicing use only identical replacement parts.
When straight cutting against the fence use a push stick;
During transportation the saw band guard should be fully down and close to the table;
When bevel-cutting with the table inclined, place the guide on the lower half of the table;
When cutting round timber use a suitable holding device to prevent twisting of the workpiece;
Lifting and transportation must be carried out using the indicated points only;
Do not use guarding for handling or transportation.
Move the adjustable guard as to the workpiece as practicable;
Use the correct adjustment of the saw band guards.
5.3 RESIDUAL RISK
Important: Although the safety instructions and operating manuals for our tools contain
extensive instructions of safe working with power tools, every power tool involves a certain
residual risk which can not be completely excluded by safety mechanisms. Power tools must
therefore always be operated with caution!

– 10 –
5. HEALTH AND SAFETY INFORMATION
5.4 CONNECTION TO THE POWER SUPPLY
Caution: Risk of electric shock. Do not open.
This appliance is supplied with an approved plug and cable for your safety. The value of the fuse

is of the correct rating, approved to BS1362 and ASTA or BS Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a
replacement must be obtained or the plug replaced with a suitable type.

The damaged or incomplete plug, when cut from the cable shall be disabled to prevent
connection to a live electrical outlet.
This appliance is Class I † and is designed for connection to a power supply matching that

If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instructions supplied with the extension lead.
†Earthed: This product requires an earth connection to protect against electric shock from
accessible conductive parts in the event of a failure of the basic insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding
maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound.
Using a coiled extension lead will generate heat which could melt the lead and cause a re.

– 11 –
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
(1) Upper door
(2) Lower door
(3) Tensioner for saw band
(4) Upper saw band wheel
(5) Upper door latch
(6) Blade guard adjustment
(7) Blade guard
(8) Upper blade guard
(9) Saw band
(10) Table
(11) Rip fence
(12) Rip fence rail
(13) No-volt switch
(14) Lower saw band wheel
(15) Drive belt
(16) Saw band tracking knob
(17) Table tilt [bevel] adjustment
(18) Motor
(19) Base
(20)Dust extraction port
(21) Lower door latch
(22)Mitre guide
(23)Table insert
(24)Lower blade guide
(1)
(6)
(2)
(7)
(3)
(8)
(23)
(4)
(9)
(5)
(10)
(17)
(19)
(20)
(11)
(22)
(12) (18)
(13)
(14)(15) (24)(21)
(16)

– 12 –
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that
may have happened during shipping. Lay the contents out and check them against the parts
shown below. If any part is damaged or missing, please contact the Draper Help Line (the
telephone number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the warranty period, in case the
machine needs to be returned for repair.
Warning!
– Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
– If any of the packaging is to be thrown away, make sure they are disposed of correctly,
according to local regulations.
7.2 WHAT’S IN THE BOX

Note: For details of our full range of accessories and consumables, please visit drapertools.com
(25) Push stick
(26) Upper dust port
(27) Finger protection
(28) 2 x hex. keys (3 & 5 mm)
(29) 2 x open-ended spanners
(30) Plain slot screwdriver
(31) 4 x M6x 12mm pan head screws,
4 x 6mm washers (not pictured).
(25)
(26)
(27)
(30)
(28)
(29)

– 13 –
8. PREPARING THE BANDSAW
Note: Remove the plug from the socket before
carrying out adjustment, servicing or
maintenance.

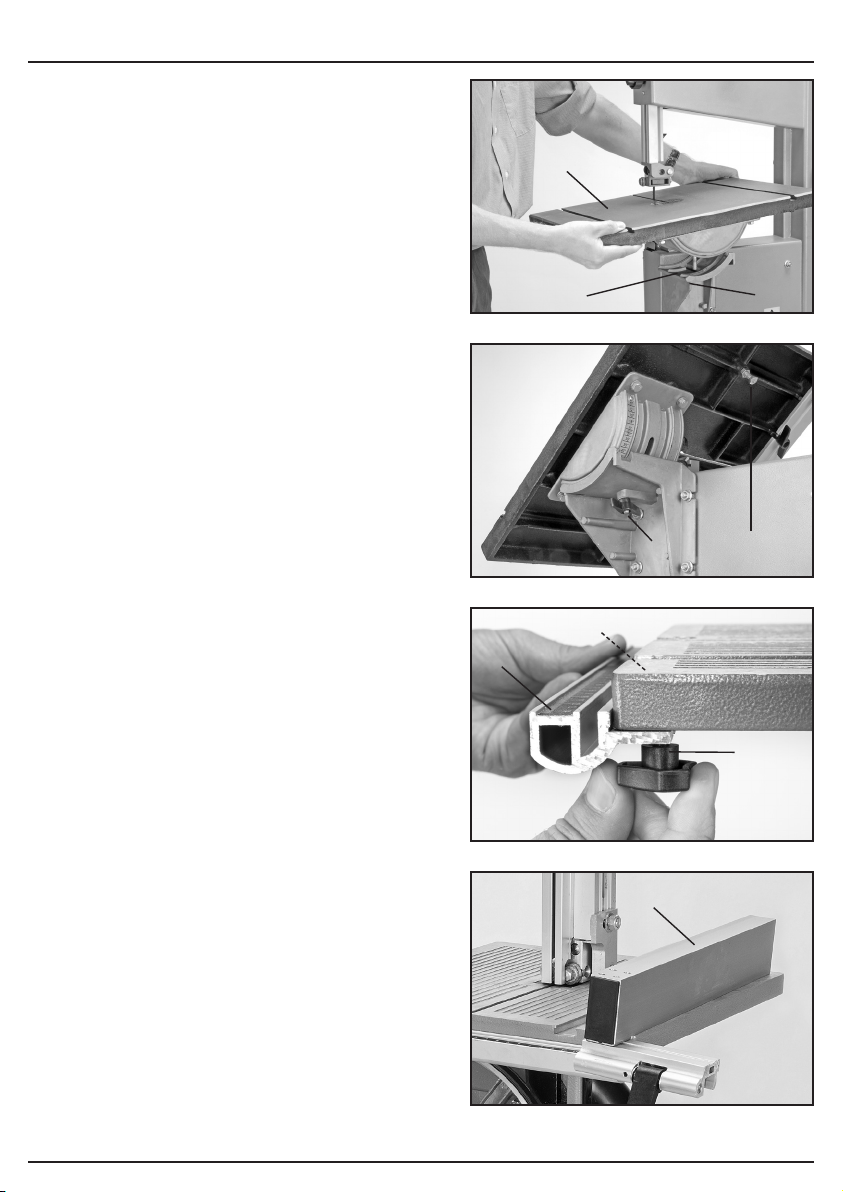

8.1 INSTALLING THE TABLE – FIG. 1
Place the table (10) on to the table tilt adjustment
(17) and align the hole underneath to line up
with cradle. Secure using the plastic wing nut
provided (17.1).
8.2 LEVELLING THE TABLE – FIG. 2
The saw table can be tilted up to 45°. To tilt,
loosen the wing nut (17.1) on the cradle. A stop
(10.1) on the underside of the table rests on the
lower wheel housing when the table is at 90° with
the blade. Loosen the lock nut and turn the bolt in
or out,
as required, to change angle against the saw
band. Use a spirit level to check the table is
square.
8.3 RIP FENCE RAIL – FIG. 3
Place the rip fence rail (12) on the front edge of
the table and tighten in place with the two thumb
knobs (10.2) and the central hex. bolt (not shown)
(10.3).
8.4 RIP FENCE – FIG. 4
Attach the rip fence (11) to the rip fence rail as
shown to secure the fence.
FIG. 1
FIG. 2
(10)
(10.1)
(17.1)
(17.1)
(10.2)
(17)
FIG. 3
FIG. 4
(12)
(10.3)
(11)

– 14 –
8. PREPARING THE BANDSAW
8.5 DUST EXTRACTION OUTLETS –
FIGS. 5 & 6
First, attach upper dust port (26)
protection (27) with pan head screws and
washers (31).
Note: Inhalation of dust particles can be
detrimental to your health. The dust outlet must
be connected with a dust extraction machine.
Note: 
may be necessary. All wood dust [including dust


the respiratory system and the skin for example

contain formaldehyde [a known carcinogen].
In addition to the above measures a correctly

accordance to the relevant standard, must be
worn. For work activities involving exposure to

should be used.
FIG. 5
FIG. 6
(31)
(26) (27)

– 15 –
9. OPERATING THE BANDSAW
Note: Removing the plug from the socket before
carrying out adjustment, servicing or
maintenance.
9.1 NO-VOLT ON/OFF SWITCH –
FIG. 7
(13).
To switch the bandsaw on, push the green button
marked ‘I’.

marked ‘0’.
In the event of a power failure the bandsaw will
have to be manually re-started.
9.2 TILTING THE TABLE – FIG. 8
Using the bevel indicator (10.4) as a guide the
angle of the table can be adjusted between
0° and 45°. To tilt, loosen the wing nut (17.1).
When set, secure.
Note: When greater accuracy is required,
make practice cuts on waste material and adjust
the table as necessary.
FIG. 7
FIG. 8
(17.1)
(13)
(10.4)

– 16 –
9. OPERATING THE BANDSAW
9.3 UPPER AND LOWER DOORS –
FIG. 9
To open the doors insert plain slot screwdriver
(30) into upper door latch (5) and lower door
latch (21) and rotate the latch as indicated on
label until the door is released.
To lock the door insert screwdriver back into slot
and rotate the latch in the opposite direction.
Warning!

the upper door. This safety feature will de-activate
the machine when the door is open.
9.4 BLADE GUARD SLIDE
ADJUSTMENT – FIG. 10
The blade guard (7) should be adjusted to within
3mm of the workpiece. Always adjust the blade
guide assembly to suit the workpiece before each
operation. Loosen the blade guard adjustment
(6) to raise or lower the guard. When complete,
tighten to secure.
FIG. 10
(5)
(21)
(6)
(7)
FIG. 9

– 17 –
9.5 TENSIONING THE BLADE – FIG. 11
Turn the tensioner for saw band (3) clockwise
until the blade is tensioned. The blade tension can
be checked by pushing down on the blade
midway between the two wheels. When the
tension is correct the blade should move slightly

Note: Do not overtighten the blade. Too much
tension may cause blade breakage. Too little
tension may cause the blade to slip on the wheels.
9.6 CHANGING AND SETTING THE NEW
BLADE – FIGS. 12 – 13
To change the saw band, remove the rip fence rail
from the table and then remove the table. Slacken
the blade tension with the tensioner, open both
doors and remove the blade carefully.
Fit the new saw band carefully [with the teeth
facing down]. When the saw band is located
correctly through the guide and is sat centrally on
the upper and lower wheels, operate the tensioner
to re engage the tension.
As the tension has been released during this
process, the tracking should be checked and
adjusted as per page 18. The blade should run in
the centre of the rubber lined bandsaw wheels

Warning!
Select a blade suitable for the intended material
and use on this machine. Read the safety
instructions.
FIG. 11
FIG. 12
FIG. 13
(3)

– 18 –
9. OPERATING THE BANDSAW
9.7 TRACKING THE BLADE –
FIGS. 14 – 15
Note: The blade tension must be correctly
adjusted before tracking the blade.
Slowly turn the upper saw band wheel (4)
clockwise by hand and watch the blade on the
tyre. If the blade does not stay central on the tyre
the tracking will have to be adjusted. To adjust the
upper wheel tracking loosen the saw band
tracking knob (16) clockwise if the blade runs
towards the front of the saw or anti-clockwise if
the blade runs towards the rear of the saw. Watch
the reaction of the small adjustments on the
blades tracking.
9.8 ADJUSTING THE UPPER BLADE
GUIDE ASSEMBLY – FIGS. 16 – 17
The upper blade guide (8) ensures an exact clean

cutting line. Especially when using narrow blades
ensure that the blade guides positively support
the blade from both sides and the rear.
Set the bearings of the upper blade guide to
within approximately 0.15mm of the blade, and
the thrust bearing at the back of the blade, just
clear of it.
Do not set the bearing too close, as the friction

on the bearings and the saw band as well.
For adjustments: Loosen nut (8.1) enabling the
two side bearing guides to be moved closer to the
blade. When in position, retighten.
Ensure the grub screws (8.2) are tight and that
the guide is square before operating.
FIG. 14
FIG. 15
(4)
(16)
FIG. 16
FIG. 17
(8.1)
(8.2)
(8)

– 19 –
9.9 ADJUSTING THE LOWER BLADE
GUIDES – FIG. 18
First open the lower door to make any
adjustments to the lower blade guide (24).
The two side bearings must be adjusted by
loosening socket hex. bolt (24.1).The rear bearing
guide can be adjusted by loosening the hex. bolt
(24.2).
Warning!
Do not start the bandsaw until all blade guides
have been correctly adjusted and all locking
screws and bolts are secured.
9.10 MITRE GUIDE – FIG. 19
Most cross cut work, especially with small pieces
is more easily controlled with the use of the mitre
guide (22)
left and right hand angles.
Simply slide the guide into the channel provided in
the work table.
To alter the angle loosen knob (22.1), set to
desired angle and retighten.
Note: The scale on the mitre guide is a guide only.
FIG. 18
FIG. 19
(22.1)
(22)
(24)
(24.1)
(24.2)

– 20 –
10. TIPS ON USING YOUR BANDSAW
10.1 USEFUL TIPS
For all cutting operations the upper blade guard should be adjusted to just clear the work being
cut (3mm). Not only does this provide the best operator safety, but it also brings the blade guides
closer to the work giving more accurate results and easier control.


blade cutting.
Always use a rip fence or mitre guide where possible to eliminate any sideways slip of the work.
This is most important when the table is tilted to an angle.


motor and allow the blade to come to a complete stop before backing the blade out of the cut.
Remember that the blade removes material during the cut. This gap created by the blade is


Rip sawing
This term refers to the cutting of timber with the grain rather than at a right angle to the grain.
You can rip wood freehand to a previously drawn line, but best results are obtained by using the
rip fence. If the table is set at a level angle set the rip fence to the left hand side of the blade.

indicator on right hand side of the blade if the width of the workpiece allows it.
With the fence on the downhill side of the table it will help support the work against slipping.
The width cut indicator shows the distance between the blade and the rip fence.
When cutting long pieces, consider making cuts from the waste edge up to the cut line, then the
waste will fall away in small sections as you make the cut. The workpiece may need additional
support to stop it from bending and causing the blade to bind, this can be achieved with a table
at the correct height or an assistant, provided that they have been trained in the use of the
machine and are aware of all safety implications.
Cross cutting
This term refers to cutting of timber at right angles to the grain. This type of cut can also be
made freehand but the mitre guide is used to ensure accurate results. The mitre guide can be

cuts.


Freehand sawing

features of the bandsaw. Select a blade suitable for cutting the smallest radius in the work you
have planned.
When freehand cutting always feed the work slowly so that the blade can follow the line you wish


corners. In the case of very sharp curves which may be too tight for the blade, make relief cuts

