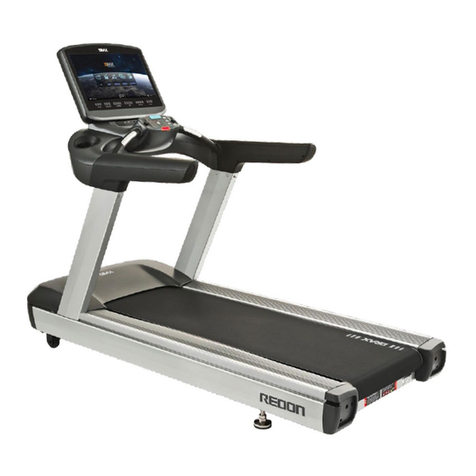

DRAX New Redon Instruction Manual

DRAX
New Redon
Treadmill
Installation
User
Manual
1

1. Remove motor cover
2. Connect cable set from
frame through left side support
post into console
3. Fasten both side support
post with bolts
4. Fasten console with bolts
5. Open back cover of console
6. Connect cable set from
console frame into console
7. Make sure plastic parts set
into original position before
fasten bolts.
[in case of new product
shipped from factory, no need
to proceed no. 5 ~ no. 7]
!
"
#
$
%
&
'
!2

（5）
（4）
（3）
（2）
（1）
!3
1. Recommend fasten bolts
into following order from (1)
to (5) in order to confirm
solid assembly.
2. (1),(2) Fasten two bolts first
but very loosely
3. (3) Fasten this bolt very
firmly
4. (4),(5) Again fasten two
bolts very firmly

!4
Heart Rate (Touch)
Incline Fast Switch
Emergency Switch
Speed Fast Switch
Heart Rate (Touch)
Start / Stop

!5
Shortcut
Incline
Adjust Volume
Emergency Stop Temporary Stop
CoolDown
PROGRAM
Shortcut
Speed
START / STOP
TV ChannelScreen ON/OFF

!6
Power Switch
Coaxial TV cable
connect
HDMI cable connect
(IPTV)

!7
Select Language
Admin Setup
Smartphone
Mirroring
Virtual Trainer
Internet Service
Workout Program
Watch Video
Watch TV
LED window
(continuously display
Important workout
informations)

!8
In order to watch TV,
press ‘TV’
To install TV channel
setup for the first time,
press ‘Setup’

!9
(1) input number “1100”
(2) Press “Admin Setup”

!10
(1) Press “TV Setup”

!11
(1) Press “Menu”
(2) In order to move and select, need to use arrow key and
OK key on membrane keypad

!12
(1) There will be menu window on left side
(2) Press “Down” to move to “TV”

!13
(1) After move to TV, then press “OK”

!14
(1) There will be menu window on left side
(2) Press “Down” to move to “Channel Scan”

!15
(1) After move to Channel Scan, then press “OK”

!16
(1) Scanning channels
(2) Scan Completed
(3) Back to home screen

!17
(1) Input USB including audio/
video files
(2) Press “Video”
(1) Two USB port
(2) Support smartphone charge
(1) Ear phone
(2) Head phone

!18
(1) In order to use preset
workout program, press
“WORKOUT”
(1) Manual mode : target time,
target distance, target calory

!19
(1) FAT BURN : Designed to keep user’s heart rate at 65% of maximum
heart rate (need heart rate check system)

!20
(1) CARDIO : Designed to keep user’s heart rate at 80% of maximum
heart rate (need heart rate check system)
