VigorPhone 300
User’s Guide
Version: 1.0
Date: 05/03/2012

iii
Copyright Information
Copyright
Declarations
Copyright 2012 All rights reserved. This publication contains information that is
protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language without written permission from the
copyright holders.
Trademarks
The following trademarks are used in this document:
zMicrosoft is a registered trademark of Microsoft Corp.
zWindows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are trademarks of
Microsoft Corp.
zApple and Mac OS are registered trademarks of Apple Inc.
zOther products may be trademarks or registered trademarks of their respective
manufacturers.
Safety Instructions and Approval
Safety
Instructions
zRead the installation guide thoroughly before you set up the device.
zThe router is a complicated electronic unit that may be repaired only be authorized
and qualified personnel. Do not try to open or repair the router yourself.
zDo not place the device in a damp or humid place, e.g. a bathroom.
zThe device should be used in a sheltered area, within a temperature range of +5 to
+40 Celsius.
zDo not expose the device to direct sunlight or other heat sources. The housing and
electronic components may be damaged by direct sunlight or heat sources.
zDo not deploy the cable for LAN connection outdoor to prevent electronic shock
hazards.
zKeep the package out of reach of children.
zWhen you want to dispose of the device, please follow local regulations on
conservation of the environment.
Warranty
We warrant to the original end user (purchaser) that the device will be free from any
defects in workmanship or materials for a period of two (1) years from the date of
purchase from the dealer. Please keep your purchase receipt in a safe place as it serves
as proof of date of purchase. During the warranty period, and upon proof of purchase,
should the product have indications of failure due to faulty workmanship and/or
materials, we will, at our discretion, repair or replace the defective products or
components, without charge for either parts or labor, to whatever extent we deem
necessary tore-store the product to proper operating condition. Any replacement will
consist of a new or re-manufactured functionally equivalent product of equal value, and
will be offered solely at our discretion. This warranty will not apply if the product is
modified, misused, tampered with, damaged by an act of God, or subjected to abnormal
working conditions. The warranty does not cover the bundled or licensed software of
other vendors. Defects which do not significantly affect the usability of the product will
not be covered by the warranty. We reserve the right to revise the manual and online
documentation and to make changes from time to time in the contents hereof without
obligation to notify any person of such revision or changes.
Be a Registered
Owner Web registration is preferred. You can register your device via
http://www.draytek.com.
Firmware & Tools
Updates Due to the continuous evolution of DrayTek technology, all devices will be regularly
upgraded. Please consult the DrayTek web site for more information on newest
firmware, tools and documents.
http://www.draytek.com

iv
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the use is encouraged to try to correct the interference by one of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different form that to which the receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause undesired operation.
Please visit http://www.draytek.com/user/AboutRegulatory.php.
CE Notice (European Union)
The symbol indicates compliance of this equipment to the EMC Directive and the Low Voltage Directive of
the European Union. These markings indicate that this system meets the following technical standards:
zEN 55022 — “Limits and Methods of Measurement of Radio Interference Characteristics of Information
Technology Equipment.”
zEN 55024 — “Information technology equipment - Immunity characteristics - Limits and methods of
measurement.”
zEN 61000-3-2 — “Electromagnetic compatibility (EMC) - Part 3: Limits - Section 2: Limits for
harmonic current emissions (Equipment input current up to and including 16 A per phase).”
zEN 61000-3-3 — “Electromagnetic compatibility (EMC) -Part 3: Limits - Section 3: Limitation of
voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current up to and
including 16 A.”
zEN 60950 — “Safety of Information Technology Equipment.”

v
Table of Contents
Chapter 1 Overview ...........................................................................................................7
1.1 Package Contents..................................................................................................................7
1.2 Product Description................................................................................................................8
1.2.1 Front View....................................................................................................................................8
1.2.2 Back View....................................................................................................................................9

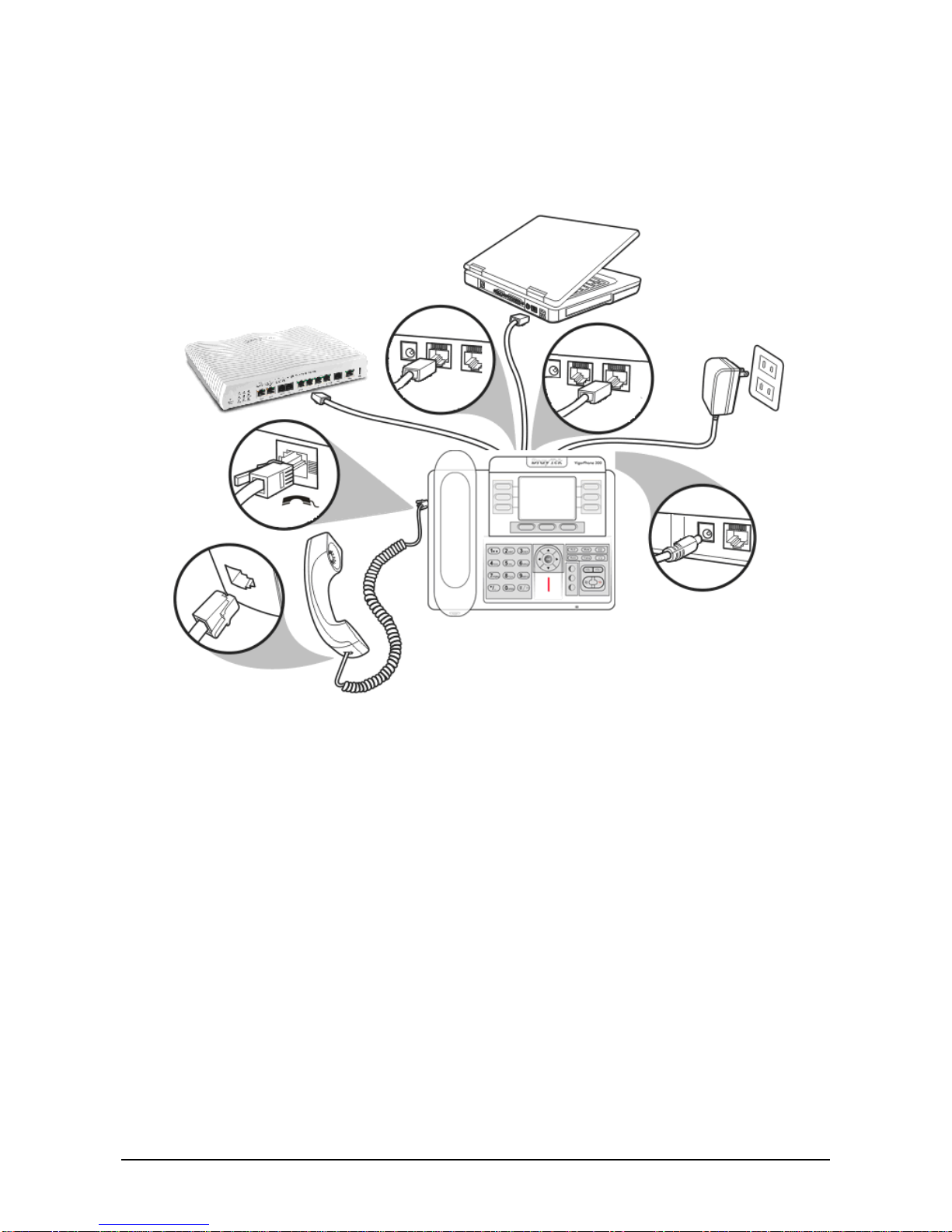

1.3 Setting Up the Phone ...........................................................................................................10
Chapter 2 Display Screen Configuration.......................................................................11

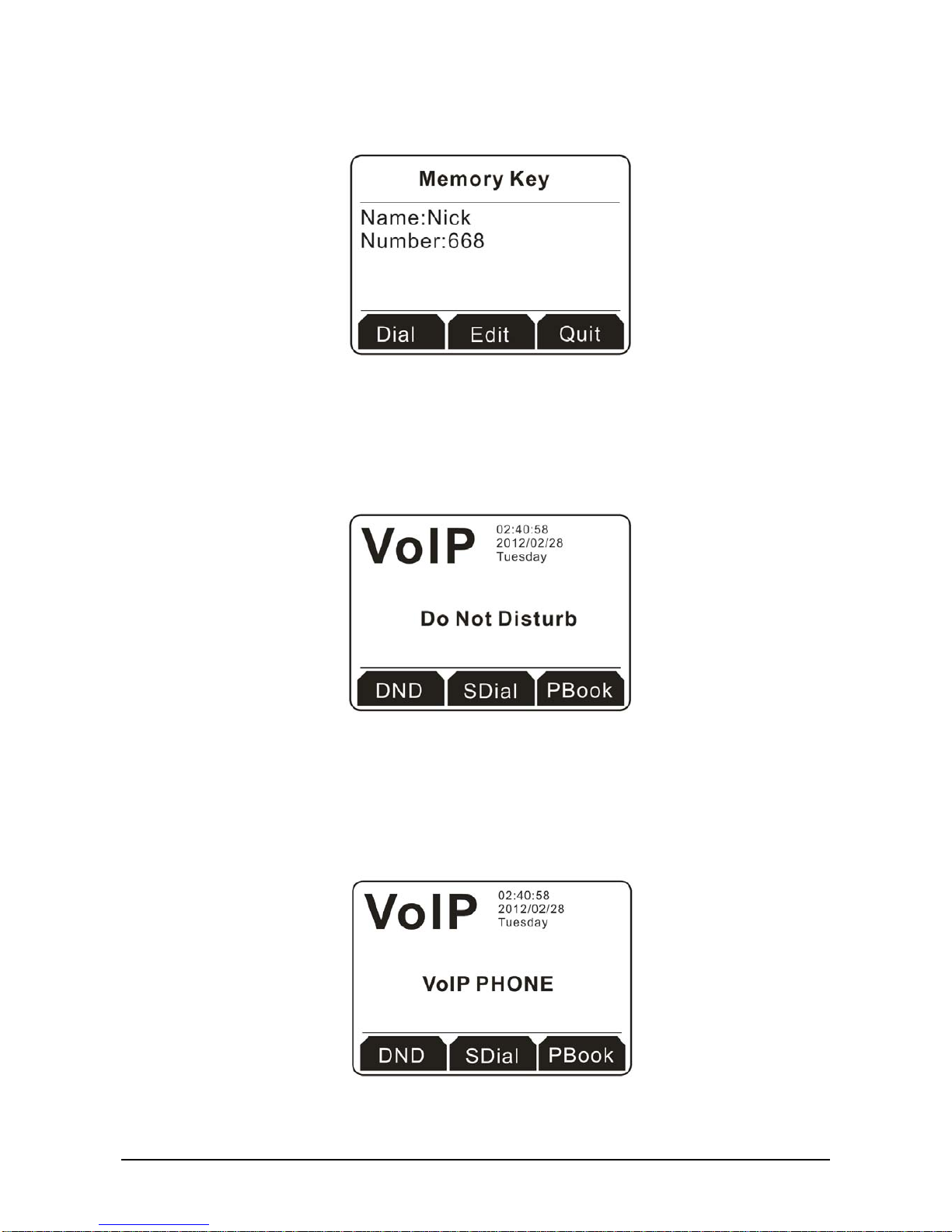

2.1 Memory Key .........................................................................................................................11
2.1.1 Dialing with Memory Key...........................................................................................................11

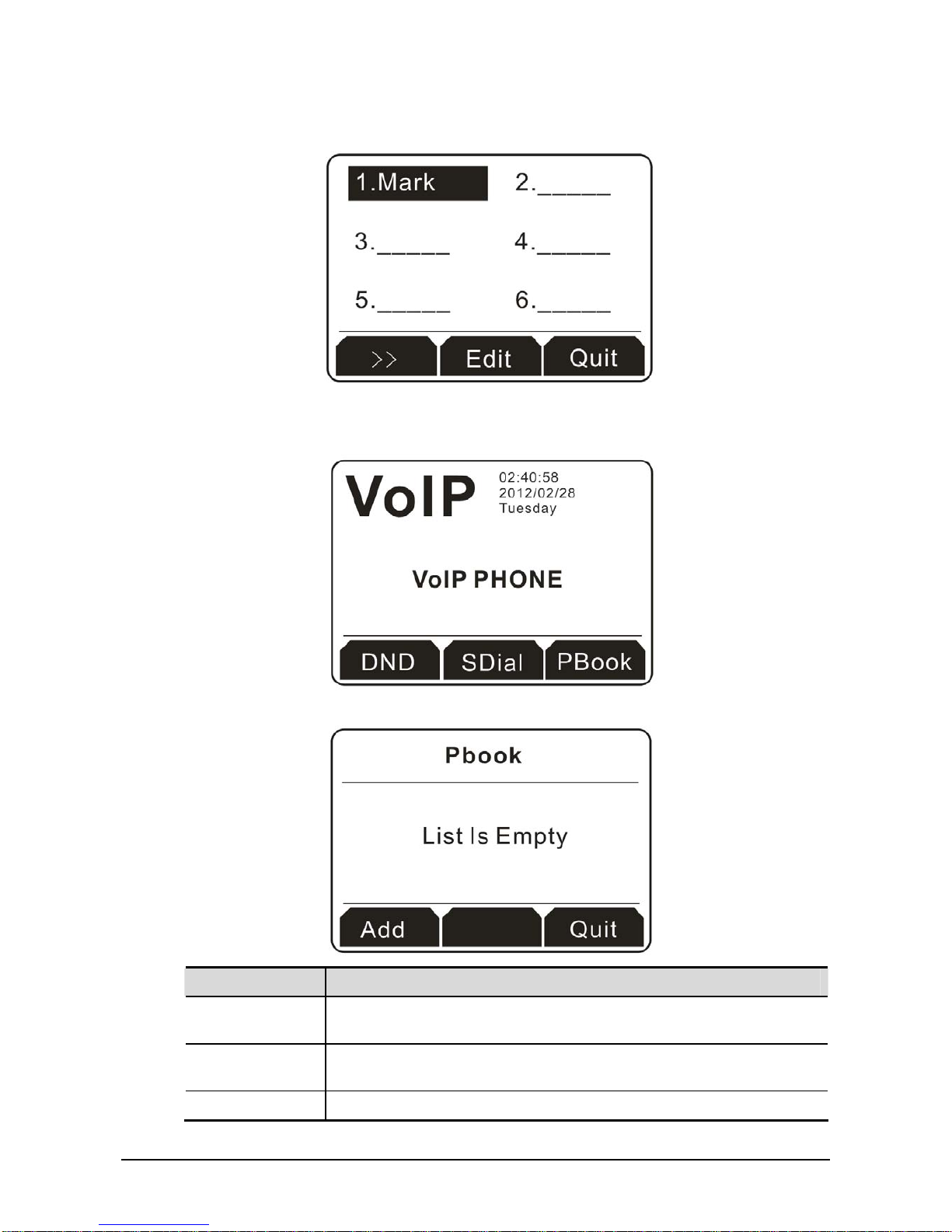

2.1.2 Edit the Memory Key .................................................................................................................12
2.1.3 Exit the Memory Key..................................................................................................................13
2.2 Do Not Disturb......................................................................................................................13
2.3 Speed Dial............................................................................................................................13

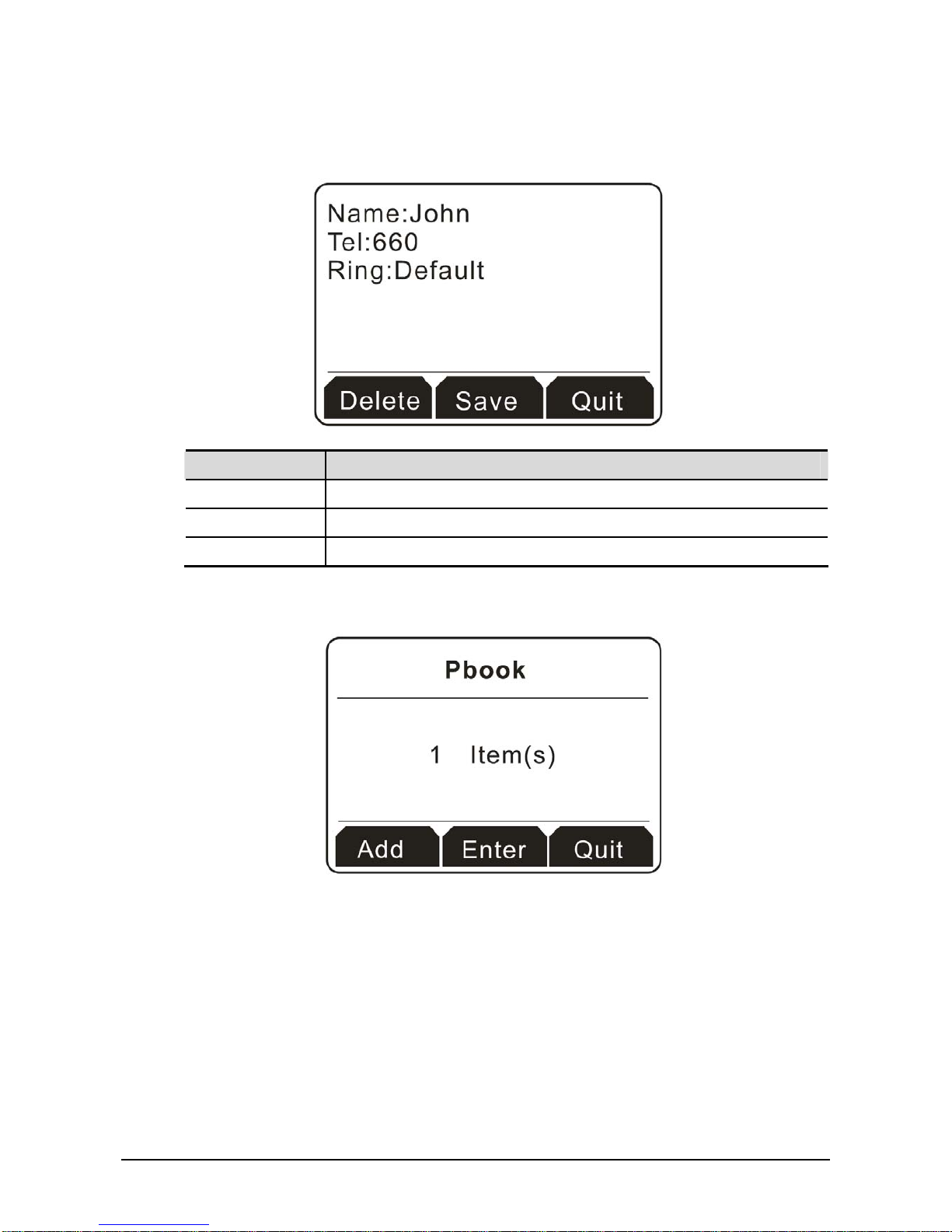

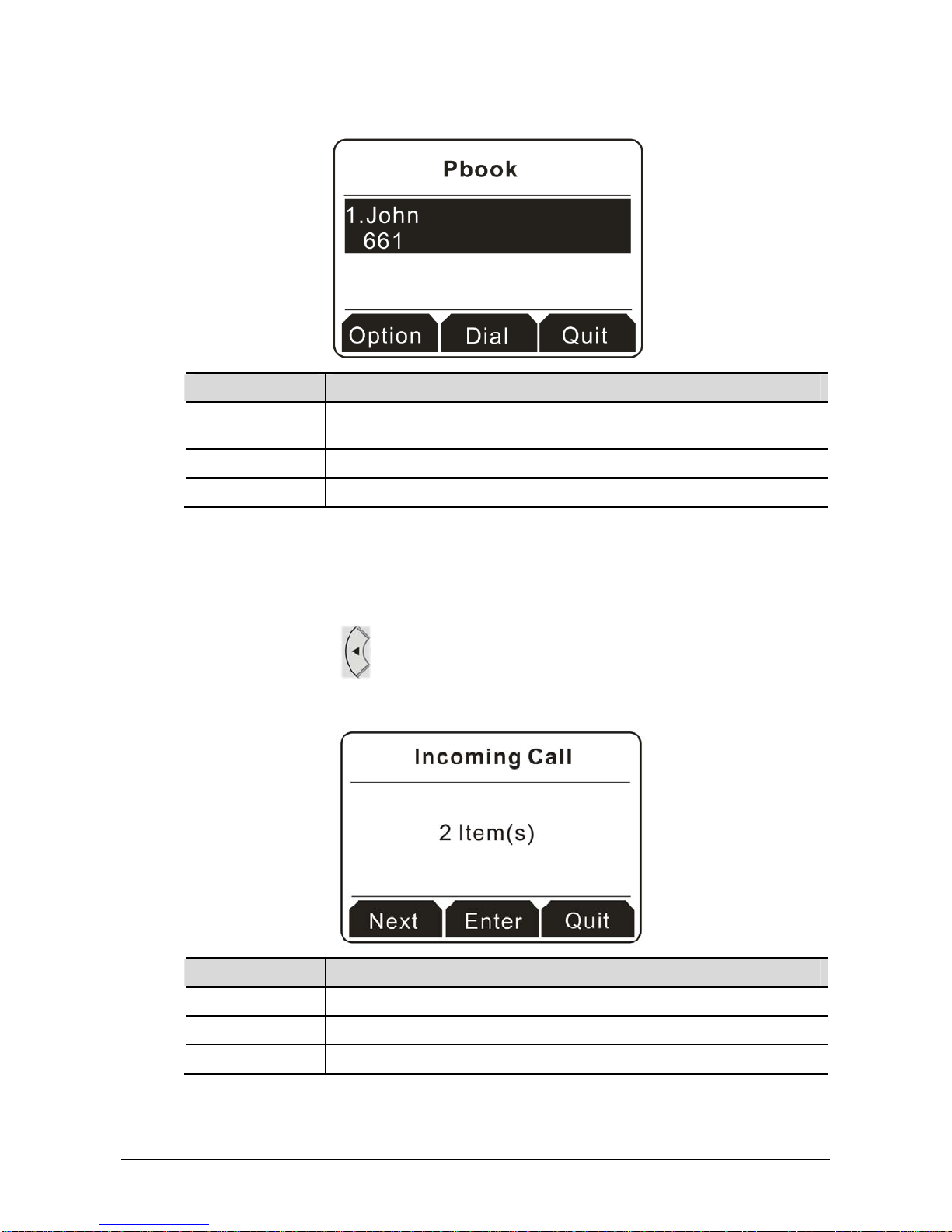

2.4 Phone Book..........................................................................................................................15
2.5 Incoming/Outgoing Call........................................................................................................17
2.6 Missed Call and Indicator Light ............................................................................................19
Chapter 3 Web Configuration .........................................................................................21
3.1 Basic.....................................................................................................................................22
3.1.1 Status.........................................................................................................................................22
3.1.2 Wizard........................................................................................................................................23
3.1.3 Call Log......................................................................................................................................29
3.1.4 MMI Set .....................................................................................................................................29
3.2 Network ................................................................................................................................30
3.2.1 WAN .........................................................................................................................................31
3.2.2 LAN.. .........................................................................................................................................34
3.2.3 QOS. .........................................................................................................................................35
3.2.4 Service Port...............................................................................................................................37
3.2.5 DHCP Server.............................................................................................................................38
3.2.6 SNTP.........................................................................................................................................40
3.3 VoIP......................................................................................................................................42
3.3.1 SIP... .........................................................................................................................................42
3.3.2 IAX2. .........................................................................................................................................48
3.3.3 STUN.........................................................................................................................................49
3.3.4 Dial Peer....................................................................................................................................50
3.4 Phone...................................................................................................................................55

vi
3.4.1 DSP . .........................................................................................................................................55
3.4.2 Call Service................................................................................................................................58
3.4.3 Digital Map.................................................................................................................................60
3.4.4 Phone Book...............................................................................................................................62
3.4.5 Function Key..............................................................................................................................63
3.5 Maintenance.........................................................................................................................65
3.5.1 Auto Provision............................................................................................................................65
3.5.2 Syslog........................................................................................................................................66
3.5.3 Config ........................................................................................................................................68
3.5.4 Update.......................................................................................................................................69
3.5.5 Account......................................................................................................................................70
3.5.6 Reboot.......................................................................................................................................71
3.6 Security.................................................................................................................................71
3.6.1 MMI Filter...................................................................................................................................72
3.6.2 Firewall ......................................................................................................................................72
3.6.3 NAT.. .........................................................................................................................................75
3.6.4 VPN . .........................................................................................................................................77
3.7 Logout...................................................................................................................................78
Chapter 4 Operation ........................................................................................................79
4.1 Set up VigorPhone 300 with VigorIPPBX Series..................................................................79
4.2 Answer Call ..........................................................................................................................84
4.3 Place Calls............................................................................................................................85
4.4 End Calls..............................................................................................................................86
4.5 Call Transfer.........................................................................................................................87
4.6 Call Hold...............................................................................................................................87
4.7 3-way Conference Call.........................................................................................................87
4.8 Call Records.........................................................................................................................87
4.9 Special Keys.........................................................................................................................88
4.10 Call Pickup..........................................................................................................................89
4.11 Join Call..............................................................................................................................89
4.12 Redial/Un-redial..................................................................................................................90
4.13 Click to Dial.........................................................................................................................90
Appendix A Specifications..............................................................................................91
A.1 Specification.........................................................................................................................91
A.2 Digit-character Map Table....................................................................................................92

Chapter 5 Operation
7
C
Ch ha ap pt te er r 1 1 O Ov ve er rv vi ie ew w
VigorPhone enables you to make phone calls through the IP network instead of calling through a
tradition local PSTN line.
It is workable with VigorIPPBX series for auto provision capability. To manage various calling
purposes, VigorPhone supports multi-sip registration with different accounts (up to 10) and support
G.722 codec for promoting voice quality. The simple WEB UI based configuration allows you to
operate VigorIPPBX with ease.
Read this user manual carefully to learn how to operate this product and take advantage of its features.
1
1. .1 1 P Pa ac ck ka ag ge e C Co on nt te en nt ts s
When unpacking the VoIP phone, ensure all the following items are present and undamaged. If anything
appears to be missing or broken, contact your dealer for a replacement.
nIP Phone oCD pQuick Start Guide qRJ-45 Cable
(Ethernet)
r
Phone Stand /Bracket
s
Handset
t
UK-type power adapter
USA/Taiwan-type
power adapter
EU-type power adapter
AU/NZ-type Power
Adapter

8
1
1. .2 2 P Pr ro od du uc ct t D De es sc cr ri ip pt ti io on n
This VoIP Phone features based on SIP (RFC 3261). Please familiarize yourself with the functions of
the VoIP phone.
1

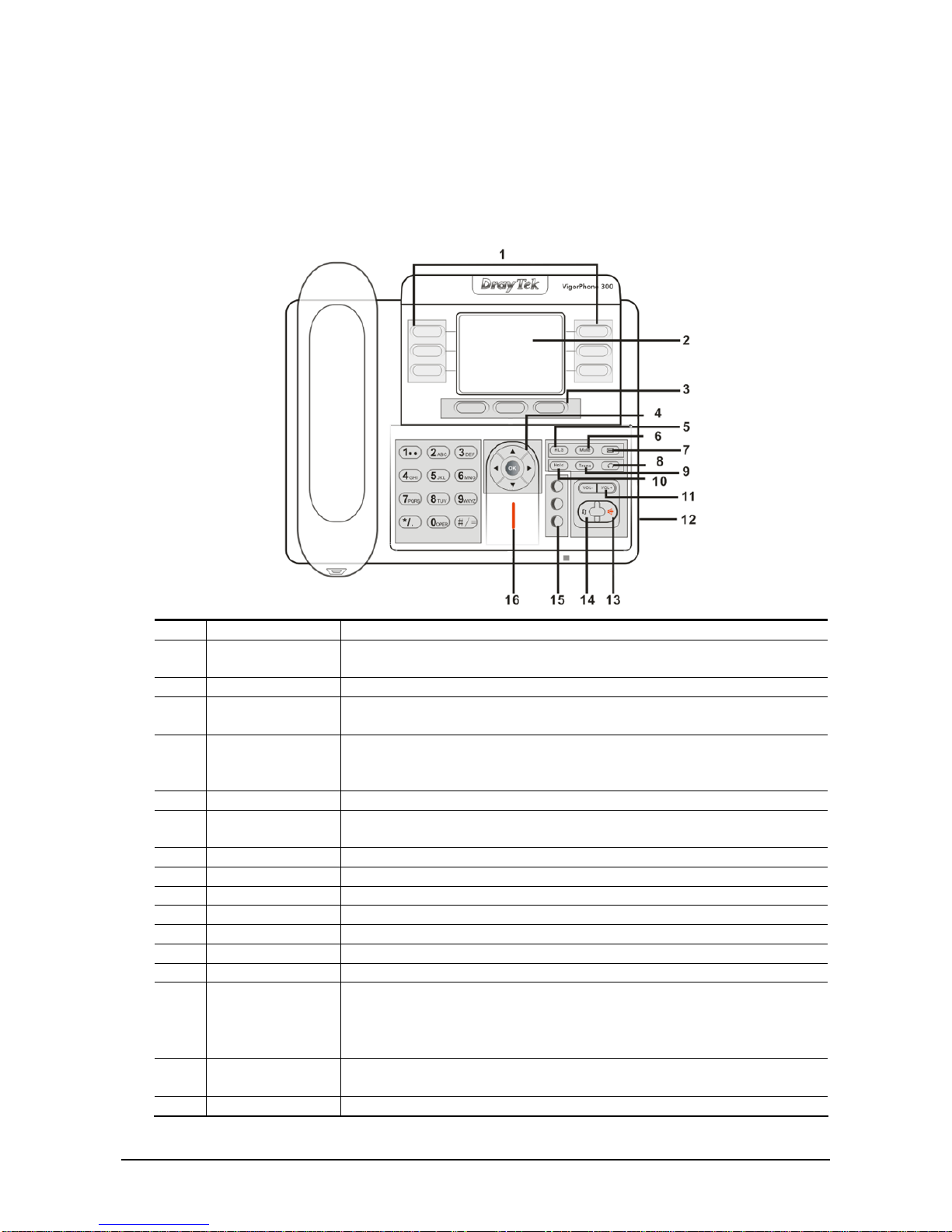

1. .2 2. .1 1 F Fr ro on nt t V Vi ie ew w
Item Name Description
1 Memory key (1-6) Users could store their commonly used number in these keys, and call
for them as speed dial.
2 Display Screen Displays calls and status information.
3 Soft key 1/2/3 Keys combination, include functions such as SMS / SDial /PBook
/Answer /Conf /Enter /Save /Quit /Edit /Redial and so on.
4 Navigation Left: Checking Incoming call / Up: Checking Missed Call
Right: Checking line status / Down: Checking IP info
OK: Enter into the phone's menu
5 Release key Skip to stand-by mode.
6 Mute Press this key in calling mode, you can hear the other side, and the other
side can not hear you.
7 Envelope LED inside, if blinks remind user have new voicemail.
8 HeadSet Button Place and receive calls through an optionally connected headset.
9 Transfer Use the key to realize blind transfer or attended transfer.
10 Hold Temporarily hold the active call during the talking.
11 Volume -/+ Turn down or turn up the volume by pressing these two keys
12 Headset Jack Allow to connect another headset optionally. (Port type: 3.5mm jack)
13 Hands-free Make the phone into hands-free mode.
14 Redial zIn the hook off /hands-free mode, use the key to dial the last call
number.
zIn stand-by mode, it has a function to check the OUTGOING
CALL.
15 Line1/2/3 Three SIP lines allow you to select any one to make the call, if it has
been registered.
16 Indicator light If the light blinking, indicate the phone has missed call(s).

9
1
1. .2 2. .2 2 B Ba ac ck k V Vi ie ew w
Item Name Description
1 Headset Jack Connects to an external headset.(RJ-9)
2 Handset Jack Connects to the phone.(RJ-9)
3 LAN/PC Port Connects to PC. 10/100Mbps RJ-45 port for PC (downlink)
connection. Connects to LAN cable.
4 WAN/ PoE Port 10/100Mbps RJ-45 port for LAN (uplink) connection. If you are
using Power over Ethernet (PoE), the power to the phone is supplied
when you connect the Ethernet cable. Draws power from either spare
line or signal line.
5 Power Jack Connects to AC power adapter. 5V AC power port.

10
1
1. .3 3 S Se et tt ti in ng g U Up p t th he e P Ph ho on ne e
The following illustration shows how to connect the VoIP phone to power, LAN, WAN, and the handset
or a headset.

11
C
Ch ha ap pt te er r 2 2 D Di is sp pl la ay y S Sc cr re ee en n C Co on nf fi ig gu ur ra at ti io on n
The menu directory enables you to setup the product configuration from Phone Settings, VoIP settings,
and Network settings. Follow these steps to access the menu and the menu items.
Below shows the LCD of VigorPhone (successful hardware connection):
2
2. .1 1 M Me em mo or ry y K Ke ey y
Memory keys (also called function keys in the web configurator of Phone>>Function Key) can be set
with specific type, value, line and other function parameters (speed dial, push to talk, DND and so on).
You can go to Phone>>Function Key to configure the settings in details.
If you just want to edit the name and /or the number for each memory key, you can click one of the
memory keys on the IP phone to change it.
2
2. .1 1. .1 1 D Di ia al li in ng g w wi it th h M Me em mo or ry y K Ke ey y
Simply press the memory key (1 – 6) you want and click Dial.

12
2
2. .1 1. .2 2 E Ed di it t t th he e M Me em mo or ry y K Ke ey y
1. Click one of the memory keys you want. In default, all the telephone numbers will be displayed with
Null if you haven’t created any memory key.
Button Explanation
Dial Have a phone call to the selected one.
Edit Modify the information for the selected one.
Quit Exit and return to previous page.
2. Click the soft key under Edit. The name and the number will be cleared and ask you to type new
entries.
3. In the field of Name, please type Nick; and in the field of Number, please type 668.
Button Explanation
Delete It allows you to remove the information you type.
Save Save the information you type.
Quit Exit and return to previous page.

13
4. Click the soft key under Save to store the settings. Now, memory key 1 has been changed with new
name and number.
2
2. .1 1. .3 3 E Ex xi it t t th he e M Me em mo or ry y K Ke ey y
Simply press the soft key under Quit to exit the memory key and return to the home page.
2
2. .2 2 D Do o N No ot t D Di is st tu ur rb b
Simply press the soft key under DND button on the home page. The screen will be shown as below.
Now, you don’t need to worry about the incoming phone calls to interrupt your work.
2
2. .3 3 S Sp pe ee ed d D Di ia al l
Speed dial means user can make calls directly without hook off or using hands-free.
1. Press the soft key under SDial to access into the configuration page. There are 12 groups that you
can set as speed dial numbers.

14
2. Use the Navigation keys to move up, down, left or right to choose the one you want. In this case,
we choose #1 as an example.
Button Explanation
>> Click it to access into next entry.
Edit Modify the information for the selected one.
Quit Exit and return to previous page.
3. Next, click the soft key under Edit to display the following screen. In the field of Name, please type
Mark; and in the field of Tel, please type 667.
Button Explanation
Delete It allows you to remove the information you type.
Save Save the information you type.
Quit Exit and return to previous page.

15
4. Click the soft key under Save to store the settings. Now, speed dial # 1 has been changed with new
name and number.
2
2. .4 4 P Ph ho on ne e B Bo oo ok k
1. Press the soft key under PBook to access into the configuration page.
2. For there is no phone book created, the LCD displays the message of “List Is Empty”.
Button Explanation
Add It allows you to add a new name and telephone number to the phone
book.
Enter This button is available only when there is at least one item existed. If
not, it will be blank.
Quit Exit and return to previous page.

16
3. Click the soft key under Add to display the following screen. In the field of Name, please type John;
and in the field of Tel, please type 660.
Button Explanation
Delete It allows you to remove the information you type.
Save Save the information you type.
Quit Exit and return to previous page.
4. Click the soft key under Save. When such item is created successfully, the screen will display as the
figure below.

17
5. Click the soft key under Quit. You will find a new name with phone number has been created.
Button Explanation
Option It allows you to edit information, save the phone book, delete the phone
book, send a message to other people and so on.
Dial Have a phone call to the selected one.
Quit Exit and return to previous page.
2
2. .5 5 I In nc co om mi in ng g/ /O Ou ut tg go oi in ng g C Ca al ll l
Later incoming/outgoing calls will be stored temporarily and be checked from the Display Screen.
1. Press the navigation key . You will see the incoming call records at the first. If there are many
incoming call stored, please use scroll bard on the right side of the display screen to scroll up and
down.
Button Explanation
Next Switch among the incoming call, outgoing call and missed call.
Enter This button is available only when there is at least one item existed.
Quit Exit and return to previous page.

18
2. Press the soft key under Enter to access into the next page of incoming call. See the figure below.
Button Explanation
Option It allows you to check detailed information for the missed call, save the
missed call, delete the missed call, send a message to the missed call,
and so on.
Dial Call back for answering the incoming call.
Quit Exit and return to previous page.
3. Click the soft key under Dial to have a phone call to the selected incoming call.

19
2
2. .6 6 M Mi is ss se ed d C Ca al ll l a an nd d I In nd di ic ca at to or r L Li ig gh ht t
If the indicator light always blinks, it means there is a missed call that you have to process. Please do
the following:
1. Press the navigation key to open the missed call record. All the missed calls will be shown
on the display screen. In this example, there is only one missed call.
Button Explanation
Option It allows you to check detailed information for the missed call, save the
missed call, delete the missed call, send a message to the missed call,
and so on.
Dial Call back for answering the missed call.
Quit Exit and return to previous page.
2. Click the soft key under Dial to have a phone call to the selected missed call.

20
