Quick Start Guide

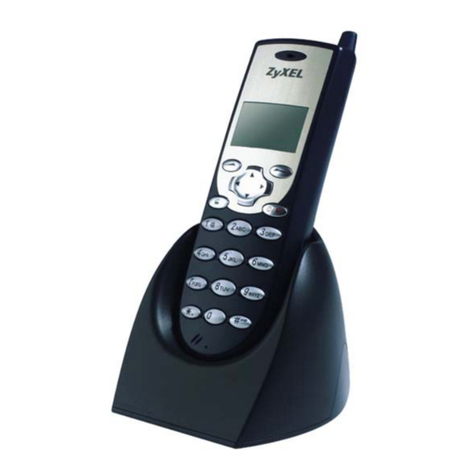

Prestige P-2000W VoIP Wi-Fi Phone
Read This First
Simple steps to make your first call

ZyXEL P-2000W Quick Start Guide
Page 2

ZyXEL P-2000W Quick Start Guide
Thanks for choosing ZyXEL
Founded in 1989 as a modem developer, ZyXEL is one of the world's leading broadband
access solutions specialists. As one of the world's leading broadband access solutions vendors,
ZyXEL is dedicated to ensuring that you can efficiently and safely take advantage of all that the
Internet has to offer.
This Quick Start Guide will show you how to power up your Prestige P-2000W phone and
connect it to your network. Once connected, the Guide will help you set up GloConnect™ for
your phone and register it for the first time. When the phone’s registered, you’re ready to start
making voice calls using the power of the Internet.
Before You Begin
Before you can begin using Your P-2000W Phone, you will need:
A wireless connection using 802.11b or 802.11g
An Internet connection
A web browser for GloConnect™ sign-up
Prestige P-2000W
Phone Wireless Access Point
Or
Wireless Router
Internet
Web browser
(For GloConnect™ sign-up)
Page 3

ZyXEL P-2000W Quick Start Guide

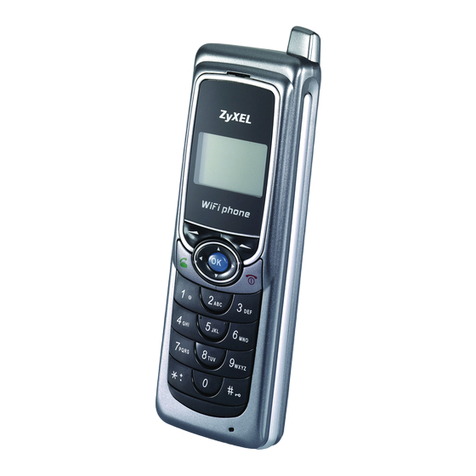

Getting to Know Your Prestige P-2000W VoIP Wi-Fi Phone
1. LCD Screen:
This screen is used to display information and navigate the phone’s menus.
2. Left Selector key:
This key is used to select menu options from the LCD Screen. It is also a shortcut to the
phone’s Menu system.
3. Right Selector key:
This key is used to select menu options from the LCD Screen. It is also a shortcut to the
phone’s Address Book.
4. Arrow keys:
This key is used to navigate through the P-2000W’s menus using the LCD Screen
5. OK key:
This key is used to select menu options from the LCD Screen
6. Call key:
The green Call key is used to initiate or receive voice calls.
7. Power/ End key:
The red Power/ End key is used to turn the phone On and Off. It is also used to end
voice calls.
8. Alphanumeric keypad:
These keys are used to enter letter, numbers and symbols into the phone.
9. Headset Jack:
Connection for optional headset (located underneath rubber cover)
10. Volume keys:
The Volume Up key increases earpiece volume, and the Volume Down decreases
earpiece volume.
11. Power jack:
Connect the phone’s power adapter here to charge the battery.
Page 4

ZyXEL P-2000W Quick Start Guide
Page 5

ZyXEL P-2000W Quick Start Guide
Ready to start talking?
Follow these quick steps to get started:
1 Charge your Phone
2 Connect the Phone to your Wireless Network
3 Setting Up WEP on your Phone
4 Setting Up GloConnect™ on your Phone
5 Making and Receiving Calls
Page 6

ZyXEL P-2000W Quick Start Guide
1 Charge your Phone
Remove the battery cover. Press down
on the silver button and slide the battery
cover with your other hand as shown.
Insert battery as shown. Insert the
bottom of the battery first, and push the
top of the battery into the phone.
Place the battery cover back on as
shown. Then, slide the cover towards
the top until it clicks into place.
To charge your phone, remove the gray
rubber cover on the bottom of the phone.
Plug the included power adapter into a
wall outlet, and plug the other end into
the phone’s power jack as shown below.
The OK key on the phone will turn
bright red.
The included battery comes fully depleted and takes 2 hours to fully charge. When fully
charged, the red OK key will turn off.
Once the phone is fully charged, the battery provides approximately 3.5 hours of talk time,
and 21-22 hours of standby time. Please remember to reconnect the phone to its power
adapter when not in use.
Page 7

ZyXEL P-2000W Quick Start Guide
2 Connect the Phone to your Wireless Network
Turn on the phone by holding down the Power/ End key for two seconds. Powering on
can take from 30 seconds to two minutes.
After powering on, the LCD Screen may display “Not
Registered”, indicating the phone connected to your
network. In this case, please skip ahead to Section 4,
Setting Up GloConnect™ on your Phone.
If the LCD Screen displays any other message, please
continue through the following steps.
From the main menu screen, press Left Selector key
to enter the Menu options.
Scroll to 7.Wireless using the Down Arrow key and
press the Left Selector key button again.
Select 1.Site Survey with the Left Selector key .
Your device will now scan for all the available wireless
networks. The number next to the network names
indicates the signal strength percentage.
Find your wireless network name using the Up and Down
Arrow keys . If a “W” appears next to the network
name, or if you know WEP encryption is required for your
network, then skip to the next section, Setting up WEP
on
y
our Phone. Otherwise
,
continue to the next ste
p
.
Page 8

ZyXEL P-2000W Quick Start Guide
Press the Left Selector key to choose your wireless
network. The phone will display “OK” and return to the
Wireless Menu.
Press the Right Selector key twice to save your
new settings. An hourglass will appear on the LCD
Screen, indicating your phone is saving the new settings.
Your phone will now reboot.
Once the phone reboots, it should connect to your
wireless network and obtain an IP address. This can
take from 30 seconds to two minutes. When finished,
the LCD Screen will display “Not Registered”.
If the screen displays “Net failed” with an error
code, please retry the steps in this section.
You can now skip to section 4, Setting Up GloConnect™ on your Phone.
Page 9

ZyXEL P-2000W Quick Start Guide
3 Setting Up WEP on your Phone
Continuing from the previous section, press the Left
Selector key to choose your wireless network.
The phone will display “OK” and return to the Wireless
Menu.
Scroll to 6.WEP Select using the Up Arrow key
and press the Left Selector key .
You will enter the WEP key for your wireless network
dhere. The lower center of the screen shows the keypa
mode display “Aa1@”, with the “A” mode highlighted.
Use the Up and Down Arrow keys to choose
between modes for uppercase letters ), lowercase
letters (a), numbers (1), or symbols (@).
(A
Scroll to 7.WEP key 1 using the Down Arrow key
and press the Left Selector key (most networ
use WEP key 1 by default).
ks
Scroll to either [2] 64-bit or [3] 128-bit security for your
tWEP encryption mode. The WEP encryption mode mus
match that of your wireless network. Press the Left
Selector key to make your selection. The phone
will dis
p
la
y
“OK nd return to the Wireless menu.”a
Page 10

ZyXEL P-2000W Quick Start Guide
Enter your wireless network WEP key through selecting
keypad modes and the keypad. You may need multiple
keypad presses to enter letters. For example, to enter a
lowercase “b”, press the Down Arrow key to select
lowercase mode, then press the “2” key twice. You can
use the Power/ End key to remove typos.
When finished entering your WEP key, press the Left
Selector key to choose ‘OK.’ The phone will
display “OK”.
Now that you have entered your WEP settings, press
the Right Selector key twice to save your new
settings. An hourglass will appear on the LCD Screen,
indicating your phone is saving the new settings. Your
phone will now reboot.
Once the phone reboots, it should connect to your
wireless network and obtain an IP address. This can
take from 30 seconds to two minutes. When finished,
if the LCD Screen displays “Not Registered”,you
can now proceed to Section 4, Setting Up
GloConnect™ on your Phone. Otherwise, see the
next step.
If the screen displays “Net failed” with an error
code, please retry the steps in Sections 2 and 3.
Page 11

ZyXEL P-2000W Quick Start Guide
4 Setting Up GloConnect™ on your Phone
ZyXEL has partnered with GloConnect™ to provide you with VoIP SIP Service, which you’ll
need to connect your phone to the Internet to send and receive voice calls.
On your P-2000W, press the Left Selector key to
enter the menu options.
Select 1.Information using the Left Selector key .
Scroll to 3.MAC Address using the Down Arrow key
and press the Left Selector key . Write
down the MAC address shown on the phone. You will
need this information to re
g
ister with GloConnect™.
From your computer, open a web browser and type http://officedepot.gloconnect.com in the
address bar.
Follow the instructions to sign up for your GloConnect™ account. You will need your
phone’s MAC address for this step.
Once you complete your sign-up, GloConnect™ will automatically set up your P-2000W
phone for you. No additional settings are necessary.
Start using your P-2000W to make and receive phone calls!
Page 12

ZyXEL P-2000W Quick Start Guide
5 Making and Receiving Calls
To make a call, first ensure that the main menu displays
“Registered”. Then, dial the desired number using the
keypad and press the green Call key .
Press the red Power/ End key to terminate the call.
To receive a call, press the green Call key .
Press the red Power/ End key to end the call.
To adjust the volume on the phone, use the Volume Up key and Volume Down key
on the left side of the phone.
Page 13

ZyXEL P-2000W Quick Start Guide
Additional Settings
For more information on how to set up your phone’s Address Book, Speed Dial, Multiple Profiles,
and other advanced settings, please refer to the Prestige P-2000W’s included CD.
Support
If your phone is experiencing service or account related issues, please contact GloConnect™
for assistance.
For further aid setting up your Prestige P-2000W phone, please contact ZyXEL Technical
Support:
ZyXEL Communications Inc. North America
Toll Free: [phone]
Fax: [phone]
Email: [email protected]
http://www.us.zyxel.com/support
Thanks for choosing ZyXEL
All contents copyright © 2005 ZyXEL Communications Corporation.
