DRC Techno J.SECURE + User manual

CONFIDENTIAL
This information is the property of DRC Techno.
Any reproduction, publication or distribution to a third party is strictly Forbidden
DRC TECHNO
J.SECURE +
USER MANUAL v 2.0

P a g e | 1
Table of Contents
SAFETY FIRST........................................................................................................................................... 2
SYSTEM REQUIREMENT& SPECIFICATION .............................................................................................. 3
PURPOSE ................................................................................................................................................. 4
USP .......................................................................................................................................................... 4
ACCESSORY CHECKLIST ........................................................................................................................... 5
GET STARTED........................................................................................................................................... 7
INSTALLATION GUIDE.............................................................................................................................. 8
CALIBRATION........................................................................................................................................... 9
PROCESS FLOW AND OPERATION MANUAL ......................................................................................... 10
TROUBLESHOOT.................................................................................................................................... 19
SOFTWARE ERROR MESSAGES.............................................................................................................. 20
FAQ ....................................................................................................................................................... 21
WARRANTY ........................................................................................................................................... 23
TERMS AND CONDITIONS ..................................................................................................................... 23

P a g e | 2
SAFETY FIRST
DRC Techno believes that safety of personnel working on and around system is important and
recommend all to read safety information below and in the Operations and Maintenance Manual
before attempting to operate the system or perform any other process.
Precaution
1. Follow and obey all written/signage warnings and cautions given in this document.
2. All the procedures should be performed only by trained and authorized personnel unless
specified in document.
No.
Symbol
Description
1.
The symbol indicates possible loss or damage of data; it may cause
permanent loss of instrument data if in case handled by unauthorized
person.
2.
To reduce the risk of electric shock or damage to the
equipment:
Do not disable the power cord grounding plug.
The grounding plug is an important safety
feature.
Plug the power cord into a grounded (earthed)
electrical outlet that is easily accessible at all
times.
Unplug the power cord from the power supply to
disconnect power to the equipment.
Do not route the power cord where it can be
walked on or pinched by items placed against it.
Pay particular attention to the plug, electrical
outlet, and the point where the cord extends
from the server.
3.
The symbol indicated invisible laser radiation, avoid eye and skin
exposure to direct or scattered radiationProper eye and skin
protection required.

P a g e | 3
SYSTEM REQUIREMENT& SPECIFICATION
M/c
Size
Weight
J.Secure Plus
470X470X594
58 kgs
PPower Supply
Input voltage range : 100-240 V AC
Input Current :<= 6A
AC frequency range : 50-60 Hz
Typical response time :< = 5 s
Temperature Range : 5 to 35 °C

P a g e | 4
PURPOSE
J-Secure identifies lab grown synthetic diamonds and perform effectively with practically all sizes and
shapes of loose diamonds as well as studded jewellery.
Instrument is not a TYPEs separator but it directly detects lab grown synthetics, grown by CVD/HPHT
methods.
Purpose of invention is to uphold consumer confident and keep business of natural diamond safe
from mixing or sold undisclosed of synthetic diamonds in cost effective manner.
USP
1. Reliable and Quick
2. Easy to use
3. Tests all sizes and shapes
4. Can be used for all types of diamonds (rough as well as polished)
5. Tests most of the studded jewellery
6. Cost efficient
7. Tests in batches (saves time and energy)

P a g e | 5
ACCESSORY CHECKLIST
1
2
3
4
5
6
7
8
9

P a g e | 6
8. Wireless Keyboard and mouse
9. Software Key
10. Wi-Fi Antenna
11. Power Cable
12. Ethernet Cable
13. Fluorescent Light
14. Necklace/Ring Mount Tray
15. Bangles Mount Rotary
16. Loose Diamond Mount Tray

P a g e | 7
GET STARTED

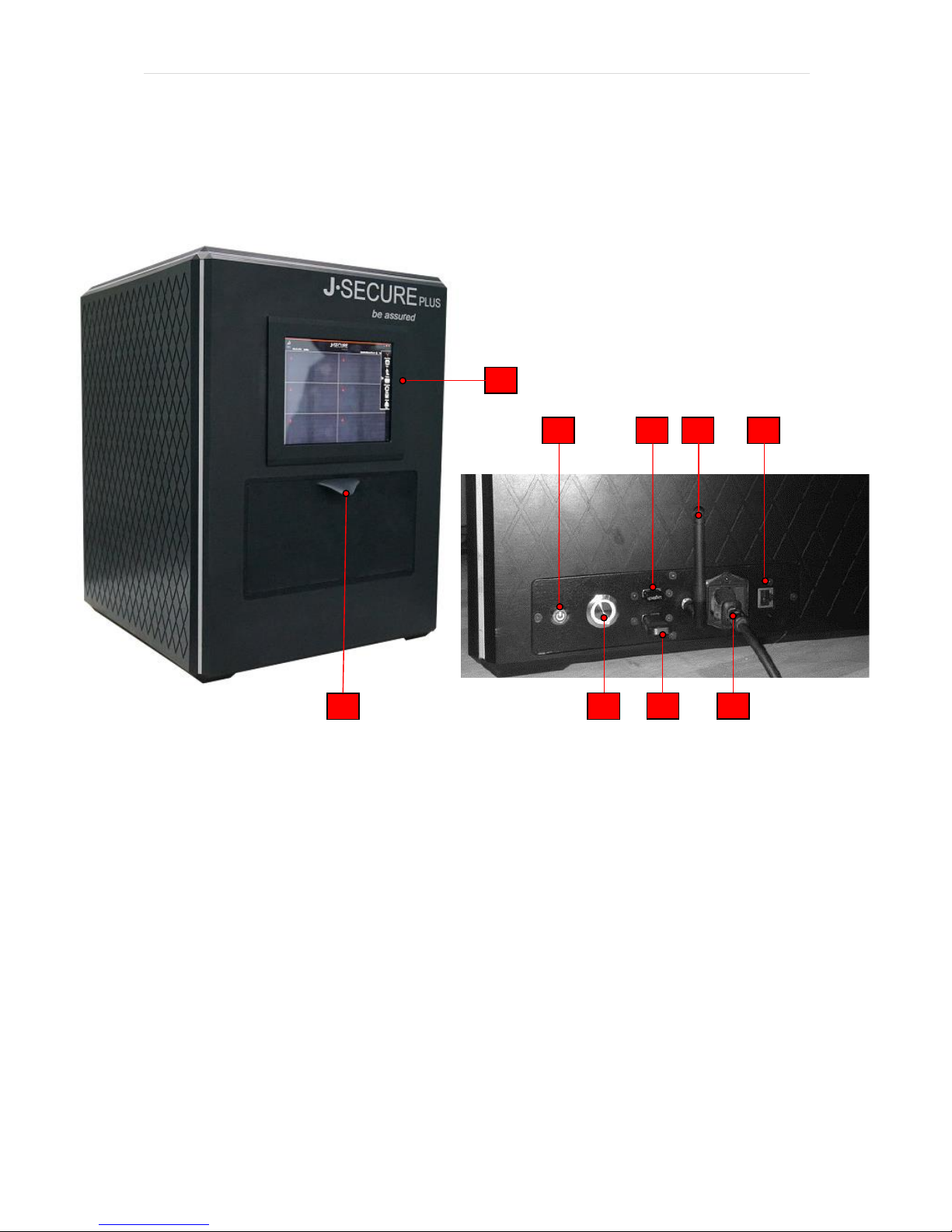

A Quick Look
Fig. 1
Image shown is for basic information only
1. LCD(Touch Screen) On/Off
2. Power On/Off
3. Wireless keyboard/mouse connector
4. Software Key
5. Wi-Fi Antenna
6. Power Cable Socket
7. Ethernet port
8. Touchscreen LCD
9. Jewellery/Diamond testing Drive
1
2
4
6
3
5
7
9
8

P a g e | 8
INSTALLATION GUIDE
1. Place the machine on a table in such a position that the eye level of user operating the
machine is parallel to the height of the Touch screen LCD.
2. Connect the power cable to the machine, please make sure the switch is off before the
power cable is connected to the machine so as to avoid any problem
3. Now connect the wifi antenna to the machine
4. Now connect the software key to the machine without this key software will not get
initialiseds
5. Switch on the “ Instrument” and “Touch Screen LCD”
6. Check the jewellery /diamond tray to see if it is properly locked and then close the door
7. Click the Software icon on LCD desktop ,start the Software and wait until the machine gets
initialized.
8. Press Home Button in the s/w to bring the tray to center position
9. Push to eject the tray and pull it out gently to mount jewelry /diamond
10. Wear gloves while mounting jewelry so as to keep it free from masking , coating ,greasy or
dusty surface
11. For testing diamonds make sure that diamonds are properly boiled at 250 degree Celsius for
30 minutes with solution mix h2so4 30% and hno3 70%
12. Push the tray inside until it gets locked and make sure that the front door is closed
13. Start the scan process
14. This instrument is developed to identify lab grown synthetic diamonds only

P a g e | 9
CALIBRATION
J.Secure + is programmed to automatically calibrate at runtime of the scan process but to check the
proper running of entire system we strongly advise to check the sample pendant that is provided
with the machine every time the software is started or is initialized in the beginning
Method to check the sample pendant
1. Click the Software icon on LCD desktop ,start the Software and wait until the machine gets
initialized.
2. Press Home Button in the s/w to bring the tray to centre position
3. Open the door.
4. Push to eject the tray and pull it out gently to mount the sample pendant
5. Put the sample pendant on necklace tray grid number “1“ push the tray gently until it gets
locked
6. Close the door
7. Select the grid “1” in the software
8. Select the manual icon to open its options
9. Press the scan button and wait for the scan process is completed
10. After the scan process is completed please check the result and see that that the first and
the third diamond should be detected as synthetic
11. The above result confirms that the software is properly initialised and all the components in
the machine are working properly
12. If there is any deviation in the result you can call our Customer Care and they will assist you
further

P a g e | 10
PROCESS FLOW AND OPERATION MANUAL
1. Switch on the “ Instrument” and “Touch Screen LCD”
2. Check the jewellery /diamond tray to see if it is properly locked and then close the door
3. Start the S/W and wait until the machine gets initialized.

P a g e | 11
4. Press Home Button in the s/w to bring the tray to centre position
5. Press to eject the tray and pull it out gently to mount jewellery /diamond
6. Wear gloves while mounting jewellery so as to keep it free from masking , coating ,greasy or
dusty surface
7. For testing diamonds make sure that diamonds are properly boiled at 250 degree Celsius for 30
minutes with solution mix h2so4 30% and hno3 70%
8. Push the tray inside until it gets locked and make sure that the front door is closed
9. Start the scan process

P a g e | 12

P a g e | 13

P a g e | 14

P a g e | 15
Scan Process:

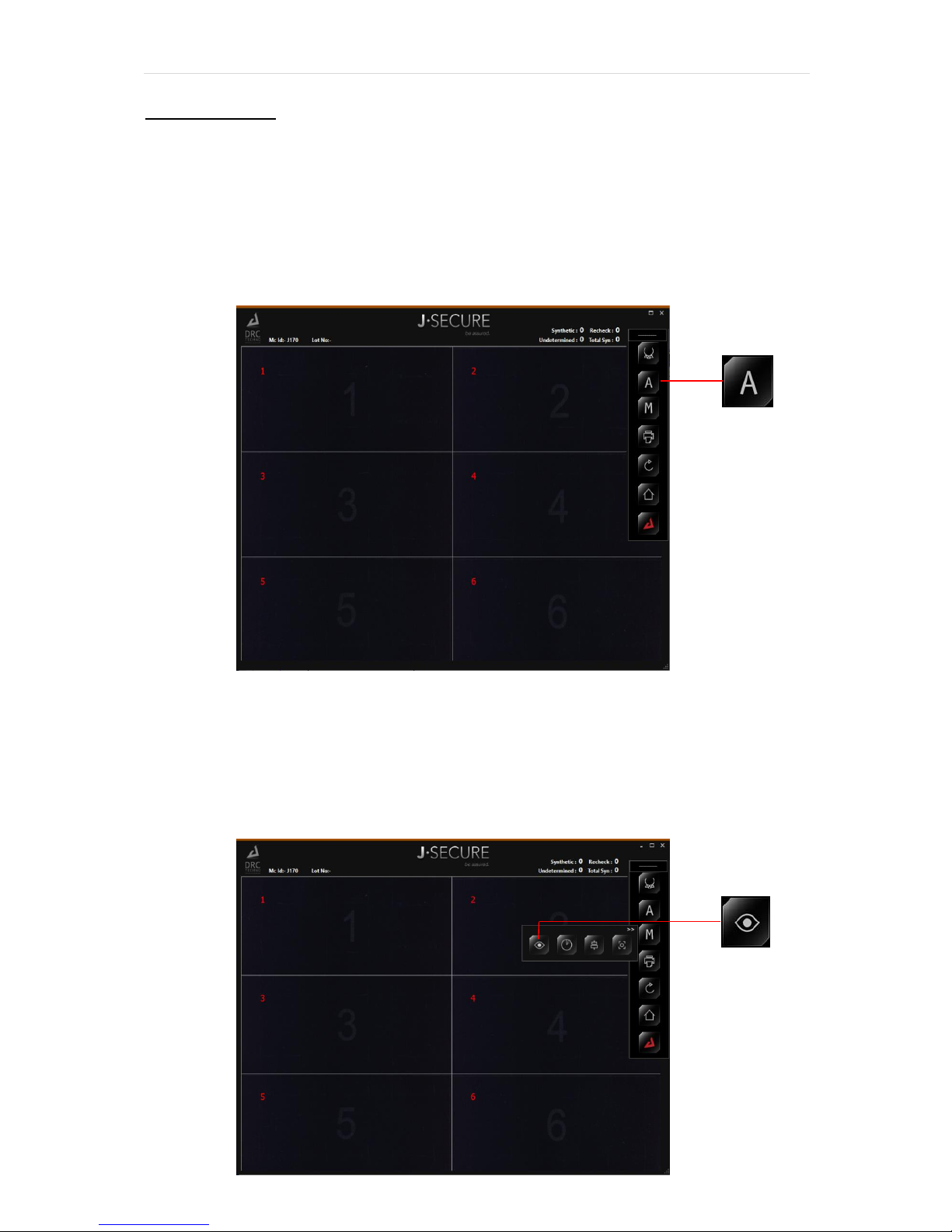

Case 1: Auto
This process is used when the entire plate has to be scanned to
detect synthetic diamonds present in the mounted jewelleries
Case 2:Manual

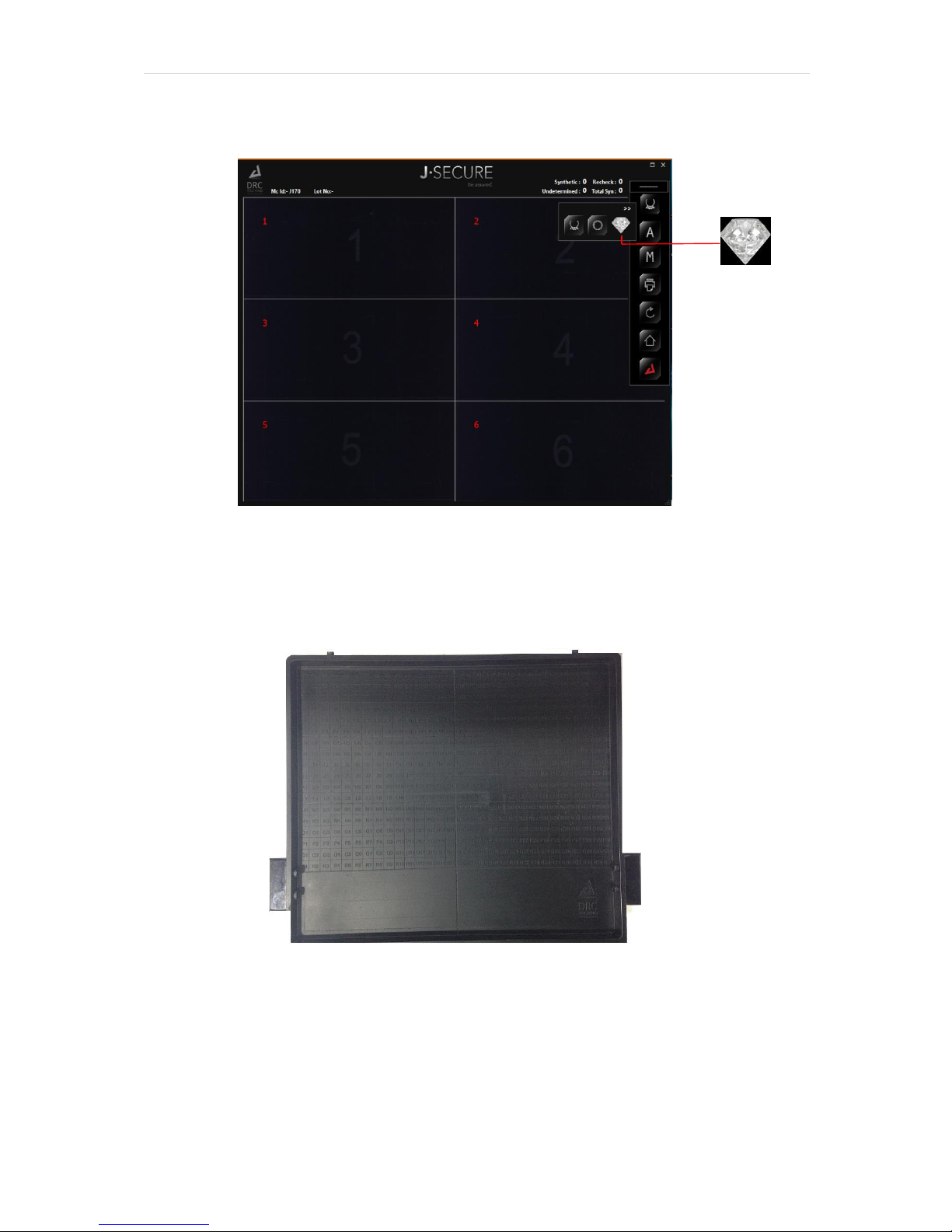

a. Preview and scan

P a g e | 16

P a g e | 17
This process
b. Position, Focus and scan

P a g e | 18
c. Direct Scan

P a g e | 19
TROUBLESHOOT
1. It's not working.
Plug in right power supply as specified in operation manual. Switch on the
“Instrument” and “Touch Screen LCD”
Check the jewellery /diamond tray to see if it is properly locked and then close the
door
Start the S/W and wait until the machine gets initialized.
Press “Home Button” in the s/w to bring the tray to center position
Press tray to eject and pull it out gently to mount jewellery /diamond
Wear gloves while mounting jewellery so as to keep it free from masking , coating
,greasy or dusty surface
For testing diamonds make sure that diamonds are properly boiled at 250 degree
Celsius for 30 minutes with solution mix h2so4 30% and hno3 70%
Press the tray inside until it gets locked and make sure that the front door is closed
Start the scan process
This instrument is developed to identify lab grown synthetic diamonds only
2. I have lab grown synthetic diamonds, but some of the stones aren't
detected by J.Secure.
Make sure you have followed all operation instructions.
We too while testing have faced such scenario, after deep analysis we found that
these diamonds are not synthetic but natural diamonds
There are chances that they were accidentally replaced during manufacturing
process or grading process
They may be possibly coloured diamonds
They might not be properly cleaned or masked.
Scan it one more time, if result achieved is same, click on “Help” button in S/W and
our technical team will provide you necessary assistance
3. My diamonds are natural but J-Secured detects few stones as synthetics.
Make sure you have followed all operation instructions.
We too while testing have faced such scenario, after deep analysis we found that
these diamonds are not synthetic but natural diamonds
There are chances that they are accidentally replaced during manufacturing process
or grading process
They may be possibly coloured diamonds
They might not be properly cleaned or masked.
Scan it one more time, if result achieved is same, click on “Help” button in S/W and
our technical team will provide you necessary assistance
