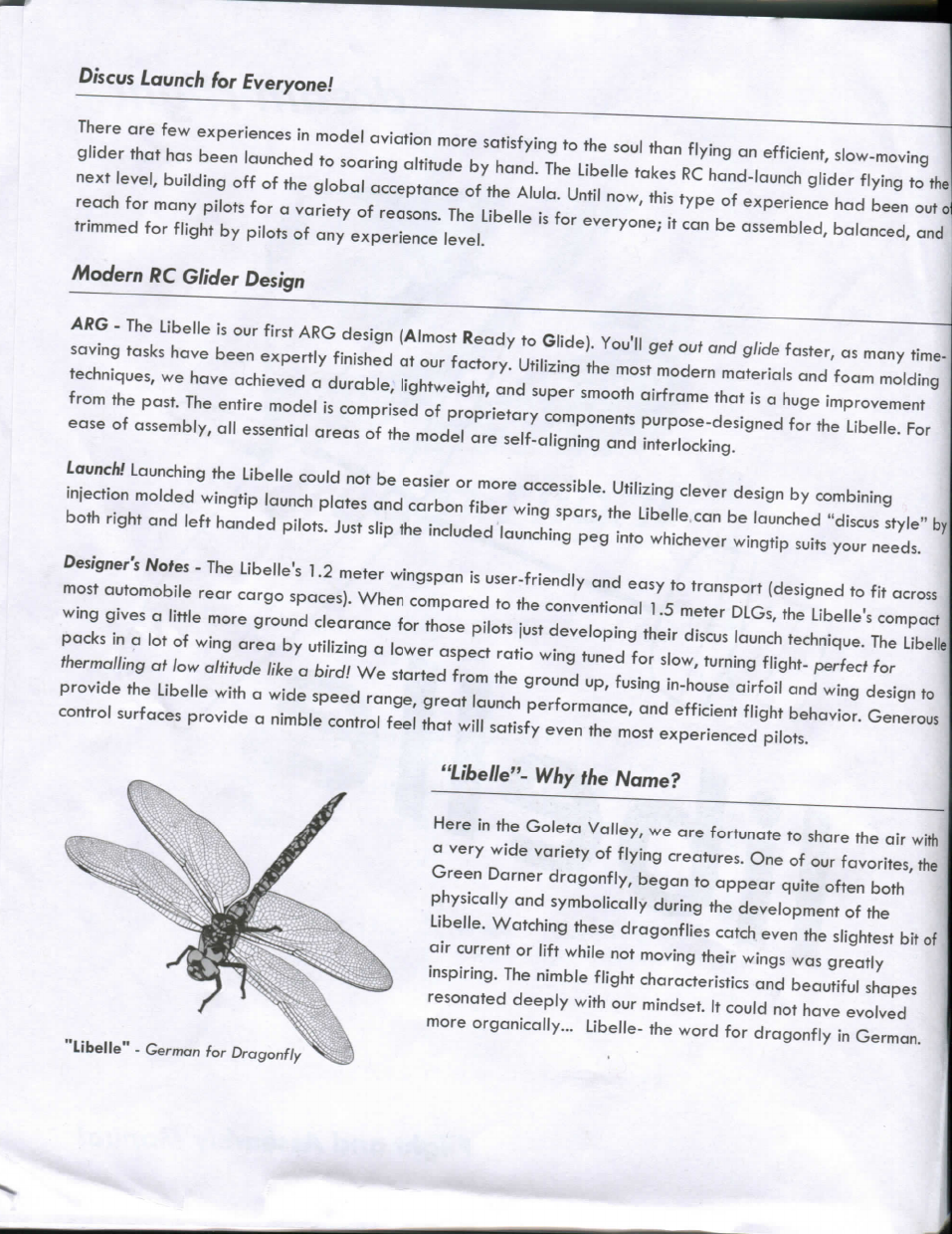

Discus Launch for Everyone!
Therearefewexperiencesinmodelaviationmoresatisfyingtothesoulthanflyinganefficient,slow-moving
glider thathasbeenlaunchedtosoaringaltitudebyhand.TheLibelletakesRChand-launchgliderflyingtothe
next level,buildingoffoftheglobalacceptanceoftheAlula.Untilnow,thistypeofexperiencehadbeenoutoi
reachformanypilotsfora varietyofreasons.TheLibelleisforeveryone;itcanbeassembied,balanced,and
trimmed for flight bypilotsofanyexperiencelevel.|
Modern RC Glider Design *
ARG - TheLibelleisour first ARGdesign(Almost Ready toGlide).You'llgefouf and glide faster,asmany time-
savingtasks have beenexpertlyfinishedatourfactory.Utilizingthemostmodernmaterialsandfoammolding
techniques, we have achieveda durable,lightweight,andsupersmoothairframethatisa hugeimprovement
from thepast.Theentiremodeliscomprisedofproprietarycomponentspurpose-designedfortheLibelle.For
ease ofassembly,allessential areas ofthemodelareself-aligningand interlocking.
Launch! LaunchingtheLibellecouldnotbeeasierormoreaccessible.Utilizingcleverdesignbycombining
injection moldedwingtiplaunchplatesandcarbonfiberwingspars,theLibellecanbelaunched"discusstyle"by
both right and left handed pilots. Just sliptheincludedlaunchingpeg into whicheverwingtipsuitsyourneeds.
DesignersNotes - TheLibelle's1.2meterwingspanisuser-friendlyand easy totransport(designedtofitacross
most automobilerearcargo Spaces). When comparedtotheconventional1.5meter DLGs, theLibelle'scompact
wing givesa little moregroundclearanceforthosepilotsjustdevelopingtheirdiscuslaunchtechnique.TheLibelle
packsina lotofwingareaby utilizing a loweraspectratiowingtunedforslow, turning flight- perfect for
tbermalling af low altitude like a bird! Westartedfromthegroundup,fusingin-house airfoil andwingdesignto
provide theLibellewitha widespeed ränge, greatlaunchPerformance,andefficient flight behavior.Generous
control surfacesprovidea nimblecontrolfeelthat will satisfy even themostexperienced pilots.
•Libelle"- Why the Name?
r
Here intheGoletaValley,wearefortunatetosharetheair witli
averywidevarietyofflyingcreatures.Oneofourfavorites,the
Green Darnerdragonfly,begantoappearquiteoftenboth
physically andsymbolicallyduringthedevelopmentofthe
Libelle. Watchingthesedragonfliescatch even theslightestbitof
air currentor lift whilenotmovingtheirwingswasgreatly
inspiring. Thenimble flight characteristicsandbeautifuishapes
resonateddeeplywithourmindset.Itcouldnot have evolved
moreorganically...Libelle-thewordfordragonflyinGerman.
"Libelle"- German for Dragonfly
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

dreom-flight
c
signature design
Wingspan1200mm(47.2in)
WingArea21.31dm'(330in')
Weight 278-290 gm(9.8-10.2oz)
WingLoading13-13.6 gm/dm' (4.3-4.5 oz/ft')
Controls 4-6Channels
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

CAUTION! READ BEFORE PROCEEDING:
•TheLibelleR/Cgliderisnota toy;a certainamountofexperienceandpracticeisrequiredto
safelyflythismodel.WerecommendConsultinganexperiencedR/C pilot beforeattemptingto
fly thisglider.Withproperinstruction,learningtoflyR/Cgliderscanbea safe andextremely
rewardingoctivity.
• AtWAVS flymodelaircraft,suchastheLibelle,inopen areas away fromoverhead
power/telephonelines,groupsofpeople,trees,roods,buildings,andairports.
•BE CONSIDERATE AND RESPECTFUU Always beconsiderateofpassersby,spectators,and
otherpilotsbymaintaininga safe distancebetweenthemandyouraircraftduring flight.
Choosinga designated safe landingzoneisgoodpracticeand always givelarger,heavierflying
modelsthe right ofway.Treatflyingsiteswiththeutmostofrespectandcare,asfuture access to
themisbyno means guaranteed.
•Thediscuslaunchmethod places a certainamountofphysicalstresson one's bodyandglider.
Please proceedwithcautionwhenattemptingthislaunchmethod.
•Avoidover-speedingtheLibellebyentering"terminal"styleverticaldivesorapplying
excessive forceduringlaunch,astheseactionscouldresultinairframefailureand/orpersonal
injury.
•TheLibellemustbeassembied,balanced,andtrimmedproperlytoensuresmooth,efficient
flight. Poor balanceand trim WILL leadtopoor flight characteristics.
•Donot Store gliderin areas of excessive heat,asthismay cause foampartstowarp/deform,
thusadverselyaffectingthe flight characteristics.Additionally,neverplaceobjects/weighton
glider duringstorageandtransportunlessfoampartsareproperlysupportedtoprevent
warping.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

TABLE OF CONTENTS
Pg. Topic
1Kit Contents
2 ItemsRequired for Completion (not included)
3RadioGearSetup
5Wing Assembly
10 Fuselage and TailAssembly
15 Wing Installation
16 Balancing the Libelle: CG Position
17 ControlSurfaceDeflections
18 Pre-FlightCheck
19 TestFlights:Trimming for Straight and LevelFlight
20 ProgrammingMixes:fromLaunch to Thermal
UsingFlaps via Flaperons
ActiveCamberControl via Elevator-FlapMixing
21 DiscusLaunchTechnique
23 Fine-Tuning CG Position
24 "UrbanSoaring"Technique
Background
Importantguidelines to followwhenflying the Libelle
SlopeSoaring
FlatlandSoaring
Tofamiliarize younelf with fhe assembly process, we recommend
reading over fhis manual before proceedingwifh Unal assembly.
When assembling your Libelle, make sure io check
ouf fhe HOT TIPS found fhroughouf fhis manual!
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

KITCONTENTS
Spare Parts
available at
dream-flight.com
ITEM
DESCRIPTION
1 Fuselage andCanopy
2
Wing Panels(Left/Right)
3 HorizontalStabilizer/Elevator
4 VerticalFin/Rudder
5 Elevator/RudderPushrods
6 Manual
7 SmallHardwareBagContents:
(2) Wing Dihedral Braces(Front/Rear)
Wing CenterPlate
(3) Nylon BoltsforWingand Stabilizer: 20mm, 1 5mm,10mm
(2) Aileron Pushrods
(4) Control Horns
(4) Clevises with micro screws
Carbon fiber launching peg
1.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

ITEMS REQUIRED FOR COMPLETION (notincluded)
Radio Gear:
•Programmable6 Channelradio System withflaperonmixing(see chart for fransmiffer suggesfions)
•Microreceiver(see chart below for receiver suggesfions)
•(4)Sub-micro servos (HitecHS-35HD recommended)
"(2)Lightweightaileronextensions,1 20mmlong(Part DFLBl09)
• Receiver battery:4.8V SOOmAh 1 /3AA NiMH (Port DFFAOOl)
Adhesives andTape:
•Mediuminstantglue("CA"orCyanoacrylateglue)
•20-25mm(1")widepaintersmaskingtape— we like the blue or green sfuff by 3M!
•20mm(3/4")wideclear,non-yellowingofficetape
Tools andExtras:
• Small screwdrivers(bothPhillipsandflatheadstyles)
• Small wireornailclippers
• Small needle-nose pJiers
• Scissors andsharphobbyknife
• Ruler ormeasuringtape
•Rightangle(90°) Square
•Thinpermanentmarker
• Small balanceweights- tryournon-lead Steel Balance V^eights (Part DFAA002)
• Paper towelsforcleaningglue excess
•A bitoffine grit sandpaper
• Wing reinforcementdecal(Part DFLBl 11)
•Double-sidedtapeforservoandradiogearInstallation(thinvarietywithoutfoam)
• Packing tapeandstrappingtapeforairframereinforcementandrepair
•Acrylicpaints- addyourpersonalstylel Remember tocleanfoamwithdenaturedalcohol first.
Optional:
Suggested Transmitters and Receivers:
*We used the Futaba T8J 2.4GHz fransmiffer
and Futaba R2106GF receiver for our own
Transmitters Receiver
selup. The R2106GF receiver's extremely shorf
anfenna makes insfallation a breeze! The T8J
fransmiffer feafures a Special built-on anfenna
for durabilify, and boosts easy fo use, yef very
comprehensive, programming feafures.
Futaba
T6J, *T8J *R2106GF
Hitec
Optic6 Sport,Aurora9 Minima6L
2.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

RADIO GEAR SETUP
•OursetupandInstallationguideisbasedontheuseoftherecommendedHitec HS-35HD servo.We have
includedtheexactmeasurementsneededtorecreateoursetupifyouchooseanotherbrandofservo.
Additionally, wehighlyrecommendusing a programmableradiowithflaperon mixing.
Note: Have fools access/b/efhroughouf assembly. On/yglider parfs, adhesives, efc are lisfed in fhe "Gafher Ifems
Below" section.
Gather items below:
•Transmitter(battery fully charged)
•Microreceiver
•(4) Servos (HS-35HD) with4 skinnyservoarms
•(2)Lightweightaileronextensions,1 20mmlong (Part
DFLBl 09)
•4.8v,300mAhreceiverbattery(fullycharged)
1. Remove factoryinstaliedservoarmsfromallfour
servos.Puttiny screws ina safe placei
2.Usingsmallwireclippers, trim away onesideofall
four skinnyservoarmsasshown.
3.Trimtwoservoarmsto have onlyoneholeremaining,
asshown(thesewillbeusedfortheelevatorand
rudderservos).Fortheaileronservos, trim thetwo
remainingservoarmsdowntotwoholesasshown.If
desired,sandorfiledownthesharpcorners.
4.Attachaileronextensionstotwoservos.
5.Turnontransmitterandplugbatteryintoreceiver
(observeproperpolarityl).
6.Activateflaperonmixing(consultyourradiomanual
for details).
7.Connectall servos toappropriatereceiver Channels,
Confirm System isboundand servos areresponding.
8. Ensure alltrimsandsub-trimsarecenteredandsetto
zero.
3.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

9. Arrangeservosontableandattach shorter servoarmstoelevatorand rudder servos.Attach longer servo
arms toaileronservos. IMPORTANT: Servo armsmustbeinstaliedintheorientationsshownbelowto
ensureproperfunction.
10. Ref erring tographicbelow,checkforcorrectservo rotation direction. Ifneeded,reverseservo directions
using transmitter.
11. Ifnecessary, adjust sub-trims soservoarmsareat90degreesas shown.
12. Witha bitof tape, labeleachservofor future reference during Installation (i.e.LA,RA,E,R).
13. Re-install four tiny screwstosecureeachservoarm.
14. Unplugservos from receiverandpowerdown transmitter andreceiver.
SERVO LAYOUTANDROTATION
Mode 2 transmitterinputsshown witli correspondingservorotations.
*Futaba/HitecreceiverChannelsnoted.
10mm(0.39in)
Kl
o o.)
a o
I
I
o X o
Left-AileronRight-Alleron
(*Ch.6) (*Ch.l)
Elevator
(*Ch.2) Rudder
(*Ch.4)
O
X 7 X
Q
lÖ
I
o 0
7.5mm(0.30in)
ROLL klGHT
YAWkIGHT /NOSEUP
4.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

WING ASSEMBLY
^IMPORTANT! Joining the right and left wingpanels isthe mostcritical and difficult part of assembly. We
strongly encourage youto practice the stepsbelow first WITHOUT glue. Once youare comfortablewith the
Steps, proceedwithglue.
Gather items below:
• Wing Panels (Right/Left)
•Dihedral Braces (Front/Rear) ^
• Wing Center Plate
• (2) Controlhorns
• (2) Aileron servos
• (2) Aileronservoextensions
• (2) Aileronpushrods
• (2) Adjustable clevises withclamping screws
•Maskingtape
•20mm(3/4")wideclear,non-yellowingofficetape
•Mediuminstantglue
• Paper towel
1. Enhance controlresponse and reduceservoload by making20mm-longincisionsalongfoamhingesusing o
sharphobby knife. Alternate,leavingapproximately1 5mm of intacthingematerialbetweenincisions
(imagine a dashedline cut pattern as shown below). Make sure to leave 20mm of intacthingematerialalso
at each endof controlsurface. Flex foamailerons 45 degrees in each direction10-15times to loosenhinge
action. Feel free to prepare the hinges on HorizontalStabilizer and Vertical Finin same manner (set these
aside for later).
5.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

2. Place right andleftwingpanelsontableasshownbelow,upsidedownwithwingroots(centers)aligned
with edgeoftable.
3.Applymaskingtapetoflatsideof each dihedralbraceasshown. Tape shouldbeslightlylongerthan each
brace.
4.Applymediuminstantglueto front andreardihedralbrace recesses onbottomof left foamwingpanelas
shown.
5.InsertlongerFrontDihedral Brace intomoldeddihedralslotinleftfoamwingandpress firmly inplace.
Usingyourfinger, secure maskingtapeoverglueJoint,ensuringbraceisflushinwing.Installshorter Rear
Dihedral Brace in same mannerosshownbelow.
Ap^j,/g,üb to both dihedral brace locations
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

6.Applymediuminstantglue to areas of right foam
wingshown in graphic tothe right. Glue is
applied tothe followinglocations on right wing
only: molded recesses for dihedralbraces,
alignment tab recesses, and adjoiningwingroot
face areas.
7.Picl< up left wingwithpre-instalieddihedral
braces and join with right wing by lowering it
into Position,allowingdihedral braces and foam
alignmenttabs to locate and align. Press wing
Joint together.Usingyourfinger,smoothover pre-
appliedmaskingtape to lockwingpanels and
dihedral braces in position and contain excess
glue.
8.Flipwingover and presscenter Joint together as
shown. Ensure wingpanels arein proper
alignment and hold for 1 5-20seconds. While
supporting wingcarefully,inspectentirecenter
wingJoint.Continue to applypressure to center
wing Joint ensuring a tight Joint and good
adhesion.
9. As shown inthe sequence below,applymedium
instant glue to molded recess for Wing Center
Plate. Applyglue to flat area of recess as well as
deeperperimeter Channel.Layone winghalf flat
againsttablewhilesupporting the raisedwing
with one hand to maintaindihedral. Now firmly
press Wing Center Plate in place,applying
pressure for 1 5-20seconds asshown.
Apply medium instant glue to the
locations shown before joining with left wing
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

10. Wipe away excess gluealongentirewing Joint andaroundCenter Wing Plate. Turnwingoverand
carefullyremovemaskingtapecoveringdihedralbraces.
11. Locate controlhorn recess onundersideof each aileron. NOTE: thetwoholeson each controlhornshould
face forwardtowardsthemoldedservopockets.Asshownbelow,applymediuminstantglueto recess and
presscontrolhorninplace,applyingpressurefora fewseconds until gluehasset. Wipe away excess glue.
12. Before proceeding,ensureaileron servos arecentered,labeied,andextensionsareinstalied.Testfitaileron
servos intheirappropriatemoldedpockets,withtheservoarmorientedverticallyandcentered.
NOTE: MoldedservopocketsacceptHitec HS-35HD servos withoutmodification.
8.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

13. Remove servos andsecurelyre-installusinga droportv^oofmediuminstantglue,thindouble-sidedtape,
lov/-temperaturehotglue.
14. Press theservowiresandextensionsneatlyintotheprovided Channels. Ifyou have chosenthe Wing
Reinforcement Decal Option (Part DFLBl 1 1),applythisnow.Otherwise,applya pieceofclearpackingor
office tapeover each servoandwire/extension.
15. Prepare two clevises byfoldingsidestogether,
creatinga slotwherethepushrodwillbeclamped.
Withclevisfolded,installsmallclampingscrew
through each clevis.Donottightenscrewatthis
point.
16. Slide clevisontoendof each aileronpushrod.You
may have toloosenclampingscrewslightlyto
allowclevistoslideontopushrodend.
17. Insertwire "Z-Bend" sideof each aileronpushrod
into outermost(second)holeofservoarms.
18. Adjustandinstall clevises toalignwithoutermost
holeofaileroncontrolhorns.
19. Withaileronservoarmcentered,centerandalign
aileron flight surfacewifhwingtip.Adjust clevises
as necessary andtightenclamping screws until
pushrodissecure.Donotover-tightenclamping
screw;whenproperlytightened,tipofscrew
shouldonlyprotrudeslightlyfromsideofclevis.
9.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

FUSELAGE AND TAIL ASSEMBLY
Gather items below:
• Fuselage
•Horizontalstabilizer/elevotor
•Verticalfin/rudder
• Elevator pushrod
•Rudderpushrod(longest)
• Elevator andrudder servos
•(2)Controlhorns
•(2)Adjustable clevises andclamping screws
•Nylonelevatorbolt(lOmmlong)
•Mediuminstantglue
• Paper towel
•Opfional double-sidedtapeforbatteryand
receivermounting
1.Ifyouhaven'tdonesoalready,preparerudder
andelevatorhingesusingthe same procedure
describedin Step 1 of Wing Assembly (Page 5).
Thiswillhelp enhance controlresponseandreduce
servoload.
2.Installcontrolhornsinelevatorandrudderas
shown,withholesfacinghinge.Applymedium
instant glueto recess andpresscontrolhornin
place,applyingpressurefora fewseconds until
glue hasset. Wipe away excess glue.
3.Testfitelevatorandrudder servos infuselageby
sliding intopositionsideways. Before proceeding,
confirm servofit,orientation,andservoarm
positions asshown. IMPORTANT: Elevator servo
is slid into place before rudder servo, with servo
arm towards rear asshown.
4.Asshownabove,securelyinstallelevatorandrudder servos byapplyinga droportwoofmediuminstant
gluethroughallfourservomountingtabholes. Ensure gluepenetratesaroundandunderneathtabsand
servos fit tight against each otherandsurroundingfoam.Applya little pressureto servos for several
secondsasgluesets.
5. Prepare two clevises forelevatorand rudder pushrods.
10.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

6. Attacha clevisto
each pushrodasshownbelow.
7. Feed Z-Bend endofshorterpushrodthroughrearofelevatormountatdngleasshownbelow. Slide pushro(
8. Remove elevatorservoarmandattachtopushrod Z-Bend asshownbelow.Youmayneedtousesmall
needlenoseplierstograbthepushrod.Reinstallservoarmandreplacescrew. IMPORTANT: Elevator and
rudder pushrods must hang BELOW servo arms for proper clearance.
9. Make noteofalignmenttabontopofelevatormount.Alignhorizontalstabilizeronmountand secure with
nylonelevatorbolt(1Omm-Iong).Donotover-tightennylon bolt. Ifboltthreadfeels tight, de-burrtipofbolt
usingsandpaper.
11.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

10. As shownbelow,attachclevis to elevatorcontrolhorn at outermosthole. If necessary, usea small flat-
bladedscrewdriver to spreadclevisapart. Ifyouare having difficulty, try removingstabilizer to make
clevisconnection easier (re-installstabilizer öfter connection has beenmade). IMPORTANT: Clevis must be
instalied with correct orientation (screw head on right side of tail boom) for sufficient pushrod
clearance. Youmay need to loosenclevisclampingscrew to allowpushrod to slidefreely in clevis for
adjustment. Do nottightenclampingscrew yet.
11. As shownbelow,testfitverticalfinontotailboom.NotefoamIndex tabon finwhichalignswithtailboom,
providing correctpositioning.
12. When gluing fin onto tail boom, ensure finis mounted at90 degrees to horizontal stabilizer.Apply
mediuminstantglue to cutout in vertical finas shown below.Youcan substitute5-minuteepoxy for more
working time anda strongerJoint.Lightlypressvertical fin ontotailboomwhilealigningIndex tab withtail
boomcutout.Lookingfromrear of glider as shownbelow,ensure finis mounted 90 degrees to horizontal
stabilizer using a 90°Square- adjust fin as needed before glue sets! When fin is perfectiyvertical,apply
pressure to glue Joint for several seconds oruse painter'stape to hold finin placewhileglueeures. Wipe
away any excess and allowglue to eure for several minutesbeforeproceeding.
12.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

13. Foraddedstrength,applya small Strip ofcleartapeovertailboomandoverlappingontofin(seebeld
Thetapeshouldnotcoverpushrodcutoutincarbontailboom.
14. Feed Z-Bend endoflongerrudderpushrodintorearopeningofcarbontailboomasshownbelow. Slide
pushrodallthewayforwardthroughtailboomforconnectionwithrudderservoarm.
15. Attachclevistoruddercontrolhornatinnermosthole. IMPORTANT: Clevis musfbe instalied with correct
orientation (screw head ontop)for sufficient pushrod clearance. Youmayneedtoloosenclevisclampin
screwtoallowpushrodtoslidefreelyinclevisforadjustmentandconnectionwithrudderservoarm.Do
tighten clampingscrewyet.
13.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

16. RemoverudderservoarmandattachtopushrodZ-Bend.Re-installservoarmandreplacescrewasshown
below. IMPORTANT: Elevator andrudderpushrodsmusthang BELOW servoarmsforproperclearance.
17. Ensureelevatorandrudderservoarmsarecenteredonservosasshownbelow.
18. Loosenclevisclampingscrewstoallowpushrodstoslidefreelyinclevises.Centerfoamelevatorandrudder
control surfacesbyeyeand tighten clevisclampingscrewtolockpushrodincentered position.
19. Asshownbelow,setbatteryandreceivertemporarilyinpositionandplugelevatorandrudderservos into
appropriate receiver ports. Twistelevatorandrudderservowirestogetherfora neaterInstallation.
IMPORTANT: Keep your servoand battery wires tidy soasnottoobstruct movement ofservosand
pushrods.
14.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at

WING INSTALLATION
Gather items below:
•Completedwing
•Completedfuselagewithtailgroupinstalied
•Canopy
•(2) Wing bolts(20mm front, 1 5mmrear)
•Carbonfiberlaunchingpeg
1. Press wingontofuselagebyaligningwingwith anti-
rotation pinsonfuselagewingsaddle.
2.Aileronextension leads should pass throughmolded
foam Channel underneaththewing'sleadingedge.
Ensure nowiresarepinchedbetweenthewingand
fuselage.Twistaileron leads togetherfora tidier
Installation.
3.Installtwonylonwingbolts.Insertlonger20mm-long
bolt inforwardhole.Donotover-tightennylonbolts;
only slightpressureisneededtoholdwingonto
fuselage,sincetheanti-rotationpinsabsorbthestress
of discuslaunching.De-burrendsofnylonboltswith
sandpaperiftheyfeel tight initially.
4. Plug aileronservo leads intoappropriateportson
receiver.
5. IMPORTANT: Install all servo and baHery wires ina
neat manner so that they allow canopy to seat
properly anddonot obstruct movement ofpushrods.
Refer topictureatrightforexampleofa tidyradio
gearInstallation.
6.Installcarbonfiberlaunchingpeginthedesired
wingtip. Mostright-handersprefera launchingpegin
theleftwingtip;however,therearethosewhoprefer
to launchfromtherightwingtip(lefthand-launch)to
keeptheirrighthandontheelevator/aileron Joystick
(for Mode2 transmitters).
15.
Modellbau Lindinger GmbH e-Mail: [email protected] www.lindinger.at
