Dream Glass Air User manual

Dream Glass Air
Quick Start Guide
Version 1.0

Thank you for choosing Dream Glass. To ensure that you
can experience Dream Glass quickly and correctly, please
read this manual carefully before use.
The product pictures in this manual are all sketch graphics.
Please be advised that the actual product might dier from
the sketches.
DreamWorld reserves the nal interpretation right of this
manual, warranty certicate and other related materials.

1 Inside the Box
2 Headset Components
3 Controller
4 Seing Up
· How to Assemble and Wear
· Adjusting Pupil Distance
· How to Use Black Out Shade
5 Instructions
· WiFi Setup
· Bluetooth Seings
· 3D Seings
· Browsing Local Contents
· Downloading Apps
· Wireless Screencasting
· Connecting to External Devices
6 Charging Indication
7 Specications
8 Precautions / Warnings
9 Warranty Information
Contents

1 Inside the Box
Head Strap
Headset
Optical Lens
Black Out Shade
Front Cushion
Controller Quick Start Guide Lens Bag Cleaning Cloth
Micro USB Cable

2 Headset Components
Headphone Jack
Front Cushion
Black Out Shade
Optical Lens
Micro USB Cable
Loudspeaker
Loudspeaker

3 Controller
USB
Baery Indicator Light
HDMI
OK
·Short Press:conrm
and enter
Direction Key
·Short Press:up/down
/left/right
·Long Press 3 Seconds:
turn on/o the cursor
function
Power Buon
·Long Press 3 Seconds:
power on/o
3D
·Select 3D format
Home
·Return to the home page
Back
·Return to the previous
screen
Volume
Headset PortMicro USB
·Charge
Sleep/Wake Up Function:
Short press Power Buon to put your screen into sleep
mode while using the headset;Short Press again to wake
up.
Video Play Control：
Short press OK to pause/continue;Long press Left/Right
Direction Key to fast backward/forward.
3D

4 Seing Up
· How to Assemble and Wear
Please assemble and wear the headset by following the
instructions below.
Please wear the headset according to the following picture
and adjust the head strap to t your head comfortably.
(Notice:Please keep the
logo side of the cable up to
connect)
2.Assemble head strap
1.Assemble optical lens 3.Connect controller
4.Press and hold
the power buon
for 3 seconds to
turn on headset
3D

· Adjusting Pupil Distance（PD）
Please adjust your Pupil Distance properly for the best
visual eect when using the headset for the rst time. You
can adjust with your controller through the following steps:
Press “Home”, go to “Pupil Distance”→Press “Left”:
decrease PD/ Press “Right’”: increase PD

· How to Use Black Out Shade
The black out shade is recommended if you want a more
isolated/immersive viewing or use Dream Glass in a strong
light environment. Please nd the two buckles on the back
of the black out shade and insert into the grooves of the
optical lens.

5 Instructions
· WiFi Setup
Follow the according steps to connect to your desired WiFi:
Press “Home”, go to “Seings”→“WiFi”, then enter the
password.
· Bluetooth Seings
If you want to connect to Bluetooth devices such as airpods
or Bluetooth speakers, go to “Seings”-“Bluetooth” and
select your device name from the showing list.
(Notice: You need to hold the back buon when the rst time to connect to your airpods.
Press and hold the buon on the
backof the Charging Case
Hold Buon

· 3D Seings
Dream Glass supports dierent 3D formats which includes
Up/Down 3D,Left/Right Square 3D,Left/Right Widescreen
3D.Press the “3D” buon to select a suitable 3D format
according to the video.
· Browsing Local Contents
If you are ready to expand your visual imagination with
Dream Glass on your favorite local media contents,you
can either open"My Apps”-"Puin TV”or plug your USB
drive then go "Home"-"Files".

· Downloading Apps
Explore more with Dream Glass by downloading new
applications you love. You can go to “My Apps”-“Aptoide
TV”-“Categories” to download free apps such as YouTube,
Netflix, Keep Yoga, Real Racing, Texas Poker and more.

· Wireless Screencasting
Important notice: The headset and smartphone should be
connected to the same WiFi when using the Wireless
Screencasting function.
You can read the screencasting guide on your headset by
clicking "Casting” before you start.
Screen Mirroring:
Click the Screen Mirroring buon of your smartphone
(iPhone for example), select"HappyCast"from the device
list to pair with Dream Glass.
Screen
Mirroring HappyCast
Screen Mirroring
Stop Mirroring

Mobile APP Screencasting:
Screen
Mirroring
iPhone
HappyCast
AirPlay&Bluetooth devices
connect to a device
Open the app and click the screencasting buon as shown
below(YouTube for example), select "HappyCast” from the
device list to pair with Dream Glass.

· Connecting to External Devices

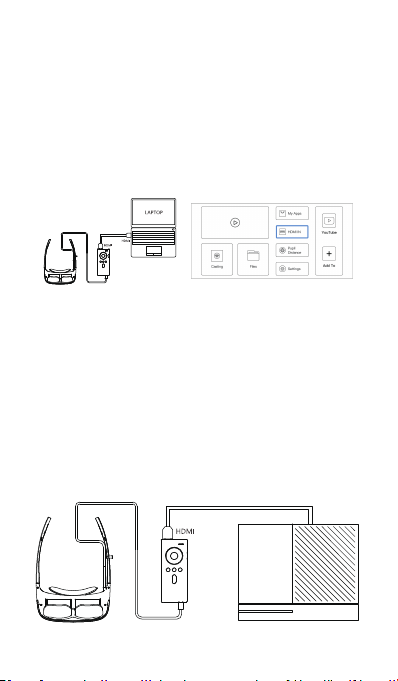

(1)Connecting with PC, laptops, tablets:
Please connect your PC, laptops, tablets via an HDMI
cable as shown in the picture. Then go to “Home”-
“HDMI IN” and follow the instructions on the screen.
(2)Connecting with game consoles
If you are a fan of the Nintendo Switch, PS4, Xbox, etc.,
Dream Glass will be your best gaming companion ever.
Please connect with an HDMI cable, go to “Home”-
“HDMI IN” to connect.

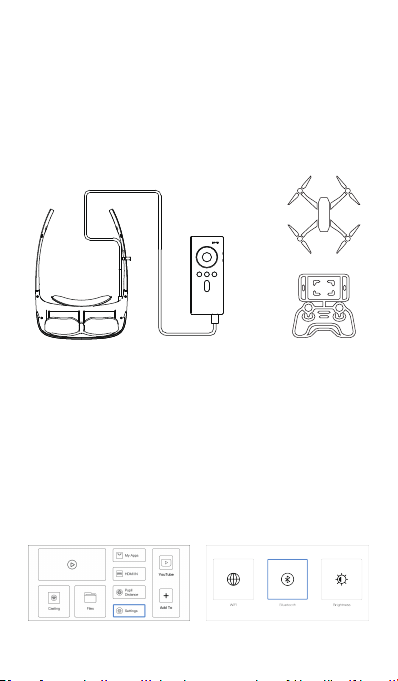

(3)Connecting with drones
Please connect to your drone as shown in the following
picture. After inserting your smartphone into the drone’s
operating handle, please use the screen mirroring
function as mentioned above.
4)Connecting with Bluetooth earphones/speakers
Please make sure the Bluetooth function is turned on for
your earphones or speakers. Go to “Home”-
“Seings”-“Bluetooth” to match your devices before
using.

6 Charging Indication
As shown in the picture, insert the Micro USB cable to
charge your controller.
Charging Indicator
1.The number of indicator lights show your residual baery
power when you turn on the controller.
2.The charging indicator lights flash when the controller is
connected to the power supply. The indicator lights will
always be on after being fully charged.
Power Indicator
State of power indicator Residual baery
3 lights on, 1 light flash 75%-100%
2 lights on, 1 light flash 50%-75%
1 light on, 1 light flash 25%-50%
1 light flash only < 25%, need to recharge
1 light flashing fast Low power, need to recharge
3D

7 Specications
FOV 90 °
Lens Fits over eyeglasses, See-through
freeform surface lens, o-axis reflection
4K（3840*2160),1920*1080 per eyeResolution
Pixel Per Inch
Aspect ratio
FPS
3D format
Audio output
Tracking
CPU
GPU
Storage
Memory
USB
HDMI
868
16:9
60Hz
Side by side, Over /Under
Built-in speaker,3.5mm Jack/Bluetooth
connection
3DOF head tracking
1.8GHz
Mali-T864
16GB
2GB
2.0
1.4
Display
Audio
Sensor
Compute
and
connectivity

Headset
port Only for Dream Glass use
5.0Bluetooth
2.4G/5G dual-band, HotspotWiFi
Compatible
device
USB drive
format
System
Baery
Charging
Size
Weight
0°C--60°C, 90% RH Max.
Smartphone，Tablet，PC，Laptop，
Switch，PS4，Xbox，Drone
FAT32
Android 7.1.2
8000 mAh Lithium baeries
Working
duration About 5hours
5V at 2A Max.
269*170*43mm, adjustable head strap
for dierent head size
About 200g
Software
Power
Fit
Operating
environment
Compute
and
connectivity

· Precautions
- Please handle Dream Glass with care and store it properly
to prevent damage (from falling etc.)
- Do not yank, tie, tighten or bend the wires.
- In order to ensure a long baery life, please use a
standard power adapter. Please charge or use the
controller at least once every four months.
- To ensure the best visual eect, please take good care of
the lens. Do not press, bend or scratch.
- Please use the Dream Glass cleaning cloth or a similar
soft cloth to wipe your lens gently if it becomes dirty. To
prevent scratching the lens, be sure to dust o the
cleaning cloth before wiping.
- To avoid damaging the device, please don’t use any
organic solvent to wipe the lens or the headset surface.
- The magnetic parts inside of Dream Glass may aract
tiny metal objects. Please avoid approaching
magnetically sensitive items, such as credit cards and
magnetic storage devices.
- Radio frequency signals and the magnetic elds of
Dream Glass may aect pacemakers or other medical
equipment. Please consult your doctor before use.
- If you feel any serious discomfort while using the headset,
such as fatigue, dizziness, nausea, headache, etc.,
8 Precautions / Warnings
