Samsung SM-R321 User manual

Printed in Korea
GH68-43857A Rev.1.2
English (EU). 04/2015
USER
MANUAL
SM-R321

2
Table of Contents
Read me first
6 Health and safety warnings
Getting started
15 About the Gear VR for S6
16 Package contents
17 Device layout
22 Wearing the Gear VR for S6
35 Installing the Gear VR for S6
software
Basics
38 Using the touchpad
41 Oculus Home screen and VR App
screen
44 Moving the pointer or the screen
45 Selecting items
48 Managing apps
49 Receiving calls
51 Viewing notifications
52 Using the Universal menu

3
Table of Contents
Apps
54 Oculus Store
56 Oculus Cinema
58 VR Gallery
60 Oculus 360 Videos
61 Oculus 360 Photos
Troubleshooting
Safety information

4
Read me first
•
Please read this manual before using the Gear VR for S6to ensure safe
and proper use.
•
The Gear VR for S6is an Innovator Edition device intended specifically for
developers and early adopters of technology.
•
Use the Gear VR for S6for its intended purpose only. Using the Gear VR
for S6for other purposes may result in injury.
•
The Gear VR for S6must be connected to a Samsung GALAXY S6when in
use. The Gear VR for S6cannot be operated by itself.
•
The Gear VR for S6is compatible only with the Samsung GALAXY S6and
the Samsung GALAXY S6Edge.
•
Descriptions are based on the Samsung GALAXY S6's default settings.
•
Some languages or content may not be available depending on the
region or network.
•
To view the open source licence for the Gear VR for S6, refer to
opensource.samsung.com .

5
Read me first
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other
equipment
Notice: notes, usage tips, or additional information

6
Read me first
Health and safety warnings
•
Please ensure that all users of the Gear VR for S6read the warnings
below carefully before using the Gear VR for S6to reduce the risk of
personal injury, discomfort or property damage.
•
These health and safety warnings are periodically updated for accuracy
and completeness. Check
oculus.com/warnings for the latest version.
Before using the Gear VR for S6
•
Read and follow all setup and operating instructions provided with the
Gear VR for S6.
•
The Gear VR for S6should be adjusted for each individual user, and
calibrated by using the configuration software (if available) before
starting a virtual reality experience. Failure to follow this instruction may
increase the risk of discomfort.
•
We recommend consulting a physician before using the Gear VR for
S6 if you are pregnant, elderly, have pre-existing binocular vision
abnormalities or psychiatric disorders, or suffer from a heart condition or
other serious medical condition.

7
Read me first
Seizures
Some people (about 1 in 4000) may have severe dizziness, seizures, epileptic
seizures or blackouts triggered by light flashes or patterns, and this may
occur while they are watching TV, playing video games or experiencing
virtual reality, even if they have never had a seizure or blackout before or
have no history of seizures or epilepsy. Such seizures are more common
in children and young people under the age of 20. Anyone who has had
a seizure, loss of awareness, or other symptoms linked to an epileptic
condition should consult a physician before using the Gear VR for S6.
Children
The Gear VR for S6should not be used by children under the age of 13.
Adults should monitor children (age 13 and older) who are using or have
used the Gear VR for S6for any of the symptoms described below, and
should limit the time children spend using the Gear VR for S6and ensure
they take breaks during use. Prolonged use should be avoided, as this could
negatively impact hand-eye coordination, balance, and multi-tasking ability.
Adults should monitor children closely during and after use of the Gear VR
for S6for any decrease in these abilities.

8
Read me first
General instructions and precautions
You should always follow these instructions and observe these precautions
while using the Gear VR for S6to reduce the risk of injury or discomfort.
Use only in a safe environment
•
The Gear VR for S6produces an immersive virtual reality experience that
distracts you from and blocks your view of your actual surroundings.
For the safest experience, always remain seated when using the Gear
VR for S6. Take special care to ensure that you are not near other
people, objects, stairs, balconies, windows, furniture, or other items that
you can bump into or knock down when using, or immediately after
using, the Gear VR for S6. Do not handle sharp or otherwise dangerous
objects while using the Gear VR for S6. Never wear the Gear VR for S6in
situations that require attention, such as walking, bicycling, or driving.
•
Make sure the Gear VR for S6is level and secured comfortably on your
head, and that you see a single, clear image.

9
Read me first
•
Ease into the use of the Gear VR for S6to allow your body to adjust. Use
for only a few minutes at a time at first, and only increase the amount
of time using the Gear VR for S6gradually as you grow accustomed to
virtual reality. Looking around when first entering virtual reality can help
you adjust to any small differences between your real-world movements
and the resulting virtual reality experience.
•
A comfortable virtual reality experience requires an unimpaired sense of
motion and balance. Do not use the Gear VR for S6when you are tired,
need sleep, are under the influence of alcohol or drugs, are hung-over,
have digestive problems, are under emotional stress or anxiety, or when
suffering from cold, flu, headaches, migraines, or earaches, as this can
increase your susceptibility to adverse symptoms.
•
Do not use the Gear VR for S6while in a moving vehicle such as a
car, bus, or train, as this can increase your susceptibility to adverse
symptoms.
•
Take at least a 10 to 15 minute break every 30 minutes, even if you don’t
think you need it. Each person is different, so take more frequent and
longer breaks if you feel discomfort. You should decide what works best.

10
Read me first
•
The Gear VR for S6may be equipped with a“passthrough” feature
which permits you to temporarily see your surroundings for brief real
world interaction. You should always remove the Gear VR for S6for any
situation that requires attention or coordination.
•
Stop using the Gear VR for S6if it seems to be hot. Prolonged contact
with an overheated device can cause burns.
•
Do not wear the Gear VR for S6without the Samsung GALAXY S6
attached.
•
Listening to sound at high volumes can cause irreparable damage to
your hearing. Background noise, as well as continued exposure to high
volume levels, can make sounds seem quieter than they actually are.
Due to immersive nature of virtual reality, do not use the Gear VR for S6
with the sound at a high volume so that you can maintain awareness of
your surroundings and reduce the risk of hearing damage.

11
Read me first
Discomfort
•
Immediately discontinue use if anyone using the Gear VR for S6
experiences any of the following symptoms: seizures, loss of awareness,
eye strain, eye or muscle twitching, involuntary movements, altered,
blurred, or double vision or other visual abnormalities, dizziness,
disorientation, impaired balance, impaired hand-eye coordination,
excessive sweating, increased salivation, nausea, lightheadedness,
discomfort or pain in the head or eyes, drowsiness, fatigue, or any
symptoms similar to motion sickness.
•
Just as with the symptoms people can experience after they disembark a
cruise ship, symptoms of virtual reality exposure can persist and become
more apparent hours after use. These post-use symptoms can include
the symptoms above, as well as excessive drowsiness and decreased
ability to multi-task. These symptoms may put you at an increased risk of
injury when engaging in normal activities in the real world.

12
Read me first
•
Do not drive, operate machinery, or engage in other visually or physically
demanding activities that have potentially serious consequences (i.e.,
activities in which experiencing any symptoms could lead to death,
personal injury, or damage to property), or other activities that require
unimpaired balance and hand-eye coordination (such as playing
sports or riding a bicycle, etc.) until you have fully recovered from any
symptoms.
•
Do not use the Gear VR for S6until all symptoms have completely
subsided for several hours. Make sure you have properly configured the
Gear VR for S6before resuming use.
•
Be mindful of the type of content that you were using prior to the onset
of any symptoms because you may be more prone to symptoms based
upon the content being used.
•
Consult a physician if you have serious and/or persistent symptoms.

13
Read me first
Repetitive stress injury
Prolonged use of the Gear VR for S6and input devices (e.g. controllers) can
make your muscles, joints or skin hurt. If any part of your body becomes
tired or sore while playing, or if you feel symptoms such as tingling,
numbness, burning or stiffness, stop and rest for several hours before
playing again. If you continue to have any of the above symptoms or other
discomfort during or after play, stop using the Gear VR for S6and consult a
physician.
Radio frequency interference
The Gear VR for S6can emit radio waves that can affect the operation of
nearby electronics, including cardiac pacemakers. If you have a pacemaker
or other implanted medical device, do not use the Gear VR for S6without
first consulting your physician or the manufacturer of your medical device.

14
Read me first
Electrical shock
To reduce risk of electric shock, follow the warnings below.
•
Do not modify or disassemble any of the components provided.
•
Do not use the Gear VR for S6if any cable is damaged or any wires are
exposed.
Sunlight damage
Do not leave the Gear VR for S6in direct sunlight. Exposure to direct
sunlight may cause damage to your Gear VR for S6or other surroundings.

15
Getting started
About the Gear VR for S6
The Samsung Gear VR Innovator Edition for S6(also referred to as Gear VR
for S6) is a head-mounted, virtual reality device that provides an immersive
experience for a wide range of users.
When you connect a Samsung GALAXY S6to the Gear VR for S6, you
can enjoy 2D or 3D content and play games by launching apps on the
Samsung GALAXY S6. Use the Gear VR for S6with the Samsung GALAXY S6
and connect it to other devices, such as a game controller or a Bluetooth
headset.

16
Getting started
Package contents
Check the product box for the following items:
•
Gear VR for S6, top head strap, main strap, foam cushioning, lens
cleaning cloth, carrying case, and user manual
•
The items supplied with the device and any available accessories
may vary depending on the region or service provider.
•
The supplied items are designed only for this device and may not
be compatible with other devices.
•
Appearances and specifications are subject to change without prior
notice.
•
Use only Samsung-approved accessories. Using unapproved
accessories may cause performance problems and malfunctions
that are not covered by the warranty.
•
Availability of all accessories is subject to change depending
entirely on manufacturing companies. For more information about
available accessories, refer to the Samsung website.

17
Getting started

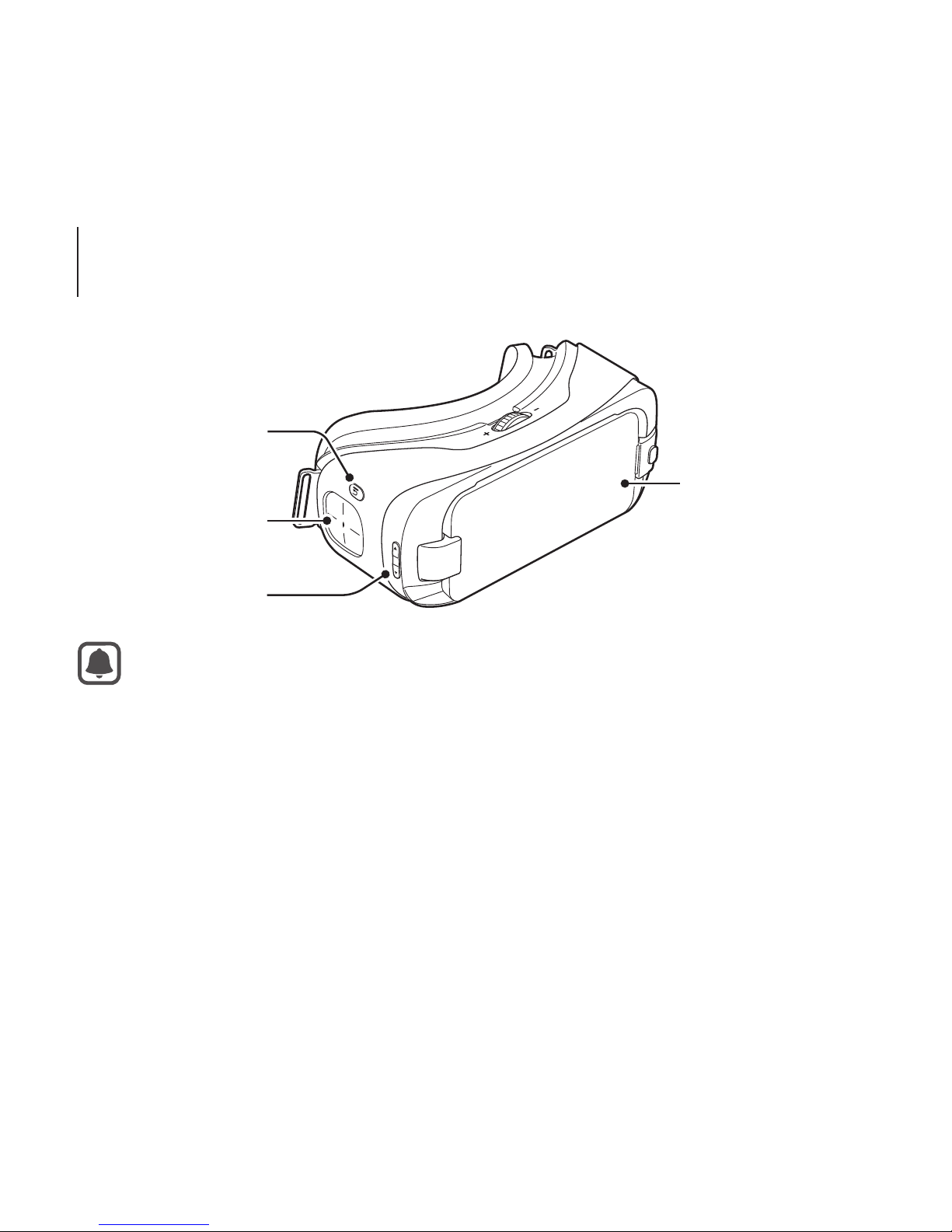

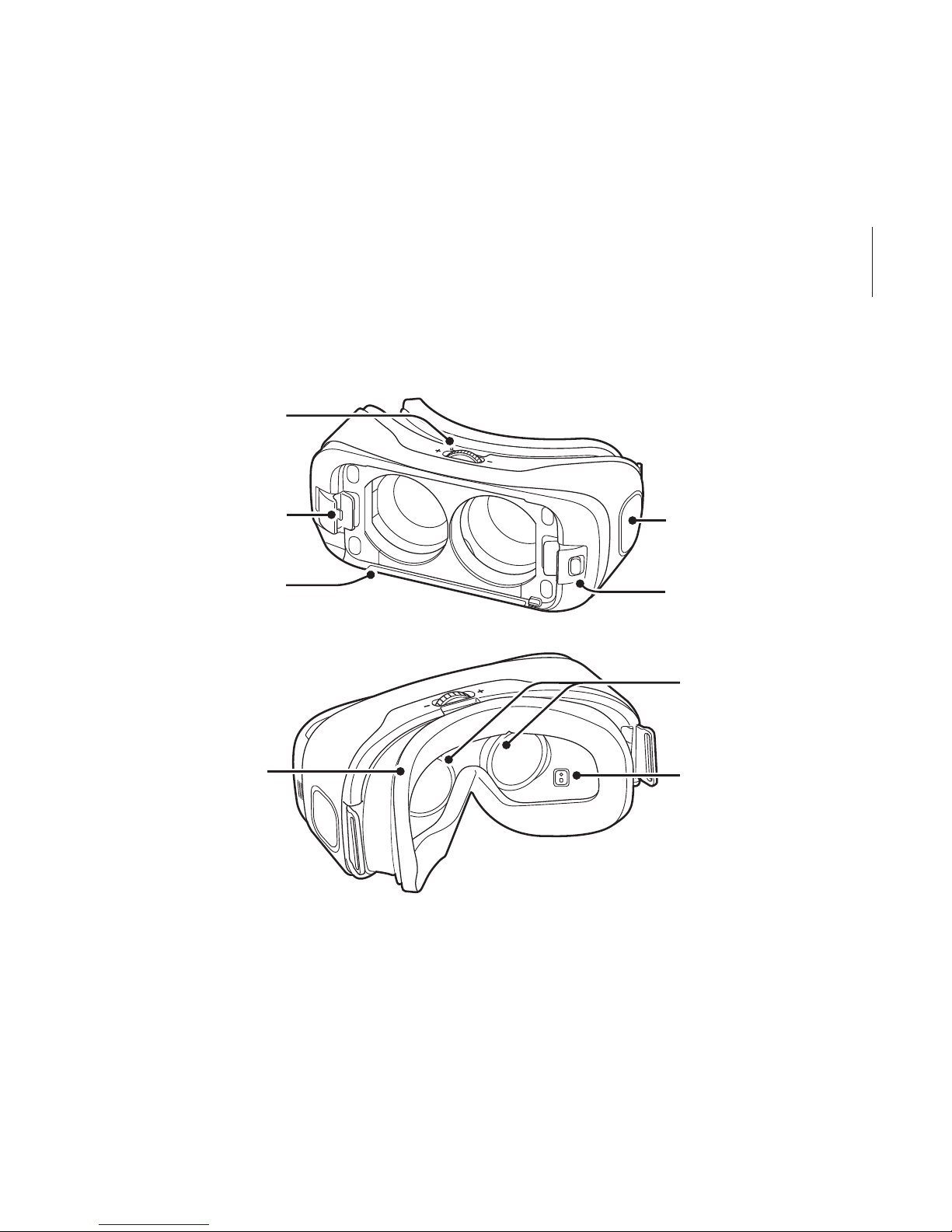

Device layout
Focus adjustment
wheel
Connector
Charging port Phone lock key
Fan
Foam cushioning Proximity sensor
Lenses

18
Getting started
Back key
Touchpad
Volume key
Front cover
•
Ensure that the fan air inlet on the left side of the Gear VR for S6is
clean and unobstructed.
•
The fan may cause noise during operation. This is normal and does
not affect the Gear VR for S6's lifespan or performance.
•
The Gear VR for S6does not require charging as it is powered using
the Samsung GALAXY S6’s battery.

19
Getting started
•
You can connect the charger to the charging port on the Gear
VR for S6. Use only Samsung-approved USB cables and 2A power
adaptors.
–
If you use the Gear VR for S6while the charger is connected,
it is powered by the charger and does not use the Samsung
GALAXY S6’s battery. When you use content that has high
power demand (more than 1A) while the charger is connected,
the Gear VR for S6uses two power sources. In high power
demand situations, the Gear VR for S6is powered by the charger
and the Samsung GALAXY S6’s battery at the same time.
–
If the Gear VR for S6is disconnected from the charger while the
Gear VR for S6is being used, the image on the screen may be
briefly inactive. During this period, the screen recalibrates and
the Gear VR for S6may not recognise your head movements.
–
If the Gear VR for S6is not used while the charger is connected,
the Samsung GALAXY S6’s battery will be charged.

20
Getting started
•
To save energy, unplug the charger when not in use. The charger
does not have a power switch, so you must unplug the charger
from the electric socket when not in use to avoid wasting power.
The charger should remain close to the electric socket and easily
accessible while charging.
•
Replace the front cover when you finish using the Gear VR for S6.
