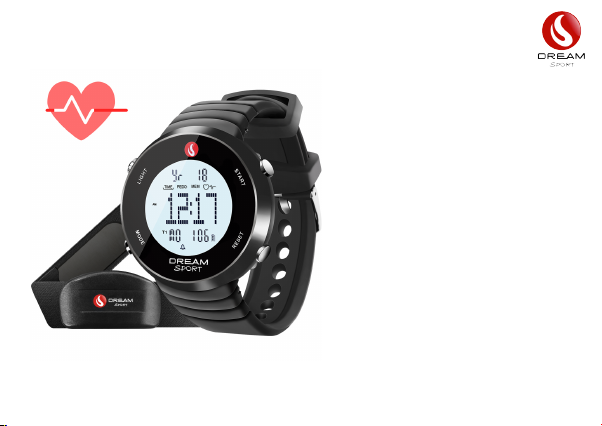

DREAM Sport DHP828 User manual

—DHP828
HEART RATE MONITOR
WITH BAND
USER’S MANUAL

CONTENTS
Keys and Function .............................................................................................1
LCD Full Segment..............................................................................................2
Quick Start..........................................................................................................3
Time Mode..........................................................................................................5
Alarm Mode........................................................................................................6
Timer Mode.........................................................................................................9
Chrono Mode....................................................................................................10
HR Mode...........................................................................................................11
Podemeter Mode..............................................................................................12
Memory Mode...................................................................................................13
Setup Mode......................................................................................................14
Battery Requirement.........................................................................................18
Services............................................................................................................20

START/STOP

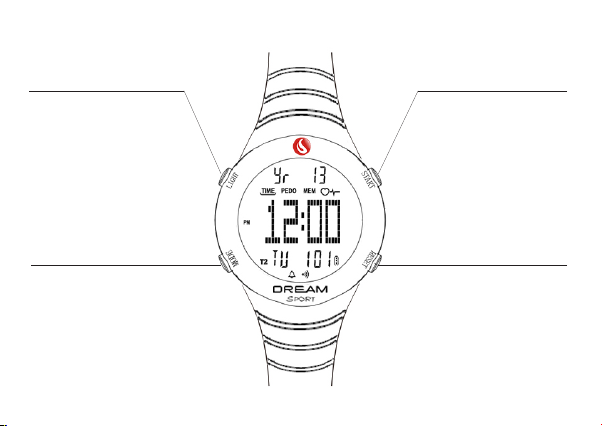

Keys and Functions
LIGHT
- Activates Light
MODE
- Scrolls through various modes of
the watch;
- Advances to next variable in setting
sequence;
RESET
- Increases variable in setting
sequence;
- Start/Pauses time in Timer/
Chrono mode;
- Toggle time format;
- Switch alarm1/2;
- Decreases variable in setting
sequence;
- Chime on/off in time;
- Switch the T1/T2;
- Alarm on/off;
English|1

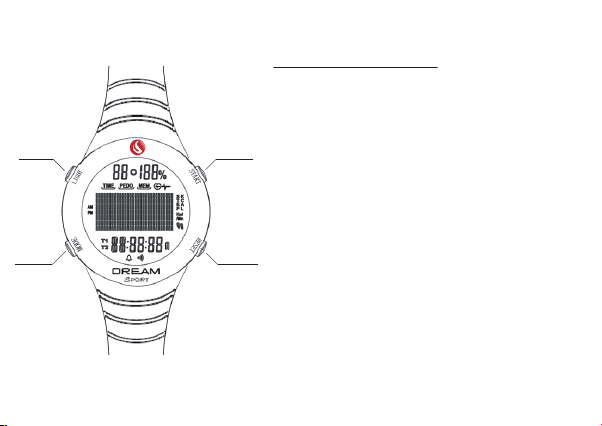

LCD Full Segment
LIGHT
MODE
START
RESET
TECHNICAL SPECIFICATION
WRIST UNIT
Battery type: CR 2032
Battery life: Average 1 years
Operating temperature: 14°F to 122°F/ -10°C to +50°C
Water resistance: 100 feet / 30 meters
Wrist strap material: Polyurethane
Back cover and wrist strap buckle: Stainless steel complying
Accuracy of heart rate measurement: ±1% or ±1bpm
Accuracy of step measurement: ± 3%
Watch accuracy :
better than ± 2 seconds/day at 77 °F/ 25 °C temperature.
TRANSMITTER
Battery life: 1 year
Battery type: CR2032
Operating temperature: 14°F to 122°F/ -10°C to +50°C
Transmitter material: Silicon Rubber
Water resistance : 33 feet/10 meters
English|2

Quick Start wearing the chest belt
Follow steps 1. through 4. to wear the chest belt and go for a run.
1. Open the chest belt.
2. Insert the tab into the hole, make sure tab and hole are on the same level.
3. Position on rib cage under the chest. Make sure the chest belt is positioned
in the right direction and worn directly against the skin.
4. Lift the belt slightly from the skin and wet both grooved areas on the back to
ensure strong connection between your pulse and the chest belt.
English|3

Quick Start zone selection
5.Enter HR mode
6.Press 3s to choose
zone
No Signal
Three dash lines will apear if the
watch is not receiving transmission
from the chest belt.
Max Heart Rate
Male=220-Age
Female=226-Age
Zone 1 - Wellbeing(50-65% of MHR):
This training zone is for long training units with
little effort.Through exercise in this zone,you
improve your mental and physical wellbeing.
Zone 2 - Fitness(65-80% of MHR):
This training zone is suitable for athlete,who
intend to improve their performance and stamina
with elevated calorie burning.
Zone 3 - Competitive sport(80-95% of MHR):
This training zone is ideal for short and very
intensive training units.Competition athletes
train in this zone in order to improve strength
and speed.
User-defined training zone (U):
Upper limit and lower limit can be set manually.
English|4

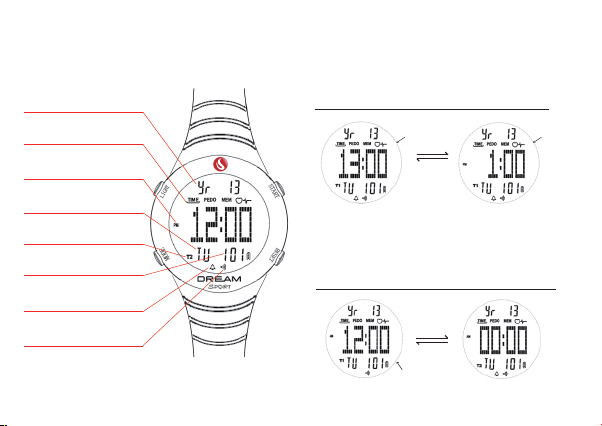

Time Mode
This watch has a dual time function, you can set the time of two time zones.
Year 2013
Post Meridiem
Time 2
Week:Thursday
Chime
Month/Day January 1
Alarm
Time Mode
Press the “START” button In order to change
the format of time display . (12/24h)
Press Press
Press the “RESET” button can open or close
the chime.
Keep the “RESET” button pressed for approx
3 seconds. You can switch T1/ or T2.
Press for 3s
English|5

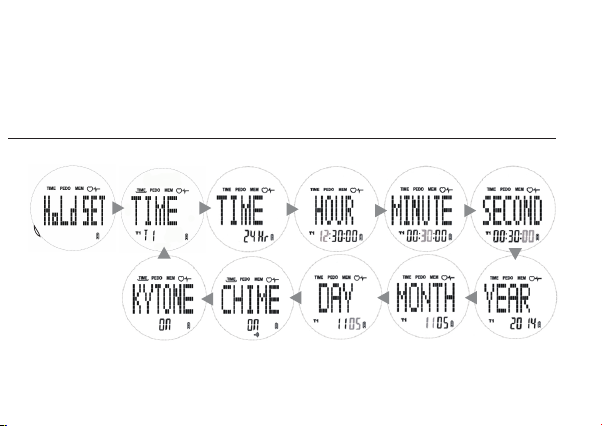

Time set time
In TIME mode,you can set the Time,Date,Hour Format,Chime,and Keytone.
- Keep the "MODE" button pressed for approx 3s, then you can set the time.
- Press the "MODE" to select the parameters to be set.
- Press “START” or “RESET” button to adjust the value.
Set HourFormat
12/24h Set Hour
24h:0~23h Set Minute
0~59min Set Second
0s
Set Year
2000~2099
Set Month
1~12
Set Day
1~31
Set Chime
OFF/ON
Set Keytone
OFF/ON
Choose
T1/T2
Remark:
- If there is no key press or key hold for 60s. It will goback to clock mode and all previous data will be kept.
- Press and hold “MODE”3 seconds to quit settingmode immediately.
MODE
Press for 3s
English|6

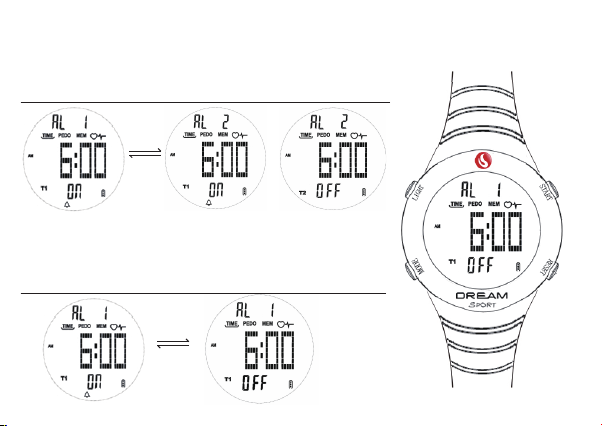

Alarm Mode
This watch has a dual alarm clock function, can set two alarm clocks.
Remark: Watch alarm clock can be based on T1 or T2.
Press the “START” button in order to choose Alarm1
or Alarm2.
Press the “RESET” button can open or close the
alarm.
Alarm1 base on T2 Alarm2 base on T1 Alarm2 base on T2
English|7

Alarm set alarm
- Two alarm Settings are the same
- Keep the "MODE" button pressed for approx 3s, then you can set the ALARM1/2.
- Press the "MODE" to select the parameters to be set.
- Press “START” or “RESET” button to adjust the value.
SET ALARM1
Choose
T1/T2
Set
Hour
Set
Minute
Choose
OFF / ON
SET ALARM2
.....
The alarm 2 setting is the same as the alarm 1 setting.
Press for 3s
MODE
English|8

Timer Mode
Heart Rate Percent (Base on Max HR)
Real-time Heart Rate
Timer
- Press “START” button → Start timer
- Press “START” button → Stop timer
- Press “START” button → Timer is continued
- Keep START” button pressed for approx. 3 seconds → Reset timer
- Press “RESET” button → Change user interface to display all datas.
For example HR,KCAL,DISTANCE,STEP,ZONE.
English|9

Timer set timer
Under any interface of timer mode, long press the mode key to enter
the setting.
Remark:Only after the timer has been suspended can we enter the setting mode.
Set Hour
0~99h
Set Minute
0~59min
CHRONO MODE
The chrono mode operates the same as the timer mode.
- Press “START” button → Start/Stop chrono.
- Keep START” button pressed for approx. 3 seconds → Reset chrono.
- Press “RESET” button → Change user interface to display all datas.
For example HR,KCAL,DISTANCE,STEP,ZONE.
English|10

Heartrate Mode
Press “RESET” button → Change user interface to display all datas.
For example Real-time HR,Average HR,Maximum HR,Kcal,Distance,Step,Zone.
HR Set Hr
- Keep the "MODE" button pressed for approx 3s, then you can set the ALARM1/2.
- Press the "MODE" to select the parameters to be set.
- Press “START” or “RESET” button to adjust the value.
Choose HR Zone
1~3 and User’s zone
HR Alert
ON/OFF
English|11

Pedometer Mode
Press “RESET” button → Change user interface to
display all datas. For example Step,Distance,Kcal.
Target Percent(base on target open)
Walk/Run Step
Walk/Run Time(Automatically record exercise time)
Set Pedo
Keep “MODE” button pressed for approx. 3 seconds → Set target.
The max target is 99999.
Target
ON/OFF
Target
0~99999 Step
English|12

Memory Mode
This watch can hold the last seven days of training data. Every training data
including step, heart rate, distance, average hr and so on.
Press “RESET” buttonPress “START” button
Switch date in order to check on the
day of the training data.
Remark:The seven day of memory are based on T1 time.
.
.
.
Switch interface in order to check the
day's individual data. For example
Step,Distance,Time,Kcal,Average HR,
Maxium HR.
7 days ago record
1 days ago record
English|13

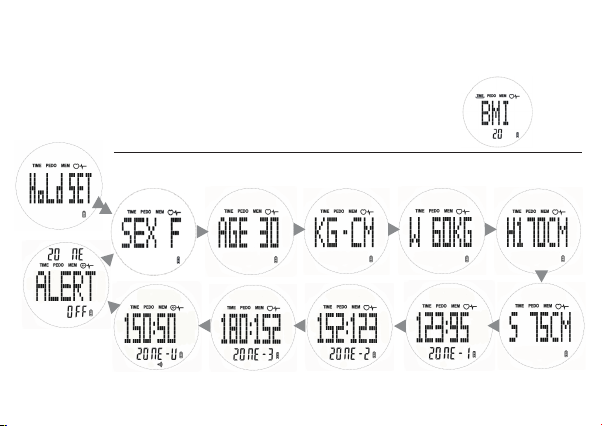

Setup Mode
In Setup Mode,you can see your BMI.
- Keep the “MODE” button pressed for approx. 3 seconds , you can set your personal information.
- Press the "MODE" to select the parameters to be set.
- Press “START” or “RESET” button to adjust the value.
Body mass index (BMI) = weight (kg) / height (m)^2
EX:70kg and 175cm;BMI is 70 ÷(1.75×1.75)=22.86
Sex
Female/Male
Age
10~99
Unit
Kg.Cm/Lb.In
Weight
20~200kg
Height
100~240cm
Step
10~150cm
Zone1/2/3
ZoneU
Customize HR
Alert
ON/OFF
English|14

MARK:
There are three specified training zones (1,2 and 3), as well as a user defined
training zone(U). There heart rate monitor automatically calculates your
maximum heart rate (MHR) on the basis of your ages'as well as your personal
upper and lower limits of three specified training zones (Zone1:50-65% of
MHR, Zone 2:65-80% of MHR, Zone 3:80-95% of MHR).
Zone 3 - Competitive sport(80-95% of MHR):
This training zone is ideal for short and very intensive training units.Competition athletes train in this zone in
order to improve strength and speed.
Zone 2 - Fitness(65-80% of MHR):
This training zone is suitable for athlete,who intend to improve their performance and stamina with elevated
calorie burning.
Zone 1 - Wellbeing(50-65% of MHR):
This training zone is for long training units with little effort.Through exercise in this zone,you improve your
mental and physical wellbeing.
Different training zones:Depending on which goal you are pursuing with your training,you set that
training zone accordingly at the start:
User-defined training zone (U):
Upper limit and lower limit can be set manually.
English|15

English|16

Display Mode
By pressing the "LIGHT" button, the display is illuminating for approx. 5 seconds,so that the display of
the heart rate monitor can also be read in darkness. However, please note that more power is consumed
for the display light, which results in a shorter battery life.
Technical Date
-Transmission frequency of the chest strap to the heart rate monitor:5.3KHZ
-Chrono:Measurement range:99 hours 59 minutes 59 seconds
-Timer:Measurement range:99 hours 59 minutes 59 seconds
Care And Maintainance
• Never attempt to disassemble or service your watch
• Protect your watch from extreme heat, shock and long time expose to direct sung light
• Watch can be wiped clean with a lightly moistened cloth. Apply mild soap to the area if there are stubborn
stains or marks. Do not expose your watch to strong chemicals such as gasoline, clean solvents,
acetone,alcohol,insect repellents,as they may damage the unit’s seal, case and finish
• Store your watch in a dry place when you are not using it
• Avoid allowing the watch to come into direct contact with hair liquids, colognes, sun block, creams and
other toiletries, which can cause deterioration of the plastic parts of the watch. Whenever the watch comes
into contact with these or other toiletries, wipe it off immediately with a dry, soft cloth
• Do not wear your watch in shower or other similar environments
• Do not push buttons under water
English|17

Battery Requirement
Warning: Keep watch batteries away from children, If swallowed, contact a doctor
immediately.
Warning: Batteries contain chemical substances.
They should be disposed of properly according to local regulations.
Watch:
Battery Type: CR2032 Lithium
Battery Life: The battery is estimated to last 1 year depending on frequency and
use of certain features.
o l d
1.Unscrew all four
corners to remove
the caseback.

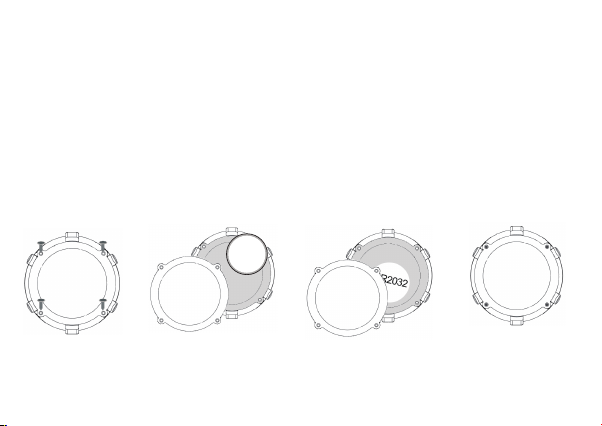

Change Battery:
2.Remove
old battery.
3.Insert a CR2032
lithium battery with
the writing facing you.
4.Replace the
caseback.
English|18
