Drija MALBEC 7 User manual

User manual
MALBEC 7
7 bottles

User manual
WINE COOLER | MALBEC 7
1
1. INTRODUCTION................................................................................................................. 2
2. PRODUCT SPECIFICATIONS ........................................................................................... 3
3. DESCRIPTION OF THE APPLIANCE ................................................................................ 5
4. PRODUCT USE.................................................................................................................. 7
5. CLEANING AND MAINTENANCE...................................................................................... 9
6. INSTALLATION .................................................................................................................. 9
7. PROBLEM SOLVING........................................................................................................ 13

User manual
WINE COOLER | MALBEC 7
2
1.INTRODUCTION
IMPORTANT SAFETY INFORMATION
Your safety is paramount to us. Be sure to read this manual before attempting to install or use
the appliance.
IMPORTANT: Any installation work must be performed by a qualified specialist or competent
person.
USING THE MACHINE
Your appliance is only designed to be used at home. It is suitable for storing and cooling wine.
Food should not be stored in the device. If used for any other purpose or not used properly,
DRIJA COMPANY. Not accept any responsibility for any damage caused.
Do not change the specification of the device for safety reasons.
BEFORE USING THE APPLIANCE
Check for transport damage. If you notice any damage, do not connect the appliance to your
mains supply and should contact your dealer.
REFRIGRANTE
Your appliance contains R134a refrigerant, so care must be taken:
During transport and installation of the apparatus, ensure that the cooling pipe is not
damaged.
If damaged, ignition sources and open flames should be avoided. Also the room where
the appliance is located must be well ventilated.
Do not place anything on top of the appliance, as it may damage the top board.
CHILD SAFETY
Packing material should be kept away from children.
Do not allow children to touch the controls or play with the appliances.
SERVICES
Do not attempt to repair the appliance yourself, as this may cause injury or more serious bad
performance. If you need a service call, contact the customer service department of DRIJA
COMPANY.

User manual
WINE COOLER | MALBEC 7
3
2.PRODUCT SPECIFICATIONS
DIMENSIONS OF THE APPLIANCE
DIMENSIONS OF THE OPENING
High:
872-890mm
High:
875mm (min)
Width:
148mm
Width:
155mm (min)
Depth:
525mm
Depth:
570mm (min)

User manual
WINE COOLER | MALBEC 7
4
Gross capacity: 22litros
Bottle capacity: 7 bottles of 0.75 liters Bordeaux style
Energy efficiency class: B
Noise level: 39 dB
Electronic control operation push button
Led screen
6 adjustable wooden shelves
adjustable temperature
Interior light
Water drainage
Exterior black
reversible door
adjustable feet
Tempered glass door
Frame and door handle stainless steel
Designed to store wine at its optimum temperature between 5 ° C and 22 ° C.

User manual
WINE COOLER | MALBEC 7
5
3.DESCRIPTION OF THE APPLIANCE
1
Door steel inoxidable
2
Stainless Steel Handle
3
Digital Control Panel
4
Adjustable shelves
5
Adjustable legs

User manual
WINE COOLER | MALBEC 7
6

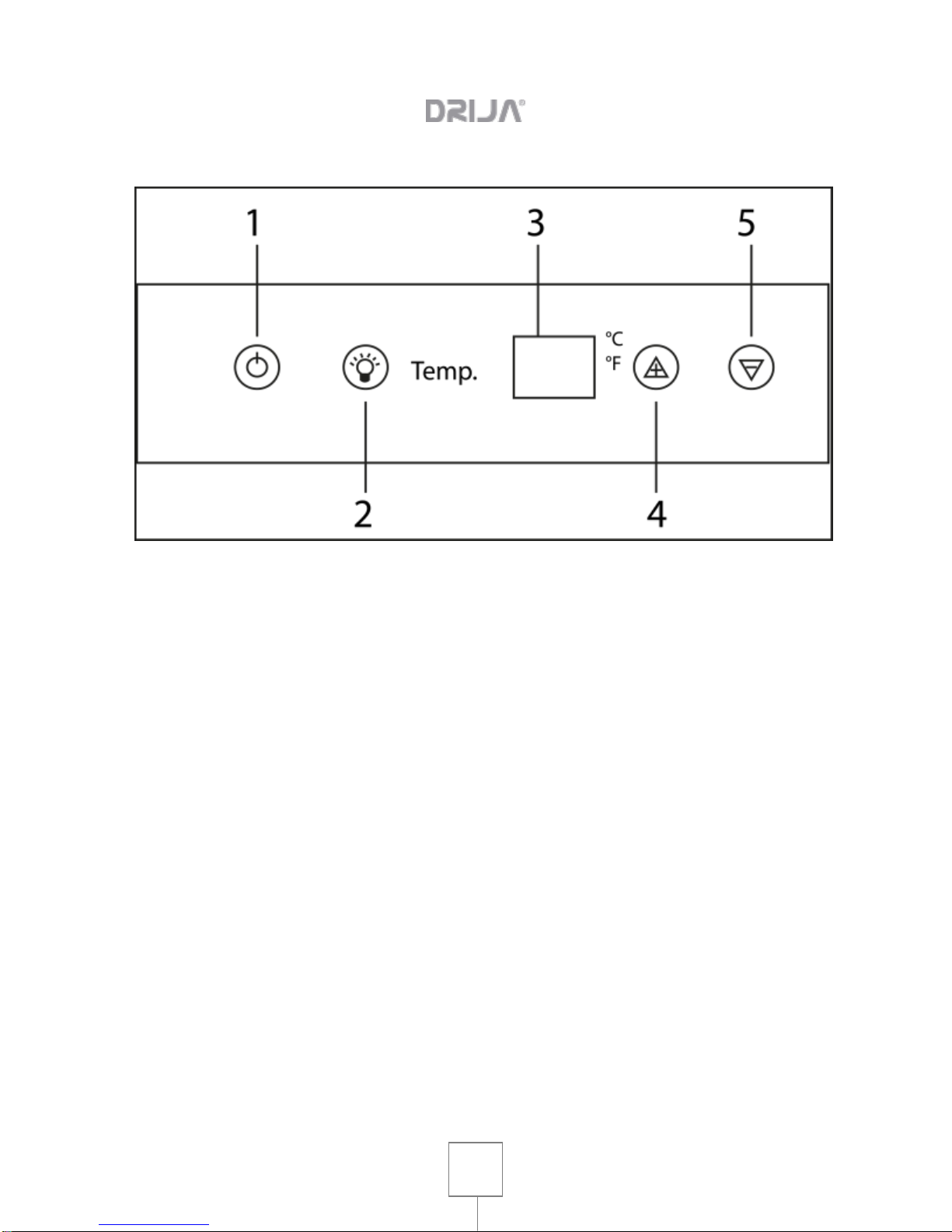

CONTROL PANEL
1. Control button ON /
2. Button light control
3. Temperature display
4. Temperature button
5. Button temperature less
DESCRIPTION OF PRODUCT CHARACTERISTICS
CONTROL PANEL
The control panel is located in the center of the device, behind the glass door. This
means that it is easy to adjust the temperature of the device and see that the device
temperature is adjusted.
A cooling zone
There is an area of confrontation inside your wine cabinet.
The cooling zone has a temperature control and temperature display.
INTERIOR LIGHT
The cooling zone has an interior light. The light can be turned on and off with the control
button light (2)

User manual
WINE COOLER | MALBEC 7
7
SHELVE SING
Wooden shelves are fully adjustable to accommodate different shapes and sizes of
bottles of wine.
To avoid damaging the door, make sure the door is fully open when removing the
magazine racks rail.
For easy access to stored bottles, pull the shelves about 1/3 of the way.
4.PRODUCT USE
BEFORE TURNING
Make sure it has been installed by a qualified person, according to the information
contained in the installation instructions DRIJA COMPANY.
After delivery, wait for eight hours before connecting the apparatus to the mains. This
will allow the refrigerant gases that may have been altered during the transportation
process to settle.
Outside the apparatus and removable accessories contained therein should be cleaned
with a liquid detergent and water.
The interior of the device should be cleaned with a solution of sodium bicarbonate
dissolved in warm water. The interior and accessories should be thoroughly dried, after
the cleaning process has been completed.
There may be odor when you turn the device first. It will be reduced as the device starts
to cool.
DURING THE FIRST USE
IMPORTANT:
When using the apparatus for the first time or reset after having been off for a long period of
time the apparatus, there may be a difference of a few degrees between the selected
temperatures and displayed on the LED. This is normal and due to the length of activation
time. Once the appliance ah been running for a few hours everything will return to normal.
When you turn the apparatus for the first time, the compressor will run continuously until
the temperature reaches cold enough.
During this period, you should try to not open the door frequently or bottles placed
inside the device.

User manual
WINE COOLER | MALBEC 7
8
If the unit is disconnected, you must leave at least 5 minutes before restarting the
appliance or reconnecting to the network.
APPARATUS AND ADJUST ON TEMPERATURE
To switch on, press the ON / OFF button (1) for 5 seconds.
The set temperature in the apparatus is adjustable in the range of 5 ° C - 22 ° C / 40 ° F
- 72 ° F.
When press temperature more (4) or less (5) for the first time, the LED will display the
factory default of 12 ° C / 54 ° F adjustment.
Use the temperature more (4) and minus (5) to adjust the desired temperature.
The temperature increase 1 ° C or 1 ° F pressing the plus (4) once and decrease by the
same amount by pressing the minus button (5) once.
When a new temperature setting, the display will show the above temperature for 5
seconds before showing the actual temperature. During this time, the cabinet
temperature will be adjusted accordingly.
To see the set temperature, press the button (4) or less (5). The display will flash the
temperature for 5 seconds.
Fresh cabinet falls and warmer air rises, so there will be a slight variation in temperature
between the cabinet top and the bottom.
IMPORTANT: When the temperature is changed, the compressor works harder to reach the
required temperature. During this time, the side panels of the cabinet can reach up to 45 ° C,
but will cool when they reach the set temperature.
CHANGING A CELSIUS FAHRENHEUT
You can select whether the temperature display shows Celsius or Fahrenheit.
To change the temperature display, press the plus button (4) for 5 seconds.
You cannot change the screen if you are in the process of adjusting the temperature.
CHARGING APPARATUS
IMPORTANT: Your appliance is ideal for storing wine bottles of 0.75 liters Bordeaux style.
While the cabinet can store larger bottles, you should make sure that they do not prevent the
door from closing properly.

User manual
WINE COOLER | MALBEC 7
9
5.CLEANING AND MAINTENANCE
WARNING: PLEASE ENSURE THAT YOUR APPLIANCE is disconnected from your
mains supply before attempting to clean
Do not use any water pouring or spraying on.
The interior of the case should be cleaned periodically, using a solution of Sosa and
warm water.
Clean the accessories separately with soap and water. Do not clean in a dishwasher.
Do not use abrasive products, detergents or soaps.
After washing the device, clean the area ah cleaned with a damp cloth and dry
thoroughly.
THAWED
The frosting des occurs automatically inside the cabinet during operation. Defrost water
is collected by the evaporating tray and evaporates automatically.
The evaporating tray and the drain hole defrost water must be cleaned regularly. This
prevents water from accumulating on the bottom, instead of flowing through the channel
drain des frosting and the drain hole.
You must ensure that the bottles do not touch the back of the appliance, as this may
interrupt the automatic defrosting and divert water to the base of the cabinet.
6.INSTALLATION
IMPORTANT: Before installation and use read all instructions and make sure that the voltage
(V) and frequency (Hz) indicated on the rating plate are exactly the same as the voltage and
frequency in your home. The plate is located on the front edge of the interior of the case.
The manufacturer declines all responsibility if the installer does not comply with all applicable
accident prevention regulations, which are necessary for normal use and normal operation of
the electrical system.
POSITIONING
It is advisable that your appliance is only installed in a location where the ambient room
temperature corresponds to the climate classification indicated on the rating plate of your
appliance. Your appliance may not work properly if the ambient temperature falls outside these
ranges.

User manual
WINE COOLER | MALBEC 7
10
climatic classification
Appropriate temperature environment
SN
+10 to +32 Degrees Celsius
N
+16 to +32 Degrees Celsius
SN
+18 to +38 Degrees Celsius
T
+18 to +43 Degrees Celsius
Positioning requires two persons to prevent injury or damage to the device.
Your appliance should not be placed in direct sunlight or expose a continuous heat or
extremes of temperature (eg next to a radiator or boiler). If this is not possible, to install
an insulating plate between the apparatus and the adjacent heat source.
You should check for an available electrical outlet, which will be accessible after the
appliance is installed.
Place the device flat and firmly on a solid base. The apparatus with adjustable on the
front, to be used to level the appliance legs.
Be sure to leave enough room to open the door, to avoid damage to the unit or personal
injury.
IMPORTANT: Ventilation in the base unit is for ventilation. Do not place anything in
front of this vent; otherwise your wine cabinet cannot function properly.

User manual
WINE COOLER | MALBEC 7
11
INSTALLATION FLUSH
Wine cabinet can be used as a standalone or built into the unit. Clearances shown in
the drawing above should be followed for both types of installation.
In particular, the dimension of depth should be observed.
A decorative base can be installed on the front of the aerating base, as long as the
section shown in the diagram below is in the socket. This cut is required if the vent is
removed or not.
Remove the door gasket on the side where you want to install the handle. You can see
two holes designated for installing the handle.
Install the handle firmly as shown in the diagram above with screws, washers and flat
washers provided.
Replace the door gasket.

User manual
WINE COOLER | MALBEC 7
12
INVEST YOUR DOOR CABINET
This device has the ability to open the door from the right or left side.
Any part removes the appliance when the
door reverses should be stored for later use.
Open the glass door and remove the
screws beneath the lower right of the glass
door, which are used to secure the lower
right hinge shaft assembly to the door
corner.
Take care to support the glass door with
both hands to avoid dropping it after
removing the screws.
Pull down to remove the glass door and
place it on a padded surface to prevent
scratching.
Remove top right hinge and the lower right
hinge.
Take the left upper hinge and the lower left
hinge plastic bag containing this manual
and then install them in the designated
positions on the left side of the cabinet.
Turn the glass door about 180 ° and
reinstall.
IMPORTANT: Check that the door opens and closes properly, without fouling, after
completing the investment process of the door.
After the door has been reversed, you should check the door seal wine cabinet. The
seal should not be wrinkled or crushed; otherwise there will be a gap between it and the
inside of the door.
IMPORTANT: WHEN THE DOOR HAS BOOKED THE APPLICANT, IF YOU HAVE PLACED
THE APPLIANCE ON YOUR BACK, YOU MUST WAIT FOR 8 HOURS BEFORE
SWITCHING THE APPLIANCE.

User manual
WINE COOLER | MALBEC 7
13
7.PROBLEM SOLVING
PROBLEM
POSSIBLE CAUSE
Wine cooler does not work.
Not plugged.
The breakers were fired or fuse is blown.
Wine cooler temperature inside is very
warm.
Temperature control is set to warm level. Change the schedule to
maximum cold and wait a few hours until the temperature stabilizes.
The door open or frequently much time remains. Warm air enters every
time they open the door. Open it as little as possible.
The door is not closed completely.
The seal of the door does not close properly.
The wine cooler was recently disconnected for a period of time.
The wine cooler requires 4 hours to cool completely.
Wine cooler temperature inside is very
cold.
Temperature control is very cold programming. Set it at a suitable
temperature and wait a few hours to stabilize.
vibes
Verify that the wine cooler is on a level surface.
The wine cooler is touching the wall. Wine cooler again level the wall and
move it.
If vibration continues, turn off and disconnect wine cooler. Contact the
Service Center.
Moisture forms on the inner walls of the
wine cooler.
The door is slightly open.
Door remains open for a long time or frequently. Open it as little as
possible.
The door is not sealing properly.
Moisture forms on the outside of the
apparatus.
The door is slightly open, causing cold air inside the wine cooler contact
with the moist air outside.
The door will not close properly.
The wine cooler is not on level surface. The door seal is dirty.
