Chapter 1 : INTRODUCTION
EXPLANATION OF EMS
Electrical Muscle Stimulation is an internationally accepted and
proven way of treating muscular injuries. It works by sending
electronic pulses to the muscle needing treatment; this causes the
muscle to exercise passively.
It is a product derived from the square waveform, originally invented
by John Faraday in 1831. Through the square wave pattern it is
able to work directly on muscle motor neurons. The AGF-6X2 Digital
EMS has low frequency and this in conjunction with the square
wave pattern allows direct work on muscle groupings. This is
being widely used in hospitals and sports clinics for the treatment
of muscular injuries and for the re-education of paralyzed muscles,
to prevent atrophy in affected muscles and improving muscle tone
and blood circulation.
HOW EMS WORKS
1. Relaxation of muscle spasms
2. Prevention or retardation of disuse atrophy
3. Increasing local blood circulation
4. Muscle re-education
5. Immediate post-surgical stimulation of calf muscles to prevent
venous thrombosis
6. Maintaining or increasing range of motion
The EMS units send comfortable impulses through the skin that
stimulate the nerves in the treatment area. W hen the muscle
receives this signal it contracts as if the brain has sent the signal
itself. As the signal strength increases, the muscle f lexes as in
physical exercise. Then when the pulse ceases, the muscle relaxes
and the cycle starts over again, (Stimulation, Contraction and
Relaxation.) Powered muscle stimulators should only be used under
medical supervision for adjunctive therapy f or the treatment of
medical diseases and conditions.
IMPORTANT SAFETY INFORMATION!
Read instruction manual before operation. Be sure to comply with
all “CAUTIONS” and “W ARNINGS” in the manual. Failure to follow
instructions can cause harm to user or device.
Chapter 2: CAUTIONS
1. Federal law (USA) restricts this device to sale by or on the
order of a physician
2. Safety of powered muscle stimulators for use during pregnancy
has not been established.
3. Caution should be used for patients with suspected or diagnosed
heart problems.
4. Caution should be used for patients with suspected or diagnosed
epilepsy.
5. Caution should be used in the presence of the following:
a. When there is a tendency to hemorrhage following acute
trauma or fracture;
b. Following recent surgical procedures when muscle
contraction may disrupt the healing process;
c. Over the menstruating or pregnant uterus; and
d. Over areas of the skin which lack normal sensation.
6. Some patients may experience skin irritation or hypersensitivity
due to the electrical stimulation or electrical conductive medium.
The irritation can usually be reduced by using an alternate
conductive medium, or alternate electrode placement.
7. Electrode placement and stimulation settings should be based
on the guidance of the prescribing practitioner.
8. Powered muscle stimulators should be kept out of the reach of
children.
9. Powered muscle stimulators should be used only with the leads
and electrodes recommended for use by the manufacturer.
10.Portable powered muscle stimulators should not be used while
driving, operating machinery, or during any activity in which
involuntary muscle contractions may put the user at undue
risk of injury.

54
Chapter 3 : WARNINGS
1. The long-term effects of chronic electrical stimulation are
unknown.
2. Stimulation should not be applied over the carotid sinus nerves,
particularly in patients with a known sensitivity to the carotid
sinus reflex.
3. Stimulation should not be applied over the neck or mouth. Severe
spasm of the laryngeal and pharyngeal muscles may occur and
the contractions may be strong enough to clos e the airway or
cause difficulty in breathing.
4. Stimulation should not be applied transthoracically in that the
introduction of electrical current into the heart may cause cardiac
arrhythmias.
5. Stimulation should not be applied transcerebrally.
6. Stimulation should not be applied over swollen, infected, or
inflamed areas or skin eruptions, e.g., phlebitis, thrombophlebitis,
varicose veins, etc.
7. Stimulation should not be applied over, or in proximity to,
cancerous lesions.
Chapter 4: CONTRAINDICATION
Powered muscle stimulators should not be used on patients with
cardiac demand pacemakers.
Chapter 5: ADVERSE REACTIONS
Skin irritation and burns beneath the electrodes have been reported
with the use of powered muscle stimulators. If skin irritation occurs,
discontinue use and consult your physician.
Chapter 6: GENERAL DESCRIPTION
The EMS is a battery operated pulse generator
that sends electrical impulses through electrodes to the body and
reaches the underlying nerves or muscle group. T he device is
provided with two controllable output channels, each independent
of each other. An electrode pair can be connected to each output
channel.
The electronics of the EMS create electrical
impulses whose Intensity, Pulse W idth, Puls e Rate, Contraction,
Relaxation and Ramp may be altered with the switches. Press
buttons ar e very easy to us e and the panel c over prevents
accidental changes in the setting.
.
AGF-6X2 Digital
AGF-6X2 Digital

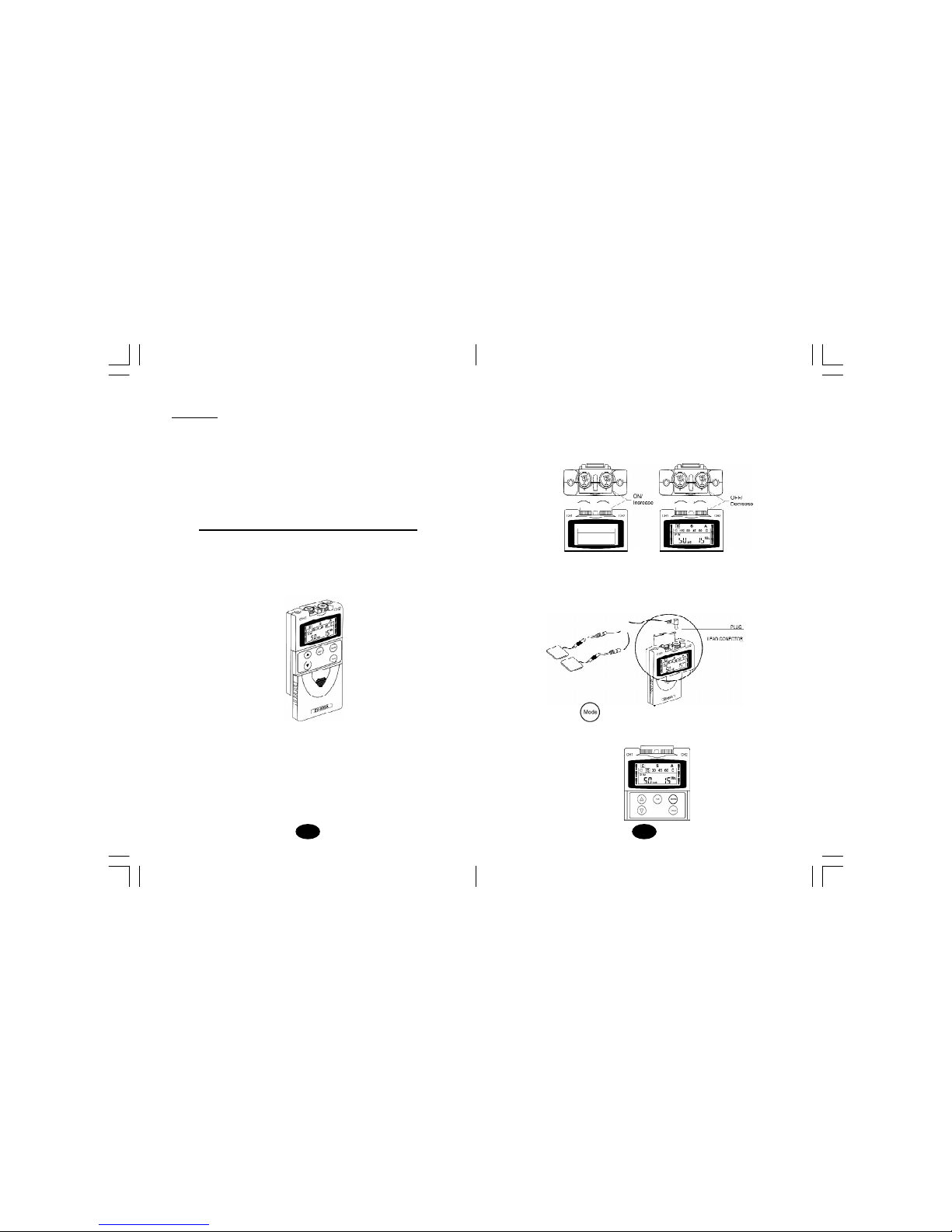

76
FRONT
(1) LEADCONNECTOR
(2) INTENSITYCONTROL(ON/OFFSWITCH)
(3) LIQUID CRYSTALDISPLAY
(4) MODECONTROL
(5) SETCONTROL
(6) INCREMENTCONTROL
(7) DECREMENTCONTROL
(8) TIMER CONTROL
(9) BATTERY STRIP
(10)BATTERYCOMPARTMENT
(11) BELTCLIP
(12)PROTECTIVECOVER
Chapter 7 :CONSTRUCTION
LCD
(1) MODE
(2) TIMER
(3) PULSEWIDTH/RATE
(4) RAMP / ON /OFFTIMER
(5) OUTPUT INDICATOR

98
17 Alternate(A) The stimulation of the CH2 will occur after
the 1st contraction of CH1 is completed. In
this mode, the setting of ON Time should
be no less than two times of the “Ramp”
time. The OFF Time should be equal or more
than the ON Time.
ON TIME ≥Ramp up + Ramp down
OFF TIME ≥ON TIME
18
Compliance Meter The accumulated treatment time can be
recorded. Total recorded time is 999 hours.
19 Operating Temperature:0°~40°C
Condition Relative Humidty:30%~75%
Atmosphere Pressure : 700Hpa~1060Hpa
20 Tolerance There may be a +/-10% tolerance of all
settings and +/- 20% tolerance of output
of intensity.
Chapter 8 : TECHNICAL SPECIFICATIONS
The technical specification details of EMS are as follows:
MECHANISM TECHNICAL DESCRIPTION
01 Channel Dual, isolated between channels
02 Pulse Amplitude Adjustable 0-100 mA into 500 ohm load
each channel.
03 Output Voltage Adjustable 0-50V, Max output 50V peak to
peak into 500ohm load each channel.
04 W ave Form Asymmetrical rectangular biphasic pulse.
05 Power Supply One 9 Volt Battery, type 6F22
06 Size 10.1cm(L) x 6.4cm(W ) x 2.5cm(H)
07 W eight 140 grams (battery included)
08 On Time Adjustable, 2~90 seconds , 1 Sec./ step
09 Off Time Adjustable, 0~90 seconds , 1 Sec./ step
10 Ramp Time Adjustable, 1~8 seconds, 1 Sec./ step, The
“On” time will increase and decrease in
the setting value.
11 Pulse Rate Adjustable, 2~150 Hz , 1Hz / step
12 Pulse W idth Adjustable, 50~300µs , 10µs / step
13 Timer Adjustable, 15, 30, 45, 60 minutes or
Continue.
14 Output Mode Constant ,Synchronous, Alternate
15 Constant(C) Constant stimulation based on setting
value. Only pulse width, pulse rate and
timer are adjustable in this mode.
“Constant” is equal to the “Normal” mode
of a TENS unit.
16 Synchronous(S) Stimulation of both channels occurs
synchronously. The “ON” time including
“Ramp Up” and “Ramp Down” time.
Therefore, the setting of ON Time should
be no less than two times of the “Ramp”
time in this mode.
ON TIME ≥ Ramp up + Ramp down
AGF-6X2 Digital

1110
Chapter 11 : GRAPHIC SYMBOLS
1. Note Operating Instructions
2. Degree of Electrical Protection BF
3. Do not insert the plug into AC power supply socket.
4. Timer
5. Consult Operation Instructions
6. Manufacturer
7. Serial Number
8. DC Current(DC Power source)
9. Increment
10. Decrement
Chapter 9 : REPLACABLE PARTS
The replaceable parts and accessories of EMS
devices are as given below –Except leads, electrodes, battery and
battery case cover, please do not try to replace the other parts of
a device.
PARTS
01 ELECTRODES LEADS
02 ELECTRODES
03 9V BATTERY ,TYPE 6F22
04 BELT CLIP
05 BATTERY CASE COVER
06 LEADCONNECTOR
07 MAIN PCB
08 INTENSITY KNOB
09 LCD COVER
10 INTENSITYCONTROLCOVER
Chapter 10 : ACCESSORIES
Each EMS comes complete with standard
accessories and the standard labels as given below:
I. Accessories
REF. NO. DESCRIPTION Q’TY
1. KF4040 40 X 40 mm Adhesive Electrodes 4 pieces
2. KB-24 Electrodes Leads 2 pieces
3. GC-01 9 V Battery, type 6F22 1piece
4. Instruction Manual 1 piece
5. Carrying Case 1 piece
AGF-6X2 Digital
AGF-6X2 Digital

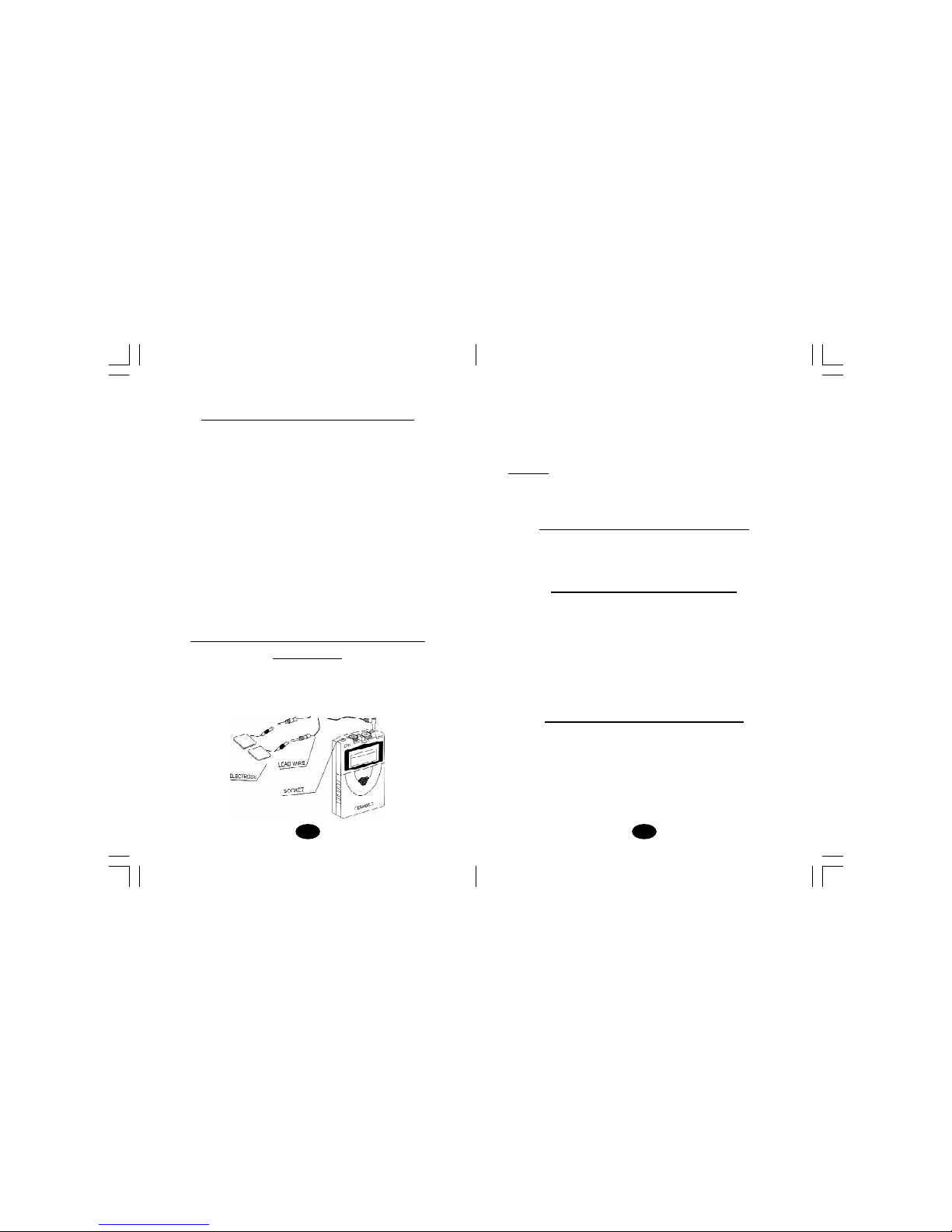

1312
Afterconnectingthewirestothestimulator, attacheachwireto
anelectrode.Usecarewhen you plugand unplug thewires.
Jerking thewireinsteadofholding theinsulatedconnectorbody
maycausewire breakage.
CAUTION
Donot inserttheplugofthe patientleadwireintoany ACpower
supplysocket.
Chapter14: LEADWIREMAINTENANCE
Cleanthewires bywiping with adamp cloth. Coating themlightly
withtalcum powderwill reducetangling and prolong life.
Chapter15: ELECTRODEOPTIONS
Theelectrodes are disposableandshouldberoutinelyreplaced
whentheystart tolosetheiradhesivenature.Ifyouareunsureof
your electrodeadhesiveproperties,orderreplacement electrodes.
Replacementelectrodes shouldbere-ordered throughor onthe
adviceofyourphysicianto ensureproperquality. Follow application
proceduresoutlinedin electrodepacking, tomaintainoptimal
stimulationand toprevent skin irritation.
Chapter16:ELECTRODEPLACEMENT
The placementofelectrodescanbeoneofthemostimportant
parametersinachievingsuccess withEMStherapy.Of utmost
importanceis thewillingness ofthe physician to trythevarious
styles ofelectrode placementto findwhich method bestfits the
needs of theindividualpatient.
Everypatient responds toelectricalstimulation differentlyand their
needs mayvaryfromtheconventionalsettings suggestedhere.If
Chapter12: OPERATING INSTRUCTIONS
1) Insert the9V batteryintothedevice’sbatterycompartment.
Makesuretoremovetheplastic seal on the 9V battery.Lineup
thepositiveand negativeterminals onthebatterywith their
corresponding terminals in the device.Makesurethatboth
Intensitycontrol (ON/OFFSwitch)knobs areintheoff position.
2) Insert thelead wiresintotheleadwiresockets ontopofthe
device.
3) Openthe electrodepackage.Theninsert eachleadwirepin
intothepig tail of theelectrodes
4) Placetheelectrodeonyour bodyasdirectedbyyourphysician.
5) Slowlyturnonthedevicebyrotating theIntensitycontrol
(ON /OFF Switch) knobs.
6) Selectthemode and settingsas directedbyyour physician.
7) Slowlyincreaseor decreasetheintensityas directedby your
physicianbyrotating theIntensitycontrol(ON/OFF Switch)
clockwiseto increase, counterclockwiseto decrease.
8) AfterTreatment, Turn thedeviceoff byrotating theIntensity
control (ON/OFF Switch)counterclockwisetothezerosetting.
Chapter 13 : ATTACHMENT OF ELECTRODE
LEADWIRES
The wiresprovided withthesystem insertinto thejack sockets
locatedon top ofthedevice.Holding the insulatedportionofthe
connector, pushtheplug end of thewireintoone of the jacks(see
drawing);oneortwosets ofwiresmaybe used.

1514
Chapter 18: APPLICATION OF RE-USABLE SELF
ADHESIVEELECTRODES
Application
1. Clean and dry the skin at the prescribed area thoroughly with
soap and water prior to application of electrodes.
2. Insert the lead wire into the pin connector on the pre-wired
electrodes.
3. Remove the electrodes from the protective liner and apply the
electrodes firmly to the treatment site.

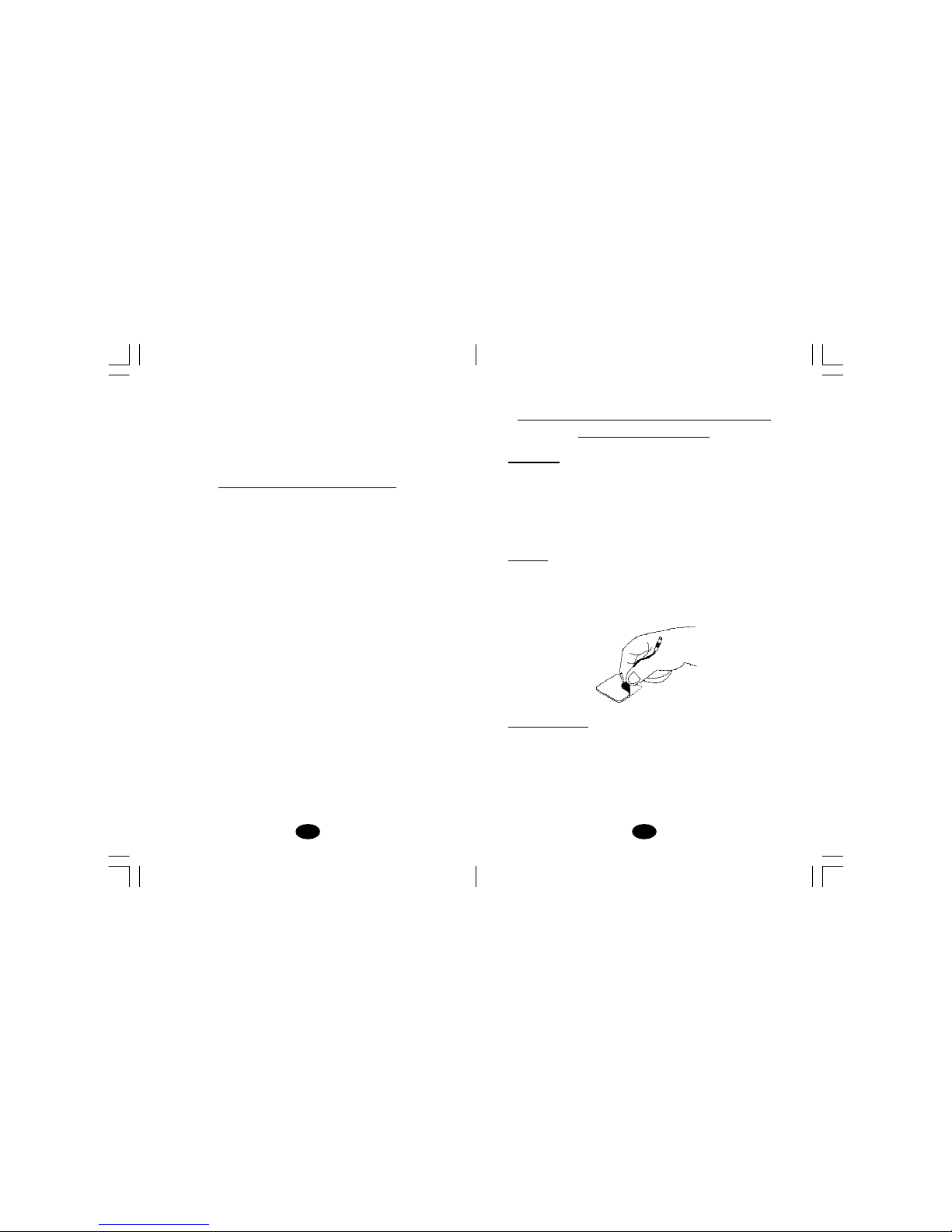

Removal
1. Lift at the edge of electrodes and peel; do not pull on the lead
wires because it may damage the electrodes.
2. Place the electrodes on the liner and remove the lead wire by
twisting and pulling at the same time.
Care and Storage
1. Between uses, store the electrodes in the resealed bag in a
cool dry place.
2. It may be helpful to improve repeated application by spreading a
few drops of cold water over the adhesive and turn the surface
up to air dry. Over Saturation with water will reduce the adhesive
properties.
the initial results are not positive, speak to your physicianabout
alternative stimulation settings and/or electrode placements. Once
an acceptable placement has been ac hieved, mark down the
electrodes sites and the settings, so the patient can easily continue
treatment at home.
Chapter 17: TIPS FOR SKIN CARE
To avoid skin irritation, especially if you have sensitive skin, follow
these suggestions:
1. Wash the area of skin where you will be placing the electrodes,
using mild soap and water before applying electrodes, and after
taking them off. Be sure to rinse soap off thoroughly and dry skin well.
2. Excess hair may be clipped with scissors; do not shave stimulation area.
3. Wipe the area with the skin preparation your physician has
recommended. Let this dry. Apply electrodes as directed.
4. Many skin problems arise from the “pulling stress” from adhesive
patches that are excessively stretched across the skin during
application. To prevent this, apply electrodes from center
outward; avoid stretching over the skin.
5. To minimize “pulling stress”, tape extra lengths of lead wires to
the skin in a loop to prevent tugging on electrodes.
6. When removing electrodes, always remove by pulling in the
directionof hair growth.
7. It may be helpful to rub skin lotion on electrode placement area
when not wearing electrodes.
8. Never apply electrodes over irritated or broken skin.

1716
Toreducethe currentstrength orswitchthedeviceoff,turnthe
control counterclockwisetotherequiredsetting oroff-position,
respectively.
Thecontrolsare protectedbyacap to avoid unintentionalchange
ofintensity.
3. LeadConnector
Connectionoftheelectrodesis made withthetwo-leadconnector
(lead wires).Thedevicemust be switched off beforeconnecting
thecables.Both intensitycontrols mustbeattheOff position.
Electrodes mustbepressedfirmlyontheskin.
4. ModeControl
Thereare3modesavailable –Constant, Synchronous and
Alternate.Amodecanbe selected bypressing the Mode”
control.
Important
1. Donot applytobrokenskin.
2. The electrodes should be discardedand re-orderedfromyour
physician whentheyare no longer adhering.
3. Theelectrodesareintendedforsinglepatient useonly.
4. If irritationoccurs,discontinue useand consult your physician.
5. Readtheinstructions for useof self-adhesiveelectrodes before
application.
Chapter 19 :ADJUSTING THECONTROLS
1. Slide-onCover:
Aslide-onpanelcovercoversthe controlsforselecting mode
and adjusting settings. Your medicalprofessionalmaywishto
setthesecontrols foryouand requestthatyouleavethecover
in place.
2. Power On/Off SwitchandIntensityControls:
Ifboth controls areintheoff-position, the deviceis switchedoff.
Byturningthecontrols clockwise, theappropriatechannelis
switchedonand theindicator ofpower (CH1or CH2)willreveal
onthe LCD.
Thecurrent strength of the impulses transmitted totheelectrodes
increasesfurther whenthecontrol is turnedclockwise.

1918

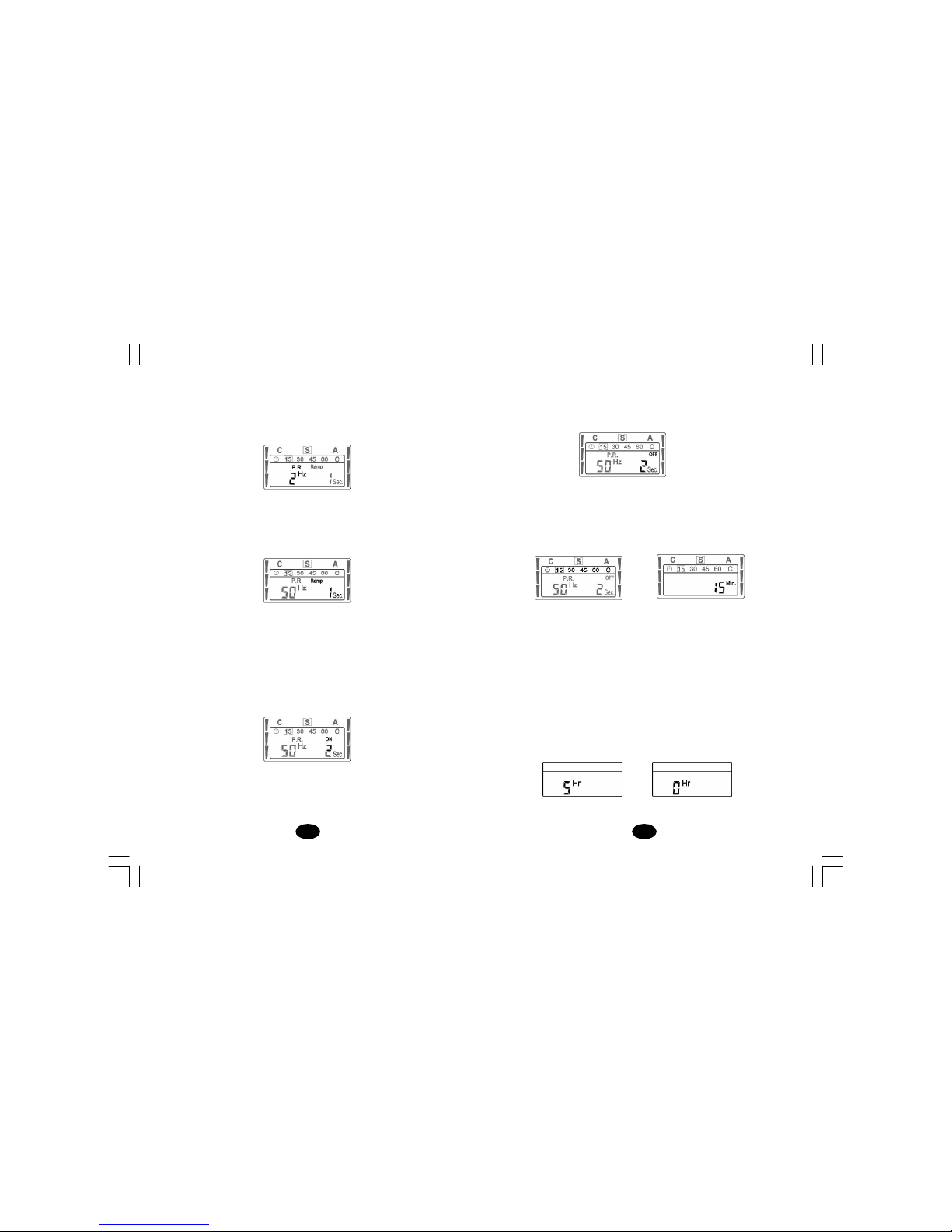

9. Steps toSetaNew Program
Thesettings canbeadjustedaccording tothefollowing steps.
a.Turnonthe Intensity
Aftertheelectrodes areplaced firmlyon skin and thelead
wires areplugged in thesocketof device, turntheon/off
controlclockwise.Themenu will revealonLCD. Noticethe
indicationofpowerand functionontheLCD.
b.SelectMode
Select amodebypressing the Mode”control.Themodeyou
selectedwillshow up onthetopof liquidcrystaldisplay.
When Constant”modeis selected, youcansetonlypulse
width, pulserateand timerlateron. All parameters are
adjustableontheSynchronousand Alternatemode.
Afteramodeis selected, press SET”controltoenternext
setting. You mayadjust the setting onlywhen the value is
flashing. Thenpressthe Increment”or Decrement”control
tochange thesettings.Repeatthesameprocedureuntil all
settingsare adjusted. The programwillbestoredautomatically
after created.
c. Set PulseWidth
Thepulsewidth determines thelength of time.Eachelectrical
signalis appliedthrough theskin, whichcontrols thestrength
and sensationofthestimulation. Press SET”controltoenter
this setting after Off”timeisadjusted. Thepulsewidth is
adjustable from50to 300µs.Press the incrementordecrement
controls toadjustthesetting.
d. SetPulseRate
Thepulseratedetermines how manyelectricalimpulses are
applied throughtheskineachsecond.Press SET”to enterthis
5. Set Control
Bypressing the Set”control, youmayenterthesettingyou
intend tomakeadjustment. You maystart tosetthevalueby
pressing the Increment”and Decrement”controlswhen the
value isflashing.
6. IncrementControl
This buttoncontrolstheincreaseof settings.Whenpressing
this button, theparameterwill increase.Pressthebuttonuntil
the valuedesired isreached.
7. DecrementControl
Thisbutton controls the decreaseof parameter. When pressing
this button,theparameterwilldecrease. Press the buttonuntil
the valuedesired isreached.
8.Timer
The treatment timecanbeselected bypressing the Timer”
control.There arefive settings available,15,30, 45,60minutes
and continue. Press the Timer”controltoselect asetting
needed. Theoutput of unit willbeshut off whentimeis up.

2120
In Alternate mode, theOFF Time should beequalor morethan
the ON Time. (OFF TIME ≥ON TIME)
h. Set Timer
Thetreatment timecanbe selectedbypressing the Timer”
control.There arefive settings available,15,30, 45,60minutes
and continue.Press the Timer”controltoselect asetting
needed. Thetreatment timewill countdownautomaticallyone
minutebyone minute.Its output willbeshutoffwhen timeis up.
Treatment Time countdown
Thetreatment timewill countdownautomaticallyoneminute
byoneminute.Its output willbeshut off whentimeis up.
12.PatientComplianceMeter
The accumulated treatment time can bechecked and deleted by
thefollowing steps. Totalrecordedtimeis999 hours.
Check & Delete Accumulative Record
Press Mode”controland turnonthepowersimultaneously.
TheLCD will showtheaccumulatedoperationtime. Press Timer”
controland therecord will bedeletedfollowedbyabeepersound.
RESET
menu. Bypressing theincrement and decrement controls,the
numberofcurrent impulses per second (Hz)forbothchannels
can becontinuallyadjusted. Thepulserateisadjustablefrom2
Hzto150Hz.
e. SetRampTime
Theramp timecontrols thetimeof output current thatincrease
from0tothe settinglevel, andfromthe setting value to0. When
theramptimeis set,each contractionmayberampedup and
downin orderthatthesignals comeon and comeoff gradually
andsmoothly. Theramp timeis adjustable from1to 8 seconds.
f. Set OnTime
TheOnTime controls thetimeof stimulation.Bypressing the
Set”control, the contractiontimecan beadjusted. Both
channels’stimulationis cycledonand off bythecontraction
andrelaxation settings. The rangeisadjustablefrom2 seconds
to90seconds.
Asthe ON”time including theramp up andrampdowntime,the
setting ofitshouldbenolessthantwotimes of the Ramp”time.
(ON TIME≥Ramp up+ Ramp down)
g. SetOffTime
TheOff Timecontrols thetimeof relaxation.Bypressing the
SET”control,the relaxation time can be adjusted. Bothchannels’
stimulationiscycled onandoff bythecontraction and relaxation
settings.Therangeis adjustablefrom0to90 seconds.

2322
BATTERY CHARGING
(1)Plug the charger into any working 110 or 220/240v mains
electrical outlet. The use of any attachment not supplied with
the charger may result in the risk of fire, electric shock, or
injury to persons.
(2) Follow the battery manufacturer’s instructions for charging time.
(3) After the battery manufacturer’s recommended charging time
has been completed, unplug the charger and remove the battery.
(4) Batteries should always be stored in a fully charged state.
To ensure optimum battery performance, follow these
guidelines:
(a)Although overcharging the batteries for up to 24 hours will
notdamage them, repeated overcharging may decrease
useful battery lif e.
(b)Always store batteries in their charged condition. After a
battery has been discharged, recharge it as soon as
possible.If the battery is stored more than 60 days, it may
need to be recharged.
(c ) Do not short the terminals of the battery. This will cause the
battery to get hot and can cause permanent damage. Avoid
storing the batteries in your pocket or purse where the
terminals may accidentally come into contact with coins,
keys or any metal objects.
(d)WARNINGS:
1.Do not attempt to charge any other types of batteries in
your charger, other than rechargeable batteries made for
your charger. Other types of batteries may leak or burst.
2.Do not incinerate the rechargeable battery as it may
explode!
10.Check/Replace the Battery:
Over time, in order to ensure the functional safety of TENS,
changing the battery is necessary.
1. Make sure that bothintensity controls
are switched to off position.
2. Slide the battery compartment cover
and open.
3. Remove the battery from the
compartment.
4. Insert the battery into the compartment.
Note the polarity indicated on the battery
and in the compartment.
5. Replace the battery compartment cover
and press to close.
Chapter 20: BATTERY INFORMATION
PRECATIONS
1. Remove battery if equipment is not likely to be used for some
time.
2. Please recycle the used battery in accordance with domestic
regulation.
3. Do not throw the used battery into fire.
If you use rechargeable batteries, please follow the instructions.
RECHARGEABLE BATTERIES(NOT INCLUDED)
Prior to the use of a new unit, the rechargeable battery should be
charged according to the battery manufacturer’ s instructions.
Before using the battery charger, read all instructions and cautionary
markings on the battery and in this instruction manual.
After being stored for 60 days or more, the batteries may lose their
charge. After long periods of storage, batteries should be charged
prior to use.

2524
Please consult your distributor if there are any problems with device
and accessories.
Chapter 23 : MALFUNCTIONS
Should any malfunctions occur while using the
EMS, check
- whether the parameters are set to the appropriate form of
therapy. Adjust the control correctly.
- whether the cable is correctly connected to the device. The
cables should be inserted completely into the sockets.
-whether the LCD reveals the menu. If necessary, insert a new
battery.
- for possible damage to the cable. Change the cable if any damage
is detected.
* If there is any other problem, please return the device to your
distributor. Do not try to repair a defective device.
Chapter 24: CONFORMITY TO SAFETY STANDARDS
The EMS devices are in compliance with the
EN 60601-1-2:2001 and EN 60601-1:1990+A1:1993+A2:1995+A13:
1996 safety standards.
Chapter 21: MAINTENANCE, TRANSPORTATION
AND STORAGE OF TENS DEVICE
1. Non-flammable cleaning solution is suitable for cleaning the
devic e.
Note: Do not smoke or work with open lights (for example,
candles,etc .)
when working with flammable liquids.
2. Stains and spots can be removed with a cleaning agent.
3. Do not submerge the device in liquids or expose it to large
amounts of water.
4. Return the device to the carrying box with sponge foam to
ensure that the unit is well-protected before transportation.
5. If the device is not to be used for a long period of time, remove
the batteries from the battery compartment (acid may leak from
used batteries and damage the device). Put the device and
accessories in carrying box and keep it in cool dry place.
6. The packed TENS device should be stored and transported under
the temperature range of -20°C - + 60°C, relative humidity 20%
-95%, atmosphere pressure 500 hPa - 1060 hPa.
Chapter 22: SAFETY-TECHNICAL CONTROLS
For safety reasons, check your EMS each week
based on the following check list.
1. Check the device for external damage.
-deformation of the housing.
-damaged or def ective output sockets.
2. Check the device for defective operating elements.
-legibility of inscriptions and labels.
-make sure the inscriptions and labels are not distorted.
3. Check LCD
-Parameters must be visible on the CLD.
4. Check the usability of accessories.
-patient cable undamaged.
-electrodes undamaged.
AGF-6X2 Digital
AGF-6X2 Digital
AGF-6X2 Digital

2726
(Appendix I) Test Environment
Chapter 25: WARRANTY
All EMS models carry a warranty of three
year s from the date of deli very. T he warranty applies to the
stimulator only and covers both parts and labor relating thereto.
The warranty does not apply to damage resulting from failure to
follow the operating instructions, accidents, abuse, alteration or
disassembly by unauthorized personnel.
Manufacturer:
Drive Medical
99 Seaview Boulevard
Port Washington, NY 11050
Phone:[phone]
www.divemedical.com
INFORMATION FOR DISTRIBUTOR:
Please contact the above mentioned manufacturer for technical
support and documentation when necessary.

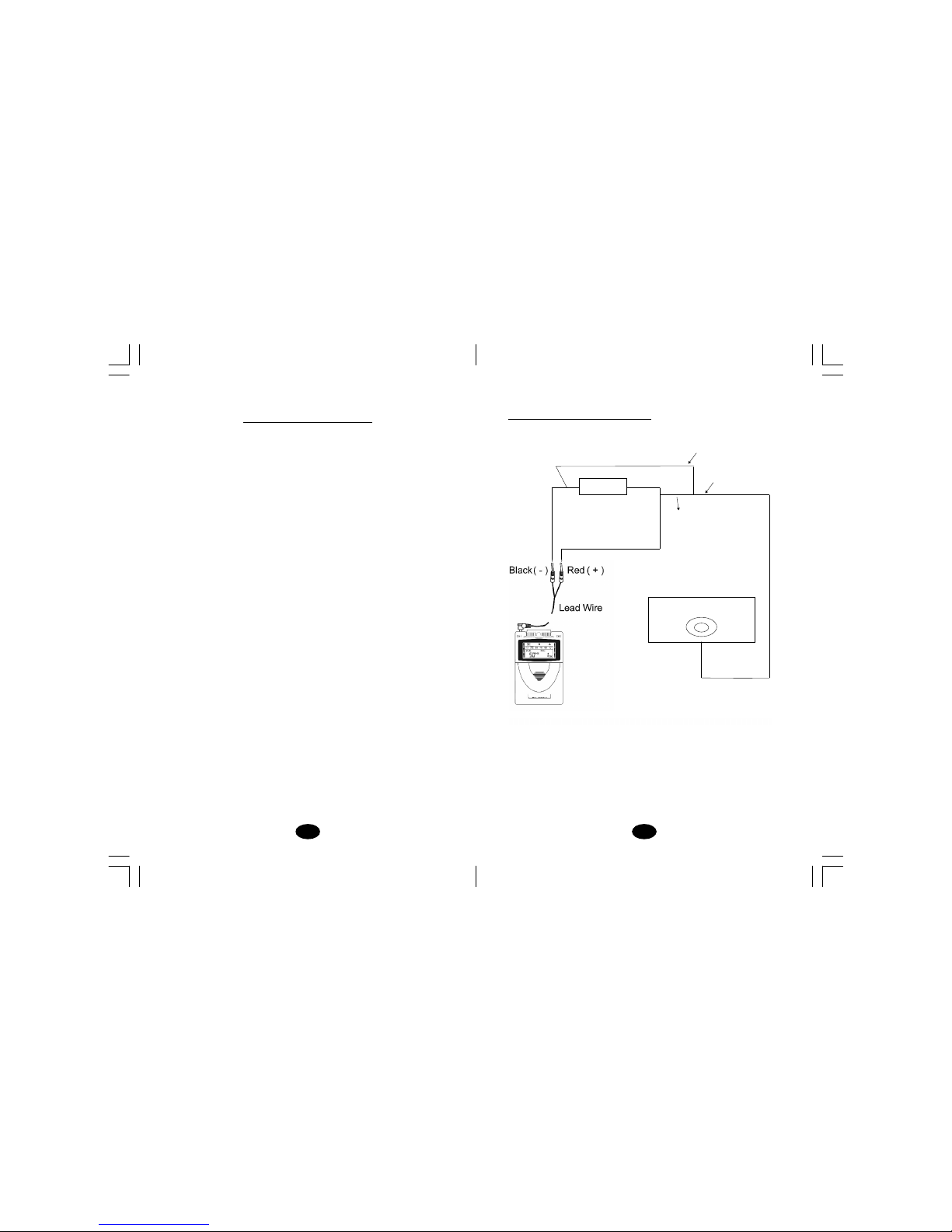

Load
500Ω
SCOPEPROBE(GND)
SCOPEPROBE
SCOPEPROBE INPUT
Oscilloscope
Tektronix TDS 2024
CH1
AGF-6X2
AGF-6X2 Digital

2928
2. Synchronous Mode
Load: 500 ohm
Pulse Rate: 150Hz
Pulse Width: 300µs
Contraction Time:12 Sec
Relation Time:12 Sec
Ramp Time:6 Sec

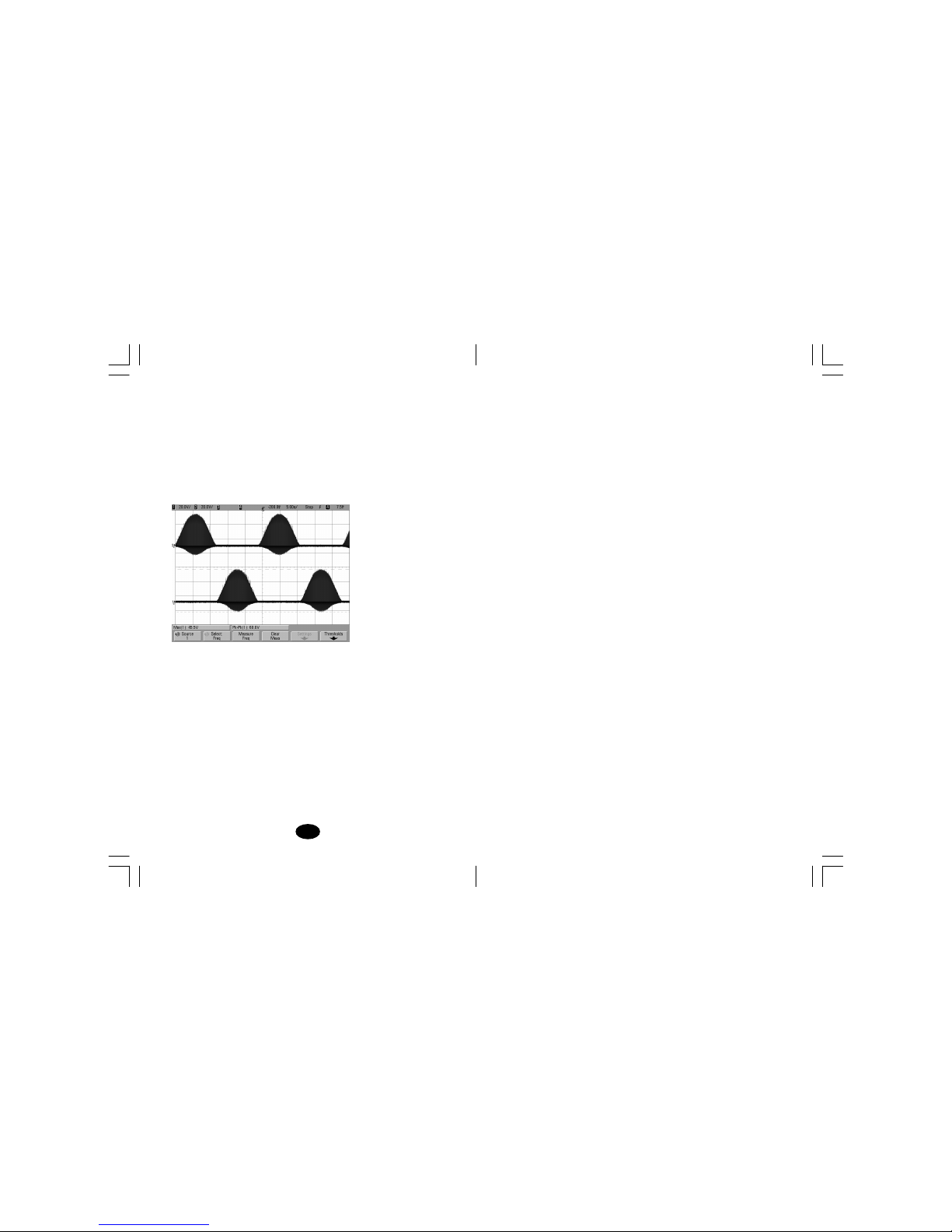

(Appendix II) Waveform of Digital EMS
1. Constant Mode
Load: 500 ohm
Pulse Rate: 150Hz
Pulse Width: 300µs
Scope A :
VERT:10.0V/DIV
HORIZ:100µs
OUTPUT:42.2V pk-pk
Pulse Rate:148Hz
Scope B :
VERT:10.0V/DIV
HORIZ:100µs
OUTPUT:42.4950V pk-pk
Pulse width:324µs
AGF-6X2

30
3. AlternateMode
Load:500ohm
PulseRate:150Hz
Pulse Width:300µs
Contraction Time:12 Sec
RelationTime:12Sec
RampTime:6Sec
