TRANSMISSION COOLER KIT

Fits 2017-2019 6.7L Ford Powerstroke Diesel Pickup Trucks

Installation Guide

INSPECT CONTENTS OF THIS KIT

THOROUGHLY BEFORE STARTING

THE INSTALLATION PROCESS!

IF YOU FIND A PROBLEM WITH YOUR PACKAGE:

• KEEP ALL OF THE PARTS & PACKAGING TOGETHER

• DO NOT ATTEMPT INSTALLATION OF THE PRODUCT

• PROMPTLY NOTIFY YOUR SELLING DEALER

• PROVIDE DEALER WITH PHOTOGRAPHS IF REQ’D*

• WAIT FOR FURTHER INSTRUCTIONS FROM DEALER

*WE RESERVE THE RIGHT TO REQUEST

PHOTOGRAPHS OF PACKAGING OR PARTS

IN ORDER TO PROPERLY ADDRESS ANY

SITUATION INVOLVING EITHER DAMAGED

OR MISSING ITEMS.

THANK YOU FOR YOUR COOPERATION!

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 1 of 17

hank You for purchasing the Driven Diesel 2017-2019 6.7L Ford Powerstroke Transmission

Cooler Kit! Please read and familiarize yourself with this manual fully before

proceeding with the installation of the kit. Also, always work safely. Make sure that

there is plenty of light and adequate ventilation, and allow yourself several hours to complete the

installation. After reading these instructions, if you feel that the installation is beyond your capability,

please have this kit installed by a qualified mechanic.

WARNING : The installation of this kit REQUIRES cutting of the

factory center support for the grille. We have supplied (2) cable

saws to help with this part of the job, as they are much less likely

to strike or damage the air conditioning condenser. You MUST be

careful when completing this part of the installation. Should you

choose to use a different tool to cut the support out, make sure

that you properly protect the air conditioning condenser from

damage. We are NOT responsible for any damage to any part of

the truck that results from deviating from the included

instructions.

Some of the Basic Tools that May be Needed for Installation:

Miniature Tubing Cutter (offered as optional item with kit)

Standard Combination Wrench Set

Metric Combination Wrench Set

3/8” Drive Metric Socket Set

1/4” Drive Metric Socket Set

Screw Driver Set

Channel Locks or Similar

Right Angle Pick

Trim Panel Tool

Drill Bit Set

Hose Pinch Pliers

Sand Paper (Course Grit)

Sand Paper (Fine Grit)

Floor Jack

Safety Jack Stands

High Speed Die Grinder

Bits or Stones for Die Grinder

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 2 of 17

TRANSMISSION COOLER KIT PARTS IDENTIFICATION

(not all parts pictured – see complete list below)

Qty:

Part Number:

Description:

Hardware Pack

Trans Cooler Hardware Pack (see below)

Cooler

Transmission Cooler with ½” Ports - not shown

Brackets

Right and Left Cooler Mounting Brackets - #9

Cooler Hose

30” Long Sections of ½” Trans Cooler Hose - not shown

Split Loom

18” Long Split Loom for Trans Cooler Hose - not shown

Cable Saw

Cable Saw Tool for Installation - #4

Hardware Pack Contents:

M6-20

M6 x 20mm Bolt with 24mm Washer - #5

M6-Nut

M6 Capture Nut - #3

#10Screw

#10 Phillips Screw - #2

M6-28

M6 x 28mm Bolt with 19mm Washer - #6

Spacer

¾” OD Aluminum Spacer - #6

Hose Clamp

Constant Tension Hose Clamp - #10

Vinyl Clamp

Vinyl Coated Isolation Clamp - #7

08HB-08Comp

½” Compression to ½” Hose Barb Adapter - #8

Cable Tie

15” Cable Tie - #1

#10

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 3 of 17

Transmission Cooler Pre-Assembly

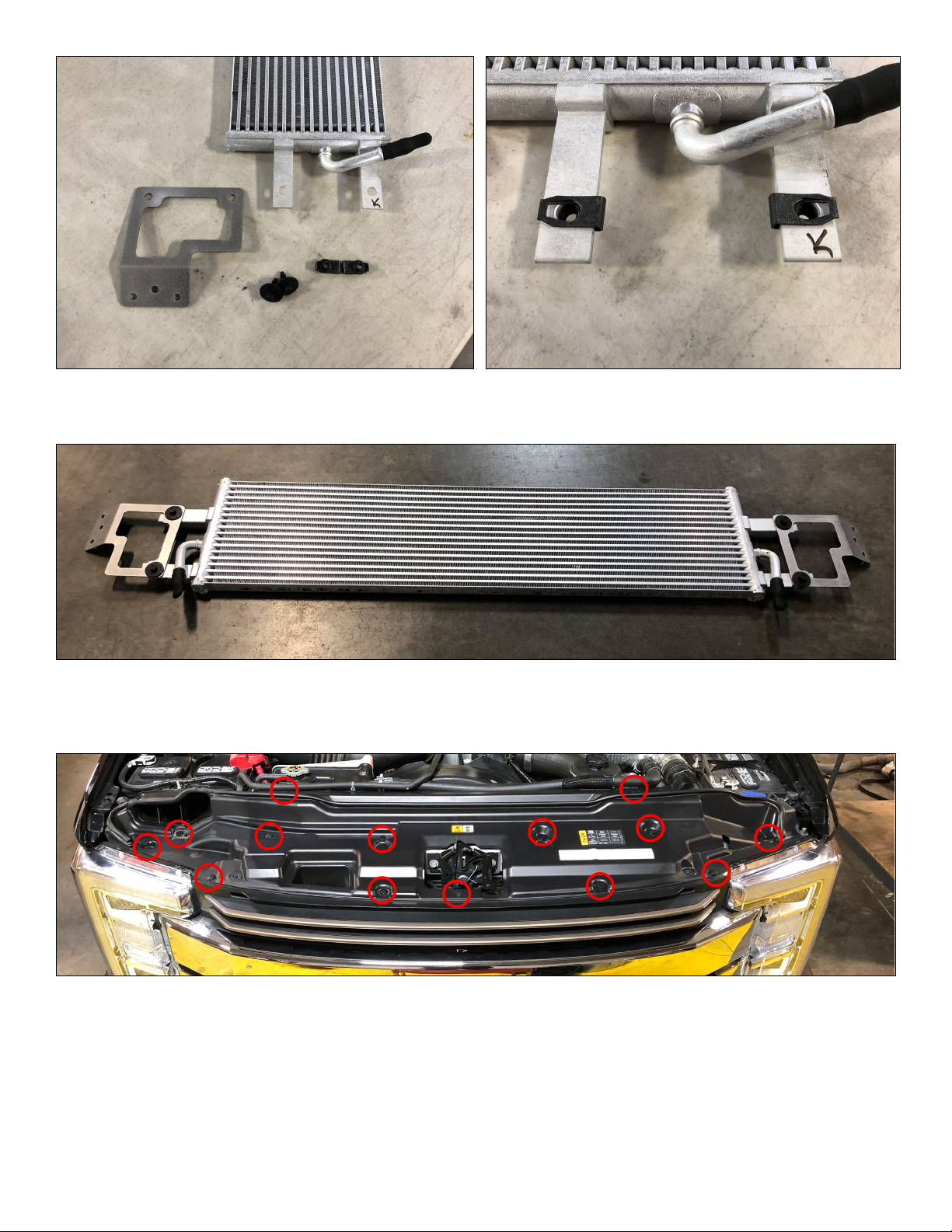

1. Locate the Transmission Cooler, (4) M6 Capture Nuts, (4) M6 x 20mm Bolts and both

Transmission Cooler Brackets. See Figure 1.

2. With the Transmission Cooler oriented as shown in Figure 2, install the M6 Capture Nuts so

that the threaded portion is on the bottom of the mounting tab.

3. Install the Right and Left Transmission Cooler Mounting Brackets onto the Transmission Cooler

using the M6 x 20mm Bolts and an 8mm socket. See Figure 3 for Bracket Orientation.

Disassembly

4. Remove (14) Panel Clips (location shown in Figure 4) using a Trim Panel Tool, Flat Blade

Screw Driver or Right Angle Pick. To remove, lift the center pin (see Figure 5) to release, then

pull the entire pin body out (see Figure 6). Do Not Lose Panel Clips, you will reinstall later!

5. With the Panel Clips removed, remove the Radiator Cover and set aside.

6. Remove (8) bolts that secure the top of the Grille to the Grille Support (see Figure 7 for

location) using a 10mm socket. Set aside with the Panel Clips to reinstall later.

7. The Grille is held in with a bunch of clips, you will have to use some force to remove it. We

have found it easiest to do one side at a time. Grasp the grille between the largest bars as

shown in Figure 8 (you may have to use both hands) and give a quick jerk away from the

truck. Repeat on the other side.

If the large bottom clips do not release, you may have to manually release them. With the

grille leaned forward, you will see (4) triangle shaped openings in the black lower grille

support, and inside these openings you will see a silver metal clip. Using a long extension or

screw driver, simply push down on each metal clip to release it.

8. If your truck DOES NOT have the front mounted camera, skip to step 11.

If you have the front mounted camera, see Figure 9 for the locations of the camera connector

and the front squirter supply tube.

9. Rotate the black clip on the squirter supply tube so that it spreads open, see Figure 10. Once

spread open, the tube will pull off of the squirter assembly. Rotate the clip to close it.

10.The right angle pick in Figure 11 shows the location of the tab that needs to be depressed to

remove the camera connector. It is easiest to use the pick or a small screw driver to press

this tab while gently pulling the connector off the camera.

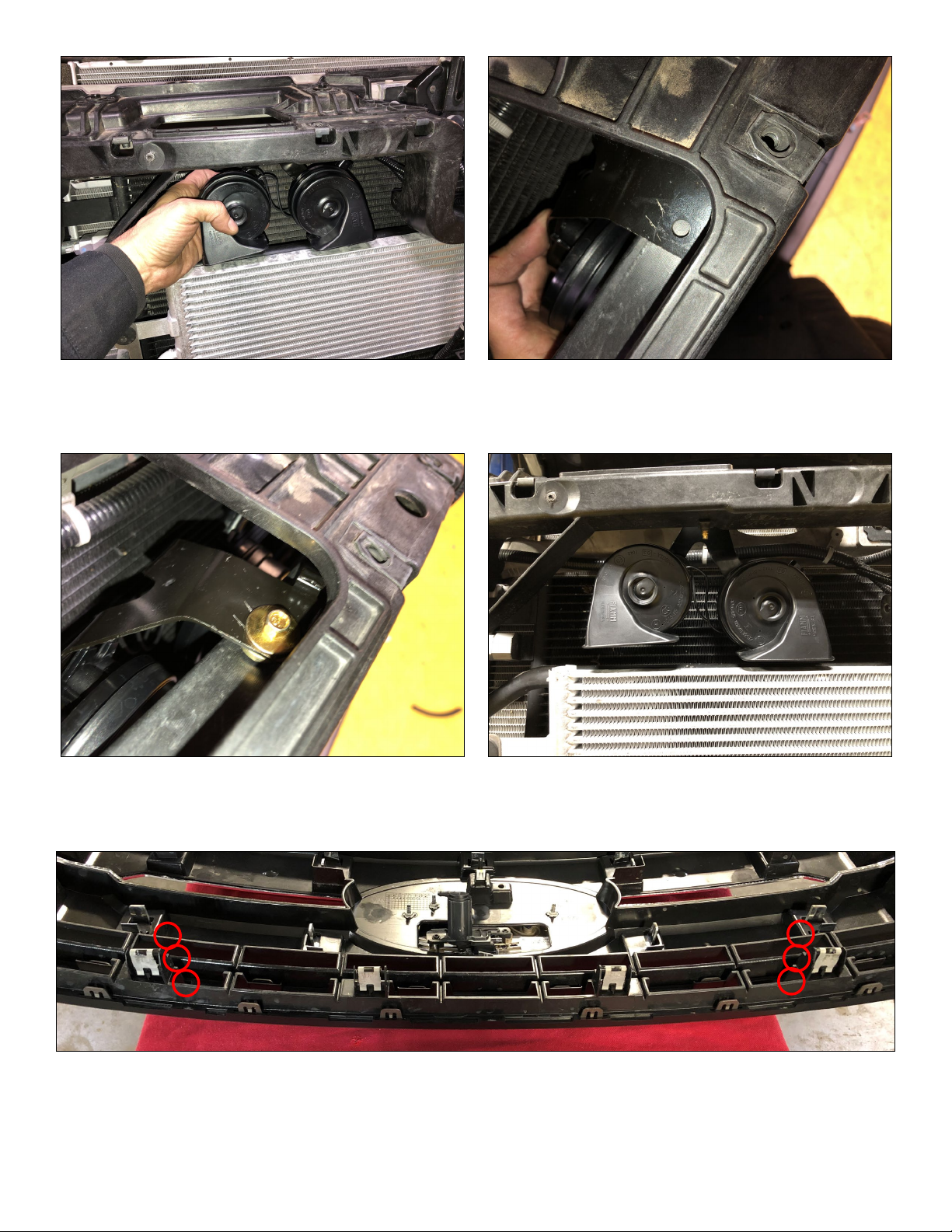

11.Unplug the horns and unclip the camera wiring from the center support as shown in Figure 12.

12.Unbolt the horn assembly and move the camera wiring out of the way as shown in Figure 13.

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 4 of 17

Cutting the Center Support Out

This will probably be the most difficult section for most installers. The air conditioning condenser is

very close to where we need to cut, so care needs to be taken to prevent damage to the condenser.

We have supplied (2) cable saws in the kit as we have determined that all of the necessary cuts can

be made with no risk to the condenser with this tool. You are welcome to use other tools, just be

mindful of the condenser as damaging it will not be an inexpensive fix.

The cable saw is a disposable tool with a finite life, especially when used on the fiberglass reinforced

plastic you will be cutting. How you use it will determine if it completes the job for you or fails

prematurely. Please take the following tips seriously, and be patient, this is not a quick process!

STROKE : Use the full length of the cable. Each pass should be “from handle to handle” so that you

wear the entire cable evenly. If you use short strokes, you will focus all of the wear in a small space

and the cable will fail more quickly. See Figures 14 & 15 for a visual guide on this.

SPEED : The cable saw motion should be slow and controlled. The faster you try to go, the hotter

the cable gets and the quicker it will fail. If you try to saw too quickly, you will actually see the cable

turn blue from the heat. We advise about 1-2 full seconds for each alternating stroke. This will seem

slow, but once it starts to cut, it will move through the material steadily.

TENSION : As you make your cut, you need to keep constant tension on both ends of the saw. At

the same time, you need to let the cable do the work. Do NOT pull too hard on the cable, this will

just cause it to break. You need just enough tension to keep both ends of the cable straight at all

times, again, let the saw do the work. Notice in the pictures that we are using only 1-2 fingers on

each end of the cable saw.

DURABILITY AND SAFETY : The cable saws can continue to be used up to the point that the cable

breaks. Even when the cable starts to fray, it will continue to cut. BE VERY CAREFUL WHEN

HANDLING THE CABLE AFTER YOU’VE STARTED USING THE SAW, FRAYS IN THE CABLE

ARE SHARP AND WILL EASILY PIERCE THE SKIN. GLOVES ARE RECOMMENDED WHEN

HANDLING CABLE SAWS!

13.Using Figure 16 as a guide, cut the center bottom section of the center support first. You will

have to carefully feed the saw through the triangle shaped windows. Hold the saw so that it

glides flat on the surface next to the support and cuts the support as low as possible.

14.Using Figure 17 as a guide, cut the top of the center support next. Notice the slight upward

angle of the cable in our picture, this is intentional and recommended. When you complete

the first cut through the top, the remaining stub will be angled.

15.Using Figure 18 as a guide, cut through the (2) angled “wings” at the bottom of the center

support.

16.If you have been careful with the cable saws, you should now be able to return to the angled

stub that remains from making the top cut. We have found that there is a notch on the back

that you can use the cable saw in that will allow you to make a more level second cut.

17.Once you are done cutting the center support out, we recommend using coarse grit sand

paper (a palm sander works well) to clean up the areas where you made the cuts. Use some

finer grit sand paper to clean up the appearance if desired. We do not recommend using high

speed grinders as they generate a significant amount of heat and tend to melt the material.

Make sure you protect the air conditioning condenser during this step! See Figure 19.

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 5 of 17

Installing the Transmission Cooler

18.Using the supplied 15” Cable Ties and Figures 20, 21 & 22 as guides, position the

Transmission Cooler in the newly created opening. Start with the cooler hanging well below

the “U” at the center of the grille support and adjust the cable ties tighter until it is level and

has about ¼” of clearance between the top of the cooler and the bottom of the support.

19.The bends in the brackets need to be positioned over the sides of the grille support as shown

in the pictures. If needed, you can loosen the previously installed mounting bolts and

reposition the brackets, as well as slide the cooler side to side on the cable ties.

20.This part is IMPORTANT…using a 7/64” (preferred) or 3/32” drill bit…PRE-DRILL the

bracket mounting holes in the grille support as shown in Figure 23. We recommend drilling

toward the top of the holes in the brackets as shown..

21.To prevent damage to the grille support, INSTALL THE #10 PHILLIPS SCREWS WITH A

SCREW DRIVER, BY HAND, UNTIL SNUG. Using a drill type driver risks stripping the

holes in the grille support.

22.Once the cooler is securely mounted at both ends, all of the screws and bolts are tight and the

clearance between the top of the cooler and bottom of the grille support verified, cut and

remove the previously installed cable ties. The cooler is now mounted!

Time To Make The Fluid Connections

In order to complete the next steps, you will need to jack up the front of your truck and place safety

jack stands under it. You will need enough clearance to slide under the front of the truck and work

on the transmission cooler lines that will be directly above your head. PLEASE BE SAFE!

23.Locate the (2) OEM transmission cooler hoses on the right (passenger) side of the truck, just

behind the sway bar, using Figure 24. Pinch these hoses closed using a set of Hose Pinch

Pliers or a similar tool that will not damage the hose.

24.Identify the factory metal transmission cooler line that needs to be cut using Figure 25. The

circle on the right is a line clip that will need to be opened. The circle on the left is showing a

miniature tubing cutter in the approximate location for the first cut.

25.Using a miniature tubing cutter, make the first cut in the OEM metal cooler line. You will want

a drain pan under the line as there will be some fluid loss.

26.Using Figure 26 as a guide, cut about 2-3” of the same tube off to create a gap between the

cut tube ends.

In the next step you will be installing compression fittings. This fitting slips over the newly cut OEM

transmission cooler tubing, and when the nut is tightened, a ferrule inside the fitting bites into the

tubing to seal and lock the fitting in place. It can be helpful to lubricate the ferrule with some

transmission fluid to aid in installation. If you disassemble the fitting, the ferrule is reinstalled with

the thin end pointing into the fitting and the stepped end pointed toward the nut.

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 6 of 17

When installing this fitting, leave it fully assembled and just slightly loosen the nut. The fitting will

slip over the tubing until the tubing bottoms out inside, about ¾”. When tightening the nut, hold the

nipple end of the fitting with a deep socket and ratchet, making sure it stays firmly pushed onto the

tube, and tighten the nut with an open end wrench until it stops. The nut WILL NOT bottom out

against the fitting, there will probably be about 1/8” gap between the nut and the fitting when tight.

27.Using Figure 27 as a guide, and the instructions provided above, install both 08HB-08Comp

compression adapter fittings onto the previously cut OEM transmission cooler line and tighten.

28.Locate the (2) 30” sections of transmission cooler line and (4) hose clamps. Using a pair of

adjustable pliers, install a clamp about 2-3” up one end of each hose. CAUTION : these

clamps are very strong, we recommend using a medium to large set of pliers.

29.Install the ends with the pre-installed clamps onto the compression fittings that were installed

in step 27, see Figure 28. Once the hose is installed over the hose barb, squeeze the clamp

and slide it into place about ¼” from the end of the hose.

30.Using Figures 29 & 30, route the (2) 30” sections of transmission cooler line up from

underneath, on either side of the trans cooler, inside the silver oval bumper brackets.

31.Secure the OEM metal cooler line into the plastic clip that was opened in step 24.

The cooler hose must be trimmed to connect to the cooler now. Notice in Figure 31 that you will

need to make sure that the cooler hose stays inside of the lower grille clip locations, or the grille will

not be able to snap into place. It may be necessary to slightly (and carefully) adjust the angle of the

cooler inlet and outlet tubes to get the hose to align properly.

The plastic split loom may need to be trimmed as well. It is acceptable for the split loom to reach

the insulated clamps shown in Figure 31, but it will not fit inside the clamp. If needed, be sure to

carefully trim some of the split loom before attempting final installation of the hose and the insulated

hose retention clamps.

32.After determining the necessary length, carefully trim the transmission cooler hose to produce

a square cut end. If you are unsure, trim only a little at a time and test fit until correct. It is

best if the final length leaves a little slack in the hose below the retention clamp, you do NOT

want the hose to be pulled tight when installed.

33.Install a hose clamp about 2-3” up the hose from the end, slip the hose over the transmission

cooler tube until it hits the stop, and position the clamp about ¼” from the end of the hose.

34.Open the vinyl coated clamps, slip them around the cooler hose and squeeze closed. Position

as shown in Figure 31, making sure that the insulated side is NOT blocking the opening for the

lower grille retention clips.

35.Repeat the process of PRE-DRILLING and HAND INSTALLING followed in steps 20 & 21 to

secure the clamps to the front of the grille support with the remaining (2) #10 Phillips screws.

36.REMOVE the Hose Pinch Pliers installed in step 23. We are going to run the engine and

check for leaks, this step is extremely important! Do NOT move on until this step is complete!

37.With the truck still on jack stands, start the engine and let it run at idle. While the engine is

running, carefully inspect all fluid connections (ie 4 hose clamp connections and 2 compression

fitting connections) for signs of leakage. Keep in mind that there may be some lubricant

around the compression nuts if you lubricated the ferrules before installation. We recommend

allowing the engine to run long enough to start feeling the cooler get warm. Remove the

truck from the jack stands and proceed with the next steps if there are no leaks.

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 7 of 17

Horn Relocation and Final Assembly

In order to fit this large transmission cooler, we need to relocate the horns. The relocation process

will include reorienting the horns on their bracket and mounting them in their new location.

38.Using figures 32 & 35 as guides, the orientation of the horns on their bracket needs to be

changed. This is accomplished by loosening the single nut on the rear center of the individual

horn, rotating the horn and then retightening the nut. Be mindful of the wiring between the

horns when making this adjustment.

39.Once the horns are repositioned, you can slip them into place as shown in Figures 32 & 33.

The bracket will be used to locate and mark the position of the new mounting hole so it can be

drilled from above. Position the bracket as shown in Figure 33, making sure that you can

cleanly get a drill bit and a socket to the location, and mark the spot to be drilled.

40.Using a ¼” drill bit, drill a mounting hole for the horns in the spot marked in step 39.

41.Install the remaining M6 Capture Nut over the newly drilled hole, with the threaded portion

below the hole.

42.Install the horns into the newly installed M6 Capture nut, using the M6 x 28mm bolt and the

Aluminum Spacer (installed between the bracket and the M6 Capture Nut). See Figure 34, the

provided bolt is now Black in color.

43.There should be adequate clearance between the horns and the top of the transmission cooler

to prevent any rubbing. It is possible that the horn bracket may need to be bent slightly if the

clearance isn’t adequate.

44.Locate the electrical connector for the horns, route it to the new horn location and connect.

The final steps involve modifications to the grille and the plastic radiator cover. The pictures and

instructions cover modifications to the OEM grille and OEM plastic cover. If you have an aftermarket

grille or radiator cover, the required steps may be different.

45.The red circles in Figure 36 show the areas of the OEM grille that will need to be notched to

ensure that there is no rubbing on the transmission cooler hose. These locations are at the

bottom of the grille.

46.We have found that using a high speed die grinder and stone, like the one shown in Figure 37,

works best for this task. You may have other tools that will adequately do the job.

47.Using Figures 36 and 38 as a guide, notch the (3) bars on each side of the grille as needed. It

can be helpful to hold the grille up to the front of the truck to visualize the path of the hose

and the modifications necessary. When properly notched, there will be a noticeable gap

between the grille and the transmission cooler hose.

48.Once the grille is properly modified, it can be reinstalled. Insert the (4) large silver clips at the

bottom of the grille into their corresponding locations in the grille support, tip the grille up to

align the other clip locations, and press firmly. You will need to press firmly along the bottom

of the grille to lock in the large silver clips, and along the sides near the headlights, to lock in

the smaller side clips.

49.Reinstall the (8) OEM grille mounting bolts using a 10mm socket, to finish securing the top of

the grille.

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 8 of 17

50.Using Figures 39 & 40 as a guide, trim the scoop from the bottom side of the OEM plastic

radiator cover. We have had good luck making a clean cut using a sharp razor knife.

51.Reinstall the modified radiator cover using the (14) original panel clips. To reinstall the clips,

the center pin needs to be in the “up” position. We recommend installing all (14) clips before

depressing the center pins, as this will allow the radiator cover to move more freely as needed

to align the holes.

The last step, after complete reassembly, is to fully warm up the engine and transmission and then

top-off the transmission fluid. Between the added capacity of the new transmission cooler and the

fluid lost during the installation, you will need some additional fluid. Top off to the appropriate level

on the dipstick, with the engine running, the transmission in park and the fluid at operating

temperature.

CONGRATULATIONS!

You’ve just completed the installation of the

Driven Diesel 2017-2019 6.7L Transmission Cooler Kit!

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 9 of 17

FIGURE 1 : Cooler / Bracket / Capture Nuts / Bolts

FIGURE 2 : Orientation of Capture Nuts

FIGURE 3 : Orientation of Installed Brackets – Note Direction of Bends and Orientation of Cooler Inlet/Outlet Tubes

FIGURE 4 : Location of Panel Retainer Pins

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 10 of 17

FIGURE 5 : Retainer Pin Popped Up

FIGURE 6 : Retainer Pin Removed

FIGURE 7 : Location of Grille Mounting Bolts

FIGURE 8 : Grille Removal

FIGURE 9 : Camera and Squirter Locations (if equipped)

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 11 of 17

FIGURE 10 : Clip Orientation for Removal

FIGURE 11 : Press Here to Remove

FIGURE 12 : Harness Clips and Horn Connector

FIGURE 13 : Harness Moved and Horns Removed

FIGURES 14 & 15 : Use Cable Saw in LONG – SLOW Strokes – Cutting Too Fast Will Break Saw

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 12 of 17

FIGURE 16 : First Cut – Center Bottom

FIGURE 17 : Second Cut – Center Top – Cut UP

FIGURE 18 : Third and Fourth Cuts

FIGURE 19 : Center Brace Removed

FIGURES 20 & 21 : Positioning The Cooler Using Cable Ties

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 13 of 17

FIGURE 22 : Positioning The Cooler Using Cable Ties

FIGURE 23 : Pre-Drill Hole Position

FIGURE 24 : Hose Crimp Pliers on Trans Cooler Lines

FIGURE 25 : OEM Cooler Cut and Clip Locations

FIGURE 26 : Second Cut Location

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 14 of 17

FIGURE 27 : Compression Adapters Installed

FIGURE 28 : Hoses and Clamps Installed

FIGURE 29 : Passenger Side Hose Routing with Loom

FIGURE 30 : Driver Side Hose Routing with Loom

FIGURE 31 : Hoses Route Inside Grill Clip Locations (circled)

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 15 of 17

FIGURE 32 : New Horn Location – Below Scoop Opening

FIGURE 33 : Positioning Horn to Mark for Hole

FIGURE 34 : Horn Installed w/Capture Nut, Spacer and Bolt

FIGURE 35 : Horn Installed Above Trans Cooler

FIGURE 36 : Locations (6 Total) to Notch Factory Grille – See Close-Up Below

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 16 of 17

FIGURE 37 : High Speed Die Grinder with Grinding Stone

FIGURE 38 : Completed Notches (viewed from top)

FIGURES 39 & 40 : Air Deflector Scoop – Before and After Trimming

TRANSMISSION COOLER INSTALLATION COMPLETED!

DD-67L-1719-TCOOL - Last Updated: 4/7/2022

Page 17 of 17

S DIESEL, LLC (dba STRICTLY DIESEL AND/OR DRIVEN DIESEL*) WARRANTY AND LIABILITY POLICY

MANY OF THE PRODUCTS SOLD BY S DIESEL, LLC, ARE DESIGNED TO INCREASE VEHICLE PERFORMANCE…USE AT YOUR OWN RISK!

Do not install or use any product(s) purchased from S DIESEL, LLC (“S DIESEL”)

until you have carefully read the following Warranty and Liability Policy (the “Warranty”).

PRODUCT WARRANTY POLICY

Subject to the limitations, exclusions, and qualifications set forth below, the product or the products made and sold by S DIESEL (the "S Diesel Product" or "S Diesel Products") are warranted to Buyer as

set forth in this Warranty. The installation of the S Diesel Products indicates that Buyer has read, understands and agrees to the terms and conditions of this Warranty. Any warranty on products that are

made by another manufacturer which are resold by S DIESEL to Buyer is made to Buyer by the manufacturer of such products in accordance with and subject to all conditions and limitations of the

manufacturer's warranty in effect on the date of the purchase by Buyer. S DIESEL makes no warranties to Buyer, express or implied, with respect to such products that are made by another

manufacturer.

LIMITED WARRANTY

The S Diesel Products (except S Diesel Products specified to have different warranty terms) are warranted to be free from defects in material and workmanship, under normal use and service for a period

(the “Product Warranty Period”) of one (1) year from date of delivery to Buyer, unless S DIESEL performs the work installing the S Diesel Products, in which case the Product Warranty Period shall be

extended to equal the Service Warranty Period (as defined below under “SERVICE WARRANTY POLICY”). S DIESEL’s liability under this Warranty is limited to repair or replacement at its option, subject

to the provisions set forth herein, of any S Diesel Products which upon examination S DIESEL are found to be defective. Buyer shall prepay cost of transportation of defective S Diesel Products to S

DIESEL for inspection.

S DIESEL shall not have any responsibility under this Warranty unless (1) the defect in an S Diesel Product results in a claim arising within the Product Warranty Period, measured from the date of

delivery to Buyer, (2) the S Diesel Product, if installed by an installer other than S DIESEL, was properly installed, (3) the S Diesel Product was normally maintained and not subject to misuse, negligence

or accident, and (4) the S Diesel Product, system components and/or accessories were not repaired or altered in such a way that in the judgment of S DIESEL the S Diesel Product’s performance or

reliability was adversely affected.

EXCLUSIONS

Any of the above warranties by S DIESEL shall not apply if Buyer’s vehicle is in an accident, misused, neglected, altered from the S Diesel Product’s manufacturer original designs or specifications or

serviced in connection with a warranty claim hereunder without prior written approval of S DIESEL.

REMEDIES EXCLUSIVE

Repair or replacement of defective S Diesel Products in accordance with the Limited Warranty above shall be Buyer’s exclusive remedy for and shall constitute satisfaction of any and all liabilities of S

DIESEL with respect to any defect in any S Diesel Product whether based in warranty, contract, tort, negligence, strict liability or otherwise.

DISCLAIMERS AND LIMITATIONS

THE EXPRESS WARRANTIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS AND TERMS AS TO QUALITY OR FITNESS OF ALL

PRODUCTS SUPPLIED BY S DIESEL TO BUYER, WHETHER WRITTEN, ORAL OR IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTIES OR

CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH OTHER WARRANTIES, CONDITIONS AND TERMS ARE HEREBY DISCLAIMED AND

EXCLUDED BY S DIESEL. IN NO EVENT SHALL S DIESEL BE LIABLE FOR ANY LOSS OF ACTUAL OR ANTICIPATED PROFITS, LOSS OF ANTICIPATED BUSINESS, COST OF SUBSTITUTE

PRODUCTS, LOSS OF USE OR DOWNTIME COSTS OR DELAY CLAIMS (WHETHER DIRECT OR INDIRECT) NOR FOR ANY OTHER SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL

DAMAGES ARISING OUT OF OR RELATING TO THIS WARRANTY OR THE SUPPLY OF S DIESEL PRODUCTS TO BUYER, WHETHER BASED IN WARRANTY, CONTRACT, TORT,

NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. BUYER ACKNOWLEDGES THAT (A) THE PRODUCTS PURCHASED FROM S DIESEL WILL BE USED IN CONNECTION WITH ACTIVITIES,

UNDER EXTREME CONDITIONS AND/OR SUBJECT TO MODIFICATIONS REQUESTED BY BUYER FOR WHICH THE PRODUCTS MAY OR MAY NOT BE SUITABLE; (B) THE WARRANTY OF

SUCH PRODUCTS FOR PERFORMANCE IN CONNECTION WITH SUCH ACTIVITIES, UNDER SUCH EXTREME CONDITIONS AND/OR SUBJECT TO SUCH MODIFICATIONS REQUESTED BY

BUYER IS NOT POSSIBLE; AND (C) ANY MANUFACTURER’S WARRANTY MAY BE VOIDED BY USE OF THE PRODUCTS IN CONNECTION WITH SUCH ACTIVITIES, UNDER SUCH EXTREME

CONDITIONS AND/OR SUBJECT TO SUCH MODIFICATIONS REQUESTED BY BUYER. BUYER ACKNOWLEDGES THAT THE INSTALLATION OF ANY S DIESEL PRODUCTS THAT ARE NOT

LEGAL FOR USE ON POLLUTION CONTROLLED MOTOR VEHICLES IS DONE SOLELY AT THE REQUEST OF BUYER AND ALL RESPONSIBILITY FOR ANY EFFECTS ON THE ORIGINAL

VEHICLE MANUFACTURERS WARRANTY, ABILITY TO PASS ANY EMISSIONS INSPECTIONS OR FOR ANY FINES THAT MAY OCCUR DUE TO THE REMOVAL OF FEDERALLY MANDATED

EMISSION CONTROL EQUIPMENT IS ON BUYER. No employee or representative of S Diesel has the authority to make any representation, promise or agreement which in any way varies from the

terms and conditions of this Warranty. No suit or claim based on any cause of action, regardless of form, arising out of or relating to this Warranty or any of the S Diesel Products supplied by S DIESEL

may be brought by Buyer or anyone claiming by, through or under Buyer against S DIESEL more than one year after the date that such cause of action arose.

IN THE EVENT BUYER DOES NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS WARRANTY, BUYER MAY PROMPTLY RETURN THE PRODUCT TO S DIESEL FOR A FULL

REFUND. THE PRODUCT MUST BE IN NEW, UNUSED AND RESELLABLE CONDITION, BE RECEIVED WITHIN FIFTEEN (15) DAYS OF THE ORIGINAL PURCHASE AND BE ACCOMPANIED

BY A DATED PROOF OF PURCHASE (RECEIPT). PRODUCTS RETURNED IN NEW, UNUSED AND RESELLABLE CONDITION MAY STILL BE SUBJECT TO RESTOCKING/REPACKAGING

FEES.

THE INSTALLATION OR USE OF ANY PRODUCT PURCHASED FROM S DIESEL INDICATES THAT BUYER HAS READ, UNDERSTANDS AND AGREES TO THE TERMS AND CONDITIONS OF

THIS WARRANTY.

ASSIGNABILITY OF WARRANTY

This Warranty is for the exclusive benefit of Buyer and is not assignable.

WARRANTY CLAIMS PROCEDURE

Warranty claim forms can be printed from the company websites (http://www.drivendiesel.com (Products) and http://www.strictlydiesel.com (Services)). A properly completed warranty claim form and a

copy of the invoice for any defective Product or Service must be received by the Seller within the earlier of 30 days after the expiration of the Warranty Period or the incident giving rise to the claim. To

qualify for an adjustment under this Warranty a defective Product must be returned prepaid to the Seller for inspection and must be accompanied by a dated proof of purchase receipt. In addition, the

serial number of the defective Product, if any, must match the serial number on Buyer’s invoice. All Warranty claims are subject to approval by the Seller and/or the Product’s manufacturer. Buyer must

pay all applicable service charges and taxes. Defective Products accepted for warranty compensation become the property of the Seller. To qualify for an adjustment under this Warranty a vehicle upon

which S Diesel Services have been performed must be delivered to the Seller during Seller’s hours of operation for inspection and must be accompanied by a dated proof of purchase receipt.

WAIVER

Any failure of the part of S Diesel to insist on strict compliance with the Warranty Provisions shall no way constitute a waiver of such right. No claim or rights arising out of a breach of the Warranty

Provisions by Buyer may be discharged in whole or in part by a waiver of the claim or right, unless the waiver is in writing signed by an authorized representative of S Diesel. S Diesel’s waiver or

acceptance of any breach by Buyer of any provisions of the Warranty Provisions shall not constitute a waiver of or an excuse for nonperformance as to any other provision of the Warranty Provisions nor
