2
English
Apollo 80 - instruction for instAllAtion
Contents
page
Foreword 2
1. Introduction 3
2. EC Declaration of Conformity 3
3. SAFETY 3
3.1 General 3
3.2 Regulations 3
3.3 Precautionary measures / safety instructions regarding installation 3
4. Instructions 4
5. Unpacking 4
6. Installation 4
6.1 Regulations 4
6.2 Gas type 4
6.3 Gas connection 4
6.4 Positioning the appliance 5
6.5. Flue gas discharge / combustion air supply system 6
6.6 Building the chimney breast 9
6.7 Installing the control box 10
6.8 Adjusting the appliance 10
6.9 Arranging the logs 11
6.10 Glass window 13
7. Wireless remote control 15
7.1 Receiver 15
8. Final inspection 16
8.1 Gastightness 16
8.2 Gas pressure/pre-pressure 16
8.3 Igniting the pilot and main burner 16
8.4 Flame effect 16
9. Maintenance 17
10. Completion 18
11. Troubleshooting 18
Annex 1 Components supplied 20
Annex 2 Technical data 21
Annex 3 Spare parts 21
Foreword
As manufacturer of gas heating appliances, DRU develops and produces products to meet the highest possible
quality, performance and safety requirements.
As a result of which the user is able to enjoy using your appliance for years to come.
This appliance is CE marked; it complies with the essential requirements of the European Appliance Directive.
The appliance is supplied with two manuals: the installation manual and the user manual.
You the installer should be professionally skilled in the field of decorative gas heating.
The installation manual gives you all the information you will need to be able to install the appliance in such a way
that it works correctly and safely.
This manual deals with the installation of the appliance and the appropriate regulations. It also includes the techni-
cal data for the appliance and information on maintenance and troubleshooting.
Please read and use this installation manual carefully.
In the manuals the following symbols are used to denote important information:
➠
What to do
!Tip Suggestions and recommendations
!N.B. These instructions are important to avoid possible problems during installation and/or use.
N.B. These instructions are important to avoid re, personal injury or other serious damage.
Once you have completed the installation you are to hand both the user manual and this installation manual to the user.
UK

3
English
Apollo 80 - instruction for instAllAtion
1. Introduction
The Apollo 80 is a closed atmospheric gas heating appliance. A closed appliance does not extract the combustion
air from the living environment, but from outside. This is done by means of a combined flue gas discharge system
/ combustion air supply system. In this concentric system, the outer pipe functions as the air supply and the inner
pipe functions as the flue gas discharge.
The safe operation of the appliance is guaranteed by the use of a second thermocouple fitted to the main burner.
This system can be installed through the wall or through the roof.
The appliance is built in a chimney breast. For this, DRU has a number of chimney breasts in its range. In order
to reach a proper heat discharge, the chimney breast must be ventilated. DRU is able to supply various ventilation
elements.
The appliance is supplied with a wireless, battery powered remote control.
2. EC Declaration of Conformity
We hereby declare that the design and construction of the decorative gas heating appliance marketed by DRU con-
forms with the essential requirements of the Gas Appliance Directive.
This declaration will be rendered invalid should the appliance be altered in any way without the written consent of
DRU.
Product: Decorative gas heating appliance
Type: Apollo 80
Applicable EC Directives: 90/396/EEC
Applicable harmonised standards: NEN-EN-613, NEN-EN-613/A1
In-house measures guarantee that serially produced appliances always conform with the essential requirements of
the current EC Directives and the applicable standards.
R. Gelten
General manager
DRU VERWARMING B.V.
Postbus 1021, 6920 BA Duiven
Ratio 8, 6921 RW Duiven
www.dru.nl
3. SAFETY
3.1 General
N.B. - Please read this chapter on safety carefully before commencing installation or maintenance;
- Always observe universal regulations and the precautionary measures / safety instructions in this manual.
3.2 Regulations
The appliance should be installed in compliance with current national, local and constructional (installation) regulations.
3.3 Precautionary measures / safety instructions regarding installation
Observe the following precautions / safety regulations precisely:
➠
You may only install and/or service this appliance if your are a qualied installer skilled in installing decorative gas res;
➠
do not adjust the appliance in any way;
➠
Non-combustible and heat-resistant materials should be used to construct the chimney breast, its rear wall, the inte-
rior and the top of the chimney breast;
➠
the minimum internal dimensions required for the chimney breast must be taken into account;
➠
the chimney breast should be ventilated by vents with total free vent area of 200 cm2;
➠
only use the ue /combustion air supply systems supplied by DRU;
➠
use the wall brackets supplied to mount the appliance;
➠
do not install the appliance at against the back wall;
➠
leave the space between the feet free;
➠
do not cover and/or pack the appliance with an insulating blanket or any other material;
➠
Keep combustible objects and/or materials at a minimum distance of 500 mm from the appliance.
➠
only use the log set supplied;
➠
arrange the logs exactly as described;
➠
leave a space around the pilot burner;
➠
make sure thermocouple 2 and the space around it are kept free;
➠
avoid any dirt in the gas pipes and connections;
UK

4
English
Apollo 80 - instruction for instAllAtion
➠
test the gastightness of all connections before use;
➠
use heat-resistant electrical connection materials;
➠
install the electrical connections away from the appliance;
➠
replace torn or broken panes;
➠
avoid blocking the explosion hatches;
➠
ensure the explosion hatches on top of the heater are right on their seats, before you close the chimney breast;
➠
do not ignite the appliance until installation has been completed.
4. Instructions
To ensure the appliance works correctly and safely, always take the following points into consideration during installation:
➠
place the control box supplied as low as possible;
➠
ensure the ignition wire does not lie across the receiver;
➠
ensure the ignition wire does not touch or cross the aerial;
➠
to avoid weakening the spark ensure the ignition wire does not touch anything metal;
➠
if the appliance is to be built in ush with the wall, nish the edges neatly;
➠
do not plaster over the anges;
➠
avoid damaging the glass when removing/tting the window pane;
➠
to prevent dirt burning into the glass, make sure it is clean before use.
➠
make sure that the wires of thermocouple 2 cannot come into contact with hot parts.
5. Unpacking
Please take the following points into consideration when unpacking the appliance:
➠
Check the appliance for transit damage;
➠
Contact DRU Service if necessary.
Once the packaging material has been removed, you should have the following components:
- Socket spanner: You will find this in the space between the assembly frame and the combustion chamber;
- Trimmings: These are in the same space.
Once you have removed the glass pane you can remove the box of components from the combustion chamber.
!N.B. Be careful not to damage the glass when removing/tting the window pane.
➠
Remove the window as described in paragraph 6.10.1;
➠
Take the box of components out of the combustion chamber.
Annex 1 / Table 4 specifies the components you should have once everything has been unpacked.
➠
Contact DRU Service if after unpacking the appliance you do not have all the components;
➠
Dispose of the packaging in an appropriate manner.
6. Installation
Please read the manual carefully to ensure that once installed the appliance will work correctly and safely.
!N.B. Install the appliance in the order described in this chapter.
6.1 Regulations
- Observe the current applicable (installation) regulations;
- Observe the regulations/instructions laid down in this manual.
6.2 Gas type
The type plate specifies the type of gas, gas pressure, and the country this appliance is intended for. The type plate
is on a chain and that is where it should stay.
N.B. Check that the appliance is suitable for the local gas type and pressure.
6.3 Gas connection
The gas connection should have a gas tap located near the appliance.
N.B. Prevent any dirt getting into the gas pipes or connections.
The following requirements apply for the gas connection:
➠
the size of the gas pipe should be such that no pressure loss can occur;
➠
the gas tap must be CE marked;
➠
the gas tap should be accessible at all times;
➠
Do not twist the gas tap when connecting the gas pipe.
UK

5
English
Apollo 80 - instruction for instAllAtion
6.4 Positioning the appliance
Position the fi re as follows:
N.B. - Keep combustible objects and/or materials at a minimum distance of 500 mm from the appliance.
- Do not adjust the appliance in any way.
➠
Determine the position of the appliance;
➠
Create a gas connection in the appropriate position; see section 6.3 for details;
➠
Create a duct for the ue / combustion air supply system, with the diameter shown below; see section 6.5 for details;
➠
Ø160 mm for a wall duct of incombustible material;
➠
Ø 250 mm for a wall duct of combustible material;
➠
Ø160 mm for a roof duct of incombustible material;
➠
Ø 250 mm for a roof duct of combustible material.
!N.B. - Allow for the depth of the appliance (see Fig. 2) (The minimum depth at the Apollo is 450 mm);
- Allow for the build-in height; this will depend on the height of the adjustable feet (see Fig. 1a).
➠
Move the appliance into its intended position.
The gas control block is mounted onto the burner plate at the bottom of the appliance. This should be removed and
placed in the control box later. See section 6.7 for information on how to fi t the gas control block.
Commence as follows:
➠
Disconnect the hoses from the gas control block (exible gas hose, aluminium pilot pipe and thermocouple 1);
Caution The red wire of thermocouple 2 must remain connected to the gas control. Fig. 1b shows how the wires are connected
to the thermocouple.
➠
Unscrew the self-tapping screw in the burner plate and remove the gas control block.
➠
Carefully unwind the red and black wires of thermocouple 2.
➠
Lay the gas control together with the wires of thermocouple 2 in the direction of the control box.
N.B. - Avoid dirt in the hoses;
- Avoid kinks in the hoses.
➠
Unroll the hoses towards the control box;
➠
Unroll the ignition wire towards the control box.
Apollo 80
Front view
Top view
Side view
50
min. 910
max. 935
995
813
15
448
192
504
min. 160
max. 185
Fig. 1a
min 1450 mm inside
min 450 mm inside
=
=
Control box
38c-1294
max 100 mm
508
817
min
150 mm
min
1350 mm
inside
Total
ventilation
200 cm2
bc
Maximal
plaster line
Maximal
plaster line
b
c
A-A
AA
Fig. 2
Fig. 1b
UK

6
English
Apollo 80 - instruction for instAllAtion
!N.B. The type plate should be connected to the chain.
➠
Lay the chain with the type plate facing the control
box;
➠
Adjust the height of the appliance;
➠
Using a spirit level to ensure it is absolutely level.
N.B. - Do not install the appliance at against the back
wall;
- Leave the space between the feet free;
- Do not cover and/or pack the appliance with an in-
sulating blanket or any other material.
➠
Secure the appliance against the wall using the wall
brackets and rawplugs supplied (see Fig. 3).
6.5 Flue gas discharge / combustion air
supply system
6.5.1 General
The appliance is of the C11/C31 type.
The appliance is connected to a combined fl ue gas
discharge/combustion air supply system, hereafter
referred to as the concentric system.
The passage to the outside can be made with a wall
duct (see section 6.5.2) or with a roof duct (see sec-
tion 6.5.3).
If necessary, you can also use an existing discharge
channel (see section 6.5.4).
N.B. - Only use the concentric system supplied by DRU
(Ø100 / Ø150 mm). This system was tested in com-
bination with the appliance; DRU cannot guarantee
a proper and safe operation of other systems and
cannot accept liability for these systems;
- For connecting to an existing chimney ue you
should only use the installation set supplied by
DRU.
The concentric system is constructed from (the di-
scharge stump of) the appliance.
If structural circumstances require that the concen-
tric system is placed fi rst, the appliance can later be
connected with a telescopic pipe piece.
6.5.2 Application with wall duct
6.5.2.1 Construction of concentric system with
wall duct
The concentric system with wall duct has to comply with the following conditions:
➠
First, a concentric pipe of at least 1 meter should be connected vertically to the appliance;
➠
The total vertical pipe length can have a maximum of 4 meters;
➠
After the vertical part a bend of 90° is connected;
➠
When using a minimum 1 up to maximum 4 meter vertical pipe length, the total horizontal pipe length may have a
maximum of 3 meters (wall duct not included; see Fig. 4a).
Depending on the construction of the concentric system, further adjustments should be made to the appliance.
The next 2 confi gurations are allowed for the construction:
a) a minimum 1 meter up to maximum 4 meter vertical pipe length in combination with a 90° bend and a wall duct
(i.e. no horizontal part; see Fig. 4b).
When using this confi guration, you must set the restriction to 60 mm (for this, see section 6.8.1).
b) a minimum 1 meter and maximum 4 meter vertical pipe length in combination with a 90° bend and a maximum
3 meter horizontal pipe length and a wall duct (see Fig. 4a).
When using this application, you must remove the air inlet guides.
6.5.2.2 Installing the concentric system
Explosion by-pass valves
Wall brackets
38c-1292
Fig. 3

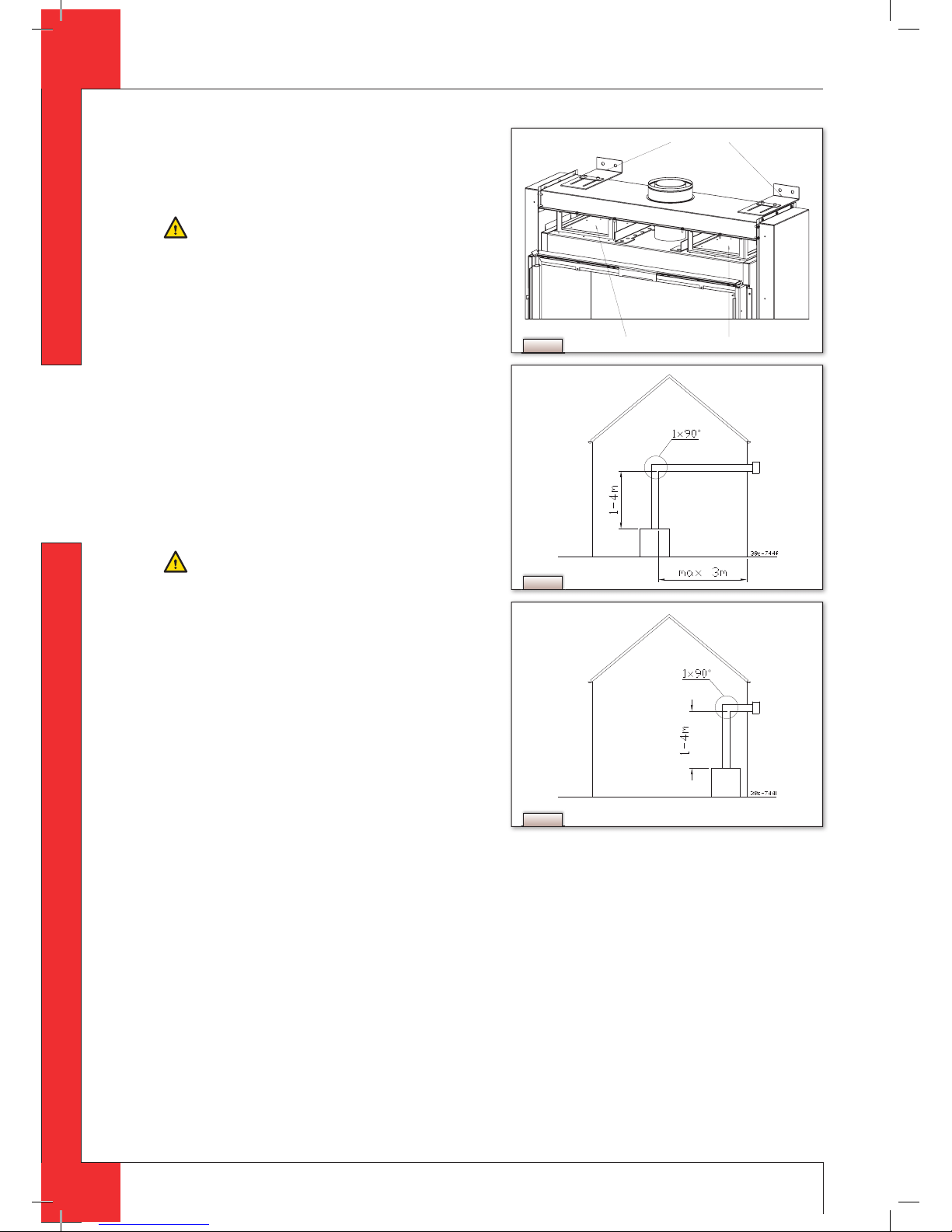

Fig. 4a
Fig. 4b
UK

7
English
Apollo 80 - instruction for instAllAtion
To install the concentric system commence as follows:
➠
Construct the system from the (connection stub of the) appliance up.
N.B. - Maintain a distance of at least 50 mm between the outside of the concentric system and the walls and/or the ceiling;
If the system is built-into a cove for example, incombustible material should be applied all around;
- Use heat-resistant insulating material for ducts made of combustible material;
- The rosette (mounting inner plate) of the wall duct is too small to seal the Ø 250 mm opening when passing through
combustible material. That is why you should rst apply a suciently large heat-resistant intermediate plate to the
wall. Then, the rosette is mounted on the intermediate plate.
➠
Connect the concentric pipe sections and the bend(s);
➠
Fit a clamping strip and silicone sealing ring to every connection;
➠
Secure the clamping strip with a self-tapping screw in places which will be inaccessible after installation;
➠
Use enough brackets to ensure that the weight of the pipes does not rest on the appliance;
➠
Determine the remaining length of the wall duct;
➠
Cut the wall duct to size;
!N.B. - Make sure that the right insertion length is maintained;
- Place the wall duct with the groove/folded seam at the top;
- Make sure the horizontal concentric pipe pieces are sloping towards the wall duct, in order to prevent rain water
from entering.
➠
Mount the rosette (mounting inner plate); if necessary, on a heat resistant intermediate plate when passing through
combustible material;
➠
Attach the wall duct from the outside with four screws in their respective holes.
!N.B. Some heat-resistant isolation materials contain volatile components that will spread an unpleasant smell for a pro-
longed time; these are not suitable.
6.5.3 Application with roof duct
6.5.3.1 Construction of concentric system with roof duct
The concentric system with roof duct has to comply with the following conditions
➠
The construction of the chosen system has to be allowed. (See the procedure described below);
➠
First, a concentric pipe of at least 1 meter should be connected vertically to the appliance.
Depending on the construction of the concentric system, the appliance is set by placing the baffle and/or removing
the air inlet guides.
In the following procedure you can see how the allowability of a concentric system can be determined and which
settings are needed.
➠
Determine the following data:
1. The number of bends required (no distinction is made between 45° and 90° bends);
2. The total number of meters of horizontal pipe length;
3. The total number of meters of vertical and/or sloping pipe length (wall duct not included).
With these data and Table 1 you will be able to determine whether the concentric system is allowed.
In Table 2 you can see which setting the appliance needs.
Follow the procedure described below:
➠
In the rst 2 columns of Table 1, look for the number of bends required and the total horizontal pipe length;
➠
In the 3rd column of Table 1, look for the total vertical and/or sloping pipe length.
If you end up in a box with the letter A, B, C, D or E the concentric system chosen by you is allowed.
➠
Use Table 2 to determine which conditions apply for the bae and/or the air inlet guides (for setting see section 6.8);
Examples
To clarify, we will give 2 examples to determine the allowability of a concentric system and the conditions for setting
the appliance.
In Table 1 the route to be followed is indicated by arrows. The result is indicated by means of the red frame of the box.
Example 1
1) 2 bends
2) 3 meters horizontal
3) 8 meters vertical/sloping
→ Construction of this concentric system is allowed.
→ Situation B applies for setting the appliance
UK

8
English
Apollo 80 - instruction for instAllAtion
Example 2
1) 3 bends
2) 4 meters horizontal
3) 10 meters vertical/sloping
→ Construction of this concentric system is not allowed.
Table 1: Conditions for adjusting the equipment with roof ducts
G20 / G25 total number of
meters of horizon-
tal pipe lengths
total number of meters of vertical and/or sloping pipe lengths
1 2 3 4 5 6 7 ↓89↓10 11 12
no bends 0 B C C D D D D E E E E E
2 bends 0 A A B C C D D D D E E E
1 A A B C C D D D D E
2 A A B C C D D D
→3 A A B C C D
4 A A B C
5
3 bends 0 A A A B C C D D D D E E
1 A A A B C C D D D D
2 A A A B C C D D
3 A A A B C C
→4 A A A B
5
4 bends 0 A A A A B C C D D D D E
1 A A A A B C C D D D
2 A A A A B C C D
3 A A A A B C
4 A A A A
5
5 bends -
n = The situation is not permissible.
Table 2:
Situation Air inlet guide Baffle Dammingg distance
A NO NO OPEN
B YES YES 44 mm
C YES YES 41 mm
D YES YES 37 mm
E YES YES 30 mm
6.5.3.2 Installing the concentric system
The roof duct can be used for either a sloping roof or a flat roof.
The roof duct can be supplied with an adhesive plate for a flat roof or with a universally adjustable tile for a sloping roof.
Install the concentric system as follows:
➠
Construct the system from the (connection stub of the) appliance up
N.B. - Maintain a distance of at least 50 mm between the outside of the concentric system and the walls and/or the ceiling;
If the system is built-into a cove for example, incombustible material should be applied all around;
- Use heat-resistant insulating material for ducts made of combustible material.
!N.B. Some heat-resistant isolation materials contain volatile components that will spread an unpleasant smell for a pro-
longed time; these are not suitable.
UK

9
English
Apollo 80 - instruction for instAllAtion
➠
Connect the concentric pipe sections and any necessary bends;
➠
Fit a clamping strip and silicone sealing ring to every connection;
➠
Secure the clamping strip with a self-tapping screw in places which will be inaccessible after installation;
➠
Use enough brackets to ensure that the weight of the pipes does not rest on the appliance;
➠
Determine the remaining length of the roof duct;
➠
Cut the roof duct to size.
!N.B. Be sure to maintain the correct insertion length.
➠
Connect the roof duct to the concentric pipes.
!N.B. - Make sure the universal roof tile ts well against the surrounding tiles;
- Make sure the adhesive ashing sticks to the at roof properly.
6.5.4 Connection to an existing flue
The appliance can also be connected to an existing flue.
A flexible SS pipe is placed in the chimney for discharging flue gases. The surrounding space is used to supply the
combustion air.
The following requirements apply for connection to an existing flue:
- allowed only if the special DRU chimney connection set is used;
- Installation instructions supplied;
- minimum dimensions 150 x 150 mm;
- maximum vertical length 12 metres;
- maximum horizontal length 3 metres;
- the existing flue must be clean;
- the existing flue must not have any cracks or leaks.
6.6 Building the chimney breast
The appliance is designed to be installed snugly into a newly built chimney breast.
There must be sufficient space around the appliance to ensure a good heat distribution.
The chimney breast should be ventilated by vents.
N.B. - Use incombustible and heat-resistant material to construct the chimney breast, including rear wall of the chimney
breast;
- The total free vent area of the vents, installed as high as possible, should be at least 200 cm2.
!N.B. When building the chimney breast, the following points should be taken into account (see Fig. 2):
- position of the control box: this should be placed within 850 mm to the left or right of the appliance, as low as possible;
- size of the control box; see section 6.7 Installing the control box;
- position of the vents;
- the size of the glass window so that it can be tted/removed once the chimney breast has been built;
- protecting the gas control block and hoses from cement and plaster.
!Tip The vents should preferably be created in both sides of the chimney breast: you could use DRU ventilation elements.
➠
Check that the concentric system has been installed correctly;
➠
Check that the clamping strips have been secured with self-tapping screws in places which will be inaccessible later;
➠
Allow sucient clearance round the appliance in the chimney breast to enable the heat to disperse:
- minimum internal height: 1350 mm;
- minimum internal width: 1450 mm.
➠
Do not plaster over the anges because:
- the heat from the appliance could cause cracks;
- it will then be impossible to remove/t the glass window.
➠
If the chimney breast is of materials similar to stone, or is nished with plaster, it should be dried-out at least 6 weeks
before commissioning, in order to prevent cracks.
6.7 Installing the control box
The control box is to be installed as low as possible.
The control box contains various components such as the type plate, the gas control block, and the receiver for the

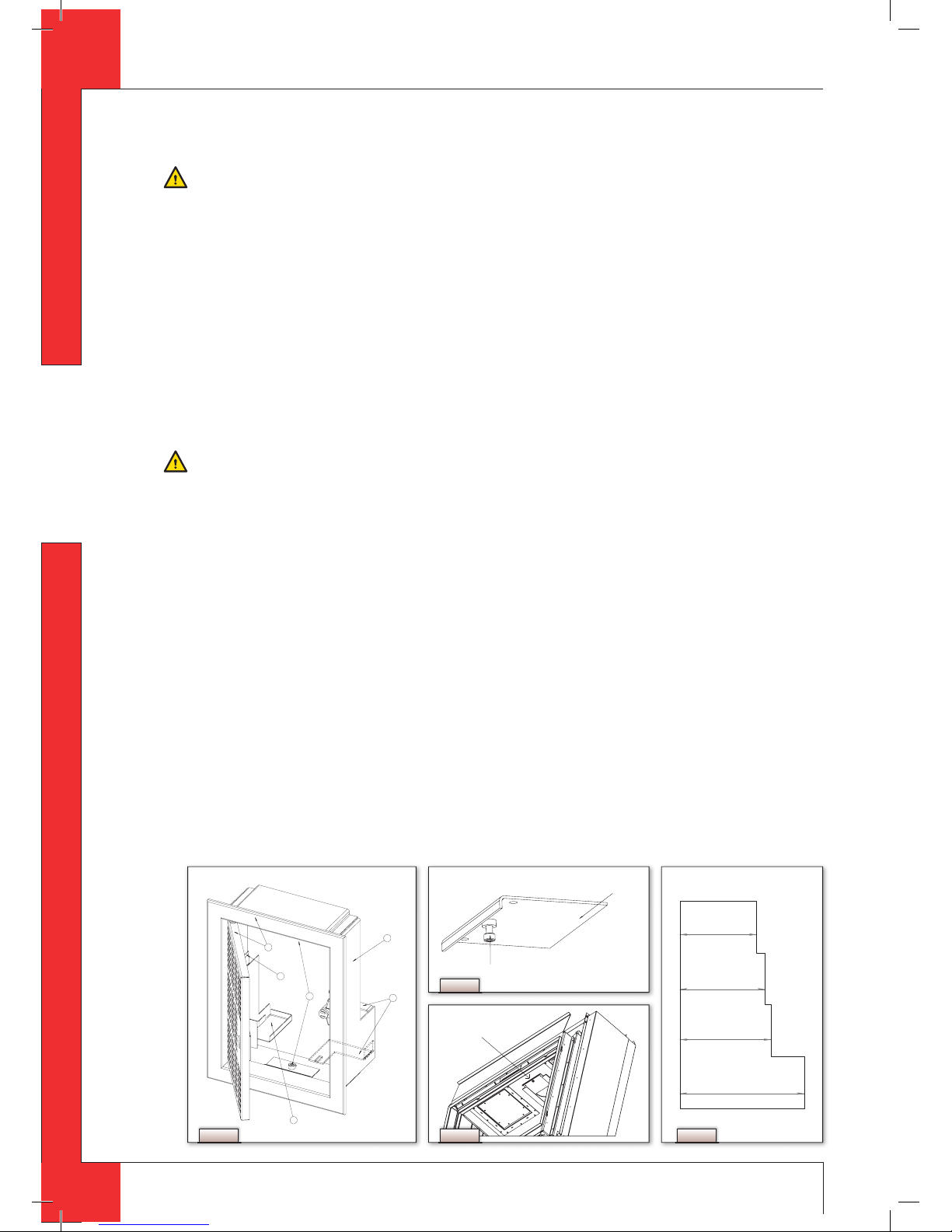

remote control. (See Fig. 5 for details.)
➠
Make a 285 x 194 mm (h x w) opening in the chimney breast;
➠
Fit the inner frame (1); to do this unscrew the bolts (5).
!Tip - If the chimney breast is brick, the inner frame can be cemented in during building;
- For a chimney breast of any other material, glue/cement the inner frame in place or t it with four countersunk
screws.
UK

10
English
Apollo 80 - instruction for instAllAtion
➠
Mount the gas control block on the brackets (2) on the inner frame;
➠
Reconnect the hoses to the gas control block.
N.B. - Avoid kinks in the hoses;
- Tighten the exible hose and aluminium pipe making sure they are gastight;
- Screw the thermocouple 1 on by hand rst and then;
- then tighten it a quarter turn using a suitable spanner.
➠
Connect the thermocouple1 wiring to the gas control block if necessary; see Photo 1;
➠
Blow through the gas pipe if necessary;
➠
Connect the gas pipe to the gas tap;
➠
Bleed o the air in the gas pipe;
➠
Fit the receiver (3); see section 7.1 for connections;
➠
Fit the type plate (6);
➠
Fit the outer frame with door (4) to the inner frame using the two self-tapping screws (5).
!Tip You can position the outer frame in such a way that the door opens to either the left or right.
6.8 Adjusting the appliance
The appliance has to be set in such a way that it works correctly in combination with the discharge system.
For that purpose, a baffl e is placed and/or the air inlet guides are removed. The conditions for using a wall duct are
described in section 6.5.2.1, and for using a roof duct in section 6.5.3.1.
Caution For Belgium, the condition applies that the primary aeration of the burners has to be changed, if the appliance is used
with gas G25 instead of G20; see section 6.8.3.
6.8.1 Baffl e (R)
The baffl e (R) is supplied separately.
It is mounted as follows:
➠

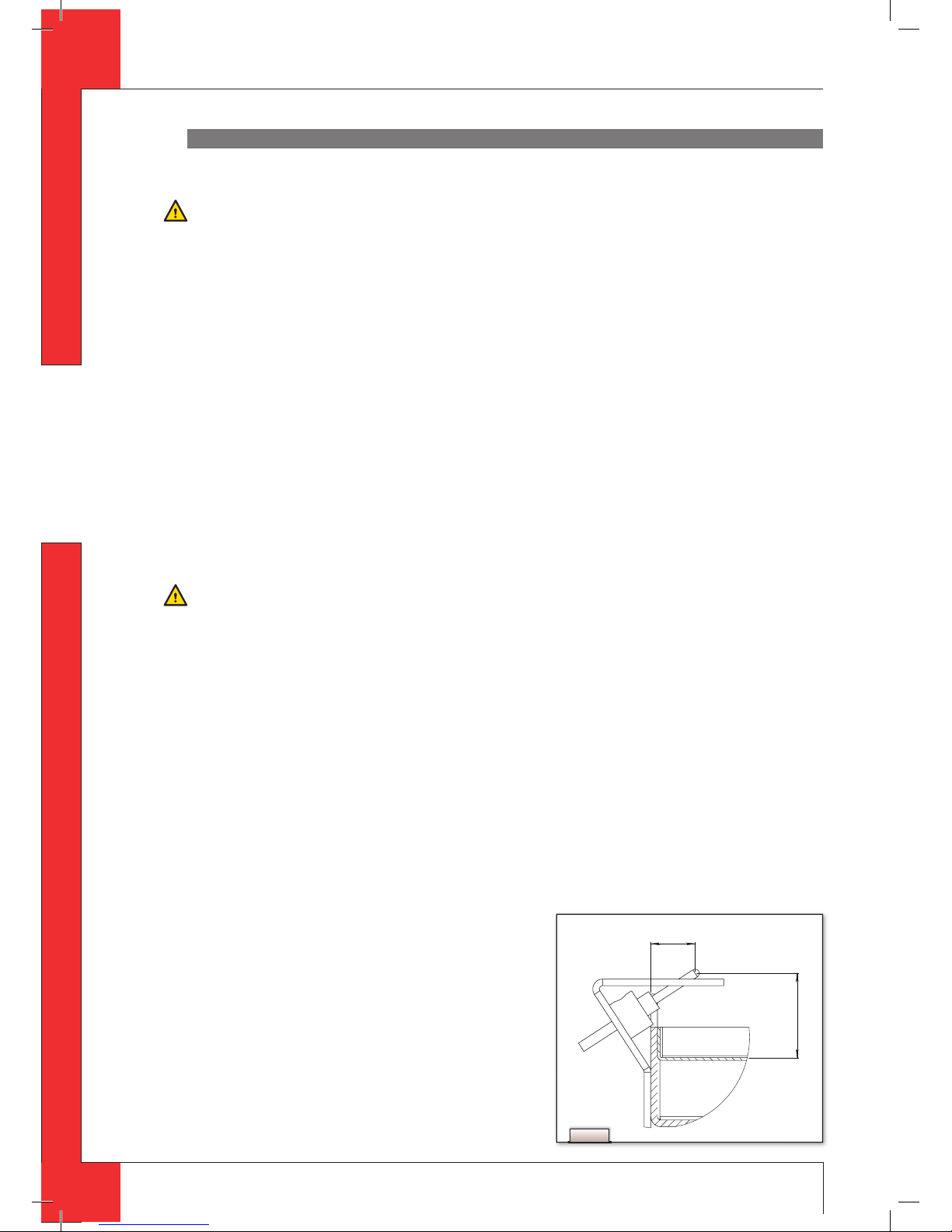

Place the bae. (see Fig. 6a and 6b)
➠
Use the template supplied to set the distance of the restriction (see Fig. 7) as follows:
- A distance of 30 mm, means that the bae will be fully closed;
- A distance of 37 mm is set by means of the template;
- A distance of 41 mm is set by means of the template;
- A distance of 44 mm is set by means of the template;
- A distance of 60 mm is set by means of the template;
➠
Fix the bae by using the socket cap screw (U).
6.8.2 Air inlet guides (L)
The air inlet guides (L) are located at the bottom (side) of the tray around the burner.
Remove them as follows; see Fig. 8:
➠
Remove the tray surrounding the burner (M);
➠
Unscrew and remove the self-tapping screws (N);
➠
Remove the air inlet guides;
➠
Replace the tray round the burner.
38c-1078
1
2
4
5
3
6
Fig. 5
Damper
socket-head screw
Fig. 6a
60
44
41
37
Fig. 7
38c-1269
Damper
Fig. 6b
UK

11
English
Apollo 80 - instruction for instAllAtion
6.8.3 Primary aeration of the burners
Caution Adjusting the primary aeration only applies to appliances used in Belgium.
When the tray surrounding the burners is removed, you can see the throttle rings (Pa and Pb) that are mounted on
the pipes that are fi xed to the burners (burner pipes); see Fig. 9.
The primary aeration of the burners can be adjusted by rotating the throttle rings.
Caution Rotate the throttle ring at the front left (Pb) with its opening towards the pilot ame burner. This throttle ring has only
1 hole with a diameter of 6 mm and 1 with a diameter of 12 mm (see Fig. 9).
The steps to be taken are described below:
➠
Take the tray surrounding the burners (M) out of the appliance; see Fig. 10a.
➠
Unscrew the socket cap screw (O) of a throttle ring (P), see Fig. 11.
➠
Rotate the throttle ring (P) when using gas G25 in such a way, that the holes with the 7 mm diameter are directly op-
posite the 15 mm holes in the burner pipe; see Fig. 11.
➠
Screw the socket cap screw (O) into the threaded hole above the 7 mm diameter hole.
➠
Repeat this procedure for the other 3 burner pipes.
➠
Return the tray surrounding the burners (M).
6.9 Arranging the logs
The appliance is supplied with a set of logs.
N.B. Observe the instructions below precisely to avoid unsafe situations.
- only use the log set supplied;
- arrange the logs exactly as described;
- do not cover the pilot burner or the surrounding area;
- make sure that thermocouple 2 and the space around it are kept free from objects (see photo 4c and photo 4d);
- do not cover the slot between the burner tray and the tray surrounding the burner.
Photo 1 Photo 2 Photo 3
Fig. 8 Fig. 9
UK

12
English
Apollo 80 - instruction for instAllAtion
Photo 4a
Photo 6a
Photo 5
Photo 4b
Foto 4c Foto 4d
UK

13
English
Apollo 80 - instruction for instAllAtion
6.9.1 Wood set
The wood set consists of vermiculite (see Fig. 2),
chips (see Fig. 3) and a number of logs.
➠
Fill the burner tray with vermiculite; equally spread
the vermiculite (see Fig. 5).
!Caution - You can inuence the ame image by moving the
vermiculite, yet
- the burner deck has to remain covered with vermi-
culite in order to prevent that the life expectancy of
the burner is reduced.
➠
Fill the tray around the burner with chips; equally spread the chips (see Fig. 5);
➠
Identify logs A up to E by using Fig. 6a.
!Tip Use the burn stains on the logs for identication.
Photo 6b Photo 6c
Photo 6d Photo 6e
Photo 6f Photo 6g
Photo 6iPhoto 6h
Photo 6j
UK

14
English
Apollo 80 - instruction for instAllAtion
Photo 7a
Photo 10e
Photo 7b
Photo 8
Photo 9 Photo 10f
Photo 10c Photo 10d
Photo 10a Photo 10b
UK

15
English
Apollo 80 - instruction for instAllAtion
➠

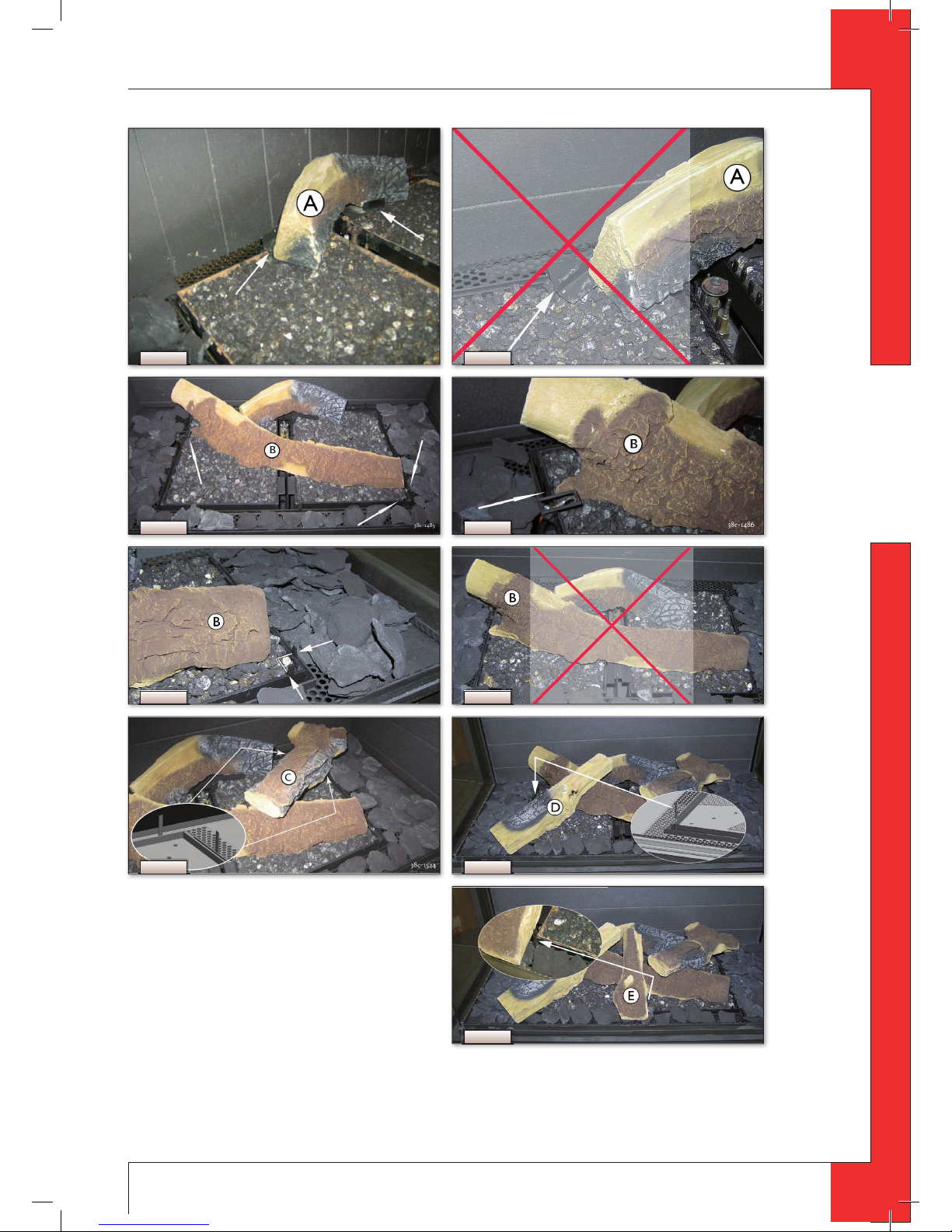

First place log A as indicated in Fig. 4a en 4b.
➠
Place log A up to E over the burners (see Fig. 6b up to 6j);
Caution - Make sure log A is lying correctly in relation to the ridge, see the arrow.
➠
Next, you should place log B;
Caution Make sure log B is lying correctly in relation to the ridges.
➠
Proceed with logs C, D and E.
Caution - The logs should be placed exactly as indicated in Fig. 6j;
- The logs should not completely cover the burner deck, because:
- the main burner will not ignite properly; which could result in unsafe situations;
- the appliance will become lthy more quickly, as a result of soot;
- the ame image may be aected.
The log set consists of vermiculite (see Photo 2), chippings (see Photo 3) and a few logs.
➠
Fill the burner tray with the vermiculite, spreading it out evenly.
!N.B. - You can alter the ame eect by moving the vermiculite but;
- the burner cap must remain covered by vermiculite to help preserve the useful life of the burner.
➠
Fill the tray surrounding the burner with chippings; spreading them out evenly;
➠
Identify the logs A - D using Photo 4 for reference.
!Tip The burn marks on the logs will help you identify them.
➠
Place block A around the (main) burner. This can only be done in one way (see Photo 5);
➠
Install block B, C and D (see Photo 6, 7 and 8).
6.10 Glass window
Once the logs have been arranged the glass window can be fi tted as described below.
6.10.1 Removing the glass window

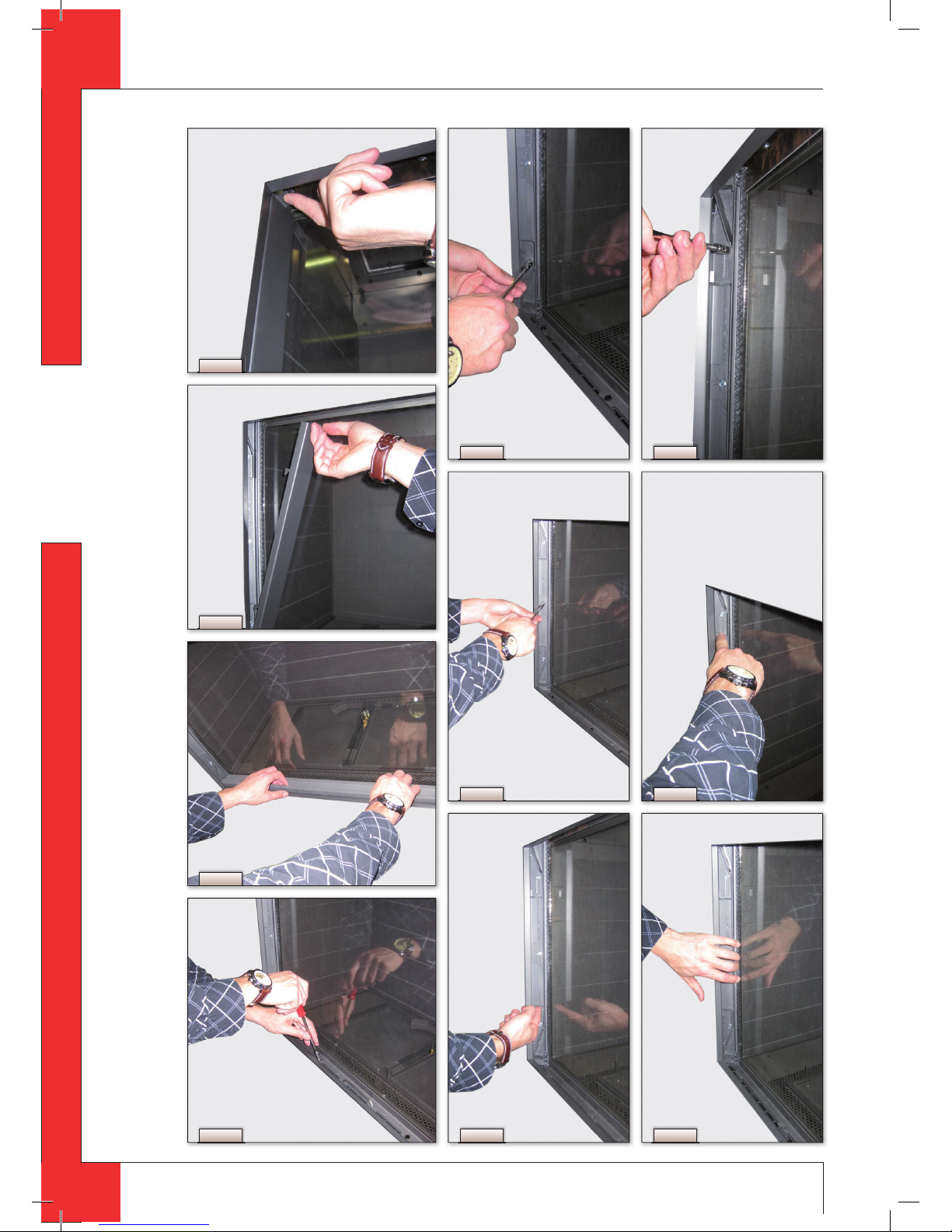

Remove the glass frame in accordance with the following instructions (see Photos 7 to 12):
➠
Remove the vertical decorative strips on the left and right of the glass frame by pushing the lip at the top of each strip
up, tilting the top of the strip parallel with the glass frame, and then removing the strip.
➠
Remove the horizontal decorative strip by gripping it with 2 hands in the slot and lifting it out.
➠
Unscrew the 4 self-tapping screws in the bottom strip using the socket spanner supplied with the appliance.
➠
Loosen the 3 self-tapping screws in the fastening strips on both sides 2 turns.
!N.B. Do not remove the self-tapping screws: leave them in place in the fastening strips.
➠
Push the 2 top wedges (left and right) down as far as possible.
➠
Push the 2 bottom wedges upwards as far as possible.
➠
Press the two fastening strips outwards with your hands as far as possible to avoid damage to the sealing cord.
➠
Take hold of the top and bottom handgrips and lift the glass frame.
➠
Pull on the bottom handgrip to tilt the glass frame in its mounting towards you and, at the same time, pull the top of
the glass frame towards you as far as possible.
Photo 11 Photo 12
UK

16
English
Apollo 80 - instruction for instAllAtion
!N.B. - Make sure you hold the upper handgrip rmly. If you let go of the handgrip then the glass frame could fall inwards
and cause severe damage to both the glass and the appliance;
- Make sure that you lift the glass frame out of its mounting as straight as possible to avoid damage to the paintwork
and the sealing cord.
➠
Gently allow the glass frame to drop at an angle until it can be removed entirely from the mounting.
6.10.2 Fitting the glass window
The glass frame is fitted by using the above procedure, in reverse order.
!N.B. - Avoid/remove ngerprints on the glass, since otherwise they will burn into the surface;
- The self-tapping screws must not be over-tightened, since otherwise they could break or strip the thread:
tight=tight;
- Replace the fastening strip if the sealing cord has come loose.
Pay attention to the following when fitting the glass frame:
➠
Begin by checking that the two fastening strips are pressed outwards as far as possible to avoid damage to the sealing
cord.
➠
Fit the glass frame.
➠
Check that the hook at the top of the glass frame is in position in the seating / U-shaped strip.
!Tip Pull on the upper handgrip to move the glass frame towards you: if it does not move, then it has been tted correctly.
!N.B. Fix the glass frame’s bottom strip in place with the 4 self-tapping screws.
➠
Push both bottom wedges downwards.
➠
Push the top wedges upwards until the sealing cord of both fastening strips press against the glass.
➠
Tighten each wedge’s self-tapping screw.
!N.B. Press on the wedge with your hand to hold it in place while you tighten the screws.
➠
Tighten the middle self-tapping screw in each fastening strip.
➠
Fit the horizontal decorative strips.
➠
Fit the vertical decorative strips.
7. Wireless remote control
See Chapter 4 of the User Manual, ‘Remote Control’, for details of how to operate the system.
The remote system consists of a remote control system and a receiver.
The procedure for connecting the receiver has been described below; the working of the remote control system has
been explained in detail in Chapter 4, 4.2 of the User Manual 4, 4.2
7.1 Receiver
The receiver must be connected to the appliance before the batteries are inserted.

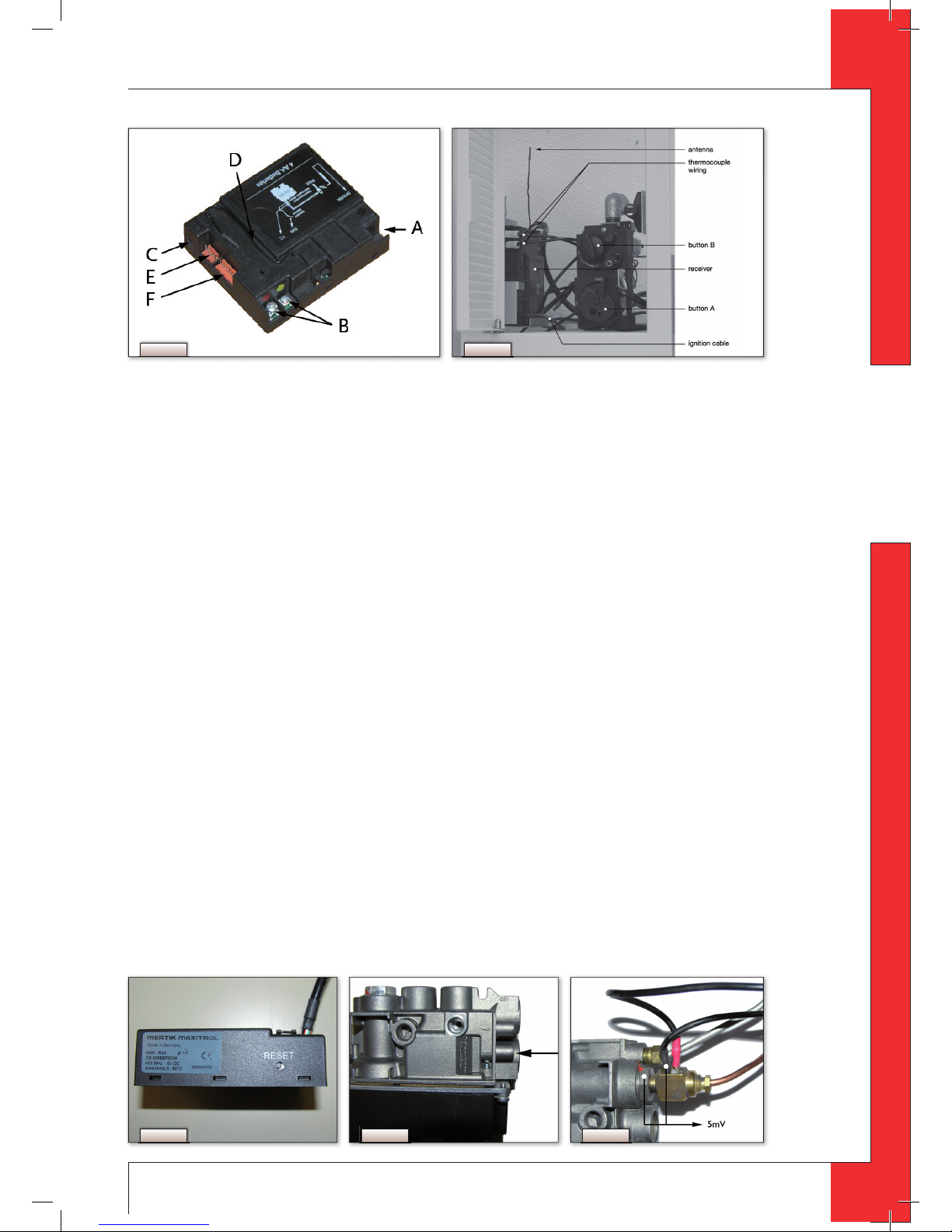

Do this as follows (see Photo. 13):
➠
Slide the brown plug o the lead at the back on the PCB of the receiver;
➠
Connect the white plug to the gas control block.
!Tip the plugs are dierent sizes and correspond with the connectors.
➠
Connect the thermocouple 2 wires to the receiver (see Photo 13, arrows B).
!Tip - the size of the eye corresponds with the size of the screw;
- the colour of the eye and screw also correspond.
➠
Connect the black wire with the white plug of thermocouple 2 to the receiver (see Photo 13, arrow E).
Caution Make sure that the wires of thermocouple 2 cannot come into contact with hot parts.
➠
Connect the ignition wire to the receiver (see Photo 13, arrow A);
➠
Connect the power supply:
a) For batteries see section 7.1.1 below;
b)For an adapter:
- connect the adapter to the receiver (see Photo 13, arrow C);
- plug the adapter into the wall socket.
UK

17
English
Apollo 80 - instruction for instAllAtion
➠
Place the receiver in the control box:
- Position the receiver as shown in Photo 14.
➠
Bend the aerial out of the clips, see Photo 13, arrow D;
➠
Put the aerial straight up.
!N.B. - Do not put the aerial too close to the ignition wire and/or metal parts (see Photo 14 for the correct position);
- Do not lay the ignition wire across and/or beside metal parts: this will weaken the spark;
- Do not lay the ignition wire across the receiver: this could damage the receiver;
- Avoid dust accumulating on or in the receiver: cover it during servicing or maintenance.
7.1.1 Fitting/replacing the batteries
To fi t the batteries:
➠
Open the ap on the control box;
➠
Take the receiver;
➠
Slide the lid o;
➠
Fit or remove the 4 penlight (AA size) batteries.
!N.B. - Avoid short circuits between the batteries and metal objects/components;
- Note the “+” and “-” positions of the batteries in the holder;
- Use alkaline batteries.
➠
Slide the lid back on;
➠
Replace the receiver.
!N.B. Do not throw batteries in the dustbin, they are considered “domestic chemical waste” and should be disposed of
accordingly.
Photo 13 Photo 14
Photo 16Photo 15 Photo 17
UK

18
English
Apollo 80 - instruction for instAllAtion
8. Final inspection
To ensure the appliance is working correctly and safely, check the following before use:
8.1 Gastightness
N.B. All connections must be gastight.
!N.B. The maximum pressure to which the gas control block may be exposed is 50 mbar.
➠
Test the connections for gastightness.
8.2 Gas pressure/pre-pressure
The burner pressure is factory adjusted; see type plate. It is not necessary to test the burner pressure.
The pre-pressure in domestic installations should be tested however, as this can vary.
➠
Check the pre-pressure; see Photo 16 for the measuring nipple on the gas control block;
➠
Contact the power company if the pre-pressure is not right.
8.3 Igniting the pilot and main burner
8.3.1 Pilot
➠
Test that the pilot ignites properly, see section 0 Remote control:
- the pilot burner should ignite at the rst attempt.
If the pilot does not light, then
➠
Check whether or not the ignition sparks:
a) If not, the ignition wire is probably touching something metal;
b)If it does, there is probably air in the pipes.
➠
Bleed o any air in the pipes and/or;
➠
Move the ignition wire so that it does not touch anything metal.
8.3.2 Main burners
Caution The burners should ignite smoothly and should not pop as a result of postponed ignition.
➠
Check the function of the main burners from the standby (pilot ame) position:
- after opening the gas valve, the main burners should burn within a few seconds.
!Tip When the gas valve is opened, the motor will run; this is audible.
1) If the main burners does not burn:
➠
Check if button A on the gas control is in the position ON;
➠
Check if the space surrounding the pilot burner is free from objects;
➠
Check the placement of the wood/pebble set.
➠
If necessary, correct the above mentioned faults.
➠
Test the main burner 5x for a good operation.
2) If main burners ignites, but go out again after approx. 22 seconds, please:
➠
Check the wiring of thermocouple 2 for:
- Loose wiring;
- Wrongly connected wiring;
- Short-circuit;
- Broken wire.
➠
Check if thermocouple 2 is dirty.
➠
Check if thermocouple 2 is positioned correctly in the ame;
see g. 10.
➠
Check if thermocouple 2 is defective; see chapter 11, table 4
under J7.
➠
Check if the receiver is defective; see chapter 11, table 4
under J8.
➠
If necessary, correct the above mentioned faults.
➠
Test the main burner 5x for a good operation.
BB
C
SECTION B-B
25
15
38C-1894 /0
Fig 10
UK

19
English
Apollo 80 - instruction for instAllAtion
8.4 Flame effect
The flame effect cannot really be assessed until the fire has been on for several hours. Volatile elements in paint,
materials, etc., which evaporate during the first hours of use, will initially influence the flame effect.
!N.B. If the chimney breast is of materials similar to stone, or is nished with plaster, it should be dried-out at least 6 weeks
before commissioning, in order to prevent cracks.
➠
Check that the ame eect is symmetrical.
An asymmetrical flame effect could be caused by:
- volatile substances evaporating;
- incorrectly arranged logs.
➠
Rearrange the logs as necessary.9.
9. Maintenance
a inteThe appliance should be inspected, cleaned and if necessary repaired by a qualified installer with professional
experience of decorative gas fires at least once a year.
The appliance should at least be tested to check it works correctly and safely.
N.B. - Switch o the gas before commencing any maintenance;
- Test the gastightness after any repairs;
- After replacing thermocouple 1 you should rst tighten the swivel of the gas control block by hand and then give it
another quarter turn with a suitable spanner.
➠
Clean the following components if necessary:
- the pilot burner;
- the combustion chamber;
- the glass
!N.B. - Remove the glass as described in section 6.10
- Remove the deposit on the inside of the glass with a damp cloth or a non-abrasive cleaning product such as copper
polish;
- Avoid/remove ngerprints on the window as they will burn into the glass;
- Replace broken and/or cracked glass.
N.B. If necessary, place back the wood set correctly; see section 6.9.
➠
Inspect the ue / combustion air supply system;
➠
Test the system as described in chapter 8.
10. Completion
Familiarise the user with the appliance. You should instruct him/her on such things as how to use the appliance and
how it works, how to use the remote control, and about the need for annual maintenance.
N.B. - Tell the user to switch o the gas immediately and to contact the installer in the event of a failure / malfunction, to
avoid unsafe situations;
- Show him/her where the gas tap is.
➠
Explain how to use the appliance and the remote control;
➠
Point out the precautions in the user manual concerning unintended ignition by other remote controls such as car keys
and garage door openers;
➠
Point out that when the appliance is used for the rst time:
- If the chimney breast is of materials similar to stone, or is nished with plaster, it should be dried-out at least 6 weeks
before commissioning, in order to prevent cracks;
- volatile elements in paint, materials etc. will evaporate the rst time the re is used;
- the re should preferably be used at the highest setting so that these elements will evaporate more quickly;
- the room should be well ventilated.
➠
Hand the user the user manual and the installation manual (the installation manual should be kept near the appliance).
UK

20
English
Apollo 80 - instruction for instAllAtion
11. Troubleshooting
A number of faults which could occur, their possible causes and solutions are shown in the table below:
Table 3: Troubleshooting
Problem Possible cause Solution
A. No transmission
(motor doesn’t work)
1. The (new) communication
code between the receiver
and the remote control has
not been confirmed.
2. Dead batteries.
3. Receiver is damaged.
4. Remote control is damaged
5. Motor wiring broken at the
valve
6. Bent pins on the 8-pin con-
nector.
7. If the receiver is surrounded
by metal, the transmission
range may be reduced.
1. Press and hold the reset button on the
receiver until you hear 2 bleeps.
After the second, longer bleep, release
the reset button and, within 20 seconds
press / t on the remote control until
you hear an extra long bleep which con-
firm the new code; see Photo 15.
2. Replace the batteries.
!N.B. Avoid short circuits between the batte-
ries and metal parts of the appliance.
3. Replace the receiver and confirm/change
the code (solution 1)
4. Replace the remote control and confirm/
change the code (solution 1)
5. Replace the motor wiring at the valve.
6. Straighten the pins on the 8-pin connector.
7. Change the position of the aerial.
B. No ignition (spark) 1. Button A is set to MAN.
2 Ignition wire lying across
and/or beside metal compo-
nents.
3. Ignition pen corroded
1. Switch button A on the gas control block
to ON, see Photo 14
2 Do not let the ignition wire touch any-
thing metal: This will weaken the spark;
see 2 Ignition wire lying across and/or
along beside metal components.
Replace the ignition wire if necessary.
3. Replace the ignition pen
C. No bleep 1. Receiver is damaged.
2. 60-second delay before the
full restart is not yet finished.
1. Replace the receiver and confirm/change
the code (solution 1 at A)
2. Wait until the delay time has passed.
D. One continuous 5 second bleep
(There may be 7 short bleeps
before the 5 second bleep)
1. Loose wiring
2. Receiver is damaged.
3. Bent pins on the 8-pin con-
nector.
4. Magnetic valve is damaged.
5. Thermocouple 2 still too
hot.
1. Connect the wiring correctly.
2. Replace the receiver and confirm/change
the code (solution 1 at A)
3. Straighten the pins on the 8-pin connector.
4. Replace the gas control block.
5. Wait until the thermocouple has cooled
down sufficiently.
E. No pilot 1. Air in the pilot pipes.
2. Wires of thermocouple 1 have
been cross-connected.
3. No spark at the pilot burner.
4. Injector is blocked up
1. Purge the pipes or restart the ignition
process several times.
2. Check the polarity of the thermocouple
wiring.
Connect the thermocouple correctly.
3. Check that the ignition wire is not tou-
ching anything metal.
Move it if necessary; see Photo 14
Replace the ignition wire if necessary
If necessary, replace the ignition pen
4.1 Clean the injector
4.2 If necessary, replace the injector
UK
