Dru Metro 70 Tunnel Guide

English
Please retain this document carefully
Instructions for installation (GB / IE)
Metro 70 - Metro 70 Tunnel
G20/G25
UK
95900104UK Install_G20.indd 195900104UK Install_G20.indd 1 23-01-2009 09:17:0923-01-2009 09:17:09

2
METRO 70 - INSTRUCTION FOR INSTALLATION
English
Contents
page
Foreword 2
1. Introduction 3
2. EC Declaration of Conformity 3
3. SAFETY 3
3.1 General 3
3.2 Regulations 3
3.3 Precautionary measures / safety instructions regarding installation 3
4. Instructions 4
5. Unpacking 4
6. Installation 4
6.1 Regulations 4
6.2 Gas type 4
6.3 Gas connection 4
6.4 Positioning the appliance 5
6.5 Flue / combustion air supply system 6
6.6 Building the chimney breast 9
6.7 Installing the control box 10
6.8 Adjusting the appliance 10

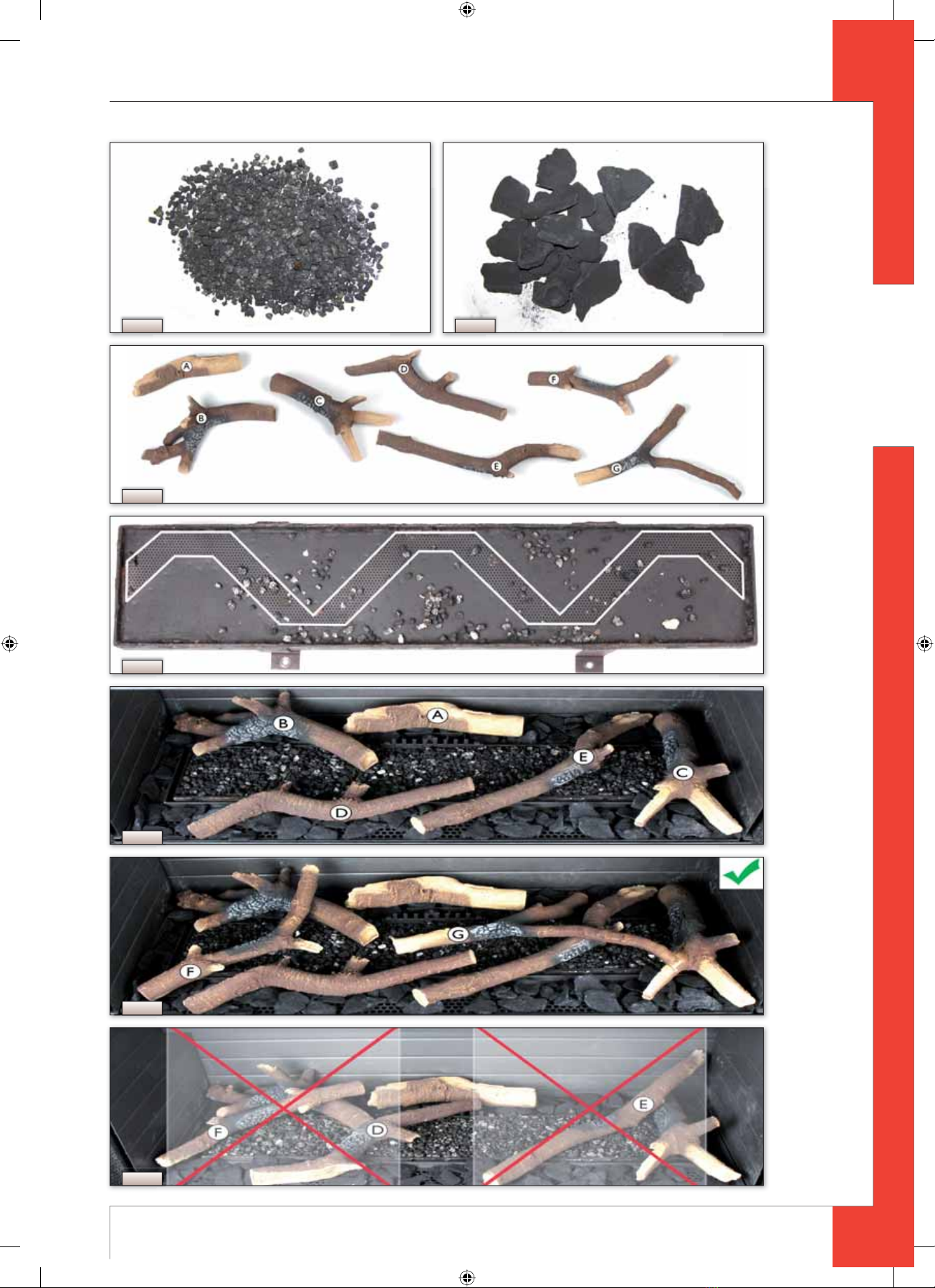

6.9 Arranging the logs / pebbles 12
6.10 Glass window 13
7. Wireless remote control 15
7.1 Receiver 15
8. Final inspection 16
8.1 Gastightness 16
8.2 Gas pressure/pre-pressure 16
8.3 Igniting the pilot and main burner 16
8.4 Flame effect 17
9. Maintenance 17
10. Completion 18
11. Troubleshooting 19
Annex 1 Components supplied 21
Annex 2 Technical data 21
Annex 3 Spare parts 21
Foreword
As manufacturer of gas heating appliances, DRU develops and produces products to meet the highest possible
quality, performance and safety requirements.
As a result of which the user is able to enjoy using your appliance for years to come.
This appliance is CE marked; it complies with the essential requirements of the European Appliance Directive.
The appliance is supplied with two manuals: the installation manual and the user manual.
You the installer should be professionally skilled in the field of decorative gas heating.
The installation manual gives you all the information you will need to be able to install the appliance in such a way
that it works correctly and safely.
This manual deals with the installation of the appliance and the appropriate regulations. It also includes the techni-
cal data for the appliance and information on maintenance and troubleshooting.
Please read and use this installation manual carefully.
In the manuals the following symbols are used to denote important information:
➠
What to do
!Tip Suggestions and recommendations
!N.B. These instructions are important to avoid possible problems during installation and/or use.
N.B. These instructions are important to avoid re, personal injury or other serious damage.
Once you have completed the installation you are to hand both the user manual and this installation manual to the user.
UK
95900104UK Install_G20.indd 295900104UK Install_G20.indd 2 23-01-2009 09:17:1223-01-2009 09:17:12

3
METRO 70 - INSTRUCTION FOR INSTALLATION
English
1. Introduction
The appliance is available in two models, the Metro 70 and the Metro 70 Tunnel. This version of the Metro 70 and
the Metro 70 Tunnel is suitable for natural gas. It is not possible to make the appliance suitable for a different type of
gas by using a so-called conversion set. The Metro 70 is a ‘standard’ gas fire and should always be installed against
a wall. The Metro 70 Tunnel is just that, a ‘tunnel fire’ with both a front and back window.
The Metro 70 and the Metro 70 Tunnel are closed decorative fires. A closed tunnel draws its combustion air from
outside and not from the living area. This is done by way of a combined system that discharges the flue gases and sup-
plies the combustion air. In this concentric system the outer pipe serves as air supply and the inner pipe as the flue.
This system can be installed through either the outer wall or the roof.
The appliances are built into a chimney breast. The DRU product range includes several chimney breasts.
The chimney breast must be well ventilated to ensure a good heat distribution. DRU can supply various ventilation
elements. The appliances are supplied with a wireless, battery-operated remote control.
2. EC Declaration of Conformity
We hereby declare that the design and construction of the decorative gas heating appliance marketed by DRU con-
forms with the essential requirements of the Gas Appliance Directive.
This declaration will be rendered invalid should the appliance be altered in any way without the written consent of
DRU.
Product: Decorative gas heating appliance
Type: Metro 70
Metro 70 Tunnel
Applicable EC Directives: 90/396/EEC
Applicable harmonised standards: NEN-EN-613
NEN-EN-613/A1
In-house measures guarantee that serially produced appliances always conform with the essential requirements of
the current EC Directives and the applicable standards.
R. Gelten
DRU VERWARMING B.V.
Postbus 1021, 6920 BA Duiven
Ratio 8, 6921 RW Duiven
www.dru.nl
3. SAFETY
3.1 General
N.B. - Please read this chapter on safety carefully before commencing installation or maintenance
- Always observe universal regulations and the precautionary measures / safety instructions in this manual.
3.2 Regulations
The appliance should be installed in compliance with current national, local and constructional (installation) regulations.
3.3 Precautionary measures / safety instructions regarding installation
Observe the following precautions / safety regulations precisely:
➠
You may only install and/or service this appliance if your are a qualied installer skilled in installing decorative gas res;
➠
do not adjust the appliance in any way;
➠
Use inammable and heat-resistant materials for building a chimney breast, including the back wall, the inside and the
top of the chimney breast;
➠
the minimum internal dimensions required for the chimney breast must be taken into account;
➠
the chimney breast should be ventilated by vents with total free vent area of 200 cm2;
➠
only use the ue /combustion air supply systems supplied by DRU;
➠
use the wall brackets supplied to mount the appliance;
➠
do not install the appliance at against the back wall;
➠
leave the space between the feet free;
➠
do not cover and/or pack the appliance with an insulating blanket or any other material;
➠
make sure combustible objects and / or materials have a minimum distance from the appliance of 500 mm;
➠
only use the log/pebble set supplied;
➠
arrange the logs/pebbles exactly as described;
➠
leave a space around the pilot burner;
UK
95900104UK Install_G20.indd 395900104UK Install_G20.indd 3 23-01-2009 09:17:1323-01-2009 09:17:13

4
METRO 70 - INSTRUCTION FOR INSTALLATION
English
➠
avoid any dirt in the gas pipes and connections;
➠
test the gastightness of all connections before use;
➠
use heat-resistant electrical connection materials;
➠
install the electrical connections away from the appliance;
➠
avoid blocking the explosion hatch/hatches;
➠
ensure the explosion hatch/hatches on top of the heater are right on their seats, before you close the chimney breast;
➠
do not ignite the appliance until installation has been completed.
4. Instructions
To ensure the appliance works correctly and safely, always take the following points into consideration during installation:
➠
place the control box supplied as low as possible;
➠
ensure the ignition wire does not lie across the receiver;
➠
ensure the ignition wire does not touch or cross the aerial;
➠
to avoid weakening the spark ensure the ignition wire does not touch anything metal;
➠
if the appliance is to be built in ush with the wall, nish the edges neatly;
➠
do not plaster over the anges;
➠
avoid damaging the glass when removing/tting the window pane;
➠
to prevent dirt burning into the glass, make sure it is clean before use.
5. Unpacking
Please take the following points into consideration when unpacking the appliance:
➠
Check the appliance for transit damage;
➠
Contact DRU Service if necessary;
Once the packaging material has been removed, you should have the following components:
- Socket spanner
You will find this in the space between the assembly frame and the combustion chamber.
- Trimmings
These are in the same space.
Once you have removed the glass pane you can remove the box of components from the combustion chamber.
!N.B. Be careful not to damage the glass when removing/tting the window pane.
➠

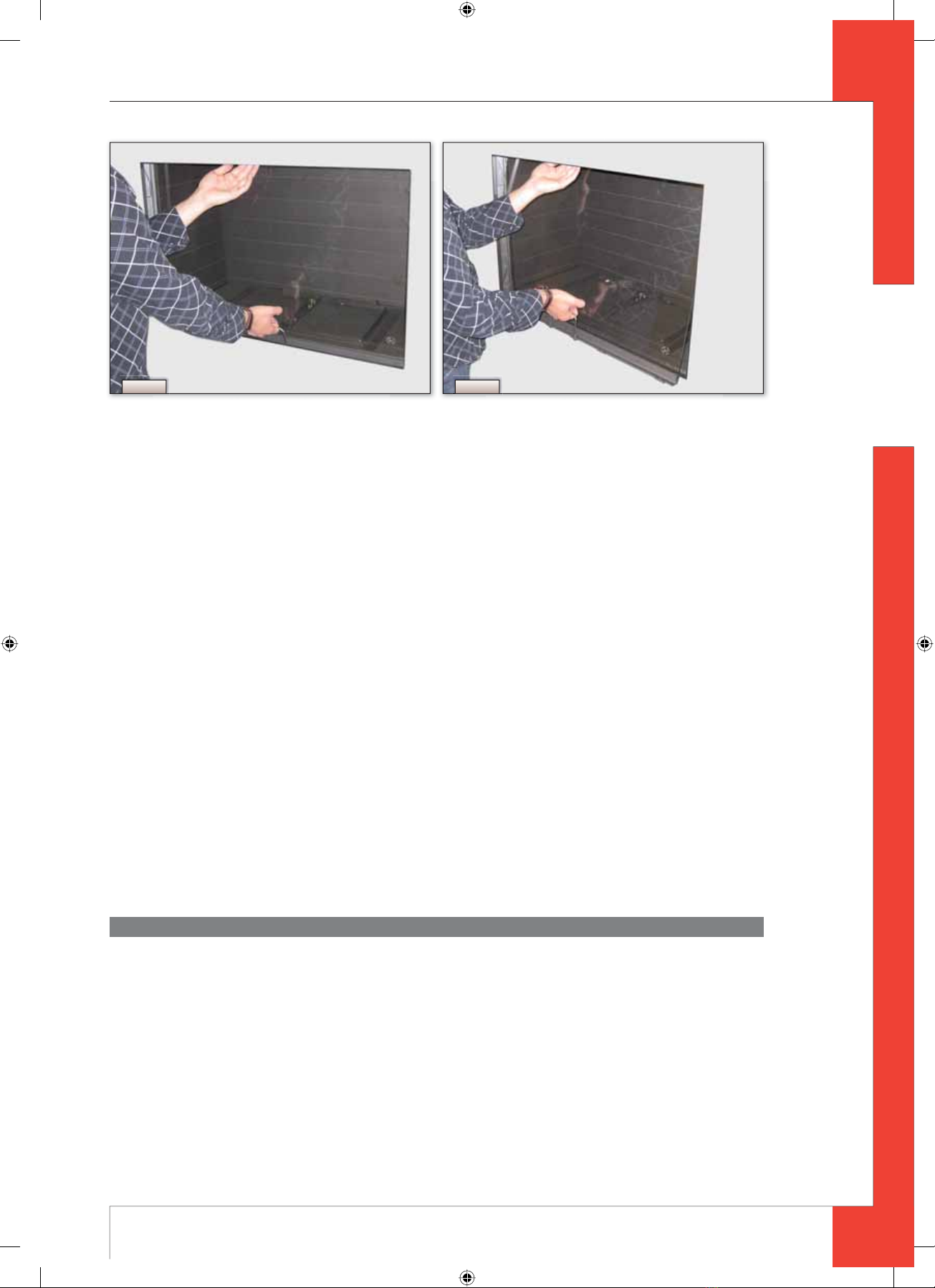

Remove the window as described in paragraph 6.10.1.
➠
Take the box of components out of the combustion chamber.
Annex 1 / Table 4 specifies the components you should have once everything has been unpacked.
➠
Contact DRU Service if after unpacking the appliance you do not have all the components.
➠
Dispose of the packaging in an appropriate manner.
6. Installation
Please read the manual carefully to ensure that once installed the appliance will work correctly and safely.
!N.B. Install the appliance in the order described in this chapter.
6.1 Regulations
- Observe the current applicable (installation) regulations.
- Observe the regulations/instructions laid down in this manual.
6.2 Gas type
The type plate specifies the type of gas, gas pressure, and the country this appliance is intended for. The type plate
is on a chain and that is where it should stay.
N.B. Check that the appliance is suitable for the local gas type and pressure.
6.3 Gas connection
The gas connection should have a gas tap located near the appliance.
N.B. Prevent any dirt getting into the gas pipes or connections.
The following requirements apply for the gas connection:
➠
the size of the gas pipe should be such that no pressure loss can occur;
➠
the gas tap must be CE marked;
➠
the gas tap should be accessible at all times.
➠
Do not twist the gas tap when connecting the gas pipe.
UK
95900104UK Install_G20.indd 495900104UK Install_G20.indd 4 23-01-2009 09:17:1323-01-2009 09:17:13

5
METRO 70 - INSTRUCTION FOR INSTALLATION
English
6.4 Positioning the appliance
Position the fire as follows:
N.B. - Make sure combustible objects and / or materials have a minimum distance from the appliance of 500 mm;
- Do not adjust the appliance in any way.
➠
Determine the position of the appliance.
➠
Create a gas connection in the appropriate position; see section 0 for details.
➠
Create a duct for the ue / combustion air supply system, with the diameter shown below; see section 6.5 for details.
➠
Ø160 mm for a wall duct of incombustible material;
➠
Ø 250 mm for a wall duct of combustible material
➠
Ø160 mm for a roof duct of incombustible material;
➠
Ø 250 mm for a roof duct of combustible material
!N.B. - Allow for the depth of the appliance (see Fig. 2)
(Metro 70: minimum of 400 mm; Metro 70 Tunnel: minimum of 446 mm).
- Allow for the build-in height; this will depend on the height of the adjustable feet (see Fig. 1)
➠
Move the appliance into its intended position.
The gas control block is mounted onto the burner plate at the bottom of the appliance. This should be removed and
placed in the control box later. See section 7.3 for information on how to fit the gas control block.
Commence as follows:
➠
Disconnect the hoses from the gas control block (exible gas hose, aluminium pilot pipe and thermocouple).
➠
Unscrew the self-tapping screw in the burner plate and remove the gas control block.
N.B. - Avoid dirt in the hoses.
- Avoid kinks in the hoses.
➠
Unroll the hoses towards the control box.
➠
Unroll the ignition wire towards the control box.
!N.B. The type plate should be connected to the chain.
D D
NJO

NBY






NJO

NBY




NJO

NBY



NJO

NBY



'SPOUWJFX
5PQWJFX
4JEFWJFX 4JEFWJFX
'SPOUWJFX
5PQWJFX
.FUSP .FUSPUVOOFM
Fig. 1
""


CD
""
D
NJONNJOTJEF
NBYNN


NJONNNFUSPJOTJEF
NJONNNFUSPUVOOFMJOTJEF
NJO
NN
JOTJEF
5PUBM
WFOUJMBUJPO
DN

"QQMJBODF
.BYJNBM
QMBTUFSMJOF
.BYJNBM
QMBTUFSMJOF
Y
Fig. 2
UK
95900104UK Install_G20.indd 595900104UK Install_G20.indd 5 23-01-2009 09:17:1423-01-2009 09:17:14

6
METRO 70 - INSTRUCTION FOR INSTALLATION
English
➠
Lay the chain with the type plate facing the control box.
➠
Adjust the height of the appliance
➠
Using a spirit level to ensure it is absolutely level.
N.B. - Do not install the appliance at against the back wall.
- Leave the space between the feet free.
- Do not cover and/or pack the appliance with an insulating blanket or any other material.
➠
Secure the appliance against the wall using the wall brackets and rawplugs supplied (see Fig. 3.)
6.5 Flue / combustion air supply system
6.5.1 General
The appliance is type C11/C31.
The appliance is connected to a combined flue/combustion air supply system, from here on referred to as the
concentric system.
It is also possible to use an existing duct.
N.B.: Only use the concentric system (Ø 100/150mm) and related accessories supplied by DRU. The system has been appro-
ved along with the equipment. Where non-DRU systems are used, DRU cannot guarantee or accept any responsibility
for the proper and safe working of the same.
The concentric system is constructed from the appliance up.
If, for structural reasons, the concentric system is fitted first, the appliance can be connected later using a piece of
telescopic pipe.
An equipment can be fitted with a wall duct (please refer to 6.5.2) or a roof duct (please refer to 6.5.3).
6.5.2 Installation with a wall duct
6.5.2.1 Constructing the concentric system
The settings of the equipment are made in the factory with a 1 to 4 meter vertical pipe + 90° pipe bend + wall duct.
In such case, the system does not require any further adjustments. If your situation is not as described above, you
should remove the air inlet guide as mentioned in 6.8.2.
Always start with a vertical pipe on the equipment. You may begin with a vertical pipe of at least 0.5 meter and a
maximum of 4 meters.
DB
.FUSP
8BMMCSBDLFUT 8BMMCSBDLFUT
DC
.FUSPUVOOFM
Fig. 3
UK
95900104UK Install_G20.indd 695900104UK Install_G20.indd 6 23-01-2009 09:17:2823-01-2009 09:17:28

7
METRO 70 - INSTRUCTION FOR INSTALLATION
English
N.B.: Please note that if you install a 0.5 meters vertical
pipe on the equipment, the length should not exceed
2 meters.
The air inlet guide should be removed (see 6.8.2).
(See the example in Fig. 4a).
N.B.: Please note that if you install a 1 to max. 4 meters
vertical pipe on the equipment, the maximum ho-
rizontal length should not exceed 3 meters. The air
inlet guide should be removed (see 6.8.2) (see the
example in Fig. 4b)
6.5.2.2 Installing the concentric system
To install the concentric system commence as fol-
lows:
➠
Construct the system from the (connection stub of
the) appliance up
N.B. - Maintain a distance of at least 50 mm between the
outside of the concentric system and the walls and
/or ceiling. If the system will be built in (for instan-
ce) a cove, it should be fully made of inammable
material;
- Use heat-resistant insulating material for ducts
made of combustible material.
➠
Connect the concentric pipe sections and the
bend(s);
➠
Fit a clamping strip and silicone sealing ring to every
connection;
➠
Secure the clamping strip with a self-tapping screw in places which will be inaccessible after installation;
➠
Use enough brackets to ensure that the weight of the pipes does not rest on the appliance;
➠
Determine the remaining length of the wall duct;
➠
Cut the wall duct to size;
➠
Fit the wall duct with the bead//double edge at the top.
!N.B. Be sure to maintain the correct insertion length.
N.B. Mount the wall duct onto a heat-resistant plate for use with a wall duct made of combustible material.
➠
Fix the wall duct with four screws in the appropriate holes.
!N.B. Fit the horizontal concentric pipe sections sloping towards the wall duct to stop rain getting in.
6.5.3 Use with a roof duct
6.5.3.1 Constructing the concentric system
A concentric pipe of at least one meter should first be connected vertically to the equipment. The baffle and/or air
inlet guides will be adjusted according to the structure of the concentric system.
You may proceed as follows:
1. Determine the number of pipe bends required (no distinction is made between 45° and 90° pipe bends).
2. Determine the horizontal pipe lengths in meters.
3. Determine the vertical/ sloping pipe lengths (without roof ducts) in meters.
With this data, you can check using the Table 1, whether the drain system is permissible and the adjustments specific
to the same. The table functions as follows: in the first 2 left columns, search for the number of the pipe bends and
the horizontal length and in the 3 column, search for the vertical/ sloping length, after which you will arrive at the
letter A, B or C. Thereafter, click in Table 2 to find out the instructions relating to the air inlet guide and baffle (for
installation / removal, see 6.8).
Fig. 4a
Fig. 4b
UK
95900104UK Install_G20.indd 795900104UK Install_G20.indd 7 23-01-2009 09:17:3023-01-2009 09:17:30

8
METRO 70 - INSTRUCTION FOR INSTALLATION
English
The following are 2 examples:
Example 1 Example 2
1. 2 pipe bends 1. 3 pipe bends
2. 3 meters horizontal pipe 2. 4 meters horizontal pipe
3. 5 meters vertical /sloping pipe 3. 9 meters vertical /sloping pipe
Apply Situation A The situation is not permissible.

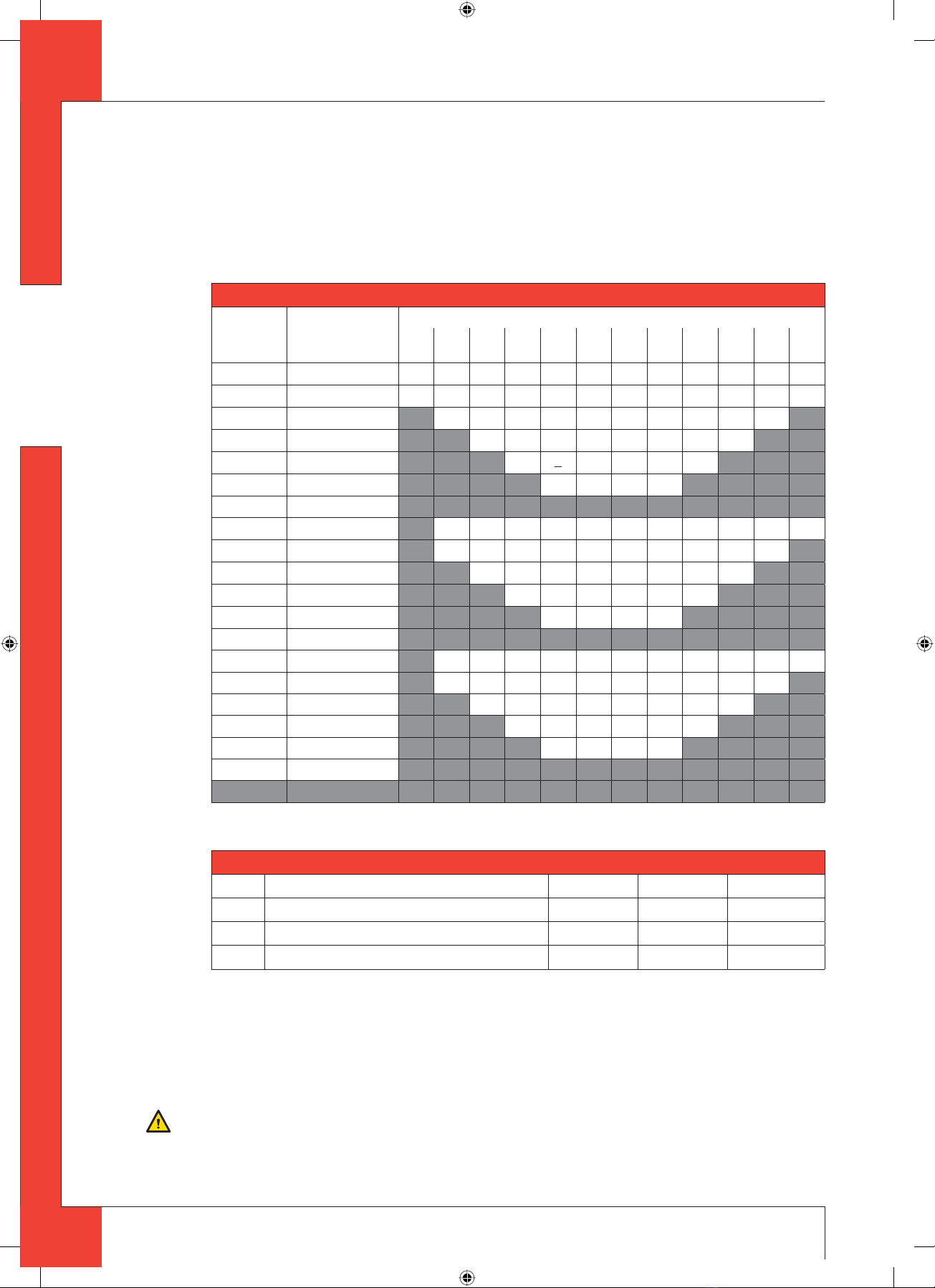

Table 1: Conditions for adjusting the equipment with roof ducts
G20 / G25 total number of
meters of horizon-
tal pipe lengths
total number of meters of vertical and/or sloping pipe lengths
1234
5678 910 11 12
no bends 0 BBBB BCCC CCCC
2 bends 0 A A B B BBBC
CCCC
1 AAB BBBB CCC
2 AA
BBBB BC
 3 AABBB
B
4 AABB 
5 
3 bends 0 AABBBBB CCCC
1 AAABBBB BCC
2 AAABBB BC
3 AAABB B
 4  AAAB-
5
4 bends 0 A A A BBBBBCCC
1 AAAABBBBBC
2 AAAABBBB
3 AAAABB
4 AAAA
5
5 bends -
■
■= The situation is not permissible.
Table 2:
Situation G20/G25 Inlet guide Damper Distance damper
A DL = -6 - 1 metre + roof duct NO NO OPEN
B DL = 1 - 6 metre + roof duct YES YES 38 mm
C DL = 6 - 12 metre + roof duct YES YES 33 mm
6.5.3.2 Installing the concentric system
The roof duct can be used for either a sloping roof or a flat roof.
Depending on the intended use, the roof duct will be supplied with either adhesive flashing for a flat roof or a uni-
versally adjustable tile for a sloping roof.
Install the concentric system as follows:
➠
Construct the system from the (connection stub of the) appliance up
N.B. - Allow a minimum distance of 50 mm between the outside of the concentric system and the walls and/or ceiling.
- Use heat-resistant insulating material for ducts made of combustible material.
UK
95900104UK Install_G20.indd 895900104UK Install_G20.indd 8 23-01-2009 09:17:3323-01-2009 09:17:33

9
METRO 70 - INSTRUCTION FOR INSTALLATION
English
➠
Connect the concentric pipe sections and any necessary bends.
➠
Fit a clamping strip and silicone sealing ring to every connection.
➠
Secure the clamping strip with a self-tapping screw in places which will be inaccessible after installation.
➠
Use enough brackets to ensure that the weight of the pipes does not rest on the appliance.
➠
Determine the remaining length of the roof duct.
➠
Cut the roof duct to size.
!N.B. Be sure to maintain the correct insertion length.
➠
Connect the roof duct to the concentric pipes.
!N.B. - Make sure the universal roof tile ts well against the surrounding tiles.
- Make sure the adhesive ashing sticks to the at roof properly.
6.5.4 Connection to an existing flue
The appliance can also be connected to an existing flue.
A flexible pipe is then inserted into the chimney to discharge the flue gasses. The surrounding space is used to sup-
ply the combustion air.
The following requirements apply for connection to an existing flue:
- allowed only if the special DRU chimney connection set is used.
- Installation instructions supplied.
- minimum dimensions 150 x 150 mm;
- maximum vertical length 12 metres;
- maximum horizontal length 3 metres;
- the existing flue must be clean;
- the existing flue must not have any cracks or leaks;
6.6 Building the chimney breast
The appliance is designed to be installed snugly into a newly built chimney breast.
There must be sufficient space around the appliance to ensure a good heat distribution.
The chimney breast should be ventilated by vents.
N.B. - Use incombustible and heat-resistant material to construct the chimney breast, including rear wall of the chimney
breast;
- The total free vent area of the vents, installed as high as possible, should be at least 200 cm2.
!N.B. When building the chimney breast, the following points should be taken into account (see Fig. 2):
- position of the control box: this should be placed within 850 mm to the left or right of the appliance, as low as possible;
- size of the control box; see section 8.2 Installing the control box;
- position of the vents;
- the size of the glass window so that it can be tted/removed once the chimney breast has been built;
- protecting the gas control block and hoses from cement and plaster.
!Tip The vents should preferably be created in both sides of the chimney breast: you could use DRU ventilation elements.
➠
Check that the concentric system has been installed correctly.
➠
Check that the clamping strips have been secured with self-tapping screws in places which will be inaccessible later.
D
1
2
4
5
3
6
Fig. 5 Fig. 6





D
Fig. 7
UK
95900104UK Install_G20.indd 995900104UK Install_G20.indd 9 23-01-2009 09:17:3323-01-2009 09:17:33

10
METRO 70 - INSTRUCTION FOR INSTALLATION
English
➠
Allow sucient clearance round the appliance in the chimney breast to enable the heat to disperse:
- minimum internal height: 1350 mm;
- minimum internal width: 1010 mm
➠
Do not plaster over the anges because:
- the heat from the appliance could cause cracks;
- it will then be impossible to remove/t the glass window.
➠
If the chimney breast is made of stone-like materials or has been nished in stucco, it should be left to dry for at least
6 weeks prior to taking it into operation, in order to prevent cracks.
6.7 Installing the control box
The control box is to be installed as low as possible.

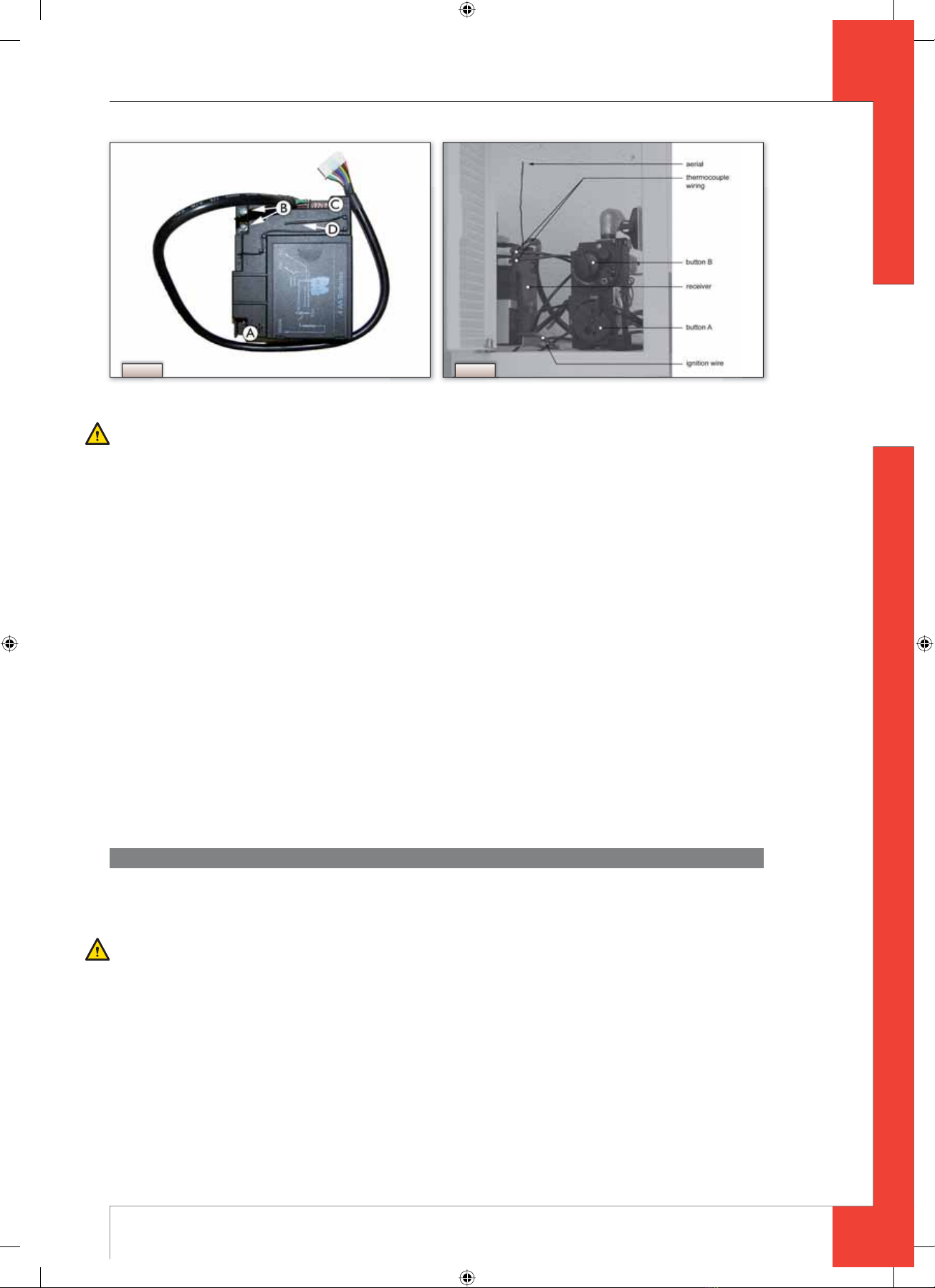

The control box contains various components such as the type plate, the gas control block, and the receiver for the
remote control. (See Fig. 5 for details.)
➠
Make a 285 x 194 mm (h x w) opening in the chimney breast.
➠
Fit the inner frame (1); to do this unscrew the bolts (5).
!Tip - If the chimney breast is brick, the inner frame can be cemented in during building.
- For a chimney breast of any other material, glue/cement the inner frame in place or t it with four countersunk
screws
➠
Mount the gas control block on the brackets (2) on the inner frame.
➠
Reconnect the hoses to the gas control block.
N.B. - Avoid kinks in the hoses.
- Tighten the exible hose and aluminium pipe making sure they are gastight.
- Screw the thermocouple on by hand rst and then
- tighten a quarter turn.
➠
Connect the thermocouple wiring to the gas control block if necessary; see Photo 1.
➠
Blow through the gas pipe if necessary.
➠
Connect the gas pipe to the gas tap.
➠
Bleed o the air in the gas pipe.
➠
Fit the receiver (3); see section 10.1 for connections.
➠
Fit the type plate (6);
➠
Fit the outer frame with door (4) to the inner frame using the two self-tapping screws (5).
!Tip You can position the outer frame in such a way that the door opens to either the left or right.
6.8 Adjusting the appliance
The appliance should be appropriately adjusted to ensure it works correctly in combination with the flue system.
This may entail fitting a damper and/or removing the inlet guides; see the requirements in Table 1: Adjustment criteria
for appliance with wall duct and Table 2: Adjustment criteria for appliance with roof duct.
6.8.1 Damper (R)
The damper (R) is packed separately.
This is fitted as follows (see Fig. 6):
➠
Unscrew the 6 self-tapping screws in the centre plate.
➠
Remove this plate.
➠
Fit the damper.
Photo 1
Fig. 8
UK
95900104UK Install_G20.indd 1095900104UK Install_G20.indd 10 23-01-2009 09:17:3823-01-2009 09:17:38

11
METRO 70 - INSTRUCTION FOR INSTALLATION
English
Photo 2 Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8
UK
95900104UK Install_G20.indd 1195900104UK Install_G20.indd 11 23-01-2009 09:17:4223-01-2009 09:17:42

12
METRO 70 - INSTRUCTION FOR INSTALLATION
English
➠
Adjust the distance of the damper using the template provided (see Fig. 7):
- a distance of 33 mm means that the damper is closed as far as possible;
- use the template to adjust to 38 mm.
➠
Secure the damper in place with the socket-head screw.
➠
Replace the centre plate.
6.8.2 Air inlet guides (L)
The air inlet guides (L) are located at the bottom (side) of the tray around the burner.

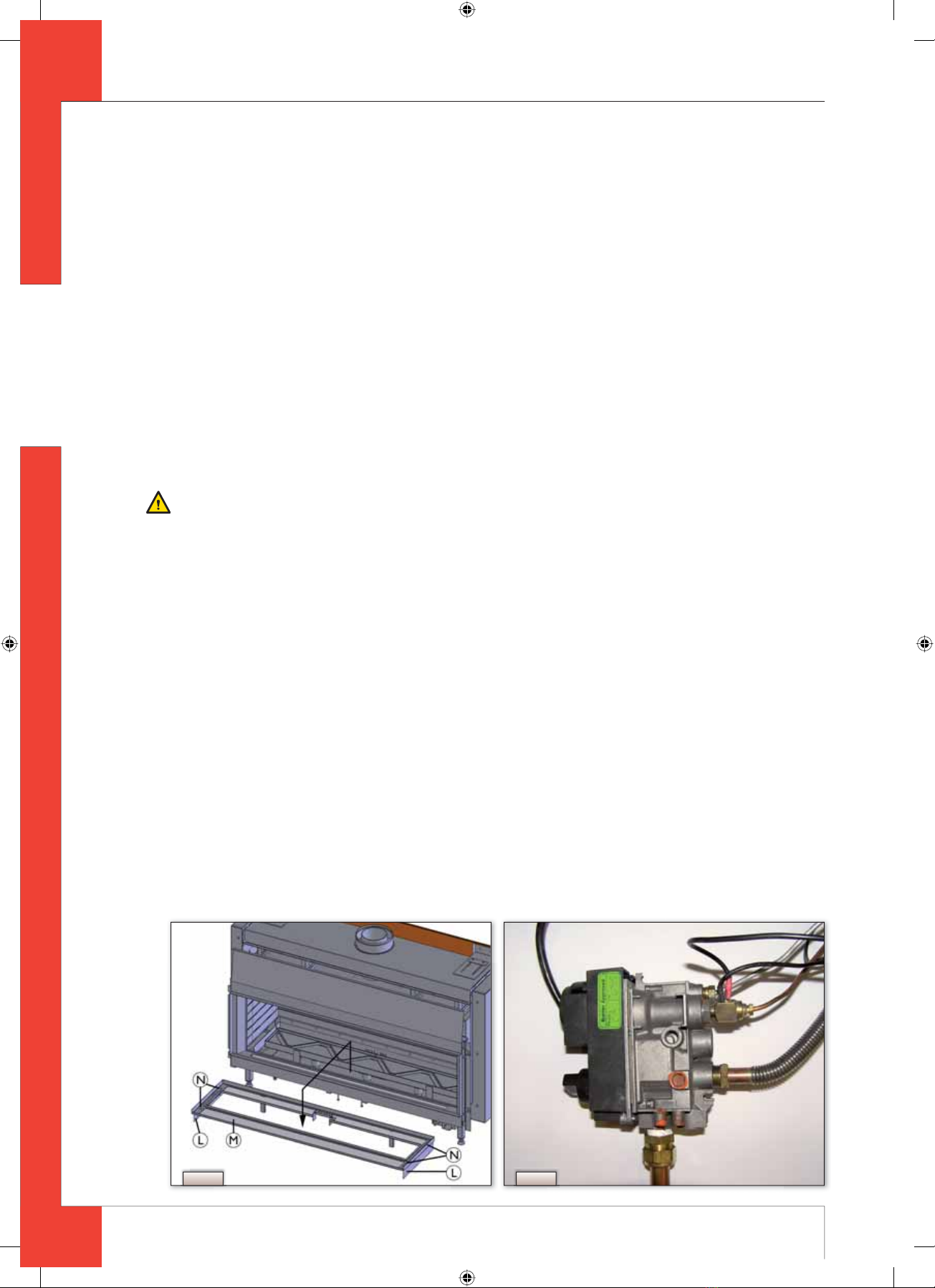

Remove them as follows; see Fig. 8:
➠
Remove the tray surrounding the burner.
➠
Unscrew and remove the self-tapping screws.
➠
Remove the air inlet guides.
➠
Replace the tray round the burner.
6.9 Arranging the logs / pebbles
The appliance is supplied with a set of logs or pebbles.
N.B. Observe the instructions below precisely to avoid unsafe situations.
- only use the log/pebble set supplied;
- arrange the logs/pebbles exactly as described;
- do not cover the pilot burner or the surrounding area (see Photos 9 and 10);
- do not cover the slot between the burner tray and the tray surrounding the burner.
6.9.1 Logs

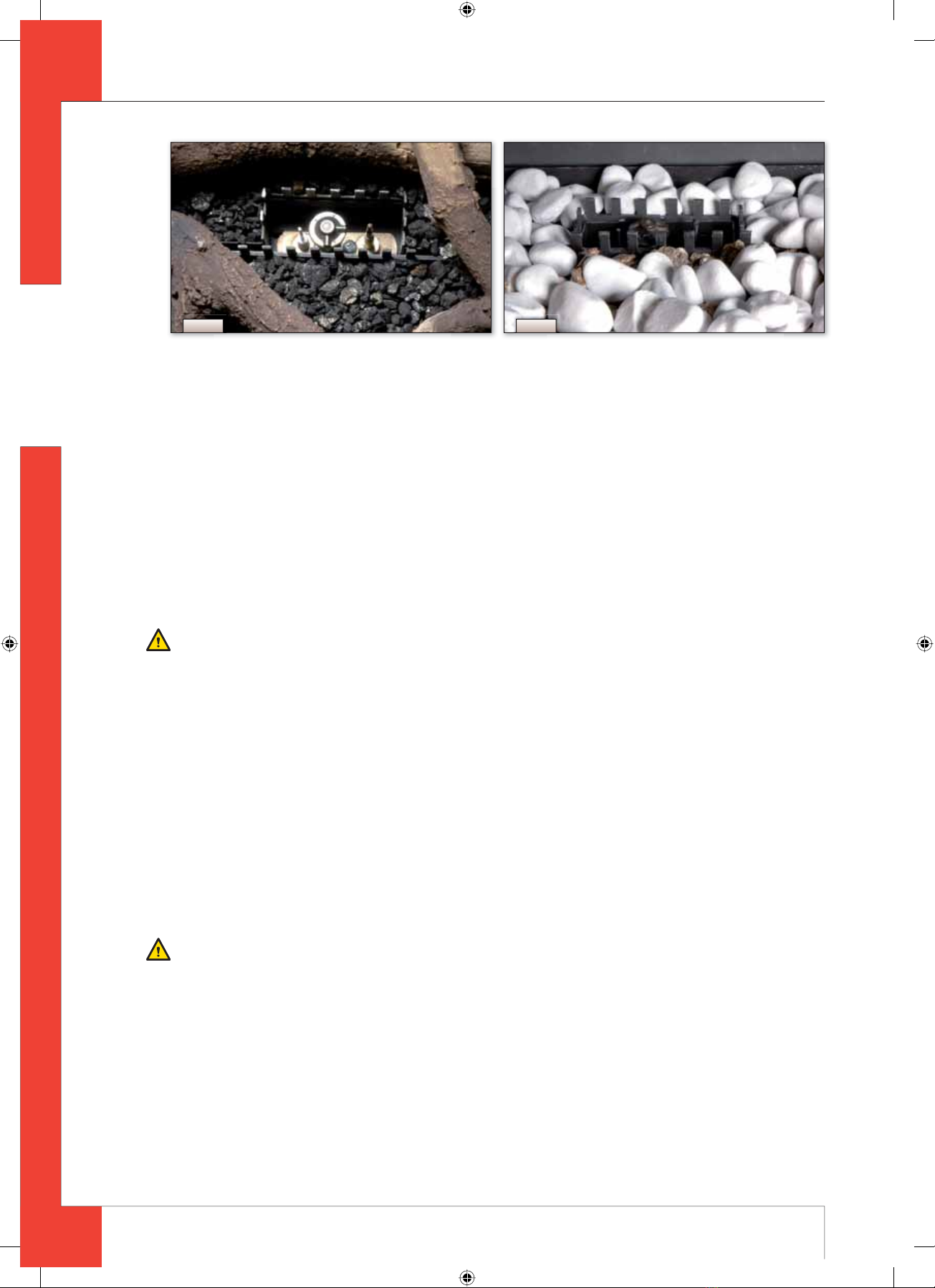

The log set consists of vermiculite (see Photo 2), chippings (see Photo 3) and a few branches.
➠
Fill the burner tray with the vermiculite, spreading it out evenly.
!N.B. - You can alter the ame eect by moving the vermiculite but
- the burner cap must remain covered by vermiculite to help preserve the useful life of the burner.
➠
Fill the tray surrounding the burner with chippings; spreading them out evenly.
➠
Identify the braches A-G using Photo 4 for reference.
!Tip The burn marks on the branches will help you identify them.
➠
Arrange branches A-E around the (main) burner (see Photos 5 and 6):
- First lay branch A symmetrically with respect to the pilot burner;
- Continue with branches B, C, D and E.
➠
Now lay branches F and G (see Photo 7).
N.B. The branches must not cover the burner cap entirely (see Photos 5 and 8) because:
- the main burner will then not ignite properly, which could lead to unsafe situations;
- soot will accumulate faster;
- the ame eect will be distorted.
6.9.2 Pebbles
The set of pebbles consists of natural coloured vermiculite (see Photo 2) and white carrara stones.
➠
Fill the burner tray with the vermiculite, spreading it out evenly (see Photo 11).
!N.B. - You can alter the ame eect by moving the vermiculite but
- the burner cap must remain covered by vermiculite to help preserve the useful life of the burner.
➠
Fill the burner tray and the tray surrounding the burner with the carrara stones.
➠
Spread them evenly in a single layer; see Photos 12 and 13.
Photo 10Photo 9
UK
95900104UK Install_G20.indd 1295900104UK Install_G20.indd 12 23-01-2009 09:17:5223-01-2009 09:17:52

13
METRO 70 - INSTRUCTION FOR INSTALLATION
English
N.B. If pebbles on top of each other or otherwise wrongly arranged this could result in:
- the main burner not igniting properly, which could lead to unsafe situations;
- the ame eect will be distorted.
6.10 Glass window
Once the logs have been arranged the glass window can be fitted as described below.
6.10.1 Removing the glass window
Remove the glass frame in accordance with the following instructions (see Photos 14 to 19):
➠
Remove the vertical decorative strips on the left and right of the glass frame by pushing the lip at the top of each strip
up, tilting the top of the strip parallel with the glass frame, and then removing the strip.
➠
Remove the horizontal decorative strip by gripping it with 2 hands in the slot and lifting it out.
➠
Unscrew the 4 self-tapping screws in the bottom strip using the socket spanner supplied with the appliance.
➠
Loosen the 3 self-tapping screws in the fastening strips on both sides 2 turns.
!N.B. Do not remove the self-tapping screws: leave them in place in the fastening strips.
➠
Push the 2 top wedges (left and right) down as far as possible.
➠
Push the 2 bottom wedges upwards as far as possible.
➠
Press the two fastening strips outwards with your hands as far as possible to avoid damage to the sealing cord.
➠
Take hold of the top and bottom handgrips and lift the glass frame.
➠
Pull on the bottom handgrip to tilt the glass frame in its mounting towards you and, at the same time, pull the top of
the glass frame towards you as far as possible.
!N.B. - Make sure you hold the upper handgrip rmly. If you let go of the handgrip then the glass frame could fall inwards
and cause severe damage to both the glass and the appliance;
- Make sure that you lift the glass frame out of its mounting as straight as possible to avoid damage to the paintwork
and the sealing cord.
➠
Gently allow the glass frame to drop at an angle until it can be removed entirely from the mounting.
Photo 11
Photo 12
Photo 13
UK
95900104UK Install_G20.indd 1395900104UK Install_G20.indd 13 23-01-2009 09:17:5923-01-2009 09:17:59

14
METRO 70 - INSTRUCTION FOR INSTALLATION
English
Photo 14a
Photo 17e
Photo 14b
Photo 15
Photo 16 Photo 17f
Photo 17c Photo 17d
Photo 17a Photo 17b
UK
95900104UK Install_G20.indd 1495900104UK Install_G20.indd 14 23-01-2009 09:18:0323-01-2009 09:18:03

15
METRO 70 - INSTRUCTION FOR INSTALLATION
English
6.10.2 Fitting the glass window
The glass frame is fitted by using the above procedure, in reverse order.
!N.B. - Avoid/remove ngerprints on the glass, since otherwise they will burn into the surface;
- The self-tapping screws must not be over-tightened, since otherwise they could break or strip the thread:
tight=tight;
- Replace the fastening strip if the sealing cord has come loose.
Pay attention to the following when fitting the glass frame:
➠
Begin by checking that the two fastening strips are pressed outwards as far as possible to avoid damage to the sealing
cord.
➠
Fit the glass frame.
➠
Check that the hook at the top of the glass frame is in position in the seating / U-shaped strip.
!Tip Pull on the upper handgrip to move the glass frame towards you: if it does not move, then it has been tted correctly.
!N.B. Fix the glass frame’s bottom strip in place with the 4 self-tapping screws.
➠
Push both bottom wedges downwards.
➠
Push the top wedges upwards until the sealing cord of both fastening strips press against the glass.
➠
Tighten each wedge’s self-tapping screw.
!N.B. Press on the wedge with your hand to hold it in place while you tighten the screws.
➠
Tighten the middle self-tapping screw in each fastening strip.
➠
Fit the horizontal decorative strips.
➠
Fit the vertical decorative strips.
7. Wireless remote control
See Chapter 4 of the User Manual, ‘Remote Control’, for details of how to operate the system.
The remote system consists of a remote control system and a receiver.
The procedure for connecting the receiver has been described below; the working of the remote control system has
been explained in detail in Chapter 4, 4.2 of the User Manual 4, 4.2
7.1 Receiver
The receiver must be connected to the appliance before the batteries are inserted.
Do this as follows (see Photo. 21):
➠
Slide the brown plug o the lead at the back on the PCB of the receiver.
➠
Connect the white plug to the gas control block.
!Tip the plugs are dierent sizes and correspond with the connectors.
➠
Connect the thermocouple wires to the receiver (see Photo 21, arrows B).
Photo 18 Photo 19
UK
95900104UK Install_G20.indd 1595900104UK Install_G20.indd 15 23-01-2009 09:18:1323-01-2009 09:18:13

16
METRO 70 - INSTRUCTION FOR INSTALLATION
English
!Tip - the size of the eye corresponds with the size of the screw.
- the colour of the eye and screw also correspond.
➠
Connect the ignition wire to the receiver (see Photo 21, arrow A)
➠
Connect the power supply:
a) For batteries see section 7.1.1 below;
b)For an adapter:
- connect the adapter to the receiver (see Photo 21, arrow C)
- plug the adapter into the wall socket.
➠
Place the receiver in the control box:
- Position the receiver as shown in Photo 22
➠
Bend the aerial out of the clips, see Photo 21, arrow D.
➠
Put the aerial straight up.
!N.B. - Do not put the aerial too close to the ignition wire and/or metal parts (see Photo 22 for the correct position)
- Do not lay the ignition wire across and/or beside metal parts: this will weaken the spark.
- Do not lay the ignition wire across the receiver: this could damage the receiver.
- Avoid dust accumulating on or in the receiver: cover it during servicing or maintenance.
7.1.1 Fitting/replacing the batteries
To fit the batteries:
➠
Open the ap on the control box.
➠
Take the receiver.
➠
Slide the lid o.
➠
Fit or remove the 4 penlight (AA size) batteries.
!N.B. - Avoid short circuits between the batteries and metal objects/components.
- Note the “+” and “-” positions of the batteries in the holder .
- Use alkaline batteries.
➠
Slide the lid back on.
➠
Replace the receiver.
!N.B. Do not throw batteries in the dustbin, they are considered “domestic chemical waste” and should be disposed of
accordingly.
8. Final inspection
To ensure the appliance is working correctly and safely, check the following before use:
8.1 Gastightness
N.B. All connections must be gastight.
!N.B. The maximum pressure to which the gas control block may be exposed is 50 mbar.
➠
Test the connections for gastightness.
8.2 Gas pressure/pre-pressure
The burner pressure is factory adjusted; see type plate. It is not necessary to test the burner pressure.
The pre-pressure in domestic installations should be tested however, as this can vary.
➠
Test the pre-pressure; see Photo 27 for the pressure testing nipples on the gas control block.
➠
Contact the power company if the pre-pressure is not right.
8.3 Igniting the pilot and main burner
8.3.1 Pilot
➠
Test that the pilot ignites properly, see operating instruction, section 4.2, Remote control:
- the pilot burner should ignite at the rst attempt.
If the pilot does not light, then
➠
Check whether or not the ignition sparks:
a) If not, the ignition wire is probably touching something metal;
b)If it does, there is probably air in the pipes.
➠
Bleed o any air in the pipes and/or
➠
Move the ignition wire so that it does not touch anything metal.
UK
95900104UK Install_G20.indd 1695900104UK Install_G20.indd 16 23-01-2009 09:18:1623-01-2009 09:18:16

17
METRO 70 - INSTRUCTION FOR INSTALLATION
English
8.3.2 Main burner
N.B. The burner should ignite evenly and should not pop as a result of delayed ignition.
➠
Test the working of the main burner from stand-by (pilot) mode; see operating instruction, section 4.2.
➠
once the gas valve has opened the main burner should ignite within a few seconds.
!Tip When the gas valve opens the motor will start to run; this is audible.
If the main burner does not ignite, then:
➠
Check that button A on the gas control block is set to ON;
➠
Check that the space round the pilot is free;
➠
Check that the logs/pebbles have been arranged correctly.
➠
Resolve any of the above as necessary.
➠
Test the main burner 5 times to ensure it is working properly.
8.4 Flame effect
The flame effect cannot really be assessed until the fire has been on for several hours. Volatile elements in paint,
materials, etc., which evaporate during the first hours of use, will initially influence the flame effect.
!N.B. If the chimney breast is made of stone-like materials or has been nished in stucco, it should be left to dry for at least
6 weeks prior to taking it into operation, in order to prevent cracks.
➠
Check that the ame eect is symmetrical.
An asymmetrical flame effect could be caused by:
- volatile substances evaporating;
- incorrectly arranged logs/pebbles.
➠
Rearrange the logs/pebbles as necessary.
9. Maintenance
The appliance should be inspected, cleaned and if necessary repaired by a qualified installer with professional expe-
rience of decorative gas fires at least once a year.
The appliance should at least be tested to check it works correctly and safely.
N.B. - Switch o the gas before commencing any maintenance.
- Test the gastightness after any repairs.
- After replacing the thermocouple, tighten the coupling nut on the gas control block by hand rst and then tighten
it another quarter turn.
➠
Clean the following components if necessary:
- the pilot burner;
- the combustion chamber;
- the glass
!N.B. - Remove the glass as described in section 6.10
- Remove the deposit on the inside of the glass with a damp cloth or a non-abrasive cleaning product such as copper
polish;
- Avoid/remove ngerprints on the window as they will burn into the glass;
- Replace broken and/or cracked glass.
Photo 21 Photo 22
UK
95900104UK Install_G20.indd 1795900104UK Install_G20.indd 17 23-01-2009 09:18:1623-01-2009 09:18:16

18
METRO 70 - INSTRUCTION FOR INSTALLATION
English
N.B. - Replace the logs/pebbles correctly; see section 6.9.
➠
Inspect the ue / combustion air supply system.
➠
Test the system as described in chapter 8.
10. Completion
Familiarise the user with the appliance. You should instruct him/her on such things as how to use the appliance and
how it works, how to use the remote control, and about the need for annual maintenance.
N.B. - Tell the user to switch o the gas immediately and to contact the installer in the event of a failure / malfunction, to
avoid unsafe situations;
- Show him/her where the gas tap is.
➠
Explain how to use the appliance and the remote control;
➠
Point out the precautions in the user manual concerning unintended ignition by other remote controls such as car keys
and garage door openers;
➠
Point out that when the appliance is used for the rst time:
- if the chimney breast is made of stone-like materials or has been nished in stucco, it should be left to dry for at least
6 weeks prior to taking it into operation, in order to prevent cracks;
- volatile elements in paint, materials etc. will evaporate the rst time the re is used;
- the re should preferably be used at the highest setting so that these elements will evaporate more quickly;
- the room should be well ventilated.
➠
Hand the user the user manual and the installation manual (the installation manual should be kept near the appliance).
Photo 27Photo 26 Photo 28
UK
95900104UK Install_G20.indd 1895900104UK Install_G20.indd 18 23-01-2009 09:18:2123-01-2009 09:18:21

19
METRO 70 - INSTRUCTION FOR INSTALLATION
English
11. Troubleshooting
A number of faults which could occur, their possible causes and solutions are shown in the table below:
Table 3: Troubleshooting
Problem Possible cause Solution
A. No transmission
(motor doesn’t work)
1. The (new) communication
code between the receiver
and the remote control has
not been confirmed.
2. Dead batteries.
3. Receiver is damaged.
4. Remote control is damaged
5. Motor wiring broken at the
valve
6. Bent pins on the 8-pin con-
nector.
7. If the receiver is surrounded
by metal, the transmission
range may be reduced.
1. Press and hold the reset button on the
receiver until you hear 2 bleeps.
After the second, longer bleep, release
the reset button and, within 20 seconds
press ▼on the remote control until you
hear an extra long bleep which confirm
the new code; see Photo 26.
It may be necessary to programme a
new communication code; see operating
instructions section 4.2.7
2. Replace the batteries.
!N.B. Avoid short circuits between the batte-
ries and metal parts of the appliance.
3. Replace the receiver and confirm/change
the code (solution 1)
4. Replace the remote control and confirm/
change the code (solution 1)
5. Replace the motor wiring at the valve.
6. Straighten the pins on the 8-pin connector.
7. Change the position of the aerial.
B. No ignition 1. Button A is set to MAN.
2 Ignition wire lying across
and/or beside metal compo-
nents.
1. Switch button A on the gas control block
to ON, see Photo 22
2 Do not let the ignition wire touch any-
thing metal: This will weaken the spark;
see 2 Ignition wire lying across and/or
along beside metal components.
Replace the ignition wire if necessary.
C. No bleep 1. Receiver is damaged. 1. Replace the receiver and confirm/change
the code (solution 1 at A)
D. One continuous 5 second bleep
(There may be 7 short bleeps
before the 5 second bleep)
1. Loose wiring
2. Receiver is damaged.
3. Bent pins on the 8-pin con-
nector.
4. Magnetic valve is damaged.
1. Connect the wiring correctly.
2. Replace the receiver and confirm/change
the code (solution 1 at A)
3. Straighten the pins on the 8-pin connector.
4. Replace the gas control block.
E. No pilot 1. Air in the pilot pipes.
2. Thermocouple wires round
the wrong way,
3. No spark at the pilot burner.
1. Purge the pipes or restart the ignition
process several times.
2. Check the polarity of the thermocouple
wiring.
Connect the thermocouple correctly.
3. Check that the ignition wire is not tou-
ching anything metal.
Move it if necessary; see Photo 22
Replace the ignition wire if necessary.
F. Electronics keep sparking when
the pilot burner is burning
1. Receiver is damaged. 1. Replace the receiver and confirm/change
the code (solution 1 at A)
UK
95900104UK Install_G20.indd 1995900104UK Install_G20.indd 19 23-01-2009 09:18:2623-01-2009 09:18:26

20
METRO 70 - INSTRUCTION FOR INSTALLATION
English
Table 3: Troubleshooting
Problem Possible cause Solution
G. Pilot burner is burning but
the magnetic valve closes
after approx. 10 seconds or
when the appliance gets too
hot
1. Thermocouple is not working
2. Batteries (almost) dead
1.1 Measure the voltage with a digital multi-
meter, set to mV range, by connecting the
wires to the cable terminal. The cable ter-
minal is on the outside, right next to the
magnetic nut, see 2: Batteries (almost)
dead (see Photo 28). The voltage should
be at least 5mV within 20 seconds. This
must not be any lower when the appli-
ance is hot.
If the voltage is too low then
- the thermocouple should be moved so
that it is in the flame more, or
- the thermocouple should be replaced.
1.2 Check the size of the pilot.
Adjust the pilot if it is too low.
1.3 Check the wiring between the thermocou-
ple and the receiver.
Replace the wiring if necessary.
2. Replace the battery.
H. There are short bleeps but
no sparks and is no sound
/ ticking can be heard of the
magnet opening the valve
1. Batteries (almost) dead 1. Replace the batteries.
!N.B. Avoid short circuits between the batte-
ries and metal parts of the appliance.
I. Pilot burner is on but there is
no gas flow to the main burner
1. Button A is set to MAN.
2. Appliance is set to pilot
mode.
3. Pre-pressure is too low.
4. Magnetic valve is damaged.
1. Switch button A on the gas control block
to ON, see Photo 25
2. Increase the flame height by pressing ?on
the remote control.
3. Test the pre-pressure
Contact the power company if necessary.
4. Replace the gas control block.
UK
95900104UK Install_G20.indd 2095900104UK Install_G20.indd 20 23-01-2009 09:18:2623-01-2009 09:18:26
