Dru Maestro 80-3 RCH User manual

Installation manual
Maestro 80/2 RCH (LED)
Maestro 80/3 RCH (LED)
G20/G25/G25.3 (Natural gas), G30 (Butane) and G31 (Propane)
English
Store this document in a safe place
959.094.11.ENDRU-715580-EN-US-1022-9
Scan this QR-Code for
DRU Video Assist

Installation manual
2
1. Step-by-step installation plan 4
2. Introduction 5
3. EU/UKCA Declaration of conformity 5
4. Technical data 6
5. SAFETY 7
5.1 General 7
5.2 Regulations 7
5.3 Safety instructions 7
6. Preparation 8

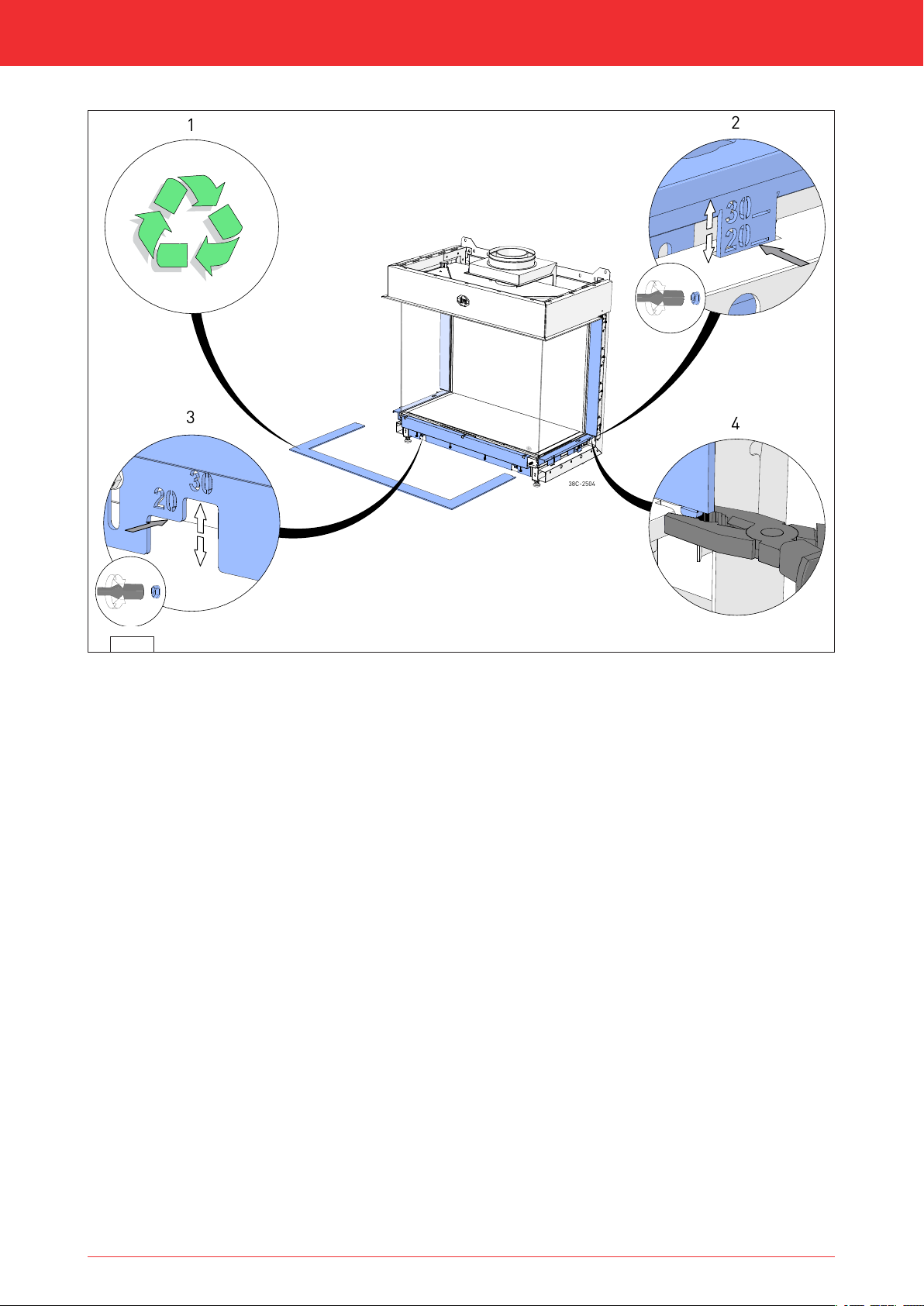

6.1 Unpacking 8
6.2 Type of gas 8
6.2.1 Gas type conversion 8

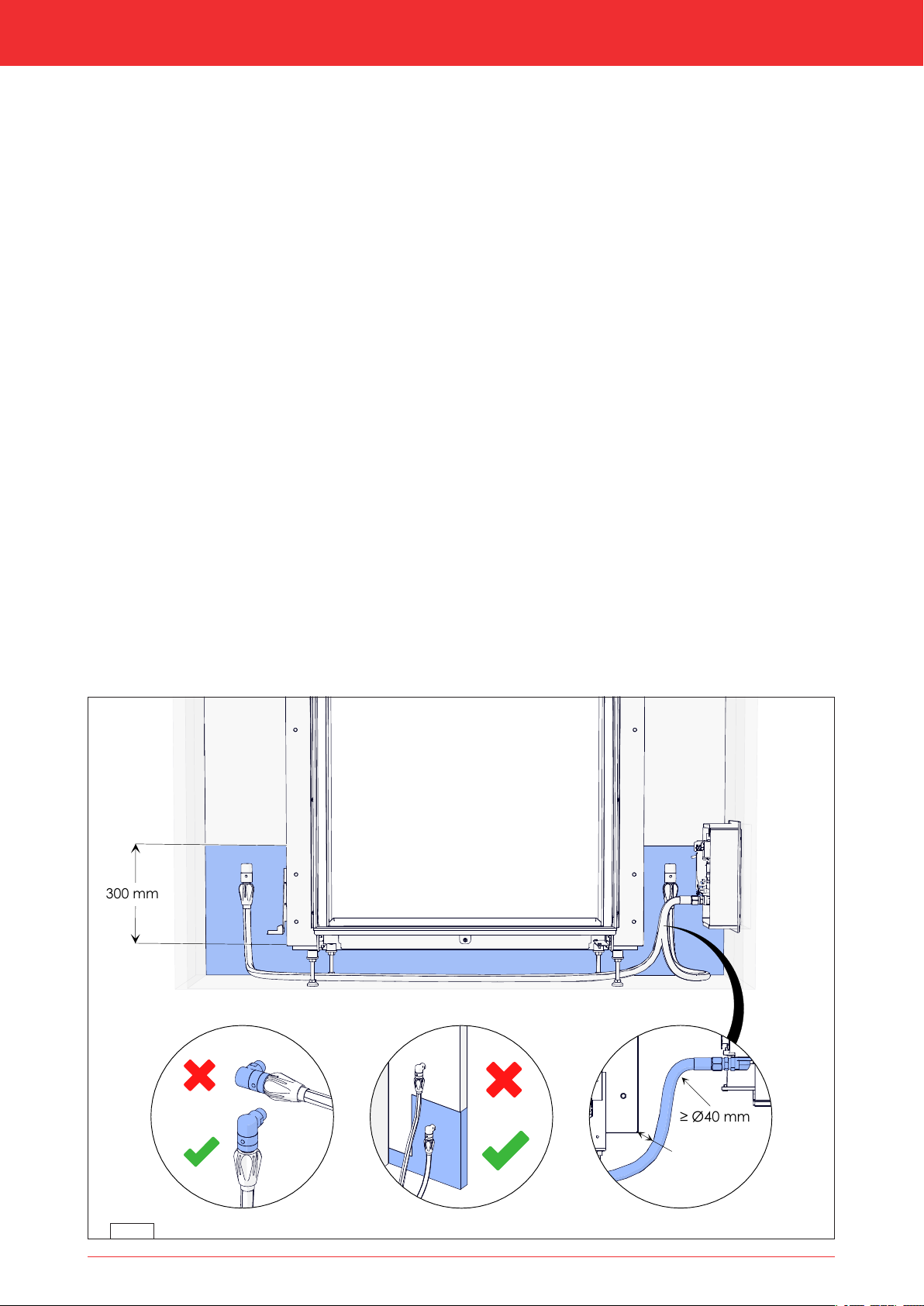

6.3 Gas connection 8
6.3.1 Gas hose for gas outlet 9
6.4 Electrical connection 9
6.5 Components of the appliance control unit 10
7 Installation 11
7.1 Placing the appliance 11
7.1.1 Standing installation of the appliance 13
7.1.2 Suspended installation of the appliance 13
7.2 Additional installation options 14

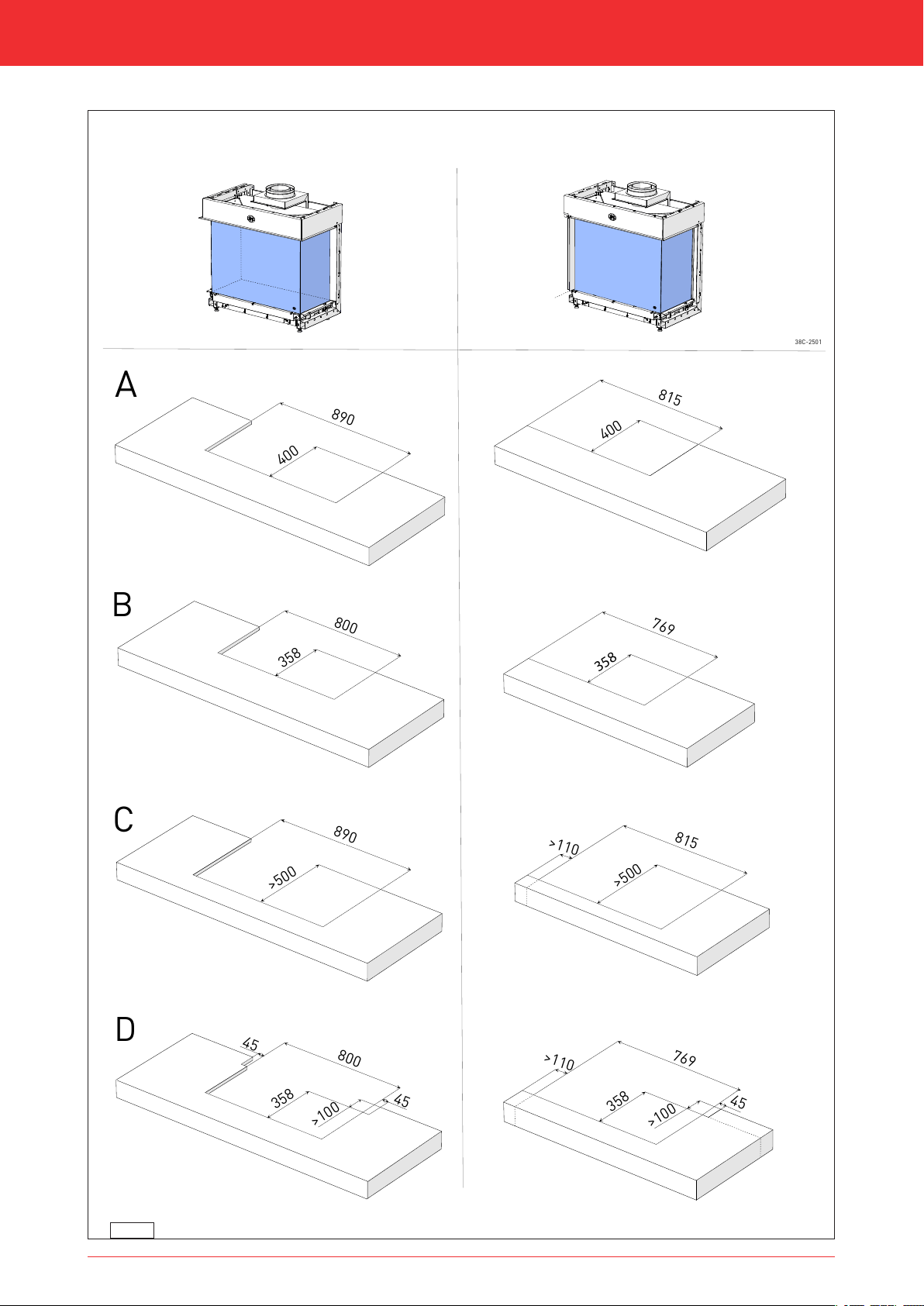

7.2.1 Platform combined with lower decorative strip 14
7.2.2 Platform connecting to the glass 14

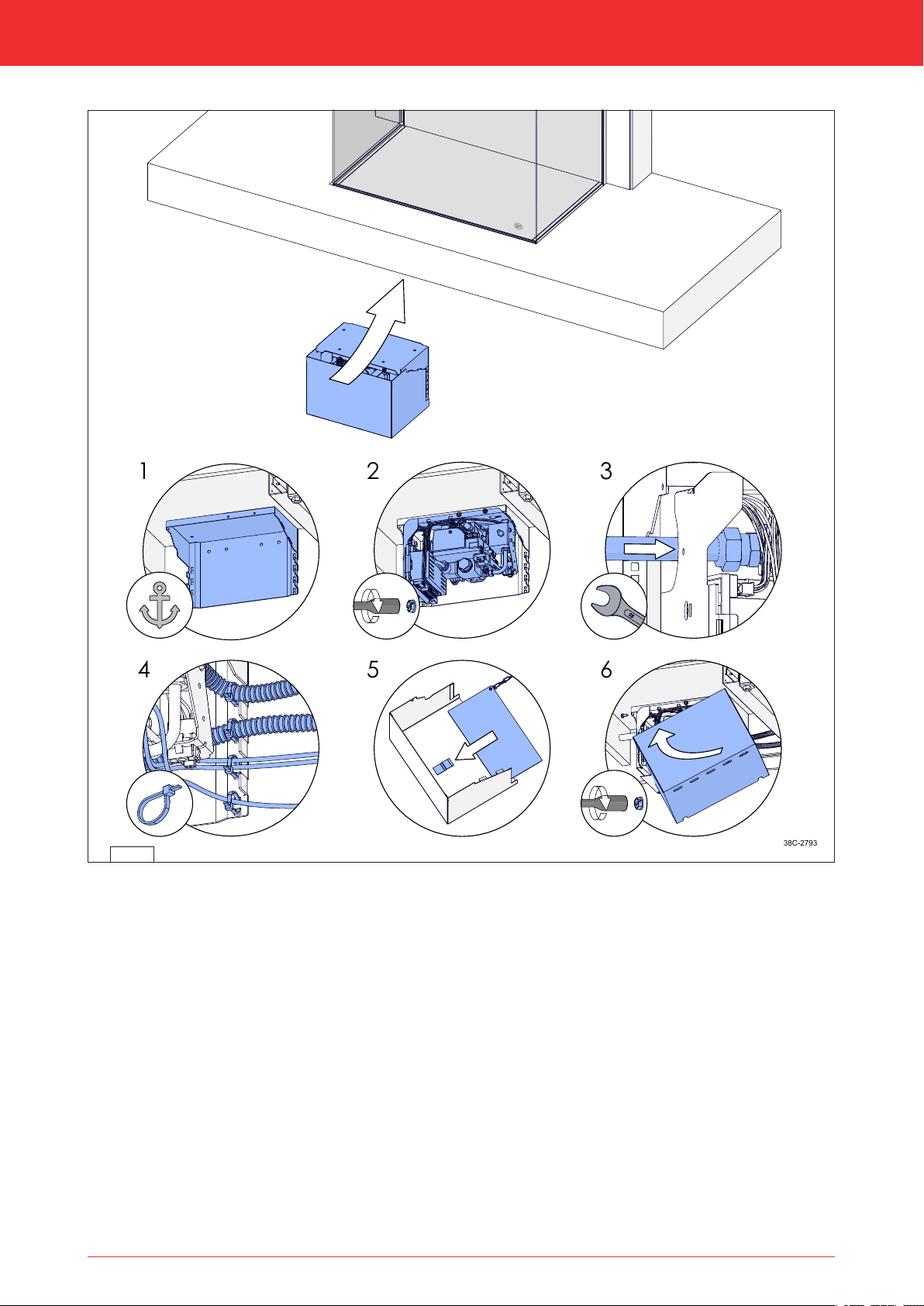

7.2.3 Placing the appliance control unit under the platform 18
7.2.4 Back wall connecting to the glass of the side pane 20
7.2.5 Mantle iron 22
7.3 Concentric system 25
7.3.1 General 25
7.3.2 Roof terminal (C31) 27
7.3.3 Wall terminal (C11) 30
7.3.4 Connection to an existing chimney (C91)) 33
7.4 Placing the chimney breast 33
7.5 Placing the control hatch 36
8 Appliance 38
8.1 Glass panes 38
8.1.1 Removing the front glass pane 38
8.1.1.1 Appliance with glass on 3 sides: 38
8.1.1.2 Appliance with glass on 2 sides: 39
8.1.2 Placing the glass pane 40
8.2 Setting the appliance 41
8.2.1 Restrictor slide and flue gas distribution plate 41
8.2.2 Air inlet guide 42
8.2.3 PowerVent® 43
8.3 Wood set 44
Content

Installation manual
3
8.3.1 Placing the wood set 44
9. Control/operation 53
9.1 Igniting the appliance 54
9.2 Connection switch contact (Eco Glow) 55
9.3 Switching/Dimmable power supply (Triac) 55
9.4 Operation 55
9.4.1 Remote control 55
9.4.2 DRU Fire App - User 55
9.4.3 DRU Fire App – Service 55
9.5 Wired home automation system 56
10. Final inspection 58
10.1 Gas tightness 58
10.2 Gas pressure/line-pressure 58
10.3 Ignition main burner 58
10.3.1 First ignition of the appliance after installation or adjustments 58
10.3.2 Igniting the burner(s) 59
10.4 Flame picture 59
11. Delivery 60
12. Maintenance 61
12.1 Parts 61
Appendix 1: Malfunctions 62

1. Step-by-step installation plan
3Read the full installation manual prior to installing the appliance.
The major points of attention of the installation are described in the check list below. Perform these steps and tick them
once they have been performed correctly. After ticking all the steps, the appliance will be ready for use.
Installation manual
4
The appliance is free from damage
All supplied parts are present (see table 6-1)
The correct gas type and gas pressure is present on the location where the appliance will be placed
The gas tap is within reach after installation and meets the legal requirements
The gas connections are gas-tight (see section 10.1)
The concentric system has been installed in accordance with the imposed requirements (see section 7.3)
The total installation complies with national and local structural requirements and fire safety requirements
The chimney breast complies with the imposed fire safety requirements (see section 7.4)
The chimney breast complies with the minimum dimensions and has been provided with sufficient ventilation
(see section 7.4)
The control hatch with the appliance control unit has been installed in accordance with the instructions
(see section 7.5)
The restrictor slide and/or air inlet guide(s) have been adjusted correctly (see section 8.2)
The log, pebble or broken glass set has been placed as described (see section 8.3)
The remote control has been prepared for use (see section 9.5)
When the appliance is ignited for the first time, the glass pane has been removed (see section 10.3.1)
The glass pane(s) has/have been cleaned before the appliance with glass pane(s) is ignited (see section 12)
When igniting for the first time with glass pane, the appliance ignites correctly and the flame progress on the
main burner is correct (see section 10.3.1)
The user has been familiarised with the appliance and its functions (see section 11)
The correct appliance has been supplied (see table 4-1)

2. Introduction
DRU, a manufacturer of gas-fired and electric stoves, develops and produces products that comply with the highest
quality, performance and safety requirements. The information in this installation manual will ensure the appliance is
installed in such a way that it will function safely and in a correct way.
Installation and maintenance of the appliance should be performed by a certified and competent professional person,
hereafter referred to as the installer. Read the installation manual prior to installing the appliance and make sure the
instructions contained therein are fully and carefully observed. If applicable, this also applies to the installation manuals
for the DRU PowerVent® and the DRU CM system.
The appliance is supplied with an installation manual and a user manual. The installation manual discusses the
installation of the appliance and the applicable instructions, includes the technical specifications of the appliance and
provides information about its maintenance and any failures that might occur and what might cause these failures. The
user manual contains all information that is relevant to the user in order to operate the appliance properly and safely.
After final delivery, both manuals should be handed over to the user.
Where installation instructions are not clear, national/local legislation should be observed.
Symbols are used in the manuals to indicate important information:
1Work to be performed
2Tips and additional information
3Necessary instructions to prevent problems that might occur during installation and/or use
3Necessary instructions to prevent fire, personal injury or other serious damages
3. EU/UKCA Declaration of conformity
This declaration of conformity is provided under the sole responsibility of DRU Verwarming, hereafter referred to as DRU.
DRU declares that company internal measures guarantee that appliances produced by DRU meet the essential
requirements and guidelines of the European regulation concerning gas-fired appliances and the accompanying
standards. This declaration loses its validity if changes are made to the appliance without written permission from DRU.
The instructions in the manuals must also be observed at all times. A copy of the EU test certificate can be downloaded
via www.druservice.com.
Product:
Type:
Product identification number:
EU test certificate:
Conformity assessment body:
Regulations:
Directives:
Standards:
Gas-fired heating appliance
Maestro 80/2 RCH (LED), Maestro 80/3 RCH (LED)
0063CQ3299
18GR0159/02
Kiwa Netherlands B.V. (0063)
Wilmersdorf 50
Postbus 137
7300 AC, Apeldoorn
(EU) 2016/426, (EU) 2015/1186, (EU) 2015/1188
2014/53/EU, 2014/35/EU, 2014/30/EU, 2009/125/EC
EN 613:2021, EN 60335-1:2012, EN 60335-1:2012/A2:2019,
EN 60335-1:2012/A11:2014, EN 60335-1:2012/A13:2017,
EN 60335-1:2012/A14:2019, EN 60335-2-102:2016
Installation manual
5
DRU Verwarming B.V.
Postbus 1021, NL-6920 BA Duiven
Ratio 8, NL-6921 RW Duiven
www.drufire.com
R.P. Zantinge, Managing director
Duiven, 05-10-2022

4. Technical data
Check the technical data based on the table below.
Installation manual
Gastype:
Indirect heating functionality
Direct heat output
Indirect heat output
Space heating emissions NOx
Heat output
Nominal heat output
Minimum heat output (indicative)
Technical data
Nominal heat input (Hs)
Nominal heat input (Hi)
Consumption max
Consumption min
Burner pressure max
Burner pressure min
Main burner injector
Low setting injector
Efficiency class (EN613)
Useful efficiency (NCV)**
Useful efficiency at nominal heat output
Useful efficiency at minimum heat output
(indicative)
Auxiliary electricity consumption
At nominal heat output
At nominal heat output
In standby mode
Permanent pilot flame power requirement
Pilot flame power requirement (if applicable)
Energy efficiency***
Energy efficiency index
Energy efficiency class
Symbol
Pnom
Pmin
ηth,nom
ηth,min
elmax
elmin
elSB
Ppilot
EEI
G25/G25.3*
No
8,6
-
111,0
8,6
1,3
11,4
10,3
1223
209
18,7
4,2
2x Ø1,65
1x Ø1,55
A****
1
91,6
71,4
0,0236
0,0125
0,0026
-
91
A
G31
No
7,8
-
91,0
7,8
1,4
11,2
10,3
415
80
26,9
10,4
2x Ø1,10
1x Ø1,00
A****
1
88,6
88,3
0,0236
0,0125
0,0026
-
89
A
G20
No
9,0
-
118,4
9,0
1,4
12,0
10,8
1140
218
14,7
4,7
2x Ø1,65
1x Ø1,55
A****
1
93,0
72,0
0,0236
0,0125
0,0026
-
93
A
Unit
kW
kW
mg/kWhinput
(GCV)
kW
kW
kW
kW
L/h
L/h
mbar
mbar
mm
mm
%
%
kW
kW
kW
kW
G30
No
9,0
-
110,7
9,0
1,6
12,7
11,7
358
69
26,5
10,1
2x Ø1,10
1x Ø1,00
A****
1
89,6
88,5
0,0236
0,0125
0,0026
-
89
A
Type of heat output / room temperature control
Single stage heat output, no room temperature control
Two or more manual stages, no room temperature control
With mechanic thermostat room temperature control
With electronic room temperature control
With electronic room temperature control plus day timer
With electronic room temperature control plus week timer
Other control options
Room temperature control, with presence detection
Room temperature control, with open window detection
With distance controle option
No
No
No
Yes
Yes
Yes
Yes***
Yes***
Yes
Maestro 80/2 RCH (LED), Maestro 80/3 RCH (LED)
Built-in
Closed combustion
C11, C31, C91, C12, C32*****
I2E, I2E+, I2EK, I2ELL, I2H, II2H3+, II2E+3+, II2H3B/P, II2E3B/P, II2EK3B/P
200/130
DRU LAS ES-I 200/130, DRU LAS ES-E 200/150/100,
DRU LAS ES-I 150/100, DRU PV-I 100/60
Separated ignition / ionization plugs
Explosion hatch
160°C
800 mm
V-in: 80 cm2 (Eco Glow; 2 x 80 cm2) / V-out: 200 cm2
* This appliance is suitable for G25.3 with the composition according NTA 8837. ** System efficiency. ***(achieved) using home
automation. **** Adjusting screw. *****Categories C12 and C32 only in combination with DRU PV-1 100/60 (PowerVent®).
Model identifier(s)
Type of appliance
Combustion
Type
Categorie
Concentric appliance connection
Applicable concentric systems
Flame protection version
Pressure equalisation
Max. temp. outer tube concentric system
Radiation range safe distance (front/side)
Ventilation hole chimney breast
Table 4-1: Technical data
6

5. SAFETY
5.1 General
3- Observe the generally applicable regulations and precautions/safety instructions in this manual.
- Read this manual carefully to ensure the proper and safe installation of the appliance.
- Prior to starting the installation, check that the correct appliance has been delivered on the basis of table 4-1.
5.2 Regulations
Please install the appliance in accordance with the applicable national, local and constructional (installation) regulations.
5.3 Safety instructions
3Carefully observe the following precautions/safety instructions:
- Installation and maintenance of the appliance should be performed by an installer.
- The appliance was designed for atmospheric and heating purposes. This means that all visible surfaces, including the
glass pane, can become hotter than 100°C. It is recommended to always place a guard grille in front of the appliance
when children, older people or persons with reduced physical, sensory or mental capacities are in the same room as
the appliance. If these vulnerable people are regularly present in the room without supervision, a fixed guard should
be made around the appliance.
- Keep combustible objects and/or materials outside the appliance's radiation range (see section 7).
- Do not cover the appliance and/or do not wrap it in an insulation blanket or any other material.
- Do not use the appliance when a pane is broken and/or cracked, until it has been replaced.
- Only use the flue gas discharge / combustion air supply system (concentric system) supplied by DRU.
3When installing the appliance, heed the following warnings:
- Do not make any changes to the appliance.
- Only use the accompanying set, such as the wood or pebble set, and place it exactly as described.
- Leave space around the ionisation pin and spark electrode and never place glow material around these pins.
- Place a gas tap in accordance with applicable regulations.
- Make sure there is no dirt in gas pipes and connections.
- Check the complete installation for gas tightness prior to commissioning.
- Do not ignite the appliance until it is fully installed in relation to the gas connections, discharge system and electrical
components.
3When installing a built-in appliance:
- Prevent the explosion hatch(es) on the top of the appliance (if present) from getting clogged and check that they
properly fit on the sealing surface, before the appliance is built in.
- Use non combustible and heat-resistant materials for the chimney breast, including the top of the chimney breast and
the material in the chimney breast, such as the floor under the appliance and the back wall against which the appliance
will be placed. For this you can use both special sheet material and stone-like materials.
- Take sufficient measures to prevent excessive temperatures of a wall behind the chimney breast, including the
materials and/or objects behind the wall.
- Take the minimum required internal dimensions of the chimney breast into account. These are for the benefit of safety
and for the prevention of excess heat accumulation in the chimney breast.
- Ventilate the chimney breast by means of ventilation holes (see section 7). These are essential for safety and for the
prevention of excess heat accumulation in the chimney breast.
- Use heat resistant electrical connectors.
- Place heat-resistant electrical wiring away from the appliance and as low as possible in the chimney breast. This has to
do with the temperature development in the chimney breast.
3When installing a free-standing appliance:
- Place the appliance at the indicated minimum distance from the back wall and side walls (see section 7).
Installation manual
7

6. Preparation
6.1 Unpacking
When unpacking the appliance, please proceed as follows:
1Remove all packaging materials and dispose of them by means of the correct waste processing method.
3Keep plastic bags and packaging materials away from children.
1Remove all supplied components in, on and/or at the appliance.
1Remove the screws, if the appliance is attached to a platform or pallet.
1Check the appliance and accessories for damages (during transport). In case of damage, contact your supplier.
3Never install a damaged appliance.
1Use table 6-1 to check if all components have been delivered. Contact your supplier if this is not the case.
2The glass panes are made of ceramic material, which means that minor irregularities in the surface cannot be prevented.
These are within the imposed quality standards.
Installation manual
8
6.2 Type of gas
The data plate indicates for which type of gas, gas pressure and for which country this appliance is intended.
The data plate can be found on the appliance or can be attached to a chain to which it should remain attached.
3Check whether the appliance is suitable for the type of gas and the gas pressure used at the location.
6.2.1 Gas type conversion
In order to convert this appliance to a different type of gas, please contact DRU's service department and ask for
the possibilities. The conversion should be performed by a recognised gas installer.
6.3 Gas connection
This appliance is intended for use on a gas installation with a gas pressure regulator in the supply. In addition, a gas tap
should be installed in the gas pipe, in conformity with the applicable regulations.
3- Make sure the gas pipes and connections are free from dirt.
- No soldering work may be performed at the flexible gas hose(s).
For the gas connection (fig. 6-2 (Gin)), the following requirements apply:
- Lay the gas pipe in such a way that no pressure loss can occur.
- The gas tap must be provided with the correct quality mark.
- The gas tap should be accessible at all times during and after installation.
Table 6-1: Parts included with the delivery
Part
Installation manual
User manual
Wood set (including: chips, vermiculite and ash)
Glowing Embers set (if applicable)
Glow material
Restrictor slide
Air inlet guide
Remote control
Mains cable
Control hatch
Wall bracket
Assembly set platform
Mantle iron
Back-up self-tapping screw for benefit of glass pane assembly
Key bolt M8 (including: Hexagonal nut M8 and Washer M8)
Compression fitting 15 mm x G3/8”
Socket spanner 8 mm
Allen key 2.5 mm
Suction cup (only Maestro 80/2 RCH)
Number
1x
1x
1x
1x
1x
1x
1x
1x
1x
1x
1x
Separately available
Separately available
nx
4x
1x
1x
1x
1x

Installation manual
9
6.3.1 Gas hose for gas outlet
If legally permitted, a gas hose for a gas outlet (according to EN14800) can be ordered with the appliance in various
lengths (consult DRU Service for this). The gas hose is mounted to the appliance at factory and has been checked for
leak-tightness.
3- The gas outlet should be accessible at all times during and after installation.
- The gas outlet may only be placed vertically (see fig. 6-1).
- The gas outlet and gas hose may not be placed behind the appliance.
- The gas outlet should be placed next or under the appliance on the wall behind the appliance.
- Measured from the bottom of the adjustable foot holder, a maximum allowed placement height of 30 cm shall apply
(see fig. 6-1).
- A minimum radius of 40mm must be observed in case of a bend in the gas hose (see fig. 6-1).
- A minimum distance of 20mm must be observed between gas hose and appliance.
- The gas hose must be placed as low as possible in the chimney breast. Place it as far away from the burner as possible.
- The input of the appliance control unit points towards the appliance. Due to the bend radius of the gas hose, the
chimney breast width becomes larger on the side of the control hatch.
6.4 Electrical connection
Ensure a 230 Volt earthed electrical connection. Place this connection in such a way that it is free from the appliance.
When using a chimney breast, the connection should be placed as low as possible, in connection with the temperature
development during use.
3Make sure the installation can be made free from voltage easily after installation, by disconnecting the plug or using a
2-pole switch placed by an installer in accordance with normal regulations.
3- Protect the appliance control unit and accompanying electrical components against building dust and building
moisture.
- When connecting the receiver and the control panel of the CM system, observe the instructions in the provided
installation manual.
≥ Ø40 mm
≥ 20 mm
300 mm
38C-2605/2
6-1

Installation manual
10
6.5 Components of the appliance control unit
The appliance control unit consists of the following components (see fig. 6-2):
A: Distribution block; connection of the burners
B: Main valve; controls the gas supply to the main burner and valve second burner.
C: Valve second burner; switches the gas supply to the second burner (if applicable)
D: Controller (ESYS); controls the ignition procedure and checks for a safe operation
E: Receiver (DFGT); ensures the control of the appliance
P1: Pressure gauge nipple 1; burner pressure
P2: Pressure gauge nipple 2; line-pressure
G(IN): Gas connection; connection from the gas control to the gas network
38C-2555/2
6-1

Installation manual
11
7 Installation
7.1 Placing the appliance
Separate sections describe different ways of placing the appliance. The general description below for placing the
appliance applies to all these sections:
1Place the appliance on the location where it will be installed and take the following into account:
3- The construction dimensions of the appliance (see fig. 7-1 and 7-2).
- The minimum chimney breast dimensions (see section 7.4).
- The length of the cables and pipes (see section 7.4).
- Place the appliance in front of heat-resistant and non combustible walls and on a heat-resistant and non combustible
floor.
- The wall brackets on a built-in appliance ensure that the minimum distance to the wall is maintained (see fig. 7-1 (B)).
- Take sufficient measures to prevent excessive temperatures of a possible wall behind the chimney breast, including the
materials and/or objects behind the wall.
- Make sure there are no combustible objects or materials within the radiation range of the appliance (see fig. 7-12).
- Place the concentric system in such a way, that it is impossible for a fire hazard to occur (see section 7.3).
- Do not cover the appliance and/or do not wrap it in an insulation blanket or any other material.
- Make sure that the appliance to be installed has a stable position. Fasten possible extending legs with the self-tapping
screws.
1Set the height of the appliance using the adjustable feet and level the appliance.
1Attach the appliance to the wall using wall brackets (see fig. 7-1 (B) and fig. 7-2 (B)).
1Loosen the appliance control unit with transport bracket from the appliance, by loosening the self-tapping screws and
screw the self-tapping screws back in the appliance.
1Place the appliance control unit, together with the wiring of the ignition/ionization cable(s), the flexible gas hose(s) and
the data plate with chain in the direction of the control hatch (see section 7.5).
3- Ensure the cables of the ionization and ignition pins are lying free from metal parts as much as possible and are lying
fully free from signal and voltage cables.
- The data plate must remain attached to the appliance by means of the chain at all times.
790
550
min. 873
max. 923
50
876
912
396
18
200
130
AA
558
min. 148
max. 198
349
156
492
18
38c-2251 /0

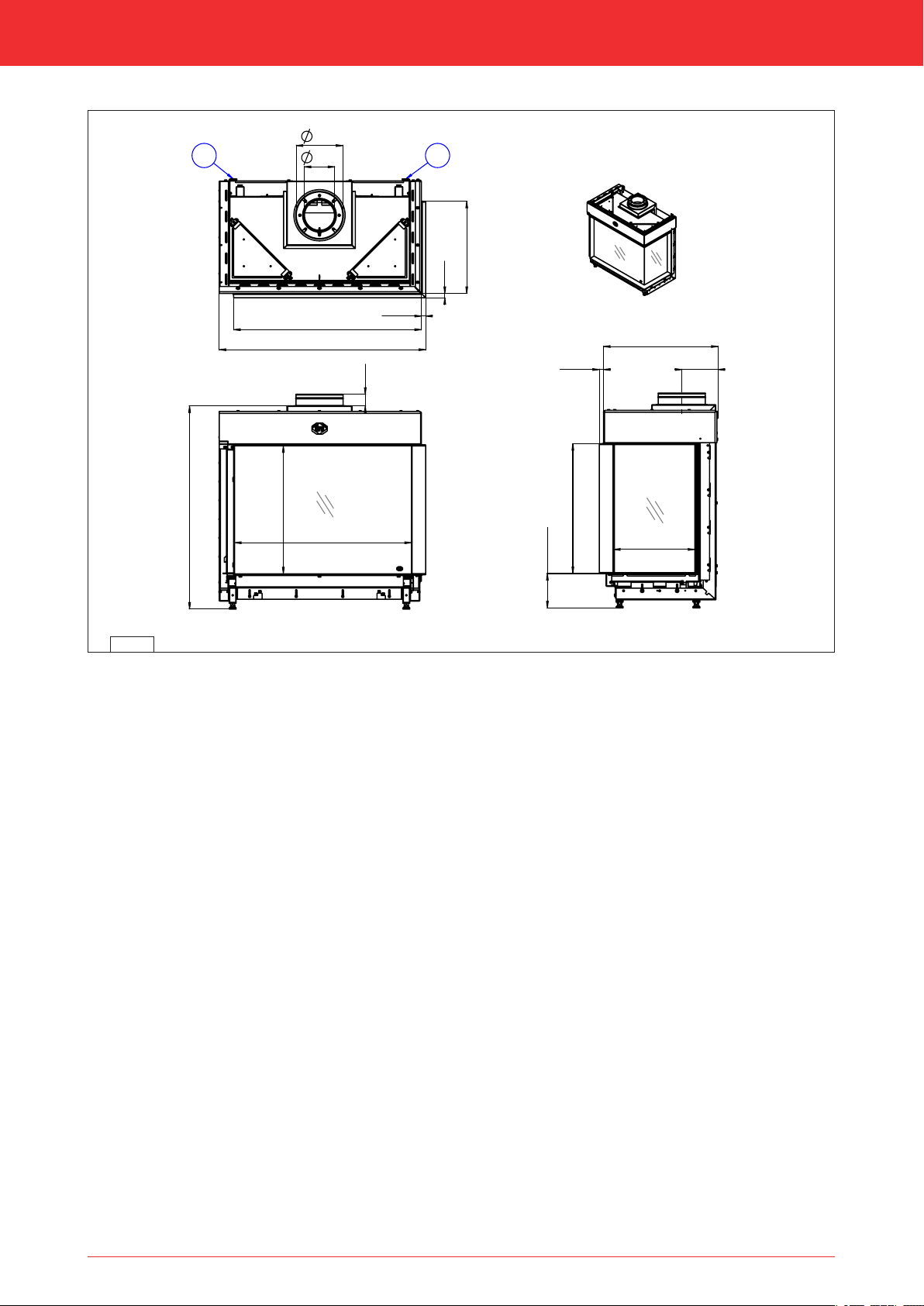

Maestro 80-3 RCH
7-1

Installation manual
12
min. 873
max. 923
50
760
550
807
18
887
396
18
200
130
AA
156
492
18
349
558
min. 148
max. 198
38c-2252 /0

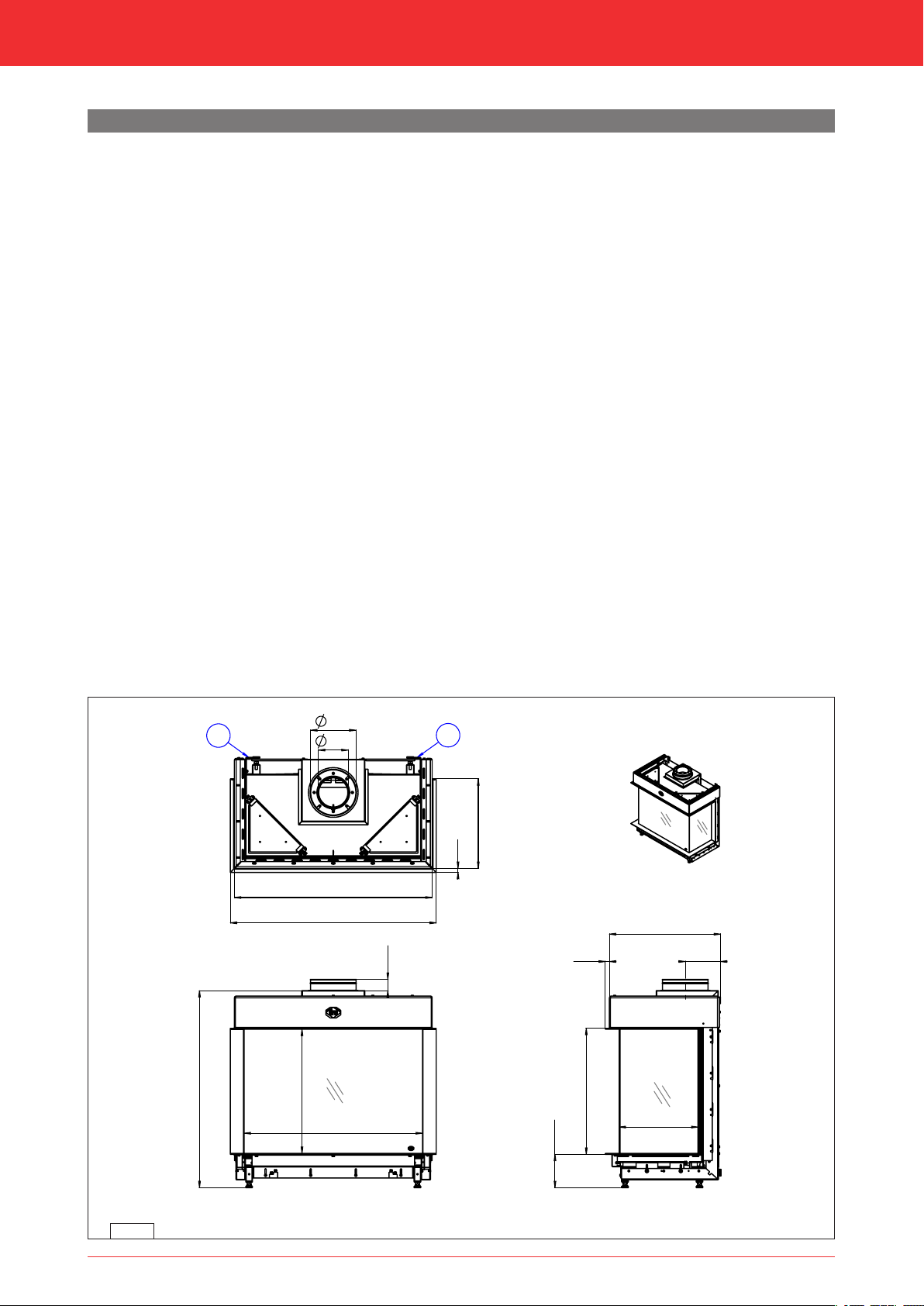

Maestro 80-2 R RCH
7-2

Installation manual
13
7.1.1 Standing installation of the appliance
In case of a standing installation of the appliance, observe the following instructions:
1Set the height of the appliance using the adjustable feet and level the appliance.
1Attach the appliance to the wall using wall brackets (see fig. 7-1 (A) or 7-2 (A)).
7.1.2 Suspended installation of the appliance
In case of a suspended installation of the appliance, observe the following instructions:
1Determine the location and height of the appliance (see fig. 7-1 or 7-2) and the control hatch (see fig. 7-14)).
1Attach the suspension bracket to the wall using the supplied key bolts (see fig. 7-3).
3Attach the appliance to a vertical wall of solid, non combustible and heat-resistant material.
1Use the slotted holes of the suspension bracket to level the appliance.
1Unscrew the 2 adjustable feet (1) with lock nut from under the appliance and place
them in the rear of the appliance.
1Place the appliance in the suspension bracket. Wall bracket hangs in the suspension bracket (see fig. 7-3(4)).
1Use the adjustable feet (1) to level the appliance vertically and lock them with the nut.
2
1
3
4
4
74
38C-2499
7-3

Installation manual
14
7.2 Additional installation options
The appliance can be placed with a platform. This can be done in combination with a lower decorative strip or with the
platform connecting to the glass. The accompanying chimney breast can be used with or without a false wall (see fig. 7-4
and 7-5).
It is also possible to have the interior plate of the appliance continue to the outside. In that case, the chimney breast or
other heat-resistant materials can be placed up to the side pane(s) (see fig. 7-6).
3Do not allow the weight of the platform to rest on the appliance, use the assembly set instead. It can be ordered
separately.
7.2.1 Platform combined with lower decorative strip
(see fig. 7-4 (A and C) and 7-5 (A and C))
1Create a recess in the platform, in which the appliance will be placed. If a false wall is used, the recess will be less deep.
1Mutually adjust the height of the appliance and assembly set, so that the top side of the platform connects to the bottom
side of the lower decorative strip.
7.2.2 Platform connecting to the glass
(see fig. 7-4 (B and D) and 7-5 (B and D))
1Create a recess in the platform, in which the appliance will be placed. If a false wall is used, the recess will be less deep.
Maximum material thickness is 30 mm.
1Remove the lower decorative strip (see fig. 7-6) by sliding it forward and taking it out. It will not be placed back.
1Remove the centring cam at the bottom of the decorative strip by cutting into it at the front and breaking it off.
Make sure the bottom side of the decorative strip remains flat and resistant to corrosion.
1Loosen the nuts of the adjustable profiles by a few turns and adjust the profiles to the correct height. The height depends
on the material thickness of the platform. For material thickness 20 mm and 30 mm, indicators have been applied.
Re-tighten the nuts (see fig. 7-6).
1Mutually adjust the height of the appliance and assembly set, so that the bottom side of the platform connects to the
adjustable profiles.
3Do not allow the weight of the platform to rest on the appliance and/or the adjustable profile.
- Make sure there is sufficient space between the platform and the springy glass pane strip in order to be able to
remove/place the front glass pane. Use the end stops on both sides of the appliance.

Installation manual
15
ADB C
38C-2500
7-4

Installation manual
16
C
38C-2501
D
A
B
45
890
400
800
890
>500
800
>100
358
815
358
358
769
400
769
358
>100
45
815
>500
>110
45
>110
7-5

Installation manual
17
1
3
4
2
38C-2504
tooltip
tooltip
7-6

Installation manual
18
7.2.3 Placing the appliance control unit under the platform
If, in case of a situation with a platform, there is no room for the control hatch, the appliance control unit must be placed
directly under the platform using the 'electricity protective cabinet'.
3- It is not permitted to mount the appliance control unit to the appliance.
- Disassemble the appliance control unit from the transport bracket.
- Remove the transport bracket and dispose of it as required.
3- There is 230V of mains voltage on the appliance control unit.
- Avoid kinks in the pipes.
- The electricity protective cabinet and the appliance control unit should always be placed indoors on a dry location.
When placing the appliance control unit under the platform using the protective cabinet, proceed as follows (see fig 7-7).
1Mount the attachment bracket of the protective cabinet both against the back wall and bottom side of the platform,
using suitable fastening materials (Step 1).
1Disassemble the appliance control unit from the appliance and attach it to the fastening bracket of the protective cabinet
(Step 2).
1Connect the gas pipe as described in section 6.3 (Step 3).
1Position the gas pipe, flexible gas pipe and cables on the recesses in the fastening bracket of the protective cabinet
intended for that purpose and fasten them with tie-wraps (Step 4).
3- Ensure the cables of the ionization and ignition pins are lying free from metal parts as much as possible and are lying
fully free from signal and voltage cables.
- In case of damage to the mains cord, it should be removed immediately and replaced by a cord of the same type.
1Place the data plate of the appliance in the bracket of the protective hood (Step 5).
1Hook the protective hood into the fastening bracket and fasten it with the self-tapping screw (Step 6).

Installation manual
19
38C-2793
1
2
3
4
5
6
7-7

Installation manual
20
7.2.4 Back wall connecting to the glass of the side pane
(see fig. 7-8 and 7-9)
When installing the wall up to the side pane, proceed as follows:
1Make sure the back wall to be placed has the correct dimensions (see fig. 7-8).
1Loosen the self-tapping screws of the vertical decorative strip by a few turns and adjust the profiles to the correct
distance. The distance depends on the thickness of the wall. For material thickness 20 mm and 30 mm, indicators have
been applied. The cover plate is no longer required and can be removed. Re-tighten the self-tapping screws (see fig. 7-9).
1Maintain a 5 mm distance between the wall and the side pane.
3- In case of a 2-sided appliance, construction on the glass of the side pane is only possible at the back wall side, not at
the side wall side. It has to be possible to remove the front glass pane. For this purpose, it should be possible to remove
the decorative strip.
- In case of materials up to the glass, it is important to maintain a 5 mm minimum distance from the glass!
- In case of materials up to the glass, heat-resistant material should be used that is at least able to resist a temperature of
85°C.
