DSC Power832 User manual

1
S E C T I O N 1
1.1 Specifications
ControlPanelSpecifications
FlexibleZoneConfiguration:
• 8 Fully Programmable Zones
• 37 Access Codes: 32 User, 1 System Master, 2 Partition Master and 2 Duress
• Expandable to 32 Zones
• Hardwired expansion available using the PC5108 Eight Zone Expansion Module
• Wireless expansion available using the PC5132 Wireless Zone Expansion Module (up to 32 wireless
zones, 900MHz, True Spread Spectrum Technology, Fully Supervised)
• Normally Closed, Single EOL, or Double EOL zone supervision
• 2-Wire Smoke Zone
• 27 Zone Types, 8 Programmable Zone Options
• 2 Partitions
Audible Alarm Output:
• Supervised Bell Output (current limited at 3 amps), 12 VDC
• Steady or Pulsed Output
EEPROM Memory:
• Will not lose programming or system status on complete AC and Battery failure
Programmable Outputs:
• Up to 14 Programmable Voltage Outputs, 18 programmable options
• One High Current (300 mA) PGM output with 2 wire smoke detector capability on main panel
• Maximum Loop Current is 1.5 mA when the 2-wire smoke detector configuration is used
• One Low Current (50 mA) PGM output on main panel
• Eight Additional Low Current (50 mA) PGM outputs available using the PC5208 module
• Four High Current (1 Amp) PGM outputs Available Using the PC5204 module
• 1 PC5204 Output Fully Supervised for Siren Output
Powerful 1 Amp Regulated Power Supply:
• 500 mA Auxiliary Supply, 12 VDC
• Positive Temperature Coefficient (PTC) components replace fuses
• Supervision for loss of AC Power, Low Battery
• Internal Clock Locked to AC Power Frequency
Power Requirements:
• Transformer = 16.5 VAC, 40VA
• Battery = 12 volt 4 Ah minimum rechargeable sealed lead acid
Remote Keypad Specifications:
• 4 Different Keypads Available:
- PC5508/KP5508 8 Zone LED Keypad - PC5516/KP5516 16 Zone LED Keypad
- PC5532/KP5532 32 Zone LED Keypad - LCD5500/KPL5500 Alphanumeric Keypad
• Each Keypad has 5 Fully Programmable Function Keys • Connect up to 8 Keypads
• Four Wire (Quad) Connection to Keybus • Built in Piezoelectric Buzzer
Digital Communicator Specifications:
• Supports all Major Formats including SIA and Contact ID • Event Initiated Personal Paging
• 3 Programmable Phone Numbers • 2 Account numbers
• Supports LINKS1000 Cellular Communication • DTMF and Pulse Dialing
• DPDT Line Seizure • Anti-jam Feature
• Split Reporting of Selected Transmissions to Each Telephone Number
System Supervision Features
The PC5010 continuously monitors a number of possible trouble conditions including:
• AC Power Failure • Trouble by Zone • Fire Trouble
• Telephone Line Trouble • Low Battery Condition • Bell Output Trouble
• Loss of Internal Clock • AUX Power Supply Fault • Tamper byZone
• FailuretoCommunicate • ModuleFault(Supervisory or Tamper)
System Introduction

S Y S T E M I N T R O D U C T I O N
2
FalseAlarmPreventionFeatures
• Audible Exit Delay •Audible Exit Fault • Urgency on Entry Delay
• Quick Exit •Swinger Shutdown • Recent Closing Transmission
• Communication Delay
Additional Features
• Auto Arm by Partition at Specified Time
• Keypad Activated Alarm Output and Communicator Test
• Keypad Lockout
• Audio Capability using the PC5928 Audio Interface Module which allows local intercom and Central
Station 2-Way Listen in.
• All modules connect to the system via a four wire Keybus up to 1000’/330m from main panel
• Event Buffer can be printed using PC5400 RS232 Serial Interface module
• Zone Doubler Option
• Supports the Escort5580 Voice Prompt Module with Automation/Lighting Control
• 128 Event Buffer, Time and Date Stamped
• Upload/Download Capability
1.2 Additional Devices
1.2.1 Keypads
A maximum of eight (8) keypads can be connected to the control panel and can be any combination of the
following listed. Different keypads (with function keys) can be used for different size systems; 8 zone, 16
zone and 32 zone.
PC5508/KP5508 PC5516/KP5516 PC5532/KP5532 LCD5500/KPL5500
8 zone LED keypad 16 zone LED keypad 32 zone LED keypad LCD keypad
1.2.2 PC5108 Eight Zone Expander Module
Eight zone expander module can be used to increase the number of zones on
the system. Up to 3 modules can be connected to increase the system zones to
a maximum of 32.
(See PC5108 Installation Instructions Sheet.)
1.2.3 PC5132 Wireless Receiver Module
The PC5132 Wireless Receiver module can be used to connect up to 32
wireless devices. All devices are spread spectrum, 900 MHz, fully supervised
and use standard ‘AAA’ or ‘AA’ alkaline batteries (See Section 5.27 “Wireless
Expansion”). (See PC5132 Installation Manual.)
Additional wireless devices are available:
WLS904 WLS906 WLS907 WLS908 WLS909 WLS910
WLS904WirelessMotionDetector
The wireless Motion Detector can be used in conjunction with the PC5132 Wireless Receiver to include
wireless space protection. The unit comes with four ‘AAA’ batteries .
WLS906 Wireless Smoke Detector
The wireless Smoke Detector can be used in conjunction with the PC5132 Wireless Receiver to include
wireless smoke detection. The unit comes with six ‘AA’ batteries
.

S Y S T E M I N T R O D U C T I O N
3
WLS907 Wireless Slimline Universal Transmitter
The wireless Slimline Universal Transmitter can be used with the PC5132 Wireless Receiver to add
wireless door or window contacts in a smaller package. The unit comes with three ‘AAA’ batteries and has
built-in contacts.
WLS908 Wireless Panic Pendant
The wireless Panic Pendant can be used in conjunction with the PC5132 Wireless Receiver to include
personal wireless protection. The unit comes with 1 mini 12V battery.
It is a disposable transmitter in that it is Ultrasonically welded together and the battery is not user changeable.
WLS909 Wireless Key
The Wireless Key can be used in conjunction with the PC5132 Wireless Receiver to include a simple and
mobile method of arming and disarming the system. The unit comes with three Photo/Electronic 1.5V batteries.
This system can have a maximum of 16 Wireless Keys.
WLS910 Wireless Handheld Keypad
(This device is not UL Listed)
The wireless Handheld Keypad can be used in conjunction with the PC5132 Wireless Receiver to include a
simple and mobile method of arming and disarming the system. The unit comes with three ‘AAA’ batteries.
The system can have a maximum of four wireless Handheld Keypads.
1.2.4 PC5204 Power Supply Output Module
The PC5204 can provide up to 1 Amp of additional power for modules or
devices connected to the control panel. The module requires a 16.5 volt AC 40
VA transformer and 4 AH battery. In addition, the module provides 4 program-
mable high current voltage outputs. Each output is individually programmable
with 14 different output options available
(See Section 5.10 “PGM Outputs”).
(See PC5204 Installation Instructions Sheet.)
1.2.5 PC5208 Eight Low Current Output Module
Adds eight low current outputs (50 mA) to the control. Each output is individu-
ally programmable with 14 different output options available
(See Section 5.10
“PGM Outputs”). (See PC5208 Installation Instructions Sheet.)
1.2.6 Escort5580Module This Escort5580 module will turn any touch tone phone into a fully functional
keypad. The module also includes a built-in interface to control up to 32 line
carrier type devices for lighting and temperature control
(See Section 5.28
“Escort5580 Module”). (See Escort5580 Installation Manual.)
1.2.7 PC5928 Audio Interface Module (This device is not UL Listed)
The PC5928 Audio Interface module is a simple way to incorporate paging,
intercom, baby listen-in and door answer to the PC5010 control panel. The
module also has built-in two-way voice capability for central station (See Section
5.30 “Audio Interface Module”).
Threeadditional devicesareavailable:
PC5921 Intercom Audio Station (This device is not UL Listed)
The PC5921 Intercom Audio Station can be used in conjunction
with the PC5928 Audio Interface Module
.
PC5921 EXT Door Box Audio Station (This device is not UL Listed)
The PC5921 EXT Door Box Audio Station can be used in conjunction
with the PC5928 Audio Interface Module
.
PC5921 PC5921 EXT PC5921 EXT/R PC5921 EXT/R Door Box Audio Station (This device is not UL
Listed)
The PC5921 EXT/R Door Box Audio Station can be used in
conjunction with the PC5928 Audio Interface Module. The Door
Box contains a relay so the normal door bell can be used instead
of the internal one generated by the PC5928 module.

S Y S T E M I N T R O D U C T I O N
4
1.2.8 PC5400PrinterModule This PC5400 Printer Module will allow the panel to print out all events that
occur on the system to any serial printer. All events will be printed with
the Partition, time, date and the event that occurred
(See Section 5.29
“On-site Printer”).
1.2.9 LINKS1000 Cellular Communicator (This device is not UL Listed)
The LINKS1000 Cellular Communicator provides an efficient, cost-effective
method for adding cellular back up. The unit comes in its own cabinet with
antenna and requires a separate battery and transformer
(See Section 5.26
“LINKS1000cellular communicator”).
1.2.10 Cabinets
Several different cabinets are available for the PC5010 modules. They are as follows:
PC5003C Main Control Cabinet for the PC5010 main panel. Dimensions 288mm x 298mm x 78mm /
11.3” x 11.7” x 3” approximately.
PC5002C Cabinet to house the PC5204 Power Supply Output Module. Dimensions 213mm x 235mm x
78mm / 8.4” x 9.25” x 3” approximately.
PC5004C Cabinet to house the Escort5580 Module and PC5400 Printer Module. Dimensions 229mm x
178mm x 65mm / 9” x 7” x 2.6” approximately.
PC5001C Cabinet to house the PC5108 Zone Expander Module and the PC5208 Eight Low Current
Output Module. Dimensions 153mm x 122mm x 38mm / 6” x 4.8” x 1.5” approximately.
PC5001CP Plastic Cabinet to house the PC5108 Zone Expander Module and the PC5208 Eight Low
Current Output Module. Dimensions 146mm x 105mm x 25.5mm / 5.75” x 4.2” x 1” approximately.
1.2.11 Backplates
There are two different backplates available for keypads to locate an Audio Station next to the keypad:
PC55BP1 Backplate This backplate is to be used when an Audio Station is to be located next to
a keypad. Dimensions 208mm x 115mm x 18mm / 8.2” x 4.5” x 0.25”
approximately.
PC55BP2 Backplate This backplate is to be used when an Audio Station is to be located next to a
keypad. In addition the backplate will allow you to mount a PC5108 Zone
Expander Module or the PC5208 Eight Low Current Output Module. Dimensions
208mm x 115mm x 18mm / 8.2” x 4.5” x 0.7” approximately.
1.3 Out of the Box
You should find the following equipment included in your system. Verify each of the components is included:

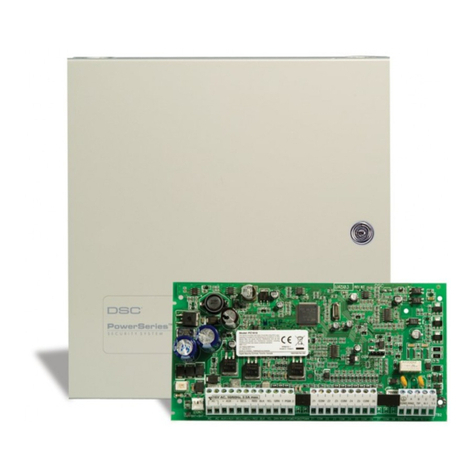

• one PC5010 main control cabinet
• one PC5010 main control circuit board
• one PC55XX (8 zone, 16 zone or 32 zone LED)/LCD5500 keypad
• one Installation Manual
• one Programming Worksheet Manual
• one Instruction Manual (LED or LCD keypad)
• one hardware pack consisting of:
- five plastic circuit board standoffs - sixteen 5600 ohm (5.6K) resistors
- seventeen 2200 ohm (2.2K) resistors - one 1000 ohm (1K) resistor

S E C T I O N 2
5
The following sections provide a complete description of how to wire and configure devices and zones.
2.1 Installation Steps
The following steps are provided to assist with the installation of the panel. It is suggested that you read
over this section briefly to get an overall understanding of the order of installation. Once this is done
carefully work through each step. Working from this plan will help reduce problems and reduce the overall
installation time required.
Step 1 CreateaLayout
Draw a rough sketch of the building and include all alarm detection devices, zone expanders, keypads
and all other modules that are required.
Step 2 Mounting the Panel
Locate the panel in a dry area, preferably located near an unswitched AC power source and the incoming
telephone line. Before attaching the cabinet to the wall be sure to press the five circuit board
mounting studs into the cabinet from the back.
Complete all wiring before applying AC or connecting the battery .
Step 3 Wiring the Keybus
(Section 2.3)
Wire the Keybus to each of the modules following the guidelines provided.
Step 4 Assigning Zones to Zone Expanders
(Section 2.5)
If zone expander modules are being used the modules must be configured so the panel knows which
zones are assigned to each expander. Follow the guideline provided to assign zones to expanders.
Step 5 Zone Wiring
(Section 2.9)
Power down the control panel and complete all zone wiring. Follow the guidelines provided in Section 2.9
to connect zones using normally closed loops, single EOL resistor, double EOL resistors, zone doubler,
Fire zones and Keyswitch Arming zones.
Step 6 Completing Wiring
Complete all other wiring including bells or sirens, phone line connections, ground connections or any
other wiring necessary. Follow the guidelines provided in Section 2.2 “Terminal Descriptions”.
Step 7 Power up the Control
Once all zone wiring and Keybus wiring is complete, power up the control panel.
The panel will not power up if only the battery is connected.
Step 8 Keypad Assignment (Section2.6)
Keypads must be assigned to different slots to be properly supervised. Follow the guideline provided in
Section 2.6 to assign keypads.
Step 9 Enabling Supervision
(Section 2.7)
After all modules have been wired to the Keybus, supervision must be enabled. Once supervision is
enabled, the panel will be able to indicate module communication faults. Follow the guidelines provided in
Section 2.7.
Step 10 Programming the System
(Sections 4 and 5)
Section 4.0 provides a complete description of how to program the panel. Section 5.0 contains complete
descriptions of the various programmable features, what options are available and how the options function.
The Programming Work Sheets should be filled out completely before attempting to program the system.
Step 11 Testing the System
Test the panel completely to ensure that all features and functions are operating as programmed.
2.2 Terminal Descriptions
AC Terminals - AC
The panel requires a 16.5 volt, 40 VA transformer. Connect the transformer to an unswitched AC source
and connect the transformer to these terminals.
Do not connect the transformer until all other wiring is complete .
Battery Connection
The battery is used to provide back up power in the event of an AC power failure and to provide additional current
when the panel demands exceed the power output of the transformer, such as when the panel is in alarm.
Getting Started

G E T T I N G S T A R T E D
6
Do not connect the battery until all other wiring is complete
.....
Connect the RED battery lead to the positive of the battery, the BLACK battery lead to the negative.
Auxiliary Power Terminals - AUX+ and GND
These terminals provide up to 500 mA of additional current at 12 VDC
(rated 11.6 - 12.6 V DC for UL
residential applications) for devices requiring power. Connect the positive side of any device requiring
power to the AUX+ terminal, the negative side to GND. The AUX output is protected; if too much current is
drawn from these terminals (wiring short) the panel will temporarily shut off the output, until the problem is
corrected.
Bell Output Terminals - BELL+ and BELL-
These terminals provide up to 3 Amps of current at 12 VDC
(rated 11.6 - 12.6 V DC for UL residential
applications) (with stand-by battery; 700 mA continuous) for powering bells, sirens, strobes or other
warning type equipment. Connect the positive side of any alarm warning device to BELL+, the negative
side to BELL–. The BELL output is protected; if too much current is drawn from these terminals (wiring
short) the BELL fuse will open.
The Bell output is supervised. If no alarm warning device is being used connect a 1000 ohm resistor
across BELL+ and BELL– to prevent the panel from displaying a trouble condition
(See Section 3.4 “[ ✱ ]
Commands,[
✱ ][2]”).
Keybus Terminals - RED, BLK, YEL, GRN
The Keybus is used by the panel to communicate with modules and by modules to communicate with the
panel. Each module has four Keybus terminals that must be connected to the four Keybus terminals on the
panel. For more information, see Section 2.3 “Keybus Operation and Wiring”.
Programmable Outputs - PGM1 and PGM2
Each PGM output is an open collector switch to ground. That is, when the PGM output is activated by the
panel the terminal will switch to ground.
PGM1 can sink up to 50 mA of current to activate LEDs or a small buzzer. Connect the positive side of the
LED or buzzer to AUX+, the negative side to PGM1. If more than 50 mA of current is required a relay must
be used. Refer to the following diagram:
PGM2 operates similar to PGM1.
Zone Input Terminals - Z1 to Z8
Each detection device must be connected to a zone on the control. It is suggested that each zone have
one detection device however it is possible to wire multiple detection devices to the same zone.
For zone wiring specifics,
see Section 2.9 “Zone Wiring” .
Telephone Connection Terminals - TIP, RING, T-1, R-1
If a telephone line is required for central station communication or downloading connect an RJ-31X jack in
the following manner:
• RING - Red Wire ........ Incoming line from • R-1 - Grey Wire .......... Outgoing line to
• TIP - Green Wire telephone company • T-1 - Brown Wire house telephone(s)

G E T T I N G S T A R T E D
7
Ensure the plugs and jacks meet the dimension, tolerance and metallic plating requirements of
47 C.F.R.Part 68, SubPart F .
For proper operation there must be no other telephone equipment connected between the
control panel and the telephone company facilities
.
Do not connect the alarm panel communicator to telephone lines intended for use with a FAX
machine.These lines may incorporate a voice filter which disconnects the line if anything
other than FAX signals are detected, resulting in incomplete transmissions .
2.3 Keybus OperationandWiring
The Keybus is used by the panel to communicate with all modules connected and by the modules to talk to
the panel. The RED and BLK terminals are used to provide power while YEL and GRN are clock and data.
The 4 Keybus terminals of the panel must be connected to the 4 Keybus terminals or wires of
all modules.
The following conditions apply:
• Keybus should be run in minimum 22 gauge quad (0.5mm), two pair twist preferred
• the modules can be home run to the panel, connected in series or can be T-tapped
• any module can be connected anywhere along the Keybus, you do not need a separate Keybus wire run
for keypads, zone expanders etc.
• no module can be more than 1,000'/330m (in wire length) from the panel
• shielded wire is not necessary unless wires are run in an area that may present excessive RF noise or
interference
Example of Keybus Wiring
B
C
A
PANEL
500’
500’
150’
150’
B
C
A
PANEL
500’
500’
150’
150’
NOTE: Module (A) is wired correctly as it is within 1,000'/330m of the panel, in wire distance.
Module (B) is wired correctly as it is within 1,000'/330m of the panel, in wire distance
Module (C) is NOT wired correctly as it is further than 1,000'/330m from the panel, in wire distance.
2.4 Current Ratings - Modules and Accessories
In order for the PC5010 system to operate properly, the power output capabilities of the main control and
expansion devices must not be exceeded. Use the data presented below to ensure that no part of the
system is overloaded and cannot function properly.
System Outputs (all 12 VDC)
• PC5010
VAUX: 500 mA. Includes one keypad. Subtract for each additional keypad, expansion module and
accessory connected to VAUX or Keybus.
BELL: 700 mA. Continuous Rating.
3.0 A. Short Term. Available only with stand-by battery connected.
• PC5204
VAUX: 1.0 A. Continuous Rating. Subtract for each device connected.
3.0 A. Short Term. Available only with stand-by battery connected.
• PC5208
VAUX: 250 mA. Subtract for each device connected. Subtract the total load on this terminal from the
PC5010 VAUX/Keybus output.
• PC5108
VAUX: 100 mA. Subtract for each device connected. Subtract the total load on this terminal from the
PC5010 VAUX/Keybus output.
PC5010 Device Ratings (@ 12 VDC)
• LCD5500 Keypad: 50 mA • PC5132 Wireless Module: 125 mA
• PC5532 Keypad: 45 mA • Escort5580 Module: 150 mA
• PC5516 Keypad: 45 mA • PC5928 Audio Interface Module: 65 mA
• PC5508 Keypad: 45 mA • PC5921 Intercom Audio Station: 20 mA
• PC5108 Zone Module: 35 mA • PC5921 EXT Door Box Audio Station: 20 mA
• PC5204 Output Module: 20 mA • PC5921 EXT/R Door Box Audio Station: 35 mA
• PC5208 Output Module: 50 mA • PC5400 Printer Module: 62 mA

G E T T I N G S T A R T E D
8
OtherDevices
Read the manufacturer’s literature carefully to determine the maximum current requirement (during
activation or alarm) and use this value for loading calculations. Do not allow connected devices to exceed
the system capabilities during any possible operational mode.
2.5 Assigning Zones to Zone Expanders
The main panel contains zones 1 to 8. Additional zone expanders may be added to increase the number
of zones on the system. Each zone expander consists of two groups of 4 zones and each group must be
configured to assign the specific zones to the expander. This is done by setting the jumpers located on
the expander to the proper settings.
Before a zone expander will work properly the jumpers must be set so the panel can deter-
mine the correct zone assignment .
The following are the jumper settings for different zone assignments:
Expander Zones Jumpers System Zones Assigned
Group A (Zones 1-4) J1 J2 J3
Group B (Zones 5-8) J4 J5 J6
ON ON ON Zones not enabled for hardware operation
OFF ON ON Zones not enabled for hardware operation
ON OFF ON Zones 9 - 12
OFF OFF ON Zones 13 - 16
ON ON OFF Zones 17 - 20
OFF ON OFF Zones 21 - 24
ON OFF OFF Zones 25 - 28
OFF OFF OFF Zones 29 - 32
The following is a diagram of the zone expander PC5108 and locations of the jumper switches.
There are two sets of jumpers, one set for the first 4 zones of the expander and one set for the
other 4 zones .
In the above diagram the jumpers settings shown indicate the first group of four zones of the expander will
be zones 9 to 12 and the second group of 4 zones will be 13 to 16.
A group of zones can be disabled if they are not required for the installation.
2.6 KeypadAssignment
There are 8 available slots for keypads. LED keypads by default are always assigned to slot 1 while the
LCD5500 is always assigned to slot 8. Keypads can each be assigned to a different slot (1 to 8) which
offers two advantages. The panel can supervise the keypad connection to indicate a trouble condition if it
is removed. Also keypads can be assigned to operate a specific partition or operate as a global keypad.
2.6.1 How to Assign Keypads
All keypad assignment must be done individually on each keypad on the system
.....

G E T T I N G S T A R T E D
9
To assign a keypad to a slot and select the partition it will operate, enter the following:
Step 1 — Enter Installer Programming
Step 2 — Press [000] for Keypad Programming
Step 3 — Press [0] for Partition and Slot Assignment
Enter a two digit number to specify the partition and slot assignment.
1st digit Enter 0 for Global Keypad;
Enter 1 for Partition 1 Keypad;
Enter 2 for Partition 2 Keypad
2nd digit Enter 1 to 8 for Slot Assignment
Press the [#] key twice to exit programming. Continue this procedure at each keypad until all have been
assigned to the correct slot.
2.6.2 How to Program Function Keys
Each of the 5 Function Keys on each keypad may be programmed for different operation on each keypad.
Step 1 - Enter Installer Programming.
Step 2 - Press [000] for Keypad Programming.
Step 3 - Enter [1] to [5] to select Function Key to program.
Step 4 - Enter the 2 digit number, [00] to [17] for option.
Step 5 - Continue from Step 3 until all Function Keys are programmed.
Step 6 - Press [#] to exit Installer Programming.
For a complete list of Function Key options
See Section 3.5.1 “Function Key Options” .
2.7 EnableSupervision
Once all the Keybus connections have been made, supervision must be enabled so the panel can indicate
a trouble if a module is removed from the system.
To enable supervision, enter the following at any keypad:
Step 1 - Press [✱] [8] [Installer Code] to enter Installer Programming.
Step 2 - Press [902] to enable supervision. The panel will automatically search for all modules on the
system. Once the search (it will take about 1 minute) is complete enter the following to confirm
the modules on the system.
Step 3 - Press [903] to display all modules.
Zone lights will be turned on according to what modules the panel has found on the system. The LCD
keypad will allow you to scroll through the modules. Refer to the following chart:
Light [1]....... Keypad 1 present Light [13] ....... Zones 25 to 28 present
Light [2]....... Keypad 2 present Light [14] ....... Zones 29 to 32 present
Light [3]....... Keypad 3 present Light [15] ....... N/A (not used)
Light [4]....... Keypad 4 present Light [16] ....... N/A (not used)
Light [5]....... Keypad 5 present Light [17] ....... Module PC5132 present
Light [6]....... Keypad 6 present Light [18] ....... Module PC5208 present
Light [7]....... Keypad 7 present Light [19] ....... Module PC5204 present
Light [8]....... Keypad 8 present Light [20] ....... Module PC5400 present
Light [9]....... Zones 9 to 12 present Light [21] ....... Module PC5928 present
Light [10]....... Zones 13 to 16 present Light [22] ....... N/A
Light [11]....... Zones 17 to 20 present Light [23] ....... N/A
Light [12]....... Zones 21 to 24 present Light [24]Escort5580 module present
If a module is connected but does not show as being present, it may be due to any of the following reasons:
• it is not connected to the Keybus
• if there is a Keybus wiring problem
• if the module is more than 1,000'/330m from the panel
• if the module does not have enough power
• if the PC5132 does not have any devices added
2.8 Removing Modules
If a module is no longer required on the system the panel must be told to no longer supervise the module. To
do this remove the module from the Keybus and perform the Enable supervision function again ( See Section 2.7
“Enable Supervision”).
The panel will see the module has been removed and will no longer supervise it.

G E T T I N G S T A R T E D
10
2.9 Zone Wiring
There are several different ways in which zones may be wired, depending on the programming options
selected.
Any zone defined as Fire, 24 Hour Links Supervisory and Links Answer (See Section 5.1
“Zone Definitions”) will automatically require a single End of Line (EOL) resistor regardless
of which type of zone wiring supervision is selected
.....
When reconfiguring the zone supervision from a non-default setting, such as DEOL to EOL/
NC to DEOL/disabling zones 1-8 while open or in trouble, the system should be powered
down completely and powered up again.
2.9.1 Normally Closed (NC) Loops
Wire all zones according to the following diagrams:
2 NORMALLY CLOSED
CONTACTS WITH
NO END OF LINE
RESISTOR
ANY Z
TERMINAL ANY COM
TERMINAL
NORMALLY CLOSED
CONTACT;
NO END OF LINE
RESISTOR
ANY Z
TERMINAL ANY COM
TERMINAL
This option can only be selected if Normally Closed (NC) detection devices or contacts are
being used
.....
2.9.2 Single End Of Line (EOL) Resistors
Wire all zones according to the following diagrams:
NORMALLY CLOSED
CONTACT WITH
5600 ΩEND OF LINE
RESISTOR
ANY Z
TERMINAL ANY COM
TERMINAL
NORMALLY OPEN
CONTACTS WITH
5600 ΩEND OF LINE
RESISTOR
ANY Z
TERMINAL ANY COM
TERMINAL
ANY Z
TERMINAL ANY COM
TERMINAL
2 NORMALLY OPEN
CONTACT AND
2 NORMALLY CLOSED
CONTACT WITH
5600 ΩEND OF LINE
RESISTOR
1 NORMALLY OPEN
CONTACT AND
1 NORMALLY CLOSED
CONTACT WITH
5600 ΩEND OF LINE
RESISTOR
ANY Z
TERMINALANY COM
TERMINAL
This option can be selected if either Normally Closed (NC) or Normally Open (NO) detection
devices or contacts are being used .
2.9.3 Double End of Line (DEOL) Resistors
Double EOL loops allow the panel to determine if the zone is in alarm, tampered or faulted. Wire the zones
according to the following diagram:
ANY Z
TERMINAL ANY COM
TERMINAL
ALARM
CONTACT
DOUBLE EOL CIRCUIT
1 NORMALLY CLOSED
CONTACT WITH
5600ΩEND OF LINE
RESISTORS
This option can only be selected if Normally Closed (NC) detection devices or contacts are
being used
.....
Only one NC contact can be connected to each zone, multiple detection devices or contacts
on one loop is not allowed
.....

G E T T I N G S T A R T E D
11
The following chart shows the status of the zone under certain conditions:
Loop Resistance ................................... Loop Status
5600Ω (contact closed) ........................ Secure
11200Ω(contact open)......................... Violated
0Ω(shorted wire, loop shorted)............ Fault
Infinite (broken wire, loop open)........... Tamper
2.9.4 Fire Zone Wiring - 4 wire Smoke Detectors
All zones defined as Fire
(See Section 5.1 “Zone Definitions”) must be wired according to the following
diagram:
For a complete description of how fire zones operate, see Section 5.1 “Zone Definitions”.
2.9.5 Fire Zone Wiring - 2 wire Smoke Detectors
If PGM2 has been programmed for 2 Wire Smoke Detector connection
(See Section 5.10 “PGM Output”),
the detectors must be wired according to the following diagram:
+
Ω
+
-
For a complete description of how fire zones operate, see Section 5.1 “Zone Definitions”.
If PGM2 is programmed for 2 wire smoke support, Jumper J1 on the main board must be removed.
2.9.6 KeyswitchZoneWiring
Zones may be programmed to be used as keyswitch arming zones and must be wired according to the
following diagrams:
ΩΩ
For a complete description of how keyswitch zones operate, see Section 5.1 “Zone Definitions”.

G E T T I N G S T A R T E D
12
2.9.7 LINKS Supervisory (Shall not be used on UL Listed systems)
If the LINKS1000 cellular communicator is being used a zone may be configured for LINKS Supervisory
(See Section 5.1 “Zone Definitions”) . If the LINKS1000 experiences a trouble it will violate the zone,
causing the panel to report the event to central station.
The zone programmed as LINKS Supervisory ALWAYS requires a single EOL resistor (5.6K) and must be
wired according to the following diagram:
Ω ( Ω
2.9.8 LINKS Answer (Shall not be used on UL Listed systems)
If the LINKS1000 cellular communicator is being used a zone may be configured for LINKS Answer to
allow downloading to be performed in the event of phone line failure.
When the LINKS receives a phone call it will activate the RING terminal on the LINKS circuit board. This
terminal can be used to violate a zone programmed as LINKS Answer
(See Section 5.1 “Zone Definitions”) ,
causing the panel to seize the phone line and begin communication with the downloading computer.
The zone programmed as LINKS Answer ALWAYS requires a single EOL resistor (5.6K) and must be wired
according to the following diagram:
Ω ( Ω

S E C T I O N 3
13
All keypads provide complete information and control of the alarm panel. The panel can be completely programmed
via any keypad on the system. LED keypads provide function indicator lights and individual zone indicator lights for
the alarm circuits. The LCD keypad provides function indicator lights and word descriptions for zone status.
The following sections describe how to arm, disarm and perform other keypad functions.
3.1 AccessCodes
The panel has a total of 37 Access Codes available.
Access Codes [01] to [32] .. User Codes 1 to 32
Access Code [33].............. Partition 1 Duress Code
Access Code [34].............. Partition 2 Duress Code
Access Code [40].............. System Master Code
Access Code [41].............. Partition 1 Master Code
Access Code [42].............. Partition 2 Master Code
System Master Code
The System Master Code Not ChangeableSystem Master Code Not Changeable
System Master Code Not ChangeableSystem Master Code Not Changeable
System Master Code Not Changeable option can be used to lock in the code. This will prevent the
user from being able to change the System Master Code. If they attempt to change the code the keypad
will sound a long error beep. The System Master Code can be used to arm or disarm any partition and
perform any keypad function.
If the code is lost it can be reprogrammed through Installer Programming.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
System Master Code Not Changeable.......... Section [015], Option [6]
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
System Master Code ..................................... Section [007]
Partition Master Codes
By default the Partition Master Codes are not programmed. They must be programmed by the System
Master Code. A Partition Master, once programmed, can be used to arm and disarm the Partition it is
assigned to. In addition, a Partition Master can program the 32 User Codes to operate on the Partition it is
assigned to and program the Partition Duress Code.
Partition Duress Codes
By default Partition Duress Codes are not programmed. They must be programmed by the System Master
Code or the Partition Master Code for that Partition. Once programmed if the Duress Code is used any
time, the panel will activate a silent Duress alarm
(See Section 5.7 “Communicator - Reporting Codes”) .
UserCodes
By default the 32 User Codes are not programmed. They must be programmed by the System Master
Code or Partition Master Code. Once programmed the User Code can be used to arm or disarm any
Partition it is enabled for. In addition, each User Code can be enabled or disabled for bypass ability
(See
Section 3.4 “[ ✱ ] Commands, [ ✱ ] [1] Zone Bypass”) and for accessing the system by the Escort5580.
MaintenanceCode
The Maintenance Code is an access code that can only arm/disarm the panel. It cannot be used to
bypass zones. This code cannot be used to access the system by the Escort5580. The code can be used
for service personnel.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Maintenance Code ........................................ Section [008]
3.2 Arming /Disarming
The system cannot be armed unless the ‘Ready’ light is on. If the ‘Ready’ light is not on make sure all
protected doors and windows are secure and stop movement in areas covered by motion detectors.
When the ‘Ready’ light is on enter any valid Access Code. As each digit is pressed the keypad will beep.
If an incorrect code is entered the keypad will emit a steady 2 second beep to indicate the code was not
correct. If the code is correct but the ‘Ready’ light was not on the panel will beep six times rapidly followed
by a long two second beep to indicate the system was not Ready. When the correct code is entered and
the system is Ready the panel will beep six times rapidly and the ‘Armed’ light will turn on. Exit the
premises through the designated entry/exit door. Other methods of arming are available
(See Section 3.4
“[
✱ ] Commands - [ ✱ ] [0] Quick Arm, [ ✱ ] [9] Arming Without Entry Delay” and Section 3.5 “Function Keys”) .
Keypad Commands

K E Y P A D C O M M A N D S
14
The PC5010 has a built-in feature called Audible Exit Fault.See Section 5.15“Entry/Exit Delay
Options for more information.
To disarm the panel enter the premises through the designated entry/exit door. The keypad will emit a
steady beep to warn that you must disarm the system. During the last 10 seconds of entry delay the panel
will pulse the keypad beeper on and off rapidly to warn the entry delay is about to expire. Enter a valid
Access Code at the keypad. If an error is made press the [#] key and enter the code again. When a
correct code is entered the keypad will turn off the ‘Armed’ light and stop the keypad buzzer. If an alarm
occurred while the panel was armed the ‘Memory’ light and the zones which caused the alarm will be
flashing. Press the [#] key to return the keypad to the Ready state.
3.3 Auto Bypass (Shall not be used on UL Listed systems)
When the system is armed and any zone or zone(s) on the system have been programmed as Stay/Away
the panel will immediately turn on the ‘Bypass’ light. It will then monitor all zones programmed as Delay 1
and Delay 2. If no delay type zone is violated by the end of the exit delay the panel will bypass all Stay/
Away type zones. The ‘Bypass’ light will remain on to inform the home owner that the interior protection
has been automatically bypassed by the panel. If a delay zone is violated during the exit delay, the Stay/
Away zones will be active after the exit delay expires.
This is a convenience for the user that wishes to arm the panel while at home. The user does not have to
bypass the interior manually.
The user can add the Stay/Away zones back into the system at any time by entering the [✱] [1] keypad
command
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ][1] Zone Bypass”) .
Other methods of Stay arming are available
(See Section 3.5 “Function Keys”) .
3.4 [✱]Commands
[✱]+[1] ZoneBypass/ReactivateStay/AwayZones
The [✱] [1] keypad command can be used to bypass individual zones. It can be used if the user wants to
have access to an area while the Partition is armed or to bypass a defective zone (bad contact, damaged
wiring) until service can be provided.
A Partition can be armed with a bypassed zone. A bypassed zone will not cause an alarm.
If Code Required for Bypass
(required for UL Listed systems) is enabled an access code will be
required to enter the Bypass mode. Only user codes with the Bypass attribute enabled will be able to
bypass zones
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [5]“) .
Zones can only be bypassed when the partition is disarmed.
To bypass a zone:
1. Enter [✱] [1] (access code if required).
2. The keypad will flash the ‘Bypass’ light and turn on the zone lights for any zones already bypassed.
3. Enter the 2 digit zone number to bypass the zone.
4. The keypad will turn on the zone light.
5. Press [#].
All zones that were lit when the [#] key was pressed are now bypassed. The ‘Bypass’ light will be on
steady to indicate zones are bypassed.
To un-bypass a zone:
1. Enter [✱] [1] (access code if required).
2. The keypad will flash the ‘Bypass’ light and turn on the zone lights for any zones already bypassed.
3. Enter the 2 digit zone number to un-bypass the zone.
4. The keypad will turn off the zone light.
5. Press [#].
All zones that were lit when the [#] key was pressed are now bypassed. If no zones were lit, the ‘Bypass’
light will be off and no zones will be bypassed.
When a Partition is disarmed all manually bypassed zones will be un-bypassed.
Reactivate Interior
If a Partition is armed in the Stay mode (See Section 3.2 “Arming/Disarming”), the [✱] [1] command can be
used to reactivate the Stay/Away zones.
Please ensure all force-armed zones are restored before reactivating the Stay/Away zones.
○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○
Code required for bypass - section [015], option [5]

K E Y P A D C O M M A N D S
15
[✱]+[2] TroubleDisplay
The panel constantly monitors itself for several different trouble conditions. If a trouble condition is present
the ‘Trouble’ light will be on steady and all keypads will beep twice every 10 seconds.
The trouble beep can be silenced by pressing any key on any keypad.
To view trouble conditions:
1. Press [✱] [2].
2. The keypad will flash the ‘Trouble’ light and light zones to indicate which trouble conditions are present.
A description of the various troubles are as follows:
Trouble [1] - Service Required
This light will be on if any of the following trouble conditions are detected by the control panel; Low
Battery, Bell Circuit Trouble, General System Trouble, General System Tamper, General System
Supervisory, PC5204 Low Battery and PC5204 AC Failure.
If a ‘Service Required’ trouble is present press [1] to determine the specific trouble present. The following
is a list of the specific ‘Service Required’ trouble conditions:
• Light [1] - Low Battery
The main panel backup battery is low. The trouble will be generated if the battery drops below 11.5
volts under load and will restore when the battery charges over 11.8 volts.
• Light [2] - Bell Circuit Trouble
The panel will indicate this trouble if the Bell fuse is blown or the panel senses an open condition on the
bell circuit
(See Section 5.12 “Siren Supervision”) .
• Light [3] - General System Trouble
This trouble will be present if the PC5204 Power Supply module has an AUX failure, PC5204 Output #1
Trouble, or a printer connected to the PC5400 Printer module has a fault (off-line).
• Light [4] - General System Tamper
This trouble will be indicated if a Tamper Zone violation on any module is detected.
• Light [5] - General System Supervisory
This trouble will be indicated if the panel loses communication with any module connected to the
Keybus
(See Section 2.7 “Enable Supervision”) . The event buffer will log a detailed description of the
event.
• Light [6] - Not Used
• Light [7] - PC5204 Low Battery
The PC5204 module has a low backup battery.
• Light [8] - PC5204 AC Failure
The PC5204 module has lost AC power.
Trouble [2] - AC Failure
This trouble indicates that AC power is no longer being supplied to the control unit. If it is required to
communicate this to a monitoring station, program reporting codes in sections [349] and [350]. To inhibit
reporting of short duration power outages, a delay can be programmed in section [370].
Trouble [3] - Telephone Line Trouble
The telephone connection to the control unit is continuously monitored. If there is a problem with the
telephone connection, a trouble will be indicated after the delay programmed in section [370]. If the
system has a LINKS1000, this trouble can be reported to a monitoring station by programming reporting
codes in sections [349] and [350].
Trouble [4] - Failure to Communicate (FTC)
If the communicator fails in an attempt to communicate with any of the programmed telephone numbers,
this trouble will be generated. If a later attempt is successful, the FTC reporting code(s) programmed in
section [351] will be transmitted along with any other unreported events that occurred while the panel was
not able to communicate.
Trouble [5] - Zone Fault (including Fire Zone)
This trouble will be indicated if any zone on the system is in a trouble condition, i.e. it could not provide an
alarm to the panel if required to do so. When a trouble condition occurs, the keypad(s) on the affected
partition will start to beep.
Press [5], while in Trouble mode, to view which zones have a trouble condition. If 2-wire smoke detectors
are being used, a trouble on that zone will be indicated by the “Fire” LED.
Trouble [6] - Zone Tamper
This trouble is only generated by zones configured for Double End-of-Line Resistor Supervision. This
trouble is generated when a tamper condition is present. When a tamper condition occurs, the keypad(s)
on the affected partition will start to beep.
Press [6], while in Trouble mode, to view which zones have a tamper condition.

K E Y P A D C O M M A N D S
16
Trouble [7] - Zone Low Battery
This trouble is generated when an RF device reports a low battery condition to the control unit. Press [7]
while in Trouble mode to view which RF zones have a low battery.
Trouble [8] - Loss of System Time
This trouble occurs when the control unit is powered up and the internal clock has not been set. Setting
the time with User Function [✱][6][Master Code][1] will clear this trouble.
[✱]+[3] AlarmMemory
The ‘Memory’ light will be on if any alarm occurred during the last armed period or if an alarm occurred
while the panel was disarmed (24 hour zones).
To view alarm memory:
1.Press [✱] [3].
2.The keypad will flash the Memory light and light up zone lights to indicate alarm or tamper conditions
that occurred during or since the last armed period.
When the panel is armed the ‘Memory’ light will go out.
[✱]+[4] Door Chime On/Off
If enabled the keypad will beep 5 times rapidly when a zone is tripped and restored. The panel will only do
this for zones with the Door Chime attribute enabled and if the door chime feature is enabled
(See Section
5.2 “Zone Attributes”) .
To turn Door Chime on/off:
1.Press [✱] [4].
2.The keypad will beep 3 times rapidly when the Door Chime feature is enabled and one long beep when
the feature is disabled.
[✱]+[5] ProgrammingAccessCodes
There are 37 Access Codes available. They are as follows:
Access Code [01] to [32] .User Codes 1 to 32
Access Code [33] .............Partition 1 Duress Code
Access Code [34] .............Partition 2 Duress Code
Access Code [40] .............Master Code
Access Code [41] .............Partition 1 Master Code
Access Code [42] .............Partition 2 Master Code
All Access Codes have the ability to arm/disarm any Partition(s) it is enabled for and activate the PGM Outputs
usingthe[✱][7][AccessCode][1]and[✱][7][2]commands
(SeeSection3.4“[ ✱ ]Commands,[ ✱ ][7]”) .
Additional Access Code Attributes are also programmable. Attributes determine what abilities the code will
have. The programmable attributes are as follows:
• Partition 1 Operation enable
• Partition 2 Operation enable
• Zone Bypass enable
User Codes - Access Codes [01] to [32]
Each User Code can be programmed to work on Partition 1, Partition 2 or both Partitions. In addition each
can be programmed to have the ability to bypass zones.
“Master Code” attributes cannot change. By default, each code has the attributes of the code
used to program it.
Duress Codes - Access Codes [33] and [34]
When a Duress Code is used to perform any function the panel will report a Duress Reporting Code
(See
Section5.7 “Communicator -Reporting Codes”) .
PartitionMaster Codes - Access Codes [41] and[42]
Partition Master Codes can program additional User Codes and the Duress Code for their Partition.
System Master Code - Access Code [40]
By default the System Master Code is enabled to operate on both Partitions and can perform any keypad
function. This code can be used to program all User Codes as well as the Partition Master Codes and
Duress Codes.
If the Master Code Not Changeable option is enabled the System Master Code can only be changed
using Installer Programming.
How to program Access Codes:
Programming Access Codes is a two step process. First the Code must be programmed followed by the
Code Attributes.

K E Y P A D C O M M A N D S
17
1.Enter [✱] [5] [Master Code]. The keypad will flash the ‘Program’ light and turn on the zone light for any
code already programmed.
2.Enter the 2 digit number for the code you want to program. The corresponding zone light will flash.
3.Enter a 4 digit code. The zone light will turn on steady.
4.Continue with steps 2 and 3 until all codes are programmed.
Do not press [ ✱ ] or [#] when programming the 4 digit code.
When programming Duress Codes or Partition Master Codes no zone light will flash.
After all the Codes have been programmed press the [#] key to return to the Ready mode.
How to program Access Code Attributes:
“Master Code” attributes cannot change. By default, each code has the attributes of the code
used to program it.
1.Enter [✱][5][Master Code]. The keypad will flash the ‘Program’ light and turn on the zone light for any
code already programmed.
2.Press [9] to enter the Attribute mode. The keypad will turn on the ‘Ready’ light and turn off the armed light.
3.Enter the 2 digit number for the code you want to program Attributes for. Zone lights [1] to [4] will be on
or off. Refer to the following chart:
Zone Light 1 - ON - enable code for Partition 1
Zone Light 2 - ON - enable code for Partition 2
Zone Light 3 - ON - enable Zone Bypass
4.Enter [1] to [3] to turn the zone lights ON or OFF, then press [#] key.
5.Continue with steps 2 and 3 until all code attributes are programmed.
After all the codes and attributes have been programmed press the [#] key to exit Access Code
Programming.
How to erase Access Code:
Select the code to be erased and press [✱].
[✱]+[6] UserFunctions
This keypad command can be used to program several different functions. The following are the items
programmable:
[1] - Time and Date
[2] - Auto-Arm Enable *
[3] - Auto-Arm Time *
[4] - System Test
[5] - Enable DLS (Downloading)
[6] - Enable background music
[7] - For future use
Auto-Arm items (noted with the “✱” symbol) are programmable by Partition. These must be programmed
at a keypad assigned to the correct Partition
(See Section 2.6 “Keypad Assignment”).
To program User Functions:
1.Press [✱] [6] [Master Code]. The keypad will flash the ‘Program’ light.
2.Press the number [1] to [5] for the item to be programmed.
• [1] - Time and Date
The time and date must be accurate for the Auto-Arm or Test Transmission functions to work properly. In
addition the event buffer time and date stamps all events.
- Enter the time: hour and minute, using military format [HH MM]. (00:00 to 23:59)
- Enter the date: month, day and year [MM DD YY].
All entries must be 2 digits. January, for example, would be month [01].
• [2] - Auto-Arm Enable/Disable (Shall not be enabled on UL Listed systems)
Auto-Arming will not work until it is enabled for the Partition.
Press [2]. If the keypad beeps 3 times rapidly Auto-Arm is enabled, one long beep means it is disabled.
• [3] - Auto-Arm Time
Each Partition can be programmed to Auto-Arm at a different time.
Enter the time, hour and minute, using military format [HH MM].
All entries must be 2 digits. Eight o’clock in the morning would be [08] hours and [00] minutes.

K E Y P A D C O M M A N D S
18
• [4] - System Test
When [4] is pressed the panel will perform the following:
- sound the alarm output for two seconds
- light all lights on the keypad
- sound the keypad buzzer for two seconds
- test the main panel/PC5204 battery
- send a System Test Reporting code, if programmed
(See Section 5.7 “Communicator - Reporting
Codes”)
.
• [5]-EnableDLS(Downloading)
When [5] is pressed the panel will turn on the downloading option for 6 hours. During this time the panel
will answer incoming downloading calls
(SeeSection 5.8 “Downloading”) .
• [6] - For future use
• [7] - Enable Background Music
If the intercom is being used to provide background music, press the [6] key to toggle the background
music feature on and off.
Additional Features are available using on the LCD keypad. These features do not have
numbers assigned. Use the arrow keys (< >) to scroll through the [
✱✱
✱✱
✱ ] [6] menu and press the
[
✱✱
✱✱
✱ ] key to select the following commands.
View Event Buffer
The 128 Event Buffer can be viewed through any LCD keypad (See Section 5.16.1 “Viewing the Event Buffer
ThroughtheLCDKeypad”)
.
BrightnessControl
When this option is selected the keypad will allow you to scroll through 10 different backlight level options.
Use the arrow keys (<>) to scroll to the desired backlight level and press the [#] key to exit.
Contrast Control
When this option is selected the keypad will allow you to scroll through 10 different contrast level options.
Use the arrow keys (<>) to scroll to the desired contrast level and press the [#] key to exit.
Keypad Buzzer Control
When this option is selected the keypad will allow you to scroll through 21 different keypad sounder tone
options. Use the arrow keys (<>) to scroll to the desired keypad beeper level and press the [#] key to exit.
This function can be achieved on LED keypads by holding the [✱] key.
[✱]+[7] OutputFunctions
Two Output Functions can be performed at a keypad. They are Utility Output and Smoke Detector Reset.
To activate Utility Output:
Press [✱] [7] [1][Access Code].
The panel will activate all PGM Outputs for 5 seconds programmed as Utility Output for that Partition
(See
Section 5.10 “PGM Outputs”)
.
ToactivateSmokeDetectorReset:
Press [✱] [7] [2].
The panel will activate all PGM Outputs for 5 seconds programmed as Sensor Reset. This command will
also reset two wire smoke detectors connected to PGM2 programmed as Two Wire Smoke Support
(See
Section 5.10 “PGM Outputs”).
[✱]+[8] Installer Programming
Enter [✱][8] followed by the Installer Code to enter Installer Programming
(SeeSection 4.0 “How to Program”).
[✱]+[9] Arming Without Entry Delay
When a Partition is armed with the [✱][9] command the panel will remove the entry delay from the partition.
After the exit delay, Delay 1 and Delay 2 type zones will be instant and Stay/Away zones will remain
bypassed.
(See Section 5.1 “Zone Definitions”).
A valid access code must be entered after pressing [✱] [9].
[✱]+[0] Quick Arm/Quick Exit
Quick Arm
If the Quick Arm Enable option is enabled the panel can be armed by entering [✱][0]. This is a useful
method of arming a Partition when someone without a User Code will be required to arm a Partition.
Quick Exit
Quick Exit will allow someone to leave an armed premise through a Delay type zone without having to
disarm and rearm the system.
When [✱][0] is entered, if the Quick Exit Enabled option is enabled, the panel will provide a two minute
window to exit. During this time the panel will ignore the first activation of a Delay type zone. When the

K E Y P A D C O M M A N D S
19
Delay zone is secured the panel will end the two minute time period.
If a second Delay zone is tripped, or if the zone is not restored after two minutes, the panel will start entry delay.
If Quick Exit is used on a partitioned system, Keypad Blanking and Access Code Required to
Remove Blanking should be enabled.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Code Required for Bypass ............................ Section [015], Option [5]
Master Code Not Changeable option............ Section [015], Option [6]
Quick Arm Enable.......................................... Section [015], Option [4]
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Quick Exit Enable .......................................... Section [015], Option [3]
3.5 FunctionKeys
There are 5 function keys on the PC5010 keypads labelled Stay, Away, Chime, Reset and Exit. The operation of
these keys is described below. The function is activated by pressing and holding the key for 2 seconds.
“Stay” - Stay Arm
Arms the partition to which the keypad is assigned. All Stay/Away type zones will be automatically bypassed. Delay
type zones will provide entry and exit delay. The Quick Arm feature must be enabled for this key to function.
“Away” - Away Arm
Arms the partition to which the keypad is assigned. All Stay/Away type zones will be active at the end of
the exit delay. Delay type zones will provide entry and exit delay. The Quick Arm feature must be enabled
for this key to function.
“Chime” - Door Chime On/Off
Pressing the key will toggle the Door Chime feature ON or OFF. One solid beep means the feature has
been disabled, three short beeps means it has been enabled.
“Reset” - Reset Smoke Detectors
Pressing this key will cause the panel to activate for 5 seconds any output programmed as Sensor Reset.
In addition two wire smoke detectors connected to PGM2 will also be reset
(See Section 3.4 “[ ✱ ]
Commands,[
✱ ][7][2]”).
“Exit” - Activate Quick Exit
Pressing this key will cause the panel to activate the Quick Exit feature
(See Section 3.4 “[ ✱ ] Commands,
[
✱ ][0]”).
3.5.1 FunctionKeyOptions
The following is a list of Function Key options available:
[00] - Null Key
The key is not used and will perform no function when pressed.
[01] - Select Partition 1
Provides an easy way to select Partition 1 operation from a Partition 2 keypad. This is the same as
pressing and holding the [#] key then pressing and holding the [1] key to select Partition 1 from a Partition
2 keypad
(See Section 3.6 “Global and Partition Keypad Operation”) .
[02] - Select Partition 2
Provides an easy way to select Partition 2 operation from a Partition 1 keypad. This is the same as
pressing and holding the [#] key then pressing and holding the [2] key to select Partition 2 from a Partition
1 keypad (See Section 3.6 “Global and Partition Keypad Operation”) .
[03] - Stay Arm
Same as described in Function Keys - Section 3.5.
[04] - Away Arm
Same as described in Function Keys - Section 3.5.
[05] - [✱]+[9] No-Entry Delay Arm
After this function key is pressed the user must enter a valid user code. The Partition will arm and remove
entry delay from the partition when the exit delay expires
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [9] Arming

K E Y P A D C O M M A N D S
20
without entry delay”) .
[06] - [✱]+[4] Door Chime On/Off
This function key provides the user a simple method for turning the Door Chime feature on and off
(See
Section 3.4 [ ✱ ] Commands, [ ✱ ] [4] Door chime on/off”) .
[07]-[✱]+[6]...[4] SystemTest
This function key provides the user with a simple method for testing the system
(See Section 3.4 “[ ✱ ]
Commands, [
✱ ][6] Userfunctions”) .
[08] - [✱]+[1] Bypass Mode
This function key provides the user with a simple method for entering the Bypass Mode. If a user code is
required it must be entered before bypassing can be performed
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [1]
Zone Bypass”) .
[09] - [✱]+[2] Trouble Display
This function key provides the user with a simple method for entering the Trouble Display Mode
(See
Section3.4 “[
✱ ]Commands, [ ✱ ]+[2]Trouble display” ).
[10] - [✱]+[3] Alarm Memory
This function key provides the user with a simple method for entering the Alarm Memory Display Mode
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [3] Alarm memory”) .
[11] - [✱]+[5] Programming Access Codes
This function key provides the user with a simple method for programming user codes. After this key is
pressed a valid System Master or Partition Master will have to be entered before the panel will allow
programming to be performed
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [5] Programming Access Codes”) .
[12]-[✱]+[6] User Functions
This function key provides the user with a simple method for programming User Functions. After this key
is pressed a valid System Master or Partition Master must be entered before the panel will allow User
Functions to be performed (See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [6] User functions”) .
[13]-[✱]+[7]+[1]Utility Output
This function keys provides the user with a simple method for activating a PGM Output programmed as
Utility Output
(See Section 5.10 “PGM outputs”) . After this key is pressed a valid user code must be
entered
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [7] Utility output functions”) .
[14]-[✱]+[7]+[2]SmokeDetectorReset
Same as described in Function Keys - Section 3.5.
[15] - General Voice Prompt Help
This feature can only be programmed if both the Escort5580 and the PC5928 Audio Matrix module are
being used.
When the function key is pressed, the intercoms will perform a Help page. The user must then press the
Page/Answer button on any intercom station to begin the help session with the Escort.
For more information, please refer to the PC5928 Installation Manual.
[16] - [✱]+[0] Quick Exit
Same as described in Function Keys - Section 3.5.
[17] - [✱]+[1] Reactivate Stay/Away Zones
This function key provides the user with a simple method for adding Stay/Away zones back into the system
at night-time
(See Section 3.4 “[ ✱ ] Commands, [ ✱ ] [1] Reactivate Stay/Away zones”) .
[18] Identified Voice Prompt Help
This feature can only be programmed if both the Escort5580 and the PC5928 Audio Matrix module are
being used.
When the function key is pressed, the Escort will begin a help session from the intercom station
programmed as closest to the keypad. In order for this option to function, you must program PC5928
Section [802], subsection [14] “Keypad Port Assignments.” For more information, please refer to the
PC5928 Installation Manual.
Note: This function key cannot be programmed for PC55XX LED keypads with software version 1.0.
3.6 Global andPartitionKeypad Operation
A global keypad will not display any information (the trouble LED will light if a trouble condition is present)
until a partition is selected. To select a partition the user must press and hold the [1] key for Partition 1 or
the [2] key for Partition 2 for two seconds. The keypad will then display the status of the selected partition
and allow normal operation.
A Partition keypad will display the status of the Partition for which it has been programmed. A user with
access to both partitions may temporarily assign the keypad to the other partition to gain access. To do
this the user must first press and hold the [#] key for two seconds. The keypad will go blank. The user
must then press and hold the [1] key for Partition 1 or the [2] key for Partition 2 for two seconds. The
keypad will then display the status of the selected partition and allow normal access.
