Dsoon NV3182 User manual
Customer Service Email: support@dsoon-tech.com
Please contact us if you have any questions

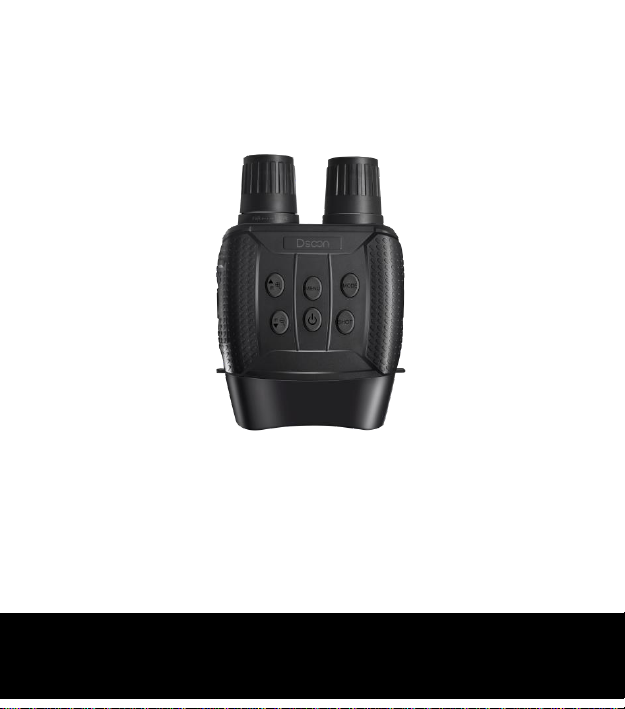

IR Night Vision Binoculars
User Manual
Model: NV3182
1
Please contact us if you have any questions
Contents
◆ Product Overview................................................................. 5
1) Key Guide......................................................................... 5
2) Specifications ................................................................... 7
◆ Installation............................................................................ 9
1) Install Battery................................................................... 9
2) Inserting Memory Card.................................................... 9
3) Formatting Memory Card .............................................. 10
◆ Function & Operation......................................................... 11
1) Turn On and Turn Off…………………………………………………...11
2) Changing The Modes……………………………………………….…..11
3) Three Modes……………………………………………………………….12
4) Focusing the Image…………………………………..………………...14
5) Digital Zoom…………………………………………………………….….14
3
Please contact us if you have any questions
6) Turn On IR…………………………………………………………………….15
7) Shoot Video/Photo………………………………………………………18
8) Menu Setting……….…………………….………………………………..18
9) Playback Video/Photo……………………………………………..…..21
10) Delete& Lock……………………………………………………………..22
11) Unclear Image Reasons………………………………………………23
◆ Download files to PC .......................................................... 26
◆ Maintenance ...................................................................... 27
◆ WARRANTY......................................................................... 28
◆ FAQ..................................................................................... 29
4
Please contact us if you have any questions
◆Product Overview
1) Key Guide
5
Please contact us if you have any questions
1. Focus Wheel 2. USB port/Micro SD
card slot Cover
3. IR Up/Zoom in/Up
Button
4. IR Down/Zoom
out/Down Button
5. Power Button 6. Strap Hole
7. IR LEDs 8. Menu Button
9. Mode Button 10. Shot Button
11. Battery Cover 12. View Area
6
Please contact us if you have any questions
2) Specifications
Still Image Size: 1M(1280x960)/VGA(640x480)
Video Size: 960P (1280x960@30FPS) /
VGA(640x480@30FPS)
Aperture: F 1.2 f=25mm
Lens Angle: FOV=10°, diameter is 24mm
Display Screen:
Inner screen 2.31”(960*240) TFT,
Outer screen 98*48mm,
3x optical amplification
Digital Zoom: 4X
Storage Media: Micro SD card, up to 32GB
Viewing Distance
in complete
darkness:
200M-300M
Viewing Distance 3M~infinity
7
Please contact us if you have any questions
in weak light:
IR LED: 3W, 850nm
USB Port: Micro USB 2.0
Power Source: 9V, 6xAA
Operating
Temperature: -20℃ to +60℃
Storage
Temperature: -30℃ to +70℃
Dimension: approx.196*146*59mm
Weight: approx.576g
8
Please contact us if you have any questions
◆Installation
1) Install Battery
Please install batteries into the device before using.
1. Open the battery cover（11） on the back of the device.
2. Insert 6 x 1.5V AA brand Alkaline batteries into the battery
compartment. Make sure the polarity is correct.
3. Close the battery cover（11）.
2) Inserting Memory Card
*There is a 32G Micro SD Card included in the package.
1. Open the card slot cover(2), you will see the card slot.
2. Insert the Micro SD card into the slot. Make sure the
direction is right. Never insert the card forcibly.
3. Format the Micro SD card, this can improve the
compatibility of the Micro SD card.
9
Please contact us if you have any questions
4. To remove the card from the memory card slot, press the
edge of the memory card gently, the card will pop out.
Then remove the card.
Note:
a. The device will prompt 'Please insert SD
b. Card' if the TF card is not being installed.
c. It's necessary to FORMAT the Micro SD card before using it.
3) Formatting Memory Card
If you want to clear the data on the memory card, you can solve it
by formatting. In the photo/video mode, press MENU button to
enter the menu. Using the “IR +” or “IR –” button to select up and
down, press the SHOT button to confirm.
Note:
All data will be lost after formatting, please pay
10
Please contact us if you have any questions
attention to backup!
Function & Operation
1) Turn On and Turn OFF
Long press the POWER button(5) for 3 seconds to turn on the
device. Long press the POWER button(5) to turn off the device.
2) Changing The Modes
The night version has 3 different modes: photo mode, video mode,
11
Please contact us if you have any questions
and playback mode. Press the Mode button(9) to change mode.

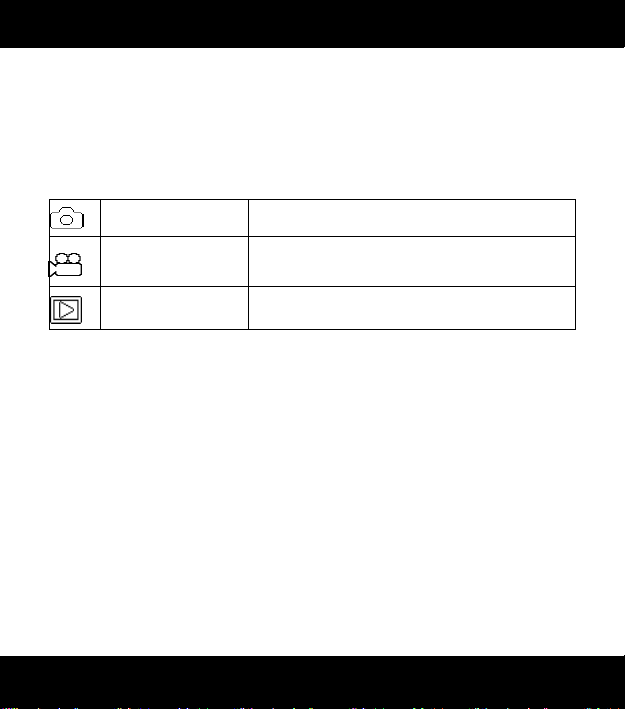

3) Three Modes

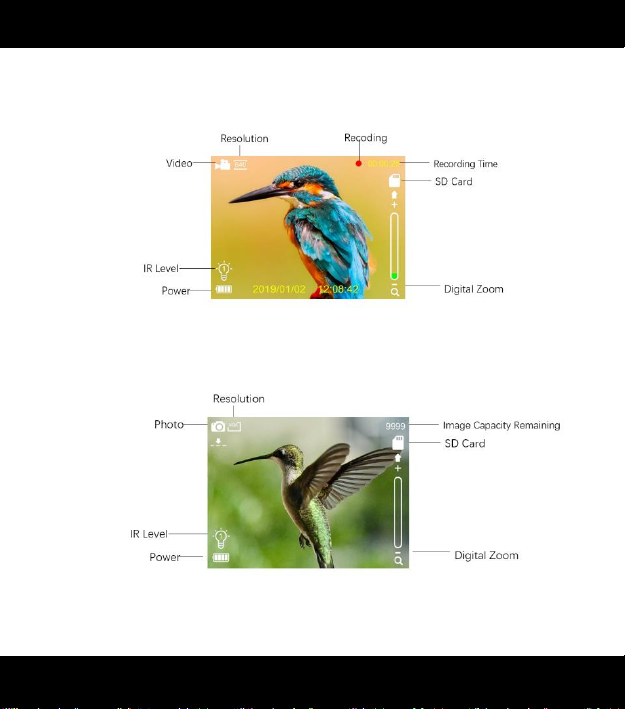

a. When the device is turned on, by default it will be in Video
mode.
Photo Mode
For taking still images
.
Video Mode For recording video (Without Sound).
Playback Mode For playing the recorded files
12
Please contact us if you have any questions
b. Please press the “Mode” button (9) to switch to Photo
mode.
13
Please contact us if you have any questions
c. View your subject via the LCD screen.
4) Focusing the image
On the left lens, marked “far” and “near”. If the
observation distance is far, please rotate the lens to left. If
the distance is near, please rotate the lens to right. Users
can repeatedly adjust the optimal focal length according to
the actual observation distance.
When you track the target is blurry, it means that you need
to adjust the objective focusing handwheel, and repeatedly
debug until you get a clear image.
5) Digital zoom
Keep pressing the “IR +” or “IR-” button (3 / 4) to zoom in or
zoom out the image. the value of the magnification level
14
Please contact us if you have any questions
appears on the LCD screen, the maximum support 4x zoom.
Zoom Off Zoom On
6) Turn on IR
In photo/video mode, if you have to view the darkness
environment, please short press IR UP button to activate
the IR LEDs, the image will change to black and white. The
15
Please contact us if you have any questions
IR LEDs have seven levels, short press IR UP button to up
the level, short press IR DOWN button to down the level. (If
the battery voltage is not enough, the IR LEDs level will
down automatically. IR level can up to 7 level when the
battery power is full. If only left half power, the level just
can up to 5. If only left 25% power, the level just can up to
3. If the battery power is lower than 25%, IR LEDs can not
be activated.)
◆Note: If the battery voltage is not enough, the IR LED
level will get lower automatically.
Battery Power IR Levels Available
100% 7
16
Please contact us if you have any questions
IR Off IR On
50% 5
25% 3
＜25% 0
17
Please contact us if you have any questions
7) Shoot video/photo
Turn on the device, if not in video/photo mode, please press
MODE button to switch to video/photo mode.
The lens is aimed at the target and observed through the screen.
Press the SHOT button to start recording/taking, and the
recording duration will be displayed on the screen. During
shooting, the video/picture recording is automatically saved in
the memory card.
Note: When the memory capacity is full, the machine will
automatically stop recording.
8) Menu setting
Press MENU button in photo or video mode to enter the menu,
use the “IR +” or “IR - “button to select up and down, and then
18
Please contact us if you have any questions
select the item you want to change.
Menu Function
Resolution
Set the photo resolution.
Options:[1M 1280x960]/[VGA 640x480]
Video Size Set the video resolution.
Options:[960 1280x960]/[640 640x480].
Night vision
Sensitivity
Choose the night vision sensitivity.
Options:[Low]/[Middle]/[High].
Power
Frequency
Set the light source frequency to match
frequency of electricity supply in local region to
prevent interference.
19
Please contact us if you have any questions
Options:[50Hz]/[60Hz].
Date&Time Set the date and time of device.
Date Stamp Add the date stamp on the photo or video files.
Options:[Off]/[Date]/[Date&Time].
Language
Set OSD (on-screen) language.
Options:[English] / [Simplified Chinese /
[Traditional Chinese] / [French] / [Dutch] /
[Spanish] / [Italian] / [Portuguese] / [German]
/ [Russian] / [Japanese] / [Korean].
Power Save
To save battery usage, you can set the device’s
automatic shutdown time.
Options: [3min]/[5min]/[10min]/[OFF]
20
