Hawa Concepta 40/50
Planungs- und Montageanleitung
Beschlag für seitlich einschiebbare Möbelfronten aus Holz bis 40/50 kg.
Instructions de conception et de montage
Ferrure pour façades de meubles en bois à escamotage latéral jusqu'à
40/50 kg.
Planning and installation instructions
Hardware system for wooden pivot sliding cabinet doors up to 40/50 kg
(88/110 lbs.)
Istruzioni di progettazione e di montaggio
Ferramenta per frontali di mobili in legno a scomparsa fino a 40/50 kg.
Instrucciones de planificación y montaje
Herraje para muebles con frente de madera escamoteable lateralmente hasta
40/50 kg.
30183 c
Patente / Brevets / Patents / Brevetti / Patente
www.hawa.com

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
6/64
HAWA Concepta 40/50
1Table of contents
2Product information
7
3Safety instructions
7
4Abbreviations, symbols
12
5Overviews 5.1 Overview: Left-hand system
14
5.2 Overview: Connector 55 (optional)
15
5.3 Overview: Connector 110 with and without base (optional)
16
5.4 Overview: Two inset pivot sliding doors
17
5.5 Overview: Position numbers
18
6Planning 6.1 Planning: Inset doors
19
6.2 Planning: Guide for two pivot sliding doors
20
6.3 Planning: Doors closing against base and top section with Connector 55
21
6.4 Planning: Doors closing against base and top section with Connector 110
22
6.5 Planning: Doors in wall recess
23
7Calculation 7.1 Calculation: Door size/height ratio
24
7.2 Calculation: Plan view dimensions
26
7.3 Calculation: Hardware depth
28
7.4 Calculation: Drill hole positions HAWA Concepta 40
29
7.5 Calculation: Drill hole positions HAWA Concepta 50
30
8Pre-assembly 8.1 Pre-assembly: Processing the left side profiles
31
8.2 Pre-assembly: Processing the right side profiles
32
8.3 Pre-assembly: Doors
33
8.4 Pre-assembly: Cabinet side
34
8.5 Pre-assembly: Outside pocket wall
36
8.6 Pre-assembly: Dampener
37
8.7 Pre-assembly: Upright
38
8.8 Pre-assembly: Aligning the cabinet
39
9Assembly 9.1 Assembly: Scissor and upright, left-hand system
40
9.2 Assembly: Scissor and upright, right-hand system
43
9.3 Assembly: Doors
46
9.4 Assembly: Door closing system
48
9.5 Assembly: Fine adjustment of upright inclination for door thickness between 19 - 30 mm
51
9.6 Assembly: Fine adjustment of upright inclination for door thickness between 31 - 50 mm
52
9.7 Assembly: Positioning the top stop dampener
53
9.8 Assembly: Positioning the bottom stop dampener
54
9.9 Assembly: Door height adjustment
55
9.10 Assembly: Door clearance fine adjustment
56
9.11 Assembly: Front depth fine adjustment
57
9.12 Assembly: Fine adjustment of doors
58
9.13 Assembly: Fine adjustment pull-in speed
59
10 Disassembling 10.1 Disassembly: Door closing system for fixed outside panel
60
Contents
Page

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
7/64
Hawa Concepta 40/50
2Product information
Intended use
Pivot/slide-in hardware for wooden pocket doors for cabinet or wall recesses.
Intended place of use
Dry areas and interior areas where condensation may occur, e.g. in kitchens or bathrooms, but without any significant chloride
contamination.
Technical data
LGA certificates are available for downloading at www.hawa.ch.
Quick and reliable planning with the online calculation tool: www.concepta.hawa.com
Article number
Articles are identified by a 5-digit number.
General notes
The document «Safety Notes» (22991) is an integral part of the planning and assembly instructions.
The operating instructions, the planning and assembly instructions and the document «Safety notes» (22991) must be handed over
to the end user.
Metric measurements apply - those in inches are for information only.
Retain the instructions. Replacements available from www.hawa.ch.
Risk and residual risk
When using Hawa Concepta 40/50 to conceal electrical appliances please pay attention to the safety notes issued by the
manufacturer (heat accumulation). If necessary, use an automatic shutoff device (e.g. Safety Box, www.halemeier.de).
Disposal
Materials, accessories and packaging should be recycled in an environmentally friendly manner.
3Safety instructions
CAUTION
Moving parts can crush fingers.
–Do not touch moving parts!
HAWA Concepta 40 HAWA Concepta 50
Maximum door weight 40 kg (88 lbs.) Maximum door weight 50 kg (110 lbs)
Door width 300 – 900 mm (11 "– 2’11 ") Door width 300 – 900 mm (11 "– 2’11 ")
Door height 1851 – 2500 mm (6’0 "–8’2 ") Door height 2301 – 2850 mm (7’6 "–9’4 )
Door thickness 19 – 50 mm ( "– 1 ") Door thickness 19 – 50 mm ( "– 1 ")
Sets can be used on the left and right.
Use the straightening fitting for stabilizing sliding doors.
For maximum door size / weight ratios, see table on page 21.
Maximum permissible deflection of the hardware assembly face and door ± 2 mm ( ").
13
16
----- 7
16
----- 13
16
----- 7
16
-----
27
32
----- 7
16
----- 19
32
----- 7
32
-----
3
4
-- 31
32
----- 3
4
-- 31
32
-----
3
32
-----

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
14/64
Hawa Concepta 40/50
5Übersichten / 5 Aperçus généraux / 5 Overviews / 5 Panoramiche / 5
5
Esquemas
5.1
DE Übersicht: Anlage links
FR Aperçu général : Installation à gauche
EN Overview: Left-hand system
IT Panoramica: Installazione a sinistra
ES Esquema: Instalación a izquierda

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
15/64
Hawa Concepta 40/50
5.2
DE Übersicht: Connector 55 (optional)
FR Aperçu général : Connector 55 (en option)
EN Overview: Connector 55 (optional)
IT Panoramica: Connector 55 (opzionale)
ES Esquema: Connector 55 (opcional)
DE
FR
EN
IT
ES
Verbindungsprofil Connector zu HAWA-Concepta 40/50, siehe Montageanleitung 23227.
Profil de raccordement Connector pour HAWA-Concepta 40/50, voir instructions de montage 23227.
Connecting profile Connector to HAWA-Concepta 40/50, see installation instructions 23227.
Profilo di collegamento Connector per HAWA-Concepta 40/50, vedere istruzione di montaggio 23227.
Perfil de unión Connector para Hawa Concepta 40/50, ver las Instrucciones de Montaje 23227.

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
16/64
Hawa Concepta 40/50
5.3
DE Übersicht: Connector 110 mit und ohne Sockel (optional)
FR Aperçu général : Connector 110 avec et sans socle (en option)
EN Overview: Connector 110 with and without base (optional)
IT Panoramica: Connector 110 con e senza zoccolo (opzionale)
ES Esquema: Connector 110 con y sin zócalo (opcional)
DE
FR
EN
IT
ES
Verbindungsprofil Connector zu HAWA-Concepta 40/50, siehe Montageanleitung 23227.
Profil de raccordement Connector pour HAWA-Concepta 40/50, voir instructions de montage 23227.
Connecting profile Connector to HAWA-Concepta 40/50, see installation instructions 23227.
Profilo di collegamento Connector per HAWA-Concepta 40/50, vedere istruzione di montaggio 23227.
Perfil de unión Connector para Hawa Concepta 40/50, ver las Instrucciones de Montaje 23227.
1* DE Sockelblende demontierbar / FR Cache de socle démontable / EN Removable base cover / IT Frontale per zoccolo smontabile /
Panel de zócalo desmontable

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
17/64
Hawa Concepta 40/50
5.4

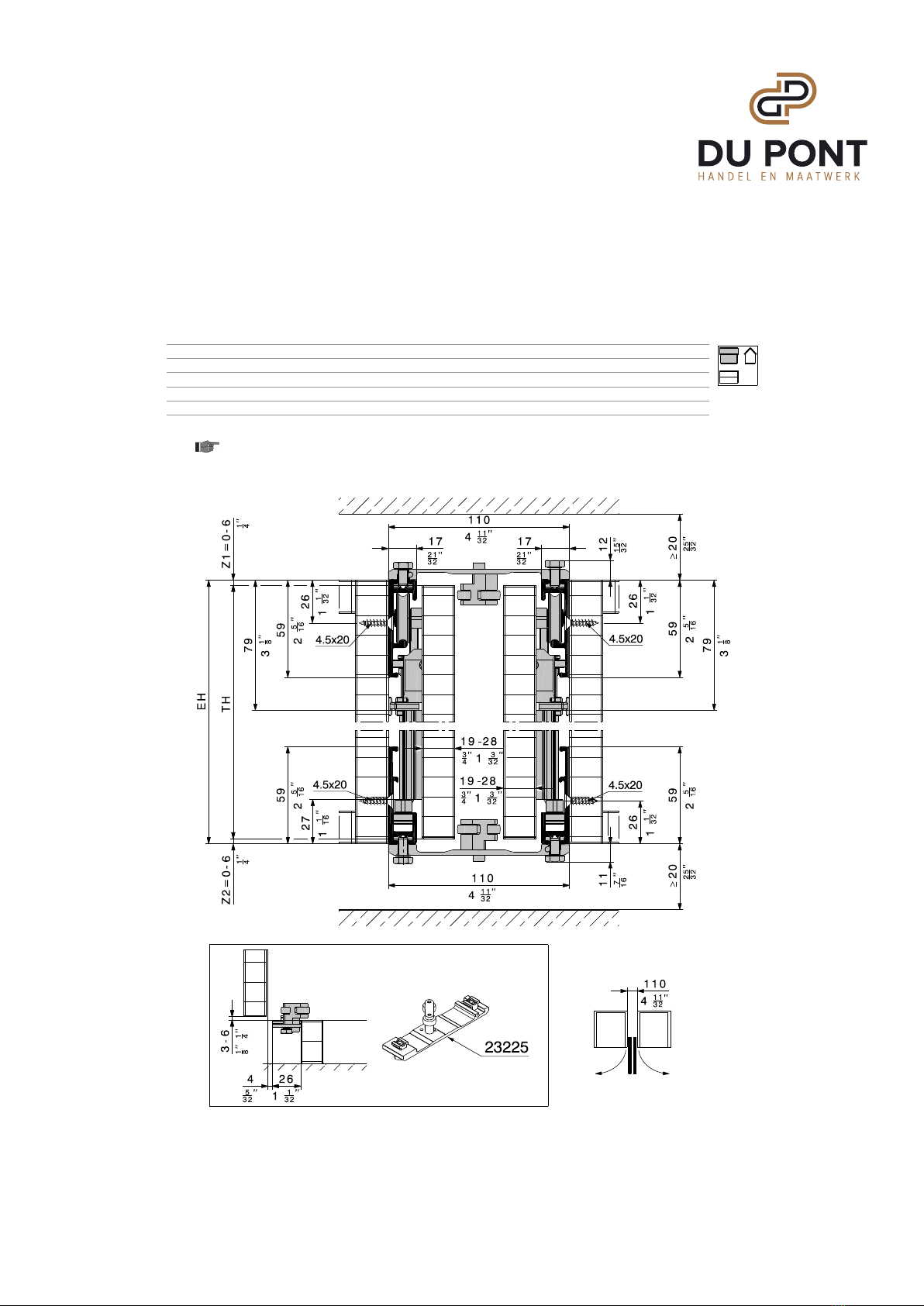

DE Übersicht: Zwei einliegende Dreh-Einschiebetüren
FR Aperçu général : Deux portes pivotantes/escamotables intégrées au corps
EN Overview: Two inset pivot sliding doors
IT Panoramica: Due ante a scomparsa per rotazione all'interno
ES Esquema: Dos puertas correderas escamoteables enrasadas

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
18/64
Hawa Concepta 40/50
5.5
DE Übersicht: Positionsnummern
FR Aperçu général : Des numéros de position
EN Overview: Position numbers
IT Panoramica: Numeri di posizione
ES Esquema: Relación de números de posición
[1] 22056
22057
[2] 25592 [3] 25596
[4] 22594 [5] 25855 [6] 22861
[7] 27652 [8] 24528 [9] 24535
[10] 24660 [11] 25828 [12] 25815
[13] 25656 [14] 27657 [15] 27658
[16] 24739 [17] 24955 [18] 25862
[19] 25836 [20] 25795
25796
[21] 23225
[22] 23223
23224
[23] 23221
23222
[24] 25680
13164 22451 25935
25808 25809 25562

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
19/64
Hawa Concepta 40/50
6Planung / 6 Planification / 6 Planning / 6 Progettazione / 6 Planificación
6.1
DE Planung: Türe einliegend
FR Planification : Porte intégrée au corps
EN Planning: Inset door
IT Progettazione: Anta all'interno
ES Planificación: Puertas enrasadas
DE
FR
EN
IT
ES
Verwenden Sie für die Planung das Hawa Concepta Planungstool
Utiliser l'outil de planification Hawa Concepta pour la planification
Use the Hawa Folding Concepta planning tool for planning
Utilizzare il tool di progettazione Hawa Concepta per la progettazione
Para la planificación, utilice la herramienta de planificación Hawa Concepta
1* DE
FR
EN
IT
ES
Seite demontierbar
Côte démontable
Removable side
Lato smontabile
Lateral desmontable

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
20/64
Hawa Concepta 40/50
6.2

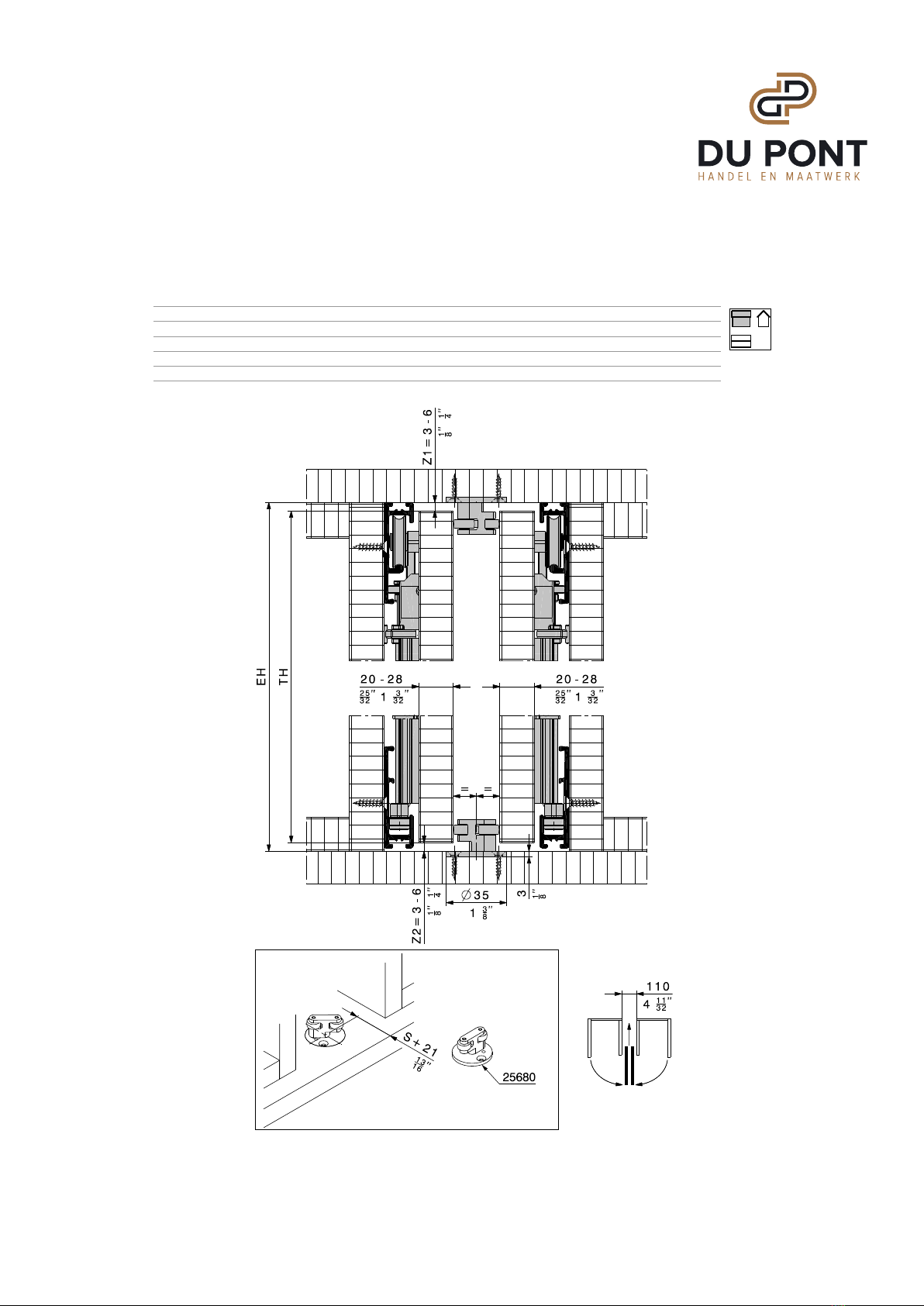

DE Planung: Führung für zwei einliegende Dreh-Einschiebetüren
FR Planification : Guide pour deux portes pivotantes/escamotables intégrées au corps
EN Planning: Guide for two pivot sliding doors
IT Progettazione: Guida per due ante a scomparsa per rotazione all'interno
ES Planificación: Guía para dos puertas correderas escamoteables enrasadas

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
21/64
Hawa Concepta 40/50
6.3
DE Planung: Türe auf Boden und Oberboden aufschlagend mit Connector 55
FR Planification : Porte allant du sol au plafond avec Connector 55
EN Planning: Doors closing against base and top section with Connector 55
IT Progettazione: Ante appoggiate su fondo e cielo con Connector 55
ES Planificación: Puertas sobrepuestas en la base y el techo con Connector 55

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
22/64
Hawa Concepta 40/50
6.4
DE Planung: Türe auf Boden und Oberboden aufschlagend mit Connector 110
FR Planification : Porte allant du sol au plafond avec Connector 110
EN Planning: Doors closing against base and top section with Connector 110
IT Progettazione: Ante appoggiate su fondo e cielo con Connector 110
ES Planificación: Puertas sobrepuestas en la base y el techo con Connector 110
DE Maximale Türdicke 28 mm / FR Epaisseur de porte maximale 28 mm / EN Maximum door thickness 28 mm ( ")
IT Spessore anta max. 28 mm / ES Grosor de puerta máximo 28 mm
1
8
---

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
23/64
Hawa Concepta 40/50

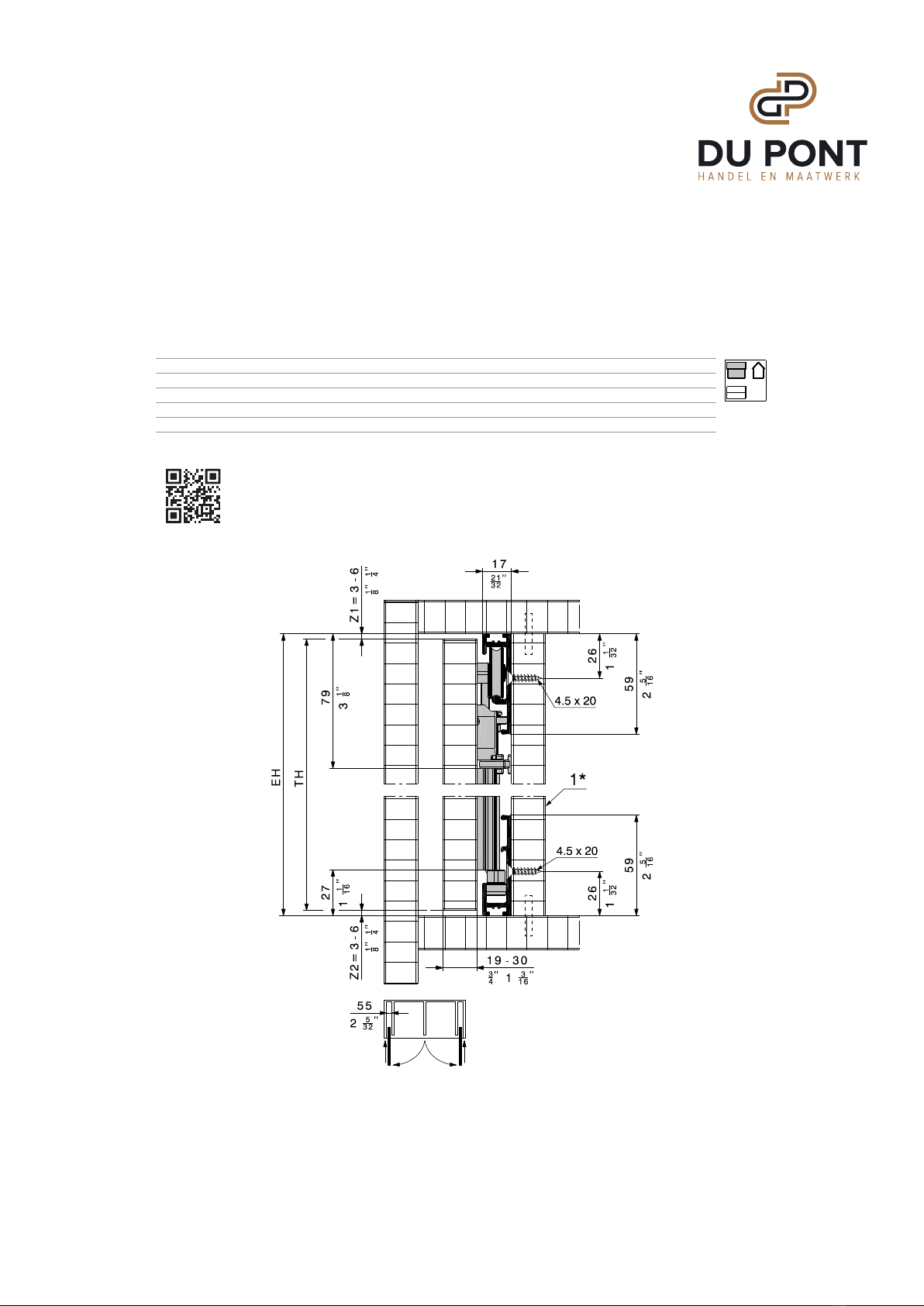

6.5
DE Planung: Türe in Mauernische
FR Planification : Porte dans une niche murale
EN Planning: Doors in wall recess
IT Progettazione: Anta in nicchia di muro
ES Planificación: Puerta en hueco de pared
1* DE Seite demontierbar / FR Côte démontable / EN Removable side / IT Lato smontabile / ES Lateral desmontable

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
24/64
Hawa Concepta 40/50
7Berechnung / 7 Calcul / 7 Calculation / 7 Calcolo / 7 Cálculos
7.1
DE Berechnung: Gewicht zu Türgrössenverhältnis
FR Calcul de : Rapport poids/taille des portes
EN Calculation: Door size/height ratio
IT Calcolo: Peso rapportato alla grandezza anta
ES Cálculo: Relación entre peso y tamaño de la puerta
HAWA-Concepta 40
TH /TB 300 350 400 450 500 550 600 650 700 750 800 850 900
2500 40 40 40 40 40 40 40 40 40 37 34 32 31
2450 40 40 40 40 40 40 40 40 39 36 34 32 30
2400 40 40 40 40 40 40 40 40 38 35 33 31 29
2350 40 40 40 40 40 40 40 40 37 34 32 30 29
2300 40 40 40 40 40 40 40 39 36 33 31 30 28
2250 40 40 40 40 40 40 40 38 35 33 31 29 27
2200 40 40 40 40 40 40 40 37 34 32 30 28 27
2150 40 40 40 40 40 40 39 36 33 31 29 27 26
2100 40 40 40 40 40 40 38 35 32 31 28 27 25
2050 40 40 40 40 40 40 37 34 31 30 28 26 24
2000 40 40 40 40 40 39 36 33 31 29 27 25 24
1950 40 40 40 40 40 38 35 32 30 28 26 24 23
1900 40 40 40 40 40 37 34 31 29 27 25 24 22
1850 40 40 40 40 39 36 33 30 28 26 24 23 22
DE Türgewicht in KG / TB = Türbreite in mm / TH = Türhöhe in mm
FR Poids de porte en kg / TB = largeur de porte en mm / TH = hauteur de porte en mm
EN Door weight in KG / TB = Door width in mm / TH = Door height in mm
IT Peso anta in KG / TB = larghezza anta in mm / TH = altezza anta in mm
ES Peso de puerta en KG /TB = Ancho de puerta en mm / TH = Altura de puerta en mm

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
25/64
Hawa Concepta 40/50
HAWA-Concepta 50
TH /TB 300 350 400 450 500 550 600 650 700 750 800 850 900
2850 50 50 50 50 50 50 50 50 50 50 50 50 50
2800 50 50 50 50 50 50 50 50 50 50 50 50 50
2750 50 50 50 50 50 50 50 50 50 50 50 50 50
2700 50 50 50 50 50 50 50 50 50 50 50 50 49
2650 50 50 50 50 50 50 50 50 50 50 50 50 48
2600 50 50 50 50 50 50 50 50 50 50 50 49 48
2550 50 50 50 50 50 50 50 50 50 50 50 48 47
2500 50 50 50 50 50 50 50 50 50 50 49 48 46
2450 50 50 50 50 50 50 50 50 50 49 48 47 45
2400 50 50 50 50 50 50 50 50 50 48 48 46 45
2350 50 50 50 50 50 50 50 50 49 48 47 45 44
2300 50 50 50 50 50 50 50 49 48 47 46 45 43
DE Türgewicht in KG / TB = Türbreite in mm / TH = Türhöhe in mm
FR Poids de porte en kg / TB = largeur de porte en mm / TH = hauteur de porte en mm
EN Door weight in KG / TB = Door width in mm / TH = Door height in mm
IT Peso anta in KG / TB = larghezza anta in mm / TH = altezza anta in mm
ES Peso de puerta en KG /TB = Ancho de puerta en mm / TH = Altura de puerta en mm

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
26/64
Hawa Concepta 40/50
7.2
DE Berechnung: Masse Grundriss
FR Calcul de : Dimensions plan d'ensemble
EN Calculation: Plan view dimensions
IT Calcolo: Dimensioni di pianta
ES Cálculo: Dimensiones en planta
SN1 N2 N3 N4
19- 30 mm ( "-1 ") 55 mm (2 ") 0 mm 0 mm 0 mm
33 mm (1 ") 58 mm (2 ") 0 mm 3 mm ( ") 3 mm ( ")
36 mm (1 ") 63 mm (2 ") 2 mm ( ") 6 mm ( ") 5 mm ( ")
39 mm (1 ") 67 mm (2 ") 3 mm ( ") 9 mm ( ") 8 mm ( ")
42 mm (1 ") 70 mm (2 ") 3 mm ( ") 12 mm ( ") 11 mm ( ")
45 mm (1 ") 75 mm (2 ") 5 mm ( ") 15 mm ( ") 14 mm ( ")
48 mm (1 ") 79 mm (3 ") 6 mm ( ") 18 mm ( ") 17 mm ( ")
50 mm (1 ") 83 mm (3 ") 7 mm ( ") 21 mm ( ") 19 mm ( ")
3
4
-- 3
16
----- 3
16
-----
5
16
----- 9
32
----- 1
8
-- 1
8
--
7
16
----- 1
2
-- 3
32
----- 1
4
-- 7
32
-----
17
32
----- 21
32
----- 1
8
-- 3
8
-- 5
16
-----
21
32
----- 3
4
-- 1
8
-- 15
32
-----
7
16
-----
25
32
----- 31
32
----- 7
32
----- 19
32
----- 9
16
-----
29
32
-----
1
8
-- 1
4
-- 23
32
-----
11
16
-----
31
32
----- 9
32
----- 9
32
----- 27
32
----- 3
4
--

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
27/64
Hawa Concepta 40/50
Z3 TA Z3 TA
2 mm ( ") 28 mm (1 ") 3 mm ( ") 28.5 mm (1 ")
3 mm ( ") 27 mm (1 ") 4 mm ( ") 28 mm (1 ")
4 mm ( ") 26 mm (1 ") 5 mm ( ") 27.5 mm (1 ")
5 mm ( ") 25 mm (1 ") 6 mm ( ") 27 mm (1 ")
SN5 DE N5 = Max. Türgriffhöhe bei nebeneinander stehenden Schränken
19 mm ( ") 13,5 mm ( ") FR N5 = Hauteur maximale de poignée de porte avec des armoires placées
les unes à côté des autres
≤ 22 mm ( ") 10 mm ( ") EN N5 = Maximum door handle height for adjacent cabinets
≤ 25 mm ( ") 5 mm ( ") IT N5 = Massima altezza maniglia con armadi vicini
≤ 50 mm (1 ") 2 mm ( ") ES N5 = Altura máx. de la manilla con armarios adyacentes
3
32
----- 3
32
----- 1
8
-- 1
8
--
1
8
-- 1
16
----- 5
32
----- 3
32
-----
5
32
----- 1
32
----- 3
16
----- 3
32
-----
3
16
----- 31
32
----- 1
4
-- 1
16
-----
3
4
-- 17
32
-----
7
8
-- 13
32
-----
31
32
----- 7
32
-----
31
32
----- 3
32
-----

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
28/64
Hawa Concepta 40/50
7.3
DE Berechnung: Beschlagstiefe
FR Calcul de : Profondeur de ferrure
EN Calculation: Hardware depth
IT Calcolo: Profondità ferramenta
ES Cálculo: Profundidad del herraje
DE
FR
EN
IT
ES
Bei der Planung der Türgriffe auf mögliche Kollisionsgefahr achten.
Lors de la planificaton des poignées de portes, prendre garde aux risques de collisions possibles.
Pay attention to potential collision hazards when selecting door handles.
Nella progettazione delle maniglie considerare il pericolo di collisione.
Cuando seleccione las manillas tenga en cuenta el posible riesgo de colisión.
T1 TH E1
≤ 900 mm (2'11 ") 1851 - 2850 mm (6’0 " - 9’4 ") ≤ 827 mm (2'8 ")
T1 TB M–73+=
E1 T1 73–=
7
16
----- 7
8
-- 7
32
----- 9
16
-----

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
29/64
Hawa Concepta 40/50
7.4

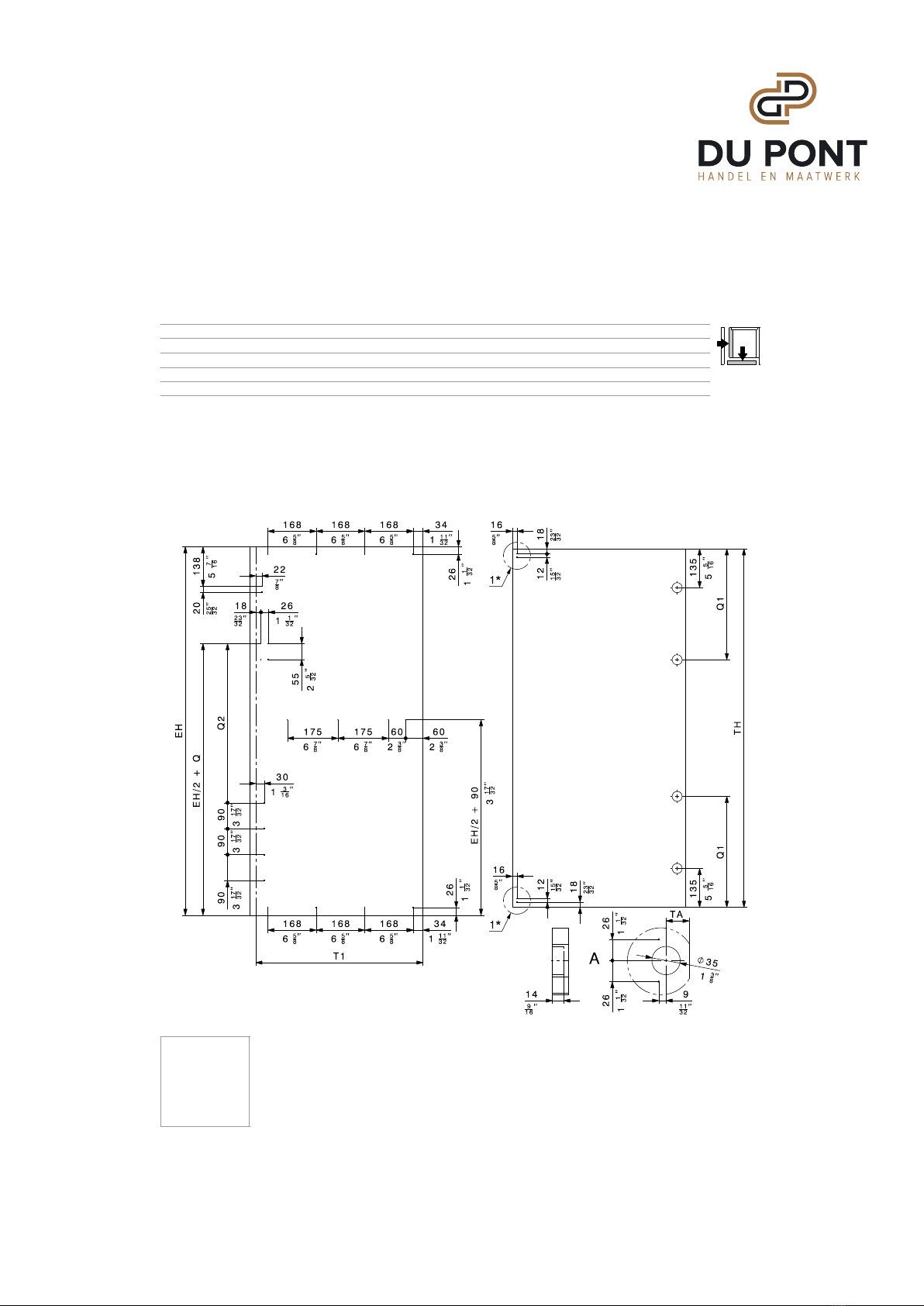

DE Berechnung: Bohrpositionen HAWA Concepta 40
FR Calcul de : Positions des perçages HAWA Concepta 40
EN Calculation: Drill hole positions HAWA Concepta 40
IT Calcolo: Posizioni di foratura HAWA Concepta 40
ES Calcolo: Posizioni di foratura HAWA Concepta 40
DE
FR
EN
IT
ES
Beschlagsmontageseite
Côte de montage de la ferrure
Hardware installation side
Lato di montaggio ferramenta
Lateral de montaje del herraje
DE
FR
EN
IT
ES
Türe
Porte
Door
Anta
Puerta
1* DE
FR
EN
IT
ES
Nur in Kombination mit HAWA-Folding Concepta, 3-türig, LMB = 2120 mm
Perçages uniquement en combinaison avec le système HAWA Folding Concepta pour
3 portes, LMB = 2120 mm
Drill holes only in combination with HAWA Folding Concepta, 3-door, clearance = 2120 mm (6’11 ")
Forature solo in combinazione con HAWA Folding Concepta, a tre ante, LMB = 2120 mm
Solo en combinación con HAWA Folding Concepta para 3 puertas con ancho interior = 2120 mm
Q 675=
Q2 1155=
Q1 TH
2
------ 483–=
15
32
-----

Hawa Concepta 40/50
Technische Fiche
DU PONT BV ı Bouwelven 16 ı B - 2280 Grobbendonk ı 03 464 00 91 ı [email protected] ı www.du-pont.be
30/64
Hawa Concepta 40/50
7.5
DE Berechnung: Bohrpositionen HAWA Concepta 50
FR Calcul de : Positions des perçages HAWA Concepta 50
EN Calculation: Drill hole positions HAWA Concepta 50
IT Calcolo: Posizioni di foratura HAWA Concepta 50
ES Cálculo: Posición de los taladros HAWA Concepta 50
DE
FR
EN
IT
ES
Beschlagsmontageseite
Côte de montage de la ferrure
Hardware installation side
Lato di montaggio ferramenta
Lateral de montaje del herraje
DE
FR
EN
IT
ES
Türe
Porte
Door
Anta
Puerta
1* DE
FR
EN
IT
ES
Nur in Kombination mit HAWA Folding Concepta, 3-türig, LMB = 2120 mm
Perçages uniquement en combinaison avec le système HAWA Folding Concepta pour
3 portes, LMB = 2120 mm
Drill holes only in combination with HAWA Folding Concepta, 3-door, clearance = 2120 mm (6’11 ")
Forature solo in combinazione con HAWA Folding Concepta, a tre ante, LMB = 2120 mm
Solo en combinación con HAWA Folding Concepta para 3 puertas con ancho interior = 2120 mm
Q 675=
Q2 1155=
15
32
-----
