Dual Pumps Evolution GF10150PHR User manual

Model
Serial No.
Engine No.
Year of Manufacture
Operating
Instructions
793-1202
pumps
Evolution
v
pressure washers

Pressure Washer
Operating Instructions
This manual and any other literature supplied should be read
thoroughly before attempting to operate the Power Washer. Pay
particular attention to any instructions relating to safety, and the
starting, stopping and maintenance of petrol and diesel engines.
This manual has been compiled to give all of the necessary information
to operate the Dual Pumps range of Pressure Washers safely and
effectively. It is recommended the manual and its accompanying
literature be read and understood before attempting to assemble
or operate the equipment. Following these simple instructions will
ensure operator safety and prolong the life of the power washer.
Our policy is to improve our products continuously and we therefore
reserve the right to discontinue or change specications, models or
designs without notice or obligation.
THESE INSTRUCTIONS SHOULD BE KEPT
WITH THE MACHINE AT ALL TIMES.

2. Equipment Variants and Options
This equipment has been designed and manufactured for the high pressure
washing of machinery, buildings etc, using water and detergent. Use only a
recommended detergent.
It should not be used for washing electrical equipment, people, animals and
surfaces that are loose and easily damaged.
This manual deals with the following variants of pressure washers,
Power input Petrol and diesel engines.
4bhp – 18bhp
High-pressure Multi cylinder plunger
Pump 10 lpm – 30 lpm
100 bar – 400 bar pump pressure.
Transport frame Rigid steel frames in either static or
wheeled options.
1. Index
Equipment Variants and Options .........................................................section 2
Safety ..................................................................................................section 3

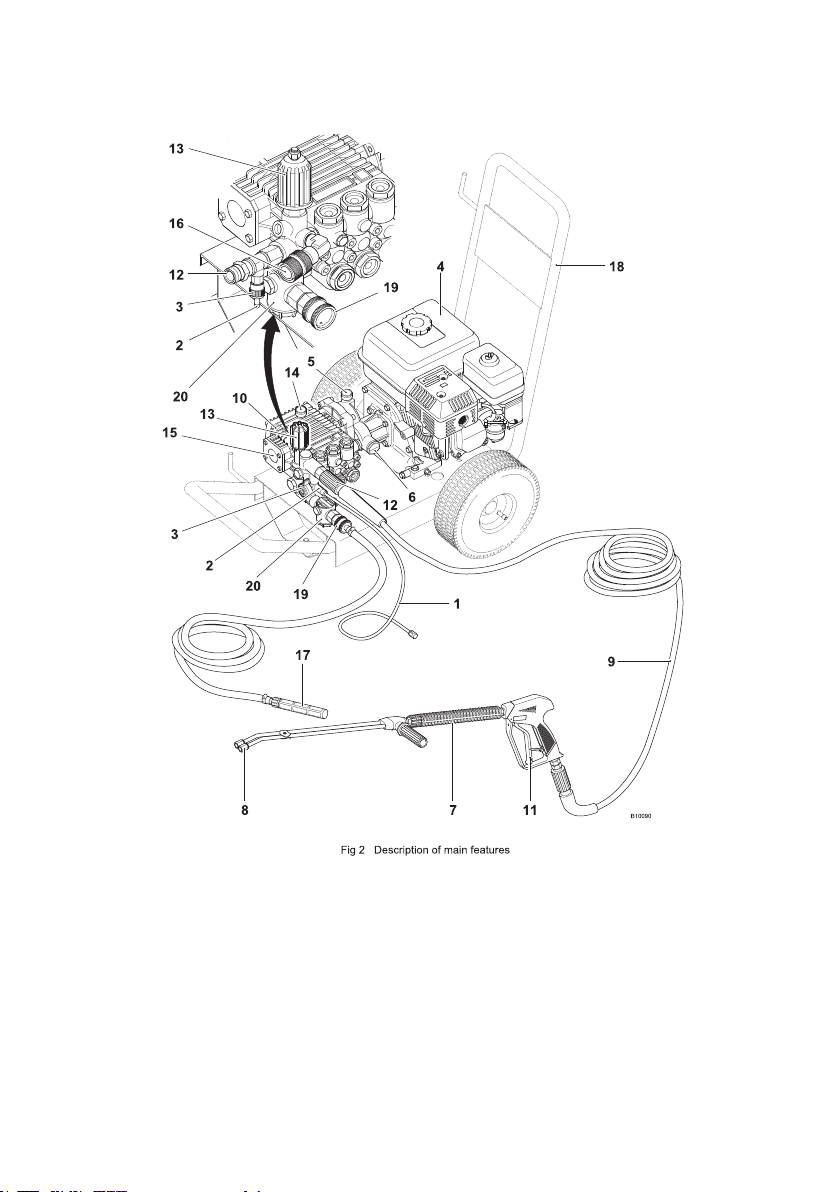

Description of Main Features...............................................................section 4
Installation ..........................................................................................section 5
Operation.............................................................................................section 6
Maintenance........................................................................................section 7
Storage................................................................................................section 8
Fault Finding........................................................................................section 9
Warranty ............................................................................................section 10
UKCA & EC Declaration of Conformity............................................. Section 11
Lance Variations .............................................................................. appendix 1

Variants and Options (g 1)
SPL = Sound Power Level on equipment representative for this type.
GSPL = Guaranteed Sound Power Level for this equipment.
Part No. Engine Lpm Bar Kg L x W x H SPL
LwA dB
GSPL
LwA dB
GF10150PHR Petrol GP160 10 150 31 600x450x440 107 111
GF13150PHR Petrol GP200 13 150 31 600x450x440 106 111
GT10150PHR Petrol GP160 10 150 36 940x600x890 107 111
GT13150PHR Petrol GP200 13 150 37 940x600x890 106 111
E1F10135PHR Petrol GX160 10 135 31.2 600x450x440 107 111
E1T12125DYR Diesel L48N 12 125 48.5 630x530x810 109 115
E1F12150PHR Petrol GX160 12 150 31.2 600x400x410 107 111
E1F13150PHR Petrol GX200 13 150 31.2 600x400x410 107 111
E1T12150PHR Petrol GX160 12 150 42.8 630x530x810 107 111
E1T13150PHR Petrol GX200 13 150 43.8 630x530x810 107 111
E1T13200PHR Petrol GX240 13 200 59 800x640x840 105 111
E1T15275PHR Petrol GX390 15 275 65.5 800x640x840 107 111
E1T16200PHR Petrol GX340 16 200 65.5 800x640x840 107 111
E1T20200PHR Petrol GX390 20 200 65.5 800x640x840 107 111
E1T13170DYR Diesel L70N 13 170 69 800x640x840 109 115
E2C14150PHR Petrol GX200 14 150 38.5 600x400x410 106 111
E2T14150PHR Petrol GX200 14 150 38 630x530x810 106 111
E2T15200PHR Petrol GX340 15 200 64.5 800x640x840 107 111
E2T15250PHR Petrol GX390 15 250 64.5 800x640x840 107 111
E2T21200PHR Petrol GX390 21 200 64.5 800x640x840 107 111
E2T15150DYR Diesel L70N 15 150 75.5 800x640x840 109 115
SS2T15250PHR Petrol GX390 15 250 64.5 800x640x840 107 111
SS2T21200PHR Petrol GX390 21 200 64.5 800x640x840 107 111
E3T15200PHR Petrol GX340 15 200 77 1100x620x700 107 111
E3T15250PHR Petrol GX390 15 250 78.5 1100x620x700 107 111
E3T21200PHR Petrol GX390 21 200 79 1100x620x700 107 111
E3T15400PBE Petrol V-Twin 15 400 113 1100x620x790 108 108
E3T41200PBE Petrol V-Twin 41 200 110 1100x620x790 111 111
E3T23250PBE Petrol V-Twin 23 250 108.5 1100x620x790 108 108
E3T25300PBE Petrol V-Twin 25 300 110 1100x620x790 111 111
E3T30200PBE Petrol V-Twin 30 200 108.5 1100x620x790 108 108
E3T15500PBE Petrol V-Twin 15 500 115 1100x620x790 111 111
E3T15200DYE Diesel L100N 15 200 108.5 1100x620x720 111 112
E3T20190DYE Diesel L100N 20 190 109.5 1100x620x720 111 112
E1T12150PHE Petrol GX160 12 150 40 800x640x840 107 111
E2T14150PHE Petrol GX200 14 150 42 800x640x840 106 111
E2T15250PHE Petrol GX390 15 250 66.5 800x640x840 107 111
E2T21200PHE Petrol GX390 21 200 66.5 800x640x840 107 111
E3T15250PHE Petrol GX390 15 250 81 1100x620x700 107 111
E3T21200PHE Petrol GX390 21 200 81 1100x620x700 107 111
