Dualit QCS-2-800 User manual

1
®
®
®
®
®
®
®
®
CONVEYOR
TOASTER
MODEL
QCS-2-800
QCS-3-1000
Installation and
Operation
Instructions
2M-HG0657 Rev. D 6/13/05

2
Thesesymbolsareintendedtoalerttheusertothepresenceof
importantoperatingandmaintenanceinstructionsinthemanual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
UsinganypartotherthangenuineDualitfactorysuppliedparts
relieves the manufacturer of all liability.
NOTICE
Dualit reserves the right to change specifications and
productdesignwithoutnotice. Suchrevisionsdonotentitlethe
buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Please record the model
number, serial number, voltage and purchase date in the area below and have its ready when you call to ensure
a faster service.
SAFETY SYMBOLS
Model No.
Serial No.
Voltage
Purchase Date
Telephone: [phone]
Fax: [phone]
E-mail [email protected]
Website: www.dualit.com
The Dualit Service Help Desk

3
MODEL SPECIFICATIONS:
9H-QCS2-800
Type: Conveyor Toaster w/ Manual Controls
240V, 2,400 watts, 12.2 amp, 60 hz, Product Opening: 1 1/2" inches
Approximate shipping weight - 140.8 kg (64 lbs)
Dimensions: 36.8 cm - Width, 56.8 cm - Depth, 39.7 cm - Height / (14 1/2" - Width, 22 3/8" - Depth, 15 5/8" - Height)
9H-QCS3-1000
Type: Conveyor Toaster w/ Manual Controls
240V, 3,200 watts, 13.8 amp, 60 hz, Product Opening: 1 1/2" inches
Approximate shipping weight - 149.6 kg (68 lbs)
Dimensions: 47.0 cm - Width, 56.8 cm - Depth, 39.7 cm - Height / (18 1/2" - Width, 22 3/8" - Depth, 15 5/8" - Height)
CONTENTS
Safety Symbols........................................................2
Maintenance & Repairs...........................................2
Dualit Contact Information .....................................2
Model Specications...............................................3
General Installation Data ........................................4
Inspection & Assembly...........................................4
Uncrating & Inspecting........................................4
Assembly & Installation.......................................4
Electrical Connection..........................................5
Daily Operation Procedures...................................5
Rotary Power Saver Switch................................5
Cooking Procedures ...........................................6
Toaster Components...........................................6
Daily Operation...................................................7
Operating Hints & Safety ....................................7
Cleaning..............................................................7
Crumb Tray Removal..........................................7
Maintenance.............................................................8
Troubleshooting Guide...........................................9
Wiring Diagram
QCS2-800.........................................................10
QCS3-1000....................................................... 11

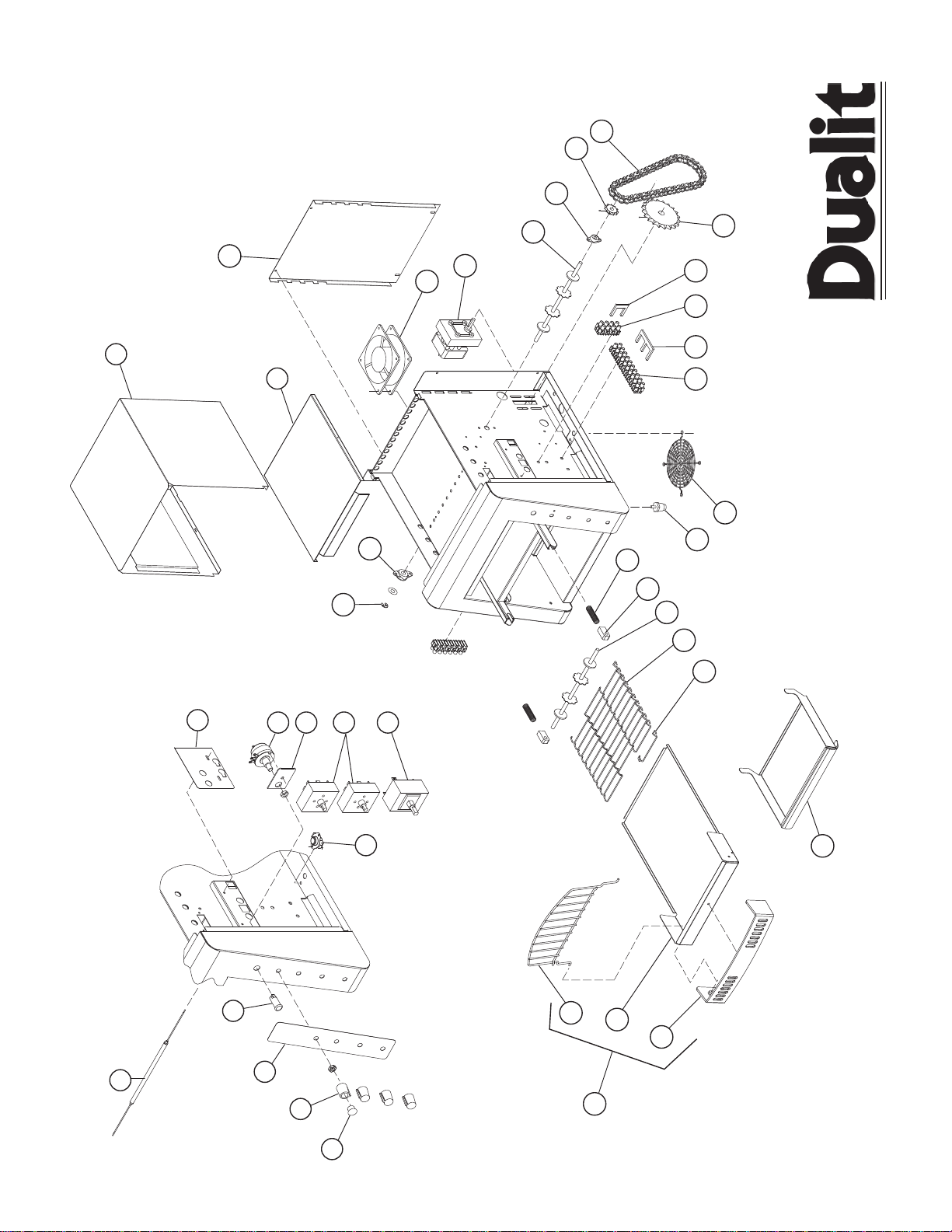

EXPLODED VIEW...................................................12
PARTS LIST
QCS2-800.........................................................13
QCS3-1000.......................................................14

4
GENERAL INSTALLATION DATA
CAUTION
This equipment is designed and sold for commercial use only by personnel trained and
experienced in its operation and is not sold for consumer use in and around the home nor
for use directly by the general public in food service locations.
Before using your new equipment, read and understand all the instructions & labels
associated with the unit prior to putting it into operation. Make sure all people associated
with its use understand the units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both visible and concealed.
This unit has been tested and carefully packaged to insure delivery of your unit in perfect
condition. If equipment is received in damaged condition, either apparent or concealed, a
claim must be made with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is
unpacked, a request for inspection of concealed damage must be made with carrier within
15 days. Be certain to retain all contents plus external and internal packaging materials for
inspection. The carrier will make an inspection and will supply necessary claim forms.
INSPECTION & ASSEMBLY
UNCRATING AND INSPECTING
Unpack the unit and components from the shipping container. Remove all visible packing
material and those from inside the cooking chamber. If damage is discovered, le a claim
immediately with the carrier that handled the shipment. Do not operate the unit if it was
damaged during shipping.
ASSEMBLY AND INSTALLATION
The QCS-2-800 unit was shipped fully assembled and ready to plug into a standard outlet
specied for its voltage and amp draw. If improper electrical supply is determined, contact a
qualied electrician prior to using the unit. Removal and replacement of the power cord and
plug will void the warranty. For assistance, contact your local authorized service agent for
service or required maintenance.
The QCS-3-1000 unit was also shipped fully assembled, but without a power cord. The
QCS-3-1000 IS equipped for the voltage indicated on the nameplate mounted on the side
panel. They will operate on alternating current (AC) only.
WARNING
DO NOT CONNECT TO DIRECT CURRENT (DC).
The installation of the QCS-3-1000 electric toaster should conform to the:
NATIONAL ELECTRIC CODE AND ALL LOCAL ELECTRIC CODES AND
ORDINANCES AND THE LOCAL ELECTRIC COMPANY RULES AND
REGULATIONS
For your protection we recommend that a qualied electrician install this toaster.
He should be familiar with electrical installations and all electric codes. Proper
connections and power supply are essential for efcient performance. The external
wiring should be in conduit or an approved type of exible cable suitable for operation
at the temperature indicated on the wiring diagram, and of a proper size to carry
the load. The supply circuit should be properly fused and equipped with a means
of disconnecting, as required by local electrical code. THE TOASTER SHOULD BE
EARTHED (DO NOT EARTH TO A GAS SUPPLY LINE).

5
Level unit using the adjustable feet under the unit (approximately 1/2" adjustment).
Before using the unit for the rst time, wipe down the exterior with a damp cloth.
CAUTION
Allow enough space around the toaster for adequate ventilation. Do not operate the unit
without the crumb tray properly positioned. Overheating and poor toasting may occur.
Read all labels on the unit and follow their instructions.
ELECTRICAL CONNECTION
WARNING
Before making any electrical connection to this unit, check that the power supply is
adequate for the voltage, amperage and requirements stated on the rating plate.
A wiring diagram is included herewith.
Disconnect the unit from the power source before installing or removing any parts.
Be absolutely sure that the earth connection for the receptacle is properly wired. Do not
connect equipment to power without proper earth connections. Improper grounding (earth)
may result in personal injury or fatality.
WARNING
DO NOT CUT OR REMOVE THIS PLUG OR GROUNDING (EARTH) PRONG
FROM THE PLUG.
WARNING
CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE
DATA PLATE OF THE UNIT.
DAILY OPERATION PROCEDURES
ROTARY POWER SAVER SWITCH
For toasters equipped with a Rotary Power Saver Switch, turn clockwise or
counterclockwise to get in the following positions.
FULL POWER
When in this position your equipment is at full power and ready to use.
OFF ROTARY
Two off positions are provided, a single rotation to either direction will shut the unit off.
STANDBY
The standby position reduces the power consumption by 75%. Using this position during the
quiet times will save electricity, and keep the toaster warm. When needed, turn the switch
to FULL POWER. Recovery time is about 30 seconds.
CAUTION
CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE
SHOULD BE TAKEN WHILE USING THIS UNIT.

6
COOKING PROCEDURES
BREAD TOASTING
Some toasters are equipped with a swinging heat shutter at the toaster entrance. This
shutter will move out of the way as the product passes under it.
1) Turn the power saver to FULL POWER.
2) Set the conveyor speed to HIGH.
3) If your toaster is equipped with separate top and bottom heat controls set them both
at HIGH.
4) Allow warm up time of 5 to 10 minutes.
5) Place a sample product on the conveyor belt to test the settings.
•If toasting is too light, turn conveyor speed control counterclockwise to a slower speed.
•If toasting is too dark, turn heat control to a lower heat.
(NOTE: Some products may require adjustment of the top and bottom heat controls
in order to achieve the desired results)

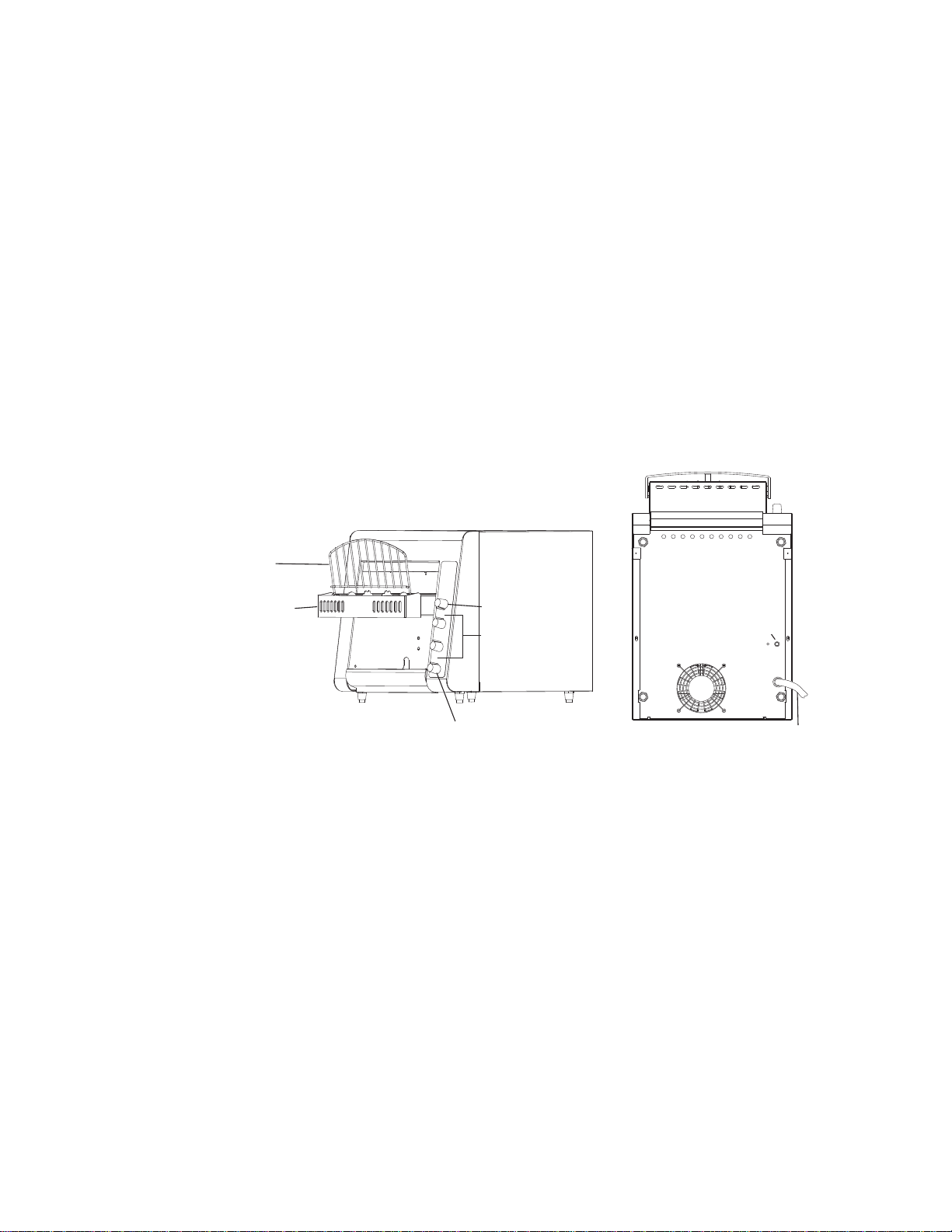

TOASTER COMPONENTS
LOAD UP
CRUMB TRAY
POWER SAVER SWITCH
HEAT CONTROLS
SPEED CONTROL
FRONT
AIR INTAKE FAN
HIGH LIMIT RESET
POWER CORD

7
DAILY OPERATION
Check the power cord to insure that it is plugged into a proper outlet.
Set the heat control knobs to desired temperature.
Always allow 10 minutes of preheat time before loading the unit with product. Failure to allow
sufcient preheat time will result in unsatisfactory cooking until the unit reaches operating
temperature.
OPERATING HINTS AND SAFETY
Disconnect power to the unit with the switch at the end of each day of operation.
Do not leave the unit in operation without an attendant.
Turn Power Saver Switch to Standby during idle periods. It will take only a few minutes to
regain operating temperature.
Do not leave the unit at high temperature when not in use or during idle periods. This will
cause food particles and grease lm to carbonize.
CLEANING
Preventive maintenance for your Dualit toaster consists of the following recommended
cleaning procedures. To keep your toaster in its top operating condition, these steps should be
performed on a daily or weekly as indicated.
A. Clean air intake on bottom of unit.
B. For lightly soiled conveyor belts, turn conveyor speed control to fastest setting (100) and
wipe with a damp cloth (daily) For heavily soiled conveyors, turn conveyor speed control to
fastest setting and wipe with a light abrasive pad (as needed).
C. Turn main power saver switch to the OFF position. Disconnect unit from power source.
D. After the unit cools, remove interior crumb tray (as shown below) and clean. Slide crumb `
tray back into position.
E. Wipe exterior surface of unit.
WARNING
DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON
THE TABLE/COUNTER.
KEEP AWAY FROM RUNNING WATER.
CLEAN
OPERATE
CRUMB TRAY REMOVAL

8
MAINTENANCE PROCEDURES
A. REPLACING HEATER TUBES
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Remove the enclosure.
3) Remove heater tube wire from terminal block connection, keeping top and
bottom wires separate.
4) Lift heater tube retainers by loosening retaining screws and sliding the retainer plate up.
Hand tighten the plate to hold it up so the heater tubes will slide out freely.
5) Gently, pull defective heater tube out of unit.
6) Gently, put new heater tube into unit.
7) Loosen retainer screws and slide the retainer back into place. Tighten the screw to
secure the retainer in place over the ends of the heater tubes.
B. REPLACING FAN MOTOR
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Remove screws from the enclosure and the back panel at rear of unit.
3) Remove the enclosure and the back panel.
4) Unplug power supply cord from fan motor.
5) Remove (4) screws, which hold fan motor and grill to bottom of unit and remove fan.
6) Put replacement motor and grill in place and secure to the bottom of unit with screws.
7) Reconnect power supply cord to fan motor.
8) Replace back panel and enclosure. Fasten with screws removed in step 2.

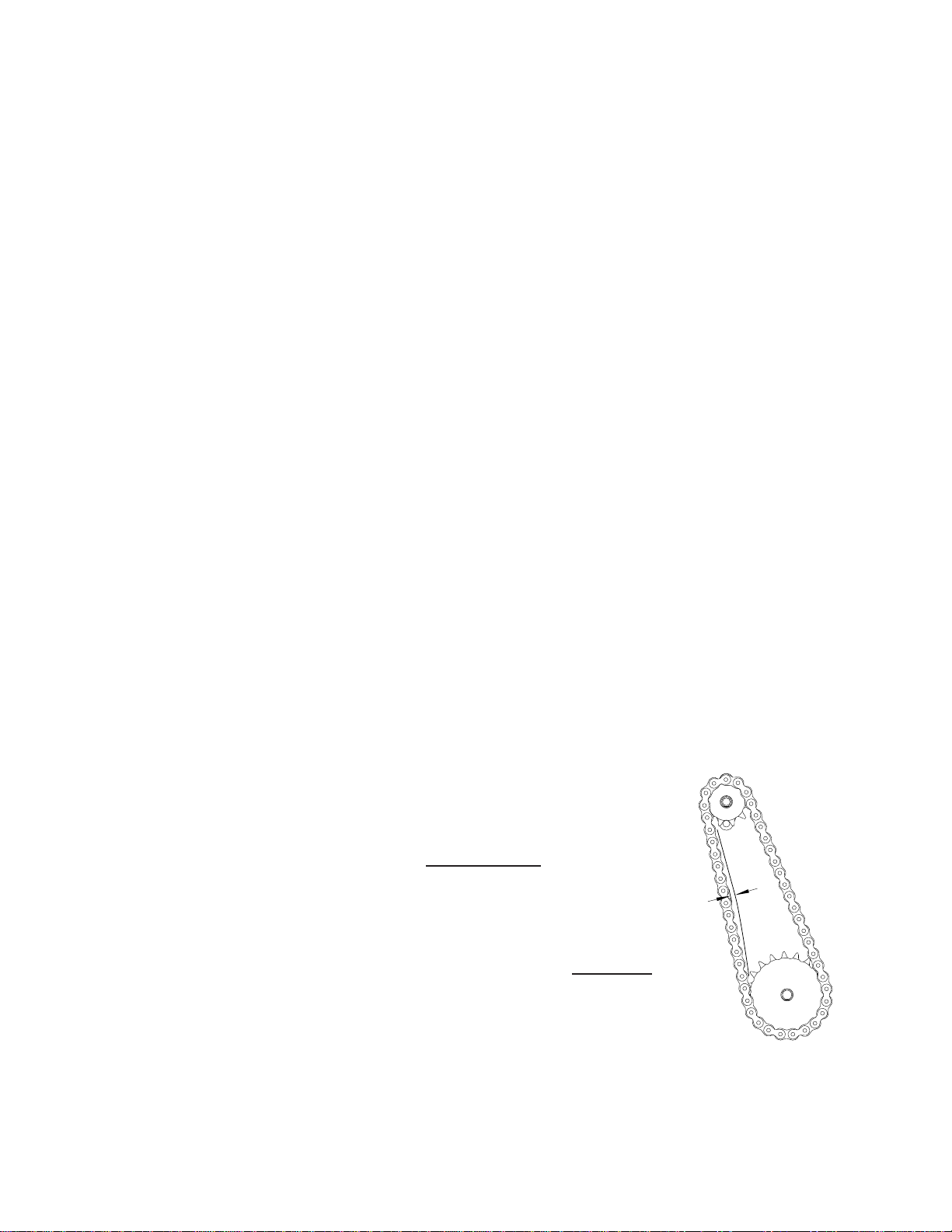

C. REPLACING BELT DRIVE MOTOR
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Remove enclosure and back panel.
3) Remove sprocket from motor shaft, using an Allen wrench and loosening the set-screw.
4) Remove the wire from terminal block connecting the drive motor to internal wiring.
On units rated 208 or 240 volts, note which color leads are being used for these connections
and which lead is capped with white tape. The new motor should use the same arrangement.
5) Remove screws holding motor in place and remove motor from unit.
6) Put new motor in place and attach loosely with mounting screws.
7) Replace sprocket on motor shaft.
NOTE: The two sprockets should line up parallel with each other, so the chain does not twist
any during operation. Also the hub gets installed closets to the motor.
8) Slide motor until the drive chain has about 1/4” slack when lightly pushed at the center of its top
open run. See chain tensioning illustration.
9) Tighten screws to secure motor.
10)Rewire leads same as removed in step 4.
11) Replace side panel and control box cover.
D. CLEANING AIR INTAKE ONCE A WEEK.
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Place unit on its backside.
3) Use a vacuum cleaner and or a damp cloth to clean
the air intake. This procedure should be done at least
E. LUBRICATE THE CHAIN & SPROCKETS 6 MONTHS
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Remove enclosure exposing chain drive.
3) Using an extreme pressure, synthetic chain lubricant with a
temperature range up to 204°C. Apply liberally onto chain
and sprockets. This grease is available as part no. 1P-Z8914.
4) Replace enclosure, Reconnect power source and test unit.
1/4”
QCS/RCS Chain Tension

9
TROUBLESHOOTING GUIDE
A. UNIT WILL NOT HEAT, CONVEYOR BELT WILL NOT MOVE.
1) Be sure the main circuit breaker is switched to the ON position.
2) Check to see if the toaster is plugged in and all controls are turned to the ON position.
B. UNIT HAS HEAT ONLY ON ONE SIDE, CONVEYOR BELT TURNS FREELY.
1) Call the Dualit Help Desk at [phone], as heating element may need replacing.
C. CONVEYOR WILL NOT TURN, UNIT HEATS PROPERLY.
To check for mechanical binding:
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Remove 2 screws holding enclosure to the bottom of the unit.
3) Set unit on the legs and remove 4 screws on the back of the toaster.
4) Slide the enclosure off the unit and remove the back panel.
5) Loosen the four screws that hold the drive motor in place.
6) Slide the motor up allowing the drive chain to be removed from the sprockets.
7) Move the conveyor belt by hand to check for mechanical binding. If conveyor moves freely,
call the Dualit Help Desk at [phone], as the drive
motor and/or speed control may need replacing.
8) Replace the enclosure by sliding it forward towards the front of the unit.
The front edge of the enclosure will slide beneath the toaster front.
D. HEAT LIMIT SWITCH (RESET)
Your Dualit conveyor toaster is equipped with an automatically activated heat limit switch that
interrupts the heater tube connections if the ambient temperature in the control box exceeds
88°C. This switch can be reset manually by pushing the red button under the toaster as
shown in the Toaster Components Illustration on Page 5.
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Check to see if air intake area in the bottom center of the control box cover is free of dust,
grease or other obstructions.
3) Check if crumb tray is in place. NEVER OPERATE UNIT WITHOUT CRUMB TRAY IN PLACE
AS THIS CAUSES OVERHEATING IN THE CONTROL BOX.
4) If no obstructions to the airow can be found and if the crumb tray is in place,
call the Dualit Help Desk at [phone] for assistance.
E. CONVEYOR TURNS AT ONE SPEED REGARDLESS OF SPEED
CONTROL SETTING.
1) Call the Dualit Help Desk at [phone], as speed control should be replaced.

10
BLK
BLK
BRW
",+
BLK
BLU
PNK
RED
BLK
BRW
YEL
BLK
PNK
BRW
BLU
RED
BLU
ORG
ORG
RED
RED
",+
"27
"27
MODEL: Dualit QCS-2-800 (4 Tube) - SERIES
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO DUALIT LTD.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
065266 09/10/2002

11
",5
2%$
/2'
"27
9%, ",+
"27
0.+
",5
/2'
2%$
2%$
",+
"27
"27
",+
0.+
2%$
",+
",5
"27
"27
",+
MODEL: QCS-3-1000 (4 TUBE) - PARALLEL
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO DUALIT LTD.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
065607 02/24/2003

12
1
2
4
5
6
78
9
11131214
10
7
26
15
16
17
18
19
20
22
23
24
25
27 28 29 30
31
32
33
34
36
21
35
3
38
MODEL:
QCS CONVEYOR TOASTER
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO DUALIT LTD.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
SK2133 03/31/2005
37

13
PARTS LIST
QCS-2-800
Conveyor Toasters
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description & Model
Part
Number
Key
Number
Dualit, Ltd.
1 HF-101372 1 ENCLOSURE, QCS2
2 HF-402449 1 PANEL, BACK, QCS2
3 HC-100571 1 BAFFLE, AIR FLOW
4 2U-200560 1 MOTOR, FAN, 230V
5 2U-200590 1 MOTOR, DRIVE (INCLUDES FAN)
6 2A-202900 1 SHAFT, DRIVE
7 HA-112261 2 BUSHING, REAR
8 2P-Z8779 1 SPROCKET, DRIVEN (25B11 X 5/16”)
9 2P-200645 1 SPROCKET, DRIVE (25B17 X 5/16”)
10 2P-150013 1 CHAIN, DRIVE (19”)
11 2P-115501 3 JUMPER, TERMINAL BLOCK, SMALL, 2 POS.
12 2P-115502 1 JUMPER, TERMINAL BLOCK, SMALL, 3 POS.
13 HC-115381 1 BLOCK, TERMINAL, SMALL, 4 POS.
14 HC-115390 1 BLOCK, TERMINAL, SMALL, 10 POS.
15 2R-200562 1 GUARD, FAN MOTOR
16 2R-200709 4 LEG, 1” CHROME PLASTIC
17 2P-200736 2 SPRING, BUSHING, FRONT
18 2P-200700 2 BUSHING, FRONT
19 2A-202904 1 SHAFT, IDLER
20 SP-160027 1 BELT, CONVEYOR (10” X 35 - 1/2”)
22 HA-100560 1 TRAY, PULL-OUT
23 HC-402457 1 CRUMB TRAY
24 2R-200789 1 CRUMB TRAY GUARD
25 2B-200763 1 LOAD-UP WIRE RACK
26 2A-200284 1 E-CLIP
27 2E-200551 1 SWITCH, ROTARY POWER SAVER
28 2J-200538 2 SWITCH, INFINITE
29 2P-402728 1 ANTI-SPIN PLATE
30 HO-118050 1 SWITCH, SPEED CONTROL, 500 OHM
31 2E-200566 1 SWITCH, HIGH LIMIT RESET
32 2R-200708 4 CAP, KNOB
33 2R-200768 1 KNOB, CONTROL SERIES
33 2R-200769 3 KNOB, SPEED CONTROL & POWER SAVER
34 2M-201818 1 LABEL, CONTROL PANEL
35 2J-200427 1 LIGHT, PILOT LONG
36 HO-197842 4 HEATER TUBE, QUARTS
37 HC-402706 1 RETAINER, ELEMENT, 4 TUBE
38 HI-101117 1 TRAY, CRUMB ASSEMBLY, DUALIT QCS - 2 TOASTER
NOT ILLUSTRATED
NI 2E-200379 1 CORD, POWER DUALIT 12GA
NI 2E-200387 1 CORD, FAN MOTOR
NI 2K-200463 1 BUSHING, CORD HEYCO
NI 2R-200721 1 BLADE, FAN 2-5/16” (drive motor)
NI 1P-Z8914 1 EXTREME PRESSURE MULTIPURPOSE SYNTHETIC GREASE (-62°C TO 204°C) , TUBE 8 oz.
1
1

14
1 HJ-101373 1 ENCLOSURE, QCS3
2 HH-402470 1 PANEL, BACK, QCS3
3 HI-100573 1 BAFFLE, AIR FLOW
4 2U-200561 1 MOTOR, FAN, 240V
5 2U-200590 1 MOTOR, DRIVE (INCLUDES FAN)
6 2A-202902 1 SHAFT, DRIVE
7 HA-112261 2 BUSHING, REAR
8 2P-Z8779 1 SPROCKET, DRIVEN (25B11 X 5/16”)
9 2P-200646 1 SPROCKET, DRIVE (25B20 X 5/16”)
10 2P-150013 1 CHAIN, DRIVE (19”)
11 2P-115501 3 JUMPER, TERMINAL BLOCK, SMALL, 2 POS.
12 2P-115502 1 JUMPER, TERMINAL BLOCK, SMALL, 3 POS.
13 HC-115381 2 BLOCK, TERMINAL. SMALL, 4 POS.
14 HC-115390 1 BLOCK, TERMINAL, SMALL, 10 POS.
15 2R-200562 1 GUARD, FAN MOTOR
16 2R-200709 4 LEG, 1” CHROME PLASTIC
17 2P-200736 2 SPRING, BUSHING, FRONT
18 2P-200700 2 BUSHING, FRONT
19 2A-202905 1 SHAFT, IDLER
20 SP-160028 1 CONVEYOR, BELT (14” X 35”)
21 2B-200603 3 LINK, MASTER, CONVEYOR BELT
22 HH-100561 1 TRAY, PULL-OUT
23 HH-402465 1 TRAY, CRUMB
24 2R-200669 1 GUARD, CRUMB TRAY
25 2B-200764 1 WIRE RACK, LOAD-UP
26 2A-200284 1 E-CLIP
27 2E-200551 1 SWITCH, ROTARY POWER SAVER
28 2J-200538 2 SWITCH, INFINITE
29 2P-402728 1 ANTI-SPIN PLATE
30 HO-118050 1 SWITCH, SPEED CONTROL, (500 ohm)
31 2E-200566 1 SWITCH, HIGH LIMIT RESET
32 2R-200708 4 CAP, KNOB
33 2R-200768 1 KNOB, POWER SAVER
33 2R-200769 3 KNOB, SPEED CONTROL, INFINITE SWITCH
34 2M-201818 1 LABEL, CONTROL PANEL
35 2J-200427 1 LIGHT, PILOT LONG
36 HT-197850 4 HEATER TUBE QUARTS ELEMENT
37 HC-402499 1 RETAINER, ELEMENT
38 HI-101118 1 TRAY, CRUMB ASSEMBLY, DUALIT QCS - 3 TOASTER
NOT ILLUSTRATED
NI 2E-200379 1 CORD/PLUG SET (POWER)
NI 2E-200387 1 CORD, FAN MOTOR
NI 2K-200465 1 BUSHING, CORD HEYCO
NI 2R-200721 1 BLADE, FAN 2-5/16” (drive motor)
NI 1P-Z8914 1 EXTREME PRESSURE MULTIPURPOSE SYNTHETIC GREASE (-62°C TO 204°C) , TUBE 8 oz.
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description
Part
Number
Key
Number
1
1
PARTS LIST
QCS-3-1000
Conveyor Toasters
Dualit, Ltd.
