Ducati Superbike 848evo Corse User manual

cod 913.7.205.1A

1
ENGLISH
Owner’s manual

2
This manual forms an integral part of the motorcycle and must be kept with it for its whole service life. If the
motorcycle is resold, the manual must always be handed over to the new owner.
This manual must be preserved with care.
If it is lost or becomes damaged, contact a Ducati Dealer or authorised Service Centre without delay to obtain
a new copy of the manual.
The quality standards and safety of Ducati motorcycles are steadily improved as new design solutions,
equipment and accessories are developed. While the information contained in this manual is current at the
time of going to print, Ducati Motor Holding S.p.A. reserves the right to make changes at any time without
notice and without any obligations. For this reason, the illustrations in this manual might differ from your
motorcycle.
Any and all reproduction or spreading of the contents herein in whole or in part is forbidden. All rights
reserved to Ducati Motor Holding S.p.A. Any request for written authorisation to do so shall be addressed to
this company, specifying the reasons for request.
For any servicing or suggestions you might need, please contact our authorised service centres. We also
provide an information service for all Ducati owners and enthusiasts for any advice and suggestions you
might need.
Enjoy your ride!

3
Foreword
We would like to welcome you among Ducati
enthusiasts, and congratulate you on your excellent
choice of motorcycle. We think you will ride your
Ducati motorcycle for long journeys as well as short
daily trips. Ducati Motor Holding S.p.A. wishes you
smooth and enjoyable riding.
Your motorcycle is the result of Ducati Motor Holding
S.p.A.'s on-going research and development efforts.
It is important that you preserve its quality standard
by strictly observing the maintenance plan and using
genuine spare parts.
This manual provides instructions on minor
maintenance operations.
Major maintenance operations are described in the
Service Manual available to Ducati Authorised
Service Centres.
In your own interest, for your safety and in order to
guarantee product reliability, you are strongly advised
to refer to our authorised Dealers and Service
Centres for any operations listed in the scheduled
maintenance chart, see page 122.
Our highly skilled staff have access to special
implements and appropriate equipment required to
perform any servicing job at best, and use Ducati
original spare parts only as the best guarantee for full
interchangeability, smooth running and long life.
All Ducati motorcycles come with a Warranty Card.
The warranty does not apply to motorcycles used in
racing competitions.
Tampering with or altering any components, even
partially, will make the warranty null and void
effective immediately.
Improper or poor maintenance, using other than
original spare parts or parts not expressly approved
by Ducati may invalidate your warranty rights and
lead to damage or loss of performance.

4
Table of contents
Foreword 3
Safety guidelines 7
Safety alerts 7
Permitted use 8
Rider's obligations 8
Rider training 10
Riding gear 10
Best practices for motorcycle safety 11
Refuelling 13
Carrying the maximum load allowed 14
Dangerous products - warnings 15
Vehicle identification number 17
Engine identification number 18
Instrument panel (Dashboard) 19
Instrument panel 19
LCD unit functions 22
LCD – How to set/display parameters 24
Total distance covered indicator: “Odometer“ 27
Air temperature indicator 28
Vehicle speed indication 29
Engine coolant temperature indicator 30
Trip meter “TRIP A” 31
Trip meter “TRIP B” 32
Distance travelled on fuel reserve: “TRIP FUEL” 33
Service indicator (SERV) 34
Battery voltage indicator (BATT) 35
Engine idle RPM setting (RPM) 36
LAP timer 37
Stored data display (LAP Memory) 39
DDA data acquisition 41
Erase DDA 42
Function for activation/deactivation of DTC (Ducati
Traction Control) 43
Description of the system 43
Activation of the system 44
The functions of the system 44
Routine maintenance 44
DTC (Ducati Traction Control) setting function 45
Tips on how to select the sensitivity level 48
Tips for use on the track 49
Tips for use on the road 49
Quick Shift (DQS ON/OFF) enable / disable
function 50
Clock setting function 51
Instrument panel diagnosis 53
Instrument panel backlighting 59
Headlight “smart” auto-off 59
Headlight “smart” SWITCH-ON 60
The Immobilizer system 61

5
Keys 61
Code Card 62
Immobilizer override procedure 63
Operation 65
Duplicate keys 65
Service menu - unit of measurement (UNIT SET) 66
Controls 68
Position of motorcycle controls 68
Key-operated ignition switch and steering lock 69
LH switch 70
Clutch lever 71
RH switch 72
Throttle twistgrip 72
Front brake lever 73
Rear brake pedal 74
Gear change pedal 74
Setting the gear change and rear brake pedals 75
Main components and devices 77
Position on the vehicle 77
Fuel tank plug 78
Seat lock 79
Side stand 80
Steering damper 81
Front fork adjusters 82
Rear shock absorber adjusters 84
Riding the motorcycle 86
Running-in recommendations 86
Pre-ride checks 88
Starting the engine 89
Moving off 91
Braking 92
Stopping the motorcycle 93
Parking 93
Refuelling 94
Tool kit and accessories 95
Main maintenance operations 96
Removing the fairing 96
Changing the air filter 100
Checking and topping up coolant level 101
Checking brake and clutch fluid level 102
Checking brake pads for wear 104
Lubricating cables and joints 105
Adjusting throttle control free play 106
Charging the battery 107
Checking drive chain tension 108
Chain lubrication 109

6
Replacing the high and low beam bulbs 110
Replacing the parking light bulb 112
Rear turn indicators 113
Number plate light 113
Beam setting 114
Rear-view mirror adjustment 115
Tubeless tyres 116
Checking engine oil level 118
Cleaning and replacing the spark plugs 119
Cleaning the motorcycle 120
Storing the motorcycle 121
Important notes 121
Maintenance 122
Scheduled maintenance chart: operations to be
performed by the dealer 122
Scheduled maintenance chart: operations to be
performed by the customer 125
Technical data 126
Overall dimensions 126
Weights 126
Engine 128
Timing system 128
Performance data 129
Spark plugs 129
Fuel system 129
Brakes 130
Transmission 131
Frame 132
Wheels 132
Tyres 132
Suspensions 133
Exhaust system 134
Available colours 134
Electrical system 134
Routine maintenance record 140

7
Safety guidelines
Your safety and that of other road users are very
important. Ducati Motor Holding S.p.A. recommends
that you ride responsibly.
Before using your motorcycle for the first time, read
this entire manual carefully and closely follow the
guidelines outlined in it. The manual provides full
information on proper motorcycle operation and
maintenance.
In case of any doubts, please call a Dealer or
Authorised Service Centre.
Safety alerts
To alert you to potential hazards that could potentially
harm you or other persons, the following safety alerts
have been used:
- Safety labels on motorcycle;
- Safety messages preceded by a warning symbol
and the word Warning or Important.
Warning
Failure to comply with these instructions may
put you at risk and result in severe injury to rider or
other persons or even death.
Important
Possibility of damaging the motorcycle and/or
its components.
Note
Additional information concerning the job being
carried out.
The terms RIGHT and LEFT are referred to the
motorcycle viewed from the riding position.

8
Permitted use
This motorcycle must be used only on asphalted
roads or on level, regular pavement.
This motorcycle may not be used for riding on dirt
trails or for off-road riding.
Warning
Off-road riding may lead to loss of control,
resulting in severe damage to vehicle, injury or death.
Warning
This motorcycle may not be used to tow any
trailers or with a side-car attached; this can lead to
loss of control and result in an accident.
This motorcycle carries the rider and can carry a
passenger after the supplied kit is installed. It can
only be installed at a Ducati Dealer or authorised
Service Centre.
Warning
The total weight of the motorcycle in running
order including rider, passenger, luggage and
additional accessories should not exceed 390 kg/859
lb.
Rider's obligations
All riders must hold a valid licence.
Warning
Riding without a licence is illegal and is
prosecuted by law. Always make sure you have your
licence with you when riding. Do not let
inexperienced riders or who do not hold a valid
licence use your motorcycle.
Do not ride under the influence of alcohol and/or
drugs.
Warning
Riding under the influence of alcohol and/or
drugs is illegal and is prosecuted by law.
Do not take prescription or other drugs before riding
unless you have consulted your doctor about their
side effects.
Warning
Some medications and drugs may cause
drowsiness or other effects that slow down reaction
time and the rider's ability to control the motorcycle,
possibly leading to an accident.
Some states require vehicle insurance.

9
Warning
Check your state laws. Obtain insurance
coverage and keep your insurance document secure
with the other motorcycle documents.
To protect rider and passenger safety, some states
mandate the use of a certified helmet.
Warning
Check your state laws. Riding without a helmet
may be punishable by law.
Warning
Riders without helmets are more likely to suffer
severe bodily injury or die if they are in an accident.
Warning
Check that your helmet complies with safety
specifications, permits good vision, is the right size
for your head, and carries a certification label
indicating that it conforms to the standards in force in
your state.
Traffic laws differ from state to state. Learn about
traffic laws in your state before riding and always
obey them.

10
Rider training
Accidents are frequently due to inexperience. Driving
a motorcycle is different from driving other vehicles
and requires specific riding and braking techniques.
Warning
Poor training or improper operation of the
vehicle can lead to loss of control, death or severe
damage.
Riding gear
Riding gear is very important for safety. Unlike cars,
a motorcycle offers no impact protection in an
accident.
Proper riding gear includes helmet, eye protection,
gloves, boots, long sleeve jacket and long pants.
- The helmet must the requirements listed at page
9; if your helmet does not have a visor, use
suitable eye wear;
- Use five-finger gloves made from leather or
abrasion-resistant material;
- Riding boots or shoes must have non-slip soles
and offer ankle protection;
- Jacket, pants or riding suit must be made from
leather or abrasion-resistant material and have
high-visibility colours and inserts.
Important
Never wear loose clothing, items or accessories
that may become tangled in motorcycle parts.
Important
For your safety, always wear proper protective
gear, regardless of season and weather.
Important
Have your passenger wear proper protective
clothing.

11
Best practices for motorcycle safety
These few simple operations are critical to people
safety and to preserving the full performance of your
motorcycle. Never forget to perform them before,
while and after riding.
Important
Closely follow the indications provided at page
86 during the running-in period. Failure to follow
these instructions releases Ducati Motor Holding
S.p.A. from any liability whatsoever for any engine
damage or shorter engine life.
Warning
Before riding your motorcycle, become familiar
with the controls you will need to use when riding.
Perform the checks recommended in this manual
before each ride (see page 88).
Warning
Failure to carry out these checks before riding,
may lead to motorcycle damage and injury to rider
and/or passenger.
Warning
Start the engine outdoors or in a well ventilated
area. The engine should never be started or run
indoors.
Exhaust gases are poisonous and may lead to loss of
consciousness or even death within a short time.
Use proper body position while riding and ensure
your passenger does the same.
Important
Rider must hold the handlebars with both hands
AT ALL TIMES while riding.
Important
Both rider and pillion passenger should keep
their feet on the footpegs when the motorcycle is in
motion.
Important
The pillion passenger should always hold on to
the strap placed on the passenger seat with both
hands.

12
Important
Be very careful when tackling road junctions, or
when riding in the areas near exits from private
grounds, car parks or on slip roads to access
motorways.
Important
Be sure you are clearly visible and do not ride
within the blind spot of vehicles ahead.
Important
ALWAYS signal your intention to turn or pull to
the next lane in good time using the suitable turn
indicators.
Important
Park your motorcycle where no one is likely to
hit it and use the side stand.
Never park on uneven or soft ground or your
motorcycle may fall over.
Important
Visually inspect the tyres at regular intervals for
detecting cracks and cuts, especially on the side
walls, bulges or large spots that are indicative of
internal damage. Replace them if badly damaged.
Remove any stones or other foreign bodies caught in
the tread.
Warning
The engine, exhaust pipes and silencers remain
hot for a long time after engine is switched off; pay
particular attention not to touch exhaust system with
any body part and do not park the vehicle next to
inflammable material (wood, leaves etc.).
Warning
Always remove the key when you leave your
motorcycle unattended and make sure it is not
accessible to persons not authorised to use the
motorcycle.

13
Refuelling
Refuel outdoors with the engine turned off.
Do not smoke or use open flames when refuelling.
Be extremely careful not to spill fuel on the engine or
on the exhaust pipe.
Never fill the tank completely. Fuel should never be
touching the rim of filler recess.
While refuelling, avoid inhaling fuel vapours and avoid
contact with eyes, skin or clothing.
Warning
The vehicle is only compatible with fuel having
a maximum content of ethanol of 10% (E10). Using
fuel with ethanol content over 10% is forbidden.
Using it could result in severe damage of the engine
and motorcycle components. Using fuel with ethanol
content over 10% will make the warranty null and
void.
Warning
In the event of illness after prolonged breathing
of fuel vapours, stay outdoors and seek medical
advice. In the event of contact with eyes, flush with
plenty of water. After contact with skin, wash
immediately with water and soap.
Warning
Fuel is highly inflammable. Clothing with spilled
fuel on it should be removed as possible.

14
Carrying the maximum load allowed
Your motorcycle is designed for long-distance riding,
carrying the maximum load allowed in full safety.
Even weight distribution is critical to preserving these
safety features and avoiding trouble when
performing sudden manoeuvres or riding on bumpy
roads.
Warning
Do not exceed the total permitted weight for
the motorcycle and pay attention to information
provided below regarding load capacity.
Information about carrying capacity
Important
Arrange your luggage or heavy accessories in
the lowest possible position and close to motorcycle
centre.
Important
Never fix bulky or heavy objects to the
handlebar or to the front mudguard as this would
affect stability and cause danger.
Important
Be sure to secure the luggage to the supports
provided on the motorcycle as firmly as possible.
Improperly secured luggage may affect stability.
Important
Do not insert any objects you may need to carry
into the gaps of the frame as these may foul moving
parts.
Warning
Make sure the tyres are inflated to the proper
pressure indicated at page 116 and that they are in
good condition.

15
Dangerous products - warnings
Used engine oil
Warning
Prolonged or repeated contact with used engine
oil may cause skin cancer. If exposed to used engine
oil on a daily basis, make it a rule to wash your hands
thoroughly with soap immediately after use. Keep
away from children.
Brake lining debris
Never attempt to clean the brake assembly using
compressed air or a dry brush.
Brake fluid
Warning
Avoid spilling brake fluid onto plastic, rubber or
painted parts of the motorcycle to avoid the risk of
damage. Protect these parts with a clean shop cloth
before proceeding to service the motorcycle. Keep
away from children.
Warning
The brake fluid used in the brake system is
corrosive. In the event of accidental contact with
eyes or skin, wash the affected area with abundant
running water.
Coolant
Engine coolant contains ethylene glycol, which may
ignite under particular conditions, producing invisible
flames. Although the flames from burning ethylene
glycol are not visible, they are still capable of causing
severe burns.
Warning
Take care not to spill engine coolant on the
exhaust system or engine parts. These parts may be
hot and ignite the coolant, which will subsequently
burn with invisible flames.

16
Coolant (ethylene glycol) is an irritant and is
poisonous when ingested. Keep away from children.
Never remove the radiator cap when the engine is
hot. The coolant will be scalding hot and is under high
pressure.
The cooling fan operates automatically: keep hands
well clear and make sure your clothing does not snag
on the fan.
Battery
Warning
The battery gives off explosive gases; keep it
away from any source of ignition such as sparks,
flames and cigarettes. Charge the battery in a well-
ventilated area.

17
Vehicle identification number
Note
These numbers identify the motorcycle model
and should always be indicated when ordering spare
parts.
It is recommended to record the frame number of
your motorcycle in the space below.
Frame number
fig. 1

18
Engine identification number
Note
These numbers identify the motorcycle model
and should always be indicated when ordering spare
parts.
It is recommended to record the number of your
motorcycle's engine in the space below.
Engine number
fig. 2

19

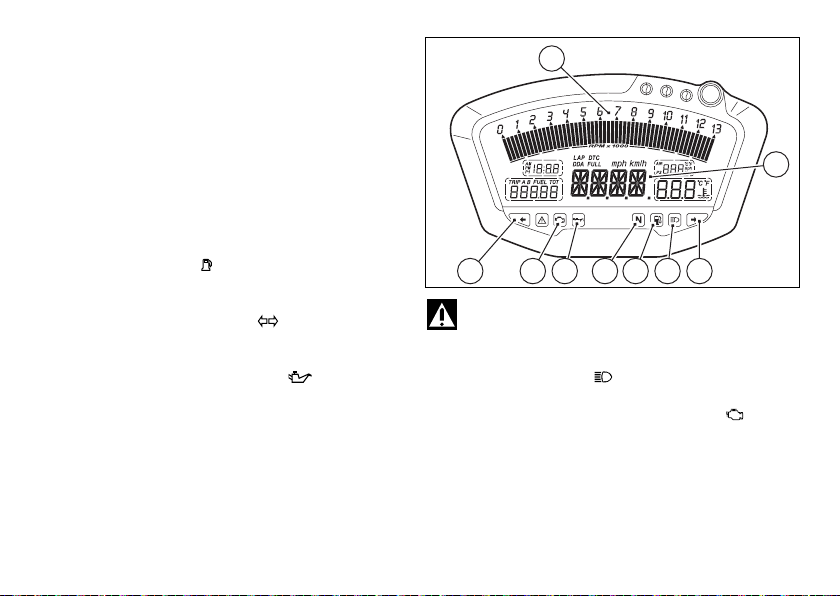

Instrument panel (Dashboard)
Instrument panel
1) LCD, (see page 22)
2) REVOLUTION COUNTER (rpm).
Shows the engine rotation speed/minute (rpm).
3) NEUTRAL LIGHT N (GREEN).
Comes on when in neutral position.
4) LOW FUEL LIGHT (YELLOW).
Comes on when fuel is low and there are about 3
litres of fuel left in the tank.
5) TURN INDICATOR LIGHTS (GREEN).
Illuminates and flashes when the turn indicator is in
operation.
6) ENGINE OIL PRESSURE LIGHT (RED).
Comes on when engine oil pressure is too low. It
briefly comes on when the ignition is switched to ON
and normally goes out a few seconds after engine
starts.
It may shortly come on when the engine is hot,
however, it should go out as the engine revs up.
Important
If this light (6) stays on, stop the engine or it may
suffer severe damage.
7) HIGH BEAM LIGHT (BLUE).
Comes on when high beam is on.
8) “ENGINE DIAGNOSIS- EOBD” LIGHT
(AMBER YELLOW).
The engine ECU illuminates this light to indicate
errors and consequent engine lock.
2
1
5 8 6 3 4 57
fig. 3
