Foreword
This instruction manual is intended to help the user to become familiar
with the machine and take advantage of its application possibilities in
accordance with the recommendations.
The instruction manual contains important information on how to
operate the machine securely, properly and economically. Observation
of the instructions eliminates danger, reduces costs for repair and
down-times, and increases the reliability and life of the machine.
The instruction manual is intended to complement existing national
accident prevention and environment protection regulations.
The instruction manual must always be available at the machine/sewing
unit.
The instruction manual must be read and applied by any person that is
authorized to work on the machine/sewing unit. This means:
–Operation, including equipping, troubleshooting during the work
cycle, removing of fabric waste,
–Service (maintenance, inspection, repair) and/or
–Transport.
The user also has to assure that only authorized personnel work on the
machine.
The user is obliged to check the machine at least once per shift for
apparent damages and to immediatly report any changes (including the
performance in service), which impair the safety.
The user company must ensure that the machine is only operated in
perfect working order.
Never remove or disable any safety devices.
If safety devices need to be removed for equipping, repairing or
maintaining, the safety devices must be remounted directly after
completion of the maintenance and repair work.
Unauthorized modification of the machine rules out liability of the
manufacturer for damage resulting from this.
Observe all safety and danger recommendations on the machine/unit!
The yellow-and-black striped surfaces designate permanend danger
areas, eg danger of squashing, cutting, shearing or collision.
Besides the recommendations in this instruction manual also observe
the general safety and accident prevention regulations!

General safety instructions
The non-observance of the following safety instructions can cause
bodily injuries or damages to the machine.
1. The machine must only be commissioned in full knowledge of the
instruction book and operated by persons with appropriate training.
2. Before putting into service also read the safety rules and
instructions of the motor supplier.
3. The machine must be used only for the purpose intended. Use of
the machine without the safety devices is not permitted. Observe all
the relevant safety regulations.
4. When gauge parts are exchanged (e.g. needle, presser foot, needle
plate, feed dog and bobbin) when threading, when the workplace is
left, and during service work, the machine must be disconnected
from the mains by switching off the master switch or disconnecting
the mains plug.
5. Daily servicing work must be carried out only by appropriately
trained persons.
6. Repairs, conversion and special maintenance work must only be
carried out by technicians or persons with appropriate training.
7. For service or repair work on pneumatic systems, disconnect the
machine from the compressed air supply system (max. 7-10 bar).
Before disconnecting, reduce the pressure of the maintenance unit.
Exceptions to this are only adjustments and functions checks made
by appropriately trained technicians.
8. Work on the electrical equipment must be carried out only by
electricians or appropriately trained persons.
9. Work on parts and systems under electric current is not permitted,
except as specified in regulations DIN VDE 0105.
10. Conversion or changes to the machine must be authorized by us
and made only in adherence to all safety regulations.
11. For repairs, only replacement parts approved by us must be used.
12. Commissioning of the sewing head is prohibited until such time as
the entire sewing unit is found to comply with EC directives.
13. The line cord should be equipped with a country-specific mains
plug. This work must be carried out by appropriately trained
technicians (see paragraph 8).
It is absolutely necessary to respect the safety
instructions marked by these signs.
Danger of bodily injuries !
Please note also the general safety instructions.

Index Page:
Part 2: Installation instructions class 171 173
1. Scope of delivery .............................................. 3
2. General notes and securing devices .................................. 3
3. Assembling the stand
3.1 Assembling the stand components .................................... 4
3.2 Completingthetabletopwiththecontrolandfasteningittothestand............... 5
3.3 Self-manufacture of the table top ..................................... 5
3.4 Settingtheworkingheight ......................................... 6
4. Sewing drives
4.1 Drive category, type and use ....................................... 7
4.2 Numbers of stitches for three-phase current drives depending on the average
beltpulleydiameter ............................................. 7
4.3 Mounting the sewing drive ......................................... 8
4.4 Mounting the pedal .............................................. 8
4.5 Mounting the control for machines with direct drive .......................... 9
4.6 Mounting the set value initiator ...................................... 9
5. Mounting the machine head
5.1 Fitting the machine head .......................................... 10
5.2 Earthing .................................................... 11
5.3 FittingandtensioningtheV-belt...................................... 12
6. Connecting the sewing drive
6.1 Connecting the sewing drive to the mains ................................ 14
6.2 Mounting the sewing lamp (optional equipment) ............................ 14
6.3 Connecting the control DA220C ...................................... 14
6.4 Settingthemachine-specificparameters................................. 15
7. Adjusting the sewing drive
7.1 Rotationsenseofthesewingdrive.................................... 16
8. Pneumatic connection ........................................... 17
9. Lubrication
9.1 Oilreturn.................................................... 19
10. Sewing test .................................................. 19
GB

2
1
5
3
9
6
4
7
10
8

1. Scope of delivery
The scope of delivery is dependent on your order.
Prior to setting up, please check that all required parts are present.
This description is valid for a special sewing machine the individual
components of which are completely delivered by Dürkopp Adler AG.
Equipment (according to subclass):
–1 Thread reel holder
–2 Table top
–3 Control with main switch
–4 Maintenance unit
–5 Pedal rods
–6 Pedal
–7 Set value initiator (packed with the control unit)
–8Drawer
–9 Stand
–10 Machine head with sewing drive
2. General notes and securing devices
ATTENTION !
The special sewing machine must only be assembled by trained
specialists.
Securing devices
If you have bought an assembled special sewing machine, the
following securing devices have to be removed:
–Tapes and battens at machine head, table and stand.
3
GB

3. Assembling the stand
3.1 Assembling the stand components

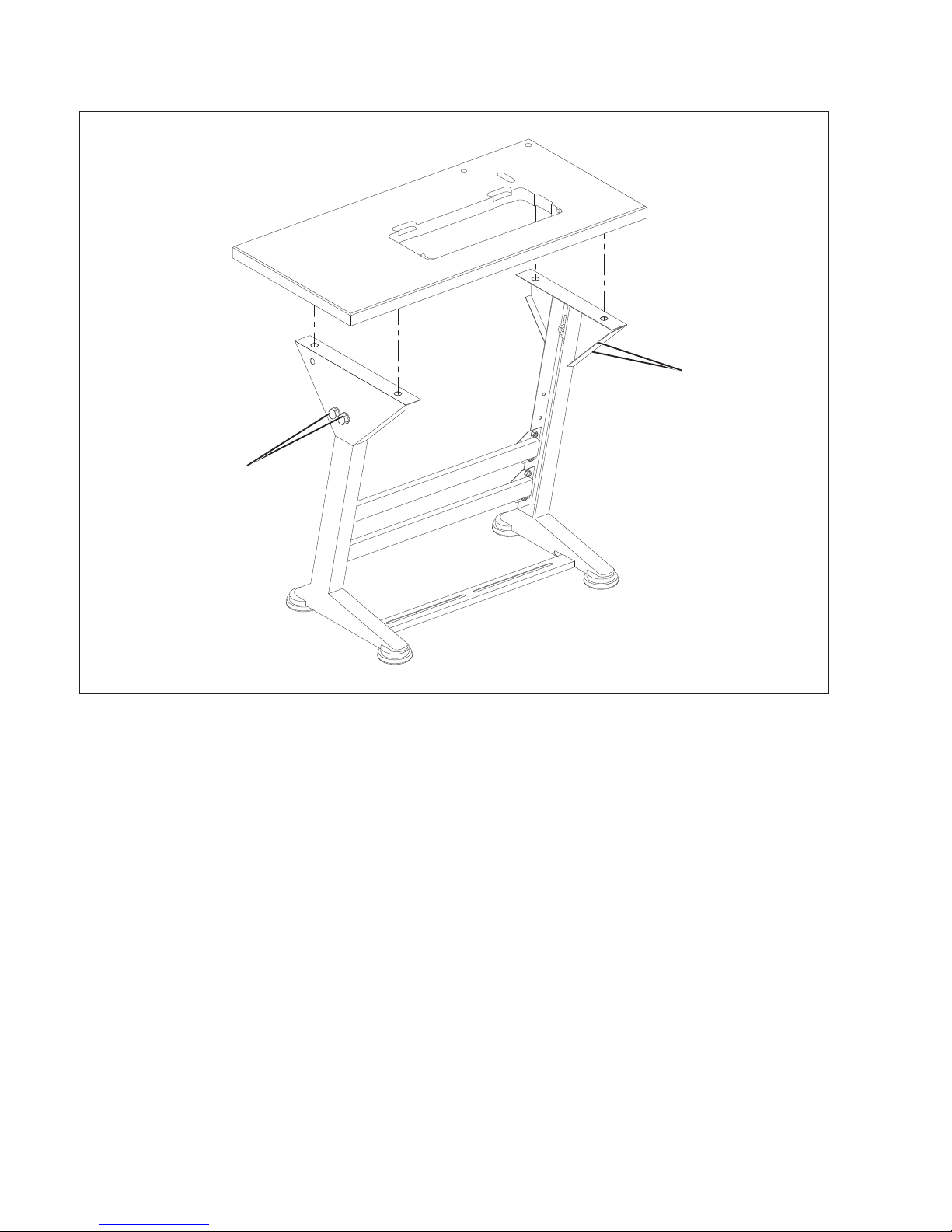

–Mount the individual parts of the stand as shown in the illustration.
–Push the attached four stand feet 6 on.
–Slightly loosen the screws 4 on both sides of the cross struts 7 to
ensure the stability of the stand.
The stand must rest on the floor with all four feet!
–Tighten the screws 4 again.
–Screw on holder 8 for the oil can at the left stand spar.
4
1
2
3
4
5
6
7
15
14
13
12
11
10
9
8
14 13

GB

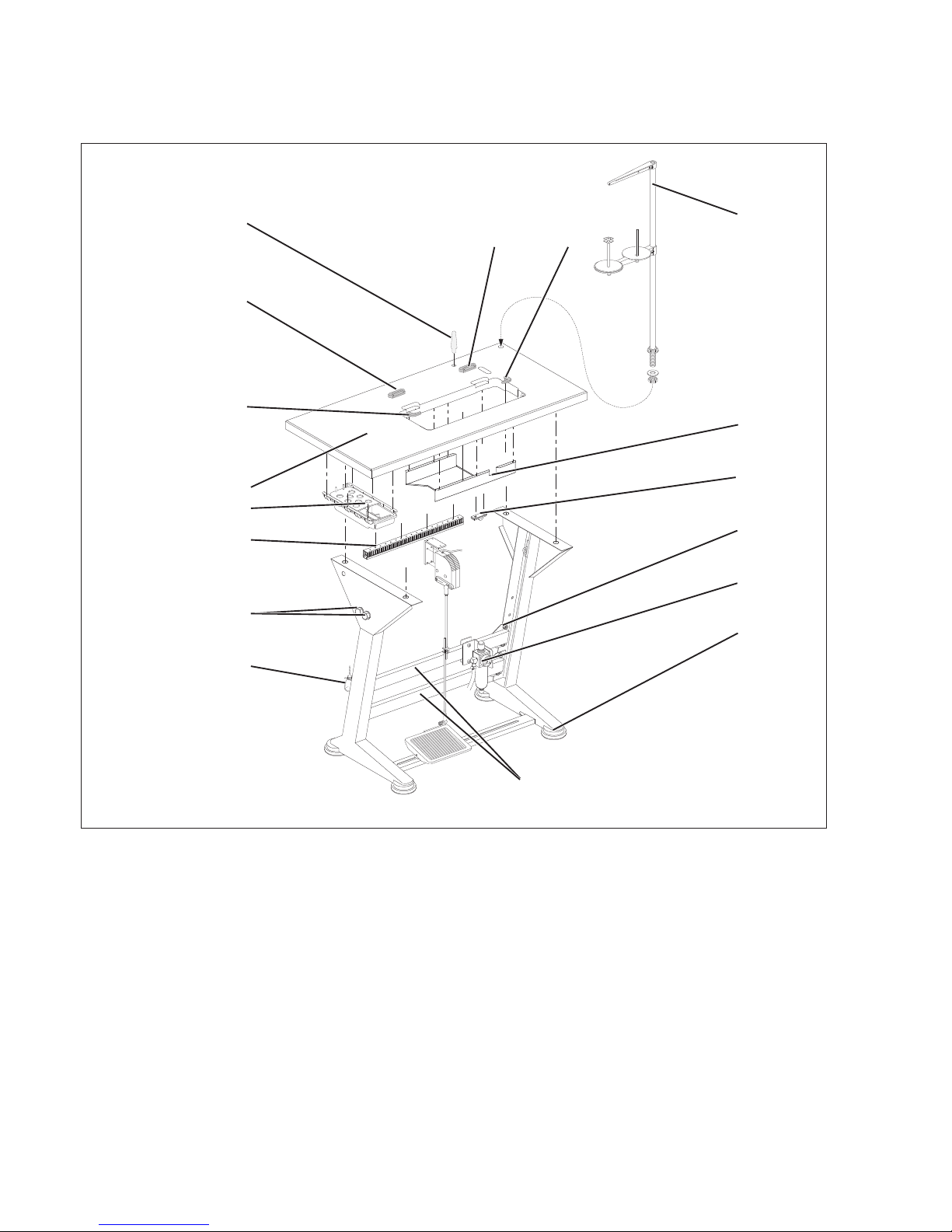

3.2 Completing the table top with the control and fastening it to the stand
–Insert the machine head support 15 into the bore of the table top
(class 171 only).
–Insert the rubber supports 14 for the machine head into the
recesses of the table top 12.
–Insert rubber corner 13.
–Screw drawer 11 with its holders underneath the table top on the
left.
–Screw cable duct 10 underneath the table top at the back.
–Punch-mark the positions of the screw connections of the oil drip
pan 2 and fasten it with wood screws under the cutout of the table
top.
–Fasten the table top 12 with wood screws (B8 x 35) on top of the
stand.
The alignment on the stand is specified by the measurements
indicated in the sketch.
–Insert the thread reel holder 1 into the bore of the table top and
fasten it with nuts and washers.
Mount and align thread reel holder and thread guiding arm.
The thread reel holder and the thread guiding arm must be
positioned vertically on top of each other.
3.3 Self-manufacture of the table top
If you manufacture the table top yourself, please take the
measurements from the illustrations on page 20 and 21.
5
6 7 m m
5 0 0 m m
1 0 6 0 m m
1 0 0 m m

3.4 Setting the working height
–The working height can be adjusted between 750 and 900 mm
(measured up to the top edge of the table top).
–Loosen screws 1 at the spars of the stand.
–Position the table top horizontally at the desired working height.
In order to avoid jamming pull out or push in both sides of the table top
equally.
–Fasten both screws 1.
6
1
1

4. Sewing drives
4.1 Drive category, type and use
The following sewing drives are available:
Subclass Clutch motor Clutch DC
positioning drive positioning drive
0171-131110 FIR 1147-F.752.3 9889 017101 1
FIR 1148.552.3
0171-141621 Efka DC1500/DA220C
0173-141110 FIR 1147-F.752.3 9889 017101 1
FIR 1148.552.3
0173-141621 Efka DC1500/DA220C
4.2 Numbers of stitches for three-phase current drives depending on the average
belt pulley diameter
50 Hz 60 Hz
3800 stitches/min 80 mm 67 mm
4000 stitches/min 85 mm 71 mm
4200 stitches/min 90 mm 75 mm
4500 stitches/min 95 mm 80 mm
4800 stitches/min 100 mm 85 mm
5000 stitches/min 106 mm 90 mm
5500 stitches/min 112 mm 95 mm
6000 stitches/min 125 mm 118 mm
6600 stitches/min 140 mm 125 mm
7
GB

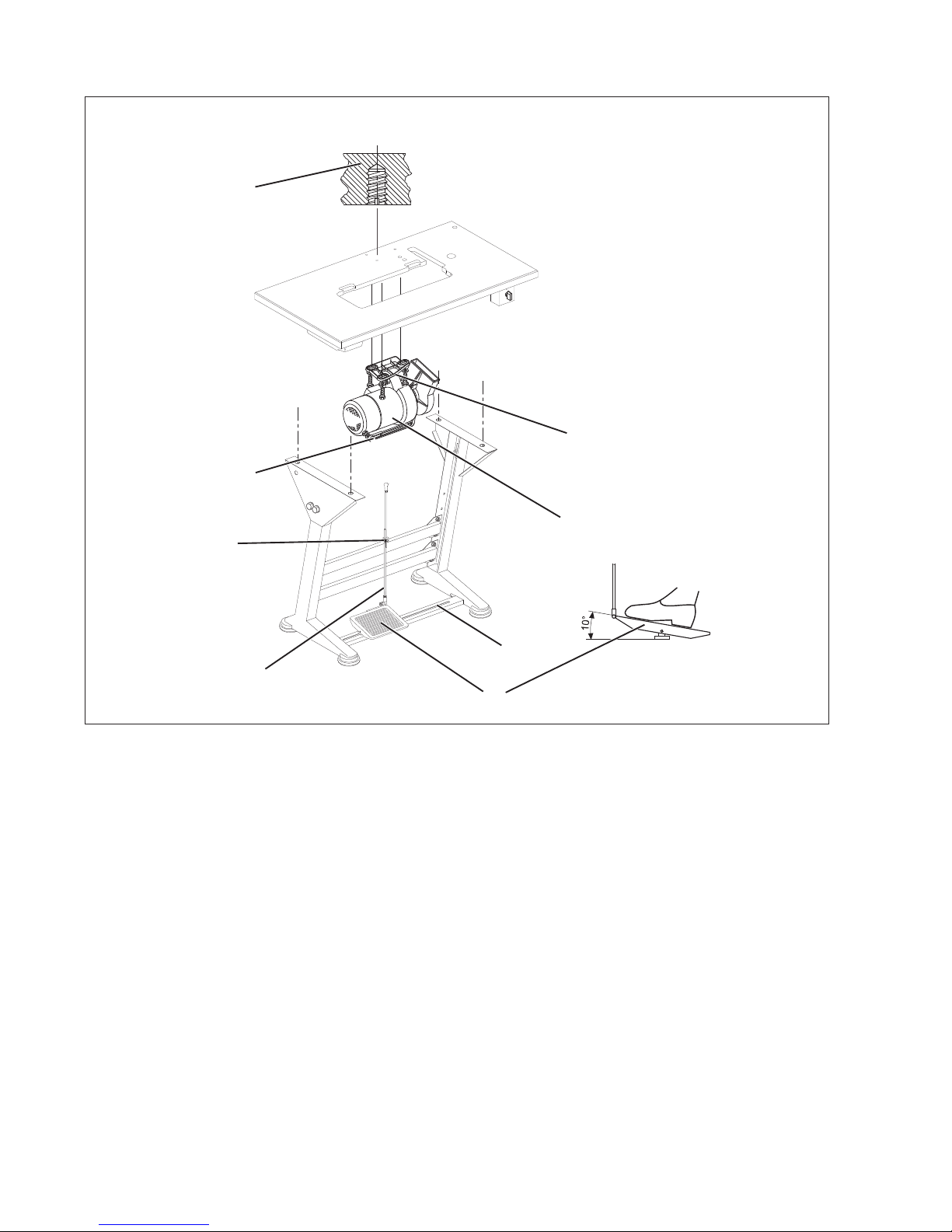

4.3 Mounting the sewing drive
–Fasten the sewing drive 2 with its base 1 to the underside of the
table top.
For this purpose screw the 3 hexagonal bolts (M8 x 15) with
washers in the screwed inserts 8 of the table top.
4.4 Mounting the pedal
–Fasten pedal 4 on the stand strut 3.
–Align pedal 4 as follows for ergonomical reasons:
The center of the pedal has to be approximately under the needle.
The stand strut 3 is equipped with slotted holes for aligning the
pedal.
–Screw the ball pin from the central bore into the front bore of
lever 7.
–Hang in the pedal rods 5.
–Loosen screw 6 slightly.
–Adjust the height of the pedal rods 5 as follows:
The discharged pedal 4 should have an inclination of approx. 10°.
–Tighten screw 6.
8
2
1
8
4
3
7
5
6

4.5 Mounting the control for machines with direct drive
–Mount control 1 with 4 screws under the table top 8.
–Fasten the power supply cable of the control with the strain relief
clamp under the table top.
4.6 Mounting the set value initiator
–Screw angle 7 under the table top 8.
–Screw the set value initiator 2 on angle 7.
9
GB
1
8
2
5
7
6
3
4

5. Mounting the machine head
5.1 Fitting the machine head
ATTENTION!
Remove the supporting screws at the front and in the center before
tilting the machine head into the working position.
–Insert machine head 1 in tilted position into the cutout of the table
top.
–Remove the support screws 2 at the front and in the center.
–Remove the safety bar 3.
10
1
2
3

5.2 Earthing (direct drive)
The earthing wire on the sewing machine head bleeds off static
charges of the machine head via the motor control unit to the mass.
–Fasten the earthing wire 3 to the provided connection at the
control.
–Guide the earthing wire 3 upwards and fasten it with screw 1 and
flat connection 2 to the base plate of the machine.
11
GB
2
1
3

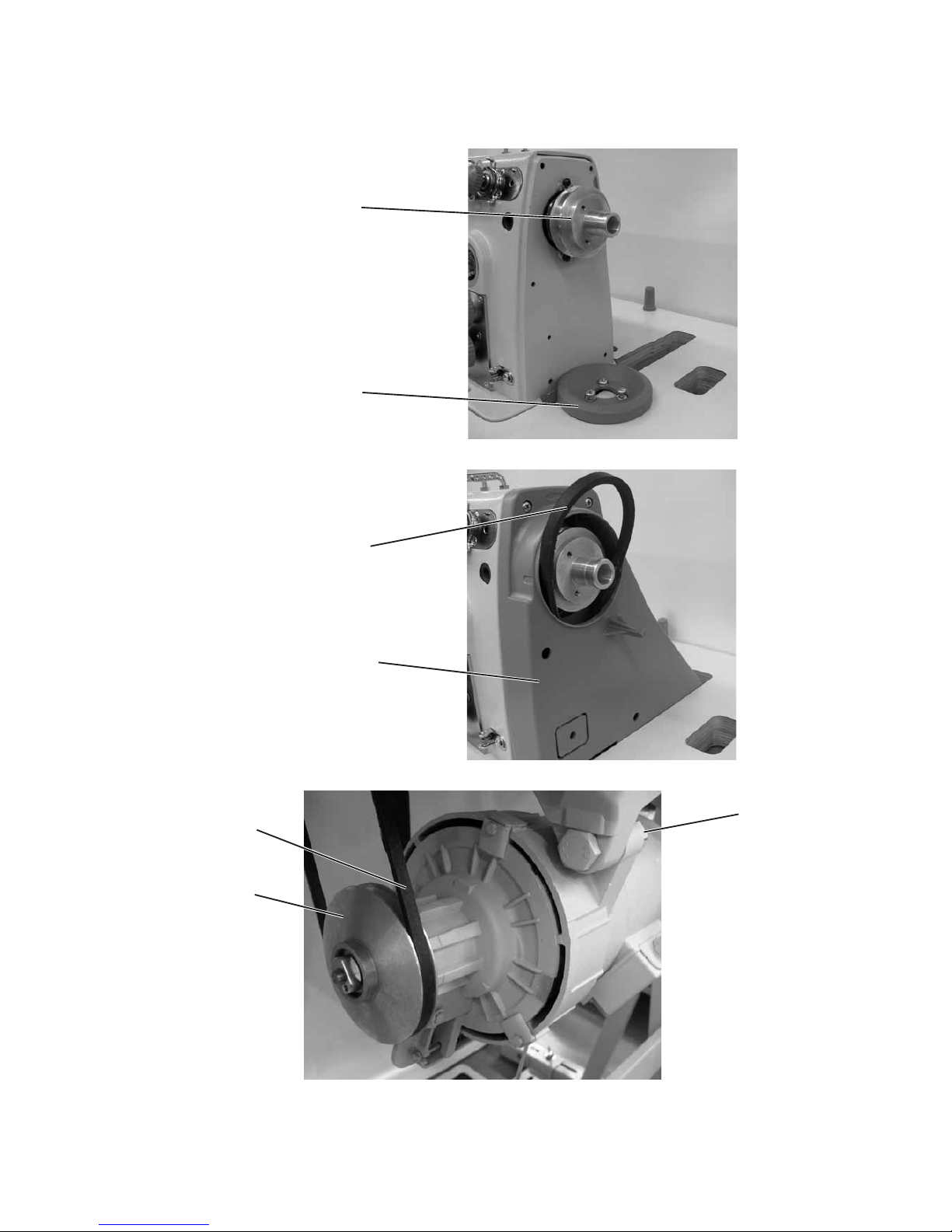

5.3 Fitting and tensioning the V-belt
12
6
2
1
3
5
4
3

Dismounting the protective devices
–Remove the handwheel 2.
–Remove the cover of the belt protection at the sewing drive.
Fitting the V-belt on and mounting the protective devices
–Guide the V-belt 3 through the belt protection 1 and place it on the
belt pulley 6 of the machine head .
–Guide the V-belt 3 downward through the cutout of the table top .
–Tilt the machine head back.
–Put the V-belt 3 on the belt pulley 5 at the sewing drive.
–Move the machine head to the front again.
–Mount the handwheel 2.
Tensioning the V-belt
–Loosen screws 4 at the base of the sewing drive.
–Tension the V-belt by swivelling the sewing drive.
If the belt tension is correct, it must be possible to bend the V-belt 3
in the middle by approx. 10 mm to the inside at the touch of a finger
(without much effort).
–Tighten the screws 4.
Mounting the belt protection at the sewing drive
–Adjust the slip-off protections (adjustable cams or angles according
to the drive type) of the belt protection as follows:
When the machine head is tilted back, the V-belt 3 must rest on the
belt pulleys.
See also the operating instructions of the motor manufacturers.
–Screw on the cover of the belt protection.
GB
13

6. Connecting the sewing drive
6.1 Connecting the sewing drive to the mains
ATTENTION !
Work of every kind on the electric equipment of the special sewing
machine must only be carried out by electricians or correspondingly
trained personnel.
The mains plug has to be pulled out!
The manufacturer’s operating instructions enclosed to the sewing
drive have to be observed in any case!
6.1.1 Connecting the clutch motor
–Run the connection cable from the main switch through the cable
duct to the sewing drive and connect it to the sewing drive.
See connecting diagram 9800 169002 B (in the connection
package) or wiring diagram at the clutch motor.
–Run the mains cable from the main switch through the cable duct to
the back and fasten it with the strain relief clamp.
6.2 Mounting the sewing lamp (optional equipment)
See instructions 0791 100700.
6.3 Connecting the control DA220C
14
1
B 7 7 6
V 8 . .
B 1 8
L S M . . .
B 2
M
B 8 0
E B . . .
B 4 1
M
A
B41
B2
A
B80
B776
2

–Plug the cable of the reference value transmitter (pedal) into
bushing B80 of the control.
–Plug the cable of the motor sensor 1 into bushing B2 of the control.
–Plug the cable 2 of the motor into bushing B41 of the control.
–Plug the cable to the sewing machine into bushing A of the control.
–Run all cables through the cable duct.
–Cable of the control panel (optional equipment) into bushing B776.
6.4 Setting the machine-specific parameters
6.4.1 General notes
The functions of the sewing drive control are determined by the
program and the setting of parameters.
Upon delivery of the sewing drives the parameter values are preset by
Efka (preset values). For every class and subclass some parameters
have to be changed in the „technician level" and some in the „supplier
level" in order to optimally adapt the control to the machine. The
parameters concerned are listed on the parameter sheet (in the
accessories) .
The parameter 290 (selection of the machine class) has to be set to
the value 1 (for cl. 171) / value 2 (for cl. 173) in the “supplier level”.
Furthermore, the parameter 170 (setting of the reference position) has
to be set in the “technician level”. The setting “position (EP)” is the
penetration point of the needle into the throat plate.
Please take the detailed description of the control from the attached
current operating instructions of the motor manufacturer (see also
www.efka.net).
6.4.2 Autoselect
By measuring the Autoselect resistance in the machine the control
“recognizes” which machine series is connected. By means of
Autoselect control functions and the preset values of the parameters
are selected. If no Autoselect resistance or an invalid one is
recognized by the control, the drive will run with the so-called
emergency operation functions only in order to protect the machine
from being damaged.
15
GB

7. Adjusting the sewing drive
7.1 Rotation sense of the sewing drive
Attention!
Before putting the special sewing machine into operation check the
rotation sense of the sewing drive by all means!
Operating the special sewing machine with a wrong rotation sense
may cause damage.
7.1.1 Checking the rotation sense of clutch motors (to be mounted under the table top only)
The rotation sense of the clutch motor (three-phase a.c. motor) is
dependent on the connection to the three-phase supply network.
Before the start of operation the rotation sense has to be checked.
Please proceed as follows:
–Connect the clutch motor, make the potential equalisation and
connect the sewing drive to the mains.
(see chapter 6.1.1 and 5.3)
–Switchthemainswitchon.
–Actuate the pedal (or the clutch lever of the motor respectively),
until the belt pulley rotates.
–The belt pulley must rotate counter-clockwise (view on the belt
pulley).
7.1.2 Changing the rotation sense of clutch motors (to be mounted under the table top only)
If the rotation sense of the sewing drive is wrong, two phases have to
be exchanged at the clamps of the mains connection of the sewing
drive. Please proceed as follows:
–Switch the main switch off and pull out the mains plug!
–Exchange two of the three live power supply conductors at the
mains connection of the sewing drive.
–Plug in the mains plug and switch the main switch on.
–Check the rotation sense (see chapter 7.1.1).
16
