1. Product Description
The Dürkopp Adler 550-16-26 is a configured sewing station for the
sewing-on of sleeves.
The workstations are equipped with a single needle, double lockstitch,
post-bed machine with bottom and top belt feed.
30 different fullness values can be selected via the keypad. In order to
achieve a firmer pulling-on of the stitch, a supplementary tension can
be added when a high fullness value is turned on.
Further details:
•Step motor technology for top and bottom belt feed.
•Material-protective belt feed with two individually powered belts for
the top and bottom feed.
2. Proper Use
The 550-16 is a sewing place which can properly be used for sewing
litght to medium weight material. Such material is, as a rule, material
made up of textile fibres. This material is used in the garment industry.
Further, it may be possible to also conduct so-called technical seams
with this special sewing machine. Here, however, it is essential that the
operator (Dürkopp Adler AG would be pleased to collaborate) make
an evaluation of the possible dangers because such applications are,
on the one hand, comparatively rare and, on the other, the variety is
immense. Dependent of the result of this evaluation, appropriate safety
measures are to be taken.
Generally, only dry material should be sewn on this machine. The
material should not exceed the thickness of 7 mm when compressed
by the lowered sewing foot. The material should not contain any hard
objects, otherwise it would be necessary to protect the eyes during the
sewing process. For the time being, no such guard is available.
The seams are produced generally with threads of textile fibres of a
dimension up to 70/3 - 140/3 NeB. Before using any other threads it is
necessary, also in this case, to estimate the consequential dangers
and to take, if necessary, the respective safety measures.
This special sewing machine may only be installed and operated in a
dry and clean environment. If the sewing machine is used in another
environment which is not dry and clean, further measures, which are to
be agreed upon, may be necessary (see EN 60204-31:1999).
We, as a manufacturer of industrial sewing machines, assume that at
least semi-skilled operating personnel will be working on our products
so that all normal operations and, where applicable, their dangers are
presumed to be known.
5
1

3. Technical Data
Noise Workstation-specific emission value to DIN 45635-48-A-1-KL2
Cl. 550-16-26 Lc = 79 dB (A)
Stitch length: 4,4 [mm]
Number of
stitches: 2.500 [min-1]
Material: G1 DIN 23328 2-plies
Stitch type Double lockstitch
Needle system: 134-35
797
Sy1955-1
Needle thickness (as per E-No.:) [Nm] 70 - 100
Thickness of sewing thread max.: [Nm] 50/3
Number of stitches max.: [min-1]4.000
Stitch length max.: [mm] 1,5 - 5,5
Max. clearance under the sewing feet:
- Sewing [mm]
- Lifted [mm]
Operating pressure: [bar] 6
Air consumption per work cycle: approx. [NL] 0,6
Nominal voltage: 190-240V 50/60 Hz
Dimensions(L x B xH) [mm] 140 x 750 x 1300
Working level (ex works): [mm] 790
Weight [kg] 140
6

4. Operation
4.1 Threading the Needle Thread
Caution Risk of Injury !
Turn the main switch off !
Thread the needle thread only with the sewing machine turned off.

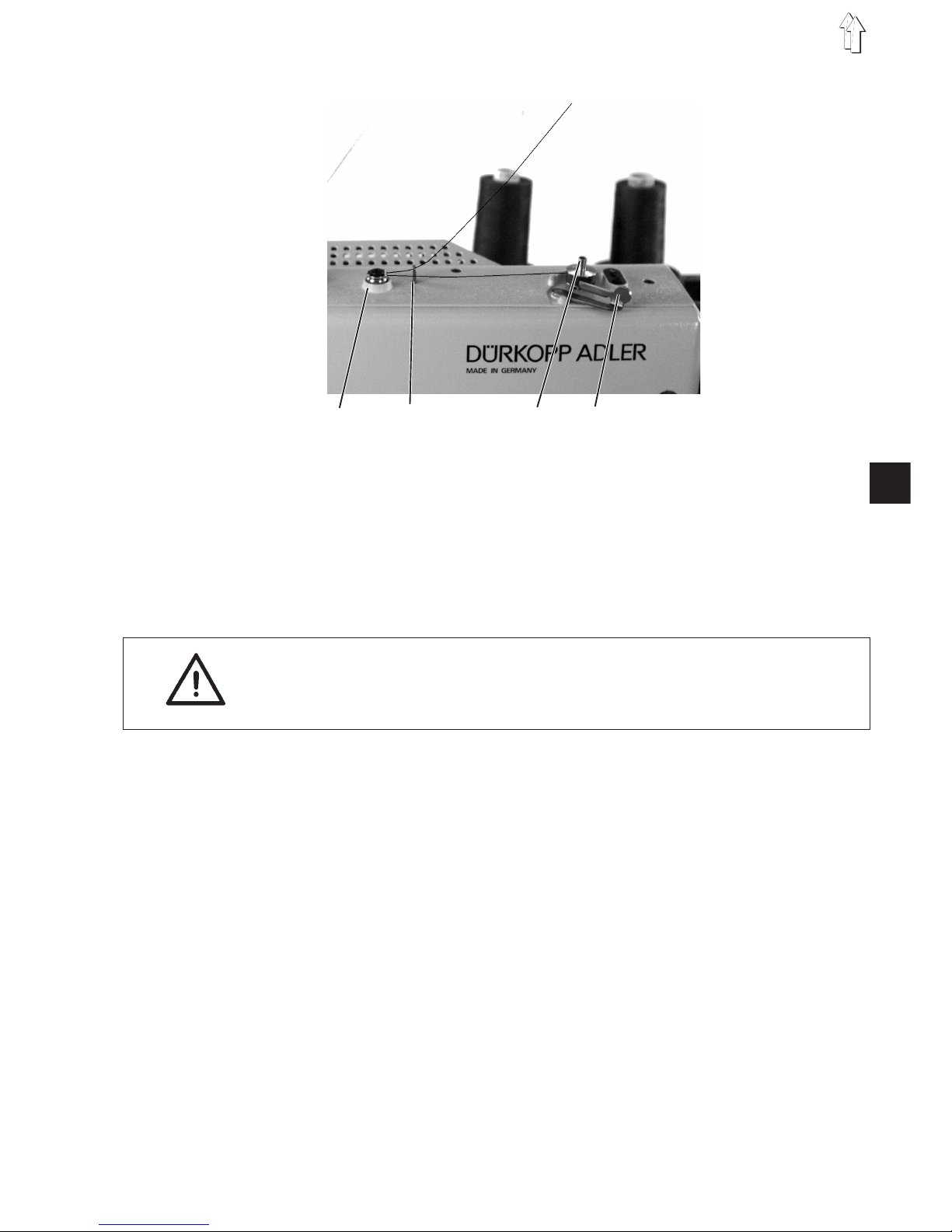

–Place the thread rolls on the thread stand and guide the needle and
the hook thread through the thread guides.
The thread guide 1 must be in vertical position above the thread
rolls.

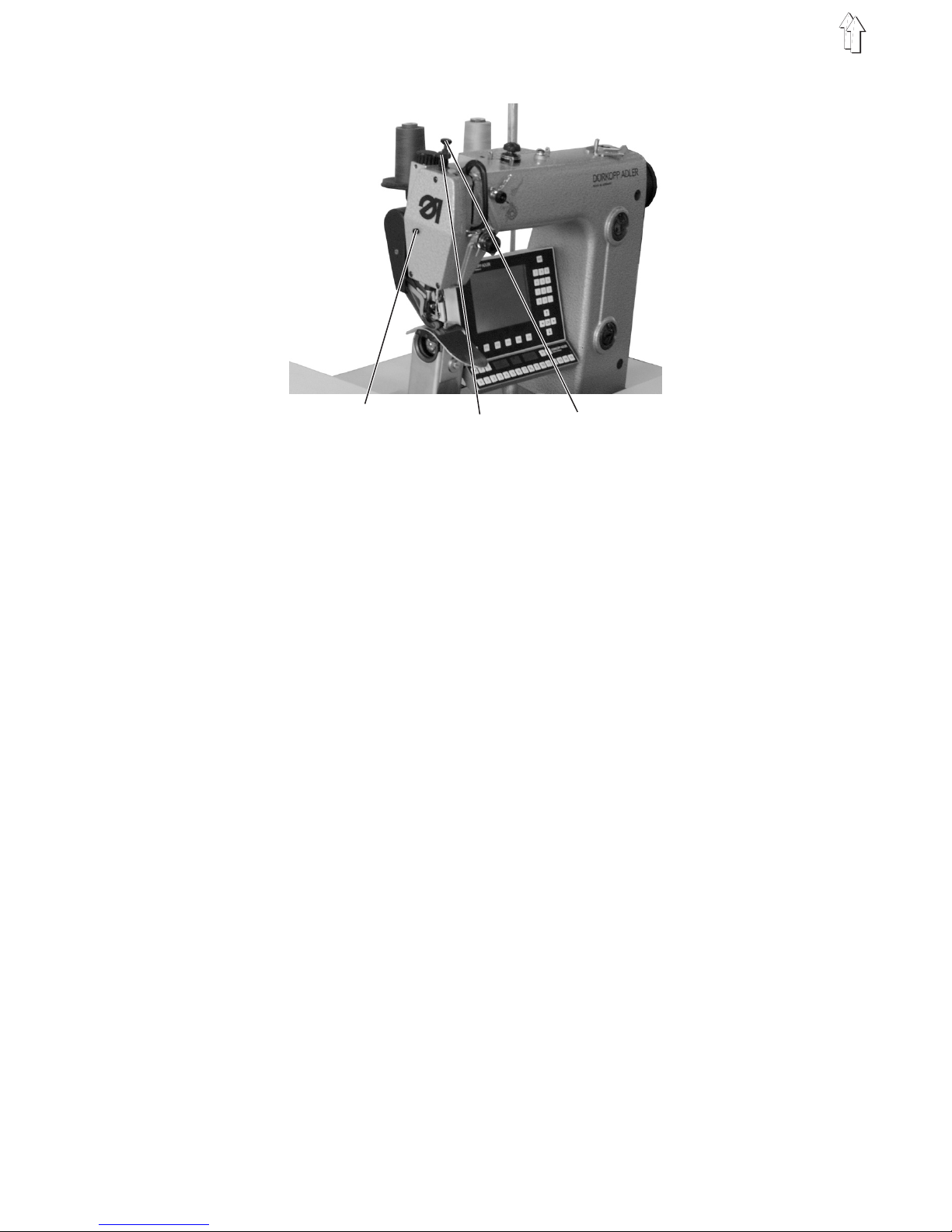

–Thread the needle thread as shown in the illustration.
7
1
1

Illus. A: Correct thread interlacing
in the middle of the material
Illus. B: Needle thread tension too low
or
hook thread tension too high
high
Illus. C: Needle thread tension too
high
or
hook thread tension too low

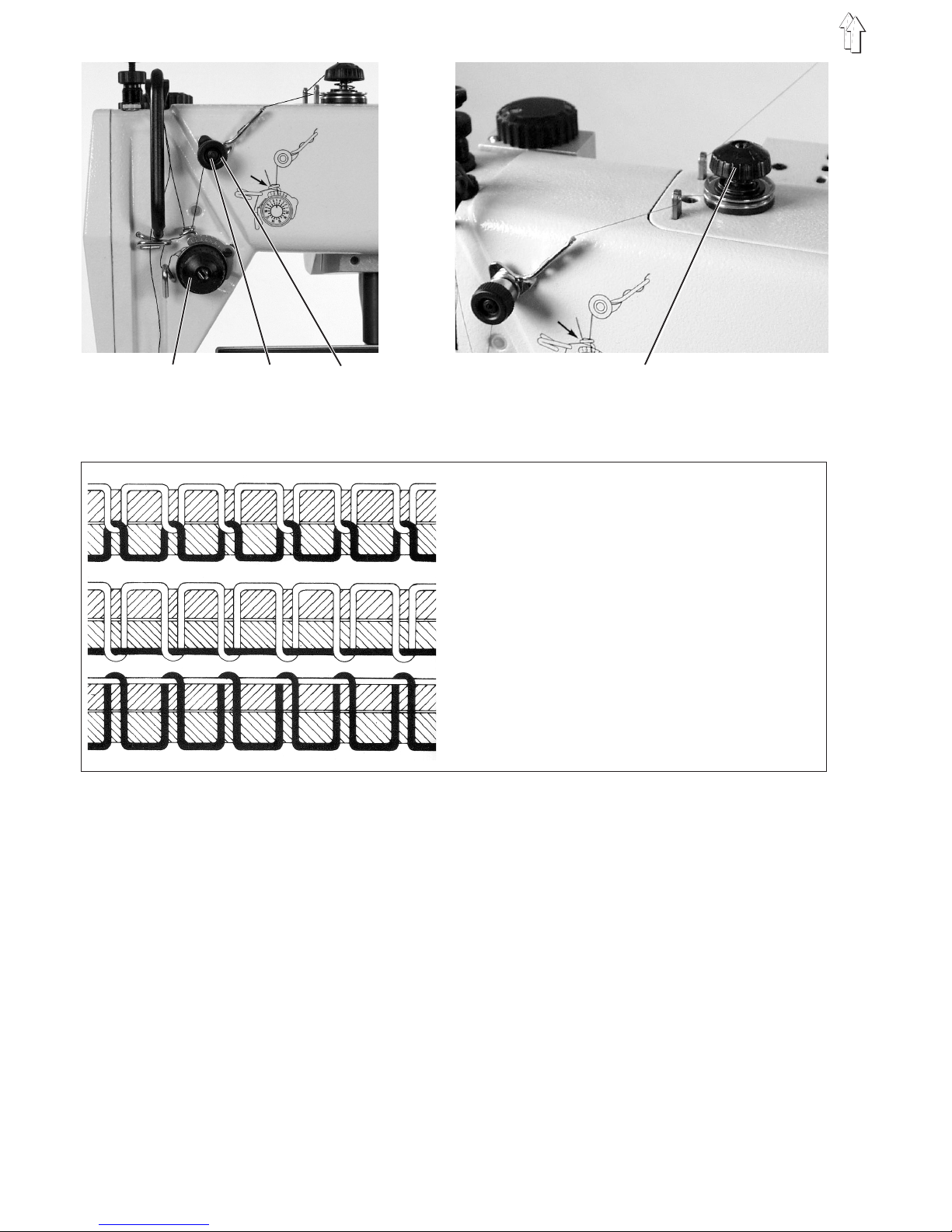

8
321 4

4.2 Setting the Needle Thread Tension
Pre-tension
With open main tension 3 a slight residual tension on the needle thread
is necessary. The residual tension is created by pre-tension 1.
The pre-tension 1 influences the length of the cut needle thread end at
the same time (starting thread for the next seam).
–Base position:
Turn the knurled nut 1, until its face is flush with bolt 2.
–Shorter starting thread:
Turn knurled nut 1 clockwise.
Main tension
The main tension 3 is to be set as low as possible.
The interlacing of the threads should lie in the middle of the material.
Too high thread tensions can lead to undesired puckering and thread
breakage in thin material.
–Set the main tension 3 so that a uniform stitch formation is
achieved.
Increase tension = Turn the knurled nut clockwise
Decrease tension = Turn the knurled nut -
counterclockwise
ATTENTION !
The main tension can be opened through the control.
(e.g. for sewing Polsters)
Supplementary tension
The supplementary tension 4 can be switched on for thicker gathering
(programmable).
–Set the supplementary tension 4 lower than the main tension 3.
4.3 Releasing the Needle Thread Tension
Automatic
The needle thread tension is automatically opened during thread
trimming and lifting of the sewing foot.
9
1

4.4 Setting the Thread Regulator
Caution Risk of Injury !
Turn the main switch off .
Set the thread regulator only with the sewing machine turned off.

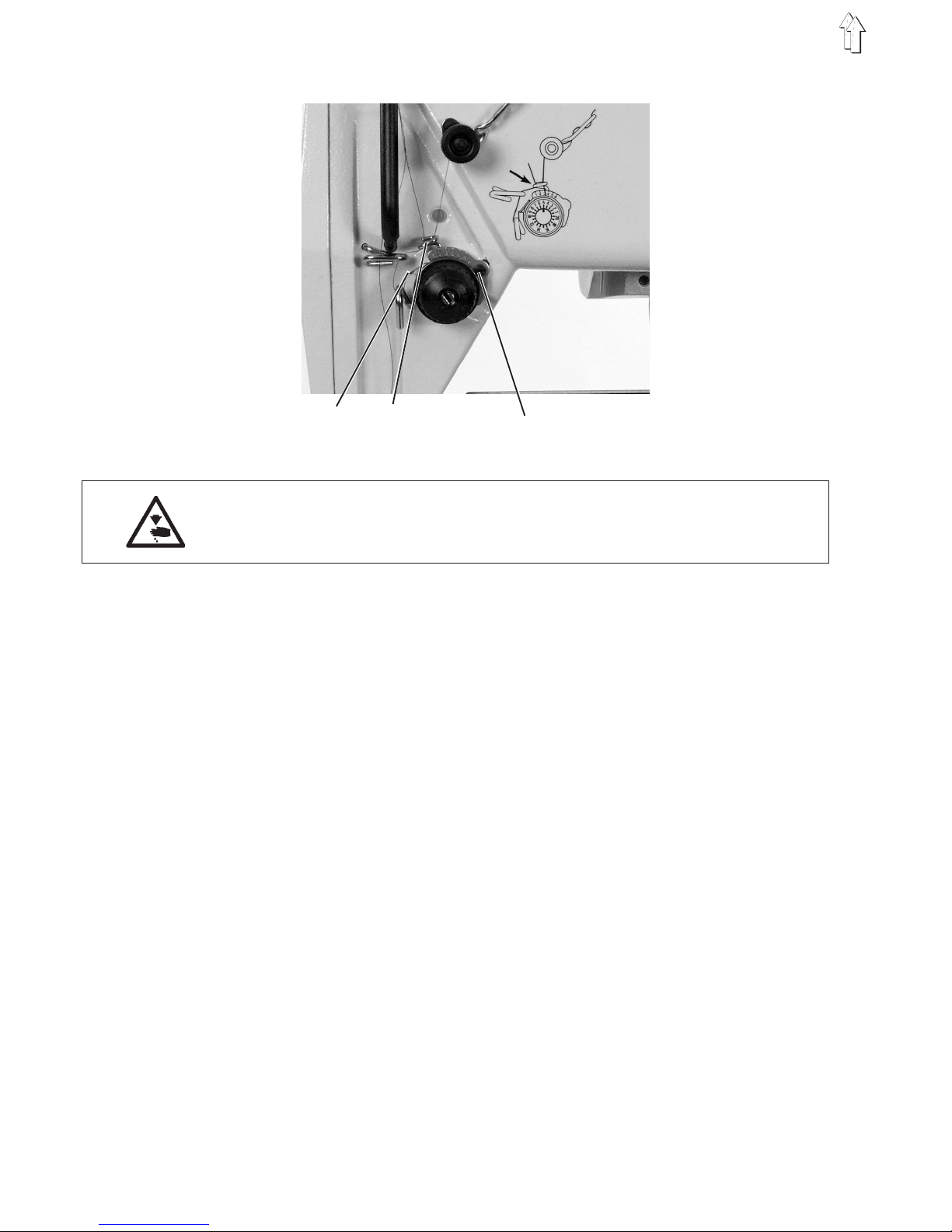

The needle thread quantity required for stitch formation is regulated by
the thread regulator 6.
Only a precisely set thread regulator assures an optimal sewing result.
With a correct setting the needle thread loop must glide over the
thickest part of the hook with a light tension.
–Loosen screw 5.
–Set the position of the thread regulator.
–Tighten screw 5.
Setting note:
When the largest thread quantity is required, the check spring 7 must
be pulled up approx. 0.5 mm from its upper end position. This is the
case when the needle thread loop passes the maximum hook
circumference.
10
76 5

4.5 Winding the Hook Thread
–Slip the bobbin onto the bobbin winder 2.
–Pull the thread through the guide 3 and the tension 4.
–Wind the thread clockwise about 5 times around the bobbin core
and tear off at the thread clamp.
–Swing the bobbin winder lever 1 towards the bobbin .
–Sewing
The bobbin winder lever will stop the winding process as soon as
the bobbin is full.
ATTENTION !
If the thread is not to be wound during sewing,
it is essential to arrest the sewing foot in the raised position.
(See chapter 4.10)
11
1
43 21

4.6 Changing the Hook Thread Bobbin
Caution Risk of Injury !
Turn the main switch off .
Change the hook thread bobbin only with the machine turned off.
Removing the empty bobbin
–Swing the hook cover 2 down.
–Bring the needle bar in high position.
–Lift the bobbin case flap 1.

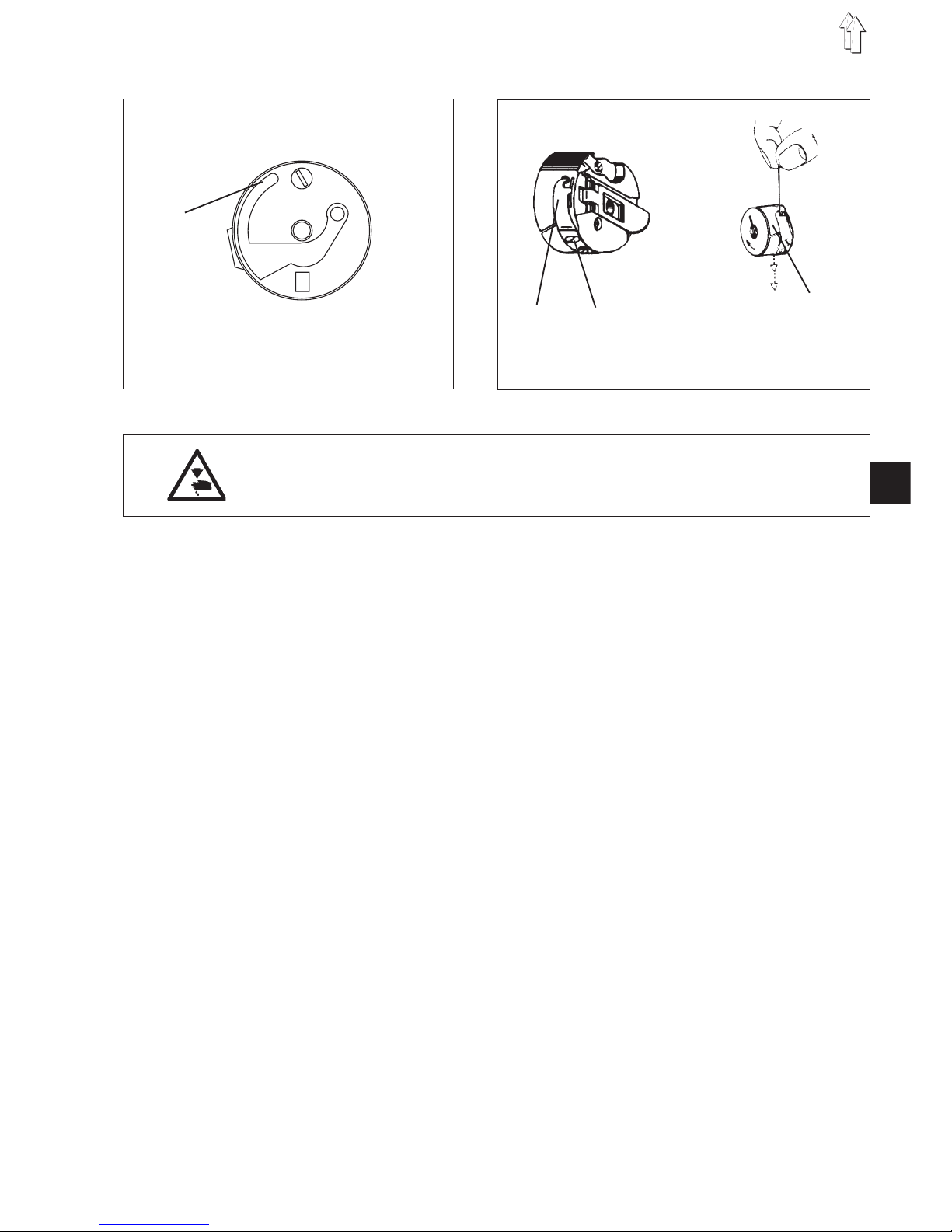

–Take out the bobbin case top 3 with the bobbin 7.
–Remove the empty bobbin from the bobbin case top 3.
Inserting a full bobbin
–Insert the full bobbin in the bobbin case top 3.
–Pull the hook thread through slit 6 under the tension spring 5 until
in the drilled hole 4.
–Pull the hook thread approx. 5 cm out of the bobbin case 3.
The bobbin must turn in the direction of the arrow when the thread
is pulled off.
–Insert the bobbin case 3 again.
–Close the bobbin case flap 1.
–Swing the hook cover 2 up.
12
65
4
1
7
21
3

4.7 Setting the Hook Thread Tension
Caution Risk of Injury!
Turn the main switch off .
Set the hook thread tension only with the machine turned off.
Half of the necessary hook thread tension should be created by the
brake spring 8 and halb by the tension spring 5.
Setting the tension spring
–The bobbin case top 3 should slowly lower under is own weight
(see right illustration).
–Set the tension spring 5 at the adjusting screw 10 until the
necessary tension value is reached.
Note:
The hook thread tension should amount to 20 +/- 5 grams.
13
1
3
105
8

4.8 Changing the Needle
Caution Risk of Injury!
Turn the main switch off .
Change the needle only with the sewing machine turned off.
–Loosen screw 1.
–Push the new needle into the drilled hole of the needle bar 3 up to
the stop.
ATTENTION !
The furrow 2 of the needle must show to the hook point.
–Tighten screw 1.
ATTENTION !
After a change to another needle thickness the clearance of the hook
to the needle must be corrected (see Service Instructions).
The non-observance of the above correction can lead to following
faults:
–Change to a thinner needle: - Missing stitches
- Damage to the thread
–Change to a thicker needle:
- Damage to the hook point
- Damage to the needle
14
3
1
2

4.9 Sewing Foot Lift

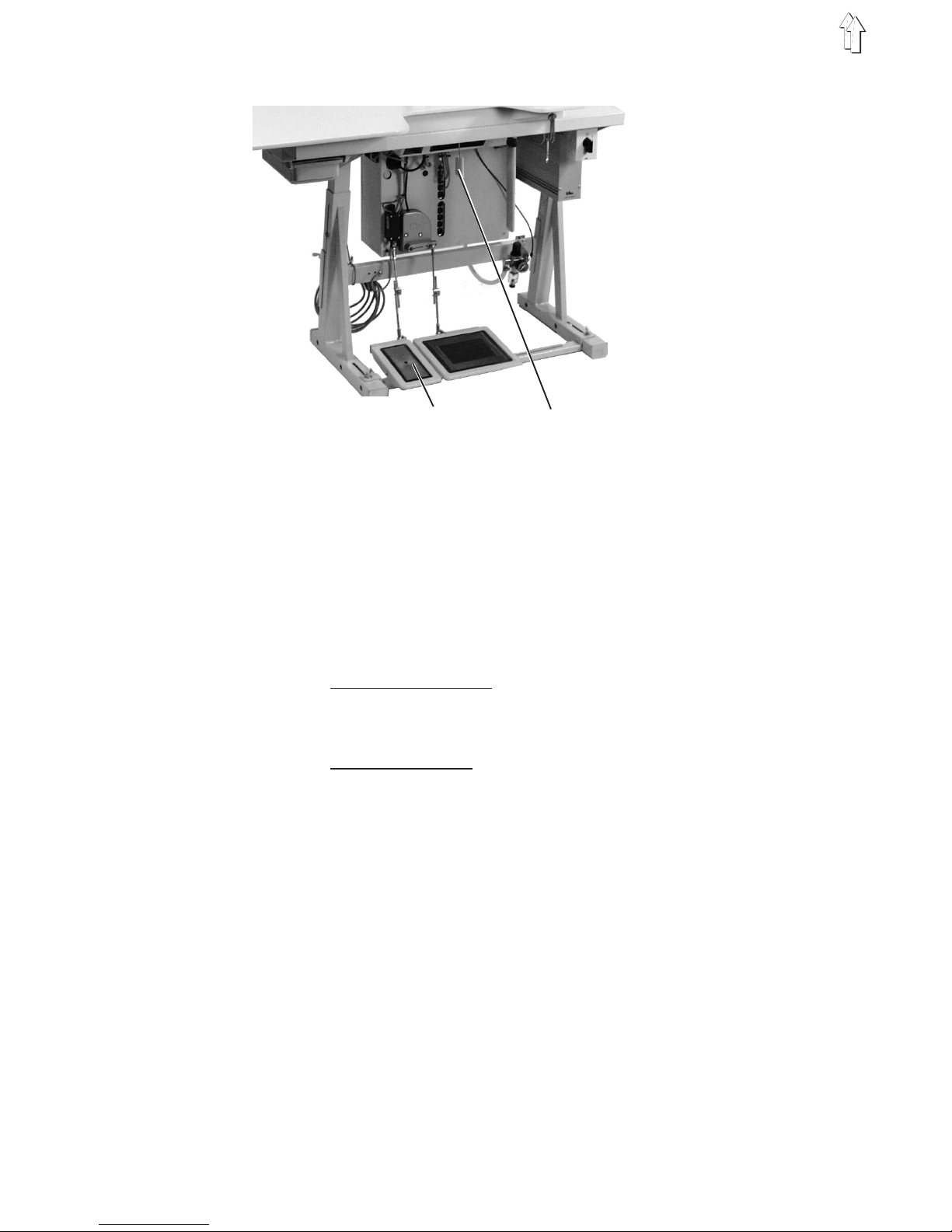

The sewing foot can be lifted pneumatically by operating the pedal 4.
Pneumatic sewing foot lift (pedal)
–Step half back on the pedal.
Lift the sewing feet.
–Step completely back on the pedal.
Activate the thread trimmer and lift the sewing feet.
15
1
4

4.10 Arresting the Sewing Foot in the High Position
The pneumatically raised sewing foot can be arrested in the high
position with button 3 (e.g. for winding the hook thread).
–With the sewing machine idle, step half back on the pedal.
The sewing foot lifts.
–Press button 3 and release the pedal.
The raised sewing foot is arrested in the high position.
–Step half back on the pedal again.
The sewing foot is released.
4.11 Setting the Sewing Foot Pressure
The desired sewing foot pressure is set with the knurled screw 1.
–Loosen lock nut 2.
–Increase the sewing foot pressure
Turn screw 1 clockwise.
–Decrease sewing foot pressure
Turn screw 1 counterclockwise.
–Tighten lock nut 2 again.
16
321

4.12 Stroke Height of the Sewing Foot during Lifting
The stroke height of the sewing foot during lifting can be limited by the
knurled nut 1.
–Loosen the lock nut 2.
–Increase the stroke of the sewing foot
Turn the knurled nut 1 counterclockwise.
Decrease the stroke of the sewing foot
Turn the knurled nut clockwise.
ATTENTION !
The stroke height of the sewing foot should not be so high that the
needle bar strikes on the foot when the machine turns.
4.13 Pulsating sewing foot
In order to facilitate the rolling of the material in the arc, the sewing
foot will be lifted with the needle frequency synchronously. The height
could be adjusted using the setting wheel 3.
–Position 0 on the setting wheel 3 àno stroke of the sewing foot.
–Position 10 on the setting wheel 3àmaximum stroke.
ATTENTION
Thinner Material àlesser stroke.
Thicker Material àgreater stroke.
Normal Material àposition between 2and 4on the setting wheel.
Basic settings
–Position the needle at the lower reversal point.
–Turn the setting wheel in a way that the figure 2 is turned towards
the operator.
–Loose the Allen screw 5 and turn the disc 4 to the right until the
sewing foot slightly lifts.
–Tighten the Allen screw 5.
17
1
543
21

4.14 Knee Switch
With the knee switch 1 one moves from one program step to the next in
the sewing programs.
–Press the knee switch.
The next program step is called up.
4.15 Left “Correction Value” / Fullness Value Pedal
The left pedal 2 has a dual function.
1. Automatic operation
In automatic operation the fullness value can be corrected with the
pedal.
2. Manual operation
In manual operation the individual fullness levels are selected with the
pedal.
18
21

5. Operating the Controls 550-16-26
The operating of the control is described in part 4:
“Programming instructions”
6. Sewing
Sewing cycle Operation / Remarks
V Before the start of sewing
Initial position
Positioning the material at
the seam beginning
- Pedal in rest position.
Sewing machine idle.
Needle up. Sewing foot down.
- Step half back on the pedal.
The sewing foot rises .
- Position the material.
- Release the pedal.
The sewing foot lowers onto the material.
Beginning the seam
Beginning bartack and continuing to
sew - Step forward on the pedal and hold down.
The beginning bartack is sewn (if given).
Then the machine continues to sew at the
speed determined with the pedal.
At the middle of the seam
Interrupting the
sewing cycle
Continuing the
sewing cycle
Z Sewing an intermediate bartack
bartack
Changing the fullness value
- Release the pedal (rest position).
The machine stops.
The sewing foot is down.
- Step forward on the pedal.
The machine sews at the speed
determined
with the pedal.
- Press the key [OH] and hold the pedal down.
The machine sews in reverse as long as key [OH]
is pressed.
The speed is determined by the pedal.
- Operate the fullness key or left pedal.
The changed fullness value is activated.
At the seam end
Remove the material - Step completely back on the pedal and hold down.
The end bartack is sewn (if given).
The thread is trimmed.
The machine stops in the 2nd position.
The sewing foot is raised.
19
1

7. Maintenance
7.1 Cleaning and Checking
Caution Risk of Injury!
Turn the main switch off .
Conduct maintenance work only with the machine switched off.
The maintenance work must be carried out at least at the intervals
specified in the tables (see the column “Service hours”).
When working very linty materials, shorter maintenance intervals may
result.
A clean machine protects against malfunctions.
Maintenance work Explanantion Service
to be carried ou hours
Machine head
- Remove sewing dust and
thread ends.
(e.g. with compressed-air gun)
Clean particularly:
- the bottom of the throat plate
- transporter bars
- the space around the hook 1
- the bobbin case
- thread trimmer
- the space around the needle
8
20
1

Maintenance work Explanantion Service
to be carried out hours
Pneumatic System
- Check water level in the
pressure regulator.
- Clean the filter element.
- Check the tightness of the
system.
The water level should not reach the filter element 1.
- After turning-in the draining screw 3 drain the
water separator 2 under pressure.
The filter element 1 separates dirt and condensed wa-
ter.
- Disconnect the machine from the compressed air line.
- Turn-in the draining screw 3.
The pneumatic system of the machine must be
pressure-free.
- Unscrew the water separator 2.
- Unscrew the filter element 1.
Wash the dirty filter tray and the filter element with
petroleum benzine (no solvent!) and
blow clean by compressed air.
- Re-assemble the conditioning unit.
40
500
500
21
1
2
4
6
8
10
1
2
3

7.2 Lubrication
Caution Risk of Injury !
Oil can cause skin rashes.
Avoid longer skin contact.
After contact wash yourself thoroughly.
ATTENTION !
The handling and disposal of mineral oils is subject to legal
regulations.
Deliver used oil to an authorized reception point.
Protect your environment.
Take care not to spill any oil.
For lubrication of the special sewing machine, use exclusively the
lubrication oil ESSO-SP-NK 10 or an equivalent oil with the following
specification:
–Viscosity at 40° C: 10 mm²/s
–Flash point: 150° C
ESSO SP-NK 10 can be obtained from the sales offices of
DÜRKOPP ADLER AG under the following parts numbers:
2 liter container: 9047 000013
5 liter container: 9047 000014
Maintenance work Explanation Service-
to be carried out hours
Lubrication of the machine
head The lubrication of the machine head occurs via a central oil wick system. Except for the hook all bearings are
lubricated via the oil reservoir 1.
- The oil level should not drop below the mark “MIN”
.
- Fill oil up to the “MAX” mark through the drilled hole
in the viewing glass.
40
22
1
