Duevi MOSKITO-AMR Guide

MOSKITO is an outdoor sensor designed for the perimeter protection of a building with an efficiency never seen before: it int egrates
in the inside 6 passive infrared PIR heads.
A double IR barrier on both sides of the sensor creates a protection of doors and windows in front of the building for a total length
of about 12 + 12 meters. Two additional IR heads, furthermore, guarantee the detection of approaching from frontal side up to 8
meters, avoiding potential elusion attempts of the lateral protection. The lateral protection on each side is made of two IR heads
working with AND logic, which create two curtain detection areas with an opening of 10° and range up to 12 meters each .
MOSKITO-AMR
Wireless omni-directional outdoor infrared detector
INSTALLATION AND USE MANUAL 15.08-M:3.0-H:SE-05v2-14-F:x.x
MOSKITO

2
The detection areas are independently adjustable each other, by geometry (lower PIR head orientable vertically), and by sensitivity
(trimmer). On frontal side, instead, there is a volumetric detection area with 180° opening and range up to 8 m, with sensitivity
adjustment (trimmer). The two detection sides can generate each one an independent zone alarm towards the control panel, and
they can be combined with the frontal side using the Anti-elusion function, which, once detected the movement on frontal side,
requires only one lateral PIR head to generate alarm.
In ideal environmental conditions, it is possible to have independent alarm from each side, although it is not recommended. The
frontal detection is not suitable in all environmental conditions, with risk of false alarms.
When the sensor is set to have alarm from frontal side, all the sides (right, left and frontal) are independent (PIR heads of each side
are in AND).
Each side of Moskito has a couple of IR detection heads: upper head (horizontal or far detection) and lower head (landward or near
detection). When in NORMAL, the sensor sends alarm only if both heads of one side are violated (AND).
Left and right lower heads can be oriented on three positions: this allows to avoid false alarms due to far crossings (i.e.: vehicles) or
animals.
Provided with anti-removal tamper based on double-accelerometer (without microswitch) and a protection visor, the detector allows
all functioning parameters setting by a practical series of dip-switch. TEST function independent for each side with led and acoustic
buzzer for a simple and quick installation. It can be mounted at a height between 100 and 140 cm and it has an impact resista nce at
maximum level (IK-10).
Auto-adjustment of parameters to outdoor temperature.
LEFT SIDE IR
RIGHT SIDE IR
FRONTAL IR
Detection area
NO detection
Detection
TOP VIEW

3
READ CAREFULLY THIS MANUAL BEFORE INSTALL YOUR NEW ALARM SYSTEM.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
ONLY QUALIFIED TECHNICIAN MUST INSTALL THIS DEVICE.
INSTALLER MUST FOLLOW CURRENT REGULATIONS.
THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY IMPROPER USE OF THE PRODUCT, INCORRECT
INSTALLATION OR FAILURE TO COMPLY WITH INSTRUCTIONS OF THIS MANUAL AND THE LAW REGARDING
ELECTRICAL SYSTEMS.
INDEX
TECHNICAL......................................................................................................................................................................................... 4
PRECAUTIONS..................................................................................................................................................................................... 8
DETECTION AREA ...............................................................................................................................................................................10
SETTINGS ..........................................................................................................................................................................................11
ANTI-MASKING ON/OFF (DIP1) ....................................................................................................................................................11
ANTI-ELUSION ON/OFF (DIP2) ......................................................................................................................................................12
SIDES ADJUSTMENT (DIP3, DIP4, DIP5) .........................................................................................................................................12
NORMAL / WALK-TEST MODES (DIP7) ...........................................................................................................................................12
SIDE EXCLUSION (DIP10, DIP11) ...................................................................................................................................................13
BUZZER (DIP6) ..............................................................................................................................................................................13
RADIO RANGE TEST (DIP8) ............................................................................................................................................................13
RADIO CODE TYPES (DIP9) ............................................................................................................................................................13
SUPERVISION (DIP12) ...................................................................................................................................................................14
WALK TEST ........................................................................................................................................................................................15
SENSITIVITY/RANGE ADJUSTMENT.......................................................................................................................................................16
LOWER LATERAL IR HEADS INCLINATION ......................................................................................................................................18
RANGE ADJUSTMENT OF LATERAL IR HEADS (RV2 AND RV3 TRIMMER) ..........................................................................................19
RANGE ADJUSTMENT OF FRONT IR HEADS (RV1 TRIMMER) ............................................................................................................19
FRONT SIDE ADJUSTMENT .............................................................................................................................................................20
LEFT SIDE ADJUSTMENT ................................................................................................................................................................20
RIGHT SIDE ADJUSTMENT ..............................................................................................................................................................21
LEARNING.........................................................................................................................................................................................22
AN LEARNING...............................................................................................................................................................................22
“BY DETECTION” LEARNING (DEVICES WITHOUT AN).....................................................................................................................22
TAMPER............................................................................................................................................................................................23

4
TECHNICAL

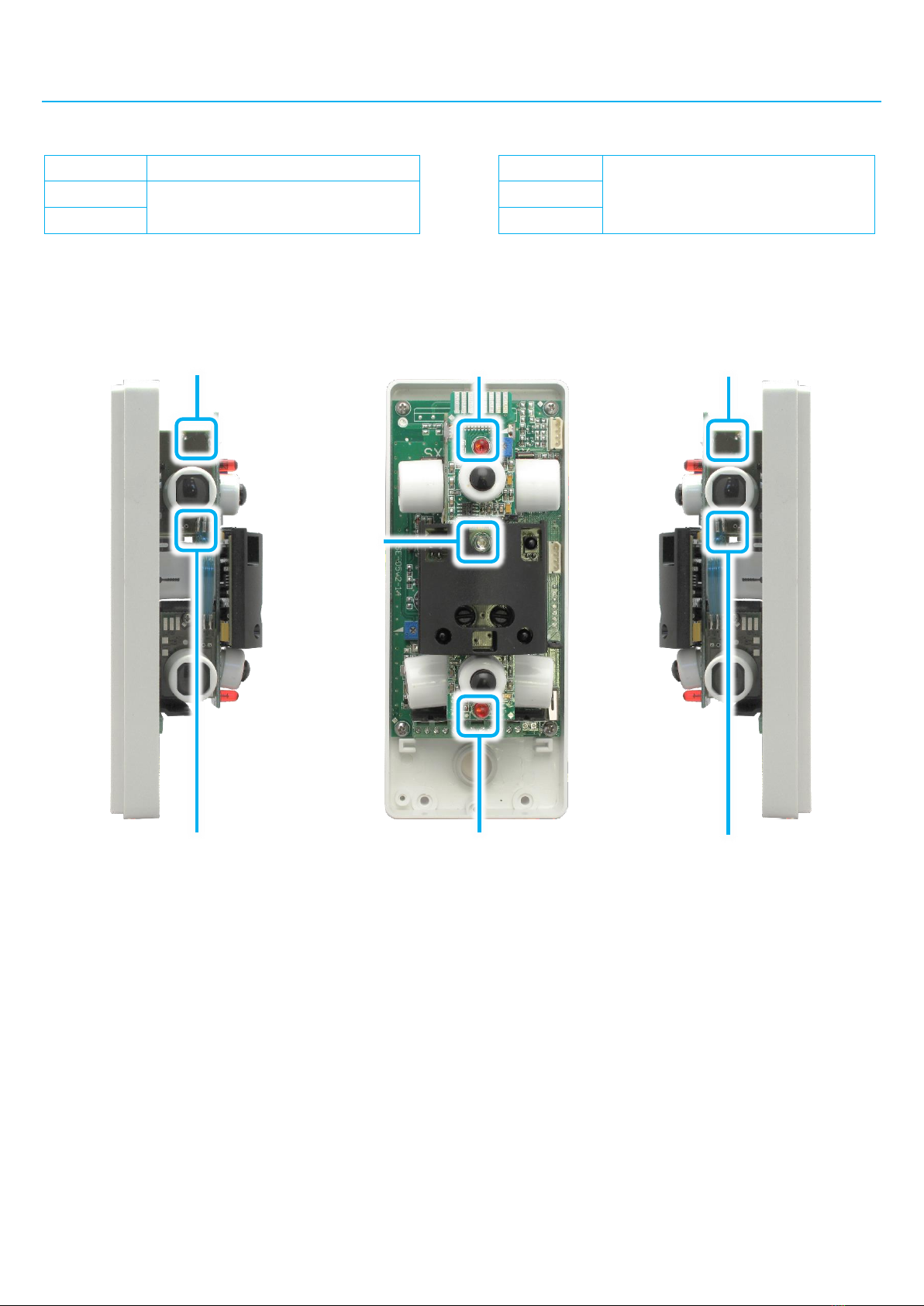

MAINBOARD
FRONT BOARD
J5 - Exclude anti-removal
tamper
RV3 - Trimmer for LEFT side range adjustment
BUZZER
TAMPER - Anti-opening
J4 - Exclude anti-opening tamper
RV2 - Trimmer for RIGHT side range
adjustment
DIP 1 ÷ 12 - DIP switches for sensor functions
RV1 - Trimmer for FRONT side range adjustment
J1 –Jumper for range/sensitivity reduction of
front upper head

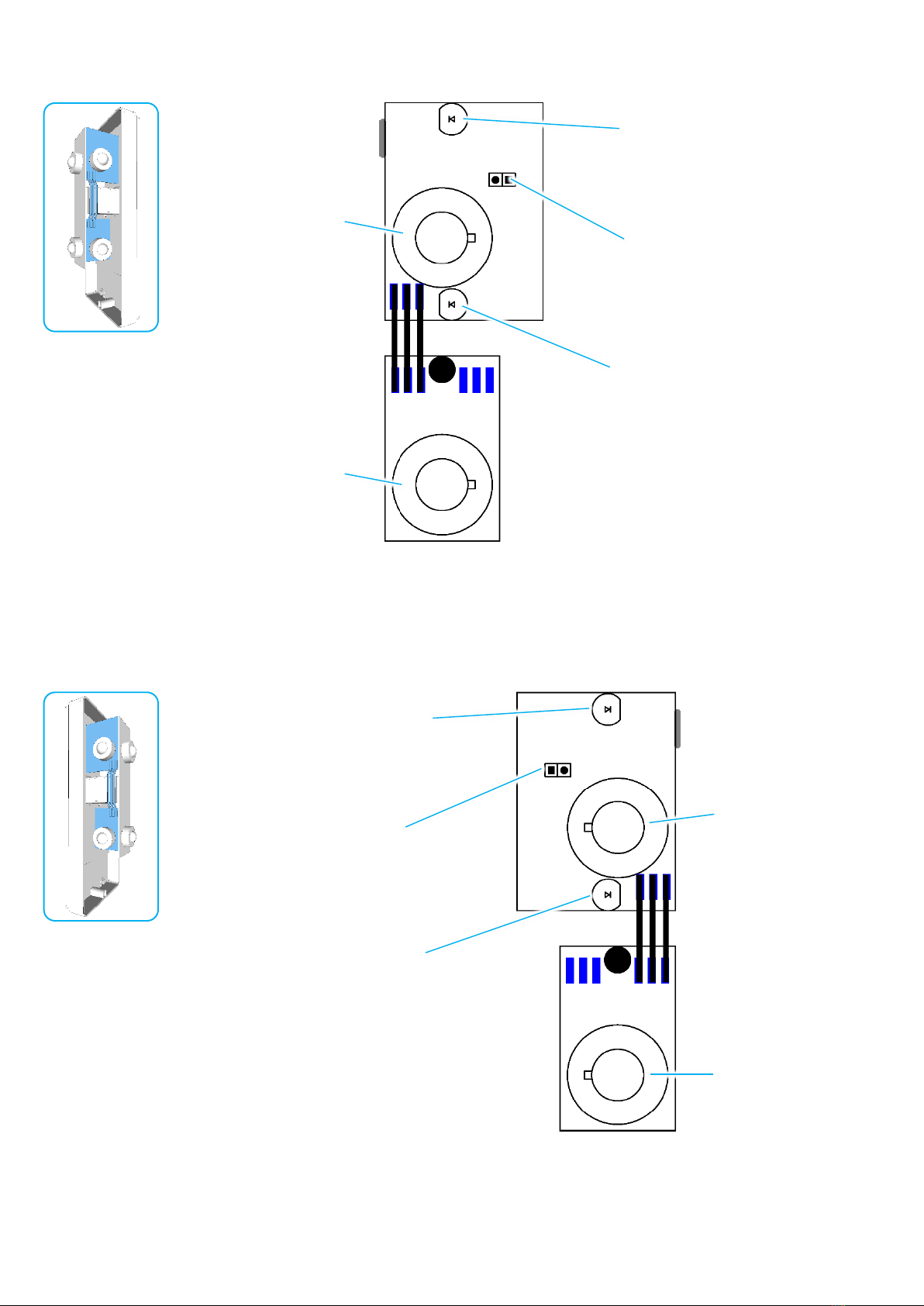

Pins for adjustment of lower IR heads position
(three step adjustment, move gently with a
screwdriver)
IR –Front lower IR head
LED –Alarm
(only in TEST mode)
LED –Front upper IR head detection (only in
TEST mode)
LED –Front lower IR head detection (only in TEST mode)
IR –Front upper IR head
Anti-masking system
Battery connector
Antenna
J6 –Inclinometer tamper
exclusion

5
RIGHT BOARD
LEFT BOARD
J2 –Jumper for range/sensitivity reduction
of right upper head
IR –Right upper IR head
LED –Right upper IR head detection
(only in TEST mode)
LED –Right lower IR head detection
(only in TEST mode)
IR –Right lower IR head
J3 –Jumper for range/sensitivity reduction
of left upper head
IR –Left upper IR head
LED –Left upper IR head detection
(only in TEST mode)
LED –Left lower IR head detection
(only in TEST mode)
IR –Left lower IR head

6
BATTERY
If the sensor is already powered, before proceed it is necessary to disconnect the battery, open the jumper J4 and hold the tamper switch for
about 3 seconds: in this way the circuit will be completely discharged and will be possible to start-up the sensor correctly.
To power the detector, insert two CR123A 3 V lithium battery type inside the battery-holder, respecting the polarity:
Plug the connector of the battery-holder into terminal on mainboard, then place the battery-holder in its dedicated slots:
Power
Power source
n. 2 lithium battery 3 V CR123A battery type
Absorption *
Stand-by: about 32 µA
Alarm: about 20 mA (in Normal mode and Buzzer OFF)
Low battery threshold
< 4,8 V
Battery life *
About 2 years
Timings
Boot time
About 90 seconds
Quiet time between detections *
About 120 seconds
WALK-TEST time
20 minutes (at the end the detector back to NORMAL mode even if
DIP7 = ON)
Technology
Three sided infrared detector
6 infrared heads
Installation height
100 ÷ 140 cm
Detection Area
Side range (right / left) *
Max: about 12 m
Min: about 3 m
Front range *
Max: about 8 m
Min: about 2 m
Side area (right / left)
Upper and lower lobe: about 2,5 m @ 12 m
Front area
One lobe, width max about 3 m @ 4 m
Detection speed
Crossing detection
0,3 ÷ 2,0 m/s
Battery holder
Connector
Lithium battery
CR123A type, 3 V (x 2)
Connector
Slots for battery-holder

7
Radio
Range
100 m (open field)
Events
Right side alarm
Left side alarm
Front side alarm
Masking alarm
Elusion
Low battery (LWB)
Supervision
Tamper
Learning (AN)
Compatibility
See compatibility table at pag. 13, 14
Signals
Detection LED *
6 red LEDs (one LED each IR head)
Alarm LED *
1 blue LED for alarm
Acoustic *
Integrated buzzer, emits different sounds for: heads detection,
tamper, change mode, learning, anti-mask
Temperature
Working
-40 ÷ +70 °C
Compensation
-20 ÷ +50 °C
Humidity
95 %
Case
Material
ABS, anti UV
Dimension (H x W x D)
190 x 85 x 75 mm
IP protection grade
IP54
Impact resistance
IK10 (impact of a 5 kg body from 40 cm)
*All the data are approximate, for sensor in NORMAL mode, installation height of 120 cm and operating temperature of 21 °C
BATTERY DURATION (ESTIMATED) IS PROPORTIONAL TO:
-HEAT CYCLES OF THE BATTERY WHICH AFFECT CHARGE CAPACITY AND DURATION
-WORKING TEMPERATURE OF THE BATTERY (E.G.: AT TEMPERATURE LOWER THAN 0°C THE BATTERY
DURATION MAY DECREASE OF 50 %)
-NUMBER OF DETECTIONS TO WHICH THE SENSOR IS SUBJECT (REGARDLESS OF WHETHER THE ALARM
SYSTEM IS ARMED OR NOT): IF THE SENSOR IS INSTALLED IN HIGH FREQUENCY OF PASSAGE, THE
BATTERY DURATION WILL DECREASE DRAMATICALLY
THE MAX RANGE DEPENDS SIGNIFICANTLY ON ENVIRONMENT TEMPERATURE

8
PRECAUTIONS

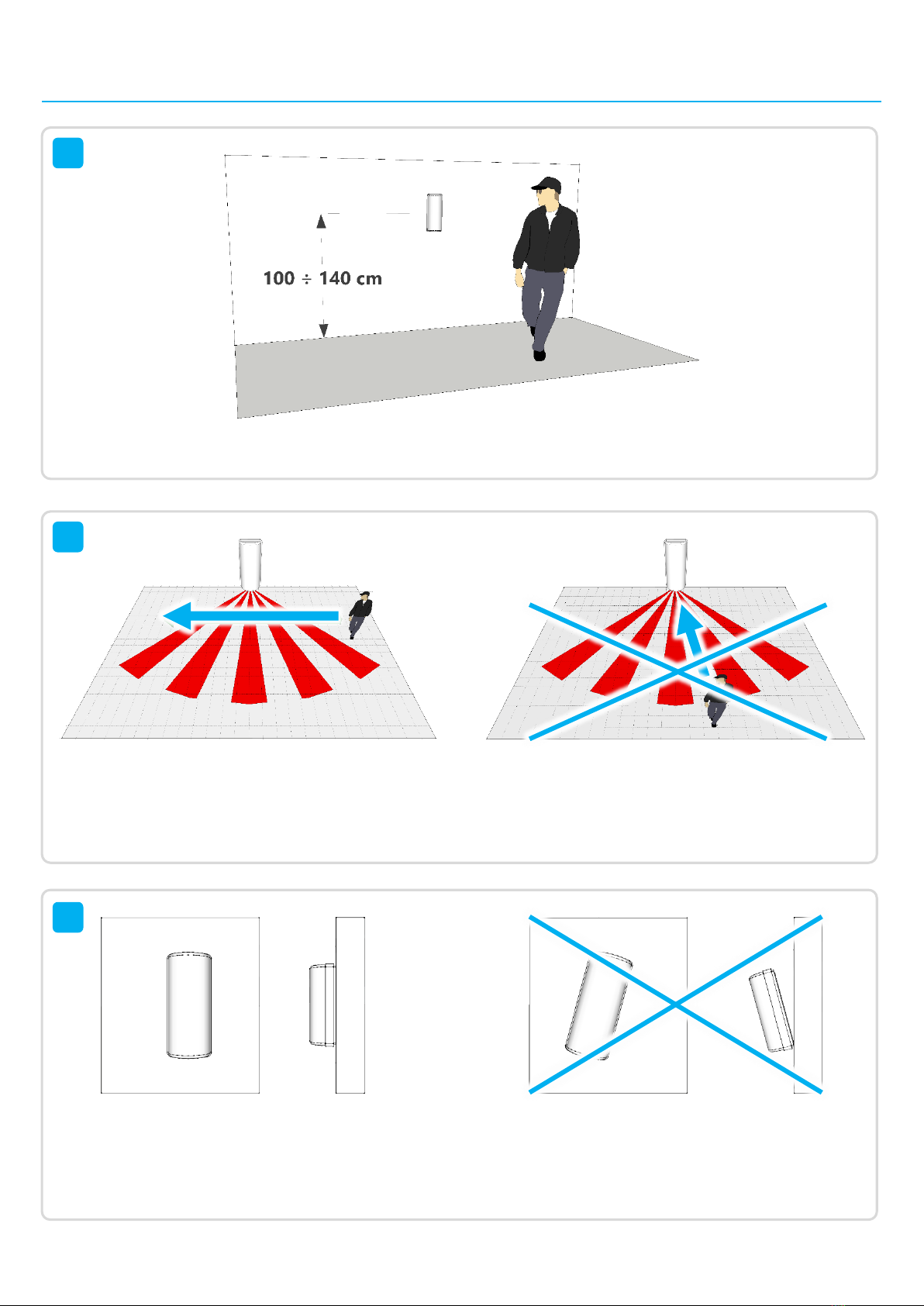

Installation height must be between 100 cm and 140 cm.
To obtain certain detection, the sensor must be installed so that the intruder crosses the IR zones. The detection range is reduced
approaching towards the front of the sensor.
Mount the sensor vertically, without front and side tilt. If the sensor is mounted at an angle relative to the ground, the de tection
is altered and the anti-removal protection (inclinometer) intervenes
YES
NO
YES
NO
2
3
1

9
Do not install the detector in an environment with electromagnetic interference or vibrating objects
Do not install the detector near to heating systems or air conditioner.
It is recommended to install the detector at least 50 cm from the nearest gate.
NO
4
NO
5
6

10
DETECTION AREA

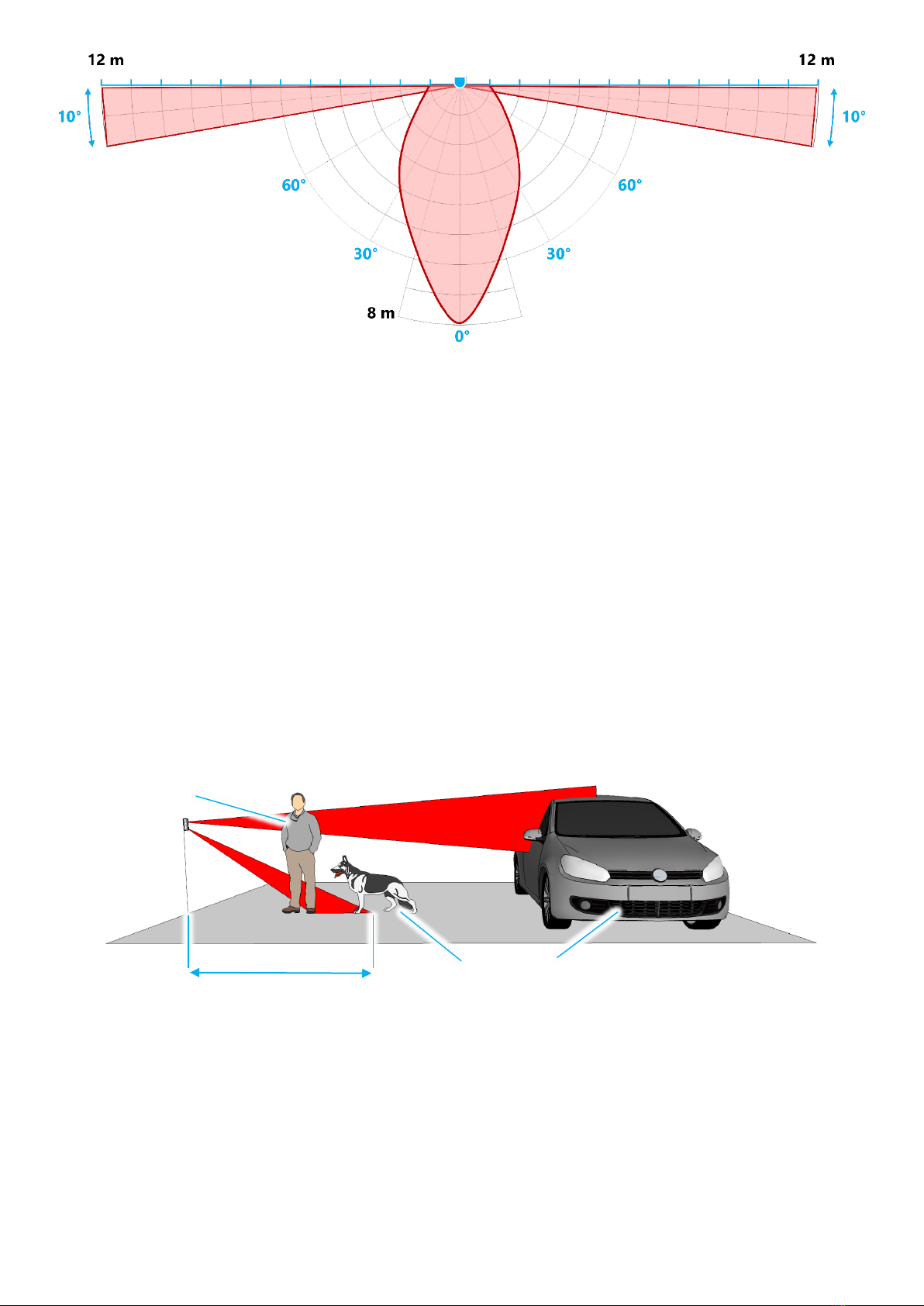

Left and right detecting sides are 12 meters length range each, reaching 24 meters of linear protection, with 10° opening ang le on
horizontal plane.
Any side detection (front, left or right) will generate alarm.
When the detector works in TEST mode, the alarm is signalled by the BLUE LED on (alarm transmission LED) and by acoustic soun ds
(if sounds are enabled, different for each side):
One “beep” = front side
Two “beeps” = right side
Three “beeps” = left side

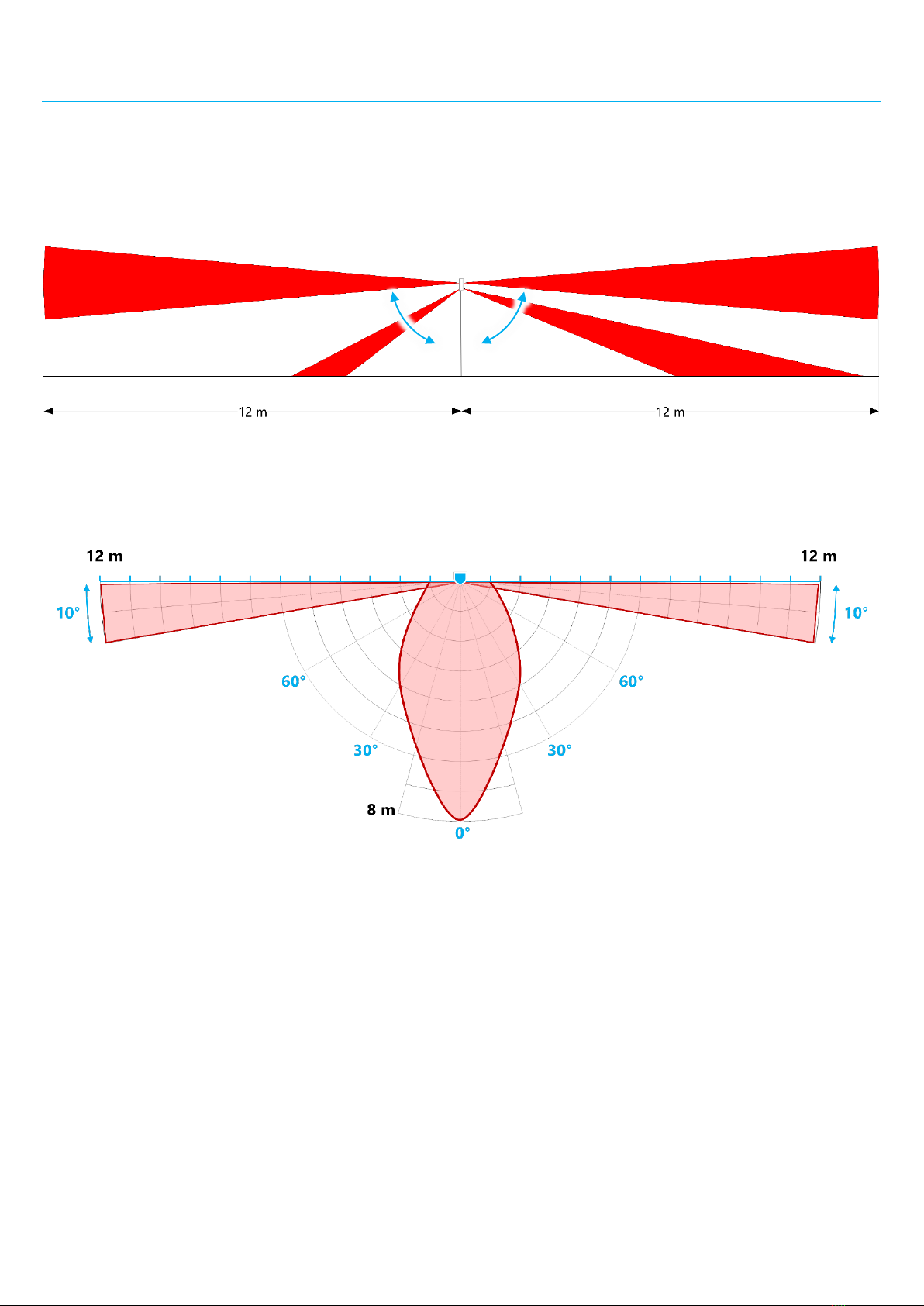

FRONT VIEW
Adjustable lower IR heads
LEFT SIDE
RIGHT SIDE
LEFT SIDE
RIGHT SIDE
FRONT SIDE
Temperature: 21 °C
Installation height: 120 cm
TOP VIEW
