NOTE • Be sure to check jack type, signal level, timing and resolution before
connecting this projector to a PC.
• Some PCs may have multiple display screen modes. Use of some of these modes
will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some cases.
Refer to the number of display pixels above.
• Although the projector can display signals with resolution up to UXGA (1600x1200),
the signal will be converted to the projector’s panel resolution before being displayed.
The best display performance will be achieved if the resolutions of the input signal
and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a composite
sync or a sync on G.
• The HDMITM input does not support the signals marked with *.
Projector
8107WIB
User's Manual (detailed)
Operating Guide – Technical
Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode
720 x 400 37.9 85.0 VESA TEXT
640 x 480 31.5 59.9 VESA VGA (60Hz)
640 x 480 37.9 72.8 VESA VGA (72Hz)
640 x 480 37.5 75.0 VESA VGA (75Hz)
640 x 480 43.3 85.0 VESA VGA (85Hz)
800 x 600 35.2 56.3 VESA SVGA (56Hz)
800 x 600 37.9 60.3 VESA SVGA (60Hz)
800 x 600 48.1 72.2 VESA SVGA (72Hz)
800 x 600 46.9 75.0 VESA SVGA (75Hz)
800 x 600 53.7 85.1 VESA SVGA (85Hz)
832 x 624 49.7 74.5 Mac 16” mode
1024 x 768 48.4 60.0 VESA XGA (60Hz)
1024 x 768 56.5 70.1 VESA XGA (70Hz)
1024 x 768 60.0 75.0 VESA XGA (75Hz)
1024 x 768 68.7 85.0 VESA XGA (85Hz)
1152 x 864 67.5 75.0 VESA
1152 x 864 (75Hz)
1280 x 768 47.7 60.0 VESA W-XGA (60Hz)
1280 x 800 49.7 60.0 VESA
1280 x 800 (60Hz)
1280 x 960 60.0 60.0 VESA 1280 x 960 (60Hz)
1280 x 1024 64.0 60.0 VESA SXGA (60Hz)
1280 x 1024 80.0 75.0 VESA SXGA (75Hz)
*1280 x 1024 91.1 85.0 VESA SXGA (85Hz)
1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)
1680 x 1050 65.3 60.0 VESA WSXGA+ (60Hz)
*1600 x 1200 75.0 60.0 VESA UXGA (60Hz)
Example of computer signal
403-8107WIB-Technical-00

2
Initial set signals
Initial set signals
The following signals are used for the initial settings. The signal timing of some
computer models may be different. In such case, adjust the items V POSITION
and H POSITION in the IMAGE menu.
Back porch (B) Front porch (D) Back porch (b) Front porch (d)
Active video (C)
Data Data
H. Sync. V. Sync.
Sync (A) Sync (a)
Active video (c)
Resolution
(H x V)
Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode
(A) (B) (C) (D) (a) (b) (c) (d)
720 x 400 2.0 3.0 20.3 1.0 342 400 1TEXT
640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)
640 x 480 1.3 4.1 20.3 0.8 328 480 9 VGA (72Hz)
640 x 480 2.0 3.8 20.3 0.5 316 480 1VGA (75Hz)
640 x 480 1.6 2.2 17.8 1.6 325 480 1VGA (85Hz)
800 x 600 2.0 3.6 22.2 0.7 2 22 600 1SVGA (56Hz)
800 x 600 3.2 2.2 20.0 1.0 4 23 600 1SVGA (60Hz)
800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)
800 x 600 1.6 3.2 16.2 0.3 321 600 1SVGA (75Hz)
800 x 600 1.1 2.7 14.2 0.6 327 600 1SVGA (85Hz)
832 x 624 1.1 3.9 14.5 0.6 339 624 1Mac 16" mode
1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3XGA (60Hz)
1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3XGA (70Hz)
1024 x 768 1.2 2.2 13.0 0.2 328 768 1XGA (75Hz)
1024 x 768 1.0 2.2 10.8 0.5 336 768 1XGA (85Hz)
1152 x 864 1.2 2.4 10.7 0.6 332 864 11152 x 864
(75Hz)
1280 x 768 1.7 2.5 16.0 0.8 323 768 1W-XGA (60Hz)
1280 x 800 1.6 2.4 15.3 0.8 324 800 11280 x 800
(60Hz)
1280 x 960 1.0 2.9 11.9 0.9 336 960 11280 x 960
(60Hz)
1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1SXGA (60Hz)
1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1SXGA (75Hz)
1280 x 1024 1.0 1.4 8.1 0.4 344 1024 1SXGA (85Hz)
1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3WXGA+ (60Hz)
1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 3WSXGA+ (60Hz)
1600 x 1200 1.2 1.9 9.9 0.4 346 1200 1UXGA (60Hz)

3

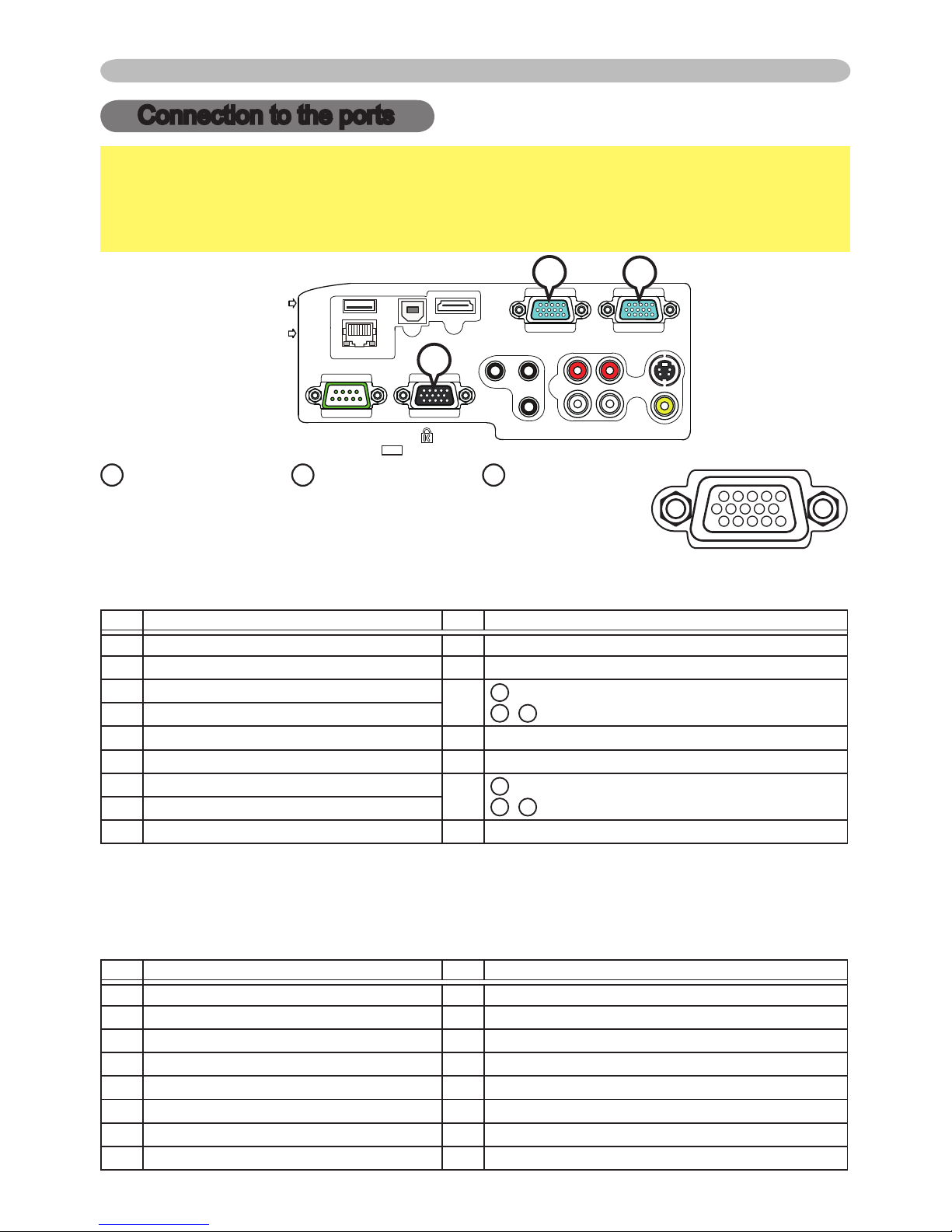

Connection to the ports
Connection to the ports
NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the
input ports of the projector are recessed.
►Only the signal that is input from the COMPUTER IN1 or IN2 can be output
from the MONITOR OUT port.
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
LAN
L
RR
L
BA
C
ACOMPUTER IN1, BCOMPUTER IN2, CMONITOR OUT
D-sub 15pin mini shrink jack
(1) for PC signal
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
1Video Red 10 Ground
2 Video Green 11 (No connection)
3Video Blue 12 A
: SDA (DDC data)
B, C
: (No connection)
4 (No connection)
5Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7Ground Green 15 A
: SCL (DDC clock)
B, C
: (No connection)
8Ground Blue
9 (No connection) - -


 
(2) for Component signal
• Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator
• Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator
• Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator
System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60
Pin Signal Pin Signal
1Cr/Pr 9 (No connection)
2 Y 10 Ground
3Cb/Pb 11 (No connection)
4 (No connection) 12 (No connection)
5Ground 13 (No connection)
6 Ground Cr/Pr 14 (No connection)
7Ground Y 15 (No connection)
8Ground Cb/Pb - -

4
DS-VIDEO
Mini DIN 4pin jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
Pin Signal
1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator
Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3Ground
4 Ground
Connection to the ports (continued)
43
2
1
EVIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
• 1.0±0.1Vp-p, 75Ω terminator
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
LAN
L
RR
L
D
E

5
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
LAN
L
RR
L
Connection to the ports (continued)
GAUDIO IN1,
H
AUDIO IN2
Ø3.5 stereo mini jack
• 200 mVrms, 47kΩ terminator
AUDIO IN3
I
R,
J
L
RCA jack x2
• 200 mVrms, 47kΩ terminator
AUDIO OUT
K
R, LL
RCA jack x2
• 200 mVrms, 1kΩ output impedance
MMIC
Ø3.5 mono mini jack
<Low level>
• 2 mVrms, 1kΩ terminator
<High level>
• 20 mVrms, 1kΩ terminator
FHDMI
• Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)
Pin Signal Pin Signal Pin Signal
1T.M.D.S. Data2 + 8T.M.D.S. Data0 Shield 15 SCL
2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground
4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield
18 +5V Power
5T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7T.M.D.S. Data0 + 14 Reserved(N.C. on device)
10 12 14 16 182468
911131517191357
I
H
F
J
GK
M
L

6

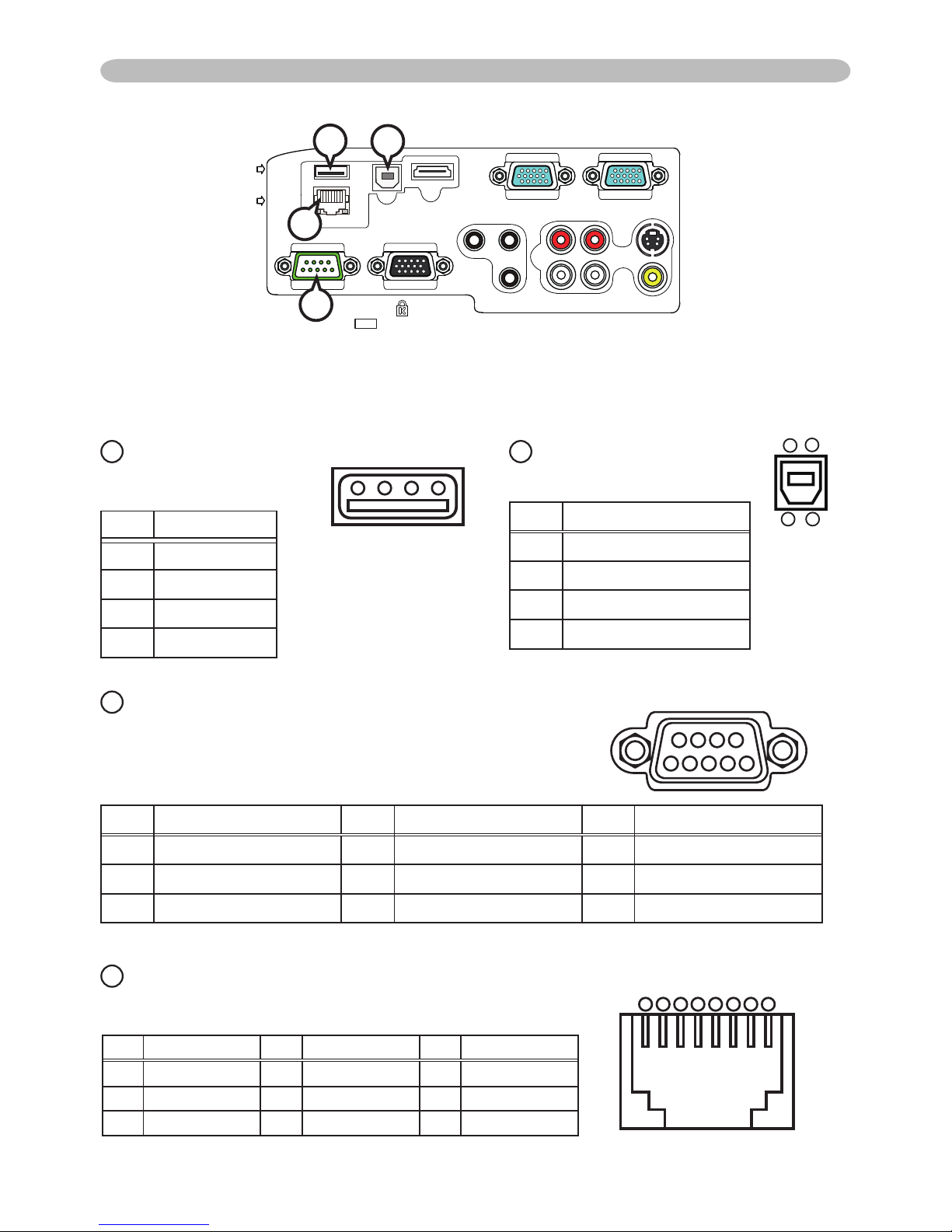

Connection to the ports (continued)
O
USB TYPE B
USB B type jack
Pin Signal
1+5V
2 - Data
3+ Data
4Ground
43
21
P
CONTROL
D-sub 9pin plug
• About the details of RS-232C communication,
please refer to the section "RS-232C Communication".
Pin Signal Pin Signal Pin Signal
1(No connection) 4 (No connection) 7RTS
2 RD 5Ground 8CTS
3TD 6 (No connection) 9 (No connection)
Q
LAN
RJ-45 jack 87654
3
21
Pin Signal Pin Signal Pin Signal
1TX+ 4 - 7-
2 TX- 5-8-
3RX+ 6 RX-
NUSB TYPE A
USB A type jack 4321
Pin Signal
1+5V
2 - Data
3+ Data
4Ground
9
54321
6
7
8
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
LAN
L
RR
L
NO
Q
P

7
Connection to the ports (continued)

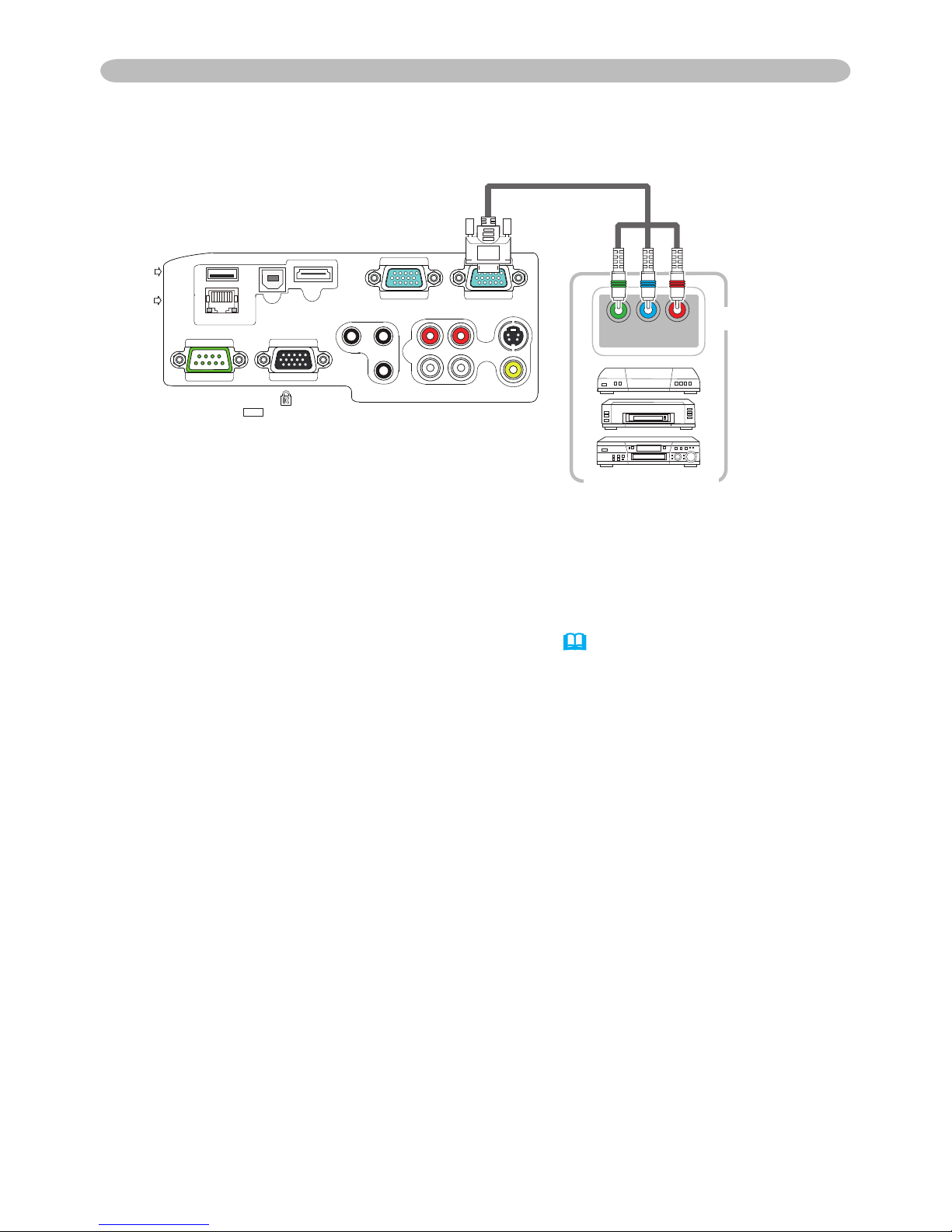

To input component video signal to COMPUTER IN ports
ex.
To input component video signal to the COMPUTER IN1 or IN2 port of the
projector, use a RCA to D-sub cable or adapter.
For about the pin description of the required cable or adapter, refer to the
descriptions about COMPUTER IN1 and IN2 port (&3).
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
LAN
Y CB/PBCR/PR
COMPONENT VIDEO OUT
L
RR
L
RCA plugs
D-sub plug
VCR/DVD/Blu-ray
Disc player
RCA connectors

8
RS-232C Communication
RS-232C Communication
When the projector connects to the computer by RS-232C communication, the
projector can be controlled with RS-232C commands from the computer.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (&17).
Connection
1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port
with a RS-232C cable (cross). Use the cable that ful lls the speci cation
shown in  gure
3. Turn the computer on, and after the computer has started up turn the projector
on.
4. Set the COMMUNICATION TYPE to OFF. (&OPTION menu - SERVICE -
COMMUNICATION in the User's Manual - Operating Guide)
CD (1) (1) −
RD(2) (2) RD
TD (3) (3) TD
DTR (4) (4) −
GND (5) (5) GND
DSR (6) (6) −
RTS (7) (7) RTS
DTS (8) (8) CTS
RI (9) (9) −
CONTROL port
of the projector
RS-232C port
of the computer
9
54321
6
7
8



1
2
43
8
9
5
7 6
(cross)
RS-232C Cable
RS-232C CONTROL

9
RS-232C Communication (continued)
Communication settings
1. Protocol
19200bps,8N1
2. Command format ("h" shows hexadecimal)
Byte Number 01234567 8 9 10 11 12
Command
Action
Header Data
Header
code
Packet
Data
size
CRC
ag Action Type Setting code
L H L H L H L H L H L H
<SET> Change setting to
desired value [(cL)(cH)]
by [(bL)(bH)].
BEh EFh 03h 06h 00h
(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)
<GET> Read projector
internal setup value [(bL)
(bH)] .
(aL) (aH) 02h 00h (bL) (bH) 00h 00h
<INCREMENT>
Increment setup value
[(bL)(bH)] by 1.
(aL) (aH) 04h 00h (bL) (bH) 00h 00h
<DECREMENT>
Decrement setup value
[(bL)(bH)] by 1.
(aL) (aH) 05h 00h (bL) (bH) 00h 00h
<EXECUTE> Run a
command [(bL)(bH)].
(aL) (aH) 06h 00h (bL) (bH) 00h 00h
[Header code] [Packet] [Data size]
Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 ~ 4.
[CRC ag]
For byte number 5, 6, refer to RS-232C Communication / Network command
table (&17).
[Action]
Set functional code to byte number 7, 8.
<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]
<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]
Refer to the Communication command table (&above).
[Type] [Setting code]
For byte number 9 ～ 12 , refer to RS-232C Communication / Network command
table (&17).

10
RS-232C Communication (continued)
3. Response code / Error code ("h" shows hexadecimal)
(1) ACK reply : 06h
When the projector receives the Set, Increment, Decrement or Execute
command correctly, the projector changes the setting data for the specied
item by [Type], and it returns the code.
(2) NAK reply : 15h
When the projector cannot understand the received command, the projector
returns the error code.
In such a case, check the sending code and send the same command again.
(3) Error reply : 1Ch + 0000h
When the projector cannot execute the received command for any reasons,
the projector returns the error code.
In such a case, check the sending code and the setting status of the projector.
(4) Data reply : 1Dh + xxxxh
When the projector receives the GET command correctly, the projector returns
the responce code and 2 bytes of data.
NOTE • For connecting the projector to your devices, please read the
manual for each devices, and connect them correctly with suitable cables.
• Operation cannot be guaranteed when the projector receives an undened
command or data.
• Provide an interval of at least 40ms between the response code and any other
code.
• The projector outputs test data when the power supply is switched ON, and
when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.
• When the data length is greater than indicated by the data length code, the
projector ignore the excess data code. Conversely when the data length is
shorter than indicated by the data length code, the projector returns the error
code to the computer.

11
Command Control via the Network
When the projector connects network, the projector can be controlled with RS-
232C commands from the computer with web browser.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (&17).
Connection
1. Turn off the projector and the computer.
2. Connect the projector's LAN port and the computer's LAN port with a LAN
cable. Use the cable that ful lls the speci cation shown in  gure (Use CAT-5
or greater LAN Cable when LAN ports are used )
3. Turn the computer on, and after the computer has started up turn the
projector on.
Command Control via the Network
LAN
LAN
LAN cable (CAT-5 or greater)

12
Communicaion Port
The following two ports are assigned for the command control.
TCP #23
TCP #9715
Congure the following items form a web browser when command control is used.
Port Settings
Network Control
Port1 (Port: 23)
Port open
Click the [Enable] check box to open [Network
Control Port1 (Port: 23)] to use TCP #23.
Default setting is “Enable”.
Authentication
Click the [Enable] check box for the
[Authentication] setting when authentication
is required.
Default setting is “Disable”.
Network Control
Port2 (Port: 9715)
Port open
Click the [Enable] check box to open [Network
Control Port2 (Port: 9715)] to use TCP
#9715.
Default setting is “Enable”.
Authentication
Click the [Enable] check box for the
[Authentication] setting when authentication
is required.
Default setting is “Enable”.
Command Control via the Network (continued)
When the authentication setting is enabled, the following settings are required.
Security Settings
Network Control
Authentication
Password Enter the desired authentication password.
This setting will be the same for [Network
Control Port1 (Port: 23)] and [Network
Control Port2 (Port: 9715)].
Default setting is blank.
Re-enter
Authentication
Password

13
Command Control via the Network (continued)
Command control settings
[TCP #23]
1. Command format
Same as RS-232C communication, refer to RS-232C Communicaton command format.
2. Response code / Error code ("h" shows hexadecimal)
Four of the response / error code used for TCP#23 are the same as RS-232C
Communication (1)~(4). One authentication error reply (5) is added.
(1) ACK reply : 06h
Refer to RS-232C communication (&10).
(2) NAK reply : 15h
Refer to RS-232C communication (&10).
(3) Error reply : 1Ch + 0000h
Refer to RS-232C communication (&10).
(4) Data reply : 1Dh + xxxxh
Refer to RS-232C communication (&10).
(5) Authentication error reply : 1Fh + 0400h
When authentication error occurred, the projector returns the error code.
[TCP #9715]
1. Command format
The commands some datum are added to the head and the end of the ones of
TCP#9715 are used.
Header Data length RS-232C command Check sum Connection ID
0×02 0×0D 13 bytes 1 byte 1 byte
[Header]
02, Fixed
[Data Length]
RS-232C commands byte length (0×0D, Fixed)
[RS-232C commands]
Refer to RS-232C Communication command format (&9).
[Check Sum]
This is the value to make zero on the addition of the lower 8 bits from the header
to the checksum.
[Connection ID]
Random value from 0 to 255 (This value is attached to the reply data).
NOTE • Operation cannot be guaranteed when the projector receives an
undened command or data.
• Provide an interval of at least 40ms between the response code and any other
code.
• Commands are not accepted during warm-up.

14
2. Response code / Error code ("h" shows hexadecimal)
The connection ID is attached for the TCP#23's response / error codes are
used. The connection ID is same as the sending command format.
(1) ACK reply : 06h + ××h (××h : connection ID)
(2) NAK reply : 15h + ××h
(3) Error reply : 1Ch + 0000h + ××h
(4) Data reply : 1Dh + xxxxh + ××h
(5) Authentication error reply : 1Fh + 0400h + ××h
(6) Projector busy reply: 1Fh + ××××h + ××h
When the projector is too busy to receives the command, the projector returns
the error code.
In such a case, check the sending code and send the same command again.
Automatic Connection Break
The TCP connection will be automatically disconnected after there is no
communication for 30 seconds after being established.
Authentication
The projector does not accept commands without authentication success
when authentication is enabled. The projector uses a challenge response type
authentication with an MD5 (Message Digest 5) algorithm. When the projector is
using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind
this received 8 bytes and the authentication password and digest this data with
the MD5 algorithm and add this in front of the commands to send.
Following is a sample if the authentication password is set to “password” and the
random 8 bytes are “a572f60c”.
1) Select the projector.
2) Receive the random 8 bytes “a572f60c” from the projector.
3) Bind the random 8 bytes “a572f60c” and the authentication password
“password” and it becomes “a572f60cpassword”.
4) Digest this bind “a572f60cpassword” with MD5 algorithm.
It will be “e3d97429adffa11bce1f7275813d4bde”.
5) Add this “e3d97429adffa11bce1f7275813d4bde” in front of the commands and
send the data.
Send “e3d97429adffa11bce1f7275813d4bde”+command.
6) When the sending data is correct, the command will be performed and the
reply data will be returned. Otherwise, an authentication error will be returned.
NOTE • As for the transmission of the second or subsequent commands, the
authentication data can be omitted when the same connection.
Command Control via the Network (continued)

15
This projector is equipped with NETWORK BRIDGE function.
When the projector connects to the computer by LAN communicaton, an external
device that is connected with this projector by RS-232C communication can be
controlled from the computer as a network terminal.
For details, see the 6. Network Bridge Function - Network Guide.
Connection
1. Connect the computer's LAN port and the projector's LAN port with a LAN
cable.
2. Connect the projector's CONTROL port and the RS-232C port of the
devices that you want to control with a RS-232C cable.
3. Turn the computer on, and after the computer has started up turn the projector
on.
4. Set the COMMUNICATION TYPE to NETWORK BRIDGE. (&OPTION menu -
SERVICE - COMMUNICATION in the User's Manual - Operating Guide)
Network Bridge Communication
Network Bridge Communication
CONTROL RS-232C
LAN
LAN

16
Communication settings
For communication setting, use the OPTION - SERVICE - COMMUNICATION
menu. (&OPTION menu - SERVICE - COMMUNICATION in the User's Manual
- Operating Guide)
Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (xed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (xed)
Stop bit 1 bit (xed)
Transmission method HALF-DUPLEX/FULL-DUPLEX
NOTE • For connecting the projector to your devices, please read the
manual for each devices, and connect them correctly with suitable cables.
• Turn off (the power of ) both the projector and other devices and unplug ,
beore connecting them.
• For details of Transmission method, refer to 6.4 Transmission method
- Network Guide.
Network Bridge Communication (continued)

17
RS-232C Communication / Network command table
Names Operation Type Header Command Data
CRC Action Type Setting code
Power
Set Turn off BE EF 03 06 00 2A D3 01 00 00 60 00 00
Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00
Get
BE EF 03 06 00 19 D3 02 00 00 60 00 00
[Example return]
00 00 01 00 02 00
[Off] [On] [Cool down]
Input Source Set
COMPUTER IN1 BE EF 03 06 00 FE D2 01 00 00 20 00 00
COMPUTER IN2 BE EF 03 06 00 3E D0 01 00 00 20 04 00
HDMI BE EF 03 06 00 0E D2 01 00 00 20 03 00
S-VIDEO BE EF 03 06 00 9E D3 01 00 00 20 02 00
VIDEO BE EF 03 06 00 6E D3 01 00 00 20 01 00
USB TYPE A BE EF 03 06 00 5E D1 01 00 00 20 06 00
LAN BE EF 03 06 00 CE D5 01 00 00 20 0B 00
USB TYPE B BE EF 03 06 00 FE D7 01 00 00 20 0C 00
Get BE EF 03 06 00 CD D2 02 00 00 20 00 00
Error Status Get
BE EF 03 06 00 D9 D8 02 00 20 60 00 00
[Example return]
00 00 01 00 02 00 03 00
[Normal] [Cover error] [Fan error] [Lamp error]
04 00 05 00 07 00 08 00 0C 00
[Temp error] [Air ow error] [Cold error] [Filter error] [Lens Door error]
MAGNIFY
Get BE EF 03 06 00 7C D2 02 00 07 30 00 00
Increment BE EF 03 06 00 1A D2 04 00 07 30 00 00
Decrement BE EF 03 06 00 CB D3 05 00 07 30 00 00
FREEZE Set NORMAL BE EF 03 06 00 83 D2 01 00 02 30 00 00
FREEZE BE EF 03 06 00 13 D3 01 00 02 30 01 00
Get BE EF 03 06 00 B0 D2 02 00 02 30 00 00
MODE
Set
NORMAL BE EF 03 06 00 23 F6 01 00 BA 30 00 00
CINEMA BE EF 03 06 00 B3 F7 01 00 BA 30 01 00
DYNAMIC BE EF 03 06 00 E3 F4 01 00 BA 30 04 00
BOARD(BLACK) BE EF 03 06 00 E3 EF 01 00 BA 30 20 00
BOARD(GREEN) BE EF 03 06 00 73 EE 01 00 BA 30 21 00
WHITEBOARD BE EF 03 06 00 83 EE 01 00 BA 30 22 00
DAYTIME BE EF 03 06 00 E3 C7 01 00 BA 30 40 00
Get
BE EF 03 06 00 10 F6 02 00 BA 30 00 00
[Example return]
00 00 01 00 04 00 10 00
[Normal] [Cinema] [Dynamic] [Custom]
20 00 21 00 22 00 40 00
[BOARD(BLACK)] [BOARD(GREEN)] [WHITEBOARD] [DAY TIME]
BRIGHTNESS
Get BE EF 03 06 00 89 D2 02 00 03 20 00 00
Increment BE EF 03 06 00 EF D2 04 00 03 20 00 00
Decrement BE EF 03 06 00 3E D3 05 00 03 20 00 00
BRIGHTNESS
Reset Execute BE EF 03 06 00 58 D3 06 00 00 70 00 00
CONTRAST
Get BE EF 03 06 00 FD D3 02 00 04 20 00 00
Increment BE EF 03 06 00 9B D3 04 00 04 20 00 00
Decrement BE EF 03 06 00 4A D2 05 00 04 20 00 00
RS-232C Communication / Network command table
(continued on next page)

RS-232C Communication / Network command table (continued)
18
(continued on next page)
Names Operation Type Header Command Data
CRC Action Type Setting code
CONTRAST
Reset Execute BE EF 03 06 00 A4 D2 06 00 01 70 00 00
GAMMA Set
1 DEFAULT BE EF 03 06 00 07 E9 01 00 A1 30 20 00
1 CUSTOM BE EF 03 06 00 07 FD 01 00 A1 30 10 00
2 DEFAULT BE EF 03 06 00 97 E8 01 00 A1 30 21 00
2 CUSTOM BE EF 03 06 00 97 FC 01 00 A1 30 11 00
3 DEFAULT BE EF 03 06 00 67 E8 01 00 A1 30 22 00
3 CUSTOM BE EF 03 06 00 67 FC 01 00 A1 30 12 00
4 DEFAULT BE EF 03 06 00 F7 E9 01 00 A1 30 23 00
4 CUSTOM BE EF 03 06 00 F7 FD 01 00 A1 30 13 00
5 DEFAULT BE EF 03 06 00 C7 EB 01 00 A1 30 24 00
5 CUSTOM BE EF 03 06 00 C7 FF 01 00 A1 30 14 00
6 DEFAULT BE EF 03 06 00 57 EA 01 00 A1 30 25 00
6 CUSTOM BE EF 03 06 00 57 FE 01 00 A1 30 15 00
Get BE EF 03 06 00 F4 F0 02 00 A1 30 00 00
User Gamma
Pattern
Set
Off BE EF 03 06 00 FB FA 01 00 80 30 00 00
9 steps gray scale BE EF 03 06 00 6B FB 01 00 80 30 01 00
15 steps gray scale BE EF 03 06 00 9B FB 01 00 80 30 02 00
Ramp BE EF 03 06 00 0B FA 01 00 80 30 03 00
Get BE EF 03 06 00 C8 FA 02 00 80 30 00 00
User Gamma
Point 1
Get BE EF 03 06 00 08 FE 02 00 90 30 00 00
Increment BE EF 03 06 00 6E FE 04 00 90 30 00 00
Decrement BE EF 03 06 00 BF FF 05 00 90 30 00 00
User Gamma
Point 1 Reset Execute BE EF 03 06 00 58 C2 06 00 50 70 00 00
User Gamma
Point 2
Get BE EF 03 06 00 F4 FF 02 00 91 30 00 00
Increment BE EF 03 06 00 92 FF 04 00 91 30 00 00
Decrement BE EF 03 06 00 43 FE 05 00 91 30 00 00
User Gamma
Point 2 Reset Execute BE EF 03 06 00 A4 C3 06 00 51 70 00 00
User Gamma
Point 3
Get BE EF 03 06 00 B0 FF 02 00 92 30 00 00
Increment BE EF 03 06 00 D6 FF 04 00 92 30 00 00
Decrement BE EF 03 06 00 07 FE 05 00 92 30 00 00
User Gamma
Point 3 Reset Execute BE EF 03 06 00 E0 C3 06 00 52 70 00 00
User Gamma
Point 4
Get BE EF 03 06 00 4C FE 02 00 93 30 00 00
Increment BE EF 03 06 00 2A FE 04 00 93 30 00 00
Decrement BE EF 03 06 00 FB FF 05 00 93 30 00 00
User Gamma
Point 4 Reset Execute BE EF 03 06 00 1C C2 06 00 53 70 00 00
User Gamma
Point 5
Get BE EF 03 06 00 38 FF 02 00 94 30 00 00
Increment BE EF 03 06 00 5E FF 04 00 94 30 00 00
Decrement BE EF 03 06 00 8F FE 05 00 94 30 00 00
User Gamma
Point 5 Reset Execute BE EF 03 06 00 68 C3 06 00 54 70 00 00
User Gamma
Point 6
Get BE EF 03 06 00 C4 FE 02 00 95 30 00 00
Increment BE EF 03 06 00 A2 FE 04 00 95 30 00 00
Decrement BE EF 03 06 00 73 FF 05 00 95 30 00 00
User Gamma
Point 6 Reset Execute BE EF 03 06 00 94 C2 06 00 55 70 00 00

RS-232C Communication / Network command table (continued)
19
(continued on next page)
Names Operation Type Header Command Data
CRC Action Type Setting code
User Gamma
Point 7
Get BE EF 03 06 00 80 FE 02 00 96 30 00 00
Increment BE EF 03 06 00 E6 FE 04 00 96 30 00 00
Decrement BE EF 03 06 00 37 FF 05 00 96 30 00 00
User Gamma
Point 7 Reset Execute BE EF 03 06 00 D0 C2 06 00 56 70 00 00
User Gamma
Point 8
Get BE EF 03 06 00 7C FF 02 00 97 30 00 00
Increment BE EF 03 06 00 1A FF 04 00 97 30 00 00
Decrement BE EF 03 06 00 CB FE 05 00 97 30 00 00
User Gamma
Point 8 Reset Execute BE EF 03 06 00 2C C3 06 00 57 70 00 00
COLOR TEMP Set
1 HIGH BE EF 03 06 00 0B F5 01 00 B0 30 03 00
1 CUSTOM BE EF 03 06 00 CB F8 01 00 B0 30 13 00
2 MID BE EF 03 06 00 9B F4 01 00 B0 30 02 00
2 CUSTOM BE EF 03 06 00 5B F9 01 00 B0 30 12 00
3 LOW BE EF 03 06 00 6B F4 01 00 B0 30 01 00
3 CUSTOM BE EF 03 06 00 AB F9 01 00 B0 30 11 00
4 Hi-BRIGHT-1 BE EF 03 06 00 3B F2 01 00 B0 30 08 00
4 CUSTOM BE EF 03 06 00 FB FF 01 00 B0 30 18 00
5 Hi-BRIGHT-2 BE EF 03 06 00 AB F3 01 00 B0 30 09 00
5 CUSTOM BE EF 03 06 00 6B FE 01 00 B0 30 19 00
6 Hi-BRIGHT-3 BE EF 03 06 00 5B F3 01 00 B0 30 0A 00
6 CUSTOM BE EF 03 06 00 9B FE 01 00 B0 30 1A 00
Get BE EF 03 06 00 C8 F5 02 00 B0 30 00 00
COLOR TEMP
GAIN R
Get BE EF 03 06 00 34 F4 02 00 B1 30 00 00
Increment BE EF 03 06 00 52 F4 04 00 B1 30 00 00
Decrement BE EF 03 06 00 83 F5 05 00 B1 30 00 00
COLOR TEMP
GAIN R Reset Execute BE EF 03 06 00 10 C6 06 00 46 70 00 00
COLOR TEMP
GAIN G
Get BE EF 03 06 00 70 F4 02 00 B2 30 00 00
Increment BE EF 03 06 00 16 F4 04 00 B2 30 00 00
Decrement BE EF 03 06 00 C7 F5 05 00 B2 30 00 00
COLOR TEMP
GAIN G Reset Execute BE EF 03 06 00 EC C7 06 00 47 70 00 00
COLOR TEMP
GAIN B
Get BE EF 03 06 00 8C F5 02 00 B3 30 00 00
Increment BE EF 03 06 00 EA F5 04 00 B3 30 00 00
Decrement BE EF 03 06 00 3B F4 05 00 B3 30 00 00
COLOR TEMP
GAIN B Reset Execute BE EF 03 06 00 F8 C4 06 00 48 70 00 00
COLOR TEMP
OFFSET R
Get BE EF 03 06 00 04 F5 02 00 B5 30 00 00
Increment BE EF 03 06 00 62 F5 04 00 B5 30 00 00
Decrement BE EF 03 06 00 B3 F4 05 00 B5 30 00 00
COLOR TEMP
OFFSET R
Reset
Execute BE EF 03 06 00 40 C5 06 00 4A 70 00 00
COLOR TEMP
OFFSET G
Get BE EF 03 06 00 40 F5 02 00 B6 30 00 00
Increment BE EF 03 06 00 26 F5 04 00 B6 30 00 00
Decrement BE EF 03 06 00 F7 F4 05 00 B6 30 00 00
COLOR TEMP
OFFSET G
Reset
Execute BE EF 03 06 00 BC C4 06 00 4B 70 00 00

RS-232C Communication / Network command table (continued)
20
(continued on next page)
Names Operation Type Header Command Data
CRC Action Type Setting code
COLOR TEMP
OFFSET B
Get BE EF 03 06 00 BC F4 02 00 B7 30 00 00
Increment BE EF 03 06 00 DA F4 04 00 B7 30 00 00
Decrement BE EF 03 06 00 0B F5 05 00 B7 30 00 00
COLOR TEMP
OFFSET B
Reset
Execute BE EF 03 06 00 C8 C5 06 00 4C 70 00 00
COLOR
Get BE EF 03 06 00 B5 72 02 00 02 22 00 00
Increment BE EF 03 06 00 D3 72 04 00 02 22 00 00
Decrement BE EF 03 06 00 02 73 05 00 02 22 00 00
COLOR Reset Execute BE EF 03 06 00 80 D0 06 00 0A 70 00 00
TINT
Get BE EF 03 06 00 49 73 02 00 03 22 00 00
Increment BE EF 03 06 00 2F 73 04 00 03 22 00 00
Decrement BE EF 03 06 00 FE 72 05 00 03 22 00 00
TINT Reset Execute BE EF 03 06 00 7C D1 06 00 0B 70 00 00
SHARPNESS
Get BE EF 03 06 00 F1 72 02 00 01 22 00 00
Increment BE EF 03 06 00 97 72 04 00 01 22 00 00
Decrement BE EF 03 06 00 46 73 05 00 01 22 00 00
SHARPNESS
Reset Execute BE EF 03 06 00 C4 D0 06 00 09 70 00 00
ACTIVE IRIS
Set
OFF BE EF 03 06 00 0B 22 01 00 04 33 00 00
THEATER BE EF 03 06 00 CB 2F 01 00 04 33 10 00
PRESENTATION BE EF 03 06 00 5B 2E 01 00 04 33 11 00
Get BE EF 03 06 00 38 22 02 00 04 33 00 00
MY MEMORY
Load Set
1BE EF 03 06 00 0E D7 01 00 14 20 00 00
2 BE EF 03 06 00 9E D6 01 00 14 20 01 00
3BE EF 03 06 00 6E D6 01 00 14 20 02 00
4 BE EF 03 06 00 FE D7 01 00 14 20 03 00
MY MEMORY
Save Set
1BE EF 03 06 00 F2 D6 01 00 15 20 00 00
2 BE EF 03 06 00 62 D7 01 00 15 20 01 00
3BE EF 03 06 00 92 D7 01 00 15 20 02 00
4 BE EF 03 06 00 02 D6 01 00 15 20 03 00
ASPECT Set
4:3 BE EF 03 06 00 9E D0 01 00 08 20 00 00
16:9 BE EF 03 06 00 0E D1 01 00 08 20 01 00
NATIVE BE EF 03 06 00 5E D7 01 00 08 20 08 00
14:9 BE EF 03 06 00 CE D6 01 00 08 20 09 00
16:10 BE EF 03 06 00 3E D6 01 00 08 20 0A 00
NORMAL BE EF 03 06 00 5E DD 01 00 08 20 10 00
Get BE EF 03 06 00 AD D0 02 00 08 20 00 00
OVER SCAN
Get BE EF 03 06 00 91 70 02 00 09 22 00 00
Increment BE EF 03 06 00 F7 70 04 00 09 22 00 00
Decrement BE EF 03 06 00 26 71 05 00 09 22 00 00
OVER SCAN
Reset Execute BE EF 03 06 00 EC D9 06 00 27 70 00 00
V POSITION
Get BE EF 03 06 00 0D 83 02 00 00 21 00 00
Increment BE EF 03 06 00 6B 83 04 00 00 21 00 00
Decrement BE EF 03 06 00 BA 82 05 00 00 21 00 00
V POSITION
Reset Execute BE EF 03 06 00 E0 D2 06 00 02 70 00 00
