Dukane 8945WU User manual

1
LCD Projector
8945WU
User's Manual (detailed)
Operating Guide
Th a n k y o u f o r p u r c h a s i n g t h i s p r o j e c t o r .
►Before using this product, please read all manuals for this
product. Be sure to read S a f e t y G u i d e rst. After reading them, store them in a
safe place for future reference.
WARNING
NOTE
Tr a d e m a r k a c k n o w l e d g m e n t
Various symbols are used in this manual. The meanings of these symbols are
described below.
About this manual
WARNING
CAUTION
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect handling.
Please refer to the pages written following this symbol.

• VESA and DDC are trademarks of the Video Electronics Standard Association.
• Mac®, OS X® and macOS® are registered trademarks of Apple Inc. in the U.S. and/or
other countries.
•
HDMI
TM
, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc Association.
• DICOM® is the registered trademark of the National Electrical Manufacturers Association
for its standards publications relating to digital communications of medical information.
•
MHL®, the MHL logo, and Mobile High-Denition Link are trademarks or registered
trademarks of MHL, LLC in the United States and other countries.
All other trademarks are the properties of their respective owners.
NOTICE This entry notices of fear of causing trouble.
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
8945WU-User-anual-00

2
Contents
Introduction ............... 3
Features ......................3
Checking the contents of package ....3
Part names ....................4
Projector, Control panel, Ports,
Remote control
Setting up ................. 7
Arrangement ...................7

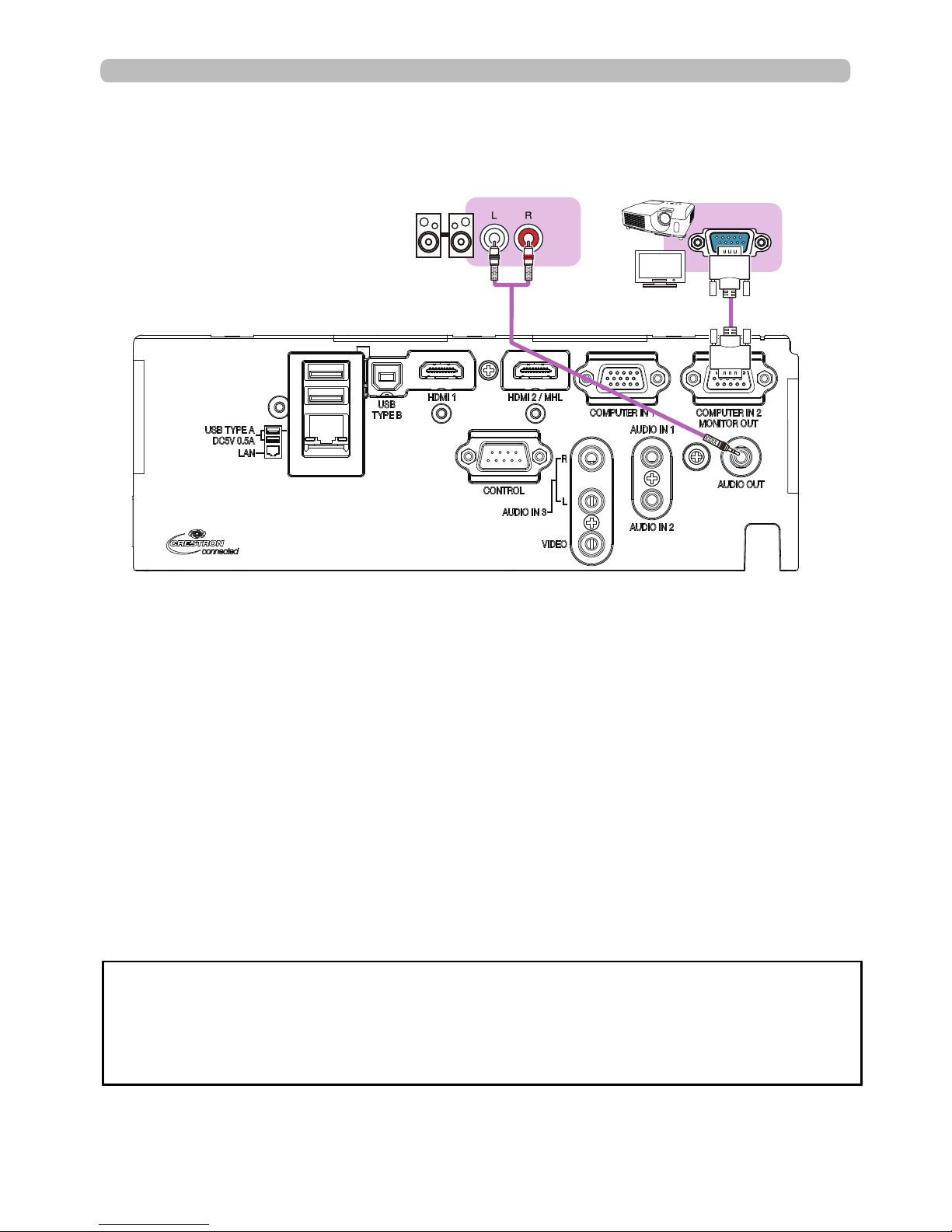

Connecting with your devices
.....1 0
Connecting to a power supply
.....1 5
Fastening the cable
.............1 5
Fastening the adapter cover ......
1 6
Using the security bar and slot ....1 6
Remote control ............ 17
Installing the batteries ...........1 7
About the remote control signal ...1 8
Changing the frequency of remote
control signal ..................1 8
Using as a simple PC mouse & keyboard . . 1 9
Power on/off .............. 20
Turning on the power ...........2 0
Turning off the power ...........2 1
Operating ................ 22
Adjusting the volume ............2 2
Temporarily muting the sound .....2 2
Selecting an input signal .........2 3
Selecting an aspect ratio .........2 3
Adjusting the projector's elevator ....2 4
Adjusting the zoom and focus .....2 4
Using the automatic adjustment feature . . 2 5
Correcting the distortion .........2 6
Using the magnify feature ........2 9
Temporarily freezing the screen ...3 0
Temporarily blanking the screen ...3 0
Using the menu function .........3 1
Indication in OSD,
Containing items of each menu
EASY MENU. . . . . . . . . . . . . . . 34
PICTURE menu ............ 36
IMAGE menu .............. 40
INPUT menu .............. 42
SETUP menu .............. 46
AUDIO menu .............. 52
SCREEN menu............. 53
OPTION menu ............. 59

NETWORK menu ........... 72
SECURITY menu ........... 73
Presentation tools ......... 79
PC-LESS Presentation. .........7 9
Maintenance .............. 88
Replacing the lamp .............8 8
Cleaning and replacing the air lter . . 9 0
Replacing the internal clock battery . . .92
Other care ....................9 3
Troubleshooting ........... 94
Related messages .............9 4
Regarding the indicator lamps ....9 6
Resetting all settings ............9 8
Phenomena that may be easy to
be mistaken for machine defects ...9 9
Specications ............ 104


3
Introduction
Introduction
• Keep the original packing materials, for future reshipment. Be sure
to use the original packing materials when moving the projector. Use special
caution for the lens.
• The projector may make a rattling sound when tilted, moved or shaken, since
a ap to control the air ow inside of the projector has moved. Be aware that
this is not a failure or malfunction.
NOTE
The projector provides you with the broad use by the following features.
Checking the contents of package
ü This projector has a variety of I/O ports that supposedly cover for any
business scene. An HDMITM port can support various image equipment which
have digital interface to get clearer pictures on a screen. This model has two
HDMITM ports.
ü If you insert a USB storage device, such as a USB memory, into the US B
TY PE A port and select the port as the input source, you can view images
stored in the device.
ü This projector can be controlled and monitored via LAN connection.
Furthermore, you can use the designated USB wireless adapter (optional) to
establish wireless LAN connection.
ü The built-in 16W speaker can deliver sufcient sound volume in a large space
like a classroom without external speakers.
ü Has an HDCR and an ACCENTUALIZER features which are original image
stabilizer for a clearer image.
ü Equipped with IMAGE OPTIMIZER which is original function to maintain
visibility by automatic image correction in accordance with lamp deterioration.
Please see the C o n t e n t s o f p a c k a g e section in the Us e r ’ s M a n u a l ( c o n c i s e )
which is a book. Your projector should come with the items shown there. Require
of your dealer immediately if any items are missing.
Features
►Keep small parts away from children and pets. Take care
not to put in the mouth. If swallowed, consult a physician immediately for
emergency treatment.
WARNING

4
Introduction
►Do not open or remove any portion of the product, unless the
manuals direct it.
►Do not subject the projector to unstable conditions.
►Do not apply a shock or pressure to this product.
►Do not look into the lens and the openings on the projector while the lamp is
on, since the projection ray may cause a trouble on your eyes.
►Keep any object away from concentrated projection light beam. Blocking the
beam by something causes high temperature and could result in re or smoke.
WARNING
►Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
►Do not attach anything onto the lens because it could damage the lens,
such as melting the lens.
►Do not attach anything onto the lens except the lens cover of this projector
because it could damage the lens, such as melting the lens.
CAUTION
(continued on next page)
Part names
Projector
(1) Lamp cover (98)
The lamp unit is inside.
(2) Speaker (22, 55)
(3) Filter cover (100)
The air lter and intake vent are inside.
(4) Elevator feet (x2) (25)
(5) Elevator button (25)
(6) Remote sensor (18)
(7) Lens (103)
(8) Lens cover
(9) Intake vents
(10) Control panel (5)
(11) F O C US ring (25)
(12) Z O O M ring (25)
(13) AC (AC inlet) (15)
(14) Exhaust vent
(15) Ports (5)
(7)
(4)
(5)
(6)
(9)
(3)
(2)
(13)
(14)
(15) (9)
(10) (1)
(11)
(8) (12)
(4)(5)

5
Introduction
Part names (continued)

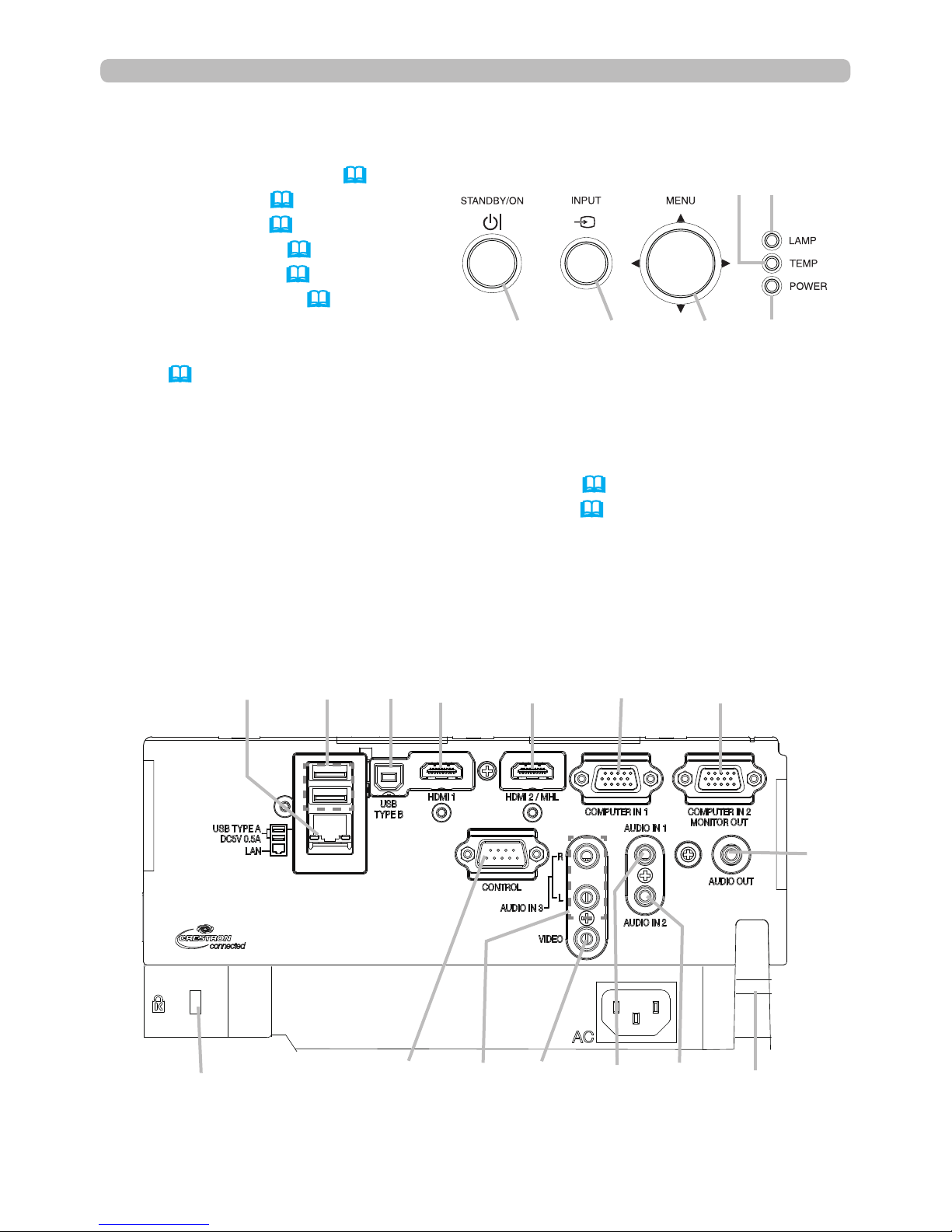

Control panel
(1) S TA ND B Y / O N button (20)
(2) INPUT button (23)
(3) M E NU button (32)
(4) L A M P indicator (106)
(5) TE M P indicator (106)
(6) PO W E R indicator (106)
Ports(10 ~ 14)
(1) L A N port
(2) US B TY PE A port (x2)
(3) US B TY PE B port
(4) H D M I1 port
(5) H D M I2 / M H L port
(6) A UD IO IN1 port
(7) A UD IO IN2 port
(8) A UD IO IN3 (R , L ) ports
(9) A UD IO O UT port
(10) C O M PUTE R IN1 port
(11) C O M PUTE R IN2 / M O NITO R O UT port
(12) C O NTR O L port
(13) V ID E O port
(14) Security slot (16)
(15) Security bar (16)
(continued on next page)
(1) (3)(2) (6)
(4)(5)
(10)
(8)
(4)
(3)(2) (5)
(14) (13)
(12)
(11)
(1)
(6) (7) (15)
(9)

6
Part names (continued)
• Any button marked with “*” is not supported on this projector (105).
NOTE

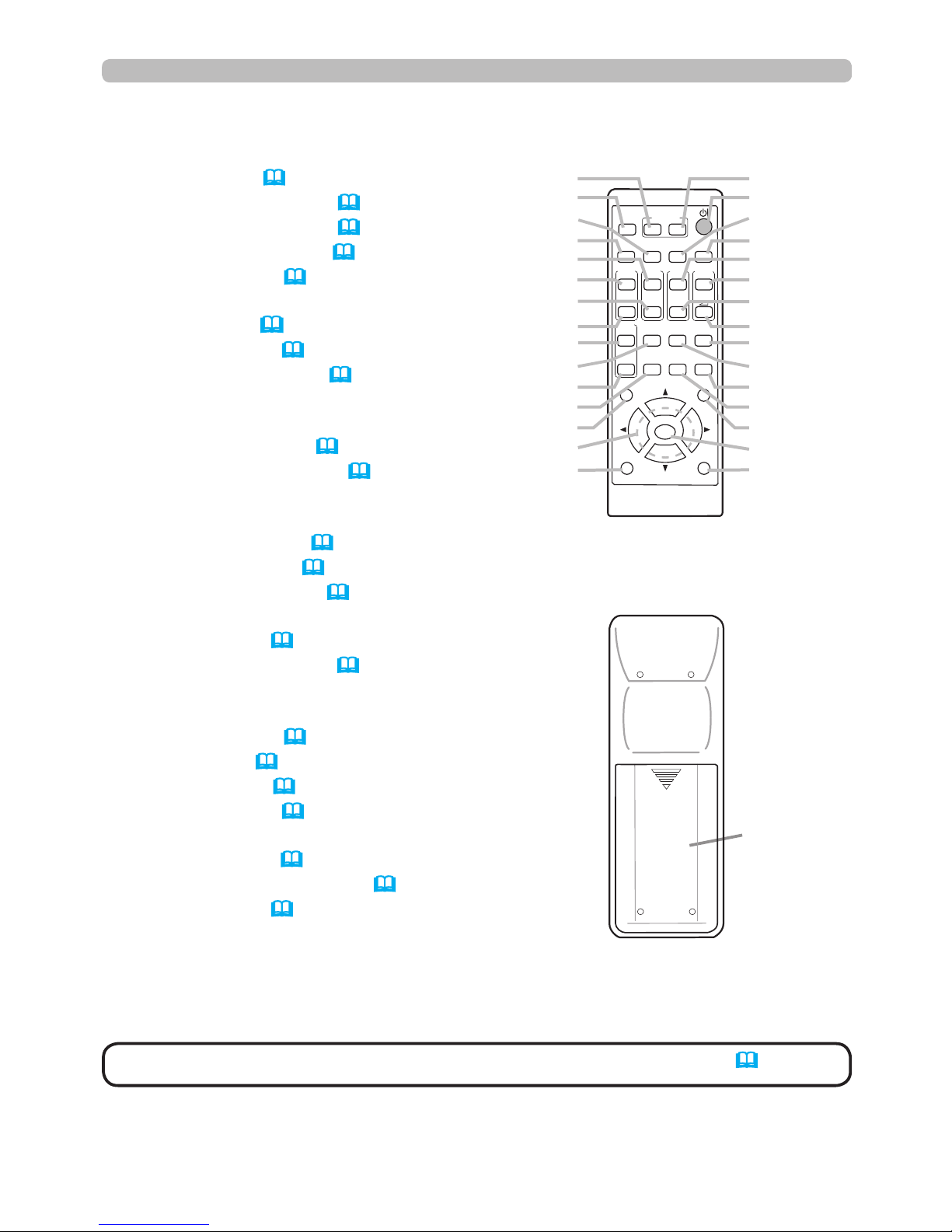

Back of
the remote control
(1) INPUT button (23)
(2) M Y B UTTO N- 1 button (64, 65)
(3) M Y B UTTO N- 2 button (64, 65)
(4) S TA ND B Y / O N button (20)
(5) A S PE C T button (24)
(6) Pb y P button *
(7) A UTO button (26)
(8) F R E E Z E button (31)
(9) M A G NIF Y O N button (30)
(10) F O C US + button *
(11) Z O O M + button *
(12) V O L UM E + button (22)
(13) M A G NIF Y O F F
button (30)
(14) F O C US - button *
(15) Z O O M - button *
(16) V O L UM E - button (22)
(17) PA G E UP button (19)
(18) G E O M E TR Y button (27)
(19) PIC TUR E button
(20) M UTE button (22)
(21) PA G E D O W N button (19)
(22) INTE R A C TIV E button *
(23) NE TW O R K button
(24) BLANK button (31)
(25) ESC button (19)
(26) M E NU button (32)
(27) E NTE R button (32)
(28) O S D M S G button
(29) RESET button (32)
(30) ▲/▼/◄/►cursor buttons (32)
(31) Battery cover (17)
(3)
(4)
(7)
(8)
(11)
(12)
(15)
(16)
(20)
(19)
(24)
(23)
(26)
(27)
(29)
(31)
ASPECT
BLANK
ESC MENU
RESET
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
ENTER
FOCUS
-
+
ZOOM
-
+
INPUT
INTERACTIVE
MYBUTTON
1 2
PbyP
MAGNIFY VOLUME
-
+
GEOMETRY PICTURE MUTE
NETWORK
OSD MSG
(2)
(1)
(6)
(5)
(10)
(9)
(14)
(13)
(17)
(18)
(21)
(22)
(25)
(30)
(28)
Remote control
Introduction

7
Setting up
Install the projector according to the environment and manner the projector will be
used in.
For the case of installation in a special state such as ceiling mount, the specied
mounting accessories (Specications in the Us e r ’ s M a n u a l ( c o n c i s e ) ) and
service may be required. Before installing the projector, consult your dealer about
your installation.

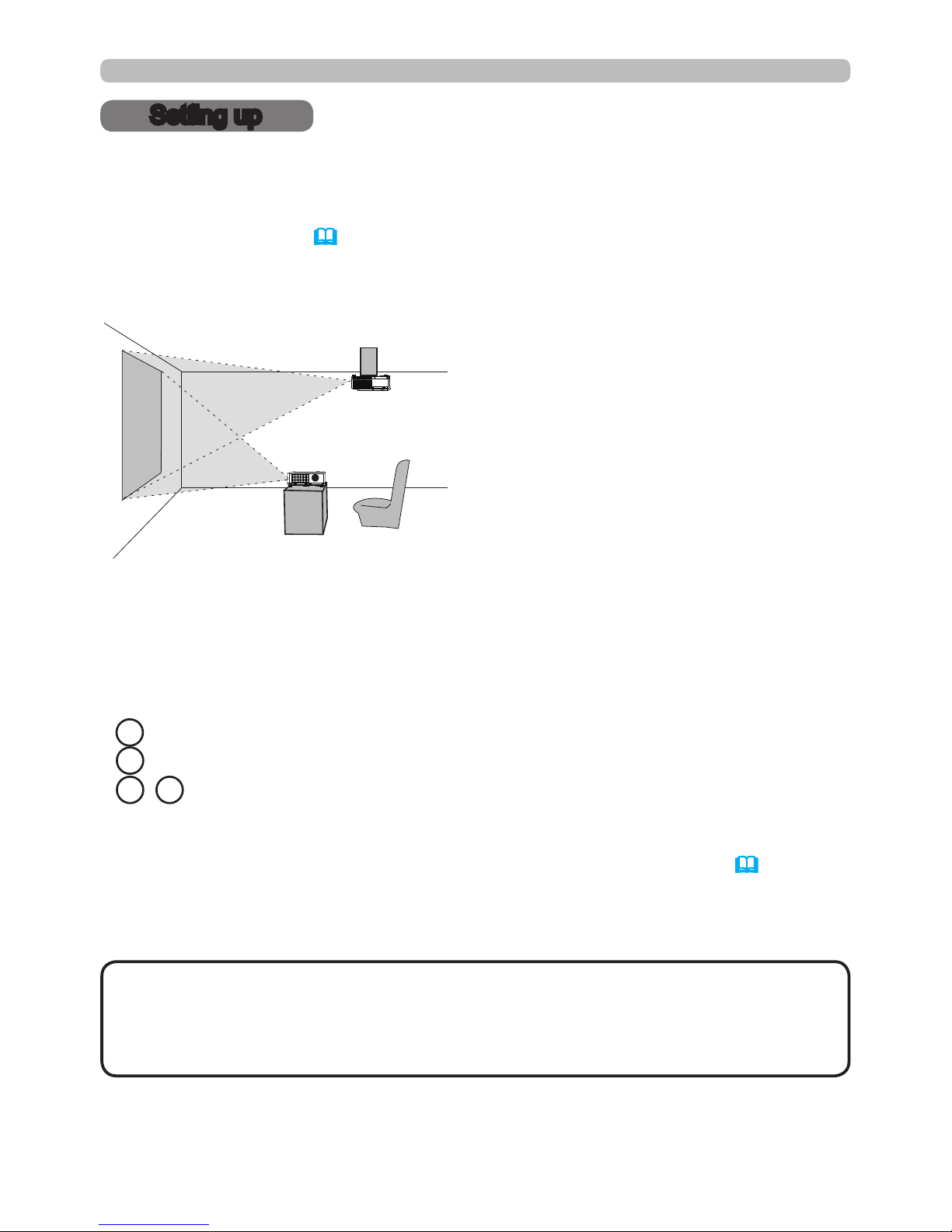

Arrangement
Refer to tables T- 1 to T- 3 and gures F - 1 and F - 2 at the end of User’s Manual
(concise) to determine the screen size and projection distance.
The values shown in the table are calculated for a full size screen.
(continued on next page)
• If the projector is used at an altitude of about 1600 m (5250 feet) or higher,
set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (69).
Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may
cause damage to the projector itself or the parts inside.
a Screen size (diagonal)
b Projection distance (±10%, from the projector’s end)
c1 , c2 Screen height (±10%)
• The screen position may shift after installation if the projector is
suspended from the ceiling or other location due to the exibility of the plastic
projector body. If readjustment is necessary, consult with your dealer or service
personnel.
NOTE
Setting up

8
Setting up
Arrangement (continued)
WARNING
(continued on next page)
►In s t a l l t h e p r o j e c t o r w h e r e y o u c a n a c c e s s t h e p o w e r
o u t l e t e a s i l y . If an abnormality should occur, unplug the projector urgently.
Otherwise it could cause a re or electric shock.
►D o n o t s u b j e c t t h e p r o j e c t o r t o u n s t a b l e c o n d i t i o n s . If the projector falls
or topples over, it could result in injury or damage to the projector and the
surrounding things. Using a damaged projector could result in a re and an
electric shock.
• Do not place the projector in unstable places, such as an inclined surface,
places subject to vibration, on top of a wobbly table or cart, or a surface that is
smaller than the projector.
• Do not put the projector on its side, front or rear position.
• Do not attach nor place anything on the projector unless otherwise specied in
the manual.
• Do not use any mounting accessories except the accessories specied by the
manufacturer. Read and keep the manuals of the accessories used.
• For special installation such as ceiling mounting, be sure to consult your dealer
beforehand.
►
Do not install the projector near thermally conductive or ammable
t h i n g s . Such things when heated by the projector could result in a re and burns.
• Do not place the projector on a metal stand.
►D o n o t p l a c e t h e p r o j e c t o r w h e r e a n y o i l s , s u c h a s c o o k i n g o r m a c h i n e
o i l , a r e u s e d . Oil may harm the product, resulting in malfunction, or falling from
the mounted position. Do not use adhesive such as threadlocker, lubricant and
so on.
►D o n o t p l a c e t h e p r o j e c t o r i n a p l a c e w h e r e i t m a y g e t w e t . Getting the
projector wet or inserting liquid into the projector could cause a re and an
electric shock, and damage the projector.
• Do not place the projector near water, such as in a bathroom, kitchen, or
poolside.
• Do not place the projector outdoors or by the window.
• Do not place anything containing liquid near the projector.

9
Setting up
Arrangement (continued)
►Place the projector in a cool place with sufcient
v e n t i l a t i o n . The projector may shutdown automatically or may malfunction if its
internal temperature is too high.
Using a damaged projector could result in a re and an electric shock.
• Do not place the projector in direct sunlight or near hot objects such as heaters.
• Do not place the projector where the air from an air conditioner or similar unit
will blow on it directly.
• Keep a space of 30 cm or more between a side of the projector and other
objects such as walls.
• Do not place the projector on carpet, cushions or bedding.
• Do not stop up, block nor cover the projector's vent holes. Do not place
anything around the projector that could be sucked in or stuck to the projector's
intake vents.
• Do not place the projector at places that are exposed to magnetic elds, doing
so can cause the cooling fans inside the projector to malfunction.
►A v o i d p l a c i n g t h e p r o j e c t o r i n s m o k y , h u m i d o r d u s t y p l a c e . Placing the
projector in such places could cause a re, an electric shock and malfunction of
the projector.
• Do not place the projector near humidiers. Especially for an ultrasonic
humidier, chlorine and minerals contained in tap water are atomized and could
be deposited in the projector causing image degradation or other problems.
• Do not place the projector in a smoking area, kitchen, passageway
or by the window.
• Position the projector to prevent light from directly hitting the projector's remote
sensor.
• Positional deviation or distortion of a projected image, or shift of the focus
may occur due to ambient conditions, and so on. They tend to occur until the
operation becomes stable, especially within about 30 minutes after the lamp is
turned on. Check and readjust them as necessary.
• Do not place the product in a place where radio interference may be caused.
• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu
according to the usage environment (69). If the projector is used with a wrong
setting, it may cause damage to the projector itself or the parts inside.
• Keep heat-sensitive things away from the projector. Otherwise, they may be
damaged by the heat from the projector.
CAUTION
NOTICE

1 0
Setting up
Connecting with your devices
Before connecting the projector to a device, consult the manual of the device to
conrm that the device is suitable for connecting with this projector and prepare
the required accessories, such as a cable in accord with the signal of the device.
Consult your dealer when the required accessory did not come with the product or
the accessory is damaged.
After making sure that the projector and the devices are turned off, perform
the connection, according to the following instructions. Refer to the gures in
subsequent pages.
Before connecting the projector to a network system, be sure to read Ne t w o r k
G u i d e too.
►Us e o n l y t h e a p p r o p r i a t e a c c e s s o r i e s . Otherwise it could
cause a re or damage the projector and devices.
• Use only the accessories specied or recommended by the projector’s
manufacturer. It may be regulated under some standard.
• Neither disassemble nor modify the projector and the accessories.
• Do not use the damaged accessory. Be careful not to damage the accessories.
Route a cable so that it is neither stepped on nor pinched out.
WARNING
►F o r a c a b l e w i t h a c o r e a t o n l y o n e e n d , c o n n e c t t h e e n d
w i t h t h e c o r e t o t h e p r o j e c t o r . That may be required by EMI regulations.
CAUTION
• Plug-and-Play is a system composed of a computer, its operating system
and peripheral equipment (i.e. display devices). This projector is VESA DDC
2B compatible. Plug-and-Play can be used by connecting this projector to a
computer that is VESA DDC (display data channel) compatible.
- Take advantage of this feature by connecting a computer cable to the
C O M PUTE R IN 1 port (DDC 2B compatible). Plug-and-Play may not work
properly if any other type of connection is attempted.
- Please use the standard drivers in your computer as this projector is a Plug-
and-Play monitor.
• Do not turn on or off the projector while connected to a device in
operation, unless that is directed in the manual of the device. Otherwise it may
cause malfunction in the device or projector.
• The function of some input ports can be selected according to your usage
requirements. Check the reference page indicated beside each port in the
following illustration.
• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it
may cause malfunction in the device or projector.
- When connecting a connector to a port, make sure that the shape of the
connector ts the port.
- Tighten the screws to connect a connector equipped with screws to a port.
- Use the cables with straight plugs, not L-shaped ones, as the input ports of
the projector are recessed.
About Plug-and-Play capability
NOTE
(continued on next page)

1 1
Setting up
Connecting with your devices (continued)
(continued on next page)
• Before connecting the projector to a computer, consult the computer’s
manual and check the compatibility of the signal level, the synchronization
methods and the display resolution output to the projector.
- Some signal may need an adapter to input this projector.
- Some computers have multiple screen display modes that may include some
signals which are not supported by this projector.
- Although the projector can display signals with a resolution up to UXGA
(1600x1200) or up to W-UXGA (1920x1200), the signal will be converted
to the projector’s panel resolution before being displayed. The best display
performance will be achieved if the resolutions of the input signal and the
projector panel are identical.
• If you connect this projector and a notebook computer, you need output the
display to an external monitor, or output simultaneously to the internal display
and an external monitor. Consult the computer's manual for the setting.
• Depending on the input signal, the automatic adjustment function of this
projector may take some time and not function correctly.
- Note that a composite sync signal or sync-on-green signal may confuse the
automatic adjustment function of this projector (25).
- If the automatic adjustment function does not work correctly, you may not see
the dialog to set the display resolution. In such a case, use an external display
device. You may be able to see the dialog and set an appropriate display
resolution.
NOTE
C o m p u t e r

1 2
Connecting with your devices (continued)
(continued on next page)
• If an oversized USB storage device blocks the L A N port, use a USB
extension cable to connect the USB storage device.
NOTE
► Before connecting the projector to a network system be sure
to obtain the consent of the administrator of the network.
►Do not connect the L A N port to any network that might have the excessive
voltage.
►The designated USB wireless adapter that is sold as an option is required to
use the wireless network function of this projector.
►Before removing the USB storage device from the port of the projector, be
sure to use the REMOVE USB function on the thumbnail screen to secure your
data (82).
►Do not use any extension cable or device when connecting the adapter to
the projector. Before you insert or pull out the USB wireless adapter from the
projector, turn off the power of the projector and pull out the power cord’s plug
from the outlet. Do not touch the USB wireless adapter while the projector is
receiving AC power.
►To connect both the LAN cable and USB device to the projector, use a LAN
cable that is  at on the side where the plug’s wire is visible. Otherwise, both of
them cannot be connected correctly, or the wire may break (malfunction).
CAUTION
C o m p u t e r E x t e r n a l d e v i c e
A ccess
point
US B
w i r e l e s s
a d a p t e r
(optional)
US B
s t o r a g e
d e v i c e
Setting up

1 3
Setting up
Connecting with your devices (continued)
(continued on next page)
• The HDMITM port of this model is compatible with HDCP (High-
bandwidth Digital Content Protection) and therefore capable of displaying a
video signal from HDCP compatible DVD players or the like.
- The HDMITM port supports the following signals.
Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60,
1080i@50/60, 1080p@50/60
Audio signal : Format Linear PCM
Sampling frequency 48kHz / 44.1kHz / 32kHz
- This projector can be connected with another equipment that has HDMITM
connector, but with some equipment the projector may not work properly,
something like no video.
- Be sure to use an HDMITM cable that has the HDMITM logo.
- Use a Category 2-certi ed HDMITM cable to input 1080p@50/60 signal to the
projector.
- When the projector is connected with a device having DVI connector, use a
DVI to HDMITM cable to connect with the HDMITM input.
- The MHL supports the following signals. For Video signals, refer to User’s
Manual (detailed) Operating Guide –Technical.
Audio signal : Format Linear PCM
Sampling frequency 48kHz / 44.1kHz / 32kHz
- Be sure to use an MHL® cable that has the MHL logo.
NOTE
V C R / D V D / B l u - r a y D i s c TM p l a y e r

1 4
Setting up
Connecting with your devices (continued)
M o n i t o r
Speakers
(with an ampli er)
RGB IN
Note: The Dukane model described in this document is manufactured by Hitachi
and uses the same rmware, software programs, control code, and accessory
parts. The equivalent Dukane to Hitachi models is 8945WU (CP-EU4501WN)
and 8950W (CP-EW5001WN).

1 5
Connecting to a power supply
1. Put the connector of the power cord into the
AC (AC inlet) of the projector.
2. Firmly plug the power cord’s plug into the
outlet. In a couple of seconds after the
power supply connection, the PO W E R
indicator will light up in steady orange.
►Please use extra caution when connecting the power cord, as
incorrect or faulty connections may result in re and/or electrical shock.
• Do not touch the power cord with a wet hand.
• Only use the power cord that came with the projector. If it is damaged, consult
your dealer to get a new one. Never modify the power cord.
• Only plug the power cord into an outlet whose voltage is matched to the power
cord. The power outlet should be close to the projector and easily accessible.
Remove the power cord for complete separation.
• Do not distribute the power supply to multiple devices. Doing so may overload
the outlet and connectors, loosen the connection, or result in re, electric shock
or other accidents.
• Connect the ground terminal for the AC inlet of this unit to the ground terminal
of the building using an appropriate power cord (bundled).
WARNING
Please remember that when the DIRECT POWER
ON function activated (63), the connection of the
power supply make the projector turn on.
►This product is also designed for IT power systems with a phase-to-
phase voltage of 220 to 240 V.
NOTICE
A C
Po w e r
c o r d
Fastening the cable
Use the supplied cable tie to fasten the cable.
C a b l e t i e
Setting up

1 6
Use the supplied adapter cover to prevent
the USB wireless adapter from coming off
easily.
1. Loosen the screw (marked with
triangle) on the bottom left of the
US B TY PE A port.
2. Insert the tab of the cover into the
hole at the upper right of the US B
TY PE A port in the direction of the
arrow.
3. Align the screw holes on the projector
and the cover. Then insert the screw
removed from the projector into the
hole and tighten the screw.
Using the security bar and slot
A commercially available anti-theft chain or
wire can be attached to the security bar on
the projector. Refer to the  gure to choose
an anti-theft chain or wire.
Also this product has the security slot for
the Kensington lock.
For details, see the manual of the security
tool.
►Do not use the security bar and slot to prevent the projector
from falling down, since it is not designed for it.
WARNING
►Do not place anti-theft chain or wire near the exhaust vents.
It may become too hot.
CAUTION
• The security bar and slot is not comprehensive theft prevention
measures. It is intended to be used as supplemental theft prevention measure.
NOTE
Fastening the adapter cover
►Keep small parts away from children and pets. Take care not
to put in the mouth. Heat may build up in the USB wireless adapter, to avoid
possible burns disconnect the projector power cord for more than 10 minutes
before touching it.
WARNING
S e c u r i t y s l o t
1 8 . 6 m m
1 8 . 0 m m
1 2 . 2 m m
S e c u r i t y b a r
A n t i - t h e f t
c h a i n o r w i r e
Tab
2
1
3
Setting up

1 7
Remote control
Installing the batteries
Please insert the batteries into the remote control before using it. If the remote
control starts to malfunction, try to replace the batteries. If you will not use the
remote control for long period, remove the batteries from the remote control and
store them in a safe place.
1.
2. Align and insert the two AA batteries
according to their plus and minus terminals
as indicated in the remote control. (Use
the appropriate AA carbon-zinc or alkaline
batteries (non-rechargeable) in accordance
with laws and regulations.)
3. Put the battery cover back to the former state.
►Always handle the batteries with care and use them only as
directed. Improper use may result in battery explosion, cracking or leakage, which
could result in re, injury and/or pollution of the surrounding environment.
• Be sure to use only the batteries specied. Do not use batteries of different types at
the same time. Do not mix a new battery with used one.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Keep a battery away from children and pets.
• Do not recharge, short circuit, solder or disassemble a battery.
• Do not place a battery in a re or water. Keep batteries in a dark, cool and dry place.
• If you observe battery leakage, wipe out the leakage and then replace a battery.
If the leakage adheres to your body or clothes, rinse well with water immediately.
• Obey the local laws on disposing the battery.
WARNING
Remote control
Remove the battery cover.

1 8
Remote control
About the remote control signal
The remote control works with the projector’s remote
sensor. This projector has a remote sensor on the front.
The sensor senses the signal within the following range
when the sensor is active:
60 degrees (30 degrees to the left and right of the sensor)
within 3 meters about.
• The remote control signal re ected in the screen or the like may be available.
If it is dif cult to send the signal to the sensor directly, attempt to make the signal re ect.
• The remote control uses infrared light to send signals to the projector (Class 1
LED), so be sure to use the remote control in an area free from obstacles that
could block the remote control’s signal to the projector.
• The remote control may not work correctly if strong light (such as direct sun
light) or light from an extremely close range (such as from an inverter  uorescent
lamp) shines on the remote sensor of the projector. Adjust the position of
projector avoiding those lights.
NOTE
Changing the frequency of remote control signal
(approx.)
The accessory remote control has the two choices on signal frequency Mode
1:NORMAL and Mode 2:HIGH. If the remote control does not function properly,
attempt to change the signal frequency.
In order to set the Mode, please keep pressing the combination of two buttons
listed below simultaneously for about 3 seconds.
(1) Set to Mode 1:NORMAL
V O L UM E - and R E S E T buttons
(2) Set to Mode 2:HIGH
M A G NIF Y O F F and ESC buttons
Please remember that the REMOTE
FREQ. in the SERVICE item of the OPTION menu
( 68 ) of the projector to be
controlled should be set to the same mode as the remote control.
ASPECT
BLANK
ESC MENU
RESET
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
ENTER
FOCUS
-
+
ZOOM
-
+
INPUT
INTERACTIVE
MYBUTTON
1 2
PbyP
MAGNIFY VOLUME
-
+
GEOMETRY PICTURE MUTE
NETWORK
OSD MSG
(1)
R E S E T
button
V O L UM E -
button
(2)
M A G NIF Y
O F F button
ESC
button

1 9
Remote control
ASPECT
BLANK
ESC MENU
RESET
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
ENTER
FOCUS
-
+
ZOOM
-
+
INPUT
INTERACTIVE
MYBUTTON
1 2
PbyP
MAGNIFY VOLUME
-
+
GEOMETRY PICTURE MUTE
NETWORK
OSD MSG
When the simple mouse & keyboard function of this product does not work
correctly, please check the following.
• When a USB cable connects this projector with a computer having a built-in pointing
device (e.g. track ball) like a laptop computer, open BIOS setup menu, then select the
external mouse and disable the built-in pointing device, because the built-in pointing
device may have priority to this function.
•
Windows Vista
®
or higher is required for this function. And also this function may not work
depending on the computer’s congurations and mouse drivers. This function can work with the
computer which can operate general USB mouse or keyboard.
• You cannot do things like press two buttons at once (for instance, pressing two buttons
at the same time to move the mouse pointer diagonally).
•
This function is activated only when the projector is working properly. This function is not
available in any of the following cases:
- While the lamp is warming up. (The PO W E R indicator blinks in green.)
- When US B TY PE A port is selected.
- While displaying BLANK
(53) , TEMPLATE (57) or MY IMAGE screen.
- When any menu is displayed on the screen.
-
While using the cursor buttons to operate the sound or screen functions such as adjusting the
sound volume, correcting the keystone, correcting the picture position and magnifying the screen.
NOTE
Using as a simple PC mouse & keyboard
The accessory remote control works as a simple mouse
and keyboard of the computer, when the projector’s US B
TY PE B port and the computer’s type A USB port are
connected.
(1)
(3)
(5)
(2)
(4)
(6)
(1) PA G E UP k e y : Press PA G E UP button.
(2) PA G E D O W N k e y : Press PA G E D O W N button.
(3) M o u s e l e f t b u t t o n : Press E NTE R button.
(4) M o v e p o i n t e r : Use the cursor buttons ▲, ▼, ◄ and ►.
(5) E S C k e y : Press ESC button.
(6) M o u s e r i g h t b u t t o n : Press RESET button.
►Improper use of the simple mouse & keyboard
function could damage your equipment. While using this
function, please connect this product only to a computer. Be
sure to check your computer’s manuals before connecting this
product to the computer.
NOTICE
US B TY PE B
port

2 0
1. Make sure that the power cord is
rmly and correctly connected to the
projector and the outlet.
Turning on the power
2. Make sure that the PO W E R indicator is
lighted in steady orange (96). Then
remove the lens cover.
3. Press the S TA ND B Y / O N button on the
projector or the remote control.
The projection lamp will light up and PO W E R indicator will begin blinking in
green. When the power is completely on, the indicator will stop blinking and
light in steady green (96).
Power on/off
To display the picture, select an input signal according to the section S e l e c t i n g a n
i n p u t s i g n a l (23).
Power on/off
The INITIAL SETTING Menu will be displayed by factory default upon startup.
Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET
(71) is executed. If you wish to change the settings, refer to the LANGUAGE
(53) and ALTITUDE (67) menu.
(1) LANGUAGE: Use the ▲/▼/◄/►buttons to
select the desired language and press the
E NTE R button of the remote control or the
INPUT button of the projector to execute.
(2) ALTITUDE: Use the ▲/▼ buttons to select
NORMAL for altitude below 1600 m (5250 feet),
otherwise select HIGH and press the E NTE R
button of the remote control or the INPUT button
of the projector to execute.
(continued on next page)
PO W E R indicator
ASPECT
BLANK
ESC MENU
RESET
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
ENTER
FOCUS
-
+
ZOOM
-
+
INPUT
INTERACTIVE
MYBUTTON
1 2
PbyP
MAGNIFY VOLUME
-
+
GEOMETRY PICTURE MUTE
NETWORK
OSD MSG
ASPECT
BLANK
ESC MENU
RESET
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
ENTER
FOCUS
-
+
ZOOM
-
+
INPUT
INTERACTIVE
MYBUTTON
1 2
PbyP
MAGNIFY VOLUME
-
+
GEOMETRY PICTURE MUTE
NETWORK
OSD MSG
S TA ND B Y / O N button
