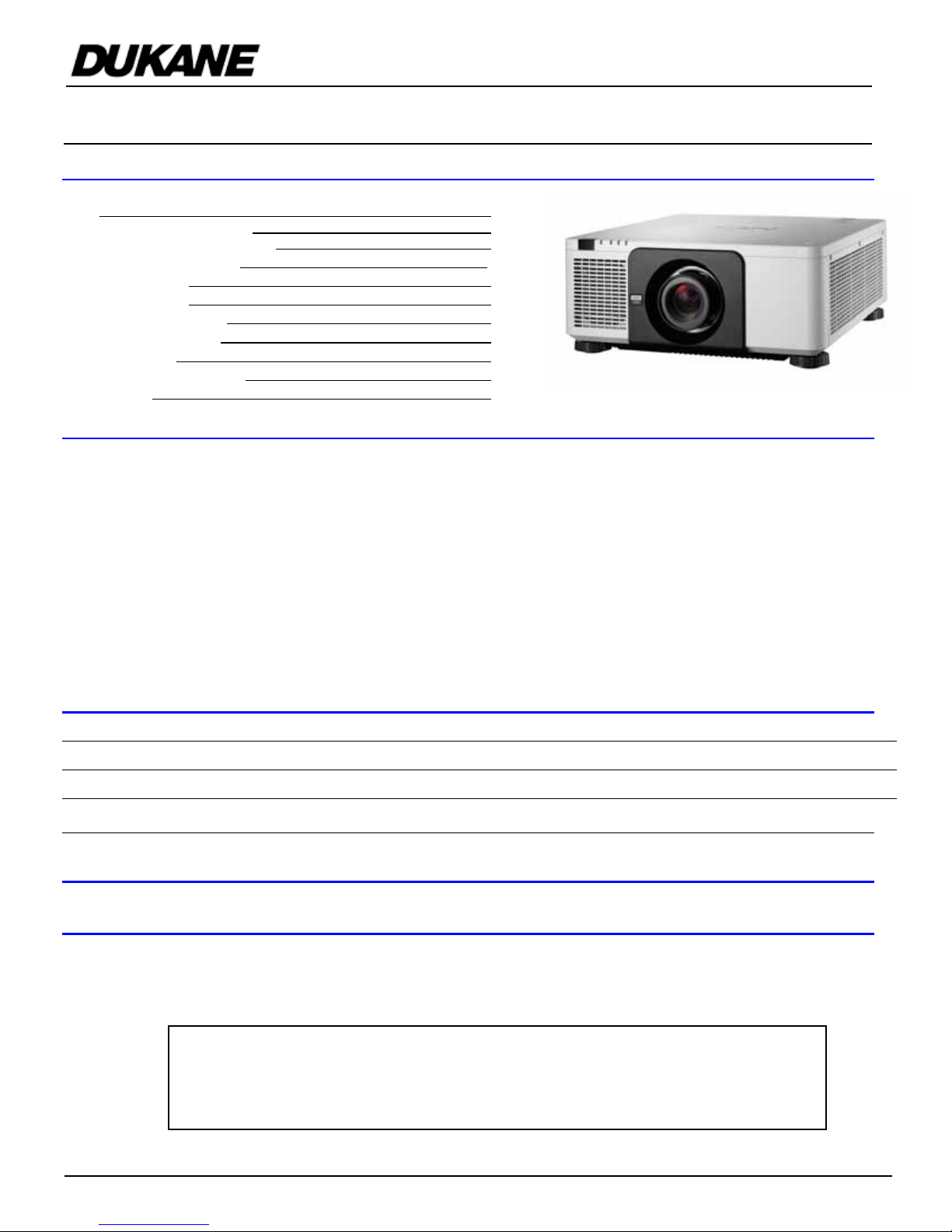

Dukane ImagePro 68100WUSS User manual

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 1 of 12
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes Pg 1
Distance Charts and Formulas Pg 2-3
Ceiling Mount/Desktop Installation Pg 4
Lens Shift Adjustable Range Pg 5
Cabinet Dimensions Pg 6
Cabinet Dimensions Pg 7
Optional Lens Dimensions Pg 8
Ventilation Requirements Pg 9
Regulatory Labels Pg 10
Input Panel and Button Panel Pg 11
Control Codes Pg 12
Product Description
Type: 1 chip DMD Reflection Type Dimensions: 19.7”(W) x 8.49”(H) x 23.0”(D)
0.67 in. 2x LVDS DMD Weight:
68100WUSS: 63.9 lbs. / 29.0kg
Resolution: 1920 x 1200 (16:10) Brightness:
68100WUSS: 10,000 Lumens
Fan Noise:
68100WUSS: 42 dB / 38dB @ 1 meter
Power Consumption:
68100WUSS: 1220W (max) BTU’s: 68100WUSS: 4163 BTU/hour
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP39ML: Throw Ratio: ~ 0.38:1 Focal Length: 11.4mm NP19ZL: Throw Ratio: 2.22 -3.67:1 Focal Length: 32.9 –54.2mm
Screen Sizes: 85”-297”F/#: 1.85 Screen Sizes: 50-300” F/#: 1.86 –
2.48
NP16FL: Throw Ratio: ~ 0.76:1 Focal Length: 11.6mm NP20ZL: Throw Ratio: 3.60 –5.40:1 Focal Length: 52.8 –79.1mm
Screen Sizes: 50”-300” F/#: 1.85 Screen Sizes: 50-300”
F/#: 1.85-2.5
NP17ZL: Throw Ratio: 1.29 - 1.79:1 Focal Length: 18.7 –26.5mm NP21ZL: Throw Ratio: 5.30 –8.30:1 Focal Length: 78.5 -121.9mm
Screen Sizes: 50”-300” F/#: 1.85 Screen Sizes: 50-300”
F/#: 1.85-2.48
NP18ZL: Throw Ratio: 1.73 –2.27:1 Focal Length: 25.7 –33.7mm NP31ZL: Throw Ratio: 0.75 –0.93:1 Focal Length: 11.3 -14.1mm
Screen Sizes: 50-300” F/#: 1.64-1.86 Screen Sizes: 50-300” F/#: 1.96-2.3
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
Note: The Dukane models described in this document are manufactured
by NEC and use the same rmware, software programs, control code, and
accessory parts. The equivalent Dukane to NEC models are 68100WUSS
(NP-PX1004UL-WH), and 68100WUSS-B (NP-PX1004UL-BK).
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 1 of 12
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 2 of 12
Formulas: 16:10 Aspect Ratio (WUXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas: Definitions: 16:10 Screen Formulas
NP16FL: C = 0.794W –1.85 W = Image Width W = H x 16/10
NP17ZL: C(Wide) = 1.281W –2.094 ------ C(Tele) = 1.825W –1.913 H = Image Height (size) H = W x 10/16
NP18ZL: C(Wide) = 1.764W –2.677 ------ C(Tele) = 2.313W –2.638 C = Throw distance Screen Diagonal = W x 18.868/16
NP19ZL: C(Wide) = 2.261W –3.150 ------ C(Tele) = 3.747W –3.114 16:9 Screen Formulas
NP20ZL: C(Wide) = 3.654W –5.319 ------ C(Tele) = 5.492W –5.299 W = H x 16/9
NP21ZL: C(Wide) = 5.469W –11.626 ---- C(Tele) = 8.527W –11.531 H = W x 9/16
NP31ZL: C(Wide) = 0.775W –1.839 ------ C(Tele) = 0.970W –1.740 Screen Diagonal = W x 18.358/16
Distance Chart for popular 16:10 Screens (WUXGA)
Distance Chart using 16:9 native projector with 16:9 Image (1080p)
Rear Lens
NP16FL
Diagonal
Width(W)
Height (H) 0.76:1
inches inches inches inches
40 34 21 24.83 24.2 - 30.9 40.9 - 59.4 56.6 - 75.1 72.8 - 122.8 117.5 - 179.2 172.1 - 275.0
60 51 32 38.80 37.8 - 47.9 63.5 - 91.5 87.6 - 115.8 112.6 - 188.7 181.8 - 275.9 268.4 - 425.1
68 58 36 43.88 42.8 - 54.1 71.7 - 103.2 98.9 - 130.6 127.1 - 212.7 205.2 - 311.0 303.4 - 479.6
72 61 38 46.43 45.3 - 57.2 75.8 - 109.0 104.6 - 138.0 134.3 - 224.7 216.8 - 328.6 320.9 - 506.9
85 72 45 55.32 54.0 - 68.1 90.1 - 129.5 124.3 - 163.9 159.6 - 266.7 257.8 - 390.1 382.1 - 602.4
108 92 57.5 71.20 69.5 - 87.5 115.8 - 166.0 159.6 - 210.2 204.9 - 341.6 330.8 - 500.0 491.5 - 773.0
113 96 60 74.37 72.6 - 91.4 120.9 - 173.3 166.7 - 219.4 213.9 - 356.6 345.5 - 521.9 513.4 - 807.1
130 110 69 85.81 83.7 - 105.3 139.3 - 199.6 192.1 - 252.7 246.5 - 410.6 398.1 - 601.0 592.2 - 929.8
137 116 72.5 90.25 88.1 - 110.8 146.5 - 209.8 201.9 - 265.7 259.1 - 431.5 418.5 - 631.8 622.8 - 977.6
164 139 87 108.67 106.0 - 133.3 176.2 - 252.1 242.9 - 319.3 311.6 - 518.5 503.3 - 759.2 749.7 - 1175.4
189 160 100 125.19 122.2 - 153.5 202.9 - 290.1 279.6 - 367.4 358.6 - 596.4 579.3 - 873.4 863.4 - 1352.8
208 176 110 137.89 134.6 - 169.0 223.4 - 319.3 307.8 - 404.5 394.8 - 656.4 637.8 - 961.3 950.9 - 1489.2
226 192 120 150.60 147.0 - 184.5 243.9 - 348.5 336.0 - 441.5 431.0 - 716.3 696.2 - 1049.2 1038.4 - 1625.7
270 229 143 179.82 175.5 - 220.2 291.0 - 415.6 400.9 - 526.6 514.2 - 854.2 830.7 - 1251.3 1239.7 - 1939.4
300 254 159 NA 195.0 - 244.6 376.0 - 752.4 747.3 - 1198.4 1181.3 - 1826.5 1377.5 - 2154.3 1377.5 - 2154.3
500 424 265 NA 326.8 - 409.5 628.9 - 1257.3 1250.6 2003.6 1977.1 - 3054.1 2307.2 - 3603.9 2307.2 - 3603.9
Zoom Lenses
NP21ZL
5.30-8.30:1
0.75-0.93:1
1.29-1.79:1
inches
inches
inches
NP20ZL
3.60-5.40:1
inches
inches
inches
1.73-2.27-1
Screen Size (16:10)
2.22-3.67:1
NP31ZL
NP17ZL
NP18ZL
NP19ZL
Rear Lens
NP16FL
Diagonal
Width(W)
Height (H) 0.76:1
inches inches inches inches
39 34 19 25.15 24.5 - 31.2 41.5 - 60.1 57.3 - 76.0 73.7 - 124.3 118.9 - 181.4 174.3 - 278.4
59 51 29 38.64 37.7 - 47.7 63.2 - 91.2 87.3 - 115.3 112.2 - 188.0 181.0 - 274.8 267.3 - 423.3
67 58 33 44.20 43.1 - 54.5 72.2 - 103.9 99.6 - 131.5 128.0 - 214.2 206.6 - 313.2 305.6 - 483.0
70 61 34 46.58 45.4 - 57.4 76.0 - 109.4 104.9 - 138.5 134.8 - 225.5 217.6 - 329.7 322.0 - 508.6
83 72 41 55.32 54.0 - 68.1 90.1 - 129.5 124.3 - 163.9 159.6 - 266.7 257.8 - 390.1 382.1 - 602.4
106 92 52 71.20 69.5 - 87.5 115.8 - 166.0 159.6 - 210.2 204.9 - 341.6 330.8 - 500.0 491.5 - 773.0
110 96 54 74.37 72.6 - 91.4 120.9 - 173.3 166.7 - 219.4 213.9 - 356.6 345.5 - 521.9 513.4 - 807.1
126 110 62 85.49 83.4 - 105.0 138.8 - 198.8 191.4 - 251.8 245.6 - 409.1 396.6 - 598.8 590.0 - 926.4
133 116 65 90.25 88.1 - 110.8 146.5 - 209.8 201.9 - 265.7 259.1 - 431.5 418.5 - 631.8 622.8 - 977.6
159 139 78 108.52 105.9 - 133.1 176.0 - 251.8 242.5 - 318.9 311.1 - 517.7 502.6 - 758.1 748.6 - 1173.7
184 160 90 125.19 122.2 - 153.5 202.9 - 290.1 279.6 - 367.4 358.6 - 596.4 579.3 - 873.4 863.4 - 1352.8
202 176 99 137.89 134.6 - 169.0 223.4 - 319.3 307.8 - 404.5 394.8 - 656.4 637.8 - 961.3 950.9 - 1489.2
220 192 108 150.60 147.0 - 184.5 243.9 - 348.5 336.0 - 441.5 431.0 - 716.3 696.2 - 1049.2 1038.4 - 1625.7
263 229 129 179.98 175.6 - 220.4 291.3 - 416.0 401.3 - 527.0 514.6 - 854.9 831.4 - 1252.4 1240.8 - 1941.2
400 339 212 NA 260.9 - 327.1 502.5 - 1004.9 998.9 - 1601.0 1579.2 - 2440.3 1628.9 - 2879.1 1842.4 - 2879.1
500 424 265 NA 326.8 - 409.5 628.9 - 1257.3 1250.6 2003.6 1977.1 - 3054.1 2039.2 - 3603.9 2307.2 - 3603.9
inches
Screen Size (16:9)
2.22-3.67:1
NP31ZL
NP17ZL
NP18ZL
NP19ZL
1.73-2.27-1
Zoom Lenses
NP21ZL
0.75-0.93:1
1.29-1.79:1
inches
inches
5.30-8.30:1
NP20ZL
3.60-5.40:1
inches
inches
inches
Dukane AV Division
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 2 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 3 of 12
Formulas: 16:10 Aspect Ratio (WUXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas: Definitions: 16:10 Screen Formulas
NP39ML: A=C-33 .0 W = Image Width W = H x 16/10
B=0.652
W H = Image Height (size) H = W x 10/16
C=0.351W+2.362 C = Throw distance Screen Diagonal = W x 18.868/16
D=0.239W
E=D+8.49 16:9 Screen Formulas
W = H x 16/9
H = W x 9/16
Screen Diagonal = W x 18.358/16
Distance Chart for popular 16:10 Screens (WUXGA)
NP39ML Installation
Diagonal
Width(W)
Height (H)
inches inches inches inches inches inches inches inches
108 92 58 260 35 22 30.5
113 96 60 363 36 23 31.4
130 110 69 872 41 26 34.9
137 116 73 10 76 43 28 36.2
164 139 87 18 91 51 33 41.8
189 160 100 26 104 59 38 46.7
208 176 110 31 115 64 42 50.6
226 192 120 37 125 70 46 54.4
270 229 143 50 149 83 55 63.2
300 254 159 59 166 92 61 69.3
350 297 186 74 194 107 71 79.4
Screen Size (16:10)
A
B
C
D
E
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 3 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 4 of 12
Ceiling Mount Installation
Note: Lens Shift Feature is not available for the NP16FL.This lens should only be used for “zero degree”/”no-offset” applications.
Screen Cent er
Screen T op
Shift Range
C
Screen Cent er
C
4.46
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 4 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 5 of 12
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount
Application
The diagram below shows the location of the image
position in the lens. The lens can be shifted within the
shaded area as shown using the normal projection
position as a starting point.
Note: Lens shift feature is not available with NP16FL
(rear lens).NP16FL should be used only for “zero
degree” / no-offset” applications.
Note: Projector is set out of the box at maximum lens
shift, which is how it is depicted above.
(W: width of projected image, H: height of projected
image)
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 5 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 6 of 12
Cabinet Dimensions
The following diagrams show the cabinet dimensions for the 68100WUSS
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown without a lens
22.65
22.89
9.82 9.82
19.63
8.31
4.46
8.49
IN TAKE
INTAKE
EXHAUST
LENS RELEASE BUTTON
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 6 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 7 of 12
Cabinet Dimensions
6-M4 (Max. M4 x 16)
5.12 5.90 5.90
3.91 11.80
1.58 16.51 1.58
2.34 19.06 1.51
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 7 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 8 of 12
Optional Lens
Dimensions
NP16FL NP17ZL
NP18ZL NP19ZL
NP20ZL
NP39ML
NP31ZL
1.36
NP21ZL
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 8 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 9 of 12
Ventilation Requirements
If there are walls on boths sides of the projector :
If there’s a wall behind the projector :
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 9 of 12

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 10 of 12
Regulatory Labels
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 10 of 12
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 11 of 12
Input Panel
Control Panel
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 11 of 12
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax [phone]
[email protected]
www.dukaneav.com

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX803UL/PX1004UL Page 12 of 12
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT BNC 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT BNC(CV) 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT BNC(Y/V) 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H A1H A9H
INPUT SELECT DisplayPort 02H 03H 00H 00H 02H 01H A6H AEH
INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H 20H 28H
INPUT SELECT SLOT 02H 03H 00H 00H 02H 01H ABH B3H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
Cable Connection
Communication Protocol:
Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex
PC Control Connector (D-Sub 9P)
Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.
Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
www.dukaneav.com 68100WUSS/68100WUSS-B_Installation Guide-00 Page 12 of 12
68100WUSS/68100WUSS-B Installation Guide
Desktop and Ceiling Mount Rev 1.0
Dukane AV Division
