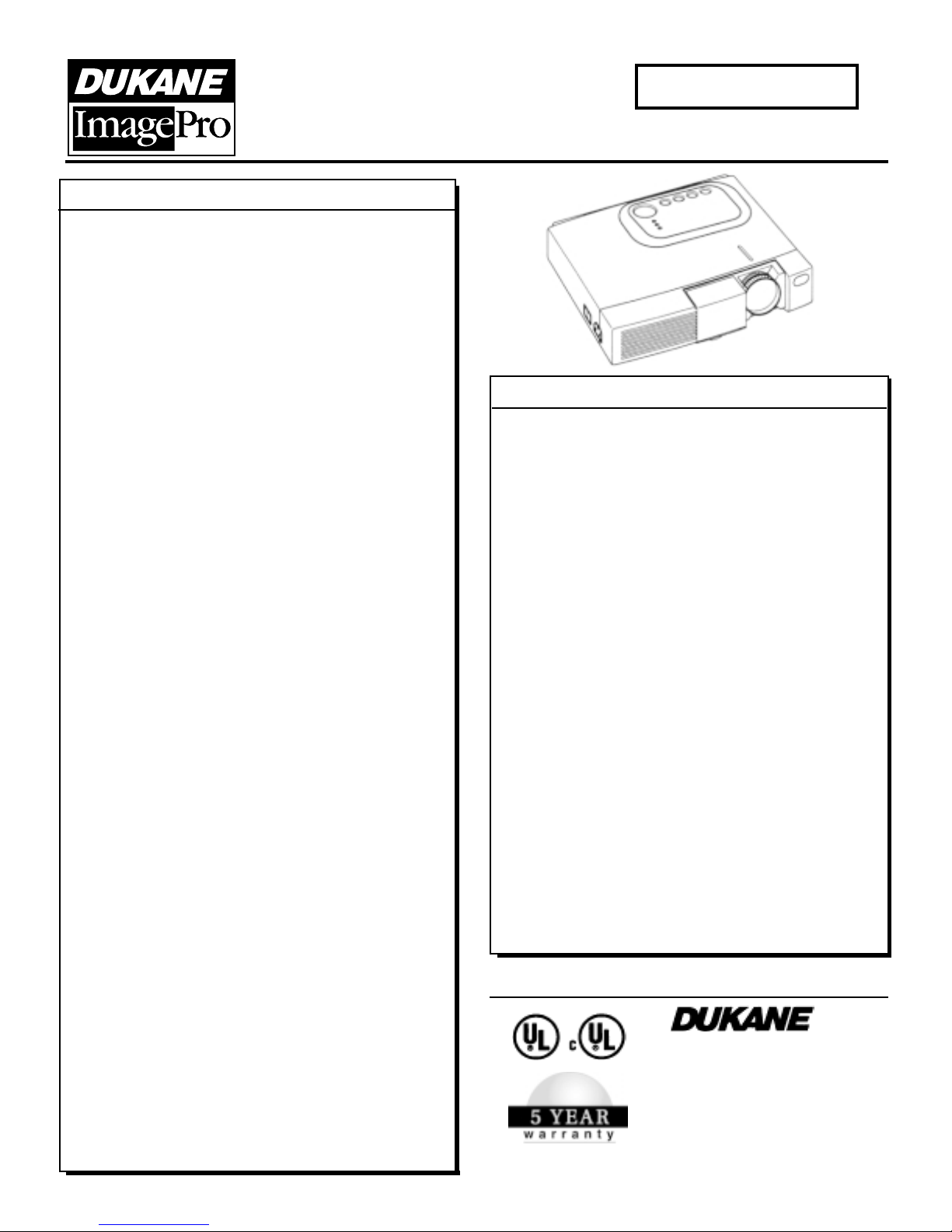

DUKANE AV Products
ImagePro 8046
FEATURES
SPECIFICATIONS
www.dukcorp.com/av
Form # 11539-C-03 rev.1
Audio Visual Products
PROJECTING YOU INTO THE FUTURE
The ideal projector for people on the go. At just 5 lbs. the SVGA ImagePro 8046 is
small enough to easily carry around yet robust enough to handle the most
demanding presentation situation. The 8046 can be stored in airplane overhead
compartments for easy
travel. The 8046 sets up in
seconds and features
easy operation for the
"non-technical" presenter.
The video quality is superb
and it features HDTV
compatibility.
SVGA, LCD Data/Video Projector 0.7" x 3 LCD, 1400 lumens, 5 lbs., 500-1 Contrast
Ratio, XGA Compressed, IBM/MAC compatible, Manual Zoom, Wide Angle Lens,
Digital Keystone Correction, 4:3, 16:9 Selectable, HDTV (1080i, 720p), Component, S-
Video Connections, Freeze Function, Electronic Magnification and Pan, 150W UHB
Lamp With 2000 Hours Typical Lamp Life, Kensington Lock Slot, 34db in Whisper
Mode, (1) Component, RCA x 3, (1) Min Din 4-pin S-Video, (1) RCA Composite Video,
(1) Audio Stereo Mini Jack, (1) Signal; D-sub 15 pin, (1) Audio Stereo Mini Jack, 15 Pin
D-sub RS-232, Accessories Included, Remote Control, Batteries, Power Cord, Video
Cable, Audio Cable, RGB Cable, operators manual and soft carrying case. Industry
Leading 5-Year Parts and Labor Warranty, Free 24/7Technical Support and 2 Year
Free Peace of Mind Loaner Program.
Specifications Subject to Change without notice.
!SVGA (800 x 600)
!1400 ANSI Lumens
!Wide Angle Lens
!Five Year Warranty
!Image Contrast 500:1
!Ultra Quiet
!Digital Keystone
Correction

ImagePro 8046ImagePro 8046
ImagePro 8046ImagePro 8046
ImagePro 8046
Data/Video ProjectorData/Video Projector
Data/Video ProjectorData/Video Projector
Data/Video Projector
Model 28A8046Model 28A8046
Model 28A8046Model 28A8046
Model 28A8046
Form#11539-C-03rev.1
Specifications (Specifications are subject to change without notice)
Audio Visual Products
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free [phone] or 2486
Fax [phone]
e-mail: [email protected]
Image Pro® is a registered trademark of DUKDUK
DUKDUK
DUKANEANE
ANEANE
ANE Corporation.
FF
FF
FAST FAST F
AST FAST F
AST FAXAX
AXAX
AX
The Dukane ImagePro™8046 is the perfect tool for the
presenter on the go. At only 5 Lbs. the 8046 can be
easilytransportedand storedinairplaneoverhead
compartments. Brilliant image quality makes the 8046
ideal for displaying data images from a PC or MAC and
videofrom aVCR or DVDplayer. The8046sets upin
secondsand features easyoperationfor the“non-
technical”presenter. Thevideo qualityis superband itis
HDTVcompatible.
Featuringtrue 800 X600SVGA resolution(compressed
XGAresolution) and 1400lumensof brightnessthe
Image Pro 8046 is engineered to reproduce data with
razorsharp accuracyand brilliant colorimagery.
The8046 givesthepresenter thepowerto adapttoany
environment.Featuringa high performancezoomlens
withunique wide-angle capabilitiesthe8046 producesa
large image at a short throw distance. This permits close
to the screen operation in smaller rooms.
In addition, the 8046 has a super quiet fan that permits
meetings to occur close to and around the projector.
TheImage Pro 8046 goes anywhereforpowerful
effectivepresentations,Classroom training andprofes-
sionalmeetings. BackedbyDukane’s legendaryservice
andwarranty,theImage Pro8046offersoutstanding
performance,portabilityandvalue.
Performance and Portability
LCD Type 0.7” polysilicon active-
matrix TFT x 3
Brightness 1400 ANSI Lumens
(960 lumens in Whisper Mode)
Resolution 800 x 600 pixels (H X V)
Contrast 200:1
Scanning Frequency fh 15-69 kHz, fv 50-85 Hz
Lens Manual Zoom (F2.0-2.3), 1.2X
Lens Throw Ratio 1:1 Image diagonal to throw
distance, Wide Angle.
Keystone Correction Digital Selectable
Aspect Ratio 4:3, 16:9, Selectable
Computer SVGA, VGA,
Compatibility XGA Compressed, Mac,
Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, M-
PAL, N-PAL, PAL60, Com
ponent SECAM, S-Video,
HDTV (1080i, 720p)
Image Control Freeze function, Electronic
Magnification and Pan
Color Reproduction 24 bit (16.7 million)
Lamp 150W UHB
Lamp Life 2000 hours (typical)
Audio Speaker 1 x 1watt
Throw Distance 37” - 233”
Screen Size 40” - 200”
Inputs, Video (1) Component
(1) Min DIN 4-pin S-Video
(1) RCA composite Video
(1) Audio, Stereo mini jack
Inputs, Computer (1) Signal; D-sub 15 pin
(1) Audio, Stereo mini jack
Outputs, RS-232 15 pin control, D-sub
Security Kensington lock slot
Fan Level 36dB,ultra quiet.
32dB in whisper made
Power AC90-132 V / AC220-240V
50/60 Hz, 220 watt
Size
(WxHxD) 10.9" x 2.4" x 8.3"
Weight 5 lbs
Shipping Weight 14 lbs.
Carton Size 15”x 13”x 10.5”
Accessories Included Remote control, Batteries,
Power cord (U.S., UK, Euro),
Video cable, Audio cable
(stereo mini) RGB cable,
operators manual and soft
carry case.
Safety UL/C-UL
Optional Accessories Lamps 456-224; Rolling
Briefcase; 185-406
Five (5) year Limited Warranty on Parts and Labor in
North America, lamp excluded (for other locations,local
warranties apply.) Includes Dukane’s FREE 24 month
Peace-of-Mind Loaner Program.
