ImagePro 8932
LCD PROJECTOR
USERS GUIDE
MODEL 28A8932

FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communi-
cations. Operation of this equipment in a residential area is likely to cause harm-
ful interference in which case the user will be required to correct the interference
at his own expense.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Can-
ada.
Safety Certifications
UL, CUL, TÜV, NOM, IRAM
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interfer-
ence, in which case the user may be required to take adequate measures. The typ-
ical use is in a conference room, meeting room or auditorium.
Remote Control Warning
Laser radiation class II product; wavelength 670nm; maximum output 1mW.
Remote control complies with applicable requirements of 21 CFR 1040.10 and
1040.11. Remote control complies with applicable requirements of EN 60 825-1:
1994 +A11.

Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of
Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of
International Business Machines, Inc. Microsoft, PowerPoint, and Windows are
trademarks orregisteredtrademarks of Microsoft Corporation.

i
TABLE OF CONTENTS
Safety Instructions iii
Introduction 1
Image Resolution 1
Compatibility 1
Unpacking the Projector 1
Usage Guidelines 3
If You Need Assistance 4
Warranty 4
Setting up the Projector 5
Connecting a Computer Using a VESA Cable 11
Connecting a USB type B mouse 11
Connecting a Computer using BNC Cables 11
Connecting a Computer with an M1-DA Cable 12
Connecting a Computer with an RS-232 Cable 12
Connecting a Video Player 13
Connecting a Video Player using BNC Cables 14
Connecting External Speakers 15
Connecting the Remote Control Cable 15
Powering up the Projector and Adjusting the Image 16
Turning Off the Projector 17
Using the Projector 19
Basic Image Adjustment 19
Adjusting the Projector 20
Using the Remote Control 22
Using the Keypad and Remote Buttons 24
Using the On-Screen Menus 27
Display Menu 28
Audio Menu 30
Image Menu 32
Controls Menu 35
Language Menu 38
Status Menu 38

ii
Ta b l e o f C o n t e n t s
Maintenance & Troubleshooting 41
Cleaning the Lens 41
Replacing the Projection Lamp 41
Replacing the Batteries in the Remote Control 44
Using the Security Lock 44
Troubleshooting 45
Appendix 49
Specifications 49
Accessories 50
Portable and Laptop Activation Chart 52
Using Video Mirroring with aPowerBook Computer 57
RS232 Terminal Specifications 59
Index 63

iii
SAFETY INSTRUCTIONS
Please read and follow all safety instructions provided BEFORE
using your new projector. Failure to comply with safety instruc-
tions may result in fire, electrical shock, or personal injury and
may damage or impair protection provided by equipment. Please
save all safety instructions.
Safety Definitions:
•Warning: Statements identify conditions or practices that
could result in personal injury.
•Caution: Statements identify conditions or practices that could
result in damage to your equipment.
Safety Symbols:
Attention: For information about usage of a feature, please
refer to the User’s Guide.
Warning: Hot surface. Do not touch.
An arrow pointing to the lamp door on the projector.
Warning: Laser radiation. Do not stare into laser beam.
Safety Terms:
•Warning: Don’t look directly into the lens when the lamp is
turned on.
•Warning: To replace the lamp, turn the projector off by
unplugging the power cord. To avoid burns, wait 30
minutes before opening the lamp door. Follow all instructions
provided in this User’s Guide.

iv
Safety Instructions
•Warning: Please use the power cord provided. Connect
the power cord to a receptacle with a protective safety
(earth) ground terminal.
•Warning: Visible laser radiation. Do not stare into
beam.
•Warning: Refer all service to qualified service personnel. Ser-
vicing your own projector will void the warranty. See the fol-
lowing page for the customer service contact information.
•Caution: Don’t block ventilation openings.
•Caution: Don’t set liquids on the projector. Spilled liquids may
damage your projector.
•Caution: Don’t place the projector on a hot surface or in direct
sunlight.
Important Operating Considerations
Do not place the projector on a tablecloth or other soft covering
that may block the vents. In the unlikely event of the bulb ruptur-
ing, thoroughly clean the area behind the projector and discard
any edible items placed in that area.

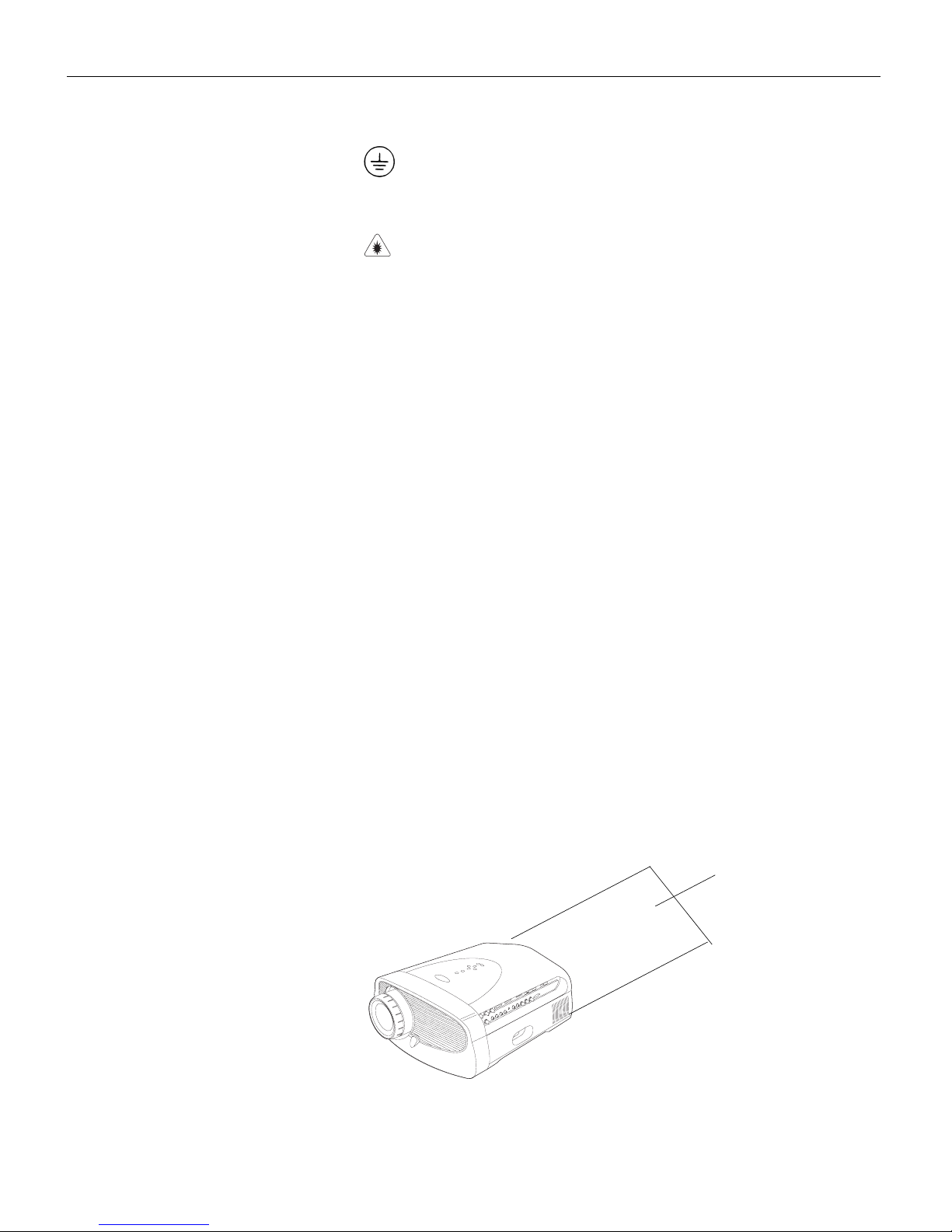

Do not place objects in
this area behind the projector
2ft(.6m)
• Caution: Do not drop the projector. Transport the projector in a
 Vendor approved case.
• Caution: For ceiling mount installations, please use a vendor
approved mount recommended as an optional accessory
(p-50) and follow all instructions provided with it.


v
Customer Service
If you need assistance, call Dukane Customer Support at:
630-584-2300 or Toll-Free at 1-800-676-2487

vi
Safety Instructions

1
INTRODUCTION
Image Resolution
1024x768. Screen resolutions between 1024x768 and 1280x1024
are compressed to 1024x768. The projector cannot compress
screen resolutions above 1280x1024. If your computer’s screen
resolution is higher than 1280x1024, reset it to a lower resolution
before you connect the projector.
Compatibility
The projector is compatible with a wide variety of computers and
video devices, including:
•IBM-compatible computers, including laptops, up to 1280x1024
resolution.
NOTE: The projector is compati-
ble with 1080i HDTV format.
•Apple®Macintosh®and PowerBook®computers up to
1280x1024 resolution.
•Most standard VCRs, DVD players, HDTV sources, camcord-
ers and laser disc players.
•Selected workstations (contact your dealer for details).
Unpacking the Projector
NOTE: The projector is compati-
ble with many third-party control-
lers and amplifiers, including
AMX, Crestron, and Extron. Call
your dealer for details.
The Dukane ImagePro™8932 XGA multimedia projector is specifically
designed for fixed installations. The projector features an M1-DA
connector for easy, built-in digital/analog and USB connectivity.
It allows four computer, three video, and three audio inputs, one
audio output, and RS-232 control.
The native resolution of the 8932's projected image is XGA
The projector comes with the items shown in figure 1. Check to
make sure all are included. Contact your Dukane dealer
immediately if anything is missing.
NOTE: The ImagePro 8932
automatically expands 640x480
and 800x600 images to 1024x
768. You can display these images
at their native resolutions by turning
off the Auto Resize feature. See
"Resize" on page 32 for more
information

2
Introduction
NOTE: The contents of your
shipping box may vary depending
on the projector configuration
you’ve ordered.

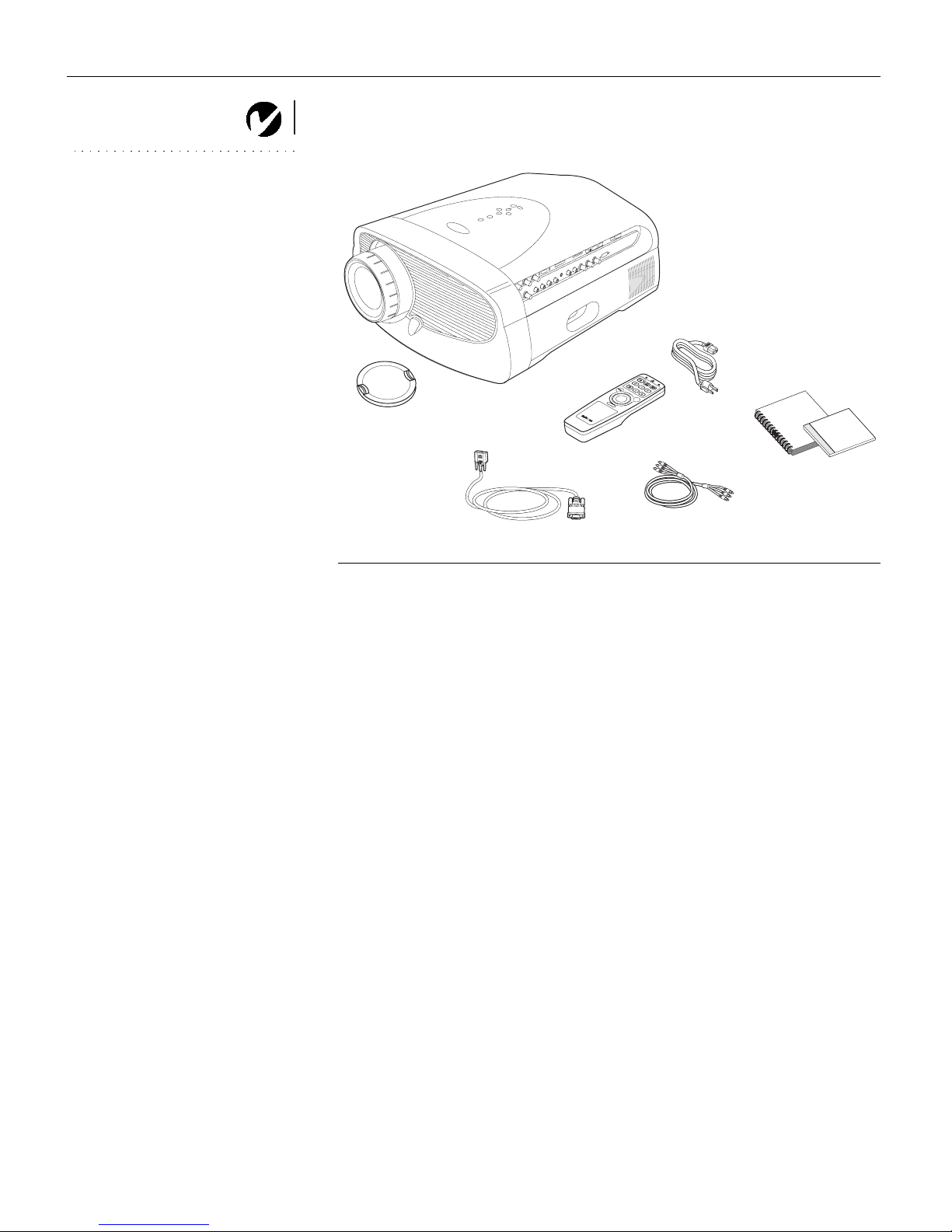

FIGURE 1
1. 4.VESAcomputercable
2. Power cord 5. Audio/Video cable
3. Remotecontrol6.User’s Guide
®
power
standby
freeze
laser
comp
brightness
volume
video
1
2
5
6
3
4
Projector + lens cap

3

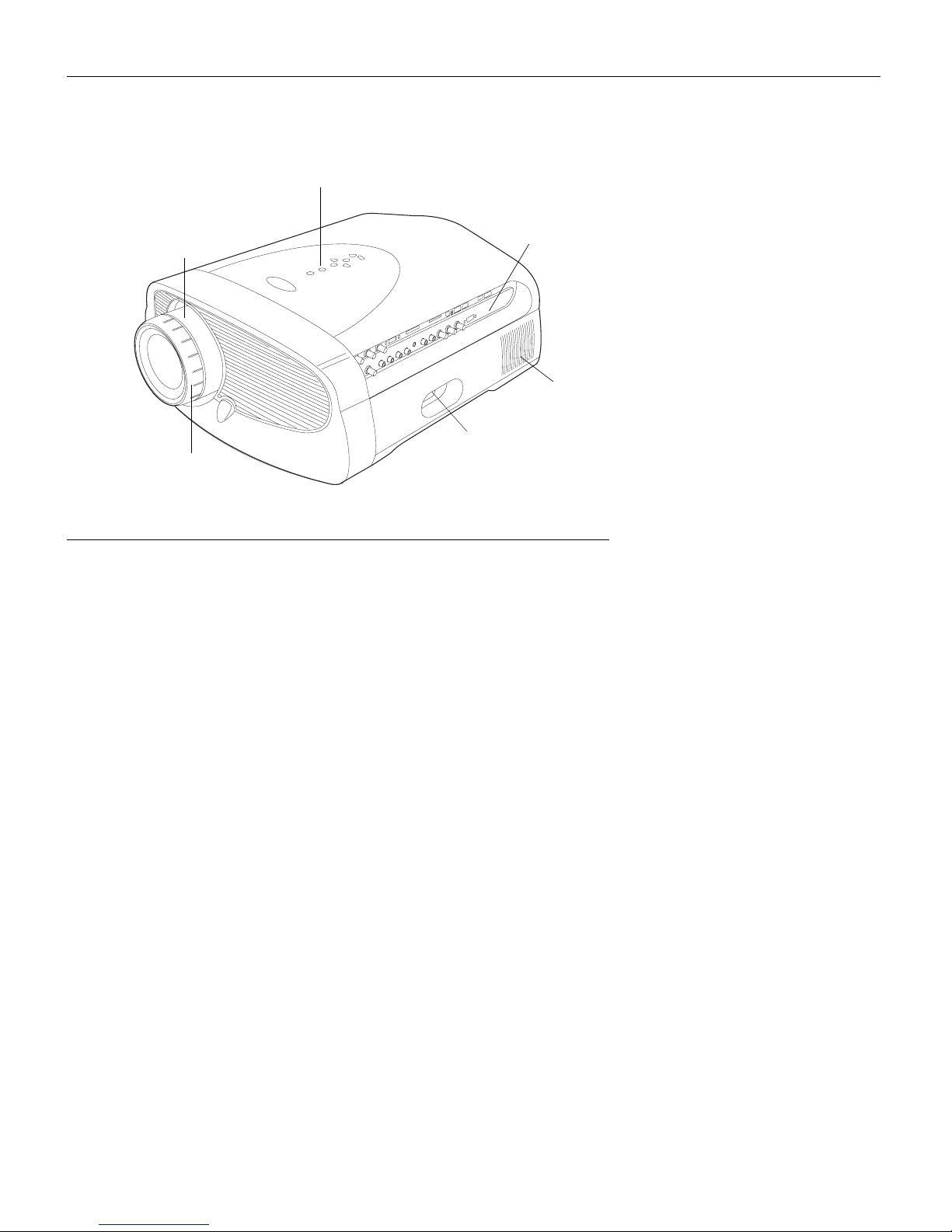

FIGURE 2
Side view of projector
Usage Guidelines
•Do not look directly into the projection lens when the lamp is
turned on. The bright light may harm your eyes.
•Do not block the grills on the projector. Restricting the air flow
can cause it to overheat and turn off. If this happens, you must
wait a minute before attempting to turn it back on.
•Handle the projector as you would any product with glass
components. Be especially careful not to drop it.
•Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before use.
•Transport the projector in a vendor-approved hard or soft case.
connector panel
focus ring
zoom ring
power
cord
connector
keypad
speaker

4
Introduction
If You Need Assistance
The first place to look for help is in this manual. Be sure to check
the guidelines in "Troubleshooting" on page 45.
If those sources don't answer your question, call Dukane
Customer Support at 630-584-2300 or Toll-Free at 1-800-676-2487
Our World Wide Web address is www.dukane.com
Warranty
This product is backed by a limited Five-Year Warranty. The
details of the warranty are printed at the back of this manual.

5
SETTING UP THE PROJECTOR
1Place the projector on a flat surface.
•The projector must be within 10 feet (3 m) of your power
source and within 6 feet (1.8 m) of your computer.
•If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 36 to reverse the image.
•If you are installing the projector on the ceiling, refer to the
installation guide that comes with the Ceiling Mount Kit for
more information. To turn the image upside down, see
“Ceiling Projection” on page 36. The Ceiling Mount Kit is
sold separately; see “Optional Accessories” on page 50.
2Position the projector the desired distance from the screen.
•The distance from the lens of the projector to the screen and
the zoom lens setting determine the size of the projected
image. Table 1 shows example projected image sizes and
minimum and maximum distances to the screen.
The formulas for distance to the screen are:
Max distance (ft) = diagonal image size (ft) ÷.49
Min distance (ft) = diagonal image size (ft) ÷.69
Ta b l e 1:
Diagonal Image Size and Width at Maximum and Minimum Distance
to Screen-Standard Lens
Diagonal
Image Size
(inches)
Distance to screen
Image Width
(inches)
Maximum
distance
(feet)
Minimum
Distance
(feet)
300 240 51 36
240 192 41 29
180 144 31 22
144 115 24 17
120 96 20 14
96 77 16 12
72 58 12 9
60 48 10 7
48 38 8 6

6
Setting up the Projector
FIGURE 3
Projected image size for 10’ diagonal image size
The projector is equipped with a lens shift feature that allows you
to adjust the projection height (move the image along the wall)
without moving the projector, while still maintaining a perfectly
square image. Turn the lens shift knob on the side of the projector
to make this adjustment (Figure 4).
FIGURE 4
Adjusting the lens shift
L L
Inout InIn
L
BNC BNC R RR
A
0
A
0
R
s
R
G
G
B
B
minimum L: 14’
maximum L: 20’
distance between lens and screen: L
zoom adjustment range:
90º90º
20-14’

7

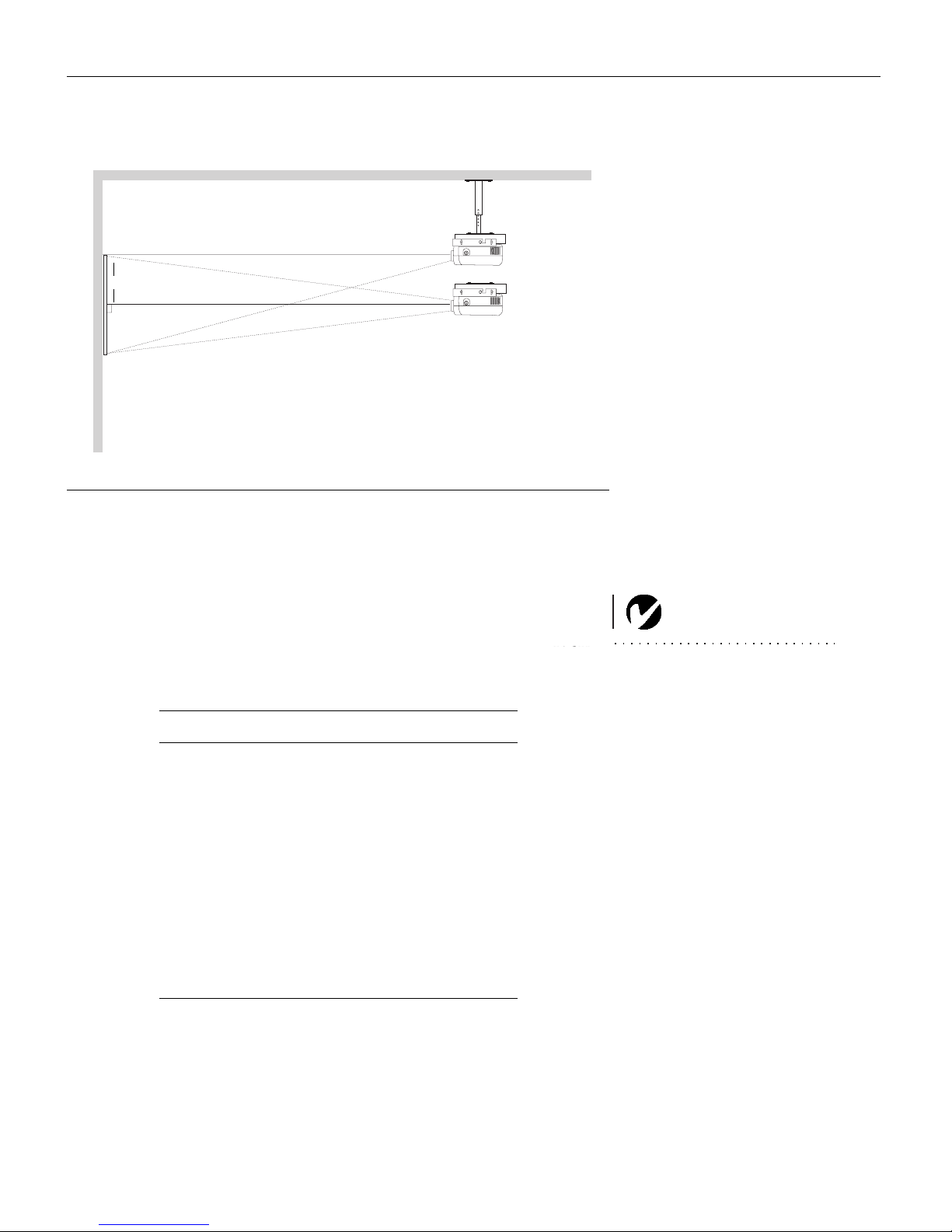

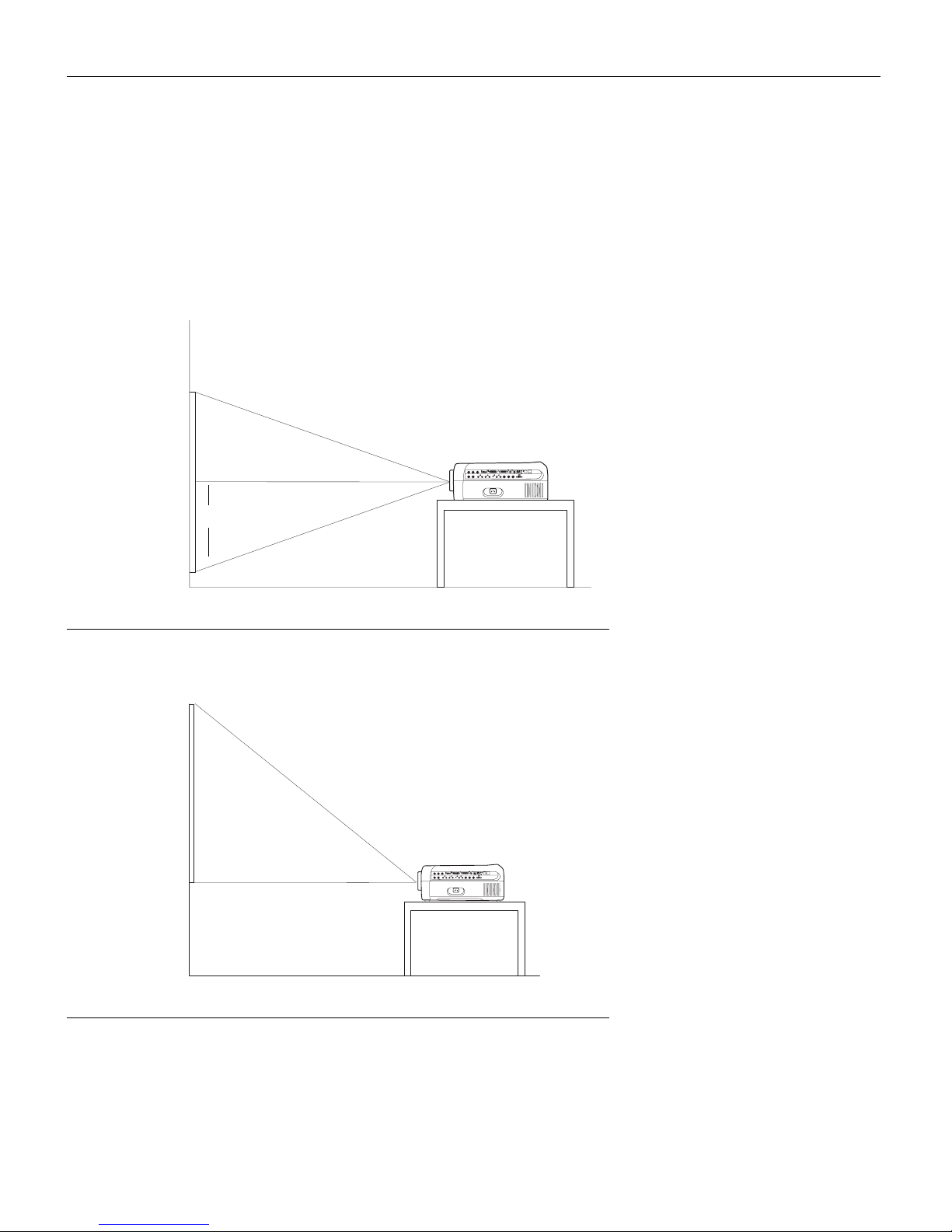

The bottom of the image can move from half way below the pro-
jector’s lens (Figure 5) to parallel with the lens (Figure 6).
Example: With a 10’ image, at the lowest projection angle, the bot-
tom of the image is 5’ below the projector’s lens; at the highest
projection angle, the bottom of the image is parallel with the lens.
FIGURE 5
Lowest image projection angle
FIGURE 6
Highest image projection angle
Once you know the diagonal image size, you can figure out the
width and height using these formulas:
width (inches) = diagonal (inches) x 0.8
height (inches) = width (inches) x 0.75
L L
Inout InIn
L
BNC BNC R RR
A
0
A
0
R
s
R
G
G
B
B
10’high
bottom of image
5’below lens
H
lens center
L L
Inout InIn
L
BNC BNC R RR
A
0
A
0
R
s
R
G
G
B
B
10’high
bottom of image
parallel with lens
lens center

8
Setting up the Projector
The following tables give the lens shift values for desktop and
ceiling-mounted setups for various image sizes. The lower lens
shift position represents the highest the projector can be above
the bottom of the screen; the upper lens shift position represents
the lowest the projector can be below the bottom of the screen.
When the projector is ceiling mounted, use the upper edge of the
screen as the base line.
Ta b l e 2 :
Lens Shift Positions for Desktop Setup
Diagonal
Image Size
(inches)
Distance from lens center to
lower edge of screen (H)
Lower lens
shift position
(inches)
Upper lens
shift position
(inches)
300 90 0
240 72 0
180 54 0
144 43 0
120 36 0
96 29 0
72 22 0
60 18 0
48 14 0
Ta b l e 3 :
Lens Shift Positions for Ceiling-Mounted Setup
Diagonal
Image Size
(inches)
Distance from lens center to
upper edge of screen (H)
Lower lens
shift position
(inches)
Upper lens
shift position
(inches)
300 90 0
240 72 0
180 54 0
144 43 0
120 36 0
96 29 0
72 22 0
60 18 0
48 14 0

9
FIGURE 7
Lens shift with ceiling-mounted projector
3Make sure the projector is unplugged and your computer is
turned off.
Now you’re ready to connect your equipment.
Steps for connecting the different types of equipment are given
on the pages listed below.
high edge of screen
H
lens center
lens center
Equipment you want to connect Page
Computer with VESA cable page 11
USB type B mouse page 11
Computer with BNC cables page 11
Computer with M1-DA cable page 12
RS-232 cable page 12
Video player page 13
External speaker page 15
Remote cable page 15
NOTE: The Cable Hub connec-
tor is used with the optional
Cable Hub, a connection
hub containing mouse, audio,
monitor and computer connec-
tors. It is optimized for ceiling-
mounted installations, and can be
used with a 60' extension cable.
See "Optional Accessories" on
page 50. This input is designated
Computer Cable Hub.

10
Setting up the Projector
FIGURE 8
Connector panel
NOTE: Make sure all equipment
is turned off before connecting
equipment.
The projector has the following audio/video inputs:
LL
Inout In
In
L
HV
RRRCb
R
Y
G
Cr
B
VESA M1-DA CableWizard Video S-Video USB
Wired
Remote
RS232 Serial
Audio 3Audio 1 Audio 2
external
speakers audio
inputs
wired
Computer
RS-232
Computer M1
Component Video
Computer RGBHV
5 BNCs VESA
Analog/Digital remote
USB
S-video
Composite
3 BNCs
Video
Source Video Audio
Computer
RGBHV
3 Single-ended analog RGB
+ 2 H&V sync (5 BNCs)
Left and right line-level
(2 RCAs)
Computer
VESA
VESA Single-ended analog
RGB (HD-15)
Left and right line-level
(2 RCAs)
Computer
M1
M1-DA Single-ended ana-
log or digital
Left and right line-level
(2 RCAs)
Compo-
nent Video
Base-band component video
(BNC)
Left and right line-level
(2 RCAs)
Composite
Video
Base-band composite video
(RCA)
Left and right line-level
(2 RCAs)
S-Video S-video Y/C (4-pin circular) Left and right line-level
(2 RCAs)
Computer
Cable Hub
Computer
Cable Hub
Cable Hub Analog RGB Combined with Cable Hub
